Concrete mixer pump is a multiple functional pump, which is used to mix and convey the concrete mixture by using pressure along the pipeline continuously and it is widely applied in housing building, bridge construction and tunnel construction. And this kind of concrete mixer and pump can achieve the perfect combination between concrete mixing and conveying. It has characteristics of small power, small foot print, easy movement and low cost and it is more suitable for spraying of floor heating, shotcrete engineering and refractory. Compared to large and medium concrete pump, trailer concrete pump, concrete boom pump and truck mounted concrete pump, it is more convenient and is much more suitable for five to 10 floors housing buildings of countryside and urban as well as new rural construction. And the actual vertical pumping height is 80 to 100 meters, horizontal pumping height is 150 to 300 meters. And we AIMIX GROUP have been worked in concrete mixer with pump for years, and our main products are electric type and diesel type. This page aims to introduce these two hot types for you and hope you will have a big harvest and can choose the most proper mixer pump for your construction.

Successful cases

JBS30 electric concrete mixer pump was ready to Russia

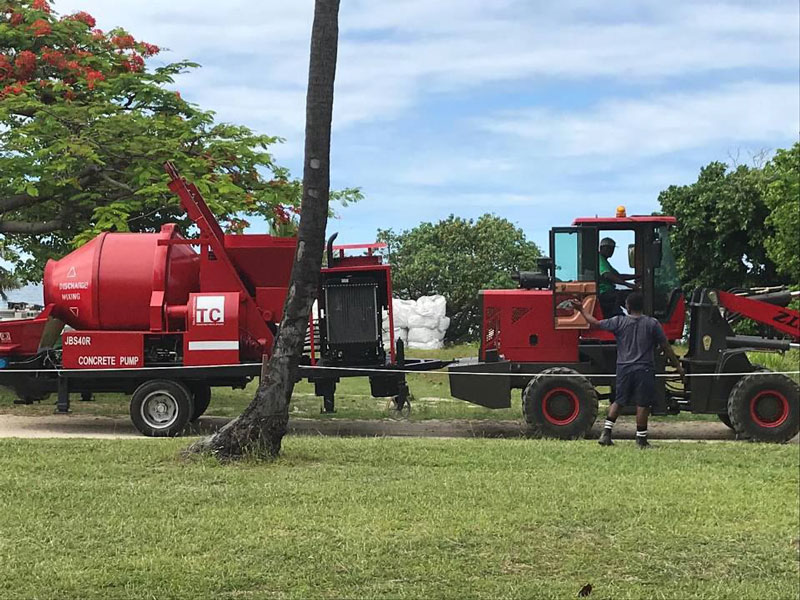

JBS40-10-82R diesel mixer pump was exported to Fiji

JBS40-10-82R diesel mixer pump was exported to Fiji

JBS40-10-82R diesel mixer pump was exported to Somalia

JB40R-JZC350 diesel mixer pump was shipped to Somalia

JBS40-JS750 compulsory concrete mixer pump was sent to Philippine

JBS40-JS750 compulsory mixer pump was sent to Philippine

Diesel type concrete mixer pump

JBS30R-JZC350
JBS30R-JZC350

Model: JB30R-JZC350
Max. Theoretical Conveying Capacity: 30m3/h
Distribution valve type: S Valve
Diesel engine model: Weifang
Max. Theoretical Vertical Conveying Distance: 120m
Max. Theoretical Horizontal Conveying Distance: 600m
Max. Aggregate Diameter: Scree: 20mm

JB40R-JZC350
JB40R-JZC350

Model: JB40R-JZC350
Max. Theoretical Conveying Capacity: 40m3/h
Distribution valve type: S Valve
Diesel engine model: Weichai Duetz
Max. Theoretical Vertical Conveying Distance: 150m
Max. Theoretical Horizontal Conveying Distance: 600m
Max. Aggregate Diameter: Scree: 20-30mm

Electric type concrete mixer and pump

JBS10-JZC200
JBS10-JZC200

Model: JBS10-JZC200
Max. theo. concrete output: 10m3/h
Hopper capacity: 400L
Motor Power: 18.5kw
Max.concrete pumping pressure: 10Mpa
Total weight: 3200kg
Max. Aggregate Diameter: Scree: 20mm

JBS30-JZC350
JBS30-JZC350

Model: JBS30-JZC350
Max. Theoretical Conveying Capacity: 30m3/h
Motor Power: 47.55KW
Max Aggregate Size: 30mm
Max Horizontal Conveying Distance: 500m
Max Vertical Conveying Distance: 120m
Mixer Model: Distribution valve type: S Valve

JBS40-JZC350
JBS40-JZC350

Model: JBS40-JZC350
Max. Theoretical Conveying Capacity: 40m3/h
Distribution valve type: S Valve
Electrical Motor: 45kw
Max. Theoretical Vertical Conveying Distance: 100m
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Aggregate Diameter: Scree: 20-30mm

JB40-JS750
JB40-JS750

Model: JBS40-JS750
Max. Theoretical Conveying Capacity: 40m3/h
Motor Power: 83.6kw
Max Aggregate Size: 40mm
Max Horizontal Conveying Distance: 600m
Max Vertical Conveying Distance: 150m
Mixer Model: JS750

Concrete Mixer Trailer Pump

JBT30
JBT30
HBJ40
HBJ40
JBTS30
JBTS30
JBTS40
JBTS40

Working principle of concrete mixer with pump

There are two steps in the working principle of cement mixer and pump: mix and convey.

Firstly, mix the concrete in the concrete mixer and after the mixing process, pump the concrete mixture to the construction site through the pipeline. Here will be a detailed introduction about the pumping process. Concrete piston connected with main oil cylinder piston rod does reciprocating motion when pump the concrete mixture, under the effect of hydraulic oil of main oil cylinder. When the piston goes forward, the other piston will retreat. And under the effect of swing oil cylinder, S distributing valve is connected with concrete and concrete cylinder is connected with hopper. In this way, when the piston retreats, the concrete will be inhaled into the concrete cylinder; when the piston goes forward, the concrete mixture will be delivered to the S distributing valve and be pumped to the construction site and achieve continuous delivering.

In addition, there is a reverse state. And by the reverse pump operation, connect the concrete cylinder that stays in the inhaling process with S distributing valve, and connect the concrete cylinder that stays in pushing process with hopper and withdraw the concrete of the pipeline to the hopper. The pumping system uses S distributing valve to complete the suction and discharge of the concrete. Therefore, S distributing valve is the key part of the concrete pump, and it will have a direct effect on the performance of the concrete pump.

Specifications:

Items Units Parameters
JZB200-10
Whole performance of machine Max. theo. concrete output m3/h 10
Max.concrete pumping pressure MPa 10
Distribution valve type
Concrete cylinder diameter×stroke mm Ф140×1000
Hopper capacity L 400
Outlet diameter mm Ф100
Power system Main motor    kw
18.5
Vice motor kw 11
Kw 3
Water pump motor powe kw 0.55
Rotate speed r/min 1480
Feeding capacity L 0.25
Discharging capacity L 0.2
Hydraulic system Circuit type Open circuit
Pumping system pressure MPa 28
Mixing system pressure MPa
Capacity of oil tank L 370
The biggest transportation is away from vertically (/Level) m 100/300
Other parameters Max. aggregate diameter mm Diameter: 20
Inside diameter of delivering pipe mm Ф80
Dimensions:length×width×height mm 4200x2300x3150
Total weight kg 3200
Items Unit JBS30-JZC350 JBS40-JZC350 JBS40-JS500 JBS40-JS750
Max Theoretical Conveying Capacity m3/h 30 40 40 40
Max Exit Pressure Mpa 10 11 11 11
Concrete Cylinder bore * stroke mm Ф140×1000 Φ160×1200 Φ160×1200 Φ160×1200
Hydraulic Oil Tank Volume L 370 370 370 370
Exit Diameter mm Ф100 Φ150 Φ150 Φ150
Conveying Pipe Inner Diameter mm Ф100 Φ125/150 Φ125/150 Φ125/150
Motor Power KW 47.55 55.75 70.1 83.6
Max Aggregate Size mm 30 40 40 40
Max Horizontal Conveying Distance M 500 600 600 600
Max Vertical Conveying Distance M 120 150 150 150
Mixer Model JZC350 JZC350 JS500 JS750
Input Volume L 560 560 750 1200
Output Volume L 350 350 500 750
Mixer productivity M3/h 12-15 12-15 25 35
Drum Diameter Mm 1440 1440
Drum Rotary Speed (without load) rpm 18 18
Outline Dimension (L*W*H) mm 4200x2300x2600 4200x2300x2600 5100*2250*2860 5200*2250*3110
Weight Kg 4200 4500 5500 6500

Features and advantages

1. Use double pumps, two-circuits open hydraulic system, oil circuit of the master pump and swing oil circuit of S distributing valve are independent, which makes the system easy, prolongs the lifespan of elements, the reliability is higher than before and is convenient to judge and exclude the fault;

2. Reverse state is beneficial to eliminate fault of tube plugging and can stop functioning and wait for the materials for a short time;

3. Use advanced S distributing valve, can automatically make up for wearing clearance and the seal performance is good;

4. Use wear-resistant alloy glasses board and float glass cutting, life service is long;

5. Automatic and intensive lubrication system ensures effective lubrication during the operation;

6. Remote control makes the operation safer and more convenient;

7. All the spare parts meet the national standard, interchangeability is much better;

8. Cooling system uses forced air cooling radiator deviceto ensure the working oil temperature under the 70 centigrade and guarantee the main engine hydraulic system is in normal working condition.

Other types concrete pump

Welcome to contact us and get more about concrete pump mixer, also we have small concrete pump, mini concrete pump, mobile concrete pump, hydraulic concrete pump, cement mortar pump, etc, as long as you send us an inquiry and we will give you a reply within 24 hours.

HBT50 Mobile Concrete Pump
HBT50 Mobile Concrete Pump
Hydraulic Concrete Pump
HBTS50 Hydraulic Concrete Pump
HPS10 Cement Mortar Pump
HPS10 Cement Mortar Pump

Specifications:

Item Unit HBT0804-JZC200 JB30R-JZC350 JB40R-JZC350
Rated Output m3/h 8 30 40
Max. Pressure On Concrete Mpa 4 10 10
Delivery Cylinder mm 140×180 Ф140×1100 180×800
Main Oil Cylinder Bore/Rod Diameter X mm Ф95/60×800 Ф80/55×1200 Ф100/70×1000
Oil Tank Capacity L 100 250 350
Outlet Opening Diameter mm Ф100 Ф100 Ф125
Inner Dia. of Delivery Pipe mm Ф80/100 Ф100 Ф125
Diesel Model CY1115*2(YANMAR) WEIFANG4100 DEUTZ
Diesel Power KW 29.4 62 82
Max. Diameter Of Aggregates mm 20 30 40
Maximum Delivery Horizontal Distance M 100 600 700
Maximum Delivery Vertical Distance M 30 120 150
Mixer Type JZC200 JZC350 JZC350
Capacity of Charge L 200 560 560
Capacity of Discharge L 300 350 350
Water Pump Motor Control Electromagnetic Electromagnetic Electromagnetic
Diameter of Drum mm 1000 1440 1440
Mixing Time s 45-60 45-60 45-60
Length×Width×Height mm 4120×2100×2600 5500×2300×2700 6000×2300×3150
Weight Kg 3000 5000 5200
Please feel free to give your inquiry in the form below. We will reply in 24 hours.
