Asphalt mixing plant plays an indispensable role in road construction. There are various types of asphalt plants in the following according to the different working methods and functional characteristics.
- ALQ Series Stationary Asphalt Batching Plant
- ALYQ Series Mobile Asphalt Batch Plant
- ALT Series Asphalt Drum Mix Plant
- ALYJ Series Simple Mobile Asphalt Mixing Plant
- AYLZ Series Continuous Overall Mobile Asphalt Batching Plant
In this article, we will discover more about the different kinds of asphalt plants and their characteristics to help you better understand how to choose the types of asphalt mixing plants.

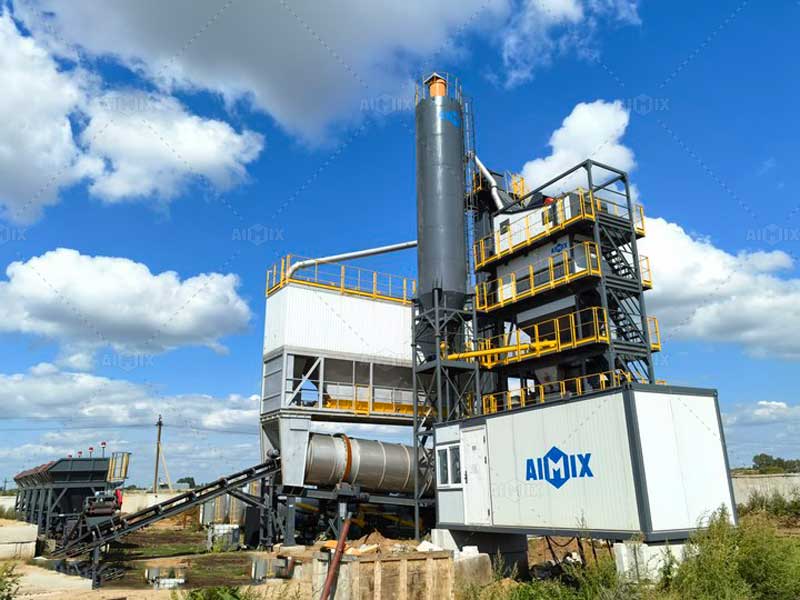

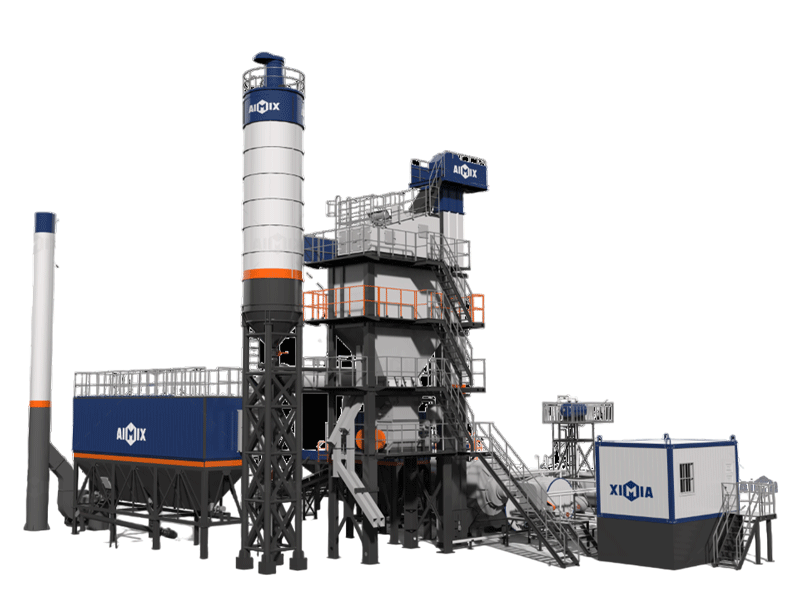

ALQ Series Stationary Asphalt Batch Plant
ALQ series stationary asphalt mixing plant is efficient and stable, with superior features for asphalt production. It adopts advanced production processes and technology to ensure the quality and efficiency of asphalt mixture production. Of course, it’s ideal for long-term projects like motorways and city trunk roads where asphalt paving is continuous on-site.
Main Features Of ALQ Series Stationary Asphalt Batching Plant
- Stable production capacity: The asphalt plant uses high-quality materials and precise technology for stable production and meeting large project needs.
- Efficient production efficiency: The equipment has advanced mixing and control systems for automatic production, boosting efficiency, and reducing labor.
- Reliable operation stability: The asphalt mixing machine uses premium components for durability and reliability, ensuring long-term stable operation.
- Intelligent control system: The equipment’s intelligent control system monitors and regulates asphalt production precisely, ensuring quality and stability.
Specifications of ALQ Series Stationary Asphalt Batch Plant
| Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 40 t/h | 60 t/h | 80 t/h | 100 t/h | 120 t/h | 160 t/h | 200 t/h | 240 t/h | 320 t/h |
| Cold Aggregate Hoppers | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 4×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
| Dryer Size | φ1.2m×5.2m | φ1.5m×6m | φ1.5m×6.7m | φ1.65m×7m | φ1.8m×8m | φ2.2m×9m | φ2.6m×9m | φ2.6m×9.5m | φ2.8m×10.2m |
| Fuel consumption | 70-300kg / h | 100-400kg / h | 120-600kg / h | 150-1000kg / h | 150-1000kg / h | 150-1400kg / h | 180-1800kg / h | 180-1800kg / h | 260-2500kg / h |
| Vibrating Screen (Layer) | 4 layers | 4 layers | 4 layers | 4 layers | 4 layers | 5 layers | 5 layers | 5 layers | 6 layers |
| Mixer Capacity | 500kg | 800kg | 1000kg | 1250kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Cycle Time | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
| Filter Area | 230m² | 300m² | 420m² | 480m² | 550m² | 650m² | 700m² | 1050m² | 1350m² |
| Asphalt Temperature | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Total Power | 170kw | 200kw | 300kw | 350kw | 380kw | 490kw | 550kw | 670kw | 865kw |
ALQ series strong mix stationary asphalt plant has excellent performance and reliable quality, which are well received by customers. Moreover, they meet engineering needs, boost construction efficiency, cut costs, and excel in road construction. Feel free to contact us for any needs or questions about the ALQ series stationary asphalt mixing plant or other types of asphalt plant for sale.

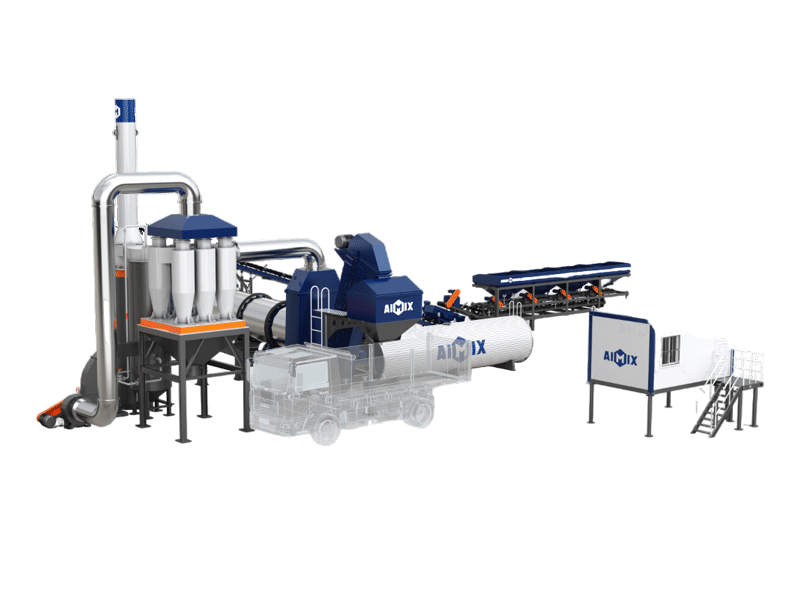

ALT Series Continuous Asphalt Drum Mix Plant
The ALT series of continuous asphalt drum plants is a highly efficient, continuous asphalt mix production plant with unique advantages and features. Besides, the plant utilizes advanced methods and technologies for the continuous production of asphalt mixtures in long-term, large-scale construction projects.
Main Features Of The ALT Series Continuous Drum Mix Asphalt Plant
- Strong continuous production capacity: The asphalt dry drum’s barrel mixing design enables continuous asphalt mixture production with high capacity, ideal for large projects.
- High efficiency and energy saving: It uses heat recovery tech to maximize thermal energy, cut energy use, boost production efficiency, and save energy.
- Stable and reliable: The machinery, made of high-quality materials and parts, offers durability, stability, and long-term operational reliability.
- Intelligent control: The drum plant has an intelligent control system for precise monitoring, ensuring the quality and stability of asphalt mixture production.
Specifications of ALT Series Continuous Asphalt Drum Mix Plant
| Courts Models | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 |
|---|---|---|---|---|---|
| Capacity | 20 t/h | 45 t/h | 60 t/h | 80 t/h | 100 t/h |
| The ability to | 40kw | 75kw | 120kw | 165kw | 200kw |
| Cold Aggregate Hoppers | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 |
| Finished Product Hopper | 3t | 3t | 7t | 7t | 9t |
| Asphalt Temperature | 120-180 ℃ | ||||
| Fuel consumption | 13-15kg/t | ||||
| Asphalt Tank | 10 t | 20 t | 30 t | 30 t | 35 t |
| Control room | 2.2m | 2.2m | 3m | 3m | 3.5m |
| Option | Bag dust filter | ||||
Therefore, you can learn about such an asphalt drum mixing plant easily. All in all, the ALT series asphalt drum mix plant can not only meet the needs of engineering construction but also improve construction efficiency, and reduce construction costs, is the ideal choice in the field of road construction. Next, let’s explore the ALYJ series asphalt batch plant together!

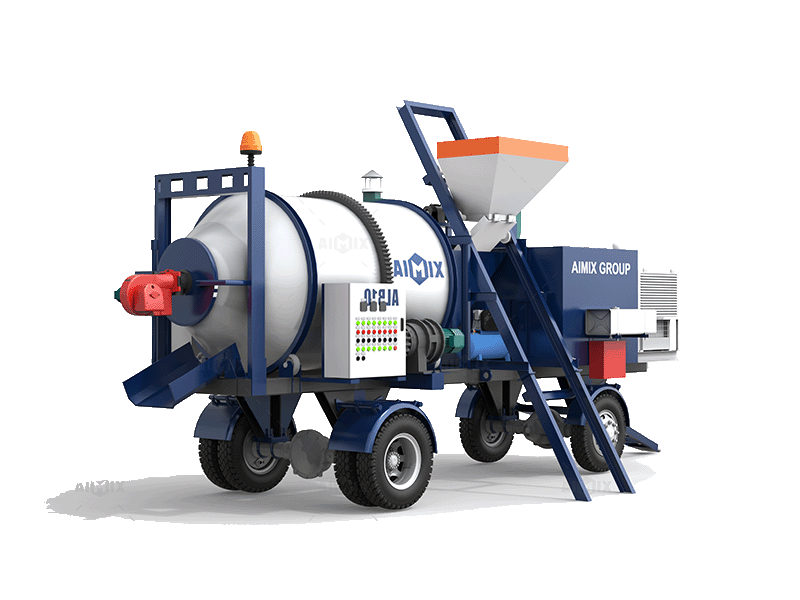

ALYJ Series Simple Type Mobile Asphalt Mixing Plant
ALYJ series simple mobile asphalt mix plant is a portable and easy-to-operate asphalt mixing production plant with flexibility and high efficiency. Suitable for small projects or temporary sites, their portable design and easy operation make them ideal for construction sites. Let’s see its features together!
Key Features Of The ALYJ Series Simple Intermittent Mobile Asphalt Batch Plant
- Portable design: The wheeled mobile equipment is easy to move and install at construction sites, ideal for temporary projects.
- Simple operation: The machine features a user-friendly design and interface, making it easy to operate without extensive training.
- Efficient production: It has an efficient mixing and control system that speeds up asphalt production and boosts construction efficiency.
- Wide range of applications: Furthermore, the plant is suitable for producing different asphalt mixtures to meet project scales and requirements.
Specifications of ALYJ Series Simple Intermittent Mobile Asphalt Plant
| Model | ALYJ10 | ALYJ15 | ALYJ20 | ALYJ30 | ALYJ40 | ALYJ60 | ALYJ80 | |
|---|---|---|---|---|---|---|---|---|
| Capacity | 10 t/h | 15 t/h | 20 t/h | 30 t/h | 40 t/h | 60 t/h | 80 t/h | |
| The ability to | Petrol | 48kw | 59kw | 68kw | 106kw | 132kw | 146kw | 186kw |
| Burning coal | 67kw | 78kw | 91kw | 129kw | 170kw | 192kw | 262kw | |
| Cold Aggregate Hoppers | 3m³×3 | 3m³×3 | 3m³×3 | 5m³×3 | 5m³×3 | 5m³×3 | 5m³×4 | |
| Finished Product Hopper | 2t | 5t | 5t | 9t | 9t | 9t | 20 t | |
| Asphalt Temperature | 120-180 ℃ | |||||||
| Fuel consumption | Petrol | 5-7.5kg/t | ||||||
| Burning coal | 13-15kg/t | |||||||
| Option | Water dust filter, Bag dust filter, Control room, Asphalt heat tank, Mineral flour tank | |||||||
In conclusion, the ALYJ series simple portable asphalt mixing plant is not only easy to operate but also has high production efficiency. It is suitable for small road repair, municipal engineering, and other projects, and is also the ideal choice for all kinds of engineering construction. For inquiries about ALYJ series asphalt equipment or other types of the asphalt mixing plant, contact us for professional solutions and quality service.

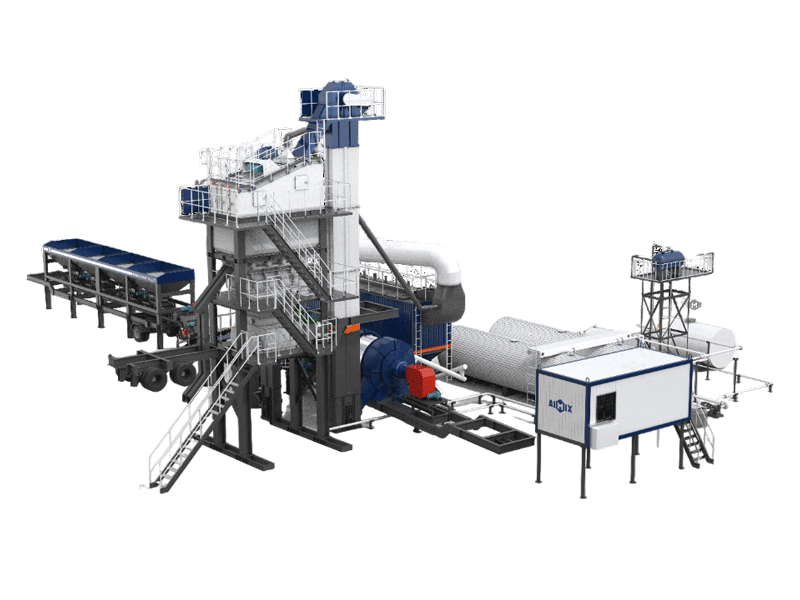

ALYQ Series Mobile Asphalt Batching Plants
ALYQ series intermittent mobile asphalt batching plant is a kind of flexible and efficient mobile asphalt mixture production equipment. It is mainly suitable for the occasions that need to frequently change the construction site or temporary project. It’s characterized by strong portability and easy operation. Besides, the plant can meet different construction needs and ensure the quality and stability of the asphalt mixture.
Main Features Of ALYQ Series Intermittent Mobile Asphalt Batch Plant
- Portable design: The wheeled mobile machine is especially easily movable and installable at construction sites, ideal for projects with changing locations.
- Flexibility: The asphalt plant is easily operated, starting and stopping quickly to match varying construction needs and work conditions.
- Efficient production: The asphalt equipment has an extremely efficient mixing and control system for fast asphalt production, enhancing construction efficiency.
- Stable quality: The machine can also use high-quality materials and components for durability and stability, ensuring asphalt mixture quality.
Specifications of ALYQ Series Intermittent Mobile Asphalt Plant
| Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 | |
|---|---|---|---|---|---|---|
| Capacity | t / h | 60 | 80 | 100 | 120 | 160 |
| Mixer capacity | kg | 800 | 1200 | 1300 | 1700 | 2200 |
| Mixing cycle | s | 45 | 45 | 45 | 45 | 45 |
| Total power | Gasoline(kW) | 54 | 63.5 | 104.5 | 125 | 157.5 |
| Coal(kW) | 75 | 86.5 | 127.5 | 169 | 205 | |
| filter area | m2 | 370 | 420 | 480 | 510 | 620 |
In summary, the ALYQ series discontinuous strong mix portable asphalt plant is suitable for all kinds of temporary construction projects, such as road repair, urban greening, etc. It is an indispensable and important asphalt mixing equipment in modern road construction.
Therefore, please feel free to reach out with any inquiries about the ALYQ series asphalt plant mobile or other asphalt plant models. We are here to offer professional solutions and high-quality service.

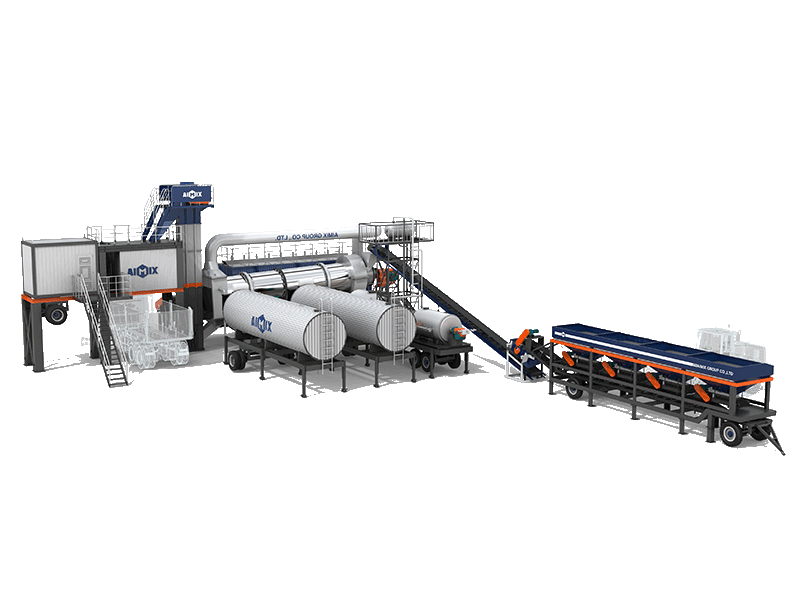

AYLZ Series Continuous Integrated Mobile Asphalt Machine
AYLZ series plant is a kind of highly efficient asphalt mixing plant that combines mobility and continuous production. These asphalt plants have a portable design and are ideal for projects needing fast movement and continuous asphalt mixture production.
Main Features Of The AYLZ Series Of Continuous Mobile Asphalt Batch Plant
- Strong mobility: The equipment has a container-type mobile design for easy setup and removal, ideal for temporary construction sites.
- Continuous production: The machine uses a continuous production process to constantly make asphalt mixture and boost production efficiency.
- High efficiency and energy saving: High-efficiency heat recovery and combustion systems especially maximize thermal energy use, reducing consumption.
- Intelligent control: The asphalt equipment also features a smart control system for precise monitoring, guaranteeing high-quality asphalt mixtures.
Specifications of AYLZ Series Continuous Integrated Mobile Asphalt Batching plant machine
| Model | AYLZ100 | AYLZ120 |
|---|---|---|
| Yield(under standard working conditions) | 80-100t/h | 100-120t/h |
| composition structure | Ingredient drying, dust removal and mixing mobile unit | Ingredient drying, dust removal and mixing mobile unit |
| Asphalt and fuel supply mobile units | Asphalt and fuel supply mobile units | |
| Powder supply system mobile unit(optional) | Powder supply system mobile unit(optional) | |
| Measuring accuracy | Aggregate±2% | Aggregate±2% |
| Powder ±1% | Powder ±1% | |
| Asphalt ±1.5% | Asphalt ±1.5% | |
| Dust emission concentration | ≤50mg/Nm3 | ≤50mg/Nm3 |
| Hot aggregate discharge temperature stability | ±5℃ | ±5℃ |
| Discharge temperature stability of finished product | ±3℃ | ±3℃ |
| Equipment operation reliability | ≥95% | ≥95% |
| Operation method | Fully automatic control (manual control) | Fully automatic control (manual control) |
| Dimensions | Maximum reference: length 26.7mx width 3.43mx height 4.5m | Maximum reference: length 26.7mx width 3.43mx height 4.5m |
| Total installed power | Maximum 180kw | Maximum 230kw |
| Overall machine quality | About 70t | About 75t |
| Ingredients bin volume | 3x8m³ | 3x8m³ |
| Drying drum | φ1.7m (diameter) ×7m (length) | φ1.8m (diameter) ×7m (length) |
| Bag filter | 320㎡ | 400㎡ |
| Continuous mixing host | Motor 2x22Kw | Motor 2x30Kw |
| Asphalt tank | Direct heating 30m³+5m³ diesel tank | Direct heating 30m³+5m³ diesel tank |
| New powder supply system | Horizontal (or vertical) powder tank 30m³/50m³ (optional) | Horizontal (or vertical) powder tank 30m³/50m³ (optional) |
In conclusion, the AYLZ series mobile asphalt mixing machine is ideal for temporary construction projects like emergency road maintenance in remote areas. It has important application value. Therefore, feel free to reach out to us with any inquiries about our AYLZ series new asphalt plant. We are here to offer professional solutions and quality service.
How To Choose The Right Asphalt Batching Plant?
Project Size and Duration
Asphalt mixing plants vary in models, specifications, production capacity, equipment configuration, and features, impacting prices.
Construction Site And Conditions
Consider environmental conditions and space limitations when choosing an asphalt mixing plant amp. A stationary asphalt batch plant suits larger sites, while a mobile or simple plant is better for limited or changing spaces.
Budget And Investment Costs
Another factor to consider is your budget and investment cost. Various asphalt batch mix plants vary in price. Choose the most cost-effective one based on your project budget. Stationary asphalt plants are pricier but have lower long-term costs. Of course, Mobile or simple asphalt batch plants are cheaper and ideal for projects with limited initial investment.
Technical Requirements And Performance Indicators
Finally, it’s important to consider the project’s technical requirements and performance indicators for asphalt mixture quality and production efficiency. Select equipment matching project requirements as asphalt plants can vary in technology and performance features.
All in all, considering the above factors, you can more accurately choose the amp asphalt mixing plant that suits your project needs. If you have questions or require more assistance, please contact us anytime for help. Visit YouTube for more information about the batch mix asphalt plant.
AIMIX – Professional Asphalt Batching Plant Manufacturer
As a professional asphalt plant manufacturer, AIMIX offers high-quality different types of Asphalt batch mix plants for road and engineering construction. Of course, our range includes stationary and mobile asphalt plants for various construction needs.
The Advantages Of AIMIX Asphalt Mixer Plant
- Professional technical team: Our technical team has extensive experience in design and manufacturing, offering customized solutions for customers.
- High-quality equipment: Furthermore, AIMIX can ensure equipment quality and performance meet international standards with top materials and advanced manufacturing.
- Perfect after-sales service: Of course, we offer comprehensive after-sales services such as equipment installation, training, and maintenance to ensure customer satisfaction.
- Competitive price: Besides, our products are reasonably priced and have good cost performance, which can meet different customers’ budgets and needs.
In conclusion, AIMIX offers solutions for both stationary and mobile asphalt mixing plant equipment, catering to projects of any size. Now that you know what are the types of asphalt plants, then you can choose them at right. For inquiries or assistance regarding our products and services, feel free to contact us for professional support. Choose AIMIX, the professional and reliable asphalt plant supplier. Therefore, let us work together to choose types of asphalt plants and create a better future!
