Ball Mill For Sale

Ball mill for sale is a crucial piece of equipment for further grinding of materials that have been crushed. This type of grinding machine involves loading a certain amount of steel balls as grinding media inside its cylindrical body.

ball mill for you

Basic knowledge of ball mill machine

Production capacity: 0.65-615 tons/hour
Application: Used in various industries, such as cement, new building materials, refractory materials, silicate products, fertilizers, black and non-ferrous metal beneficiation, and glass ceramics, for dry or wet grinding of various ores and other grindable materials.
Applicable materials: Quartz, marble, ceramic raw materials, slag, cement, gangue, gold ore, etc.

ball mill small
small ball mill

Next, let’s take a look at the classification of mill balls for sale to see which one is best for your project.

What are the types of ball mills

According to the structure, production mode, production materials, and fineness, the types of ball mills produced by AIMIX include cement type, mining type, limestone type, ultra-fine type, rod mill type, slag type, high-energy type, vertical type, dry type, overflow type, grid type, rotary type, etc.

If you are interested in this, please contact us as soon as possible! We will provide you with more than 2 solutions for you to choose from.

Parameters of ball mills

ModelRotate speed (r/min)Grinding media Weight (T)Feed size (mm)Discharge size (mm)Capacity (t/h)Motor power (KW)Weight (T)
Φ900×1800361.5≦200.075-0.890.65-218.55.5
Φ900×3000382.7≦200.075-0.891.1-3.5226.7
Φ1200×2400363≦250.075-0.61.5-4.83012
Φ1200×3000363.5≦250.074-0.41.6-53712.8
Φ1200×4500365≦250.074-0.411.6-5.85513.8
Φ1500×300032.47.5≦250.074-0.42-57516.8
Φ1500×450029.711≦250.074-0.43-611021
Φ1500×57002712≦250.074-0.43.5-613025.8
Φ1830×300025.411≦250.074-0.44-1013029
Φ1830×450025.415≦250.074-0.44.5-1215535.5
Φ1830×640024.121≦250.074-0.46.5-1521043
Φ1830×700024.123≦250.074-0.47.5-1724543.8
Φ2100×300023.715≦250.074-0.46.5-3615534.8
Φ2100×450023.724≦250.074-0.48-4324542
Φ2100×700023.726≦250.074-0.48-4828056.6
Φ2200×450021.527≦250.074-0.49-4528051.8
Φ2200×650021.735≦250.074-0.414-2638060
Φ2200×700021.735≦250.074-0.415-2838062
Φ2200×750021.735≦250.074-0.415-3038064.8
Φ2400×30002123≦250.074-0.47-5024558
Φ2400×45002130≦250.074-0.48.5-6032069
Φ2700×400020.740≦250.074-0.412-8038094
Φ2700×450020.748≦250.074-0.412-90480102
Φ3200×45001865≦250.074-0.425-120630137
Φ3600×45001790≦250.074-0.425-140850158
Φ3600×600017110≦250.074-0.425-1601250175
Φ3600×850018131≦250.074-0.445.8-2561800252
Φ4000×500016.9121≦250.074-0.445-2081500203
Φ4000×600016.9146≦250.074-0.465-2481600218
Φ4000×670016.9149≦250.074-0.445-2521800238
Φ4500×640015.6172≦250.074-0.454-3062000280
Φ5030×640014.4216≦250.074-0.468-3862500320

Why choose AIMIX ball mills?

There are many ball mill machine manufacturers selling ball mills worldwide, and you can find many results by searching on Google. However, AIMIX is a customer-centered ball mill company that fully considers customers’ projects, plans, and even their return on investment. Here are some advantages of our ball mills:

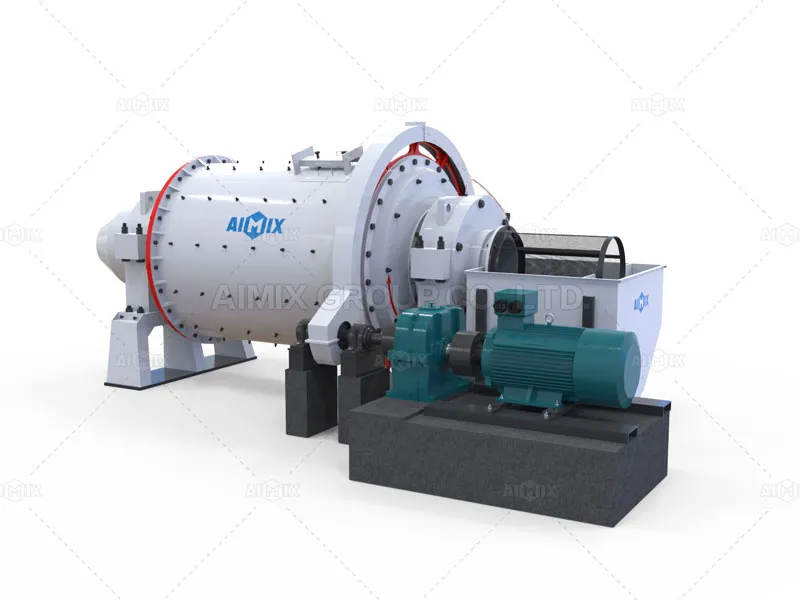

ball mill machine for sale
ball mill for your project
new ball mill

Stable operation and reliable performance

Our ball mill machine for sale is mainly made of high-quality steel, and the material selection for the large gears includes various types of steel such as medium carbon structural steel, medium carbon alloy structural steel, carburized steel, and nitrided steel, which are determined based on the working conditions of the large gears.

Long service life

The cylinder is lined with a wear-resistant liner, which has good wear resistance and low consumption and can extend the service life of the equipment.

Low energy consumption and low friction

The main bearing adopts a large-diameter double-row self-aligning stick shaft bearing, which replaces the original sliding bearing, reduces friction, reduces energy consumption, and makes the mill easy to start.

High processing capacity

The end cap structure of the conventional ball mill grinding machine is retained, and there are large-diameter feed and discharge ports.

Simple structure, easy to install and transport

The feeder is divided into two types: combined feeder and drum feeder.

Improved work efficiency

There is no inertia impact, and the equipment operates smoothly, reducing the downtime and maintenance time of the ball mill grinder for sale.

ball mills

What parts does a ball mill consist of?

Ball mill parts include large gear, small gear, hollow shaft, gear ring, large gear ring, steel ball, bulkhead, machine drive, bearing, end lining, and so on. Let’s learn more about the following important steel balls.

Steel balls for ball mill

The main role of steel balls for ball mills is to impact and crush the material, and also play a certain grinding role. Whether the crushing effect is good or bad directly affects the grinding efficiency and eventually affects the output of the ball mill machine.

grinding ball

In addition to the size of the ball mill, the internal structure of the ball mill, the product fineness requirements, other factors, and the characteristics of the material to be ground (ease of grinding, particle size, etc.) should also be considered in determining these parameters.

Why do the steel balls produced by AIMIX receive high praise from our customers?

Because AIMIX steel balls can make the material get crushed effectively.

  • 1. The impact force is large enough to make the steel balls have enough energy to crush the granular materials, which is directly related to the maximum ball diameter of the steel balls.
  • 2. Steel balls have enough impact times on the material, which is related to the filling rate and average ball diameter. When the filling amount is certain, under the premise of ensuring sufficient impact force, minimize the diameter of the grinding body, and increase the number of steel balls to improve the number of impacts on the material, in order to improve the crushing efficiency.
  • 3. There is a certain ability to control the flow rate of materials. Materials in the ball mill for sale have enough residence time to ensure that the material is fully crushed.

specifications of steel grinding ball

How does a ball mill work?

The working process of a ball mill involves the following steps:

Loading the material

The material to be ground is loaded into the cylinder of the ball mill. This can be done through the feed port or the discharge port of the ball mill crusher for sale.

Grinding

Once the material is loaded, the cylinder begins to rotate. As the cylinder rotates, the grinding media (usually steel balls) inside the cylinder are lifted to a certain height and then dropped back down onto the material, grinding it into a fine powder.

Discharge

The ground material is discharged from the ball mill grinder through the discharge port. The discharged material may be further processed, such as through a classifier, to separate fine particles from larger ones.

Replenishing the grinding media

As the grinding media wear down over time, they need to be replenished. This is typically done by adding more grinding media to the ball mill.

Overall, the working process of a ball mill is a continuous process, with the material being ground and discharged in a cycle. The efficiency of the ball mill can be optimized by adjusting factors such as the grinding media size and shape, the rotation speed of the cylinder, and the feed rate of the material being ground. Show you a video learn more about this equipment.

Examples of ball mill applications

The use of ball mills is very wide, the following list gives you several common uses.
Mineral processing: used in the production of various types of minerals such as ball mills for gold mining, cement grinding, ceramics, and metal ores. Click for the cement ball mill price here.

For example:

The mined ore is firstly crushed by the jaw crusher, and after crushing to reasonable fineness, it is evenly sent to the ball mill through the elevator and feeder, and the ball mill crushes and grinds the ore. The ore fines developed by the ball mill enter the next process: classification. The spiral classifier classifies the ore mixture by the principle that the specific gravity of solid particles is different and the speed in the liquid is often different.

  • Ball mill for pharmaceuticals: to produce finely ground powders for use in various medications.
  • Paints and coatings: to grind and blend pigments, fillers, and other materials.
  • Ceramics: used in the ceramics ball mill machine to grind materials into a fine powder, which is then used to create various types of ceramic products.
  • Construction materials: industrial ball mill for sale is to grind materials into a fine powder for use in various construction applications, such as concrete and asphalt.

AIMIX ball mill was exported to Indonesia

  • Project: grinding of construction materials
  • Model: Φ2200×4500
  • Discharge size: 0.074-0.4mm
  • Capacity: 9-45
  • Power: 280
  • Weight: 51.8

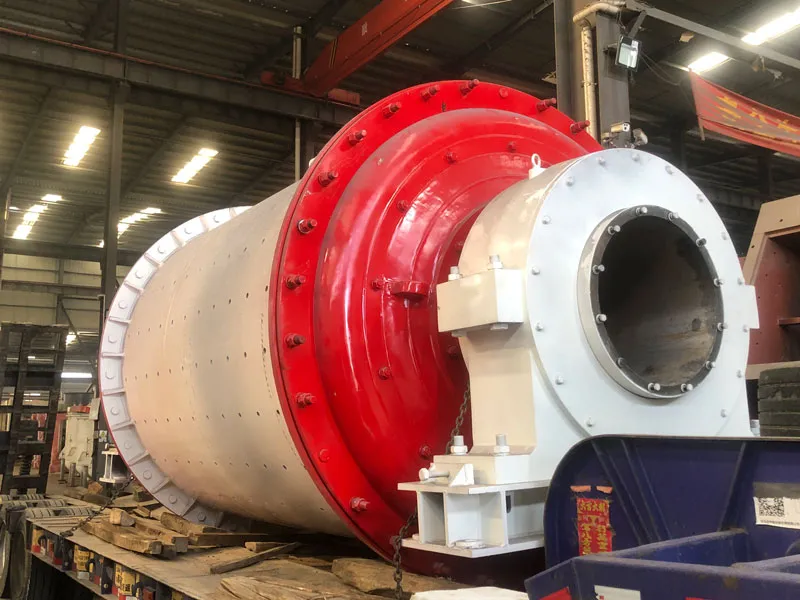

ball mill aimix

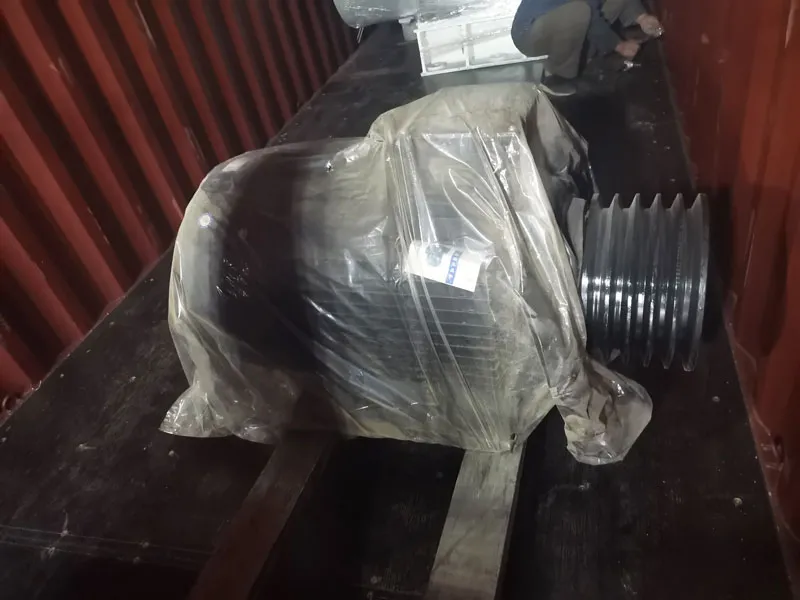

delivery of ball mill
structure of ball mill
transportation of ball mill

Ball mill and jaw crusher was exported to Ecuador

Delivery list: Jaw crusher + ball mill + filter cloth + slurry pump

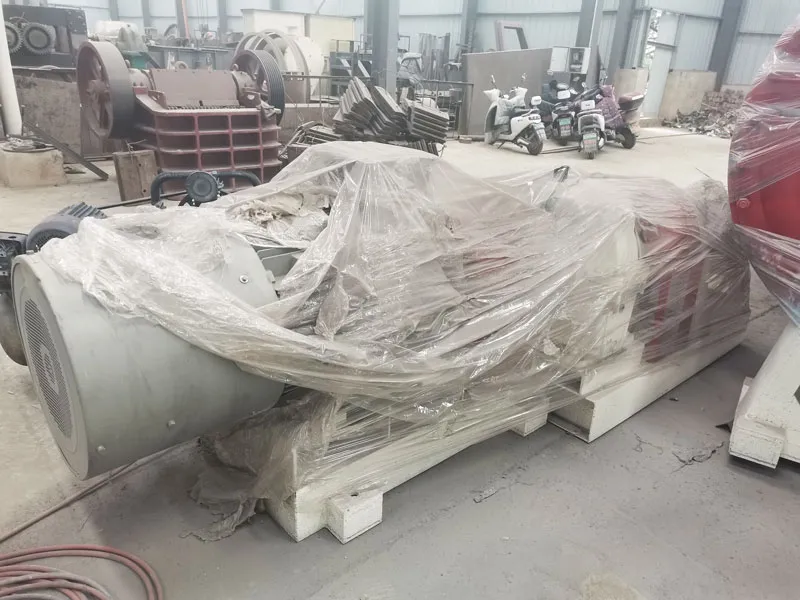

ball mill was exported to Ecuador
ball mill to Ecuador
ball mill delivery

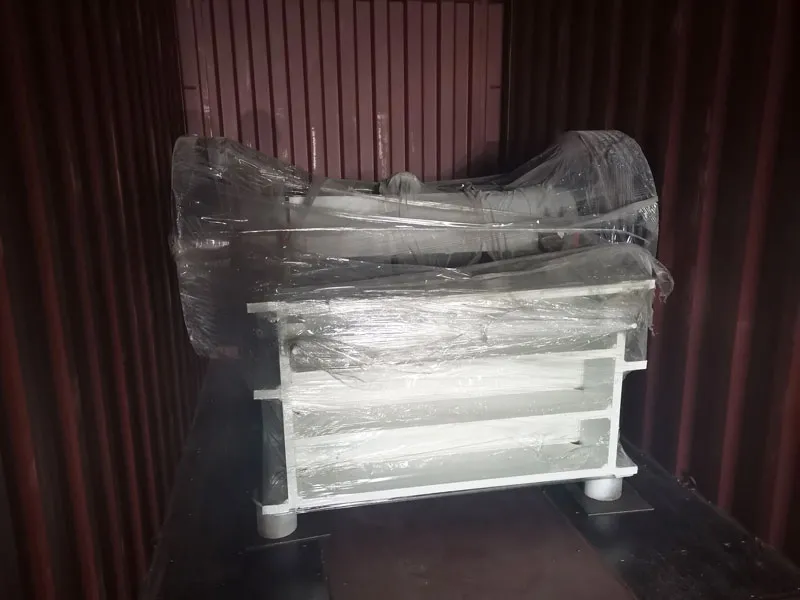

jaw type crusher and ball mill to Ecuador

To give an example of a ball mill used in aerated concrete equipment: fly ash (or sand, stone powder) is sent to the ball mill for sale by an electromagnetic vibrating feeder and tape conveyor, and the finely ground fly ash (or sand, stone powder) is sent to slurry tank for storage by fly ash pump respectively. Lime is sent to the jaw crusher for crushing through an electromagnetic vibrating feeder and tape conveyor, and the crushed lime is sent to the lime storage bin through a bucket elevator, then sent to the ball mill through a screw conveyor, and the finely ground material is sent to powder batching bin through screw conveyor and bucket elevator.

Overall, the ball mill is a versatile tool that can be used in a variety of industries to produce finely ground powders and other materials. Its ability to grind materials into fine powders makes it a valuable tool in many industries.

Factors to consider when purchasing ball mills

When looking to purchase a ball mill, there are several factors to consider, including:

  • Capacity: The capacity of the ball mill is an important factor to consider, as it will determine how much material can be processed at a time.
  • Speed: The speed of the ball mill is another factor to consider, as it will affect the grinding process and the fineness of the final product.
  • Power: The power of the motor that drives the ball mill crusher is another important factor to consider, as it will determine how efficiently the machine can grind the material.
  • Materials: The materials used to make the ball mill are also important, as they will affect the durability and longevity of the machine.
  • Price: Of course, ball mill machine price is also a factor to consider, and it’s important to find a ball mill that fits within your budget.

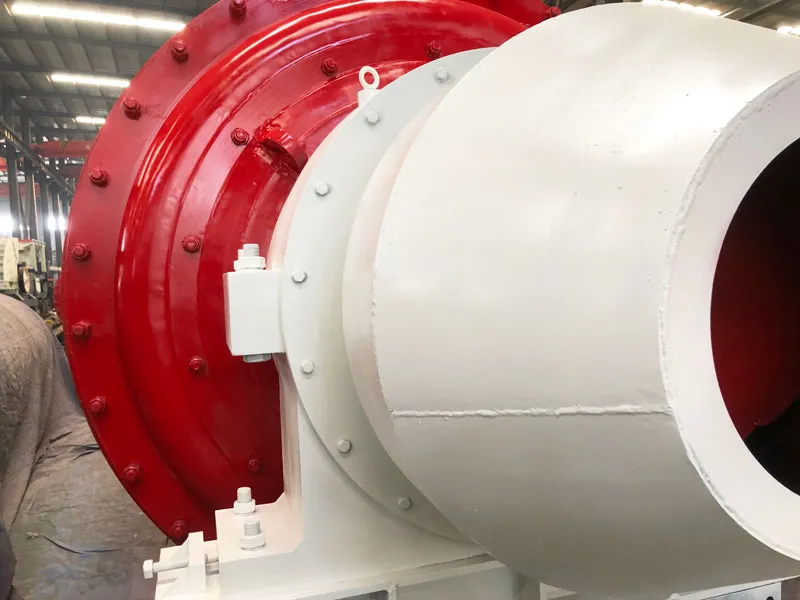

Ball mills after painting

paint the ball mill
ball mill after painting

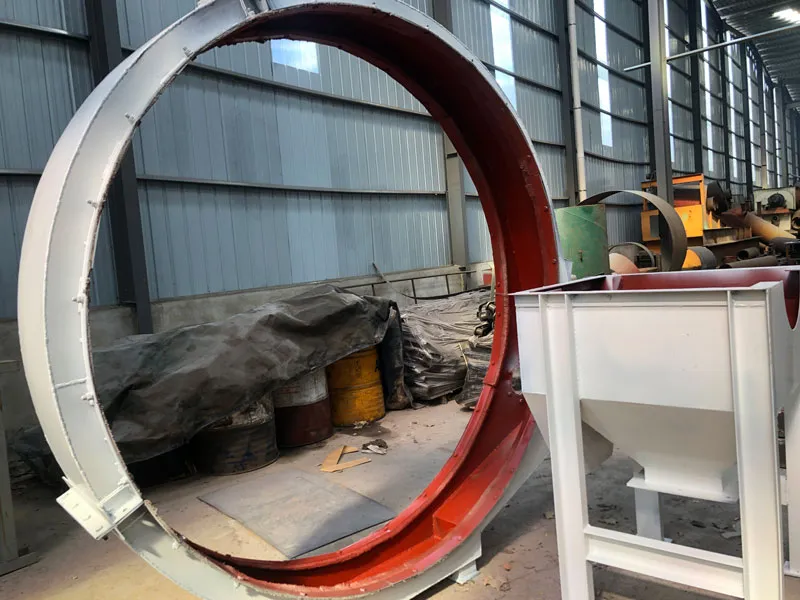

ball mill has been painted
ball mill without painting
painted ball mill

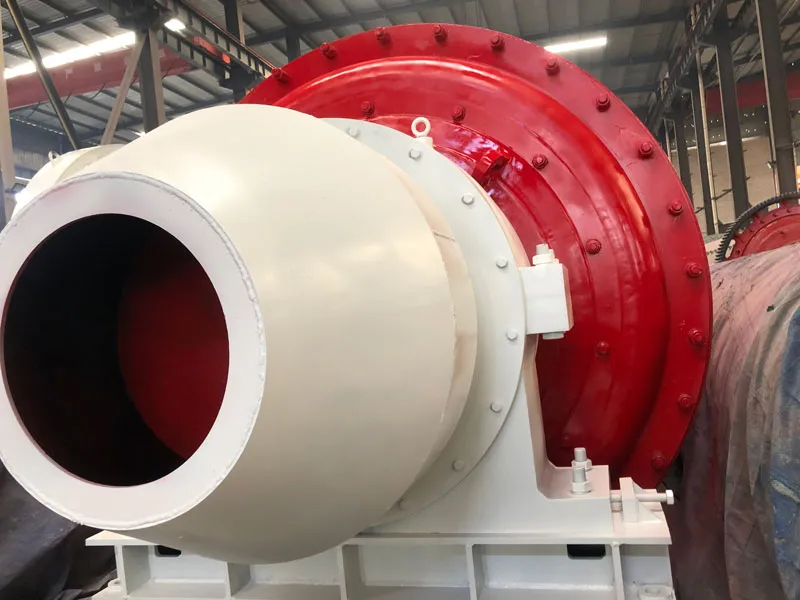

painting process of ball mill

Why choose AIMIX ball mill?

AIMIX is a company that manufactures a variety of industrial equipment, including ball mills. There are several reasons why someone might buy ball mill from AIMIX:

Quality and durability: AIMIX ball mills are made of high-quality materials and are designed to be durable and long-lasting. This means that they are less likely to break down or wear out, which can save money on repairs and replacement parts.

Customizable: AIMIX ball mills can be customized to meet the specific needs of each customer. This means that the ball mill can be designed to handle specific types of materials, and the size and shape of the ball mill can be adjusted to fit the available space.

Efficient and reliable: AIMIX ball mills are designed to be efficient and reliable, which means that they can process materials quickly and consistently. This can help to increase productivity and reduce downtime.

Competitive ball mill price: AIMIX ball mills are competitively priced, which means that they offer good value for money. This can be especially important for smaller companies or businesses that are working with a limited budget.

Professional support: AIMIX, as one of the most reliable ball mill manufacturers and suppliers, offers professional support to customers, including installation, maintenance, and repair services. This means that customers can get help when they need it, which can help to keep the ball mill running smoothly and efficiently.

Overall, the AIMIX ball mill for sale offers a combination of quality, durability, efficiency, and value that can make them a good choice for a variety of industrial applications.
