HZS60 concrete plant

Batching Plant For Sale Philippines

Batching plant for sale Philippines can produce quality concrete efficiently, for it is equipped with PLC control system. What’s more, Aimix group, established in 1987. With over 30 years’ experience of production, sales and innovation of concrete plant. As a reliable concrete batching plant supplier Philippines, can provide you with list of batching plants in the Philippines: mobile concrete batching plant Philippines and portable plant Philippines. Up to now, Aimix has exported more than 15 sets of batching plants to Philippines. And last year, we established office in Manila, Philippines. Hope can provide users with best service!

Batching plant Philippines we can supply

HZS25 concrete batch plant
HZS25 concrete batch plant

HZS50 batching plant
HZS50 batching plant

Specifications Of HZS25-HZS75 Concrete Plant

Type HZS25 HZS35 HZS50 HZS75
Theoretical production capacity(m3/h) 25 35 50 75
Concrete mixer Type JS500 JS750 JS1000 JS1500
Power(KW) 24.75 38.6 51 65.5
Discharging capacity(L) 500 750 1000 1500
Aggregate size(mm) 80/60 80/60 80/60 80/60
Aggregate Bin volume(m3) 3.2 7.3 8.3 12
Weighing Accuracy Aggregate (KG) 1500Kg ±2% 2200Kg ±2% 3000Kg ±2% 4500Kg ±2%
Cement(KG) 300Kg ±1% 450Kg ±1% 600Kg ±1% 1500Kg ±1%
Fly ash(KG) 400Kg ±1% 600Kg ±1%
Water (KG) 200Kg ±1% 200Kg ±1% 400Kg ±1% 600Kg ±1%
Additive(KG) 30Kg ±1% 50Kg ±1% 50Kg ±1%
Total power(KW) 45Kw 60Kw 115Kw 110KW
Discharging height(M) 3.8 m 3.8 m 3.8 m 3.8m
Gross weight(T) 7.7 15 40 50

It is reported that HZS35 and HZS50 batching plants are hot types in the Philippines. Meanwhile, we also can supply HZS25, HZS75, HZS60, HZS90, HZS120, HZS180, even HZS240.

HZS25, 35, 50 and 75 belongs to skip hoist batching plant for sale Philippines. Aggregate will be lifted by hopper. This type plant has characteristics of small land occupation and easy maintenance. To some extent, small footprint will help you save some land fee.

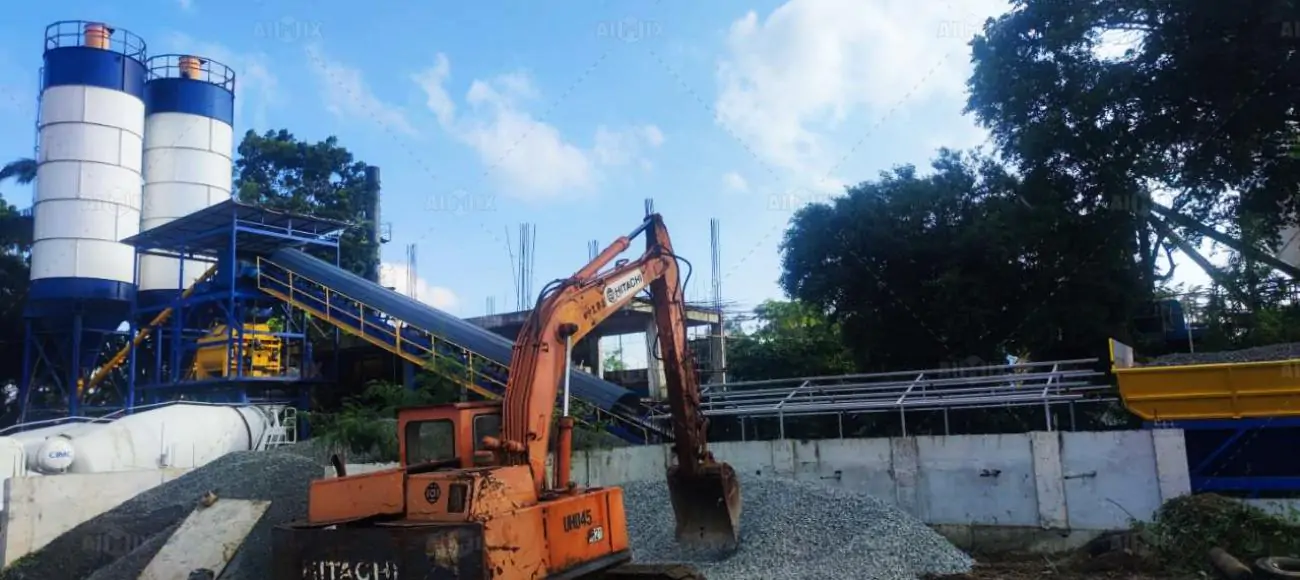

HZS60 concrete plant
HZS60 concrete plant

HZS90 concrete plant
HZS90 concrete plant

Specifications Of HZS60-HZS90 Concrete Plant

Type HZS60 HZS90 HZS120 HZS180 HZS240
Theoretical production(m3/h) 60 90 120 180 240
Concrete mixer Type JS1000 JS1500 MAO3000/2000 MAO4500/3000 MAO6000/4000
Power(KW) 18.5 65.5 74 110 150
Discharging
capacity
(L)
1000 1500 2000 3000 4000
Aggregate size
(Pebble/
Macadam)
(mm)
80/60 80/60 80 150 150
Aggregate Bin volume(m3) 8.38 12 20 30 40
Belt conveying Capacity(t/h) 300 450 550 650 900
Weighing Accuracy Aggregate (KG) 3000Kg ±2% 3000Kg ±2% 2200Kg ±2% 3000Kg ±2% 4200Kg ±2%
Cement(KG) 1500Kg ±1% 1500Kg ±1% 1200Kg ±1% 1800Kg ±1% 2200Kg ±1%
Fly ash(KG) 600Kg ±1% 900Kg ±1% 400Kg ±1% 500Kg ±1% 800Kg ±1%
Water (KG) 600Kg ±1% 600Kg ±1% 500Kg ±1% 800Kg ±1% 1000Kg ±1%
Additive(KG) 50Kg ±1% 50Kg ±1% 50Kg ±1% 80Kg ±1% 80Kg ±1%
Total power(KW) 120Kw 165Kw 130Kw 170KW 220KW
Discharging height(M) 3.8 m 4.1 m 4.1m 4.1m 4.1m

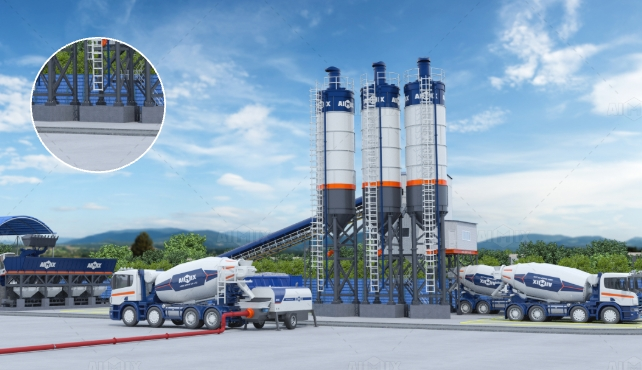

HZS60, 90, 120, 180 and 240 concrete mixer plant for sale Philippines can achieve high productivity and efficiency. Aggregate will be lifted by long belt conveyor, which greatly improves the working efficiency of the whole concrete batching plant for sale Philippines. Moreover, cover of belt conveyor and tower will protect impurities from entering the aggregate, and produce high quality concrete.

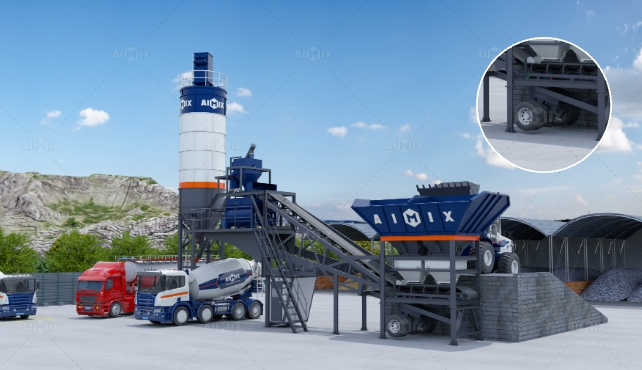

In addition stationary type, we also hve mobile type concrete batching plant. Such as, YHZS25, YHZS35, YHZS50, YHZS60, YHZS75 and even YHZS90. Mobile concrete plants are easy to move among sites, which is easy to assemble and disassemble, suitable for short-term project.

YHZS35 mobile concrete batching plant in Philippines
YHZS35 mobile concrete batching plant in Philippines

YHZS50 mobile concrete plant
YHZS50 mobile concrete plant

Specifications Of YHZS25-YHZS75 Concrete Plant

Type YHZS25 YHZS35 YHZS50 YHZS75
Theoretical production capacity(m³/h) 25 35 50 75
Concrete mixer Type JS500 JS750 JS1000 JS1500
Power(KW) 24.75 38.6 51 65.5
Discharging capacity(L) 500 750 1000 1500
Aggregate size(Pebble/Macadam)(mm) 80/60 80/60 80/60 80/60
Aggregate Bin volume(m³) 3.2 7.3 8.3 12
Weighing Accuracy Aggregate (KG)  ±2%  ±2%  ±2%  ±2%
Cement(KG) ±1% ±1% ±1% ±1%
Fly ash(KG) ±1% ±1%
Water (KG) ±1% ±1% ±1% ±1%
Additive(KG) ±1% ±1% ±1% ±1%
Total power(KW) 50Kw 64Kw 85Kw 110KW
Discharging height(M) 2.8 m 2.8 m 2.8 m 3.8m
Gross weight(T) 12 16 20 50

You can choose a right concrete plant Philippines for sale according to your practical condition. If you don’t know which type is your ideal choice, you can leave us message on website, our salesman will give you quick reply.

Reasons to choose us-one of the most reliable batching plant companies in the Philippines

About us in Philippines

1. There is one warehouse in Sorsogon, Legazpo, spare parts can delivery within 12 hours.

2. One location based service (LBS) center at the junction of Makati and Pasay, provide efficient and best service locally.

3. 7*24h after-sales support is provided for concrete batching plant Philippines, ensure the machines go well and save trouble for clients.

4. Over 50 sets construction machines have been exported to Manila, Cebu, Davao, Zamboanga etc. can visit the working site in local.

Successful cases about batching plant for sale Philippines

1. HZS50 concrete plant in Sorsogon—installation

HZS50 concrete plant in Sorsogon
HZS50 concrete plant in Sorsogon

2. HZS35 batching plant in Palompon—test run and debug

HZS35 concrete plant in Palompon
HZS35 concrete plant in Palompon

3. HZS35 concrete batching plant in Manila—installation

HZS35 concrete plant in Manila
HZS35 concrete plant in Manila

4. HZS50 concrete plant in Davao—after-sales service

HZS50 batching plant in Davao
HZS50 batching plant in Davao

5. YHZS35 mobile batching plant in the Philippines—installation

YHZS35 mobile concrete batching plant in Philippines
YHZS35 mobile concrete plant
YHZS35 mobile batching plant Philippines
In the future, we will set up concrete batching plant in cebu.

Reasonable batching plant price Philippines

There are numerous concrete batching plant manufacturers in Philippines, we are one of them, but we can promise that you will get best plant with affordable price. In addition, you don’t worry about maintenance later, we will meet your requirement. Therefore, choosing us will help you save money and remove your worries.

In addition batching plant for sale Philippines, we also exported diesel concrete mixer pumps, such as, JBS30R and JBS40R; block making machines, cement silos, etc, any needs, please contact us immediately!

Please feel free to give your inquiry in the form below. We will reply in 24 hours.
