Batching Plant South Africa

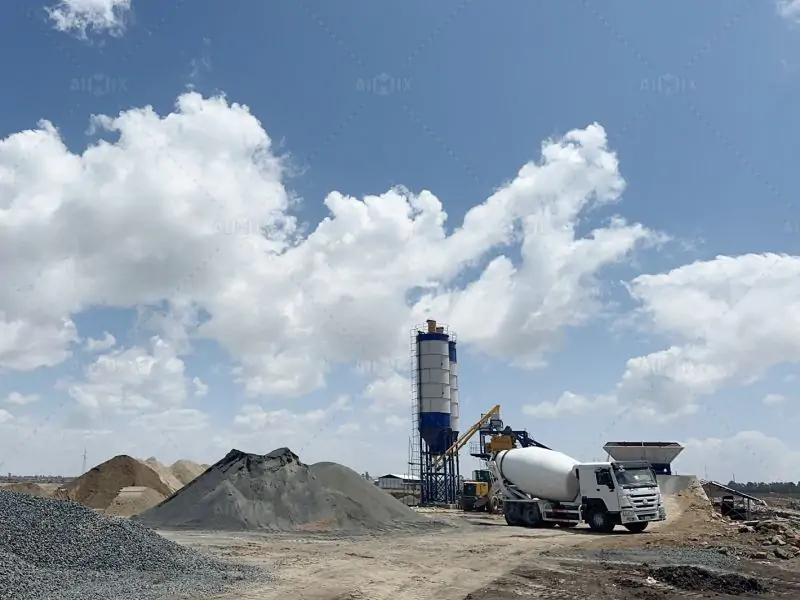

Batching plant south africa mainly use cement, fly ash, stone, pebble and other adhesive materials to produce fresh concrete. And it consists of materials storage system, weighing system, twin shaft concrete mixer and PLC control system. For its high mechanization degree and automatic degree, it has high productivity and can ensure the quality of concrete, meanwhile, effectively save cement. Concrete batch plant for sale in south africa is usually used in the large and medium-sized water conservancy, electric power, bridge and other projects with large amount of concrete, long duration and concentrated construction sites.

Our Stationary Concrete Batching Plants Were In Sri Lanka

Working principle of concrete batching plant south africa

1. Wheel loader will put about three kinds of aggregate materials into concrete batching machine, if necessary, you can have your special formula.

2. After batching, aggregate will be delivered through hopper or belt conveyor, then arrived in concrete mixer or waiting bin. Here HZS25, HZS35, HZS50 and HZS75 will be equipped with hopper, while HZS60, HZS90, HZS120, HZS180 and HZS240 will be equipped with belt conveyor.

3. At the same time, fly ash and cement will be delivered to their own weighing system through screw conveyor; after weighing, they will be discharged into mixing machine.

4. What’s more, additive will be pumped into weighing system, after weighing, enter the mixer.

5. When mix all of materials for stipulated time, concrete will be discharged into concrete mixer truck, then deliver to construction site.
Learn more from this video: https://youtu.be/NNR4Mj2IDeE

Characteristics of concrete batch plant for sale south africa

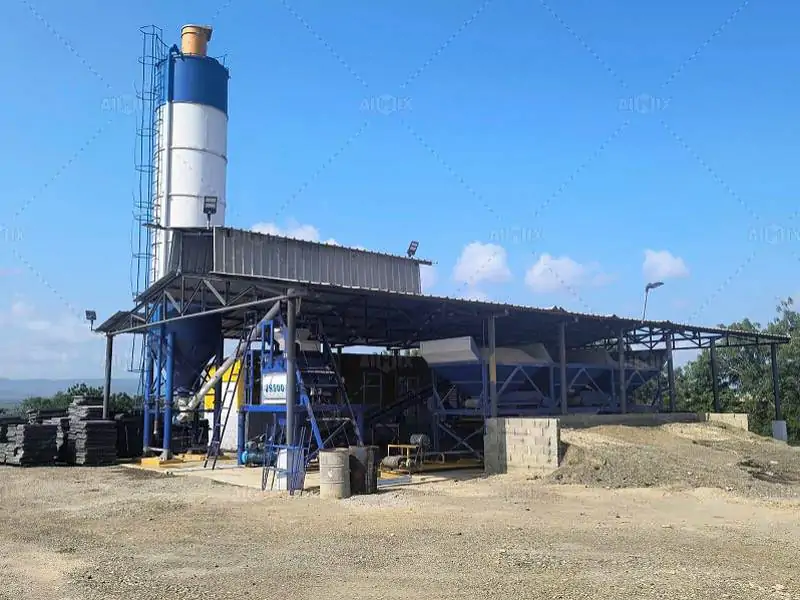

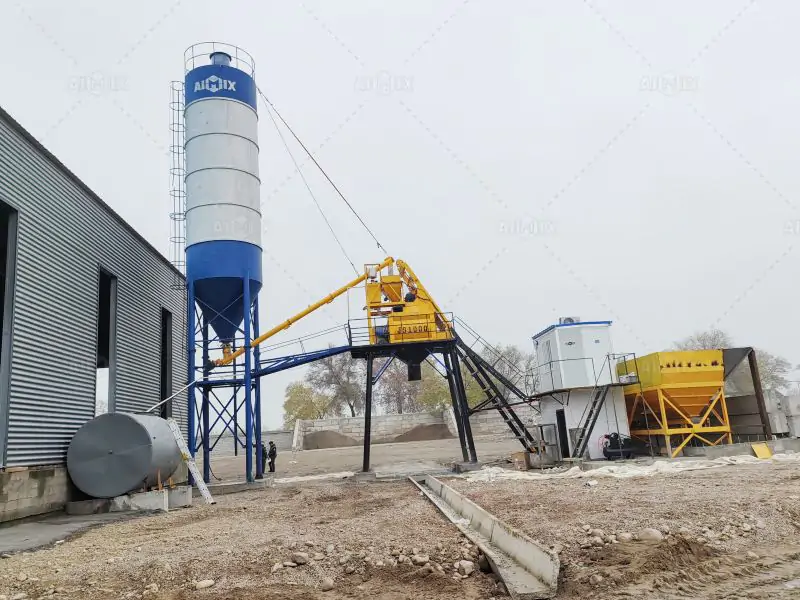

For HZS25, HZS35, HZS50 and HZS75

This type concrete batching plant for sale in south africa has small land occupation, easy installation and low cost, suitable for short-term and small-scale project.

HZS35 stationary batching plant
HZS35 stationary batching plant

HZS50 skip hoist concrete plant
HZS50 skip hoist concrete plant


Type HZS25 HZS35 HZS50 HZS75
Theoretical production capacity(m3/h) 25 35 50 75
Concrete mixer Type JS500 JS750 JS1000 JS1500
Power(KW) 24.75 38.6 51 65.5
Discharging capacity(L) 500 750 1000 1500
Aggregate size(mm) 80/60 80/60 80/60 80/60
Aggregate Bin volume(m3) 3.2 7.3 8.3 12
Weighing Accuracy Aggregate (KG) 1500Kg ±2% 2200Kg ±2% 3000Kg ±2% 4500Kg ±2%
Cement(KG) 300Kg ±1% 450Kg ±1% 600Kg ±1% 1500Kg ±1%
Fly ash(KG) 400Kg ±1% 600Kg ±1%
Water (KG) 200Kg ±1% 200Kg ±1% 400Kg ±1% 600Kg ±1%
Additive(KG) 30Kg ±1% 50Kg ±1% 50Kg ±1%
Total power(KW) 45Kw 60Kw 115Kw 110KW
Discharging height(M) 3.8 m 3.8 m 3.8 m 3.8m
Gross weight(T) 7.7 15 40 50

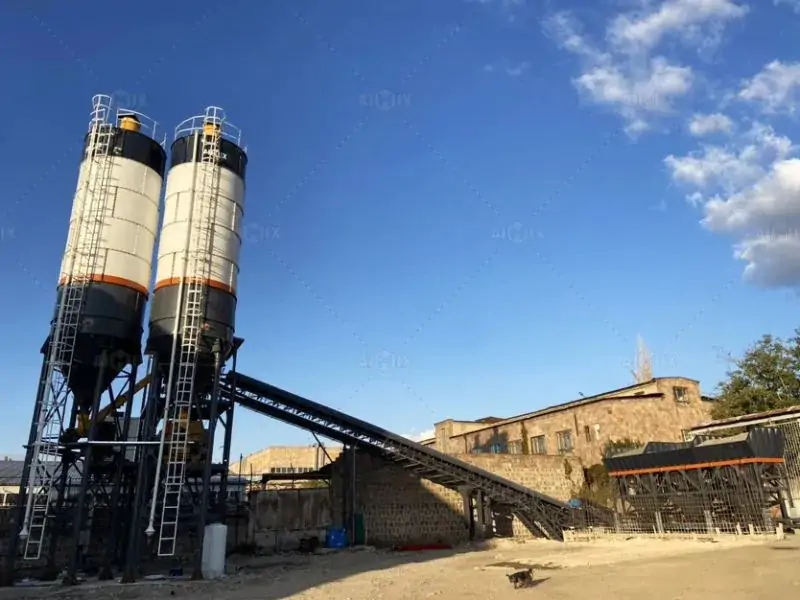

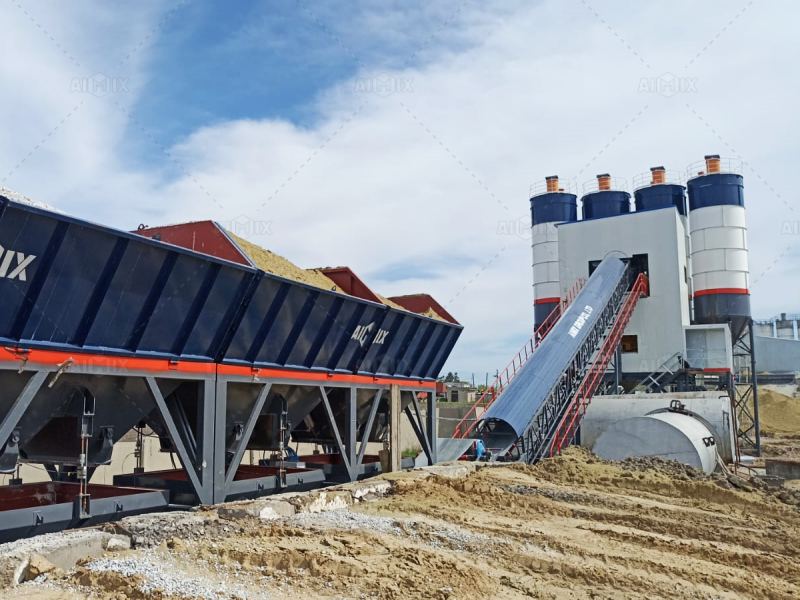

For HZS60, HZS90, HZS120, HZS180 and HZS240

They have characteristics of high efficiency, large output, quality production and suitable for long-term and large scale project.

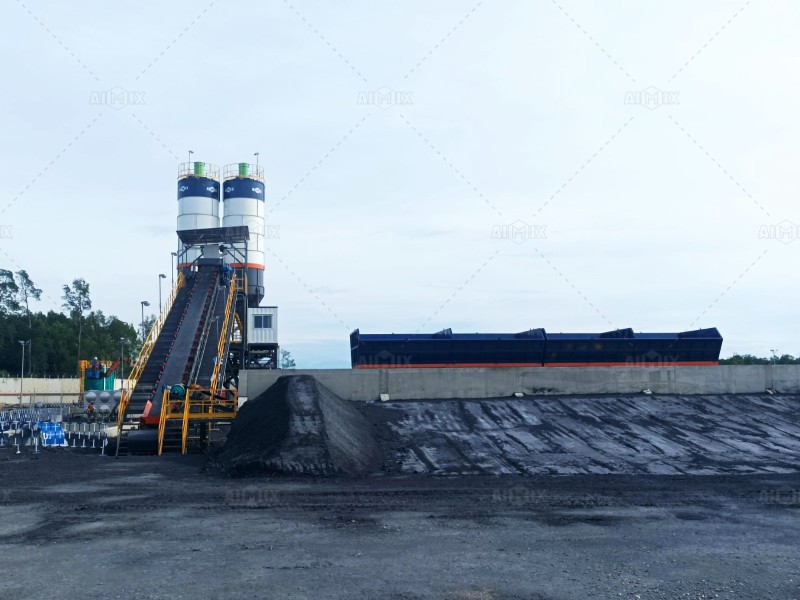

HZS60 belt conveyor concrete plant
HZS60 belt conveyor concrete plant


HZS90 stationary concrete plant
HZS90 stationary concrete plant


Type HZS60 HZS90 HZS120 HZS180 HZS240
Theoretical production(m3/h) 60 90 120 180 240
Concrete mixer Type JS1000 JS1500 MAO3000/2000 MAO4500/3000 MAO6000/4000
Power(KW) 18.5 65.5 74 110 150
Discharging
capacity
(L)
1000 1500 2000 3000 4000
Aggregate size
(Pebble/
Macadam)
(mm)
80/60 80/60 80 150 150
Aggregate Bin volume(m3) 8.38 12 20 30 40
Belt conveying Capacity(t/h) 300 450 550 650 900
Weighing Accuracy Aggregate (KG) 3000Kg ±2% 3000Kg ±2% 2200Kg ±2% 3000Kg ±2% 4200Kg ±2%
Cement(KG) 1500Kg ±1% 1500Kg ±1% 1200Kg ±1% 1800Kg ±1% 2200Kg ±1%
Fly ash(KG) 600Kg ±1% 900Kg ±1% 400Kg ±1% 500Kg ±1% 800Kg ±1%
Water (KG) 600Kg ±1% 600Kg ±1% 500Kg ±1% 800Kg ±1% 1000Kg ±1%
Additive(KG) 50Kg ±1% 50Kg ±1% 50Kg ±1% 80Kg ±1% 80Kg ±1%
Total power(KW) 120Kw 165Kw 130Kw 170KW 220KW
Discharging height(M) 3.8 m 4.1 m 4.1m 4.1m 4.1m

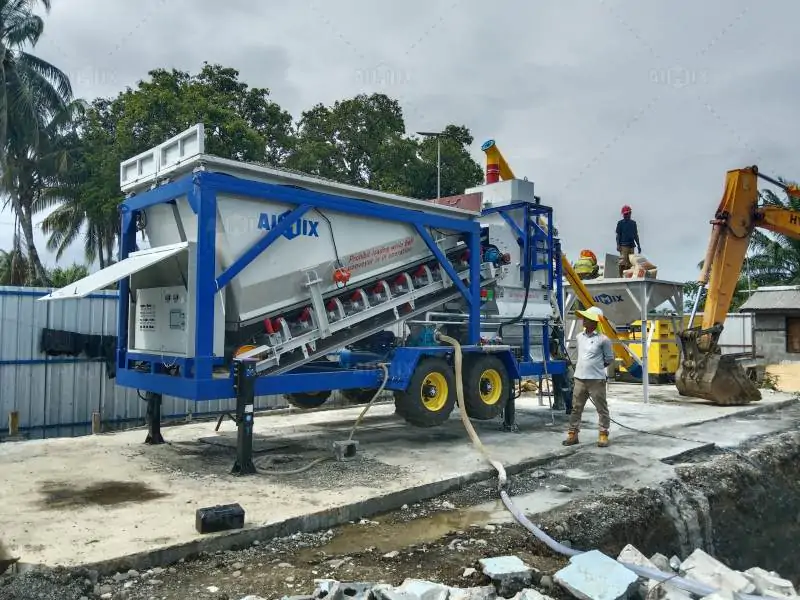

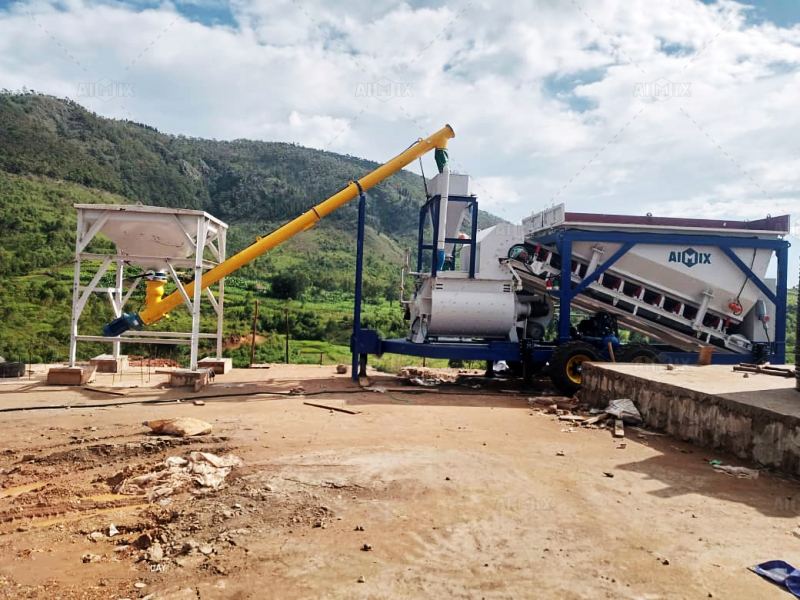

While in addition these stationary concrete plants, we also can manufacture mobile concrete batching plant south africa. Types are YHZS25, YHZS35, YHZS50 and YHZS75, even YHZS90 and YHZS120. We will produce concrete plant according to your demand. Among them, YHZS35 mobile batching plant south africa is hot type, you can learn more here: market@aimixgroup.com.

Find reliable concrete batching plant manufacturers in south africa

installation
installation

maintenance
maintenance

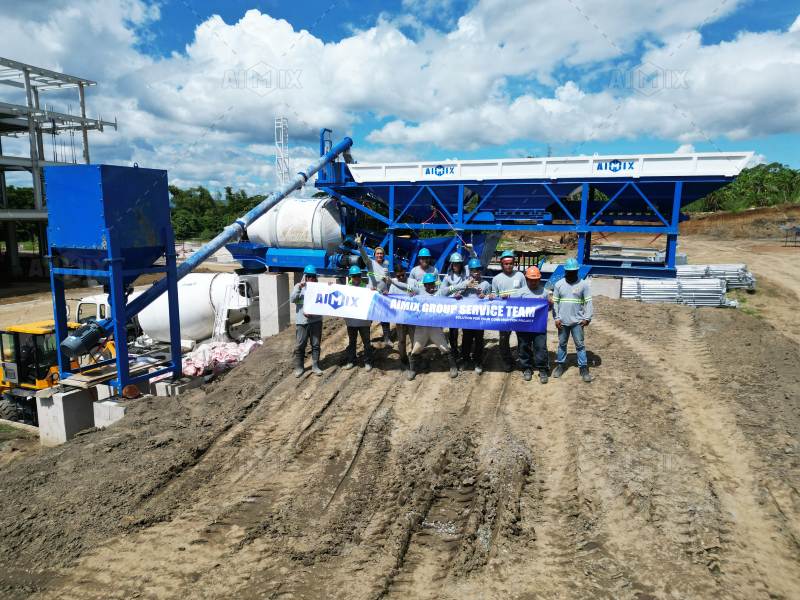

After-sales team
After-sales team

silo in factory
silo in factory

Up to now, there are many concrete plant manufacturers south africa, customers will be wondering how they can find reliable and reputable manufacturer, here are some tips:

1. Find batching plant manufacturers online.

2. Make a comparison about these retailers.

3. Go to visit the factory of manufacturer.

4. Notice their technology, after-sales service, technicians, engineers, etc.

5. Make a survey about client feedback.

6. Ask manufacturers for latest cases.

We AIMIX GROUP is one of the most influential concrete batching plant manufacturers in China, now, we also have after-sales team in south africa to serve local customers, if you choose us, we will give you best price and service! We can promise you 24-hour spare part supply, regular after-sales maintenance, staff training and etc, contact us now!
