Recently, we had the honor to sell our newly designed mobile concrete batching plant to French Polynesia in the Pacific.
Aimix is committed to providing high-quality products and services to customers worldwide. Now, let me give you a detailed introduction.
Detailed Purchase Plans of Batching Plants
In this cooperation, we carefully understood the customer’s special requirements for their project in French Polynesia. We offered a detailed plan that covered choosing the equipment, setting it up, how to ship it, and the budget.

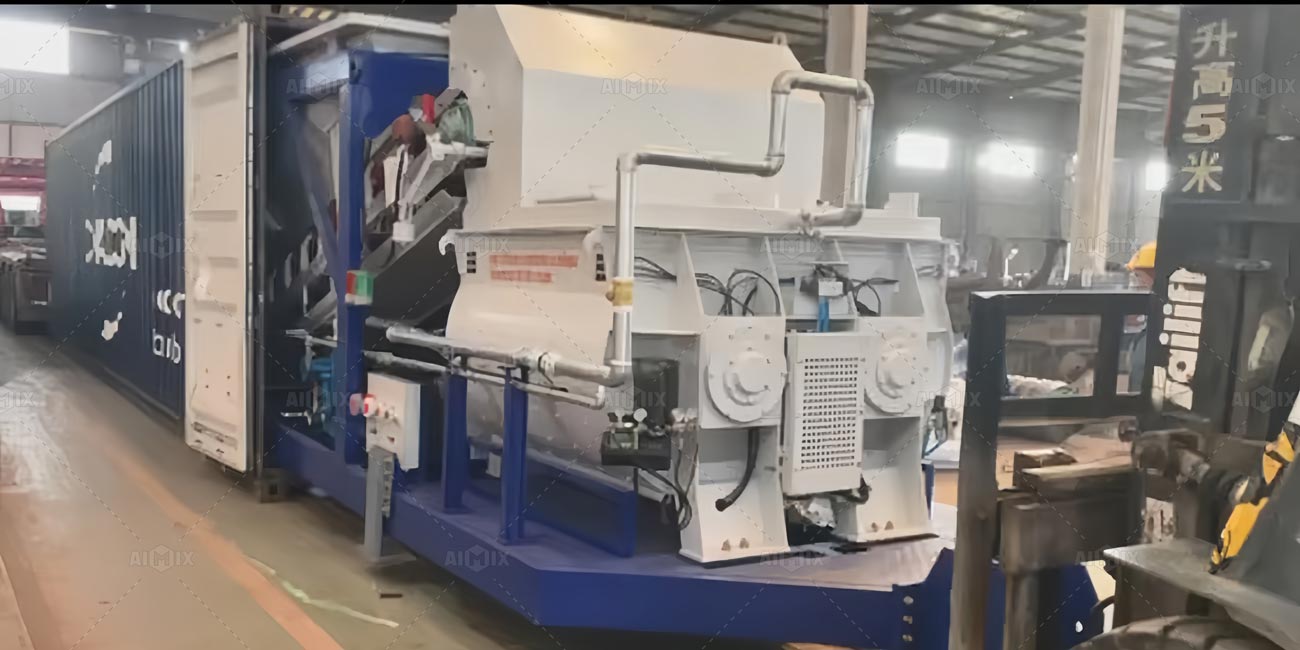

The customer chose our AJY-35 mobile concrete batching plant. AJY-35 mobile concrete batching plant is not only easy to install but also can move quickly. From batching, metering, feeding, and mixing to discharge, all powdered materials are carried out in a closed state, which greatly reduces the concrete mobile batching plant’s impact of dust, vibration, and noise on the environment.
In addition to the AJY-35 concrete batching plant, we also have the AJY-25 and AJY-50 mobile batching plant. They all have re-usability to save user’s costs. This is detailed information about aimix mobile batch plant.
Types | Belt Type | ||
---|---|---|---|
Model | AJY-25 | AJY-35 | AJY-50 |
Theoretical Productivity (m³/h) | 25 | 35 | 50 |
Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 |
Mixer Power (kW) | 18.5 | 30 | 2×18.5 |
Mixing Cycle Period (s) | 72 | 72 | 72 |
Rated Input Volume (Model of Batching Machine L) | 800 | 1200 | 1600 |
Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 |
Standard Aggregate Bin Capacity (m³) | 2×3 | 2×5 | 2×5 |
Category of Aggregate | 3/4/2002 | ||
Powder Storage Silo (ton) (Optional) | 1×50 | 2×50 | 1×100 |
Max. Discharging Height (m) | 3.8 | 3.8 | 4.1 |
Weighing Range & Accuracy of Aggregate (kg) | (300~1500)±2% | (300~1500)±2% | (300~3000)±2% |
Weighing Range & Accuracy of Cement (kg) | (100~300)±1% | (100~300)±1% | (250~900)±1% |
Weighing Range & Accuracy of Water (kg) | (60~150)±1% | (60~150)±1% | (80~300)±1% |
Weighing Range & Accuracy of Additive (kg) | / | (8~20)±1% | (8~20)±1% |
Overall Weight (ton) | ≈15 | ≈22 | ≈26 |
Installation Power (kW) | ≈61 | ≈73 | ≈92 |
Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase |
If you have any other questions, please contact us, the professional team of aimix will provide you with the most suitable purchase plan.
Rapid Response in Production and Assembly
Once the customer places an order, the Aimix factory immediately initiates an efficient production process.


With advanced manufacturing facilities and an experienced technical team, most of the time we complete the entire process from raw material procurement to final assembly within two weeks. This not only ensures high-quality standards for the equipment but also significantly shortens the delivery time.
Preparation for Transportation of Batching Plants
Aimix pays great attention to the transportation process of the equipment.

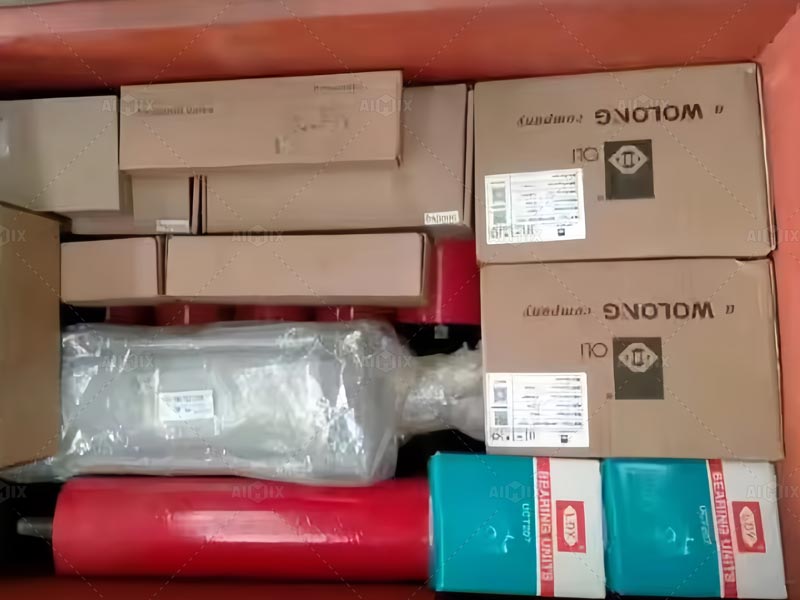

- Packaging and Securing: To ensure the mobile concrete batching plant arrives in French Polynesia safely and intact, we conduct strict packaging and securing. We will record the loading photos and videos of the concrete batching plant and send them to the customers.
- Experienced logistics partners: Aimix has a lot of long-term cooperation logistics companies. We will plan the most cost-effective and safe transportation routes for our customers.
- Transportation Insurance: We provide comprehensive transportation insurance services to guard against any potential accidents.


In addition, we will track the logistics throughout the transportation and report the logistics information to customers.
Continuous Follow-up, Guiding Installation and Production
Aimix promises to provide customers with full-cycle services from preliminary consultation to later installation, debugging, training, and maintenance.
After delivery, we arrange for a professional technical team to continuously follow up on the project progress to ensure the equipment arrives smoothly and assist the customer in completing installation and debugging. Through video, phone calls, or onsite guidance, we ensure that customers can operate the equipment proficiently and fully utilize its efficiency.
Delivery is not the end of our service. Follow aimix official website and we will update you with the latest developments in this case.
Elevate your construction with our batching plant. Contact us to learn how aimix can help you achieve faster, better results!
