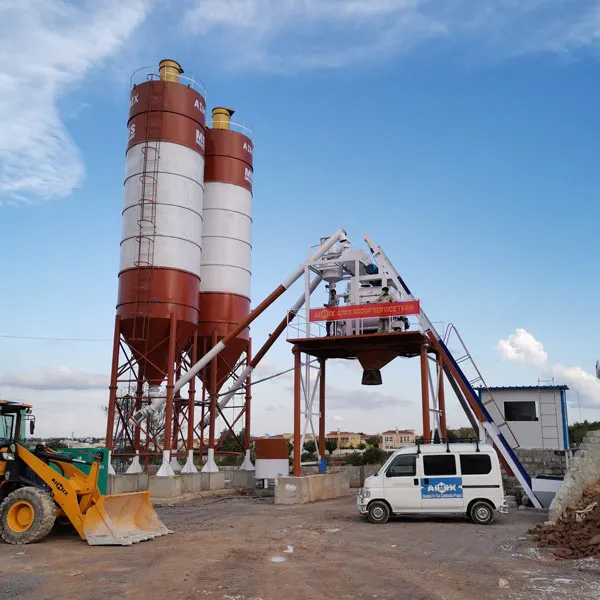

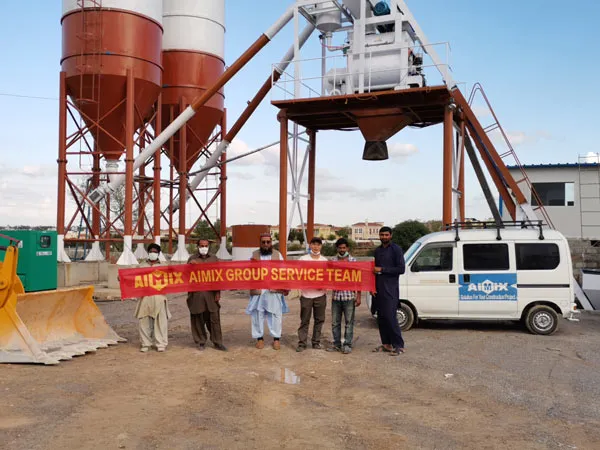

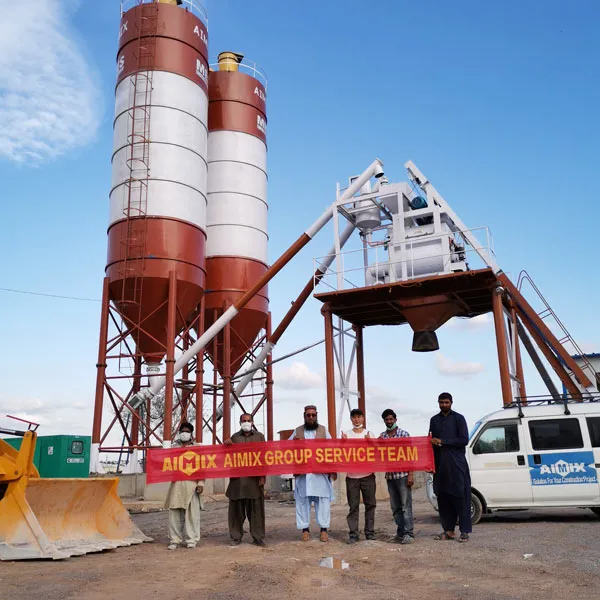

Good things from Pakistan! AJ-50 stationary concrete batching plant has been installed on April 2 successfully. He is our old customer, and this time, he purchased a 50 cubic meter concrete batch plant with two 100 ton welded type cement silos. He spoke highly of our concrete plant and silos. Before this, he has ordered our concrete mixer and pump. Also, he said concrete mixer pump is very efficient.
Stationary concrete plant Video



Model | AJ-50 |
Theoretical Productivity (m3/h) | 50 |
Mixer Model (Mixer Output L) | JS1000 |
Mixer Power (kW) | 2×18.5 |
Mixing Cycle Period (s) | 72 |
Rated Input Volume (Model of Batching Machine L) | 1600 |
Standard Aggregate Bin Capacity (m3) | 3×8 |
Category of Aggregate | 3/4 |
Overall Weight (ton) | ≈23 |
Installation Power (kW) | ≈100 |
Now, let’s learn more about AJ-50 concrete plant.
Basic configuration about AJ-50
1. Standard concrete batching machine is PLD1600. It has characteristics of high precision.
2. Standard twin shaft concrete mixer is JS1000. Our concrete mixer has advanced shaft-end seal technology, which can effectively prevent the concrete leakage.
3. As for cement silo, you can choose any capacity, it depends your real need. We can supply you 50 ton, 100 ton, 150 ton, 200 ton, 300 ton, 500 ton and even bigger.
4. The most important part is PLC control system. We use brand control system, which can make the whole concrete production easier.
In addition AJ-50 stationary concrete batching plant, we also supply AJ-25, AJ-35, AJ-60, AJ-75, AJ-90, AJ-120 and AJ-180. Therefore, our capacities can totally meet your requirement. Contact us now!
