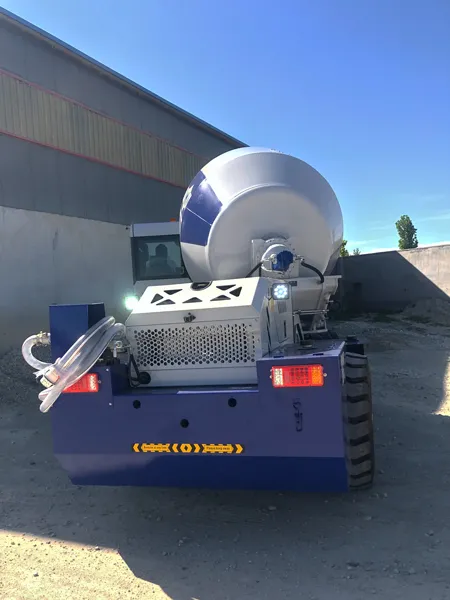

The good news here! AIMIX exported one set of AS-3.5 self loading concrete mixer truck to Russia. We exported it through the truck. Here are some shipment pictures. 3.5m3 self loading concrete mixer is the most popular type among our past orders.
Basic information about 3.5 m3 self loading mixer
This self-loading concrete mixer truck has the characteristics of small size, convenient operation and multi-function. Only one person can operate the entire device. There is a cab, which is equipped with air-conditioning, and the space can only accommodate one operator. The operating system is equipped with a display screen, which can clearly control the operation of the machine.
In addition, the self loading concrete mixer can rotate 270 degrees, this machine can produce 3.5 m3 concrete mixture per drum, and can produce 14 m3 concrete per hour. What’s more, we have AS-1.2, AS-1.8, AS-2.6, AS-4.0, AS-5.5, and AS-6.5, they represent 1.2 m3, 1.8 m3, 2.6 m3, 4.0 m3, 5.5 m3, and 6.5 m3. So their hour-production output is 4.8 m3, 7.2 m3, `0.8 m3, 16 m3, 22 m3, and 26 m3. You can choose a right capacity according to the output.
| Equipment Model | AS-3.5 Self Loading Mixer Truck |
| Engine Model | YUCHAI 4105 Turbo-Charged |
| Rated Power | 85kw |
| Gear Box Model | ZL-280 Power Shift Gearbox |
| Gear | 2 Forward 2 Back,Front Wheels Steering |
| Fuel Tank | 75 L |
| Total Hydraulic System Capacity | 75 Liters |
| Oil Tank | 16 Liters |
| Reducer | HJ80-43 |
| Hydraulic Pump | CBGQ 2040/2080 |
| Hydraulic Motor | BM5-160 |
| Water Tank | 620 L |
| Water Supply | Time Relay |
| Overall Dimensions(L*W*H) | 7830*2680*4170 |
In addition to Russia, our self loading concrete mixers are also widely exported to the Philippines, Pakistan, Kenya, Tanzania, Myanmar, Argentina, Botswana, Sri Lanka, Indonesia, Malaysia, etc. If you want to get more details, please contact us now.
