HZS50 concrete batching plant

Concrete Batching Plant Indonesia

Concrete batching plant Indonesia has many types for users’ reference. In addition, if you choose us, you will get best Indonesia batching plant price and service. Because we have set office in Indonesia, here is address: Villa Permata gading H5 Jl. Permata Indah, RT.9/RW.4, Tugu Sel., Koja, Kota Jkt Utara, Daerah Khusus Ibukota Jakarta 14260. if you are interested in our construction machine, please contact us or visit us as soon as possible!

Classification Of Concrete Batching Plant Indonesia

HZS25 concrete plant
HZS25 concrete plant

Type: HZS25
Theoretical production capacity(m3/h): 25
Concrete mixer: JS500
Aggregate size(mm): 80/60

HZS35 concrete batching plant
HZS35 concrete batching plant

Type: HZS35
Theoretical production capacity(m3/h): 35
Concrete mixer: JS750
Aggregate size(mm): 80/60

Specifications Of HZS25-HZS75 Concrete Batch Plant

Type HZS25 HZS35 HZS50 HZS75
Theoretical production capacity(m3/h) 25 35 50 75
Concrete mixer Type JS500 JS750 JS1000 JS1500
Power(KW) 24.75 38.6 51 65.5
Discharging capacity(L) 500 750 1000 1500
Aggregate size(mm) 80/60 80/60 80/60 80/60
Aggregate Bin volume(m3) 3.2 7.3 8.3 12
Weighing Accuracy Aggregate (KG) 1500Kg ±2% 2200Kg ±2% 3000Kg ±2% 4500Kg ±2%
Cement(KG) 300Kg ±1% 450Kg ±1% 600Kg ±1% 1500Kg ±1%
Fly ash(KG) 400Kg ±1% 600Kg ±1%
Water (KG) 200Kg ±1% 200Kg ±1% 400Kg ±1% 600Kg ±1%
Additive(KG) 30Kg ±1% 50Kg ±1% 50Kg ±1%
Total power(KW) 45Kw 60Kw 115Kw 110KW
Discharging height(M) 3.8 m 3.8 m 3.8 m 3.8m
Gross weight(T) 7.7 15 40 50

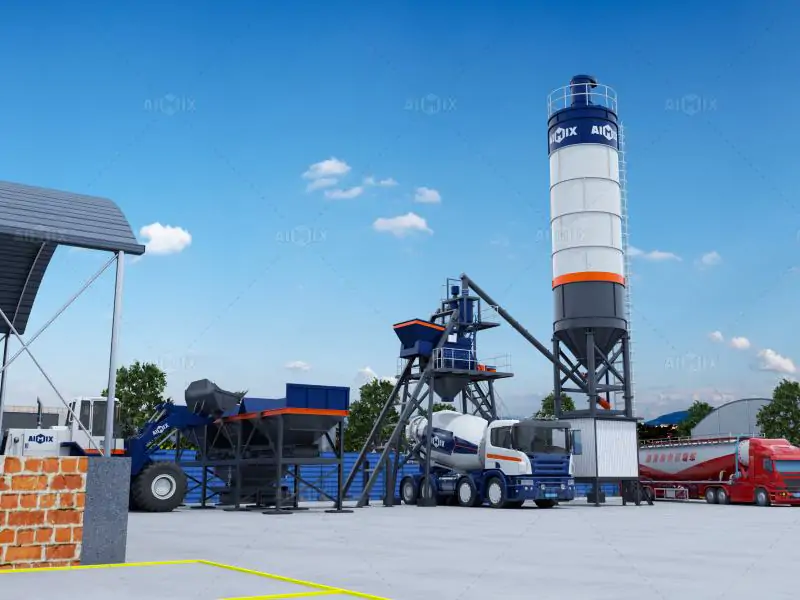

Advantages of HZS series stationary batching plant Indonesia

Firstly, compact structure and stable performance. It has system: aggregate batching system, aggregate lifting system, materials mixing system, powder and additive storage system and discharging system.

Secondly, stationary batching plant beton adopts PLC control system, which is convenient for users to operate.

Thirdly, batching plant di Indonesia is equipped with compulsory twin shaft concrete mixer, can mix materials evenly and efficiently.

Fourthly, the whole concrete production is conducted in a confined space, won’t be polluted.

Finally, there are two types aggregate lifting methods for your selection, in other words, they are different batch plants: belt conveyor type and skip hoist type. Therefore, it can meet different requirements of users.

YHZS series mobile batching plant Indonesia

YHZS35 mobile concrete batching plant
YHZS35 mobile concrete batching plant

Type: YHZS35
Theoretical production capacity(m3/h): 35
Concrete mixer: JS1000
Aggregate size(mm): 80/60
YHZS50 mobile batching plant
YHZS50 mobile batching plant

Type: YHZS50
Theoretical production capacity(m3/h): 50
Concrete mixer: JS1000
Aggregate size(mm): 80/60

Specifications Of YHZS25-YHZS75 Mobile Concrete Plant

Type YHZS25 YHZS35 YHZS50 YHZS75
Theoretical production capacity(m³/h) 25 35 50 75
Concrete mixer Type JS500 JS750 JS1000 JS1500
Power(KW) 24.75 38.6 51 65.5
Discharging capacity(L) 500 750 1000 1500
Aggregate size(Pebble/Macadam)(mm) 80/60 80/60 80/60 80/60
Aggregate Bin volume(m³) 3.2 7.3 8.3 12
Weighing Accuracy Aggregate (KG)  ±2%  ±2%  ±2%  ±2%
Cement(KG) ±1% ±1% ±1% ±1%
Fly ash(KG) ±1% ±1%
Water (KG) ±1% ±1% ±1% ±1%
Additive(KG) ±1% ±1% ±1% ±1%
Total power(KW) 50Kw 64Kw 85Kw 110KW
Discharging height(M) 2.8 m 2.8 m 2.8 m 3.8m
Gross weight(T) 12 16 20 50

This mobile type concrete batching plant Indonesia has characteristics of flexible movement, fast and simple assemble and disassemble and easy storage. It integrates storage system, weighing system, delivery system, mixing system, discharging system and PLC control system into a trailer drag unit. Working principle, operation and maintenance are the same as stationary type’s. So it is ideal choice for highway, railway, bridge, port and water conservancy construction projects

Characteristics of wet mix concrete batching plant for sale Indonesia with different capacities

HZS50 concrete batching plant
HZS50 concrete batching plant

Type: HZS50
Theoretical production capacity(m3/h): 50
Concrete mixer: JS1000
Aggregate size(mm): 80/60

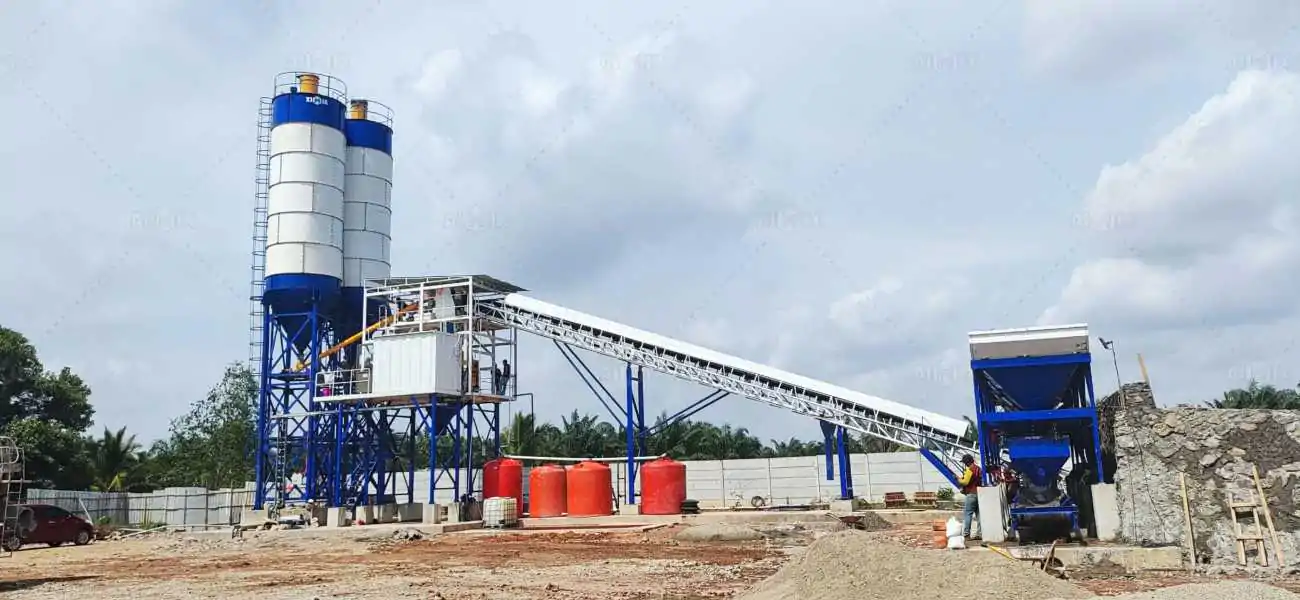

HZS60 wet mix concrete plant
HZS60 wet mix concrete plant

Type: HZS60
Theoretical production capacity(m3/h): 60
Concrete mixer: JS1000
Aggregate size(mm): 80/60

Specifications Of HZS60-HZS90 Belt Conveyor Concrete Plant

Type HZS60 HZS90 HZS120 HZS180 HZS240
Theoretical production(m3/h) 60 90 120 180 240
Concrete mixer Type JS1000 JS1500 MAO3000/2000 MAO4500/3000 MAO6000/4000
Power(KW) 18.5 65.5 74 110 150
Discharging
capacity
(L)
1000 1500 2000 3000 4000
Aggregate size
(Pebble/
Macadam)
(mm)
80/60 80/60 80 150 150
Aggregate Bin volume(m3) 8.38 12 20 30 40
Belt conveying Capacity(t/h) 300 450 550 650 900
Weighing Accuracy Aggregate (KG) 3000Kg ±2% 3000Kg ±2% 2200Kg ±2% 3000Kg ±2% 4200Kg ±2%
Cement(KG) 1500Kg ±1% 1500Kg ±1% 1200Kg ±1% 1800Kg ±1% 2200Kg ±1%
Fly ash(KG) 600Kg ±1% 900Kg ±1% 400Kg ±1% 500Kg ±1% 800Kg ±1%
Water (KG) 600Kg ±1% 600Kg ±1% 500Kg ±1% 800Kg ±1% 1000Kg ±1%
Additive(KG) 50Kg ±1% 50Kg ±1% 50Kg ±1% 80Kg ±1% 80Kg ±1%
Total power(KW) 120Kw 165Kw 130Kw 170KW 220KW
Discharging height(M) 3.8 m 4.1 m 4.1m 4.1m 4.1m

According to the capacity, large concrete batch plant Indonesia has high automation degree, high weighing accuracy and good mixing quality. Therefore, they are suitable for large scale projects, such as, water conservancy engineering, expressway, high building construction, etc.

While mini batching plant Indonesia has characteristics of quick returns, small investment and general configuration. Take HZS25 concrete mixing plant Indonesia for an example, it occupies small land area and less labor. Therefore, mini concrete batching plant Indonesia is suitable for new rural urban construction or road and bridge projects.

Dry type concrete batching plant Indonesia

dry mix concrete batching plant
dry mix concrete batching plant
mixing hopper
mixing hopper
80t cement silo
80t cement silo
belt conveyor
belt conveyor
hopper
hopper
Type HZS25 HZS35 HZS50 HZS75
Theoretical production capacity(m³/h) 25 35 50 75
Aggregate Bin volume(m³) 2/3×3.2 2/3/4×7.3 2/3/4×8.3 2/3/4×12
Weighing Accuracy Aggregate (KG) 1500Kg ±2% 2200Kg ±2% 3000Kg ±2% 4500Kg ±2%
Cement(KG) 300Kg ±1% 450Kg ±1% 600Kg ±1% 1500Kg ±1%
Fly ash(KG) 400Kg ±1% 600Kg ±1%
Water (KG) 200Kg ±1% 200Kg ±1% 400Kg ±1% 600Kg ±1%
Additive(KG) 30Kg ±1% 50Kg ±1% 50Kg ±1%
Discharging height(M) 3.8 m 3.8 m 3.8 m 4.1m
Gross weight(T) 10 15 40 50

Concrete batching plants above all belong to wet mix type, different with them, we also can supply you dry type batching plant beton. It doesn’t have a concrete mixer. All of mixing process are carried in a concrete transit mixer, which has much higher efficiency. While concrete has general quality. So it is applicable to many large construction projects which have low requirements for concrete quality.

Harga batching plant Indonesia

Aimix group has office in Indonesia, in the future, we will set up factory. But now, we can still give you best harga batching plant Indonesia, because there are many factors affects the price of equipment. We will try our best to help you get low cost concrete batching plant Indonesia. Is it very affordable? Moreover, there are many successful cases for you to pay a visit.

Contact us now! We will provide you best concrete batching plant Indonesia with considerable service!
