As demand for high-quality concrete continues to grow, China batching plant manufacturers offer a wide range of solutions for projects worldwide. From long-term fixed production to mobile, compact, foundation-free, and integrated pumping applications, different plant series are designed to meet specific project requirements. Use the guide below to quickly identify the most suitable concrete batching plant for your project.
Quick Selection Guide for Concrete Batching Plants
Choose the concrete batching plant series based on your project requirements, site conditions, and production needs.
| Project Requirement | Recommended Series | Main Reason |
|---|---|---|
| Reduce foundation and civil construction work | AJQ Series | Foundation-free design reduces conventional foundation work and simplifies site preparation. |
| Long-term concrete production at a fixed site | AJ Series | Stationary configuration is designed for stable, continuous concrete production. |
| Move the batching plant between different job sites | AJY Series | Mobile configuration makes relocation between projects easier. |
| Limited installation space or small construction sites | AJSY Series | Compact structure requires less installation space. |
| Small-scale concrete production | AJZY Series | Drum-type mixing configuration suits projects with relatively low concrete demand. |
| Batch, mix, and pump concrete at the same job site | AJP Series | Integrates concrete batching, mixing, and pumping in one unit. |
Why China Batching Plants Are Gaining Popularity Worldwide

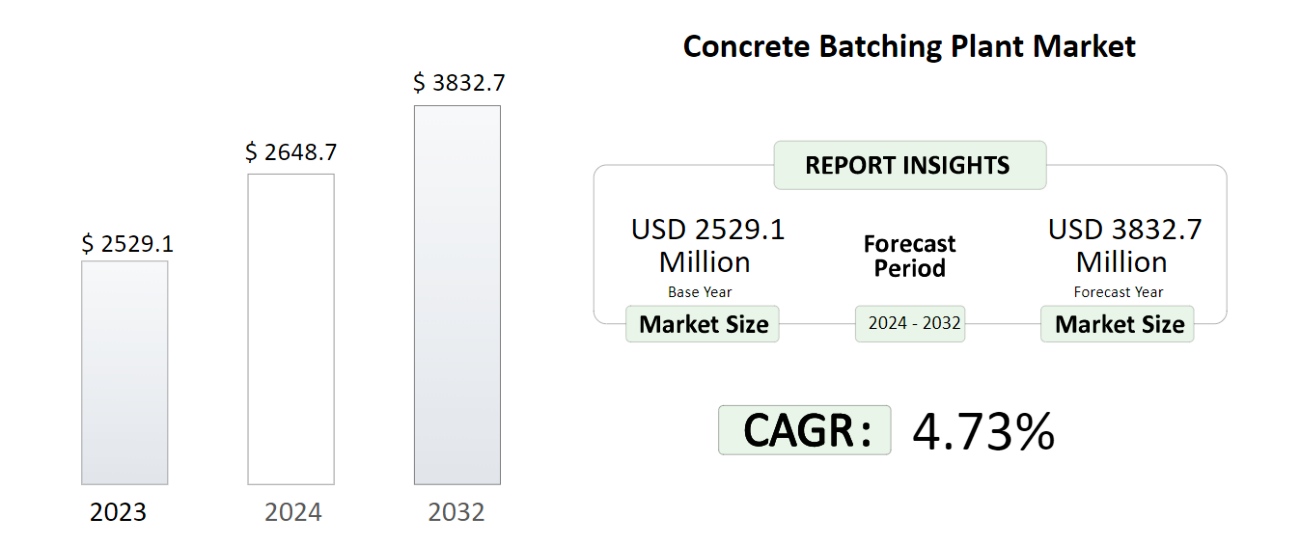

We know from Global Growth Insights that concrete batching plant market is growing steadily driven by increasing construction activities and projects. China batching plants are gaining widespread preference for construction projects worldwide. This surge in popularity can be attributed to several key factors that make Chinese concrete plants highly competitive in the international market.
Cost-Effective and High-Quality Solutions
China batching plants offer a unique combination of affordability and quality. With advanced manufacturing processes and economies of scale, they provide cost-effective solutions without compromising on performance. This makes Chinese batching plants particularly attractive for large-scale construction projects that require high volumes of concrete production.
Advanced Technology and Customization
Chinese manufacturers are at the forefront of batching plant technology, integrating automation and precision to improve productivity and quality control. Furthermore, they offer extensive customization options, allowing clients to choose concrete plants tailored to specific needs, whether for smaller local projects or large industrial developments.
Excellent After-Sales Support
The strong after-sales service provided by Chinese batching plant manufacturers is another significant factor driving their popularity. With dedicated customer support, training, and maintenance services, clients benefit from continuous operation and reduced downtime, making these China-made batching plants a reliable long-term investment.
Global Reach and Market Presence
With China’s vast production capabilities, manufacturers can quickly meet growing global demand. Their widespread distribution and efficient logistics ensure that batch plants are delivered and set up in diverse markets, from emerging economies to established construction hubs.
Concrete Batching Plant Solutions – Matching Different Project Needs
As one of the reputable and reliable concrete batching plant manufacturers in China, Aimix provides different concrete batching plant solutions tailorted to suit various project requirements, mainly including stationary type concrete plant solutions, mobile type batch plant solutions and compact batching plant solutions. Get to know these batching plants China one by one.

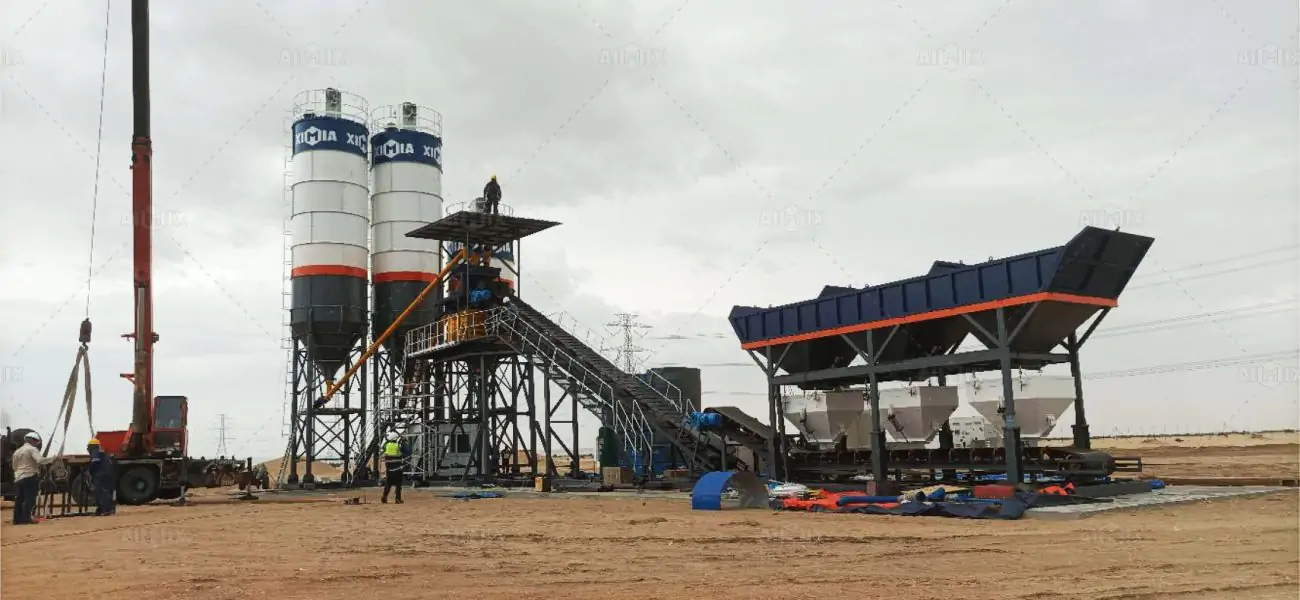

AJQ Series Foundation-Free Concrete Batching Plant
- Hot-sale Models: AJQ50, AJQ70, AJQ100, AJQ150
- Productivity: 50–150 m³/h
- Mixer: Twin-shaft concrete mixer
- Aggregate Feeder: Belt-type aggregate feeding system
- Features: Foundation-free design, modular structure, reduced civil construction work, simplified installation, intelligent control system
- Applications: Foundation-free AJQ series concrete batching plants are suitable for infrastructure projects such as highways, bridges, and industrial construction, especially when reducing foundation construction and site preparation work is important.
AJP Series Integrated Concrete Pumping Batching Plant
- Hot-sale Model: AJP40
- Productivity: Up to 40 m³/h
- Mixer: Twin-shaft concrete mixer
- Concrete Pump: Integrated concrete pumping system
- Features: Integrated batching, mixing and pumping, compact structure, intelligent control system, reduced need for separate concrete production and pumping equipment
- Applications: AJP series integrated pumping batching plants are suitable for small construction projects, rural roads, building construction, renovation works, and other job sites where concrete needs to be produced and pumped directly at the construction site.

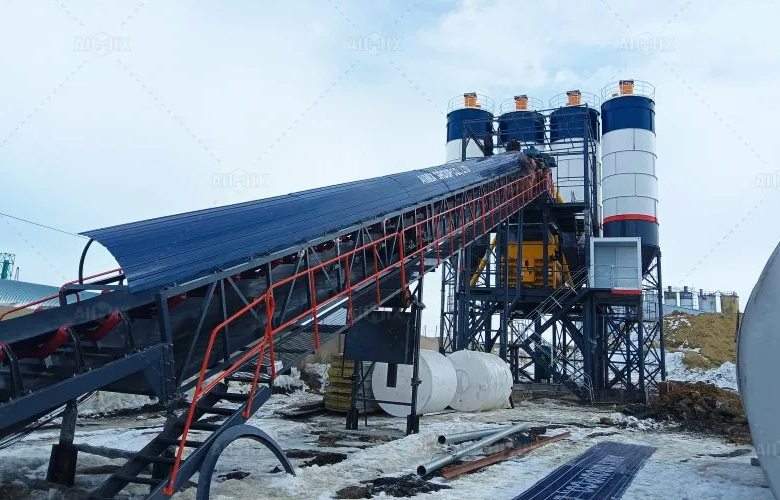

AJ Series Stationary Type Concrete Plant Solutions
- Hot-sale Models: AJ60, AJ90, AJ120, AJ180
- Productivity: 25-240 m³/h
- Mixer: Twin shaft mixer, Planetary
- Aggregate Feeder: belt type or hopper type
- Features: High production capacity, durable construction, advanced control systems, large storage facilities
- Applications: Stationary concrete plants are ideal for infrastructure projects such as highways, bridges, tunnels, and airports, as well as commercial, industrial, and large-scale residential constructions.

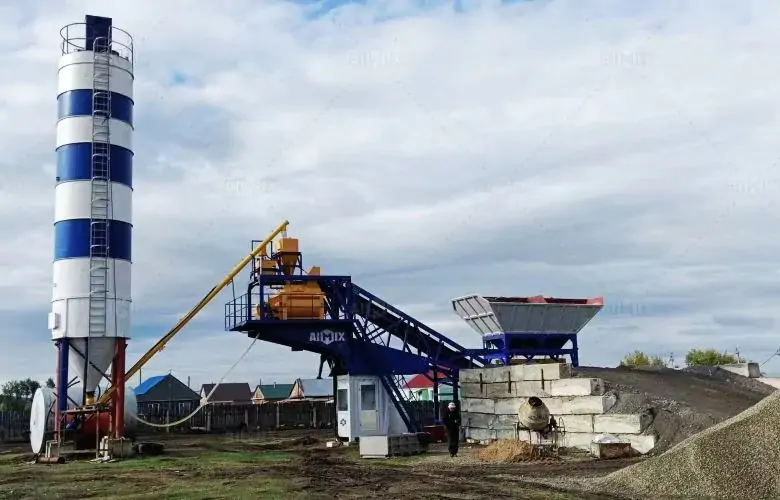

AJY Series Mobile Type Batching Plant Solutions
- Hot-sale Models: AJY60, AJY90, AJY120
- Productivity: 60-120 m³/h
- Mixer: Twin shaft mixer, Planetary
- Aggregate Feeder: belt type
- Features: Compact and modular design, flexibility, quick setup, versatility
- Applications: Mobile concrete batching plants China are perfect for small to medium-sized civil construction projects and precast concrete production, especially when the site location needs to be changed often.

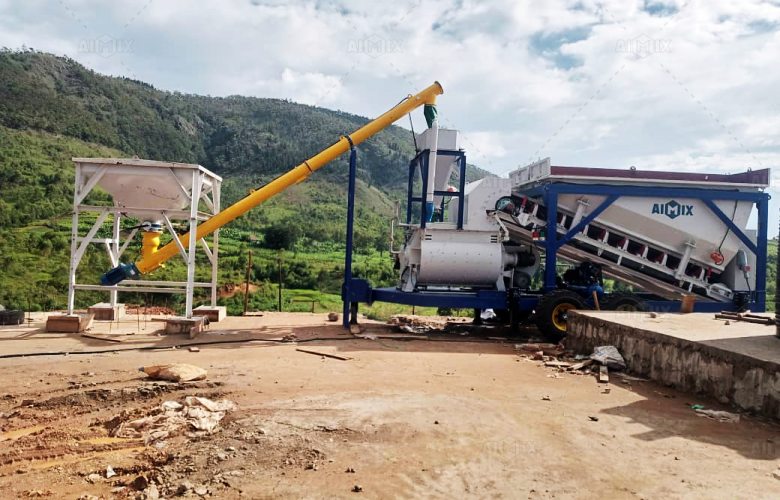

AJSY series Compact Concrete Batch Plant Solutions
- Hot-sale Models: AJSY20, AJSY40
- Productivity: 20-40 m³/h
- Mixer: Twin shaft mixer
- Aggregate Feeder: 2×3.5 m³
- Advantages: With engineering tires and lifting outrigger structures, the plant can be quickly transported between sites without the need for disassembly or reassembly.
- Applications: This type of small batch plant is widely used for concrete production projects with limited space, civilian building construction, precast concrete production.

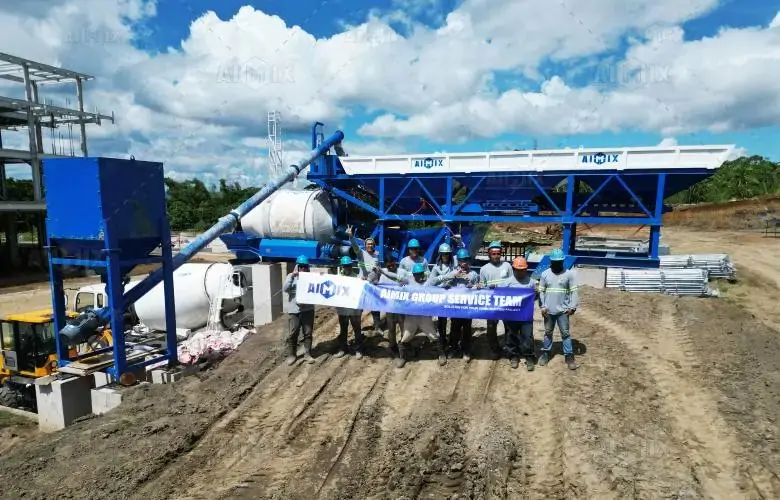

AJZY Series Drum Type Compact Batch Plant Solutions
- Hot-sale Models: AJZY40, AJZY60
- Productivity: 40-60 m³/h
- Mixer: JZM750-JZM1500
- Mixing Period: 90-120 s
- Applications: These drum type compact batch plants, also known as portable concrete plants, are suitable for small-scale civilian building construction projects.
Batching Plant Specifications
| Model | AJ-25 | AJ-35 | AJ-50 | AJ-75 | AJ-60 | AJ-90 | AJ-120 | AJ-180 |
|---|---|---|---|---|---|---|---|---|
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 | 60 | 90 | 120 | 180 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1500 | JS1000 | JS1500 | MAO3000/2000(SICOMA) | MAO4500/3000(SICOMA) |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 | 2×30 | 2×18.5 | 2×30 | 2×37 | 2×55 |
| Mixing Cycle Period (s) | 72 | 72 | 72 | 72 | 60 | 60 | 65 | 65 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ80 | Φ60 | Φ80 | Φ80 | Φ80 |
| Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 | 3×12 | 4×7 | 4×15 | 4×15 | 4×20 |
| Kind of Aggregate | 2/3 | 2/3/4 | 3/4 | 3/4 | 4/5 | 4/5 | 4/5/6 | 4/5/6 |
| Max. Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.3 | 4.3 |
| Overall Weight (ton) | ≈15 | ≈18 | ≈23 | ≈30 | ≈40 | ≈68 | ≈93 | ≈101 |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 | ≈110 | ≈160 | ≈220 | ≈290 |
| Model | AJY25 | AJY35 | AJY50 | AJY75 | AJY100 |
|---|---|---|---|---|---|
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 | 100 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Mixer Power (kW) | 18.5 | 30 | 2x18.5 | 2x30 | 2x37 |
| Mixing Cycle Period (s) | 72 | 72 | 72 | 72 | 72 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ60 | Φ60 |
| Aggregate Bin Capacity (m³) | 4x4m³ | 4x4m³ | 4x5m³ | 4x6m³ | 4x8m³ |
| Powder Storage Silo (ton) | 1x50 | 1x100 | 1x100 | 2x100 | 3x100 |
| Max. Discharging Height (m) | 3.8 | 3.8 | 4.2 | 4.2 | 4.2 |
| Weighing Range & Accuracy of Aggregate (kg) | 2x900kg±2% | 2x900kg±2% | 2x1200kg±2% | 2x1800kg±2% | 2x2400kg±2% |
| Weighing Range & Accuracy of Cement (kg) | 350kg±1% | 500kg±1% | 600kg±1% | 1000kg±1% | 1200kg±1% |
| Weighing Range & Accuracy of Water (kg) | 200kg±1% | 200kg±1% | 350kg±1% | 450kg±1% | 550kg±1% |
| Weighing Range & Accuracy of Additive (kg) | 30kg±1% | 30kg±1% | 30kg±1% | 30kg±1% | 50kg±1% |
| Overall Weight (ton) | ≈15 | ≈20 | ≈25 | ≈31 | ≈37 |
| Installation Power (kW) | ≈65 | ≈75 | ≈90 | ≈125 | ≈180 |
| Parameters | AJQ50 | AJQ70 | AJQ100 | AJQ150 |
|---|---|---|---|---|
| Theoretical Production Rate (m³/h) | 50 | 70 | 100 | 150 |
| Mixer Discharge Capacity (L) | 1000 | 1250 | 2000 | 2500 |
| Mixer Feed Capacity (L) | 1500 | 1800 | 3000 | 3750 |
| Mixer Power (kW) | 2×18.5 | 22×2 | 2×37 | 2×45 |
| Discharge Height (m) | 4.1 | 4.1 | 4.2 | 4.2 |
| Aggregate Bin Configuration (Number × Capacity per Bin, m³) | 3×10 | 3×12 | 4×15 | 4×15 |
| Cycle Time (s) | 70 | 70 | 70 | 70 |
| Maximum Aggregate Particle Size (mm) | 80/100 | 80/100 | 80/100 | 80/100 |
| Cement Silo (Optional) | 1×100 | 2×100 | 3×100 | 4×100 |
| Aggregate Weighing System | ±2% | ±2% | ±2% | ±2% |
| Powder Weighing System | ±1% | ±1% | ±1% | ±1% |
| Water Weighing System | ±1% | ±1% | ±1% | ±1% |
| Admixture Weighing System | ±1% | ±1% | ±1% | ±1% |
| Installed Power (kW) | ≈80 | ≈120 | ≈170 | ≈270 |
| Control Mode | Fully automated computer (PC) control | Fully automated computer (PC) control | Fully automated computer (PC) control | Fully automated computer (PC) control |
| Power Supply | 220/415/440/380V, 50Hz/60Hz, three-phase | 220/415/440/380V, 50Hz/60Hz, three-phase | 220/415/440/380V, 50Hz/60Hz, three-phase | 220/415/440/380V, 50Hz/60Hz, three-phase |
| Parameter | AJP40 | ||
|---|---|---|---|
| Mixing System | Mixing Type / Mixing Mode | / | Vertical Shaft Planetary Type |
| Max. Theoretical Concrete Mixing Output | m3/h | 40 | |
| Mixer Charging Capacity / Mixer Inlet Capacity | m³ | 2 | |
| Mixer Discharging Capacity / Mixer Outlet Capacity | m³ | 1.2 | |
| Mixing Drum Diameter | mm | 1900 | |
| Main Mixing Shaft Speed | r/min | 12～30 | |
| Pumping System | Main Cylinder Bore × Stroke | mm | φ100/1200 |
| Concrete Cylinder Bore × Stroke | mm | φ180×1200 | |
| Max. Theoretical Concrete Pumping Output (Low/High Pressure) | m3/h | 40 | |
| Max. Concrete Pumping Pressure (Low/High Pressure) | MPa | 10 | |
| Max. Conveying Distance (Vertical/Horizontal) | m | 50/130 | |
| Hopper Capacity × Feeding Height | L×mm | 450×1600 | |
| Discharge Port Diameter (Inner Diameter) | mm | φ115 | |
| Max. Allowable Aggregate Size | mm | 40 | |
| Concrete Delivery Pipe Inner Diameter | mm | 125 | |
| Weighing System | Aggregate Bin Feeding Height | m | 4.4 |
| Aggregate Bin Configuration (Quantity × Single Bin Capacity) | m³ | 2x8.5 | |
| Aggregate Weighing Accuracy | / | ±2% | |
| Water Weighing Accuracy | / | ±1% | |
| Additive Weighing Accuracy | / | ±1% | |
| Cement Weighing Accuracy | / | ±1% | |
| Electrical Control System | Low Pressure | V | 24 |
| High Pressure | V/HZ | 380/50 | |
| Control Mode | / | Touch Screen + Push Buttons + Wireless Remote Control | |
Where to Use Batching Plants: Project Cases for Diverse Applications
A batching plant is essential for road construction, high-rise buildings, precast concrete production, and large infrastructure projects like bridges and tunnels. Mobile concrete plants suit remote or temporary sites, while stationary batch plants handle large-scale operations. Check the following project cases of China batching plants provided by Aimix for different construction needs.

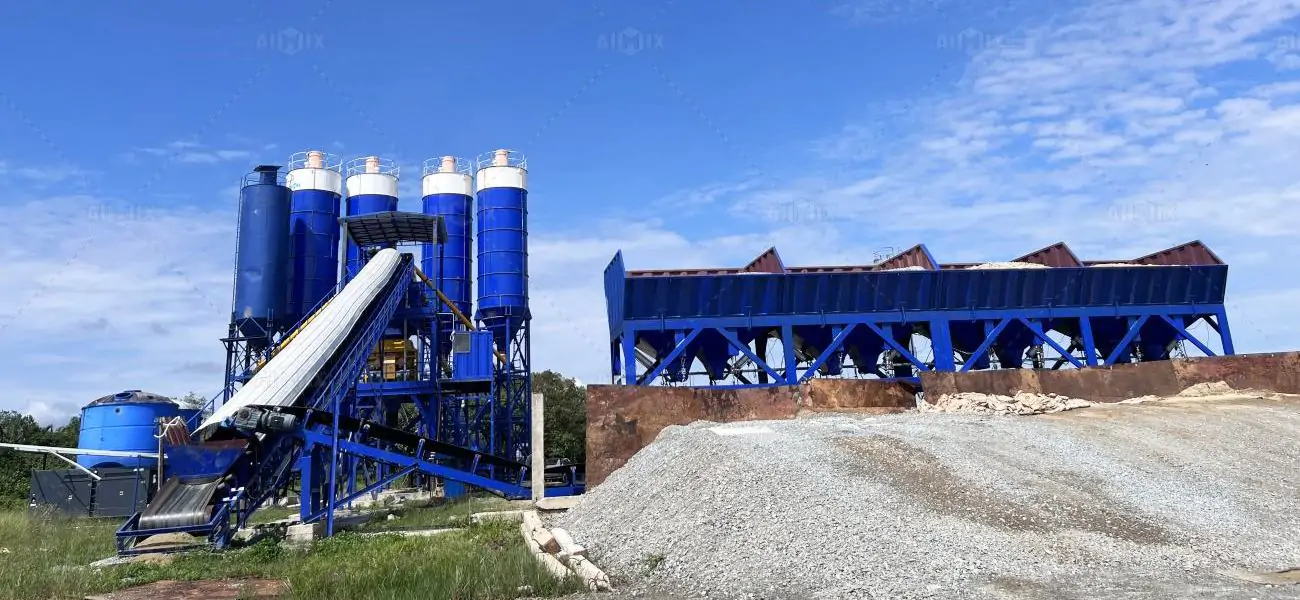

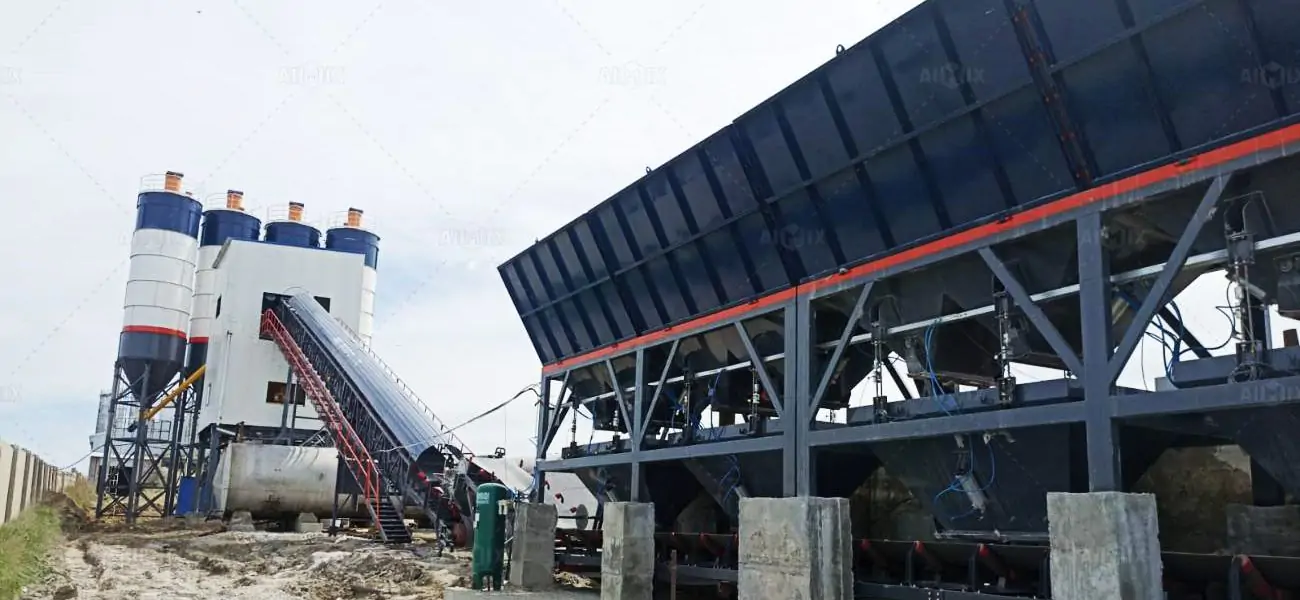

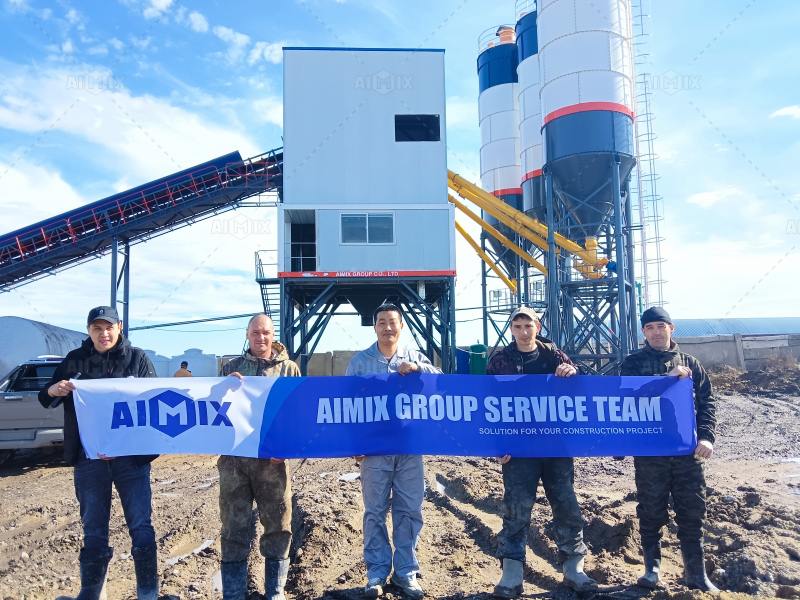

AJ-180 China Concrete Batching Plant for Sale
- Delivery time: April 2024
- Application:For commercial concrete production
- Location:In Kazakhstan
Customer Feedback: “Aimix team is professional in intalling the concrete batching plant and always offers rapid support. This AJ-180 stationary plant meets our concrete production needs. We would be glad to introduce Aimix to other customers who have the need of concrete plants.”
AJ-180 Batching Plant China for Sale
- Delivery time: December 2022
- Application: For highway construction project
- Location:In Malaysia
Customer Feedback: “This Chinese batching plant works efficiently and reliably, producing high-quality concrete for our projects. It is a cost-effective solution for us. Aimix has branch office here and is a reliable partner because the team can provide service and support for us anytime we need.”

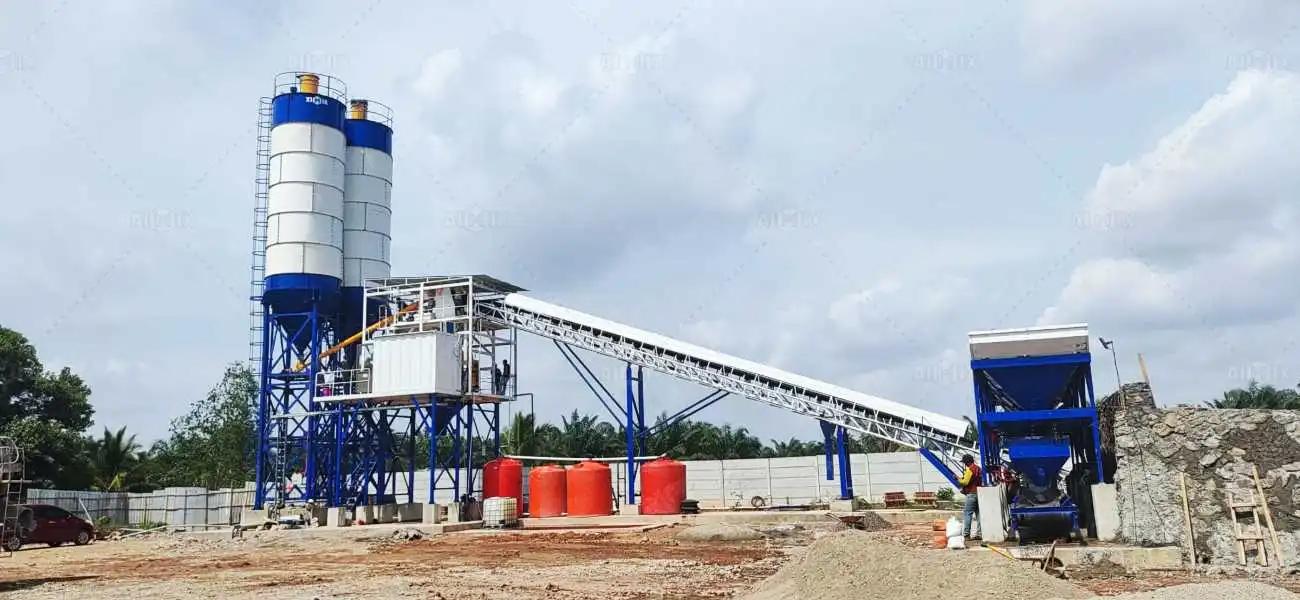

AJ-60 China Batching Plant for Sale
- Delivery time: September 2024
- Application: For precast concrete production
- Location: In Indonesia
Customer Feedback: “This batching plant works efficiently and reliably, producing high-quality concrete for our precast concrete components production. Aimix is a reliable partner offering us service and support rapidly.”
AJM-75 Foundation-free Concrete Plant China for Sale
- Delivery time: November 2024
- Application: For substation construction project
- Location: In Saudi Arabia
Customer Feedback: “Would like to appreciate your efforts that you had put in for the installation of batching plant. Your team has put a lot of efforts and hard work for the plant installation which we appreciate from the bottom of our hearts.”

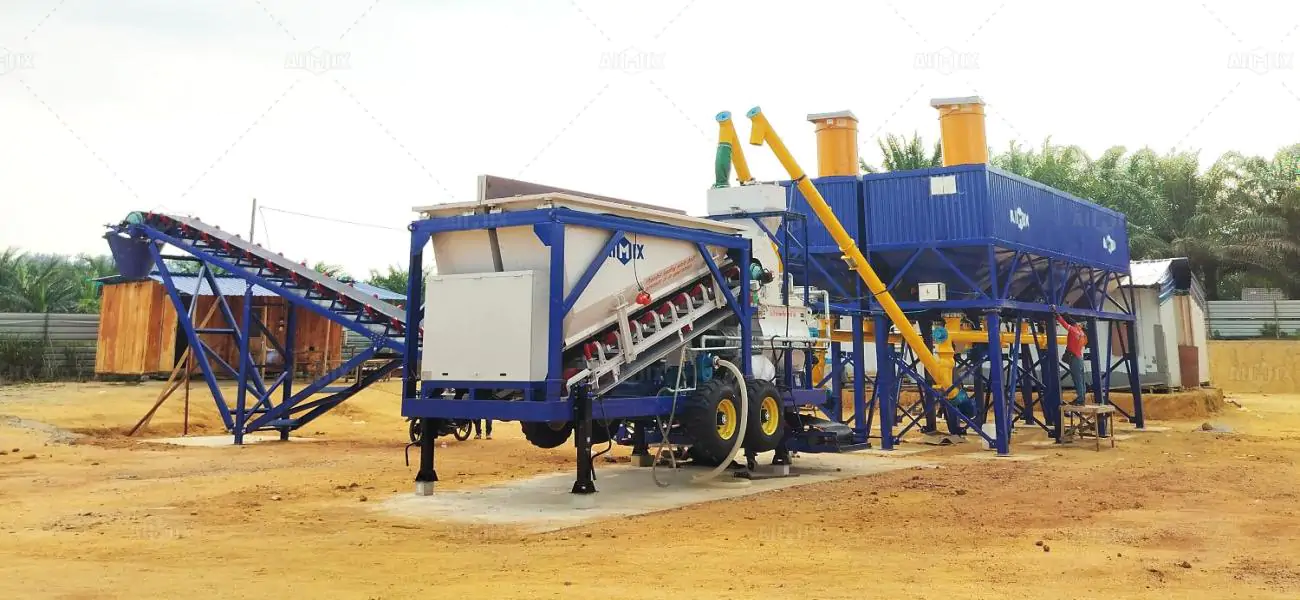

AJSY-35 China Mobile Concrete Batching Plant for Sale
- Delivery time: March 2024
- Application: For house buidling project
- Location: In Malaysia
Customer Feedback: “This compact batch plant is easy to install and operate and works efficiently.”

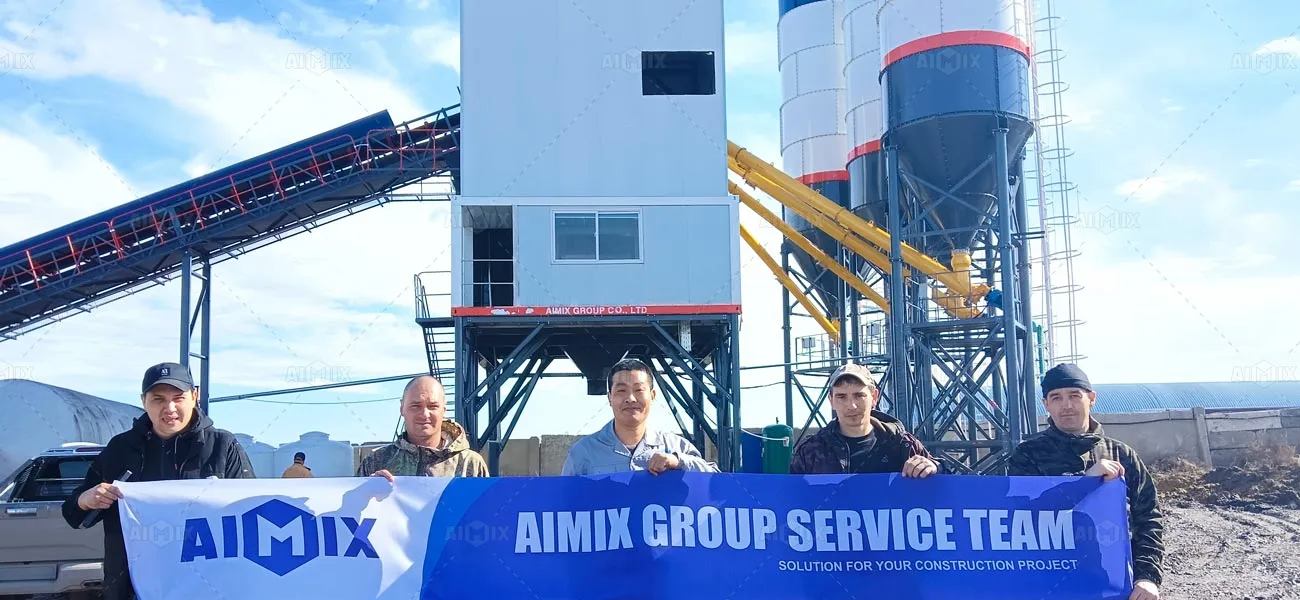

China’s Batching Plants: Shaping the Future of Construction Projects
Chinese batching plants are becoming a cornerstone in the evolution of global construction. With technological advancements, cost-efficiency, and versatile applications, these plants are setting new standards for construction projects worldwide.
Advanced Technology for Efficient Concrete Production
Chinese batching plants are equipped with cutting-edge technology that enhances automation, mixing accuracy, and production speed. The integration of smart control systems allows for precise and consistent concrete mixing, which is essential for large-scale projects. This high level of technological sophistication ensures better quality control and improved efficiency, significantly reducing construction time.
Versatility and Customization for Diverse Projects
One of the key benefits of Chinese batching plants is their adaptability. From mobile plants that can be easily relocated to larger, stationary units capable of handling high volumes, these plants can be customized to meet the specific needs of a wide range of projects. Whether for small residential developments or massive infrastructure projects, Chinese batching plants provide flexible solutions.
Strong After-Sales Support and Service
Chinese batching plant manufacturers provide robust after-sales services, which include installation, training, and maintenance. This comprehensive support ensures the longevity and optimal performance of the plants, giving customers peace of mind and contributing to their widespread use across the globe.
Shaping the Future of Construction
Through technological innovation, cost-effectiveness, and strong customer support, China’s batching plants are helping shape the future of construction. These plants are driving industry growth and enabling projects to be completed more efficiently, cost-effectively, and on time.
How to Buy Concrete Batching Plant from China
Purchasing a concrete batching plant China involves several key steps to ensure a smooth process and high-quality equipment. Here’s a general guide:
Research and Select a Reliable Manufacturer
Start by identifying reputable batching plant suppliers. Check their reputation, certifications (e.g., ISO 9001, CE), and product offerings, ensuring the suppliers meet your specific needs for capacity, mixing technology, and control systems.
Define Your Project Requirements
Decide on the concrete plant’s capacity (e.g., 20-60 m³/h for small projects or 90-180 m³/h for larger ones) and type (mobile, stationary, or compact). Consider additional features like automated controls, dust collection, or water-saving systems based on your project’s needs.
Request Quotes
Contact multiple concrete batching plant manufacturers and request quotes based on your project specifications. Ask for detailed technical documents, including dimensions, power requirements, and material compatibility, to ensure compatibility with your project site.
Verify Product Quality
Ensure the manufacturer holds relevant certifications and consider visiting the factory or requesting videos to check the batch plant’s manufacturing and testing processes. Ask for references from past customers to validate reliability.
Negotiate Terms
Discuss concrete plant price, payment terms (e.g., T/T, L/C), lead time, delivery schedule, and warranty details. Ensure the supplier provides after-sales support for maintenance and spare parts.
Sign the Contract
Once terms are agreed, review and sign a detailed contract that includes specifications, payment terms, delivery, installation, and warranty details.
Make Payment
Typically, a deposit (30-50%) is paid upfront, with the final balance due when the concrete plant is ready for shipment.
Arrange Shipping
The concrete batch plant supplier handles shipping, usually by sea. Ensure you receive all necessary shipping documents (e.g., Bill of Lading, Commercial Invoice) for customs clearance.
Customs and Delivery
Pay any import duties and taxes on arrival. Once the plant reaches your site, inspect it to ensure it meets contract specifications.
Installation and Operation
The supplier may send a team or provide online guidance for installation and operator training. Once set up, conduct a test run to ensure proper functionality.
Services Offered by a Trusted Chinese Batching Plant Manufacturer – Aimix
As a reliable construction machinery supplier in China, Aimix Group understands that excellent customer service is essential for success. We ensure that every customer receives great value beyond the China batching plant cost, providing comprehensive support to guarantee satisfaction with both their purchase and overall experience.
Pre-Sales Service
Aimix places a strong emphasis on pre-sales service, striving to offer the most suitable and tailored solutions by thoroughly understanding each customer’s needs.
- Demand Analysis: Through communication with customers, we understand in detail their project size, construction environment, budget constraints, and other key information.
- Solution Customization: According to the specific needs of customers, combined with the company’s product features, to develop personalized solutions to meet customer expectations, including equipment selection, configuration recommendations, and so on.
- Professional Consulting: Provide professional product knowledge consulting and industry experience sharing to help customers make informed decisions.

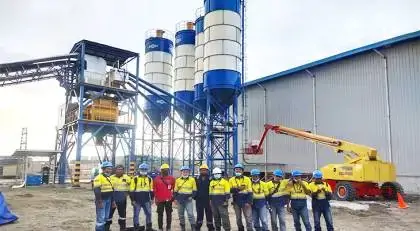

In-Sales Service
During equipment delivery and installation, Aimix guarantees professional technical support and services to ensure every unit operates efficiently and reliably.
- Professional Installation Guidance: Dispatch experienced technicians to the site to provide professional installation guidelines to ensure that the equipment is installed correctly.
- Debugging Service: Complete the debugging work of the China batching plant for sale to ensure that the equipment reaches the best working condition before it is formally put into use.
- Operation Training: Provide systematic training to the customer’s operators, including daily operation and maintenance of the plant.
After-sales service
Aimix is dedicated to offering continuous support and services, ensuring that any issues during operation are resolved promptly.
- Equipment Maintenance: Provide regular equipment inspection and maintenance services to help extend equipment life and reduce operating costs of the batching plant.
- Parts Supply: Respond quickly to customers’ parts needs and provide original parts to ensure the efficient operation of the equipment.
- Technical Support: Provide instant technical support by phone, e-mail, video, and other means to answer the technical problems encountered by customers in the process of equipment use.
Choosing Chinese Concrete Batching Plants
China’s batching plant industry is revolutionizing global construction with the blend of innovation, efficiency, and affordability. Leading manufacturers like Aimix are setting new standards in sustainability and smart technology, ensuring high-quality concrete solutions for diverse projects. Whether for large-scale infrastructure or mobile construction needs, China’s concrete plants offer unmatched performance and cost-effectiveness.
For investors and developers, partnering with Chinese suppliers means gaining access to cutting-edge equipment, reliable after-sales service, and competitive pricing. As the demand for high-quality concrete grows worldwide, choosing a Chinese batching plant is not just a smart investment—it’s a strategic move toward building the future.
