Exciting news! Aimix 8m³ concrete mixing trucks are in stock, if you plan to buy mixer truck, we will supply you now! Only four sets left! Contact us and you will get much more reasonable price!
Details about 8m³ concrete mixer trucks for sale
Overall dimension | 9000x2500x3820mm |
Kerb weight | 13800kg |
Mixing Drum parameter | |
Mixing drum material | High quality wear-resistance steel |
Model:Q345 | |
Drum body thickness: 5mm, End cover thickness:6mm | |
Agitating capacity | 8M3 |
Drum overall dimension(with frame) | 6600*2500*2675mm |
Mixing drum size | Diameter: Φ2300mm Length: 4730mm |
Charging rate | ≥3 m3/min |
Top feed hopper dimension | ≥650 mm |
Discharging rate | ≥2 m3/min |
Residual rate | ≤0.5% |
Water supply | Baric water supply system |
Water tank capacity | 450L |
Radiator | 18L |
Reduction gear | ZF Reducer |
Hydraulic pump | PMH P90 |
Hydraulic motor | PMH M90 |
Accessory | Tool box |
Chassis parameter | |
Chassis Brand | SINO Truck |
Chassis model | ZZ1257N3841W |
Axle base | 3825+1350 |
Driving type | Left hand drive(LHD) |
Engine model | WD615.47 |
Rated power (HP) | 371HP |
Emission standard | Euro II |
Fuel type | Diesel |
Transmission(Gear box) | HW19710 |
Front axle | Drum type |
Rear axle | HC16 Driving axle(HC16) |
Tyre | 12.00R20(10+1) |
Cab type | HW 76 (with air-conditioner) |

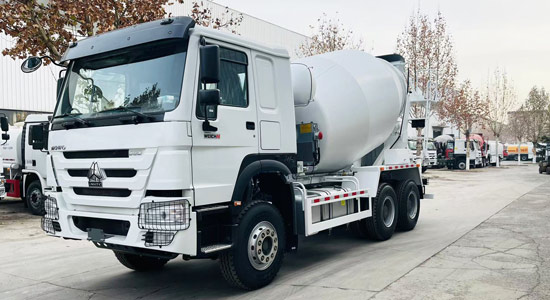

We Aimix Group concrete mixer truck belongs to a special truck, which is used to transport ready-mix concrete in construction projects. Our concrete mixer truck has the dual function of transportation and agitation, which can be transported to ensure the quality of concrete delivery and achieve concrete delivery of high-performance and all mechanized operations within a certain distance. Our concrete mixer truck includes chassis and special concrete equipment for mixing and transportation, and it is widely used in urban construction, highways, railways, utilities and other concrete construction projects. In addition, the use of concrete mixer truck greatly improves labor productivity and construction quality.
Model: | CLCMT-3 |
Volume: | 3 m3/h |
Chassis: | HOWO; Dongfeng; Shaanxi Auto |
North Pennines; Isuzu; Foton; Delong | |
Feeding Speed: | M3/min≥ 3 |
Unloading Speed: | M3/min≥ 2 |
Discharge reside rate: | %< 0.5 |
Hydraulic Pump: | GMP (Italy) |
Hydraulic motor: | Japan KYD |
Decelerator/Reducer: | GMP (Italy) |
Warranty: | 12 months, from the date of supply |
Delivery time: | Within 15 work days after receiving the payment |
Model: | CLCMT-4 |
Volume: | 4 m3/h |
Chassis: | HOWO; Dongfeng; Shaanxi Auto |
North Pennines; Isuzu; Foton; Delong | |
Feeding Speed: | M3/min≥ 3 |
Unloading Speed: | M3/min≥ 2 |
Discharge reside rate: | %< 0.5 |
Hydraulic Pump: | GMP (Italy) |
Hydraulic motor: | Japan KYD |
Decelerator/Reducer: | GMP (Italy) |
Warranty: | 12 months, from the date of supply |
Delivery time: | Within 15 work days after receiving the payment |
Model: | CLCMT-5 |
Volume: | 5m3/h |
Chassis: | HOWO; Dongfeng; Shaanxi Auto |
North Pennines; Isuzu; Foton; Delong | |
Feeding Speed: | M3/min≥ 3 |
Unloading Speed: | M3/min≥ 2 |
Discharge reside rate: | %< 0.5 |
Hydraulic Pump: | GMP (Italy) |
Hydraulic motor: | Japan KYD |
Decelerator/Reducer: | GMP (Italy) |
Warranty: | 12 months, from the date of supply |
Delivery time: | Within 15 work days after receiving the payment |
Model: | CLCMT-6 |
Agitating capacity: | 6 m3 |
Chassis: | HOWO; Dongfeng; Shaanxi Auto |
North Pennines; Isuzu; Foton; Delong | |
Mixer drum parameter: | adopt Q345 high-quality wear-resistance material |
Drum body thickness: | 4mm |
Drum overall dimension(with frame) | 5700*2500*2550mm |
Water supply: | Baric water supply system |
Reduction gear: | PMB7Ysp Reducer, Italy technology |
Hydraulic pump: | Eaton 54 America brand |
Hydraulic motor: | Eaton 54 America brand |
Residual rate | ≤0.5% |
Specifications
Item | CLCMT-14 | CLCMT-12 | CLCMT-10 | CLCMT-8 | CLCMT-6 | CLCMT-4 | CLCMT-3 | |
Volume(m3) | 14 | 12 | 10 | 8 | 6 | 4 | 3 | |
Chassis model | Dongfeng,HOWO(Sinotruk), Shaanxi Auto, North Pennines, Isuzu, Foton,Delong | |||||||
Feeding speed | M3/min≥ 3 | |||||||
Unloading speed | M3/min≥ 2 | |||||||
Discharge reside rate | %< 0.5 | |||||||
Water supply model | Air pressure water supply | |||||||
Delivery time | Within 15 work days after receiving the payment | |||||||
Warranty | 12 months, from the date of supply. | |||||||
Remarks | Hydraulic Pump& motor: GMP (Italy) | |||||||
Decelerator: GMP (Italy) |

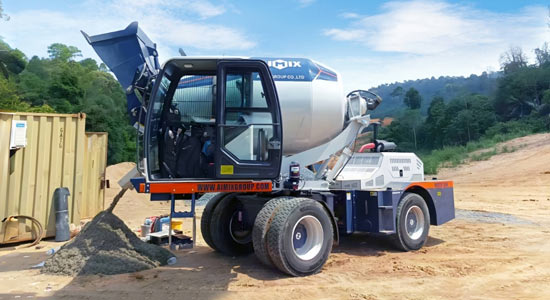

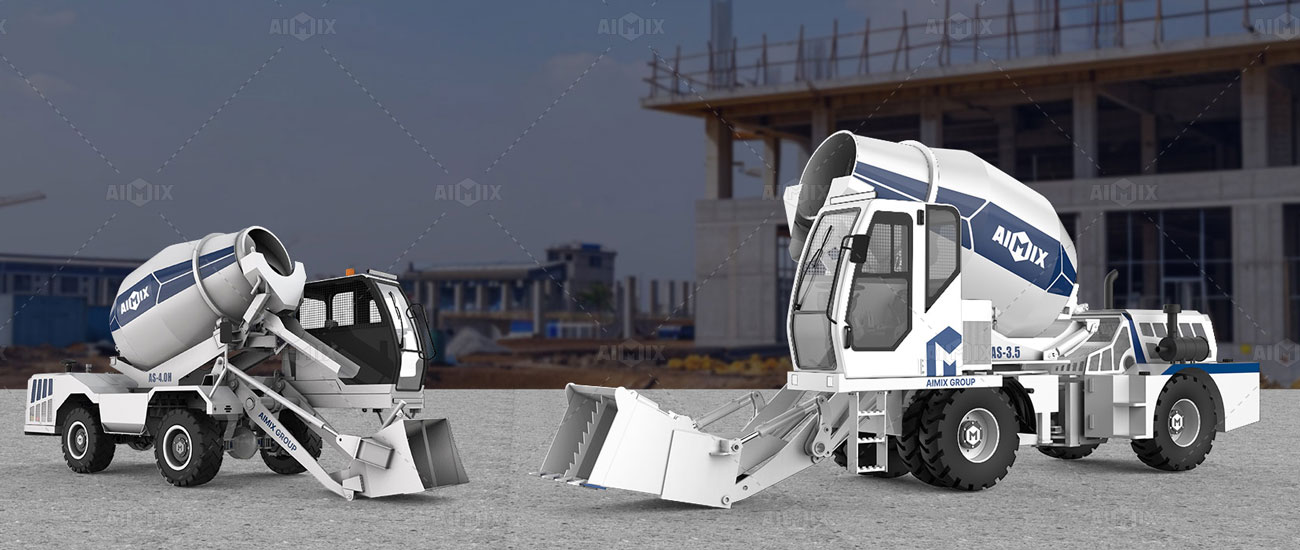

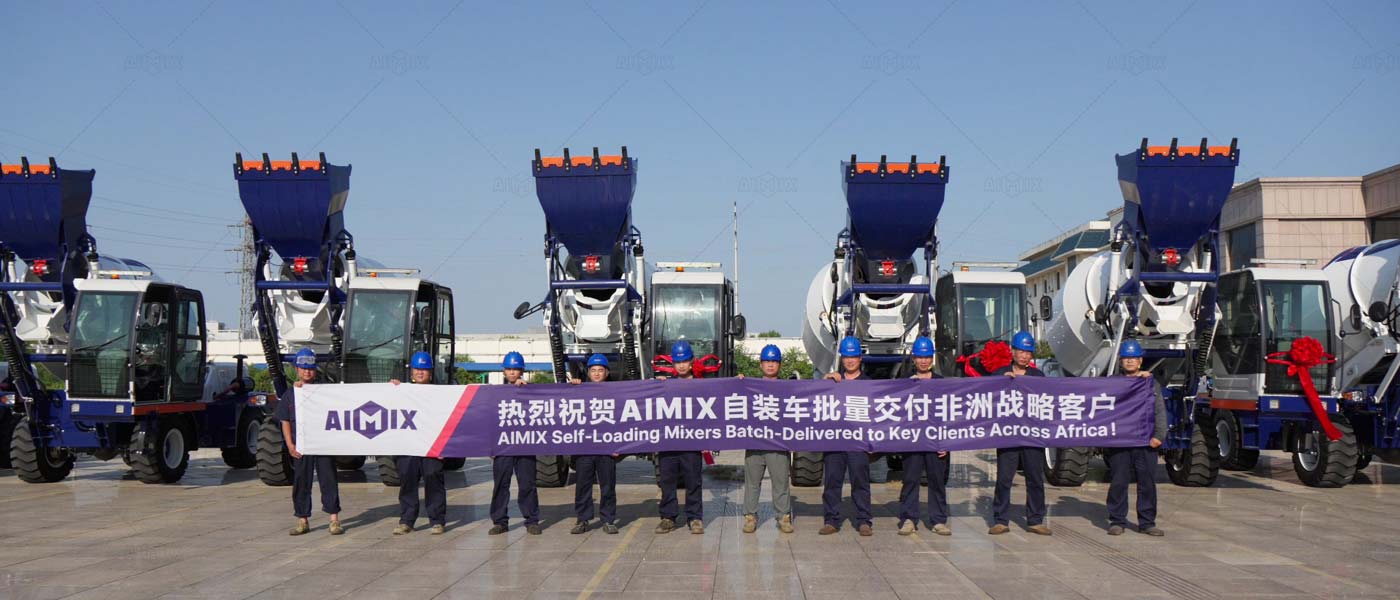

Concrete Mixer Truck With Self-Loading Design
Specifications of self loading mixers
Model | AS-6.5 | AS-5.5 | AS-4.0 | AS-3.5 | AS-2.6 | AS-1.8 | AS-1.2 |
Overall size (LxWxH) | 8450x3050x4830 | 8450×3100×4580 | 7640×2870×4750 | 7830×2680×4170 | 7860×2750×4100 | 7300×2650×3750 | 6400x2550x3300 |
Wheel base(mm) | 2850 | 3350 | 2480 | 2900 | 2800 | 2600 | 2300 |
Total weight (Kg) | 12520 | 11500 | 9200 | 7900 | 7100 | 6100 | 5000 |
Max. Speed (km/h) | 40 | 42 | 35 | 30 | 30 | 30 | 30 |
Max. gradeability (%) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Min. turning radius (mm) | 4800 | 6200 | 4800 | 5300 | 5300 | 5300 | 4700 |
Min. ground clearance (mm) | 350 | 380 | 330 | 380 | 380 | 380 | 280 |
Engine power (kw) | 92 | 92 | 91 | 91 | 78 | 78 | 55 |
Fuel tank (L) | 370 | 180 | 120 | 120 | 75 | 63 | 63 |
Hydraulic tank (L) | 278 | 180 | 120 | 120 | 75 | 63 | 63 |
Oil tank (L) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Water tank (L) | 1465 | 840 | 920 | 620 | 500 | 400 | 400 |
Water supply | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay |
Weighitng method | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system | Automatic hydraulic weighing system |
Mixer drum capacity (L) | 9000 | 7800 | 6000 | 4740 | 3580 | 2680 | 1700 |
Drum speed (r/min) | 16.5 | 20 | 17 | 13-20 | 13 | 13 | 13 |
Features and Advantages of Our Concrete Mixer Truck
Our concrete mixer truck is equipped with a mixing cylinder to transport the mixed concrete, which is always kept in rotation to ensure that the concrete will not solidify during transportation.
The compact design is easy to operate, maintain and clean. After the concrete is delivered, users can clean the inside of mixing cylinder by water.
The capacity of mixing tube is big, and the mixing tube can rotate in the rotation of counter-clockwise and clockwise, so our mobile concrete mixer truck is applicable to every country in the world.
Our concrete mixer truck has advantages oflarge output, high reliability and long service life.
The volume includes: 3m³, 4m³, 5m³, 6m³, 7m³, 8m³, 9m³, 10m³, 12m³, 14m³, 16m³.
The chassis brand includes: Foton, Dongfeng, North benth, ISUZU, Northbenth. Howo, Nissan.
Our electric cement mixer truck can meet different needs of our users by equipping with different chassis.
Model: | CLCMT-8 |
Agitating capacity: | 8m3 |
Chassis: | HOWO; Dongfeng; Shaanxi Auto |
North Pennines; Isuzu; Foton; Delong | |
Mixer drum parameter: | adopt Q345 high-quality wear-resistance material |
Drum overall dimension(with frame) | 6600*2500*2675mm |
Drum body thickness: | 5mm |
Water supply: | Baric water supply system |
Charging rate | ≥3 m3/min |
Top feed hopper dimension | ≥650 mm |
Discharging rate | ≥2 m3/min |
Residual rate | ≤0.5% |
Model: | CLCMT-9 |
Agitating capacity: | 9m3 |
Chassis: | HOWO; Dongfeng; Shaanxi Auto |
North Pennines; Isuzu; Foton; Delong | |
Mixer drum parameter: | adopt Q345 high-quality wear-resistance material |
Drum overall dimension(with frame) | 6600*2500*2675mm |
Drum body thickness: | 5mm |
Water supply: | Baric water supply system |
Charging rate | ≥3 m3/min |
Top feed hopper dimension | ≥650 mm |
Discharging rate | ≥2 m3/min |
Residual rate | ≤0.5% |
Model: | CLCMT-10 |
Agitating capacity: | 10m3 |
Chassis: | HOWO; Dongfeng; Shaanxi Auto |
North Pennines; Isuzu; Foton; Delong | |
Mixer drum parameter: | adopt Q345 high-quality wear-resistance material |
Drum overall dimension(with frame) | 7100*2500*2730mm |
Drum body thickness: | 5mm |
Water supply: | Baric water supply system |
Charging rate | ≥3 m3/min |
Residual rate | ≤0.5% |
Reduction gear: | PMB7Ysp Reducer, Italy technology |
Hydraulic pump: | Eaton 54 America brand |
Hydraulic motor: | Eaton 54 America brand |
Model: | CLCMT-12 |
Agitating capacity: | 12m3 |
Chassis: | HOWO; Dongfeng; Shaanxi Auto |
North Pennines; Isuzu; Foton; Delong | |
Mixer drum parameter: | adopt Q345 high-quality wear-resistance material |
Drum overall dimension(with frame) | 7600*2500*2850mm |
Drum body thickness: | 5mm |
Water supply: | Baric water supply system |
Charging rate | ≥3 m3/min |
Residual rate | ≤0.5% |
Reduction gear: | PMB7Ysp Reducer, Italy technology |
Hydraulic pump: | Eaton 54 America brand |
Hydraulic motor: | Eaton 54 America brand |

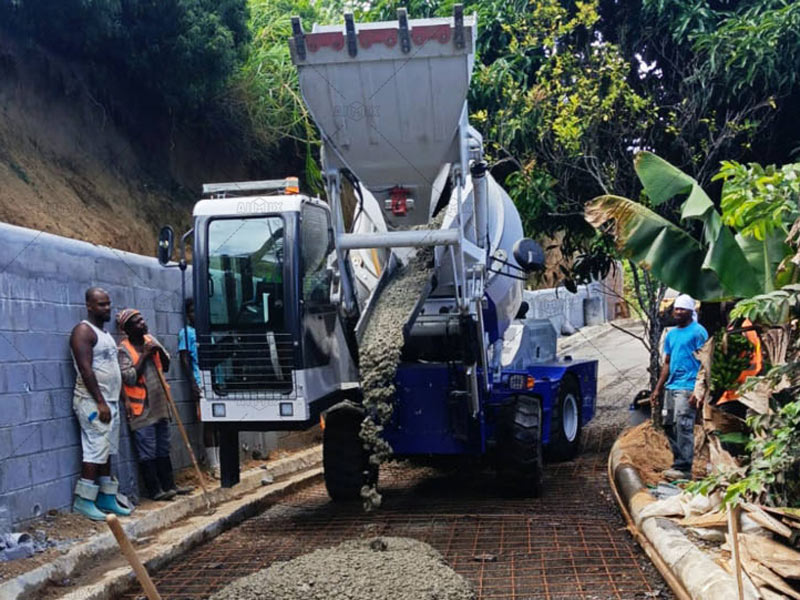

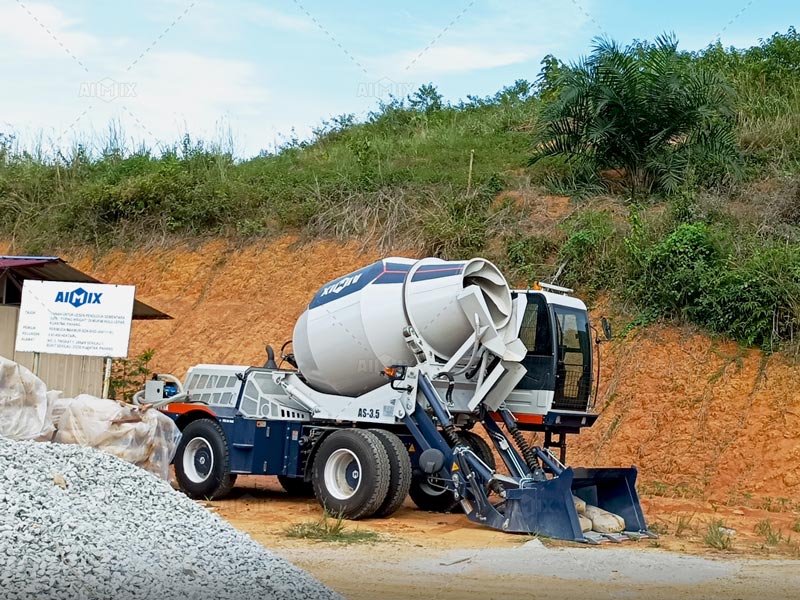

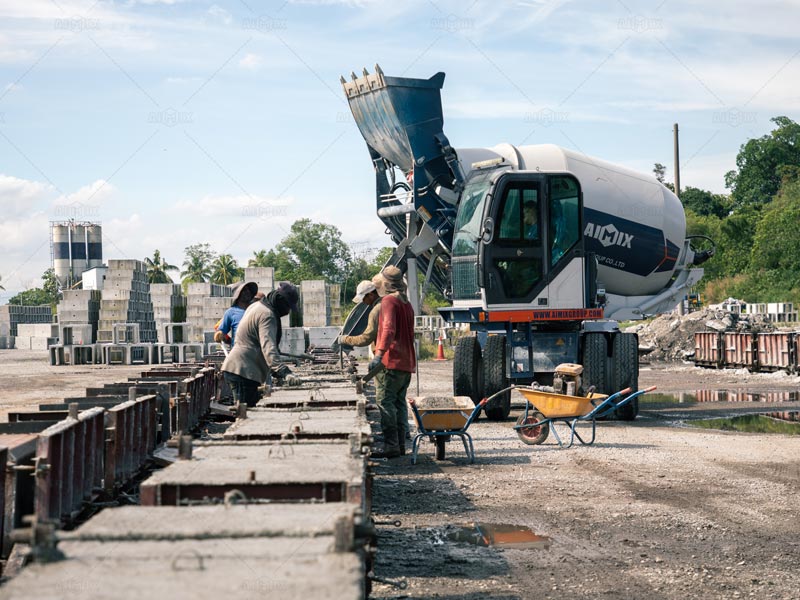

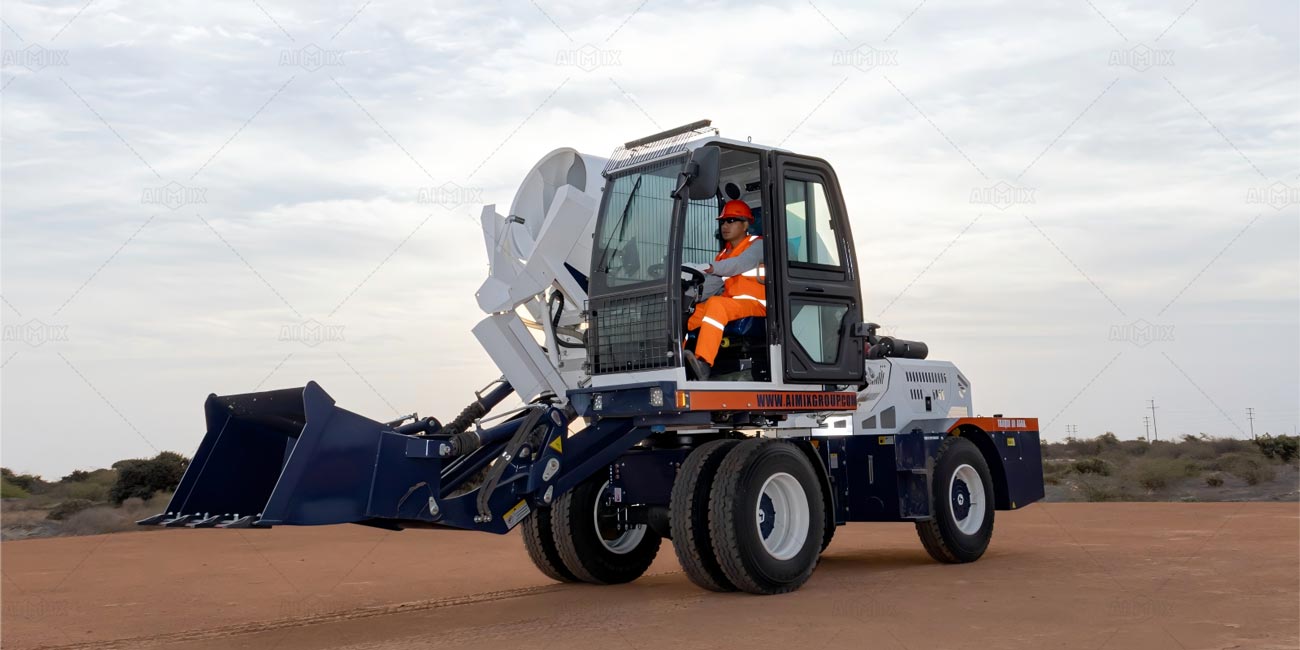

Successful cases
About Us
As a leading enterprise of China construction equipment, we Aimix Group has got certificate of CE and ISO 9001:2000.
As a Henan famous brand, our concrete mixer truck, concrete pump, concrete mixer and pump, concrete batching plant, concrete mixer,construction lift, pump truck, dry motar production line, block making machine and stabilized soil mixing plant and other products are delivered to all over the world.
As a verified supplier by BV and Alibaba, we Aimix Group have extensive experience for sale concrete mixer truck in China. Up to now, our products has exported to American, France, New Zealand, Nigeria, Togo, Russia, Philippines, Indonesia, Australia and other 60 different countries.
