HBTS40R diesel small concrete pump for sale in Philippines

Concrete Pump For Sale Philippines

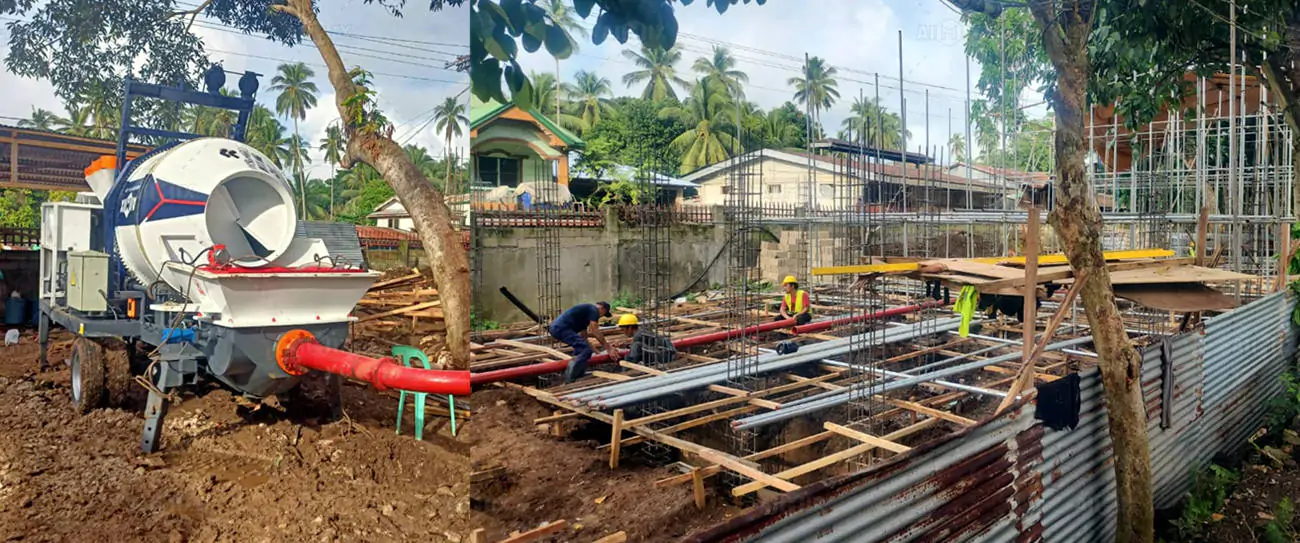

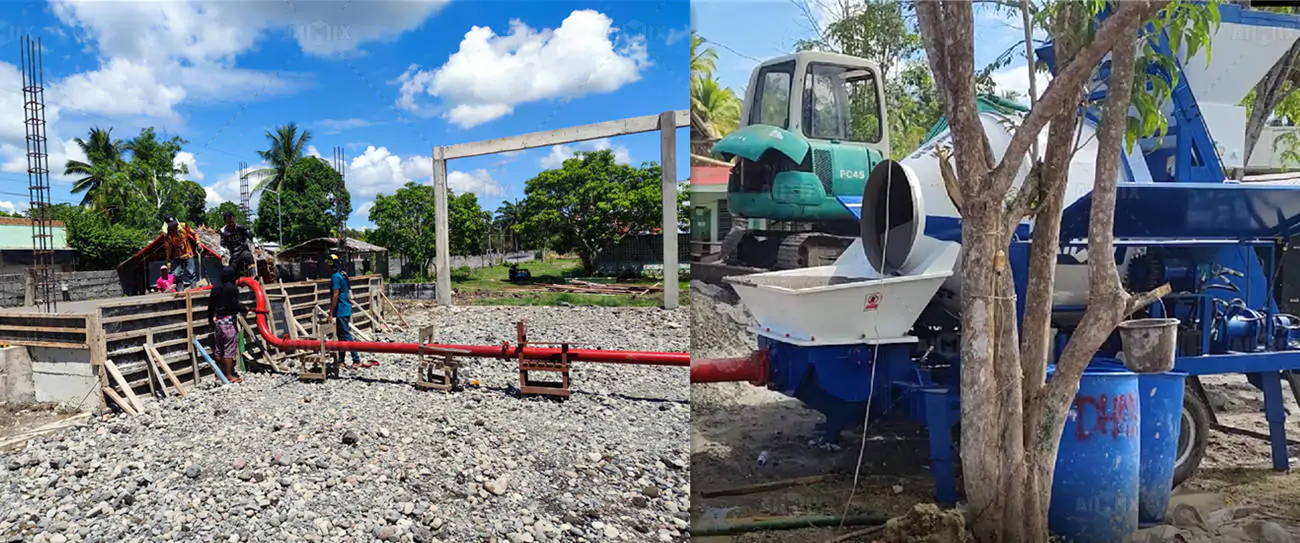

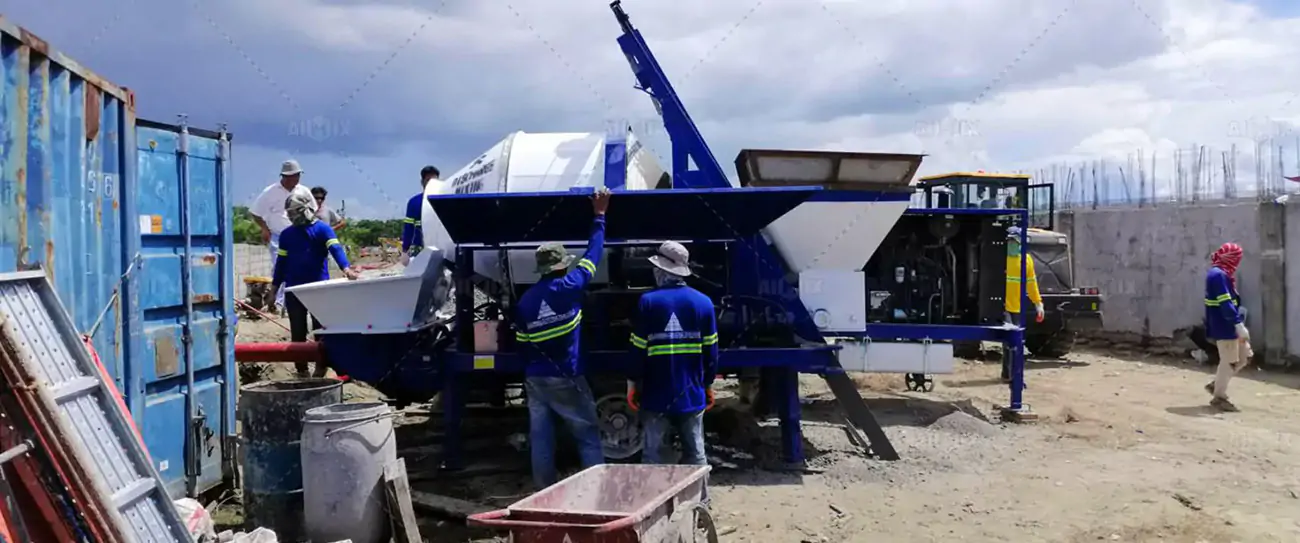

Concrete pump for sale philippines is used to pump concrete for large floor building, bridge building and tunnel construction. What’s more, it is very suitable for small civil building project, it has characteristics of high automation degree, assemble feeding, mixing and pumping as a whole, can save a lot of labor cost. Concrete pump for sale in the philippines has characteristics of simple operation and stable performance. We adopt hydraulic pumping method, during the construction, can achieve high safety, low failure rate and high reliability. If you have strict period, we can also supply you efficient concrete mixer pump philippines, as you can see from the picture, our salesman went to JBS40-10-82R diesel concrete mixer with pump philippines to supply after-sale service, our users spoke highly of our pump machine, they use it to flood control, our machine played an important role in the project.

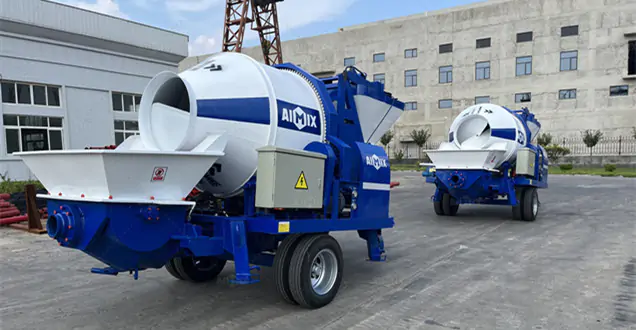

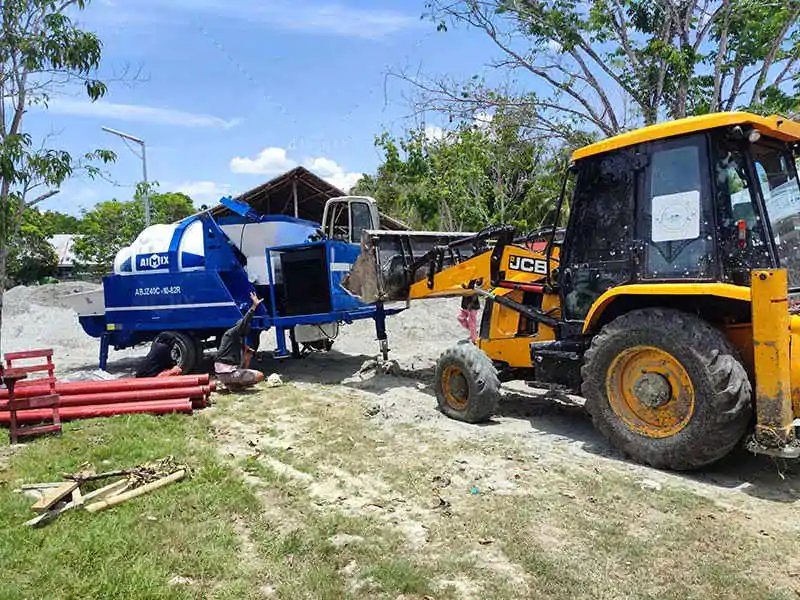

JBS40-10-82R diesel concrete mixer with pump Philippines
JB40-10-82R diesel concrete mixer pump Philippines
JBS40-10-82R diesel concrete pump mixer Philippines
JBS40R-diesel cement mixer pump Philippines

Specifications Of Diesel Concrete Mixer Pump

Model: JB30R-JZC350
Max. Theoretical Conveying Capacity: 30m3/h
Distribution valve type: S Valve
Diesel engine model: Weifang
Max. Theoretical Vertical Conveying Distance: 120m
Max. Theoretical Horizontal Conveying Distance: 600m
Max. Aggregate Diameter: Scree: 20mm

Another I should mention, in addition pumping concrete, our concrete pump philippines can achieve delivery of greening soil, foundation pile grouting and silt transportation, etc.

Characteristics And Features Of Concrete Pump In Philippines

1. We adopt advanced S valve reversing, can satisfy delivery of concrete.

2. Glasses plates and cutting loop adopt carbide-tipped material, can achieve long service life. Higher outlet pressure, can meet the delivery of high-rise building and remote distance.

3. Our concrete pump truck philippines is with reverse pump function, can minimize the pipe clogging, equipped with manual lubrication system, ensure service life of transmission system, electric control cabinet is equipped with wired remote control.

4. Service efficiency of our concrete pump mixer for sale philippines can be 4 to 6 times as big as traditional concrete pump. Therefore, concrete mixer pump in philippines is time and cost-saving. Concrete mixer and concrete pump are put on a rack having axle, through a small truck or small wheel loader, can move between several construction sites.

JZB200-10 concrete mixer pump
JZB200-10 concrete mixer pump
JBS30-JZC350 diesel concrete mixing pump
JBS30-JZC350 diesel concrete mixing pump
JBS30-JZC350 electric concrete mixer pump
JBS30-JZC350 electric concrete mixer pump
Items Units Parameters
JZB200-10
Whole performance of machine Max. theo. concrete output m3/h 10
Max.concrete pumping pressure MPa 10
Distribution valve type
Concrete cylinder diameter×stroke mm Ф140×1000
Hopper capacity L 400
Outlet diameter mm Ф100
Power system Main motor    kw
18.5
Vice motor kw 11
Kw 3
Water pump motor powe kw 0.55
Rotate speed r/min 1480
Feeding capacity L 0.25
Discharging capacity L 0.2
Hydraulic system Circuit type Open circuit
Pumping system pressure MPa 28
Mixing system pressure MPa
Capacity of oil tank L 370
The biggest transportation is away from vertically (/Level) m 100/300
Other parameters Max. aggregate diameter mm Diameter: 20
Inside diameter of delivering pipe mm Ф80
Dimensions:length×width×height mm 4200x2300x3150
Total weight kg 3200


[/tabs]

Compulsory Concrete Mixer Pump – JBS40-JS750 And JBS30-JS500 Available

JBS40-JS750 compulsory concrete mixer pump
JBS40-JS750 compulsory concrete mixer pump

Model: JBS40-JS750
Max. Theoretical Conveying Capacity: 40m3/h
Motor Power: 83.6kw
Max Aggregate Size: 40mm
Max Horizontal Conveying Distance: 600m
Max Vertical Conveying Distance: 150m
Mixer Model: JS750

Pay Attention When You Install The Philippines Concrete Pump For Sale

1. The ground supporting concrete pump sale philippines should be solid and flat. The machine should not be oblique. Outrigger should support the whole pump machine steadily. Position of portable concrete pump for sale in philippines not only should be convenient to get in and out and feed of concrete mixer truck, but also be beneficial to pump feed tube and reduce pumping pressure loss. At the same time, should be near from pouring point, water and electricity supply should be convenient.

2. Piping should according to features of construction site and concrete pouring scheme. Laying of delivery pipe should be convenient to pipe cleaning, trouble removal and disassembling maintenance.

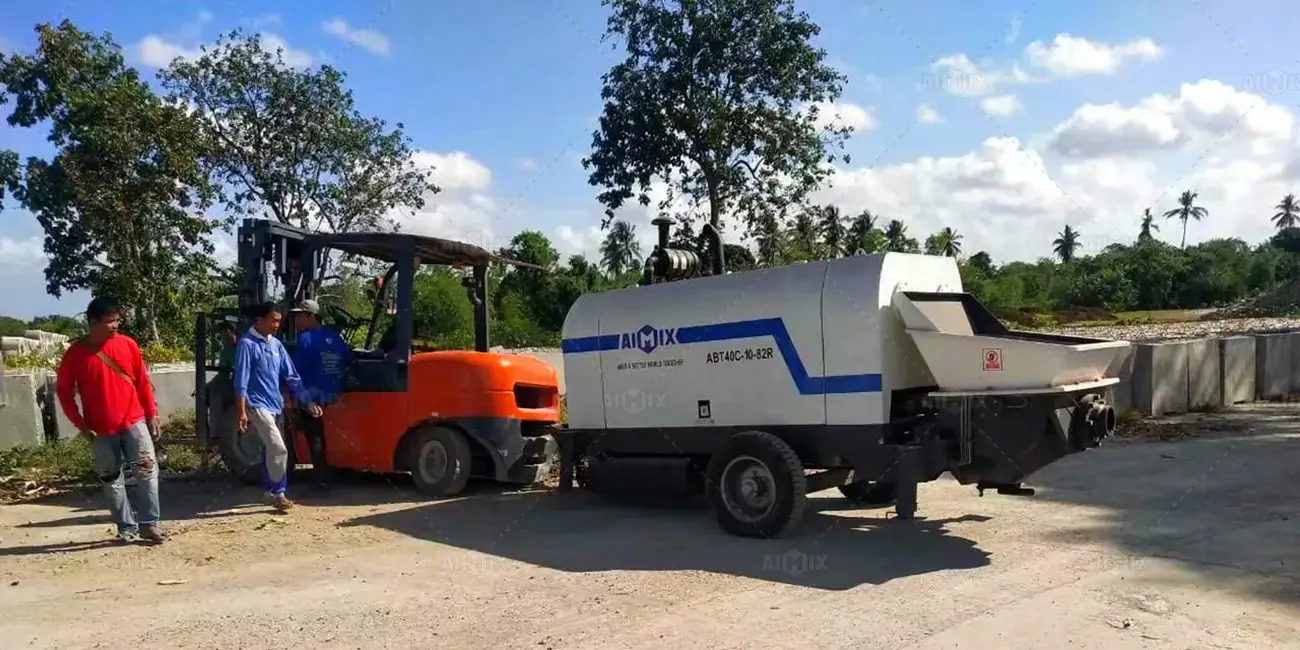

HBTS40R diesel small concrete pump for sale in Philippines
HBTS40R diesel small concrete pump for sale in Philippines


Item Unit BS30-10-56R
Max. theo. concrete output(L/H) m3/h 30
Max.concrete pumping pressure MPa 10
Concrete cylinder(diameter* stroke) mm 1400×1200
Hopper capacity*feeding height L×mm 400×1200
Outlet diameter mm Ф100
Power kw 56
Rotate speed RMN 1800
Pumping system pressure MPa 26
Mixing system pressure MPa 6—8
Capacity of oil tank L 260
Max. concrete pumping distance(vertical) M 120
Max. concrete pumping distance(horizontal ) M 500
Dimension(length*width*height) mm 4500*1750*1600
Total weight Kg 3500
Item HBTS40-SR HBTS50-SR HBTS60-SR HBTS80-SR HBTS90-SR
Max. Theoretical Throughput (m3/h) 40 50 60 80 90
Max. Pumping Pressure(MPa) 11/13/15 13 13/15/16 16 16/18
Max. Theoretical Vertical Conveying Distance(m) 150 180 190 200 200
Max. Theoretical Horizontal Conveying Distance 600 600 800 1000 1200
Max. Aggregate Diameter(mm) 30/40 40/50 50 50 50
Slump(cm) 12—23 12—23 12—23 12—23 12—23
Conveying Pipe Radius(mm) 125 125/150 150 150 150
Conveying Cylinder Bore X Piston Stroke(mm) Φ180×1300 Φ180×1300 Φ200×1650 Φ200×1800 Φ200×1800
Hydraulic Oil Tank Capacity(L) 370 370 580 580 580
Feeding Height(mm) 1250 1300 1400 1420 1420
Hopper Capacity(m³) 0.6 0.68 0.68 0.68 0.8
Diesel Brand DELIER/DEUTZ DELIER/DEUTZ DEUTZ DEUTZ DEUTZ
Power of Diesel Motor(kw) 56 62 82/129 162 176
Dimension(Length*Width*Weight)(mm) 5000*1850*1700 5000*2100*2260 6000*2160*2600 6700*2160*2700 6750*2160*2700
Total Weight(kg) 4500 4500 6480 7600 7600
HBT80 electric portable concrete pump for sale Philippines
HBT80 electric portable concrete pump for sale Philippines
Item HBT-20 HBT-30 HBT-40
Max. Theoretical  Throughput(m3/h) 20 30 40
Max. Pumping Pressure(MPa) 10 11 11/13
Max.Theoretical Vertical Conveying Distance(m) 140 150 150
Max.Theoretical Horizontal Conveying Distance(m) 500 600 600
Max. Aggregate Diameter(mm) 20 20/30 30/40
Conveying Pipe Radius(mm) 100 100 125
Conveying Cylinder Bore X Piston Stroke(mm) Φ140×1000 Φ160×1200 Φ180×1200
Hydraulic Oil Tank Capacity(L) 240 370 370
Feeding Height(mm) 1100 1100 1100
Hopper Capacity(m3) 0.35 0.4 0.6
Power(kw) 37 45 45/56
Dimension(Length×Width×Height)(mm) 4000×1350×1550 4500×1750×1600 4600×1850×1770
Item HBT-50 HBT-60 HBT-80 HBT-90
Max. Theoretical  Throughput(m3/h) 50 60 80 90
Max. Pumping Pressure(MPa) 12/13 13/15/16 16 16/18
Max.Theoretical Vertical Conveying Distance(m) 150 190 200 220
Max.Theoretical Horizontal Conveying Distance(m) 600 800 1000 1200
Max. Aggregate Diameter(mm) 40/50 50 50 50
Conveying Pipe Radius(mm) 125/150 150 150 150
Conveying Cylinder Bore X Piston Stroke(mm) Φ180×1300 Φ200×1650 Φ200×1800 Φ200×1850
Hydraulic Oil Tank Capacity(L) 370 580 580 580
Feeding Height(mm) 1400 1420 1420 1420
Hopper Capacity(m3) 0.68 0.68 0.68 0.8
Power(kw) 75 90 110 110
Dimension(Length×Width×Height)(mm) 5200×2000×2260 6000×2160×2600 6300×2100×2250 6300×2100×2250
3. When you pipe vertically upward, there should be a certain length of horizontal pipe in case concrete reflux.

4. After the installation finished, philippines concrete pump operator should check the machine according to the specifications strictly, ensure meet the requirement before starting idle running.

5. In the hot summer, should cover the concrete delivery pipe with wet straw bag or wet cloth in case direct sunlight, and prevent concrete from solidification.

6. In the cold winter, when you use portable concrete pump philippines, should take some insulation measures, users can parcel the delivery pipe with thermal insulation materials, in case pipe and concrete in the pipe will be frozen.

Other Types Concrete Pumps For Sale Philippines

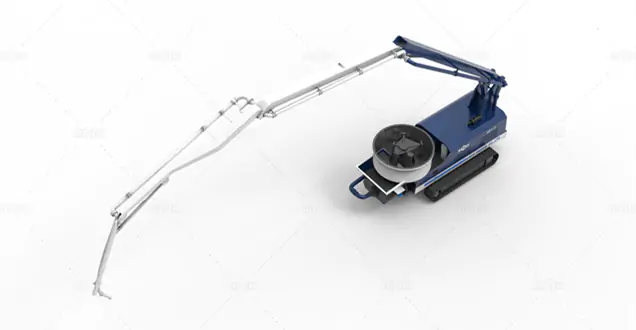

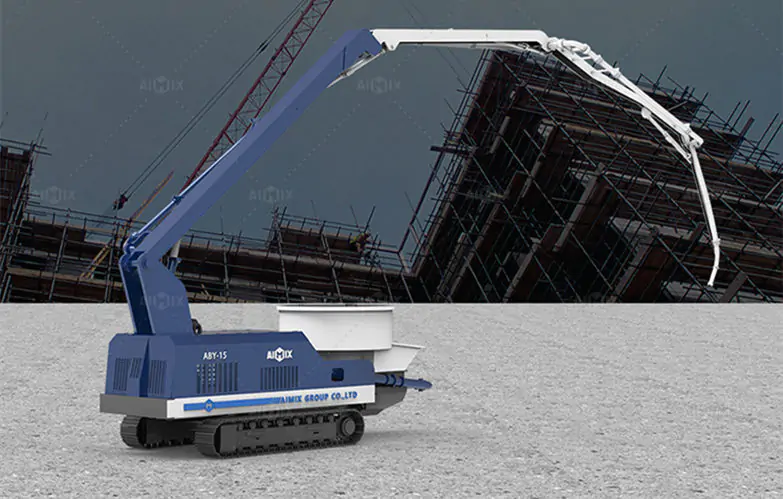

crawler trailer concrete pump Philippines
crawler trailer concrete pump Philippines

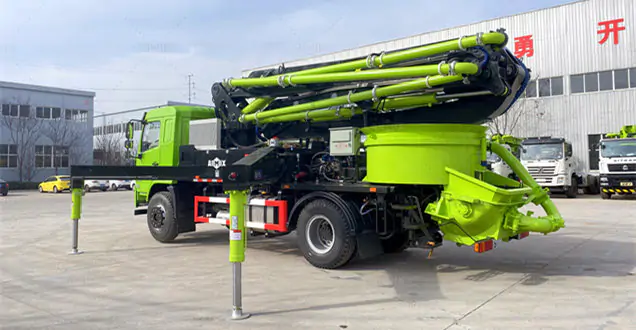

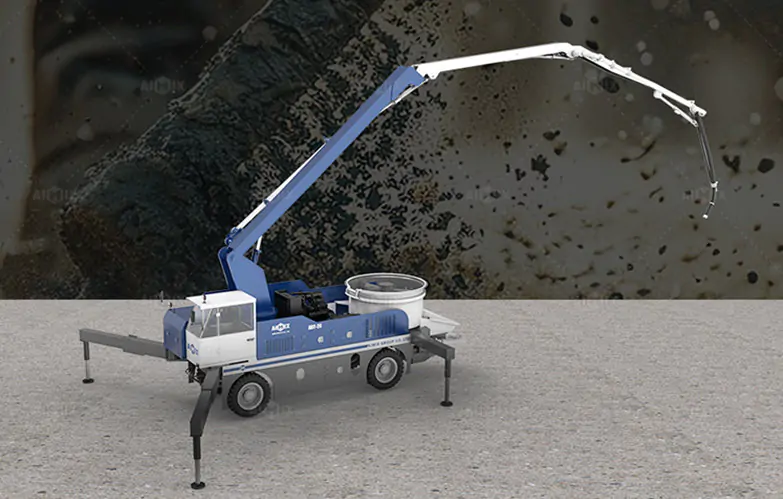

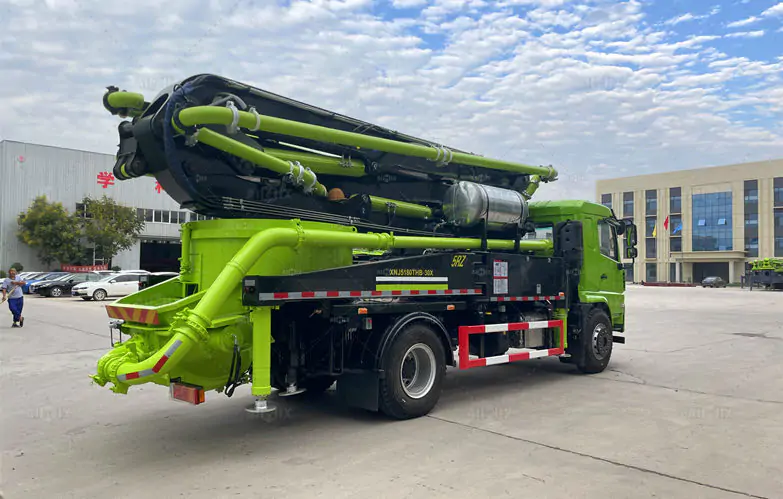

concrete boom pump for sale Philippines
concrete boom pump for sale Philippines

Concrete Pump Price Philippines

Price is an important factor influencing whether you will buy a concrete pump truck in philippines. We AIMIX GROUP can’t promise we will give you the lowest price for small concrete pumps philippines, but we can give you the best price! Because we have office in Philippines, we can arrange shipment to Philippines, and give you best price. In addition, we can give you best service! Any problems, we will help you out immediately, won’t delay your project. Contact us at once, you will get USD500-1000 package returns!
