Concrete Pump For Sale South Africa

Concrete pump for sale south africa uses pressure to convey the concrete along a pipe continuously, it is usually S valve pump machine. There are many types concrete pumps for sale in south africa, you can choose a right type according to your real needs. Our concrete pump south africa is mainly used in housing construction, bridge and tunnel construction. Some large concrete pumps can be used in tall buildings, expressway and flyover. We have office in south africa, therefore, if you want to know more, or want to see the real machine, welcome you to visit us freely!
ABT60C diesel concrete trailer pump
ABJZ40C diesel cement mixer pump south africa

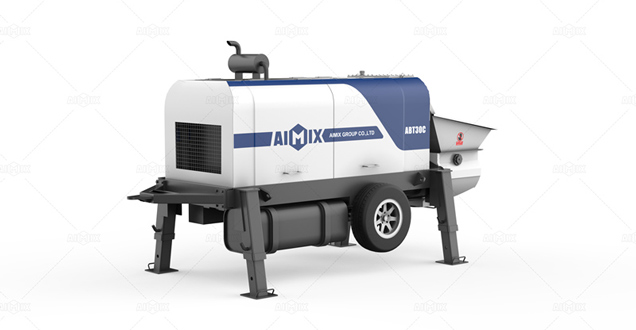

Trailer mounted concrete pump south africa

Diesel type trailer mounted concrete pump

ABT40C diesel concrete pump
ABT40C diesel concrete pump


ABT60C diesel pump machine
ABT60C diesel pump machine


Items Units ABT25C ABT30C ABT40C ABT60C ABT80C
Max. theo. concrete output(L./H) M3/h 25 30 40/26 67/45 84/45
Max.concrete pumping pressure(H./L.) MPa 8 10 10/7.6 43659 43785
Distribution valve type S  Valve S  Valve S  Valve S  Valve S  Valve
Concrete cylinder diameter×stroke mm Φ140×845 Φ140×1200 Φ180×1200 Φ200×1650 Φ200×1800
Hopper capacity x feeding height L/mm 400/1100 400/1100 400/1100 800/1400 800/1400
Outlet diameter mm Φ100 Φ100 Φ150 Φ180 Φ180
Diesel engine model Weifang Delier 4100 Weifang Delier 4100 Weifang Delier 6105ZB Wechai Wechai
Electrical engineering power KW 56 56 82 129 176
Rotate speed r/min 1800 1800 2100 2200 2200
Circuit type Open circuit
Pumping system pressure MPa 18 26 32 32 32
Mixing system pressure MPa 43624 43624 43624 43624 43624
Capacity of oil tank L 260 260 370 370 580
Max. Theoretical Vertical/Horizontal Conveying Distance m 120/300 120/300 120/500 180/800 200/800
Max. aggregate diameter mm Slick/scree:10/20 Slick/scree:10/20 Slick/scree:40/50 Slick/scree:40/50 Slick/scree:40/50
Inside diameter of delivering pipe mm Φ100 Φ100 Φ125 Φ125 Φ125
Dimensions:length×width×height mm 4500x1750x1600 4500x1750x1600 5000x1850x1700 5800x2000x1750 6300x2100x2350
Total weight kg 3000 3500 4500 6500 6900

Electric type trailer mounted concrete pump

ABT80D electric concrete pump
ABT80D electric concrete pump
ABT60D electric concrete pump
ABT60D electric concrete pump

Items Units ABT25D ABT30D ABT40D ABT60D ABT80D
Max. theo. concrete output(L./H) M3/h 25 30 40 60/36 86/45
Max.concrete pumping pressure(H./L.) MPa 10 10 10 13/7 16/11
Distribution valve type S  Valve S  Valve S  Valve S  Valve S  Valve
Concrete cylinder diameter×stroke mm Φ140×845 Φ140×845 Φ180×1200 Φ200×1650 Φ200×1800
Hopper capacity x feeding height L/mm 400/1100 400/1100 400/1100 800/1100 800/1100
Outlet diameter mm Φ100 Φ100 Φ100 Φ180 Φ180
Electrical engineering power KW 37 18 45 90 90
Rotate speed r/min 1480 1480 1480 1480 1480
Circuit type Open circuit
Pumping system pressure MPa 18 18 28 28 32
Mixing system pressure MPa 6-8 6-8 8 6-8 14
Capacity of oil tank L 260 260 370 560 580
Max. Theoretical Vertical/Horizontal Conveying Distance m 100/400 120/500 120/500 160/800 200/800
Max. aggregate diameter mm Slick/scree:10/20 Slick/scree:10/20 Slick/scree:40/50 Slick/scree:40/50 Slick/scree:40/50
Inside diameter of delivering pipe mm Φ80 Φ80 Φ125 Φ125 Φ125
Dimensions:length×width×height mm 3400x1420x1600 4500x1750x1600 4500x1750x1600 4500x1750x1600 6300x2100x2250
Total weight kg 2300 2300 3200 6000 6300

Trailer mounted concrete pump can be customized into mobile type concrete pump, but in fact it is static concrete pump for sale south africa, as long as you equip it with tyres, or a traction pin, you can move it from one site to another site. Activity costs are relatively low.

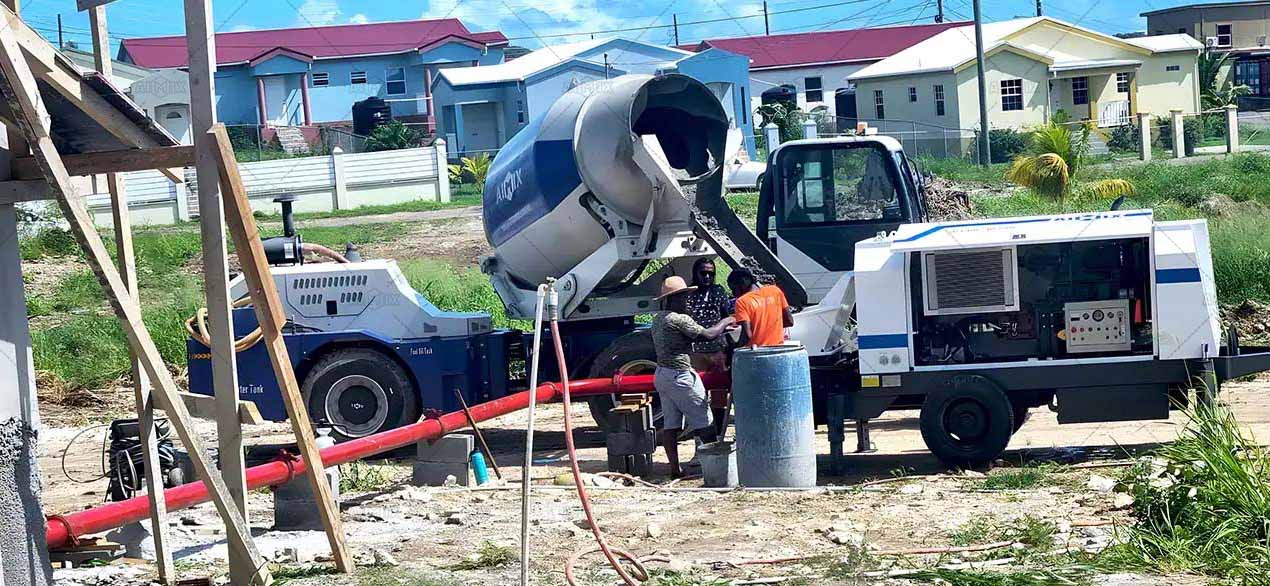

Drum type concrete mixer with pump south africa

Our AIMIX concrete mixer pump has characteristics of small power, small volume, convenient movement and low cost, etc. It can be used in spraying of floor heating, shotcrete engineering and refactory material. Concrete mixer with pump south africa is very suitable for rural towns and new rural construction 5 to 6 story building construction. The actual vertical height of pumped concrete can reach 80 to 100 meters, horizontal distance is 150 to 300 meters.

ABJZ30C diesel engine concrete pump
ABJZ30C diesel engine concrete pump
Items: ABJZ30C
Max. theo. concrete output(L./H)(M3/h): 30
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.35
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor

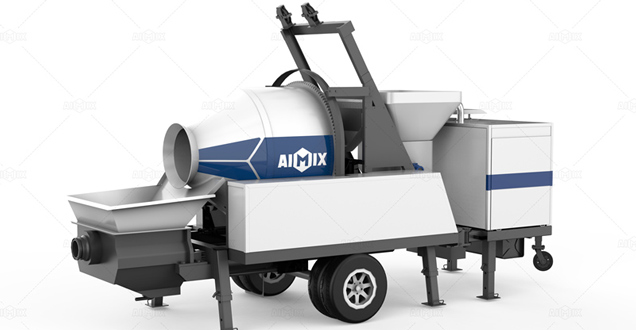

ABJZ40C concrete mixer pump with diesel engine
ABJZ40C concrete mixer pump with diesel engine
Items: ABJZ40C
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor


ABJZ30D electric concrete mixer pump
ABJZ30D electric concrete mixer pump
Items: ABJZ30D
Max. theo. concrete output(L./H)(M3/h): 30
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.35
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): 5.5
Stir the motor power(KW): 4.5
Water pump motor power(KW): 0.55

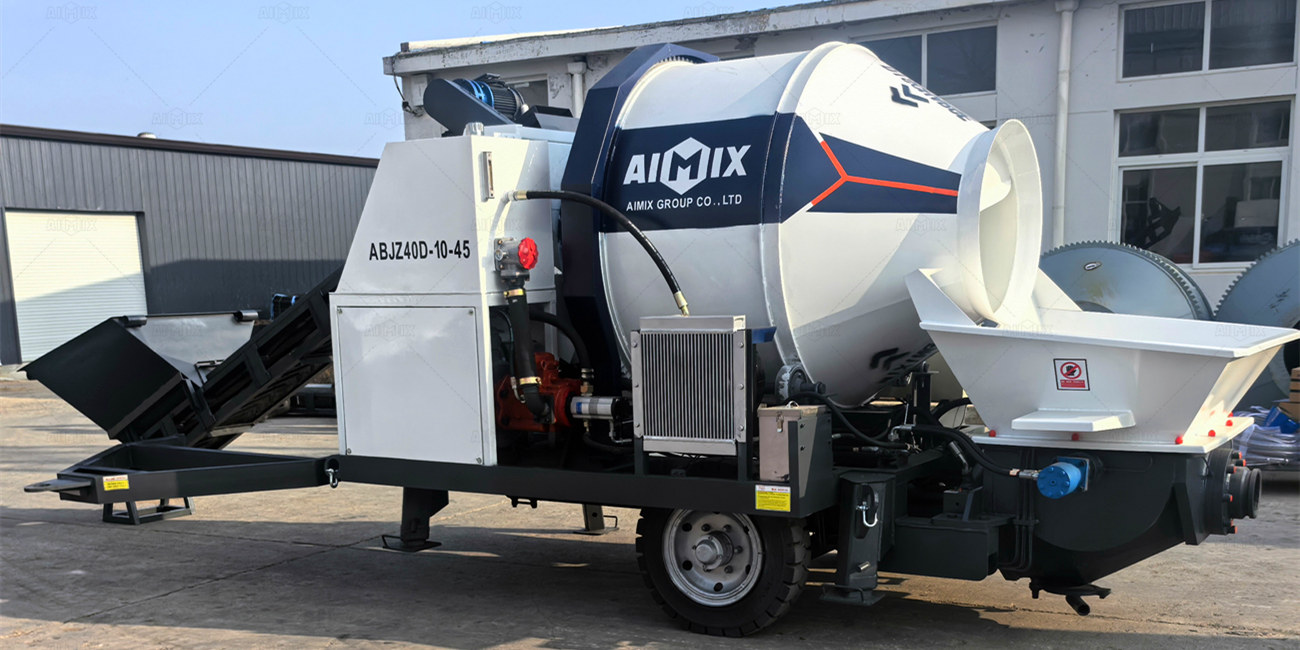

ABJZ40D electric concrete mixer pump
ABJZ40D electric concrete mixer pump
Items: ABJZ40D
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): 5.5
Stir the motor power(KW): 4.5
Water pump motor power(KW): 0.55

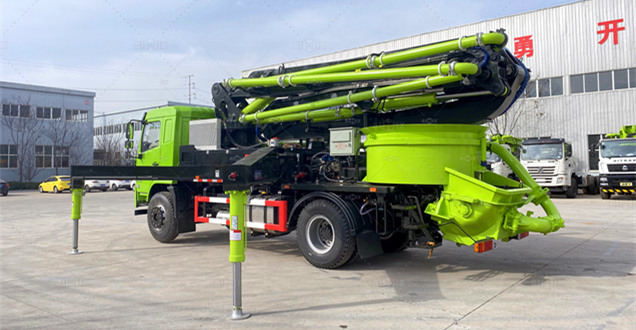

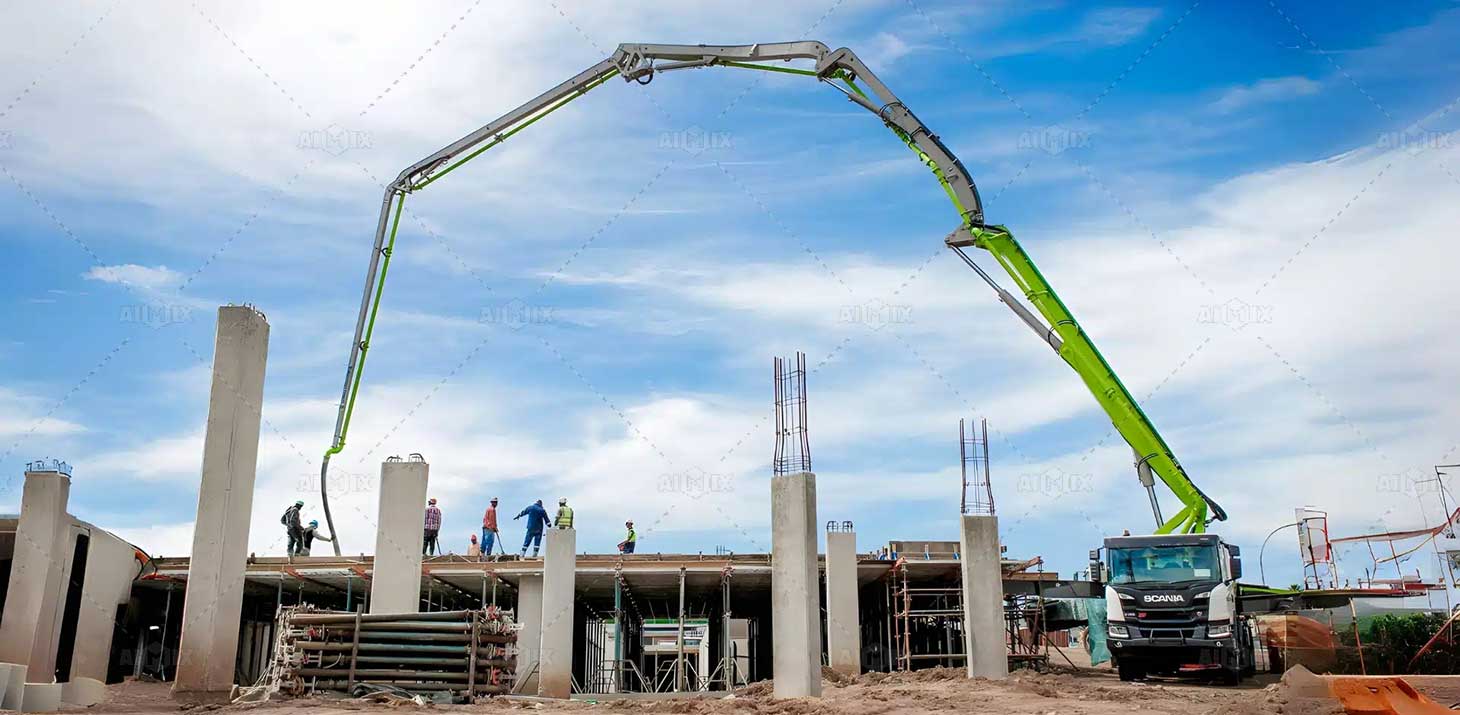

Concrete pump truck for sale south africa

concrete boom truck in south africa

This concrete boom pump for sale in south africa has characteristics of good flexibility and fast speed, but due to limitation of working altitude, there are a lot of demands on the site. We mainly have 12m, 25m, 28m, 30m, 33m, 37m, 40m, 44m, 50m, 58m concrete pump truck in south africa for your selection.

Specifications

Item Unit KNL5206THB 30-4M KNL5231THB 37-5RZ KNL5340THB 44-5RZ
Max. Theor. output(high/low pressure) m3/h 66/111 66/111 75/125
Max. Theor. concrete output Pressure(high/low pressure) MPa 10/6 10/6 10/6
Rated working pressure MPa 32 32 32
Pumping frequency(high/low pressure) min-1 18/30 19/32 15/25
Hopper capacity L 600 600 600
Filling height mm 1200 1200 1400
Hydraulic system type Open loop Open loop Open loop
Distribution valve S valve S valve S valve
Oil cylinder dia.×stroke mm φ125×1400/1400 φ125×1400 φ140×1800
Concrete cylinder dia.×stroke mm φ230×1400/1400 φ230×1400 φ260×1800
Hydraulic oil cooling Air cooling Air cooling Air cooling
Recommended concrete slump cm 12~23 12~23 12~23
Max. aggregate dimension mm 40 40 40
Structure type 30-4M 37-5RZ 44-5RZ
Placing depth m 30 36.1 43.5
Horizontal distance m 26 32.6 40
Placing depth m 22 25.5 29.5
Slewing angle ±270° ±270° 540°
Pipe diameter mm 125 125 125
End hose length mm 3000 3000 3000
Chassis model mm EQ5200GSZ5DJ ZZ5231N521GE1 ZZ5347V524HE1
Wheelbase 5200 5200 4800+1400
Engine type mm YC6A270-50 MC07.31-50 MC11.40-50
Engine power 199kw 228kw 297kw
Oil tank cubage kW 400 400 400
Overall dimensions 10300x2350x3660 9840x2496x3870 11905x2500x3910
Oil tank volume 500 500 600
Control mode L Manual+remote control Manual+remote control Manual+remote control
Maximum water pressure 0.8 0.8 7
Pipe cleaning mode L Water cleaning/dry cleaning Water cleaning/dry cleaning Water cleaning/dry cleaning
Item Unit KNL5340THB 47-6RZ KNL5350THB 50-6RZ KNL5420THB 58X-6RZ
Max. Theor. output(high/low pressure) m3/h 75/125 75/125 108/183
Max. Theor. concrete output Pressure(high/low pressure) MPa 10/6 10/6 10/6
Rated working pressure MPa 32 32 34
Pumping frequency(high/low pressure) min-1 15/25 15/25 16/28
Hopper capacity L 600 600 600
Filling height mm 1400 1400 1400
Hydraulic system type Open loop Open loop Open loop
Distribution valve S valve S valve S valve
Oil cylinder dia.×stroke mm φ140×1800 φ140×1800 φ140×2100
Concrete cylinder dia.×stroke mm φ260×1800 φ260×1800 φ260×2100
Hydraulic oil cooling Air cooling Air cooling Air cooling
Recommended concrete slump cm 12~23 12~23 12~23
Max. aggregate dimension mm 40 40 40
Structure type 47-6RZ 50-6RZ 58-6RZ
Placing depth m 46.8 49.2 58
Horizontal distance m 42.6 45.3 54
Placing depth m 32.5 35.3 41.2
Slewing angle 540° 540° ±270°
Pipe diameter mm 125 125 125
End hose length mm 3000 3000 3000
Chassis model mm ZZ5347V524HE1 ZZ5356V524ME1 QL5420THBW2TDHY
Wheelbase 4800+1400 4650+1400 1850+4575+1370
Engine type mm MC11.40-50 MC11.40-50 6WG1-TCG51
Engine power 297kw 297kw 338kw
Oil tank cubage kW 400 400 400
Overall dimensions 12295x2550x4000 12230x2550x4000 14040x2500x4000
Oil tank volume 600 600 800
Control mode L Manual+remote control Manual+remote control Manual+remote control
Maximum water pressure 7 7 0.8
Pipe cleaning mode L Water cleaning/dry cleaning Water cleaning/dry cleaning Water cleaning/dry cleaning

Performance features of concrete pump for sale in south africa

1. We use double pump, double circuit open hydraulic system, main pumping line and swinging oil line are independent, which makes the whole system simple, and prolongs the service life of component, and it is convenient to facilitate fault diagnosis and troubleshooting.

2. It has function of reversing the pump, which is used to remove blockage pipe failure.

3. Our concrete pump in south africa uses advanced S valve distribution valve, can automatically compensate wear clearance, has good seal performance.

4. We use wear resistant alloy spectacle plate and floating cutter cup, so it has long service life.

5. Automatic lubrication system ensure effective lubricating during the working process of concrete pump for sale south africa.

6. It has function of remote control, which makes the operation safer and more convenient.

7. All spare parts use international brand, has better interchangeability.

8. Cooling system adopts forced air cooling large radiator unit, which ensure the working temperature of hydraulic system can be controlled under 70 degree centigrade.

inner structure of electric concrete pump
inner structure of electric concrete pump

Our strength for supplying concrete pump for sale south africa


1. The failure rate is low.

2. The swing cylinder makes a buffering system, reduce the impact to hydraulic system, increase the service life of pump machine.

3. Wireless remote control.

4. We can supply lubrication system, has characteristics of stable performance, reasonable price and low cost.

5. We can give you the most affordable price and perfect service, because we have established perfect after-sales service teams, they will serve you timely.

We can supply you best concrete pump for sale south africa, welcome to contact us and we will give you detailed information. Warmly welcome you to visit us in South Africa, China, Philippines, Sri Lanka, Indonesia, Pakistan, Uzbekistan, etc.
