Concrete Pump In Malaysia

Concrete pump in Malaysia is always a hot type concrete machine for concrete pouring project, this type concrete pump has characteristics of easy movement, operation and maintenance.

we AIMIX GROUP has many types for your selection, such as, concrete pump truck Malaysia, concrete mixer pump Malaysia, trailer mounted concrete pump, etc. Classify them from specifications, we can provide users with small concrete pump Malaysia. We are reliable Malaysia concrete pump supplier, our users bought from us and used our machine to water conservancy project, flood control engineering, tunnel project, bridge construction, etc. But only know your application is not very enough, we need to show you how to get a right pump and what type concrete pump is fit for your construction. So you need to think about some questions below.
concrete pump machine Malaysia

How to get a right concrete pump machine in Malaysia-you need to tell us

1. Tell us what you buy mobile concrete pump Malaysia for? such as pouring? Spraying? Or conveying?

2. What is the diameter of your raw materials? Mortar should be less than or equal to 10mm, fine gravel should be less than or equal to 25mm, ordinary concrete aggregate should be 30 to 50mm.

3. What type concrete pump you need? We have diesel type concrete pump Malaysia, electric type ready mix concrete pump Malaysia, portable mobile concrete mixer pump for sale in Malaysia, etc, tell us your need or your project details, such as conveying height, we can introduce a proper one for you.

4. We have concrete pumps supplier in Malaysia, because we have established office and factory in Malaysia, any problems, you can contact us, we will help you out as soon as possible.

5. If you have some special problems, such as, if you are from Russia, we will add freeze protection system, in case low temperature impedes operation of concrete pump.

Types of concrete pumps

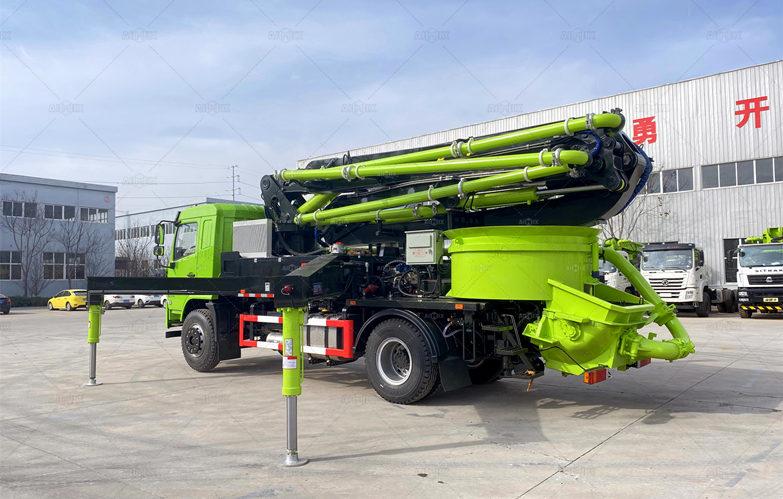

Boom pump-suitable for high building construction, has high flexibility

37m concrete boom pump
37m concrete boom pump
Max. Theor. output(high/low pressure): 66/111

Max. aggregate dimension(mm):40

Recommended concrete slump(cm):12~23

Distribution valve: S valve

Slewing angle: ±270°

Engine power(KW):199


44m concrete pump truck
44m concrete pump truck
Max. Theor. output(high/low pressure): 75/125

Max. aggregate dimension(mm):40

Recommended concrete slump(cm):12~23

Distribution valve: S valve

Slewing angle: 540°

Engine power(KW):297


47m concrete boom pump
47m concrete boom pump
Max. Theor. output(high/low pressure): 75/125

Max. aggregate dimension(mm):40

Recommended concrete slump(cm):12~23

Distribution valve: S valve

Slewing angle: 540°

Engine power(KW):297


58m concrete boom pump
58m concrete boom pump
Max. Theor. output(high/low pressure): 108/183
Max. aggregate dimension(mm):40

Recommended concrete slump(cm):12~23

Distribution valve: S valve

Slewing angle: ±270°

Engine power(KW):338

Diesel engine pump-driven by diesel engine, can work normally under poor electric condition

ABT50C diesel concrete pump Malaysia
ABT50C diesel concrete pump Malaysia

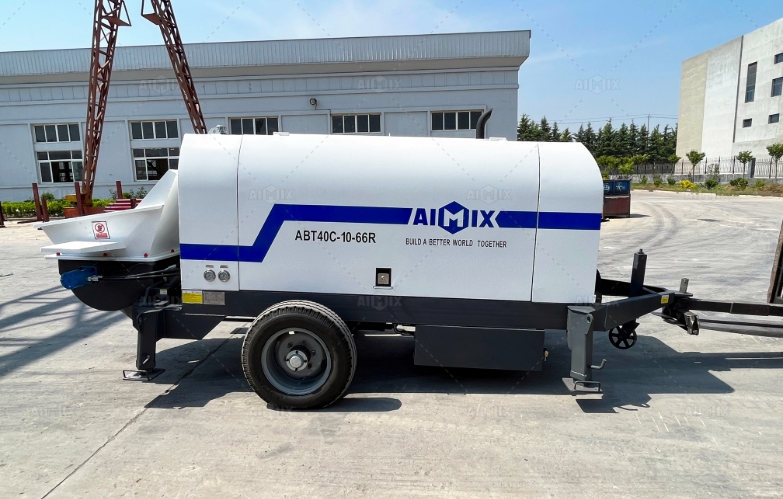

ABT40C diesel concrete pump Malaysia
ABT40C diesel concrete pump Malaysia

Items Units ABT25C ABT30C ABT40C ABT60C ABT80C
Max. theo. concrete output(L./H) M3/h 25 30 40/26 67/45 84/45
Max.concrete pumping pressure(H./L.) MPa 8 10 10/7.6 43659 43785
Distribution valve type S  Valve S  Valve S  Valve S  Valve S  Valve
Concrete cylinder diameter×stroke mm Φ140×845 Φ140×1200 Φ180×1200 Φ200×1650 Φ200×1800
Hopper capacity x feeding height L/mm 400/1100 400/1100 400/1100 800/1400 800/1400
Outlet diameter mm Φ100 Φ100 Φ150 Φ180 Φ180
Diesel engine model Weifang Delier 4100 Weifang Delier 4100 Weifang Delier 6105ZB Wechai Wechai
Electrical engineering power KW 56 56 82 129 176
Rotate speed r/min 1800 1800 2100 2200 2200
Circuit type Open circuit
Pumping system pressure MPa 18 26 32 32 32
Mixing system pressure MPa 43624 43624 43624 43624 43624
Capacity of oil tank L 260 260 370 370 580
Max. Theoretical Vertical/Horizontal Conveying Distance m 120/300 120/300 120/500 180/800 200/800
Max. aggregate diameter mm Slick/scree:10/20 Slick/scree:10/20 Slick/scree:40/50 Slick/scree:40/50 Slick/scree:40/50
Inside diameter of delivering pipe mm Φ100 Φ100 Φ125 Φ125 Φ125
Dimensions:length×width×height mm 4500x1750x1600 4500x1750x1600 5000x1850x1700 5800x2000x1750 6300x2100x2350
Total weight kg 3000 3500 4500 6500 6900

ABT40C concrete pump was ready to Malaysia

diesel concrete pump Malaysia

diesel concrete pump Malaysia
ABT40C diesel trailer pump
cleaning balls
delivery of diesel concrete pump

Electric motor pump-driven by electric motor, can realize stable performance

ABT80D electric concrete pump Malaysia
ABT80D electric concrete pump Malaysia


ABT40D electric concrete pump Malaysia
ABT40D electric concrete pump Malaysia


Items Units ABT25D ABT30D ABT40D ABT60D ABT80D
Max. theo. concrete output(L./H) M3/h 25 30 40 60/36 86/45
Max.concrete pumping pressure(H./L.) MPa 10 10 10 13/7 16/11
Distribution valve type S  Valve S  Valve S  Valve S  Valve S  Valve
Concrete cylinder diameter×stroke mm Φ140×845 Φ140×845 Φ180×1200 Φ200×1650 Φ200×1800
Hopper capacity x feeding height L/mm 400/1100 400/1100 400/1100 800/1100 800/1100
Outlet diameter mm Φ100 Φ100 Φ100 Φ180 Φ180
Electrical engineering power KW 37 18 45 90 90
Rotate speed r/min 1480 1480 1480 1480 1480
Circuit type Open circuit
Pumping system pressure MPa 18 18 28 28 32
Mixing system pressure MPa 6-8 6-8 8 6-8 14
Capacity of oil tank L 260 260 370 560 580
Max. Theoretical Vertical/Horizontal Conveying Distance m 100/400 120/500 120/500 160/800 200/800
Max. aggregate diameter mm Slick/scree:10/20 Slick/scree:10/20 Slick/scree:40/50 Slick/scree:40/50 Slick/scree:40/50
Inside diameter of delivering pipe mm Φ80 Φ80 Φ125 Φ125 Φ125
Dimensions:length×width×height mm 3400x1420x1600 4500x1750x1600 4500x1750x1600 4500x1750x1600 6300x2100x2250
Total weight kg 2300 2300 3200 6000 6300

Concrete mixer pump Malaysia-a concrete pump machine with concrete mixer, can produce and pump concrete

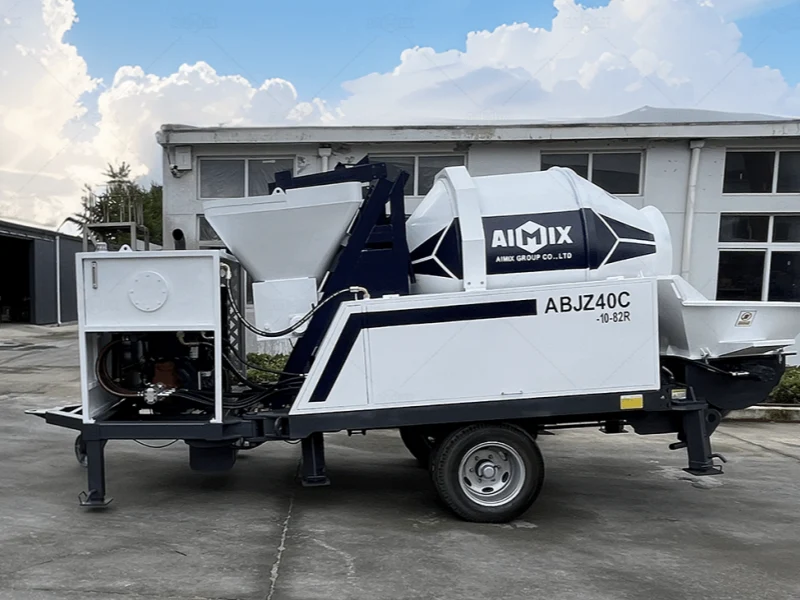

ABJZ40C diesel concrete mixer with pump
ABJZ40C diesel concrete mixer with pump

Items: ABJZ40C
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor


ABJZ30C concrete mixer pump with diesel engine
ABJZ30C concrete mixer pump with diesel engine

Items: ABJZ30C
Max. theo. concrete output(L./H)(M3/h): 30
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.35
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor


ABJZ30D electric concrete mixing pump
ABJZ30D electric concrete mixing pump

Items: ABJZ30D
Max. theo. concrete output(L./H)(M3/h): 30
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.35
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): 5.5
Stir the motor power(KW): 4.5
Water pump motor power(KW): 0.55

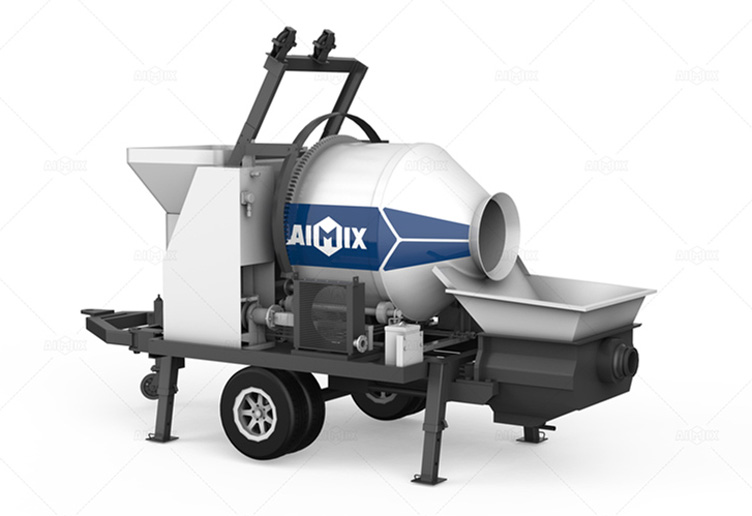

ABJZ40D electric concrete mixer pump
ABJZ40D electric concrete mixer pump

Items: ABJZ40D
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): 5.5
Stir the motor power(KW): 4.5
Water pump motor power(KW): 0.55

If necessary, we can provide you with efficient concrete mixer pump machine of diesel type and electric type.

If your area has sufficient electricity, and electric voltage is stable, you can choose electric type concrete mixer pump, if not, your ideal choice will be diesel type concrete mixer pump Malaysia.

Advantages

1. Our mobile concrete pump in Malaysia has low fault rate, and it is easy to maintain.

2. There is buffer system, which can help prolong the service life of concrete pumping equipment Malaysia.

3. Our concrete pump for sale Malaysia can be controlled by radio remote control system.

4. We can offer you lubrication system, good lubrication system will do good for your concrete pump equipment. Also we can give you best price. Because we have direct factory, we can produce concrete pump, can show you the whole production process, and give you best factory concrete pump price in Malaysia.

AIMIX service from concrete trailer pump suppliers in Malaysia

1. After your order, we will produce the pump at once, about 15 days, we will finish the production, test run, paint and shipment of concrete pump.

2. When our equipment arrived your city, our engineer will go to your city and help you assemble and debug, and also train your staff.

3. We have professional after-sales service team and spare part supply system, can give you best service for your concrete pump Malaysia!
