HBTS40 diesel trailer concrete pump

Concrete Pump Kenya

Concrete pump kenya consists of pump body and delivery pipe. By using pressure, deliver concrete along the pipelines continuously. It can be used for house building, bridge construction, tunnel construction, wharf, water conservancy engineering. Now we mainly supply people S valve type concrete pump in kenya. S valve is to swing from side to side to transfer concrete between two concrete cylinders, through it, can pump concrete efficiently.

trailer pump and mixer pump
trailer pump and mixer pump

Concrete pumps to Kenya

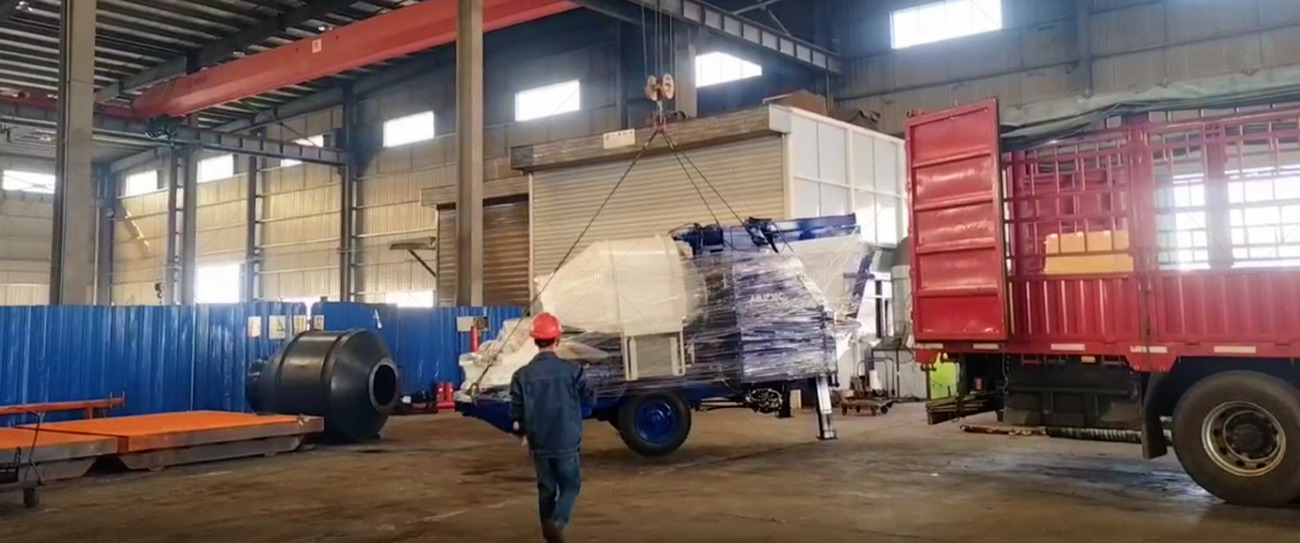

JBS30-JZC350 Electric Concrete Mixer Pump Was Exported To Kenya
JBS30-JZC350 Electric Concrete Mixer Pump Was Exported To Kenya

part of diesel trailer concrete pump
part of diesel trailer concrete pump

HBTS40-12-82R
HBTS40-12-82R

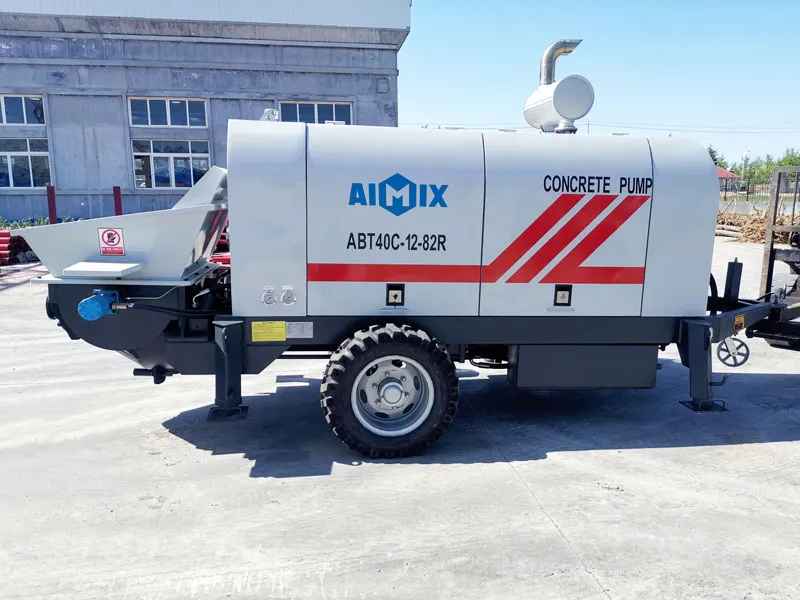

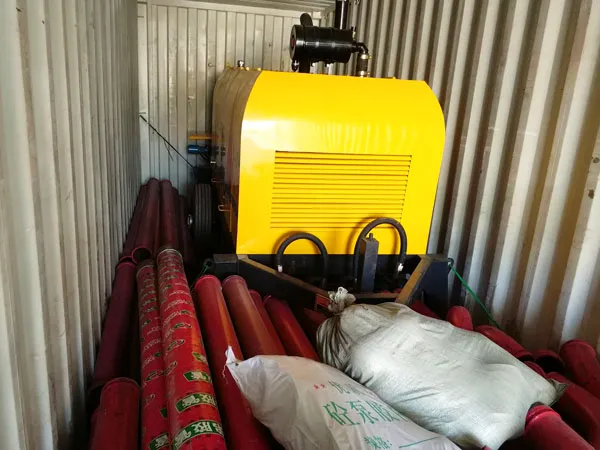

HBTS40-12-82R diesel trailer pump to Kenya
HBTS40-12-82R diesel trailer pump to Kenya

Types of concrete pumps for sale kenya

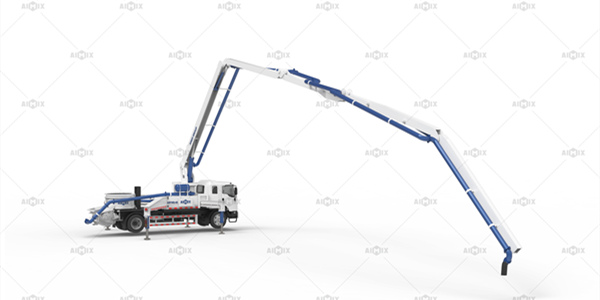

According to the structure and application, we can supply you trailer type kenya concrete pump, truck mounted concrete pump and concrete mixer pump truck in kenya.

Trailer type pump machine

HBTS40 diesel trailer concrete pump
HBTS40 diesel trailer concrete pump

HBTS50R concrete pump with diesel engine
HBTS50R concrete pump with diesel engine


Item Unit BS30-10-56R
Max. theo. concrete output(L/H) m3/h 30
Max.concrete pumping pressure MPa 10
Concrete cylinder(diameter* stroke) mm 1400×1200
Hopper capacity*feeding height L×mm 400×1200
Outlet diameter mm Ф100
Power kw 56
Rotate speed RMN 1800
Pumping system pressure MPa 26
Mixing system pressure MPa 6—8
Capacity of oil tank L 260
Max. concrete pumping distance(vertical) M 120
Max. concrete pumping distance(horizontal ) M 500
Dimension(length*width*height) mm 4500*1750*1600
Total weight Kg 3500
Item HBTS40-SR HBTS50-SR HBTS60-SR HBTS80-SR HBTS90-SR
Max. Theoretical Throughput (m3/h) 40 50 60 80 90
Max. Pumping Pressure(MPa) 11/13/15 13 13/15/16 16 16/18
Max. Theoretical Vertical Conveying Distance(m) 150 180 190 200 200
Max. Theoretical Horizontal Conveying Distance 600 600 800 1000 1200
Max. Aggregate Diameter(mm) 30/40 40/50 50 50 50
Slump(cm) 12—23 12—23 12—23 12—23 12—23
Conveying Pipe Radius(mm) 125 125/150 150 150 150
Conveying Cylinder Bore X Piston Stroke(mm) Φ180×1300 Φ180×1300 Φ200×1650 Φ200×1800 Φ200×1800
Hydraulic Oil Tank Capacity(L) 370 370 580 580 580
Feeding Height(mm) 1250 1300 1400 1420 1420
Hopper Capacity(m³) 0.6 0.68 0.68 0.68 0.8
Diesel Brand DELIER/DEUTZ DELIER/DEUTZ DEUTZ DEUTZ DEUTZ
Power of Diesel Motor(kw) 56 62 82/129 162 176
Dimension(Length*Width*Weight)(mm) 5000*1850*1700 5000*2100*2260 6000*2160*2600 6700*2160*2700 6750*2160*2700
Total Weight(kg) 4500 4500 6480 7600 7600

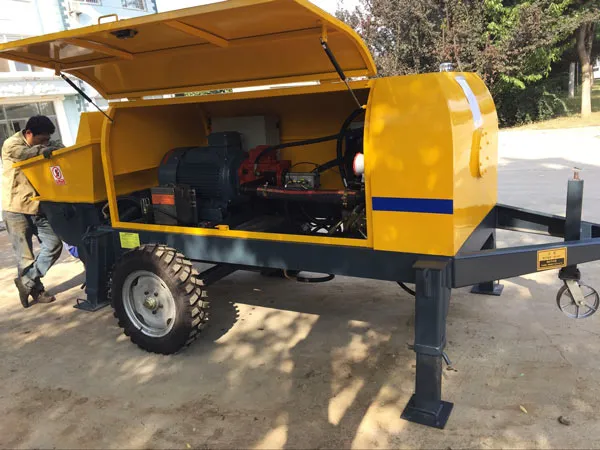

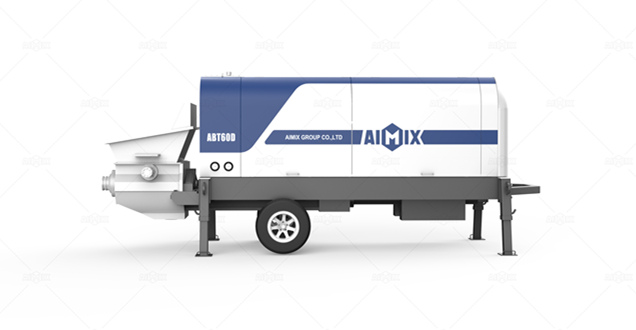

HBT40 electric trailer concrete pump
HBT40 electric trailer concrete pump


HBTS30 electric concrete pump trailer
HBTS30 electric concrete pump trailer


Item HBT-20 HBT-30 HBT-40
Max. Theoretical  Throughput(m3/h) 20 30 40
Max. Pumping Pressure(MPa) 10 11 11/13
Max.Theoretical Vertical Conveying Distance(m) 140 150 150
Max.Theoretical Horizontal Conveying Distance(m) 500 600 600
Max. Aggregate Diameter(mm) 20 20/30 30/40
Conveying Pipe Radius(mm) 100 100 125
Conveying Cylinder Bore X Piston Stroke(mm) Φ140×1000 Φ160×1200 Φ180×1200
Hydraulic Oil Tank Capacity(L) 240 370 370
Feeding Height(mm) 1100 1100 1100
Hopper Capacity(m3) 0.35 0.4 0.6
Power(kw) 37 45 45/56
Dimension(Length×Width×Height)(mm) 4000×1350×1550 4500×1750×1600 4600×1850×1770
Item HBT-50 HBT-60 HBT-80 HBT-90
Max. Theoretical  Throughput(m3/h) 50 60 80 90
Max. Pumping Pressure(MPa) 12/13 13/15/16 16 16/18
Max.Theoretical Vertical Conveying Distance(m) 150 190 200 220
Max.Theoretical Horizontal Conveying Distance(m) 600 800 1000 1200
Max. Aggregate Diameter(mm) 40/50 50 50 50
Conveying Pipe Radius(mm) 125/150 150 150 150
Conveying Cylinder Bore X Piston Stroke(mm) Φ180×1300 Φ200×1650 Φ200×1800 Φ200×1850
Hydraulic Oil Tank Capacity(L) 370 580 580 580
Feeding Height(mm) 1400 1420 1420 1420
Hopper Capacity(m3) 0.68 0.68 0.68 0.8
Power(kw) 75 90 110 110
Dimension(Length×Width×Height)(mm) 5200×2000×2260 6000×2160×2600 6300×2100×2250 6300×2100×2250
According to the power supply, there are diesel type and electric type concrete pumps in kenya.
inner structure of diesel concrete pump
inner structure of diesel concrete pump

inner structure of electric concrete pump
inner structure of electric concrete pump

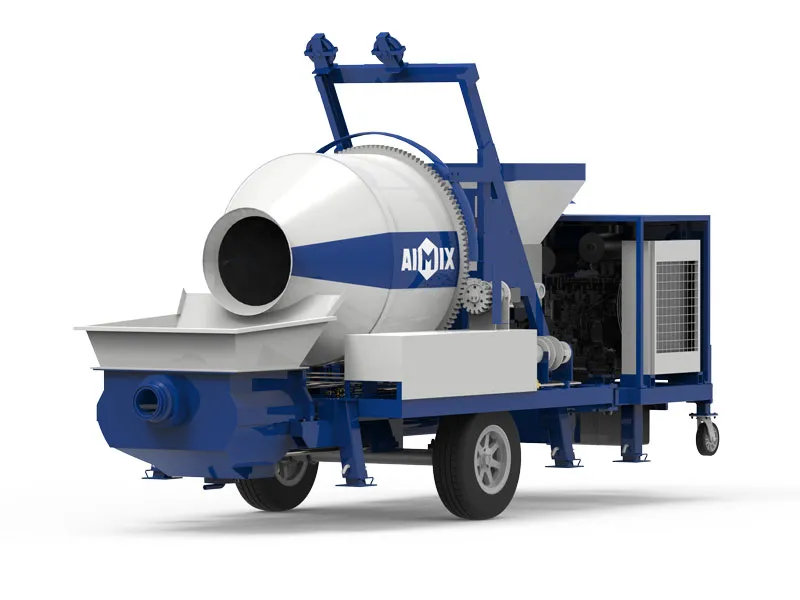

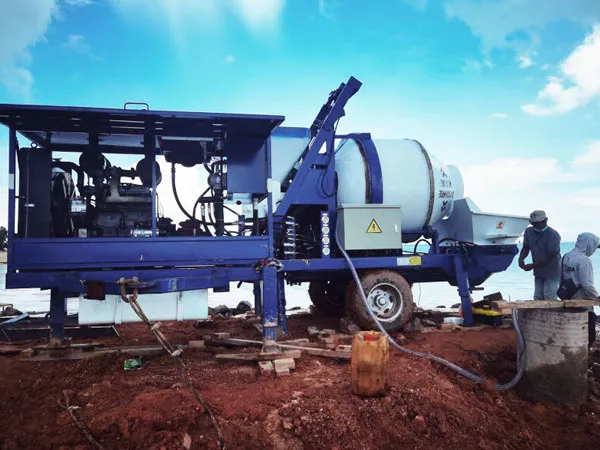

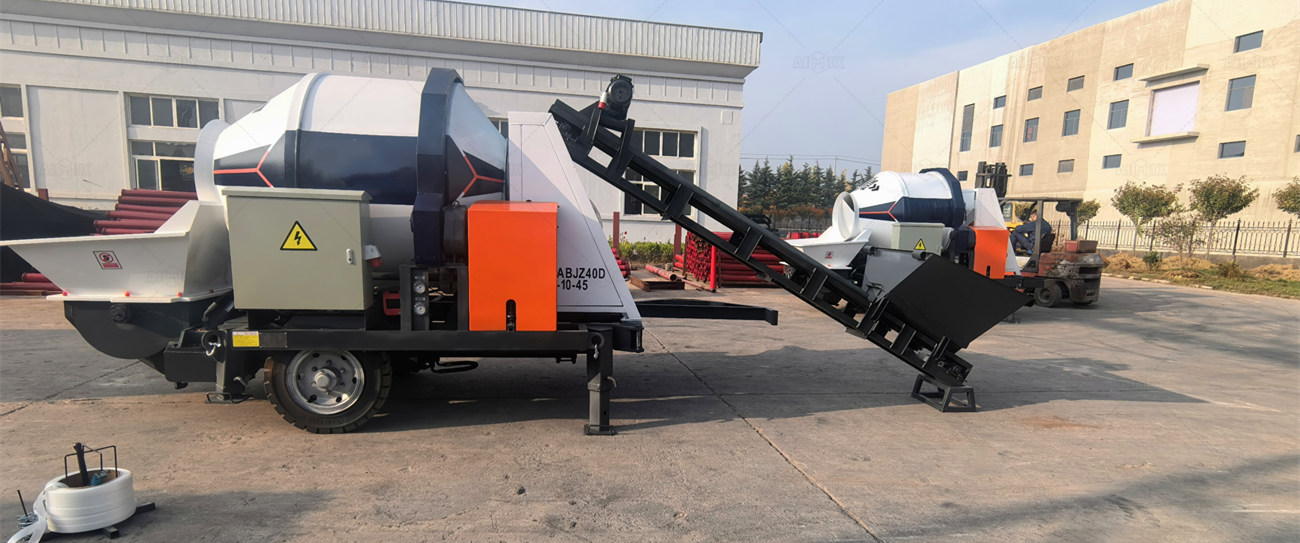

Concrete mixer pump in kenya is always popular among users, particularly JBS40-10-82R diesel concrete mixer with pump, it has good sales volume, and won high reputation among users all around the world. It is equipped with JS series twin shaft concrete mixer, can produce and blend concrete forcibly, so that concrete has good quality.

Diesel type mixing pump

JBS-12-82R diesel concrete mixer pump
JBS-12-82R diesel concrete mixer pump


JBS30-JZC350R diesel concrete pump mixer
JBS30-JZC350R diesel concrete pump mixer


Items Units Parameters
JZB200-10
Whole performance of machine Max. theo. concrete output m3/h 10
Max.concrete pumping pressure MPa 10
Distribution valve type
Concrete cylinder diameter×stroke mm Ф140×1000
Hopper capacity L 400
Outlet diameter mm Ф100
Power system Main motor    kw
18.5
Vice motor kw 11
Kw 3
Water pump motor powe kw 0.55
Rotate speed r/min 1480
Feeding capacity L 0.25
Discharging capacity L 0.2
Hydraulic system Circuit type Open circuit
Pumping system pressure MPa 28
Mixing system pressure MPa
Capacity of oil tank L 370
The biggest transportation is away from vertically (/Level) m 100/300
Other parameters Max. aggregate diameter mm Diameter: 20
Inside diameter of delivering pipe mm Ф80
Dimensions:length×width×height mm 4200x2300x3150
Total weight kg 3200
Item Unit JZB200-10 JB30R-JZC350 JB40R-JZC350
Rated Output m3/h 8 30 40
Max. Pressure On Concrete Mpa 4 10 10
Delivery Cylinder mm 140×180 Ф140×1100 180×800
Main Oil Cylinder Bore/Rod Diameter X mm Ф95/60×800 Ф80/55×1200 Ф100/70×1000
Oil Tank Capacity L 100 250 350
Outlet Opening Diameter mm Ф100 Ф100 Ф125
Inner Dia. of Delivery Pipe mm Ф80/100 Ф100 Ф125
Diesel Model CY1115*2(YANMAR) WEIFANG4100 DEUTZ
Diesel Power KW 29.4 62 82
Max. Diameter Of Aggregates mm 20 30 40
Maximum Delivery Horizontal Distance M 100 600 700
Maximum Delivery Vertical Distance M 30 120 150
Mixer Type JZC200 JZC350 JZC350
Capacity of Charge L 200 560 560
Capacity of Discharge L 300 350 350
Water Pump Motor Control Electromagnetic Electromagnetic Electromagnetic
Diameter of Drum mm 1000 1440 1440
Mixing Time s 45-60 45-60 45-60
Length×Width×Height mm 4120×2100×2600 5500×2300×2700 6000×2300×3150
Weight Kg 3000 5000 5200
Items Unit JBS30-JZC350 JBS40-JZC350 JBS40-JS500 JBS40-JS750
Max Theoretical Conveying Capacity m3/h 30 40 40 40
Max Exit Pressure Mpa 10 11 11 11
Concrete Cylinder bore * stroke mm Ф140×1000 Φ160×1200 Φ160×1200 Φ160×1200
Hydraulic Oil Tank Volume L 370 370 370 370
Exit Diameter mm Ф100 Φ150 Φ150 Φ150
Conveying Pipe Inner Diameter mm Ф100 Φ125/150 Φ125/150 Φ125/150
Motor Power KW 47.55 55.75 70.1 83.6
Max Aggregate Size mm 30 40 40 40
Max Horizontal Conveying Distance M 500 600 600 600
Max Vertical Conveying Distance M 120 150 150 150
Mixer Model JZC350 JZC350 JS500 JS750
Input Volume L 560 560 750 1200
Output Volume L 350 350 500 750
Mixer productivity M3/h 12-15 12-15 25 35
Drum Diameter Mm 1440 1440
Drum Rotary Speed (without load) rpm 18 18
Outline Dimension (L*W*H) mm 4200x2300x2600 4200x2300x2600 5100*2250*2860 5200*2250*3110
Weight Kg 4200 4500 5500 6500

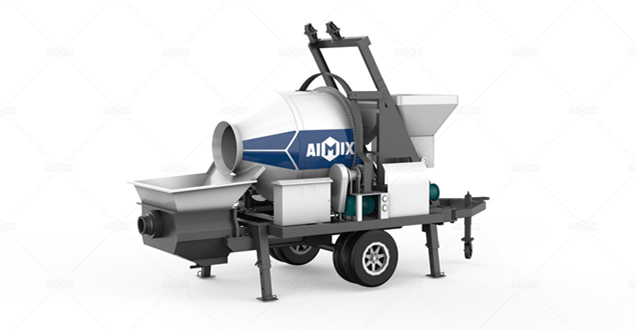

Electric type mixing pump

JBS30-JZC350 electric concrete mixer and pump
JBS30-JZC350 electric concrete mixer and pump


JBS40 electric mixer pump
JBS40 electric mixer pump


Concrete pump price in kenya

Now there are many types of concrete pumps for sale, if you want to get a quality machine, you must make many comparisons. First, price is a premise. You need to ask kenya concrete pumps supplier for price, also you need to know why it worth so. So that you will have a detailed understanding about each component, each spare part, even brand they use. Thus, how to get best price? There are two tips for you.

1. Get inquiry online. Recently, it is not unusual to import goods online. So if you want to buy a concrete pump in kenya, you need to search concrete pump online, then you will gets ome results, there are Chinese supplier, Pakistan supplier, Philippines supplier, etc. You can look through them one by one and choose a much more reliable one.

2. Improve your negotiation skills. We will bargain with supplier, and get a best price. So before buying pump machine, you need to make a survey about concrete pump price online or in your local place. Do not be fooled by manufacturers.

3. Make sure which type you need. Do not be led by suppliers. You must be clear for your project, and do some research about which type is your ideal choice. Having clear goal is important. Otherwise, you will probably buy an unnecessary pumping machine.

Components of concrete pump for sale kenya

Main oil pump; valve box; hydraulic oil hoses; main oil cylinder; concrete cylinder; S valve; proximity switch frame; electrical cabinet; immediate relay, etc.

S valve
S valve

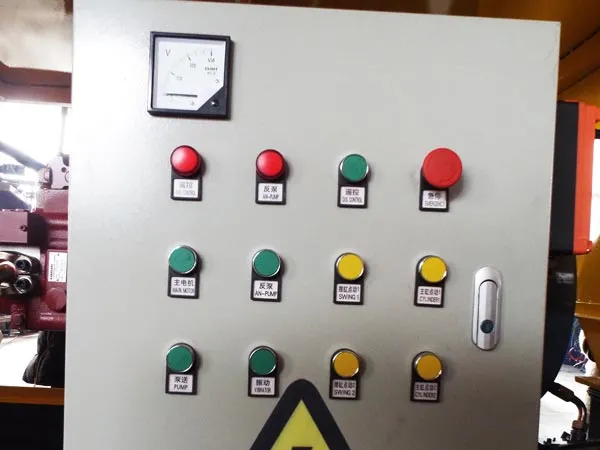

electric cabinet
electric cabinet

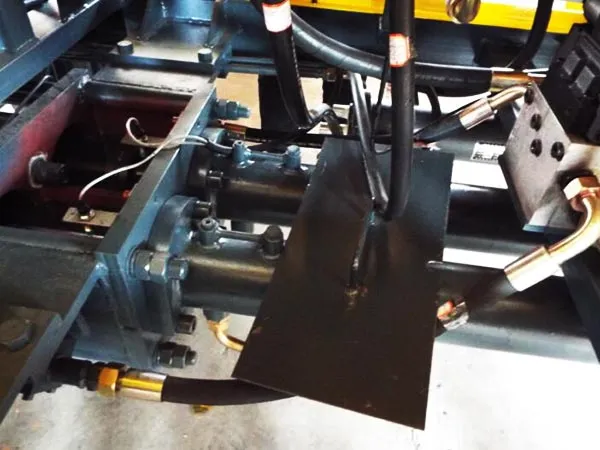

mixing cylinder
mixing cylinder

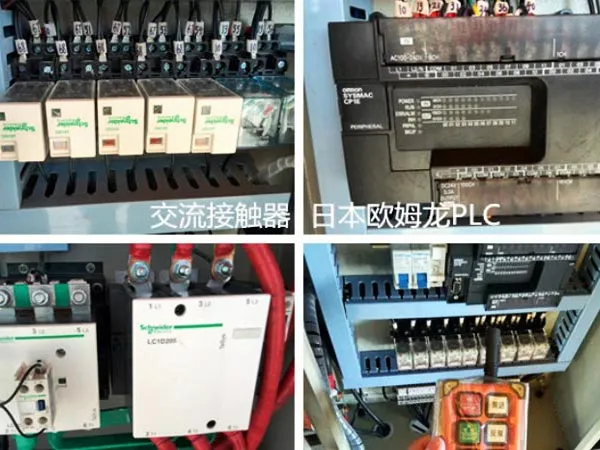

Omron PLC control
Omron PLC control

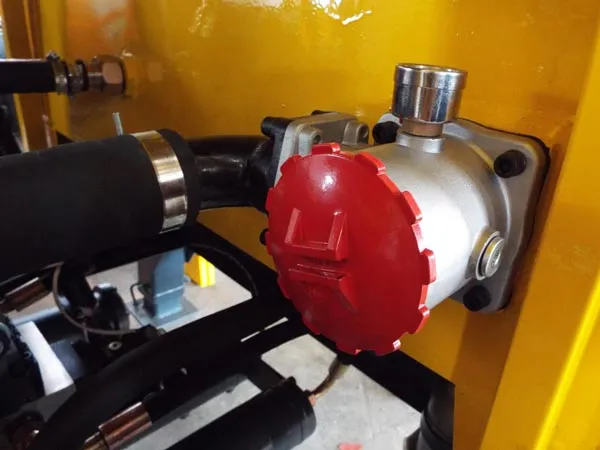

part of pump machine
part of pump machine

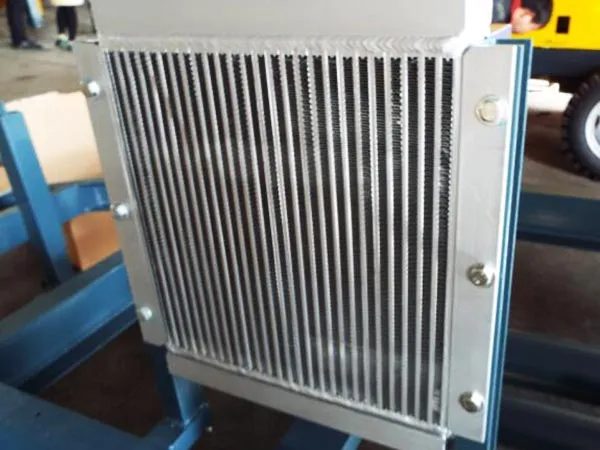

radiator
radiator

About AIMIX

Aimix is a reliable concrete pump manufacturer in kenya, and now it has established a local based center in Kenya, dedicated to kenyan clients. If you buy from us, any problems, we will dispatch our after-sales service man to your site and help you out.

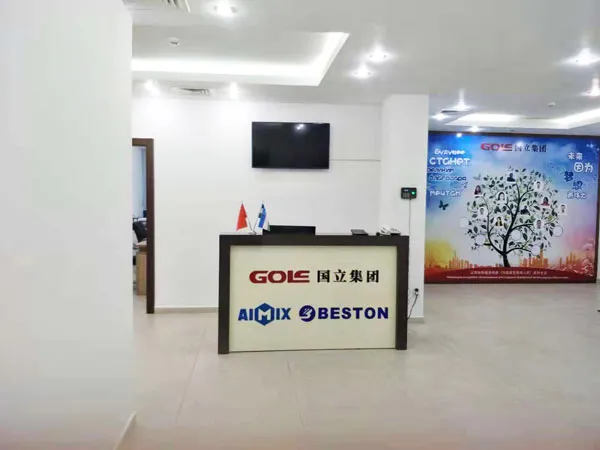

In addition kenya, we also have LBS center in Pakistan, Sri Lanka, Philippines, Pakistan, Uzbekistan, Russia, we are here to serve you better! Just wait until you choose us!

Please feel free to give your inquiry in the form below. We will reply in 24 hours.
