Concrete Pump Machine For Sale

Concrete pump machine for sale is more and more popular among civil engineering construction. Purchasing such a concrete pumping machine, you can quickly finish your project, such as, house building, flood control, tunnel construction, airport, bridge construction and water conservancy engineering, etc. For wide demand, AIMIX GROUP innovates two types of efficient concrete pumping machines: concrete pump machine and concrete mixer machine with pump. What is concrete pump machine? —It is used to pump concrete for all kinds of construction project.

Latest news

ABJZ40C concrete mixer pump to Belize on 26th, March

ABJZ40C diesel concrete mixer pump Belize

40m3 diesel cement mixer pump
load concrete mixer pump
pipelines of concrete mixer pump

Test-Run Video Of ABJZ40C In East Timor On 24th, March

ABT40C to the Philippines

diesel concrete pump to Philippines

nameplate of diesel pump Philippines
pipes delivery
cleaning balls delivery

ABT80C to Russia

ABT80C diesel concrete pump to Russia
ABT80C to Russia

Types of cheap concrete pump machine

Concrete mixer with pumps

We have diesel type concrete pump machine and electric type concrete pump machine for sale. Among them, diesel type is much more popular. Because diesel type won’t be limited by electric condition.

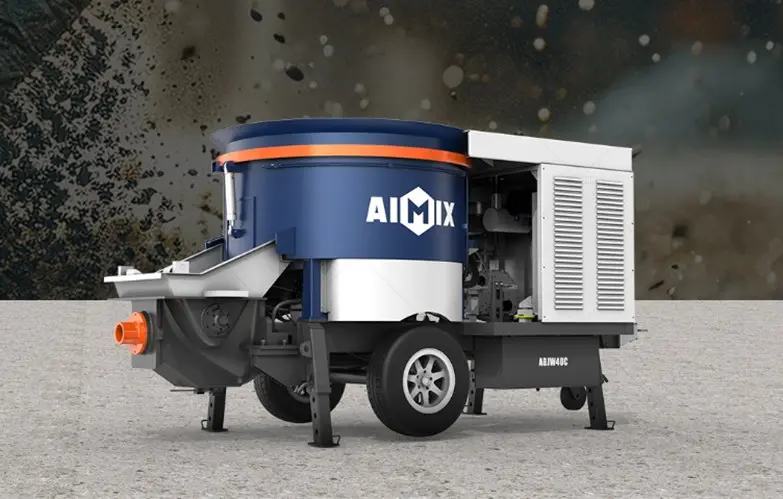

ABJZ40C diesel concrete pump
ABJZ40C diesel concrete mixer pump

Items: ABJZ40C
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor
ABJZ40D
ABJZ40D electric concrete mixer pump

Items: ABJZ40D
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): 5.5
Stir the motor power(KW): 4.5
Water pump motor power(KW): 0.55

Concrete trailer pumps

Diesel type

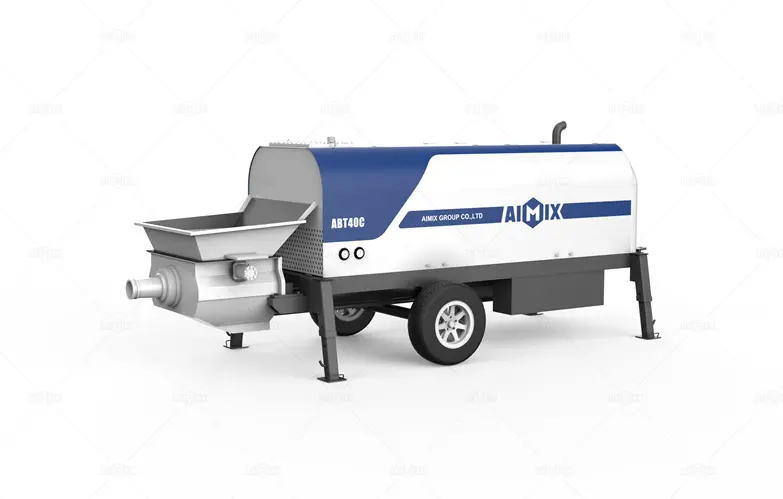

ABT40C diesel concrete pump machine
ABT40C diesel concrete pump machine

Items: ABT40C
Max. theo. concrete output(L./H): 40 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Theoretical Vertical Conveying Distance: 120m

ABT60C diesel trailer pump
ABT60C diesel trailer pump

Items: ABT60C
Max. theo. concrete output(L./H): 60 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 180m
Total weight: 6500kg

Specifications

Items Units ABT40C ABT60C ABT80C
Max. theo. concrete output(L./H) M3/h 40/26 67/45 84/45
Max.concrete pumping pressure(H./L.) MPa 10/7.6 43659 43785
Distribution valve type S  Valve S  Valve S  Valve
Concrete cylinder diameter×stroke mm Φ180×1200 Φ200×1650 Φ200×1800
Hopper capacity x feeding height L/mm 400/1100 800/1400 800/1400
Outlet diameter mm Φ150 Φ180 Φ180
Diesel engine model Weifang Delier 6105ZB Wechai Wechai
Electrical engineering power KW 82 129 176
Rotate speed r/min 2100 2200 2200
Circuit type open circuit
Pumping system pressure MPa 32 32 32
Mixing system pressure MPa 43624 43624 43624
Capacity of oil tank L 370 370 580
Max. Theoretical Vertical/Horizontal Conveying Distance m 120/500 180/800 200/800
Max. aggregate diameter mm Slick/scree:40/50 Slick/scree:40/50 Slick/scree:40/50
Inside diameter of delivering pipe mm Φ125 Φ125 Φ125
Dimensions:length×width×height mm 5000x1850x1700 5800x2000x1750 6300x2100x2350
Total weight kg 4500 6500 6900

Electric type

ABT40D electric concrete pump
ABT40D electric concrete pump

Items: ABT40D
Max. theo. concrete output(L./H): 40 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Theoretical Vertical Conveying Distance: 120m
Total weight: 3200kg

ABT60D electric concrete trailer pump
ABT60D electric concrete trailer pump

Items: ABT60D
Max. theo. concrete output(L./H): 60 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 160m
Total weight: 6500kg

Specifications

Items Units ABT40D ABT60D ABT80D
Max. theo. concrete output(L./H) M3/h 40 60/36 86/45
Max.concrete pumping pressure(H./L.) MPa 10 13/7 16/11
Distribution valve type S  Valve S  Valve S  Valve
Concrete cylinder diameter×stroke mm Φ180×1200 Φ200×1650 Φ200×1800
Hopper capacity x feeding height L/mm 400/1100 800/1100 800/1100
Outlet diameter mm Φ100 Φ180 Φ180
Electrical engineering power KW 45 90 90
Rotate speed r/min 1480 1480 1480
Circuit type Open circuit
Pumping system pressure MPa 28 28 32
Mixing system pressure MPa 8 6-8 14
Capacity of oil tank L 370 560 580
Max. Theoretical Vertical/Horizontal Conveying Distance m 120/500 160/800 200/800
Max. aggregate diameter mm Slick/scree:40/50 Slick/scree:40/50 Slick/scree:40/50
Inside diameter of delivering pipe mm Φ125 Φ125 Φ125
Dimensions:length×width×height mm 4500x1750x1600 4500x1750x1600 6300x2100x2250
Total weight kg 3200 6000 6300

Classified by working principle

We have concrete mixer machine with pump and trailer type concrete pump for sale. The only difference is whether has a concrete mixer. Concrete pump with mixer machine consists of a concrete mixer and a concrete pump, so it can produce concrete and pump concrete by itself. While trailer type concrete pumps are towed on a trailer, it can be stationary or mobile, but it has no mixer, only can pump concrete. Compare these two concrete pumps for sale, mixer type will be much more efficient. But when you choose a concrete pump machine for sale, you need to combine your project and your budget to make a decision. If you are not very familiar with those machines, our salesman will help you do an evaluation for your construction.

ABJZ30C concrete mixer pump-diesel-engine
ABJZ30C concrete mixer pump-diesel-engine
Items: ABJZ30C
Max. theo. concrete output(L./H)(M3/h): 30
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.35
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor


ABT40C diesel trailer concrete pump
ABT40C diesel trailer concrete pump
Max. Theoretical Throughput (m3/h):40
Max. Theoretical Vertical Conveying Distance(m): 150
Max. Theoretical Horizontal Conveying Distance(m):600
Max. Aggregate Diameter(mm):30/40

Successful cases

ABJZ30C To Malaysia

ABJZ30C diesel cement mixer pump to Malaysia

nameplate of diesel mixer pump
diesel cement mixer pump
diesel mixer pump to Malaysia

ABJZ40C worked smoothly in the Philippines


ABJZ40D to Indonesia

electric type mobile concrete mixer pump AIMIX

electric mobile concrete pump mixer AIMIX
electric mobile concrete mixing pump AIMIX


ABT40C diesel powered concrete pump

Diesel Engine Concrete Pump Was Going To The Philippines

Great things! Two sets of diesel powered concrete pumps were ready to Philippines! In addition, our users also bought one ...
Read More
electric concrete mixer pump to Samarkand

ABJZ40D Electric Concrete Mixing Pump Was Going To Samarkand

Good news, our ABJZ40D electric concrete mixer pump has been painted and tested run, and our workers were loading it ...
Read More
ABT40C concrete pump

Test Run Of ABT40C Diesel Concrete Pump Ukraine

A customer from Ukraine ordered an ABT40C diesel tow concrete pump, which has been produced and can be delivered as ...
Read More
ABT60C diesel concrete trailer pump

ABT60C Diesel Powered Concrete Pump To Uzbekistan On March 22

Good news from AIMIX! ABT60C diesel concrete trailer pump has been on the way to Uzbekistan. On March 22, our ...
Read More
ABJZ40C diesel concrete mixer pump Indonesia

ABJZ40C Small Diesel Concrete Mixer Pump Was Sent To Indonesia

Congratulations ABJZ40C small diesel concrete mixer pump was ready to Papua, Indonesia. Our client planned to use this efficient concrete ...
Read More
diesel concrete pump Indonesia

Diesel Concrete Pump Was Sent To Indonesia On March 17

Warm congratulations to the diesel trailer concrete pump sent to Indonesia on March 17. Below are some shipping photos taken ...
Read More
ABT40C diesel engine concrete pump

Two Sets Of Diesel Concrete Pumps To Philippines

Two months ago, our salesman went to our pump factory and check whether concrete pump machine has been produced. And ...
Read More
delivery of diesel concrete pump

ABT40C Concrete Pump With Diesel Engine To Jamaica

Congratulations ABT40C diesel concrete pump was ready to Jamaica. This type is the most popular type in export records. And ...
Read More
diesel cement mixer pump Malaysia

Diesel Cement Mixer Pump Was Going To Malaysia

Good news from AIMIX factory! ABJZ40C diesel concrete mixer with pump was going to Malaysia on 14th, February, 2020. We ...
Read More
concrete pump with diesel engine

ABT50C Concrete Pump With Diesel Engine Was Going To Bangladesh

Good news! Our factory has been officially started. And delivered ABT50C concrete pump with diesel engine to our customer on ...
Read More

Concrete Mixer With Pump Machine Video In Philippines

ABJZ40C Diesel Concrete Mixer With Pump Philippines Construction Site


Last July, our salesman and after-sales service team went to Philippines to do regular maintenance, they will went to the foreign market four times a year. They aim to help users do regular check and repair. Here is a video, you can see our customer spoke highly of our concrete mixer with pump machine. In addition pump, they also went to concrete batching plant site and asphalt plant site. In a word, if you bought from us, we will give you best service in the whole business process. When it comes to an end for this order, we will begin an after-sales service for you. Do not worry! In addition Philippines, our concrete pump has been exported to Jordan, Pakistan, Uzbekistan, Sri Lanka, Malaysia, Bangladesh, Tajikistan, Kazakhstan, Ecuador, Korea, Russia, Fiji, etc, you can look through our cases page to learn more.

Concrete pump machine price

For concrete pumping machine price is affected by many factors, for example, shipment fee, spare parts brand, advanced technology, installation, debug and test run, etc. We can’t show you price or price range of concrete machine with pump, if you want to know how much is a concrete pump, you can leave your message on my product page or to my email box: [email protected]. Please note where are you from, which machine you need, what capacity your project needs and what project you plan to do, so that we can give you a more detailed quotation. As long as you leave us your contact information, we will send you best concrete mixer with pump machine price.

After-sales service person
After-sales service person

About AIMIX

There are so many concrete pumps manufacturers, why choose AIMIX? Because we are reliable concrete pump machine company, we can offer you concrete pump machine for sale directly, no middleman, which will save a lot of cost. What’s more, we have strong comprehensive strength in production, sales and design the concrete pump sales, we have professional product manager, salesman, after-sales man to meet your demands, if you want to invest in this field, choose us! Welcome to visit us in China, Pakistan, Philippines, Uzbekistan, Indonesia, Sri Lanka! We have office in those areas!
