JBS40-JZC350R diesel concrete mixer pump

Concrete Pump Singapore

Concrete pump singapore can pump concrete efficiently. And it can be widely used for high building, new rural construction, tunnel construction, wharf, water conservancy engineering, air port, etc. We are reliable concrete supplier and we sell concrete pump in singapore. We can supply concrete pump truck singapore, concrete mixer pump singapore and trailer type singapore concrete pumping. Various types pump machines have various application, contact us, we will help you choose a right type for your project!

Characteristics of concrete pump trucks in singapore

boom pump truck supplier
boom pump truck supplier

58m concrete boom pump
58m concrete boom pump

Max. Theor. output(high/low pressure): 108/183

Max. aggregate dimension(mm):40

Recommended concrete slump(cm):12~23

Distribution valve: S valve

Slewing angle: ±270°

Engine power(KW):338

40m concrete boom pump
40m concrete boom pump

Max. Theor. output(high/low pressure): 66/111

Max. aggregate dimension(mm):40

Recommended concrete slump(cm):12~23

Distribution valve: S valve

Slewing angle: ±270°

Engine power(KW):199

Good after-sales service
Good after-sales service

1. Good after-sales service. We have professional maintenance team, if you can’t solve the problems, you can contact us: market@aimixgroup.com. We will send our technician to your site and help you out.

2. It has function of mixing, so in construction site, you can realize the concrete pouring, don’t need to deliver concrete from a concrete mixing station, which saves a lot of shipping costs.

3. Mixing concrete on site, realize continuous pumping, which is four times more efficient than a traditional pump.

4. Total power is lower than traditional concrete pumping equipment singapore.

5. Low energy consumption, which is very suitable for rural construction.

6. Strong motor function, suitable for multi-site alternate operation.

7. Small concrete pump trucks in singapore cost little, an ideal choice for building construction.

Features of mixer type concrete pumping singapore

JBS30-JZC350R diesel concrete pump mixer
JBS30-JZC350R diesel concrete pump mixer


JBS40-JZC350R diesel concrete mixer pump
JBS40-JZC350R diesel concrete mixer pump


Items Units Parameters
JZB200-10
Whole performance of machine Max. theo. concrete output m3/h 10
Max.concrete pumping pressure MPa 10
Distribution valve type
Concrete cylinder diameter×stroke mm Ф140×1000
Hopper capacity L 400
Outlet diameter mm Ф100
Power system Main motor    kw
18.5
Vice motor kw 11
Kw 3
Water pump motor powe kw 0.55
Rotate speed r/min 1480
Feeding capacity L 0.25
Discharging capacity L 0.2
Hydraulic system Circuit type Open circuit
Pumping system pressure MPa 28
Mixing system pressure MPa
Capacity of oil tank L 370
The biggest transportation is away from vertically (/Level) m 100/300
Other parameters Max. aggregate diameter mm Diameter: 20
Inside diameter of delivering pipe mm Ф80
Dimensions:length×width×height mm 4200x2300x3150
Total weight kg 3200
Item Unit JZB200-10 JB30R-JZC350 JB40R-JZC350
Rated Output m3/h 8 30 40
Max. Pressure On Concrete Mpa 4 10 10
Delivery Cylinder mm 140×180 Ф140×1100 180×800
Main Oil Cylinder Bore/Rod Diameter X mm Ф95/60×800 Ф80/55×1200 Ф100/70×1000
Oil Tank Capacity L 100 250 350
Outlet Opening Diameter mm Ф100 Ф100 Ф125
Inner Dia. of Delivery Pipe mm Ф80/100 Ф100 Ф125
Diesel Model CY1115*2(YANMAR) WEIFANG4100 DEUTZ
Diesel Power KW 29.4 62 82
Max. Diameter Of Aggregates mm 20 30 40
Maximum Delivery Horizontal Distance M 100 600 700
Maximum Delivery Vertical Distance M 30 120 150
Mixer Type JZC200 JZC350 JZC350
Capacity of Charge L 200 560 560
Capacity of Discharge L 300 350 350
Water Pump Motor Control Electromagnetic Electromagnetic Electromagnetic
Diameter of Drum mm 1000 1440 1440
Mixing Time s 45-60 45-60 45-60
Length×Width×Height mm 4120×2100×2600 5500×2300×2700 6000×2300×3150
Weight Kg 3000 5000 5200
Items Unit JBS30-JZC350 JBS40-JZC350 JBS40-JS500 JBS40-JS750
Max Theoretical Conveying Capacity m3/h 30 40 40 40
Max Exit Pressure Mpa 10 11 11 11
Concrete Cylinder bore * stroke mm Ф140×1000 Φ160×1200 Φ160×1200 Φ160×1200
Hydraulic Oil Tank Volume L 370 370 370 370
Exit Diameter mm Ф100 Φ150 Φ150 Φ150
Conveying Pipe Inner Diameter mm Ф100 Φ125/150 Φ125/150 Φ125/150
Motor Power KW 47.55 55.75 70.1 83.6
Max Aggregate Size mm 30 40 40 40
Max Horizontal Conveying Distance M 500 600 600 600
Max Vertical Conveying Distance M 120 150 150 150
Mixer Model JZC350 JZC350 JS500 JS750
Input Volume L 560 560 750 1200
Output Volume L 350 350 500 750
Mixer productivity M3/h 12-15 12-15 25 35
Drum Diameter Mm 1440 1440
Drum Rotary Speed (without load) rpm 18 18
Outline Dimension (L*W*H) mm 4200x2300x2600 4200x2300x2600 5100*2250*2860 5200*2250*3110
Weight Kg 4200 4500 5500 6500
JBS30-JZC350 electric concrete mixer pump
JBS30-JZC350 electric concrete mixer pump


JBS40 electric mixer pump
JBS40 electric mixer pump


We mainly have two types mixer pump machine in singapore. One is driven by electric motor, another is driven by diesel engine. Both them can pump concrete efficiently. Because they are equipped with concrete mixer, can blend concrete in advance, which can save a lot of construction time.

As for how to choose from these two types, the only element is the electricity condition in your area. If site has enough electricity, an electric voltage is stable, you can choose efficient electric pump for sale. However, if your site lack electricity, your ideal choice will be diesel type concrete pump singapore. Of course, if you prefer electrical type, you need to equip it with a electric generator.

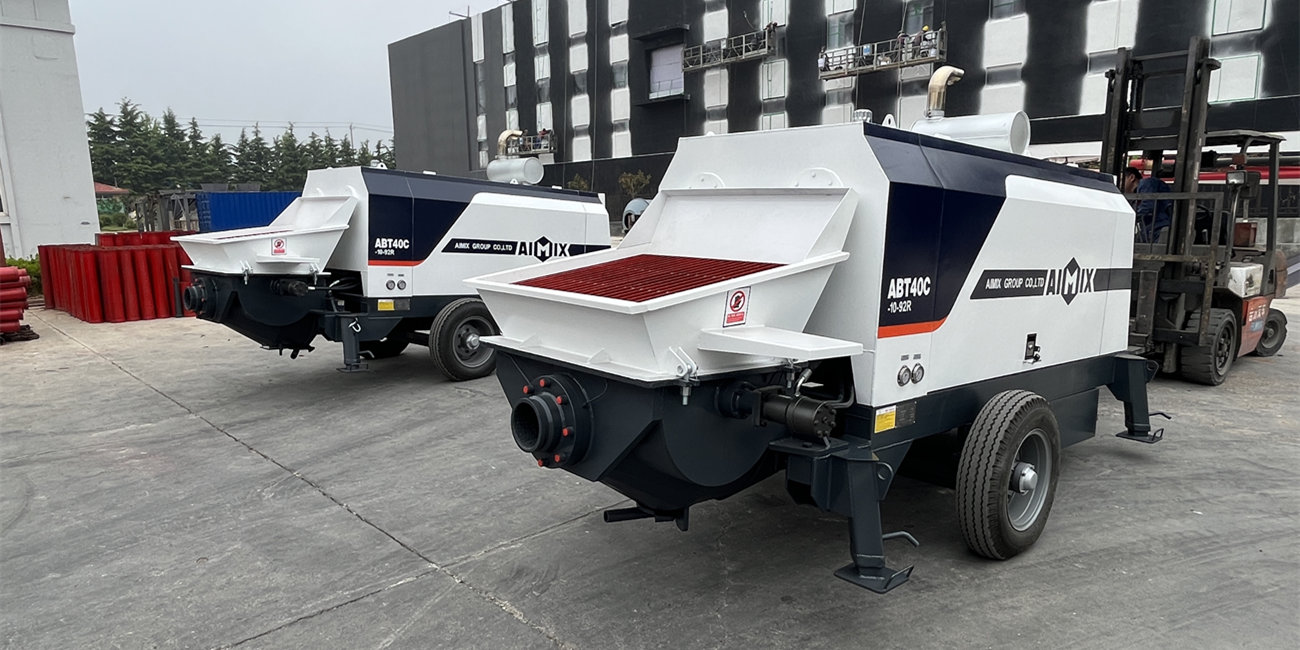

Trailer type concrete pumping machine

HBTS50R concrete pump with diesel engine
HBTS50R concrete pump with diesel engine


30R diesel concrete pump
HBTS-30R diesel concrete pump


HBTS40 diesel trailer concrete pump
HBTS40 diesel trailer concrete pump


Item Unit BS30-10-56R
Max. theo. concrete output(L/H) m3/h 30
Max.concrete pumping pressure MPa 10
Concrete cylinder(diameter* stroke) mm 1400×1200
Hopper capacity*feeding height L×mm 400×1200
Outlet diameter mm Ф100
Power kw 56
Rotate speed RMN 1800
Pumping system pressure MPa 26
Mixing system pressure MPa 6—8
Capacity of oil tank L 260
Max. concrete pumping distance(vertical) M 120
Max. concrete pumping distance(horizontal ) M 500
Dimension(length*width*height) mm 4500*1750*1600
Total weight Kg 3500
Item HBTS40-SR HBTS50-SR HBTS60-SR HBTS80-SR HBTS90-SR
Max. Theoretical Throughput (m3/h) 40 50 60 80 90
Max. Pumping Pressure(MPa) 11/13/15 13 13/15/16 16 16/18
Max. Theoretical Vertical Conveying Distance(m) 150 180 190 200 200
Max. Theoretical Horizontal Conveying Distance 600 600 800 1000 1200
Max. Aggregate Diameter(mm) 30/40 40/50 50 50 50
Slump(cm) 12—23 12—23 12—23 12—23 12—23
Conveying Pipe Radius(mm) 125 125/150 150 150 150
Conveying Cylinder Bore X Piston Stroke(mm) Φ180×1300 Φ180×1300 Φ200×1650 Φ200×1800 Φ200×1800
Hydraulic Oil Tank Capacity(L) 370 370 580 580 580
Feeding Height(mm) 1250 1300 1400 1420 1420
Hopper Capacity(m³) 0.6 0.68 0.68 0.68 0.8
Diesel Brand DELIER/DEUTZ DELIER/DEUTZ DEUTZ DEUTZ DEUTZ
Power of Diesel Motor(kw) 56 62 82/129 162 176
Dimension(Length*Width*Weight)(mm) 5000*1850*1700 5000*2100*2260 6000*2160*2600 6700*2160*2700 6750*2160*2700
Total Weight(kg) 4500 4500 6480 7600 7600
HBT80 electric static trailer concrete pump
HBT80 electric trailer concrete pump


HBT30 electric trailer concrete pump
HBT30 electric trailer concrete pump


HBT40 electric portable concrete pump
HBT40 electric portable concrete pump


Item HBT-20 HBT-30 HBT-40
Max. Theoretical  Throughput(m3/h) 20 30 40
Max. Pumping Pressure(MPa) 10 11 11/13
Max.Theoretical Vertical Conveying Distance(m) 140 150 150
Max.Theoretical Horizontal Conveying Distance(m) 500 600 600
Max. Aggregate Diameter(mm) 20 20/30 30/40
Conveying Pipe Radius(mm) 100 100 125
Conveying Cylinder Bore X Piston Stroke(mm) Φ140×1000 Φ160×1200 Φ180×1200
Hydraulic Oil Tank Capacity(L) 240 370 370
Feeding Height(mm) 1100 1100 1100
Hopper Capacity(m3) 0.35 0.4 0.6
Power(kw) 37 45 45/56
Dimension(Length×Width×Height)(mm) 4000×1350×1550 4500×1750×1600 4600×1850×1770
Item HBT-50 HBT-60 HBT-80 HBT-90
Max. Theoretical  Throughput(m3/h) 50 60 80 90
Max. Pumping Pressure(MPa) 12/13 13/15/16 16 16/18
Max.Theoretical Vertical Conveying Distance(m) 150 190 200 220
Max.Theoretical Horizontal Conveying Distance(m) 600 800 1000 1200
Max. Aggregate Diameter(mm) 40/50 50 50 50
Conveying Pipe Radius(mm) 125/150 150 150 150
Conveying Cylinder Bore X Piston Stroke(mm) Φ180×1300 Φ200×1650 Φ200×1800 Φ200×1850
Hydraulic Oil Tank Capacity(L) 370 580 580 580
Feeding Height(mm) 1400 1420 1420 1420
Hopper Capacity(m3) 0.68 0.68 0.68 0.8
Power(kw) 75 90 110 110
Dimension(Length×Width×Height)(mm) 5200×2000×2260 6000×2160×2600 6300×2100×2250 6300×2100×2250
We also have electric type and diesel type. The principle is the same as mixer type’s. the only difference is this type can’t produce concrete, you need to get concrete from concrete production plant.

Things you need to know when you select concrete pump supplier in singapore

concrete pump manufacturers
concrete pump manufacturers

S-valve
S-valve

part of boom pump truck
part of boom pump truck

part of trailer pump
part of trailer pump

radiator
radiator

Where you can get concrete pump supplier singapore. You have two ways to get suppliers: online and offline.

Online: you can input ‘concrete pump supplier singapore’ on search engine, such as, google, yahoo and bing. Then you will get some results, you can look through them one by one.

Offline: Get concrete pumps companies in singapore offline. Ask around for local suppliers. If you choose from your local area, you will save some shipping costs.

How you can get reliable supplier

1. Check their successful cases. A reliable and famous company must have many orders. It indicates they have many old customers. As for whether they have a lot of new customers, you can ask them in detail.

2. See their scale of factory and team. The large, the better. It means they have a lot of inquiries to reply.

3. Ask them after-sale service. After-sale service is very important. If you want to keep your concrete pump in singapore working normally all the time, it is necessary to get their help and guidance.

All in all, if you want to start a pump business, contact us! We can give you professional advice!
