Models of Electric Concrete Pump
Aimix has three main types of electric concrete pump for sale. We have our new type: electric boom pump with pan mixer. And there are also electric trailer concrete pump and electric concrete mixer pump. Each type of them has several hot sale models with different pumping capacity. You can choose based on your project requirement.
Boom-type Electric Concrete Pump with Pan Mixer
The electric boom-type concrete pump with pan mixer can mix very fast with the electric power. There are three main types of this electric boom pump with different pumping capacity and application.
- Max Concrete Output:89m³/h
- Boom Length: 20m, 26m, 30m, 33m
- Hot Model:AMY20, AMY26
- Application: Suitable for rural residential building and drainage projects, etc.
- Max Concrete Output:50m³/h
- Boom Length: 8m, 15m, 18m, 20m, 25m
- Hot Model:AMY18
- Application: Primarily utilized in mountainous regions, farmland drainage, and locations inaccessible to concrete transport trucks.
- Max Concrete Output:120m³/h
- Boom Length: 26m, 30m, 33m, 38m
- Hot Model:AMY33
- Application: Primarily employed in farmland drainage, rural civil construction, and similar projects. It is particularly suitable for accessing narrow working spaces.

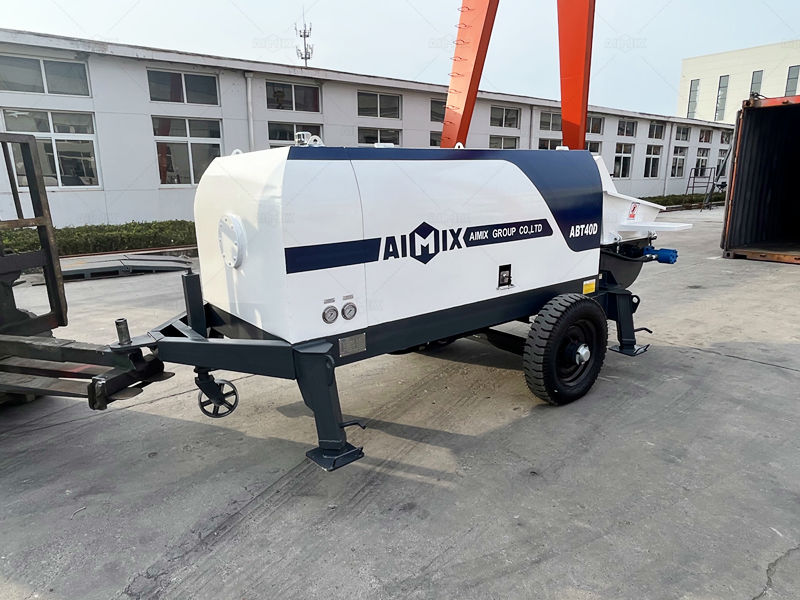

Trailer-type Electric Concrete Pump
The electric concrete trailer pump stands out for its eco-friendly operation, offering quiet, efficient, and low-maintenance performance with consistent power delivery. Here shows 5 hot sale models of electric trailer-type.
- Capacity:30 m³/h
- Vertical Conveying Distance:120 m
- Horizontal Pumping Distance:400 m
- Pumping Pressure:10 MPa
- Max Aggregate Diameter:40 mm
- Capacity:40 m³/h
- Vertical Conveying Distance:140 m
- Horizontal Pumping Distance:500 m
- Pumping Pressure:11 MPa
- Max Aggregate Diameter:40 mm
- Capacity:50 m³/h
- Vertical Conveying Distance:160 m
- Horizontal Pumping Distance:600 m
- Pumping Pressure:11.8 MPa
- Max Aggregate Diameter:40 mm
- Capacity:60 m³/h
- Vertical Conveying Distance:150 m
- Horizontal Pumping Distance:600 m
- Pumping Pressure:13 MPa
- Max Aggregate Diameter:40 mm
- Capacity:80 m³/h
- Vertical Conveying Distance:180 m
- Horizontal Pumping Distance:800 m
- Pumping Pressure:11 MPa
- Max Aggregate Diameter:40 mm
Mixer-type Electric Concrete Pump
The electric concrete mixing pumps combine the mixing and pumping techniques. They can constantly mix the concrete with strong electric power. There are two hot sale models. One is the mini concrete pump ABJZ30D.
- Capacity:30 m³/h
- Vertical Conveying Distance:120 m
- Horizontal Pumping Distance:500 m
- Pumping Pressure:9 MPa
- Max Aggregate Diameter:40 mm

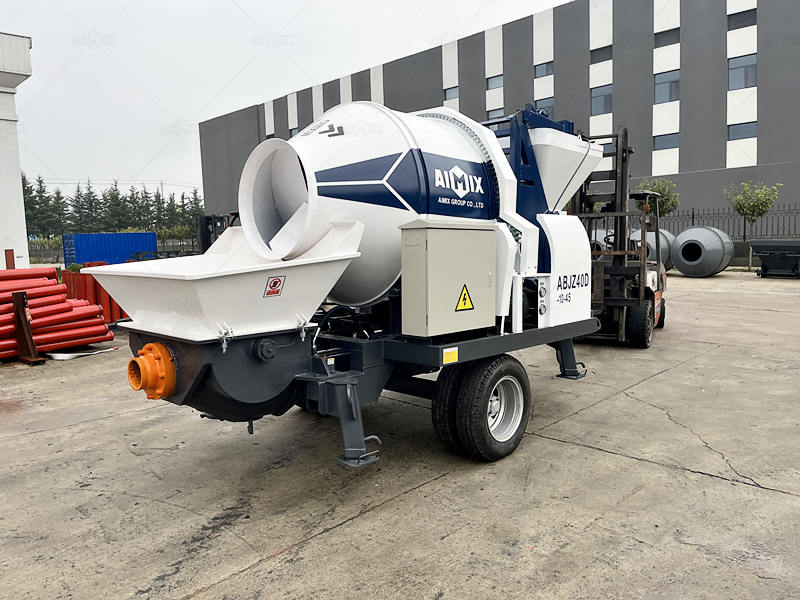

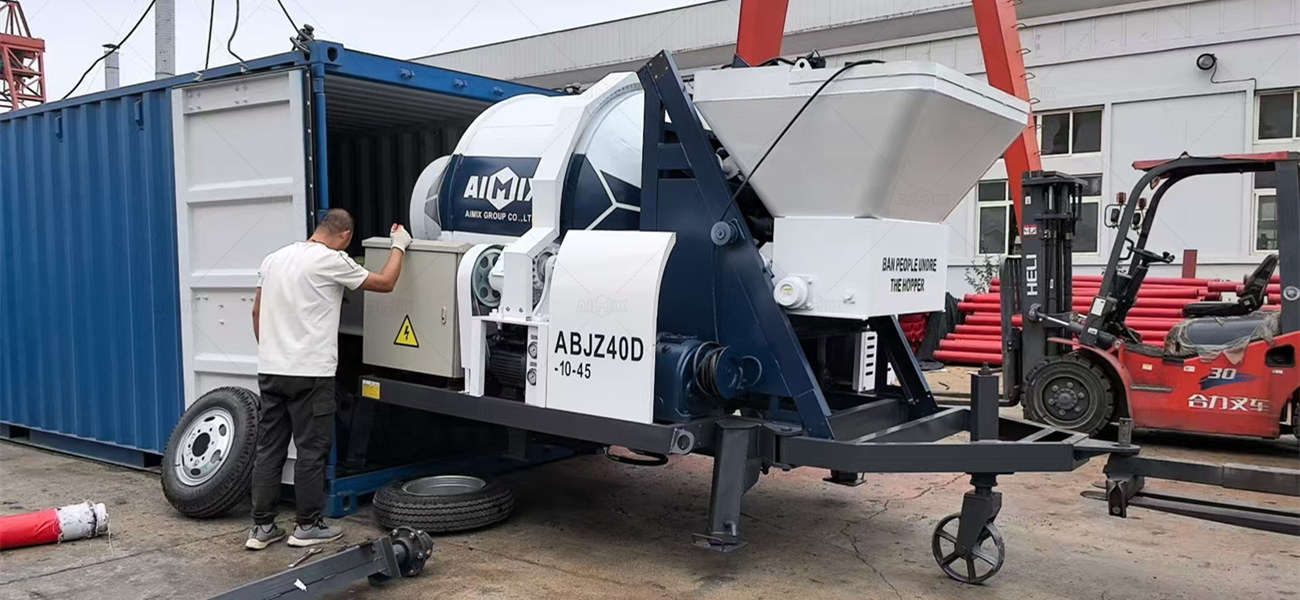

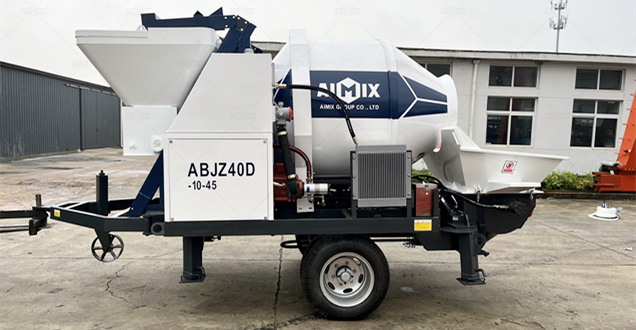

There are also ABJZ40D model and here are its specifications.
ABJZ40D
- Capacity:46 m³/h
- Vertical Conveying Distance:140 m
- Horizontal Pumping Distance:600 m
- Pumping Pressure:10 MPa
- Max Aggregate Diameter:40 mm
Except for these models mentioned above, we can also provide you electric concrete pump truck and other types. Feel free to contact us and get a free quote for the one that you need.
Customer Cases All Over the World

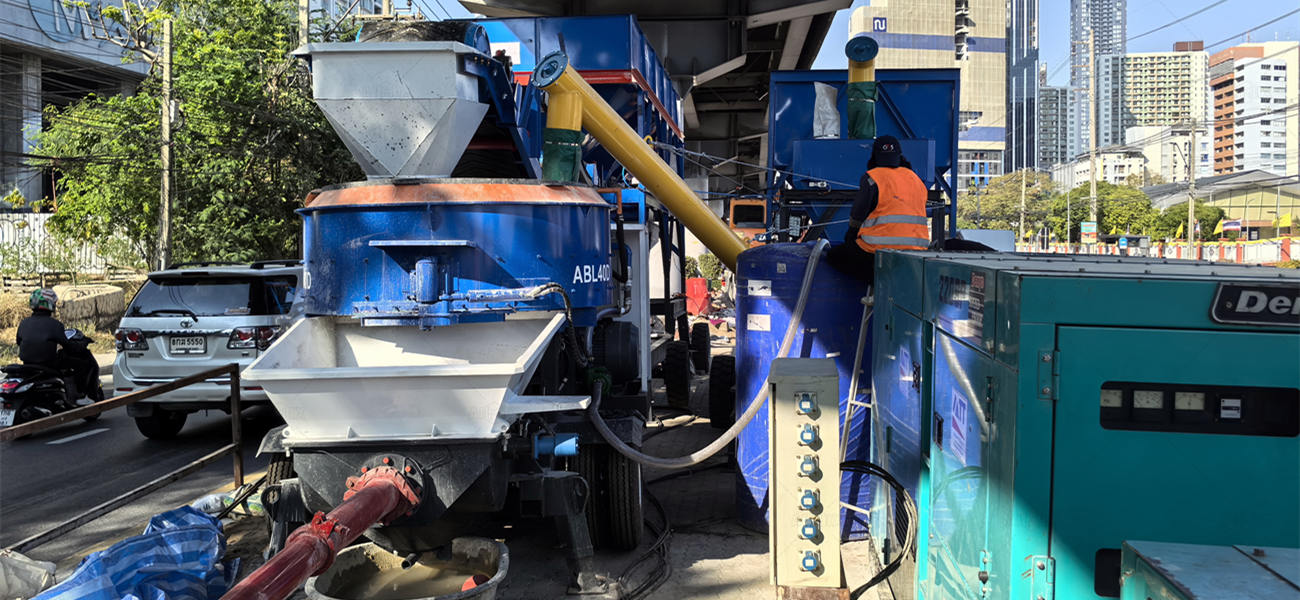

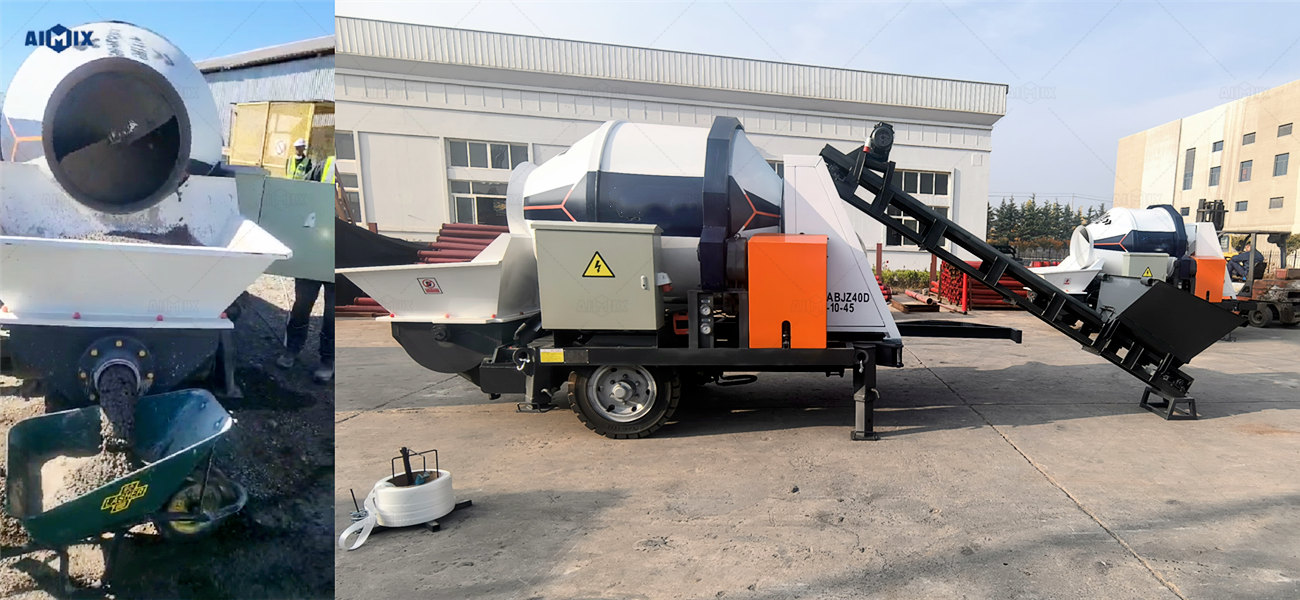

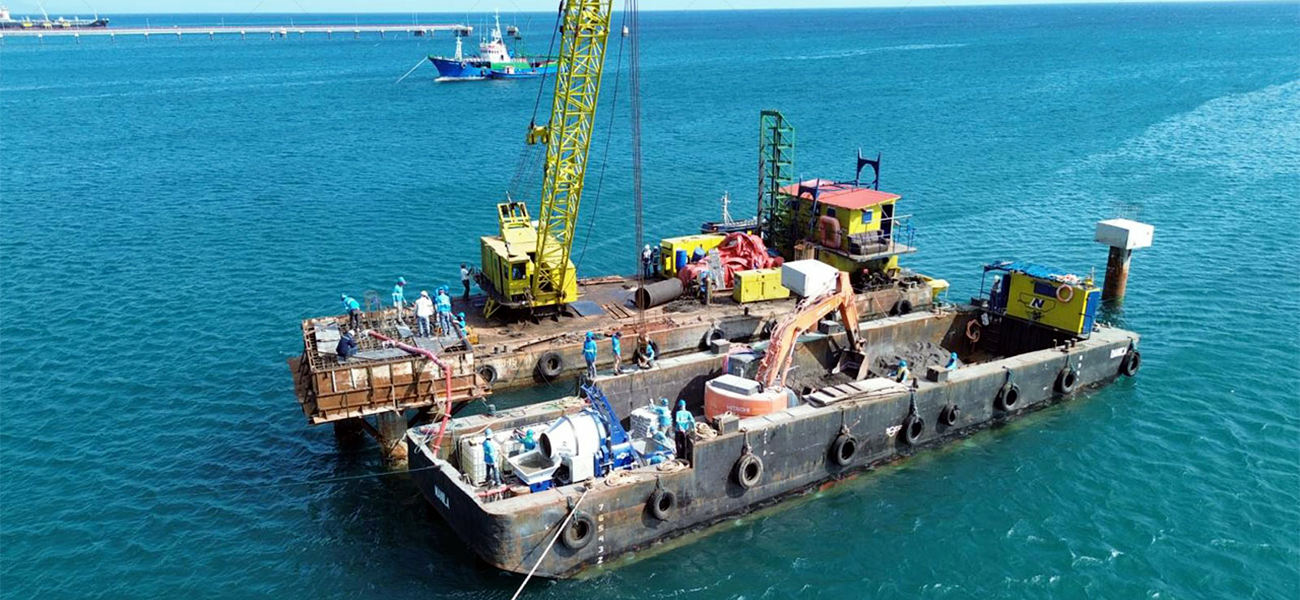

Aimix has rich experience exporting pumps to customers all over the world. Feel free to contact us and get the pump suitable for your project.Here shows some of our previous electric concrete pump machine customer cases:
Advantages of Electric Concrete Pump
Electric concrete pumps offer several unique advantages that set them apart from other types of concrete pumps, making them a preferred choice for certain construction environments:
Energy Efficiency
Electric motor concrete pumps consume less energy compared to diesel-powered concrete pumps, reducing operating costs while maintaining excellent performance. They are particularly suitable for projects where electricity is readily available, making them both cost-effective and eco-friendly.
Low Noise Operation
One of the most significant benefits is their quieter operation. This makes them ideal for use in urban areas, residential neighborhoods, and indoor projects where noise restrictions are a concern.
Zero Emissions
They produce no exhaust emissions, making them environmentally friendly and compliant with strict emissions regulations. This advantage is critical for enclosed or poorly ventilated construction sites, such as tunnels, basements, and warehouses.
Ease of Maintenance
Electric motors are generally simpler to maintain, resulting in lower maintenance costs and reduced downtime. Their straightforward design enhances reliability and longevity.
High Efficiency and Performance Stability
Concrete pump electric delivers consistent and stable performance, as electric motor maintain a steady power output. This ensures smooth concrete pumping without interruptions, even during extended operations.
Compact and Lightweight Design
They are often more compact and lightweight than their diesel counterparts, allowing for easier transport and installation. This makes them highly versatile for projects with space constraints.
By leveraging these unique advantages, they provide an efficient, eco-conscious, and reliable solution for modern construction needs, especially in locations where electricity is readily accessible.
Factors You Need to Consider for Investing Electric Concrete Pump
When looking to invest in one, several critical factors should be considered to ensure you choose the right model for your project needs. From understanding the upfront electric concrete pump cost to evaluating the pump’s performance, the following aspects will guide you in making an informed decision:
1. Initial Cost vs. Long-Term Savings
While the cost may vary depending on the brand, capacity, and specifications, it is important to consider the long-term savings. Electric pumps typically have lower operating costs compared to diesel models, thanks to reduced fuel expenses and maintenance requirements. Evaluating both the upfront concrete pump price and lifecycle costs will help you determine the most cost-effective choice.
2. Power Supply Availability
It requires a stable electricity source to operate efficiently. Before purchasing, ensure that your construction site has adequate access to a reliable power supply. For remote or off-grid locations, additional equipment such as generators may be necessary, which can impact the overall investment.
3. Pumping Capacity and Output
Different projects demand different pumping capacities. Assess the pump’s maximum flow rate and pressure to ensure it can handle the volume and type of concrete required for your construction tasks. Carefully compare specifications when searching for an one for sale.
4. Durability and Maintenance Requirements
Investing in a high-quality electric concrete pump with mixer or trailer concrete pump one ensures durability and reduces downtime. Research the pump’s maintenance needs, warranty coverage, and availability of spare parts. Reliable manufacturers like Aimix often provide excellent after-sales support, which can add significant value to your investment.
By taking these factors into account, you can maximize the return on your investment and select the right one for sale that aligns with your project goals and budget. Balancing the cost with performance, efficiency, and reliability will help you achieve long-term success in your construction endeavors.
Application of Electric Concrete Pump
Electric concrete pumps are widely used in various construction projects where reliable and efficient concrete placement is required. Their unique advantages, such as energy efficiency, low noise, and zero emissions, make them particularly suited for specific applications. Here are the key areas where they excel:

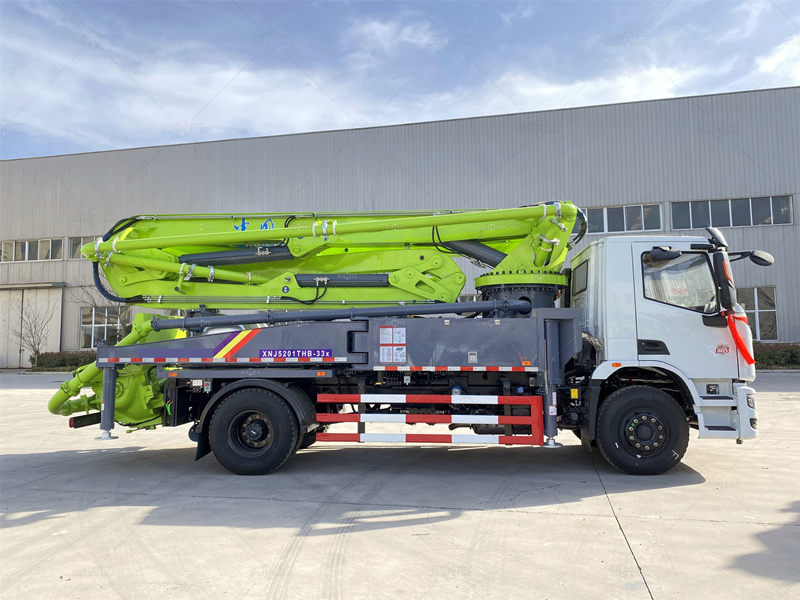

- Urban Construction Projects: They are ideal for projects in cities and residential neighborhoods due to their quiet operation and environmentally friendly nature. They are frequently used for constructing high-rise buildings, shopping centers, and residential complexes, where noise and air pollution regulations are stringent.

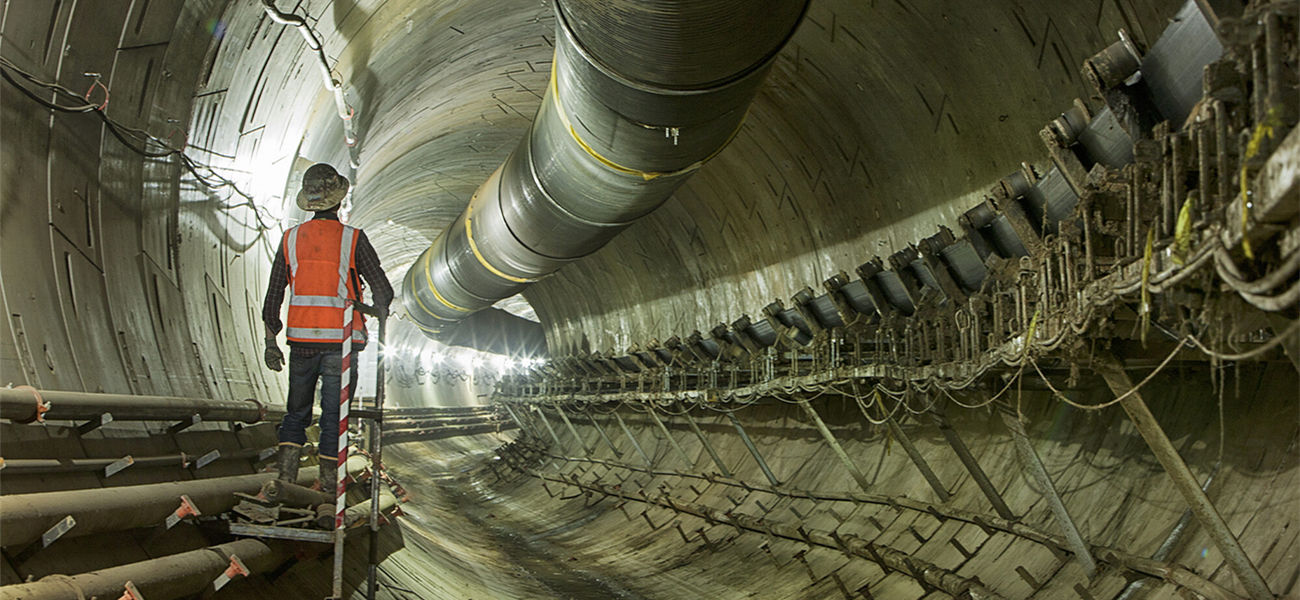

- Indoor Construction: For indoor projects such as building basements, tunnels, warehouses, and parking structures, electric pumps are preferred because they do not emit harmful exhaust gases. This ensures a safer and healthier work environment for laborers.
- Small and Medium-Sized Projects: Compact electric concrete pumps are often used for small to medium-sized projects like house renovations, road repairs, and drainage system installations. Their lower operational costs and ease of use make them a cost-effective choice for contractors working on smaller-scale projects.
- Infrastructure Development: Electric pumps are also utilized in infrastructure projects such as bridges, dams, and power plants where access to a stable electricity supply is readily available. Their consistent performance ensures smooth and precise concrete placement for such critical structures.

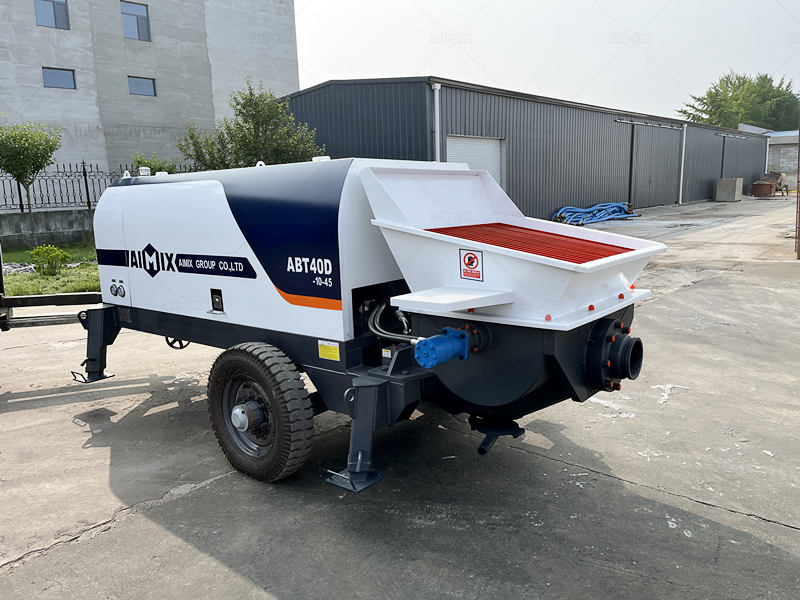

- Environmentally Sensitive Areas: In areas where environmental impact is a concern, such as near hospitals, schools, or parks, they are the preferred option. Their zero-emission operation minimizes ecological disruption, making them suitable for eco-conscious projects.
By offering reliable, quiet, and environmentally friendly performance, they are a versatile and efficient solution for a wide range of construction applications, especially where access to electricity is convenient and emissions or noise levels must be controlled.
Reasons for Choosing Aimix
When looking for reliable electric concrete pump manufacturers, Aimix stands out as a trusted choice for construction projects of all sizes. Below are some key reasons why Aimix’s products are preferred:
High-Quality Electric Concrete Pumps
Aimix is known for our durable and efficient electric concrete pumps for sale. With years of experience in the industry, Aimix has built a reputation for offering reliable products that can handle the demands of various construction applications. Their electric pumps are designed with advanced technology to ensure consistent performance and longevity, making them a dependable choice for any project.
Competitive Pricing
One of the major factors to consider when purchasing one is the electric concrete pump cost. Aimix offers competitive pricing without compromising on quality. By sourcing materials efficiently and utilizing advanced manufacturing techniques, Aimix can provide high-quality pumps at a cost-effective price point, offering great value for your investment.
Wide Range of Options
As one of the leading electric concrete pump suppliers, Aimix offers a broad selection of models with varying capacities and features. Whether you need a compact pump for a small-scale project or a heavy-duty model for large infrastructure developments, Aimix has the right pump to meet your specific needs. Their diverse offerings ensure that every customer can find a solution tailored to their project requirements.
Global Reach and Availability
Aimix has established a strong network of electric concrete pump suppliers across the globe, making our products widely accessible in various countries. We have sub companies in Indonesia, Uzbekistan and many other country and can provide electric concrete pumps inventory to local customers directly.
Advanced Features and Technology
Aimix’s electric concrete pumps are equipped with the latest technological advancements to enhance performance and user experience. These pumps are designed for ease of operation, low maintenance, and maximum efficiency.
Excellent After-Sales Service
Aimix not only provides high-quality products but also offers excellent after-sales service. As a leading manufacturer and supplier, we provide comprehensive support, including installation guidance, maintenance services, and troubleshooting assistance. This makes us a reliable partner for any construction project, ensuring that your pump continues to perform optimally over time.
By choosing Aimix as your electric concrete pump manufacturer, you gain access to superior products, competitive pricing, a wide range of options, and exceptional customer service. Whether you’re searching for one for sale or looking for the best suppliers, Aimix remains a top choice for construction professionals around the world.
