Concrete pump for sale Philippines is used to pump concrete for large floor building, bridge building, and tunnel construction. What’s more, it is very suitable for a small civil building project, it has characteristics of high automation degree, assemble feeding, mixing and pumping as a whole, can save a lot of labor cost. AIMIX mainly can supply you concrete mixer pump, trailer concrete pump, concrete boom pump, etc. You can learn more on this page one by one.
AIMIX has a branch in the Philippines, the location is Saint Paul Rd, Makati, Manila, Philippines. If you have any problems, feel free to contact us online or leave your message on this page. AIMX has exported more than 80 sets of concrete mixer pumps to the Philippines, our products won good praises from our customers.
Concrete pump for sale in the Philippines has characteristics of simple operation and stable performance. We adopt the hydraulic pumping method, during the construction, which can achieve high safety, low failure rate, and high reliability. If you have a strict period, we can also supply you efficient concrete mixer pump Philippines.

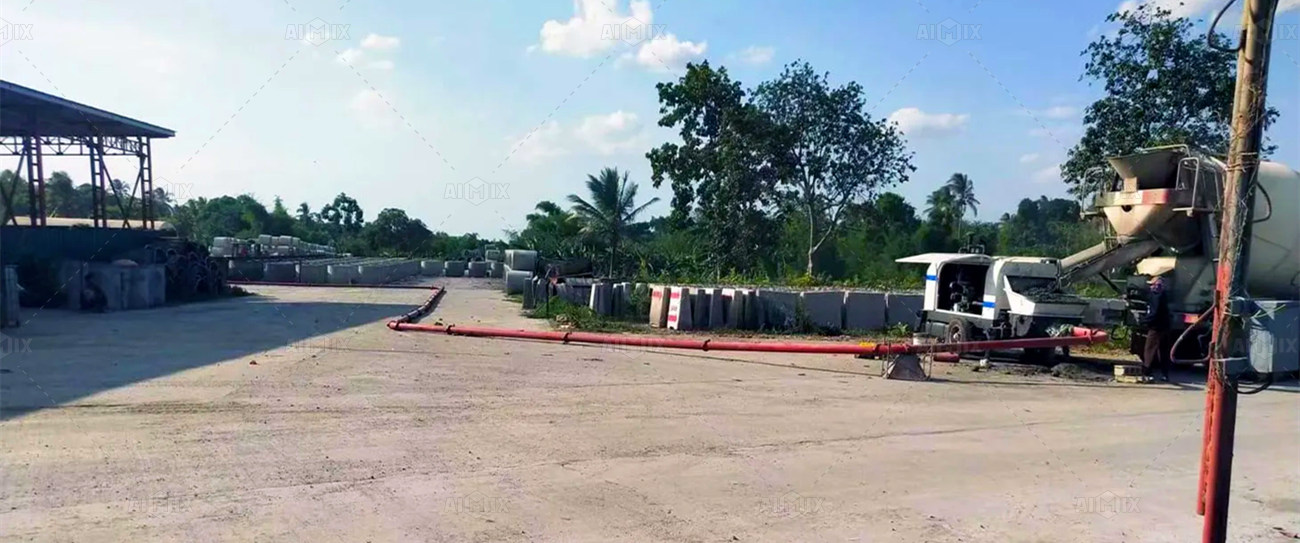

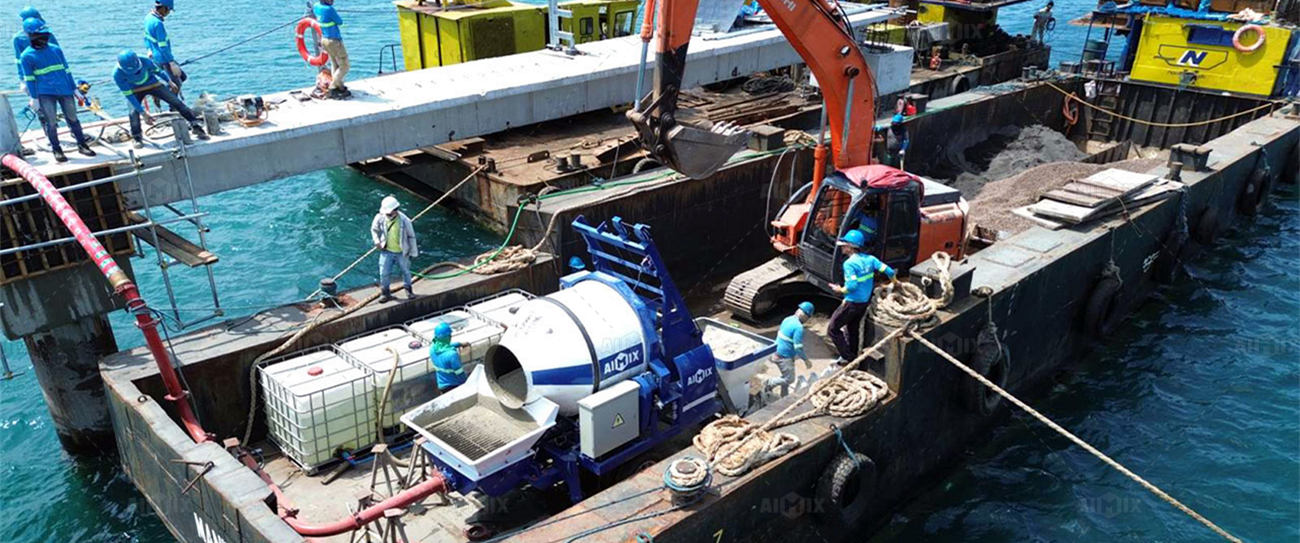

Cases In The Philippines
Types Of Concrete Pumps For Sale In The Philippines
Concrete pump with mixer
Drum type diesel mixer pump
Diesel type, as its name implies, it is driven by a diesel engine, which is very fuel-efficient. If your area doesn’t have enough electricity or the electric voltage is low, it will be your ideal choice. According to the capacity, we mainly have two types for your selection: ABJZ30C and ABJZ40C.
ABJZ40CCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Max. Theoretical Vertical Conveying Distance: 150m
- Max. Theoretical Horizontal Conveying Distance: 600m
- Max. aggregate diameter:Slick/scree: 40mm
ABJZ30CCapacity: 30(m3/h)
- Max. theo. concrete output: 30m3/h
- Max. Theoretical Vertical Conveying Distance: 120m
- Max. Theoretical Horizontal Conveying Distance: 400m
- Max. aggregate diameter:Slick/scree: 20mm
Another I should mention, in addition to pumping concrete, our concrete pump Philippines can achieve delivery of greening soil, foundation pile grouting, and silt transportation, etc.

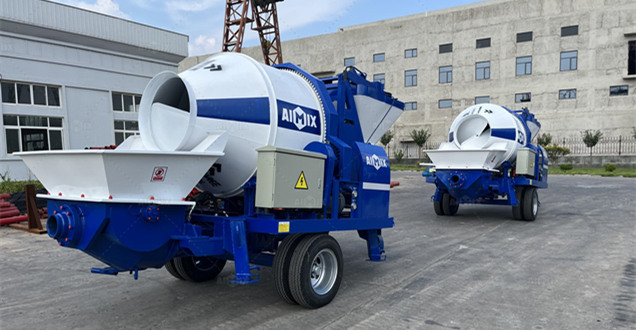

Drum type electric mixer pump
Electric-type is driven by an electric motor, which can work continuously. But as for the fee of electricity, most of the users would like to choose the diesel type concrete pump machine. If your area has sufficient electricity, it is also a good choice.
ABJZ40DCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Max. Theoretical Vertical Conveying Distance: 150m
- Max. Theoretical Horizontal Conveying Distance: 600m
- Max. aggregate diameter:Slick/scree: 40mm
- Total weight: 6000 kg
Compulsory type electric mixer pump
Compulsory concrete mixer pump includes two types: ABJS40D-JS750 And ABJS40D-JS500. ABJS40-JS750 is equipped with a JS750 twin shaft concrete mixer, while, ABJS40-JS500 is equipped with JS500 concrete mixer. Because of the mixer, the pump can produce high-quality concrete.
ABJS40DCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Concrete mixer: JS750
- Max. Theoretical Vertical Conveying Distance: 120m
- Max. Theoretical Horizontal Conveying Distance: 500m
- Max. aggregate diameter:Slick/scree: 40mm

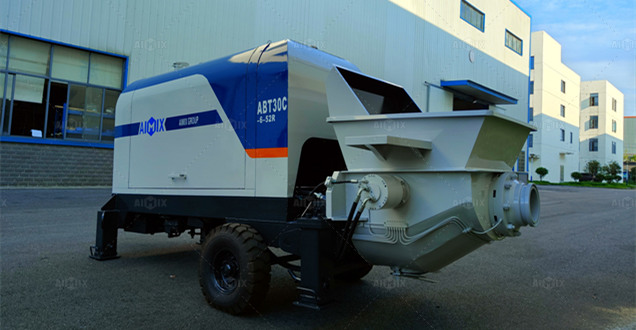

Trailer type pump machine
Diesel Type
- Items: ABT40C
- Max. theo. concrete output(L./H): 40m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 500m
- Max. Theoretical Vertical Conveying Distance: 120m
Diesel Type
- Items: ABT60C
- Max. theo. concrete output(L./H): 60m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 800m
- Max. Theoretical Vertical Conveying Distance: 180m
Electric Type
- Items: ABT60D
- Max. theo. concrete output(L./H): 60m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 800m
- Max. Theoretical Vertical Conveying Distance: 160m
Truck-mounted concrete mixer pumps
With JS series concrete mixer-high mixing effect and good mixing quality
With long concrete placing boom-high pumping height
AJBP-21Capacity: 21m/h
- Model: AJBP-21
- Max. Operation Height: 21m
- Model Of Distribution Valve: S valve
- Max Aggregate Size: 40mm
- Maximum pumping height: 20.1
- Diesel engine: 92kw
- Mixer: JS500
- Chassis model: CDW5160THBA1R5
AJBP-34Capacity: 34m/h
- Model: AJBP-34
- Max. Operation Height: 34m
- Model Of Distribution Valve: S valve
- Max Aggregate Size: 40mm
- Electronic component: Schneider
- Control system: Control box +screen
- Mixer: JS500
- Chassis model: CDW5230THBA1N5
After-sales service for our users
Working Site Of ABJZ40C Diesel Concrete Mixer Pump In Philippines
ABJZ40C was exported to Philippines on Nov 18
ABJZ40C diesel concrete mixer pump was going to Philippines
ABT40C small concrete pump for sale Philippines
After-sales service for user in Philippines
After-sales service for ABJZ40C concrete mixer pump Philippines
Characteristics And Features Of Concrete Pump In Philippines
- 1. We adopt advanced S valve reversing, can satisfy delivery of concrete.
- 2. Glasses plates and cutting loops adopt carbide-tipped material, can achieve long service life. Higher outlet pressure can meet the delivery of high-rise buildings and remote distances.
- 3. Our concrete pump truck Philippines is with reverse pump function, can minimize the pipe clogging, is equipped with a manual lubrication system, ensure the service life of the transmission system, the electric control cabinet is equipped with wired remote control.
- 4. Service efficiency of our concrete pump mixer for sale Philippines can be 4 to 6 times as big as the traditional mini concrete pump Philippines. Therefore, a concrete mixer pump in the Philippines is time and cost-saving. Concrete mixer and concrete pump are put on a rack having axle, through a small truck or small wheel loader, can move between several construction sites.
- 5. We have an office in Manila, which can give you timely service.
Pay Attention When You Install The Philippines Concrete Pump For Sale
1. The ground supporting concrete pump sale Philippines should be solid and flat. The machine should not be oblique. Outrigger should support the whole pump machine steadily. Position of portable concrete pump for sale in Philippines not only should be convenient to get in and out and feed of concrete mixer truck, but also be beneficial to pump feed tube and reduce pumping pressure loss. At the same time, should be near from pouring point, water and electricity supply should be convenient.
2. Piping should according to features of the construction site and concrete pouring scheme. Laying of delivery pipe should be convenient for pipe cleaning, trouble removal, and disassembling maintenance.
3. When you pipe vertically upward, there should be a certain length of horizontal pipe in case of concrete reflux.
4. After the installation is finished, the Philippines concrete pump operator should check the machine according to the specifications strictly, ensure meet the requirement before starting idle running.
5. In the hot summer, should cover the concrete delivery pipe with a wet straw bag or wet cloth in case of direct sunlight, and prevent concrete from solidification.
6. In the cold winter, when you use portable concrete pump Philippines, should take some insulation measures, users can parcel the delivery pipe with thermal insulation materials, in case pipe and concrete in the pipe will be frozen.
Concrete Pump Price Philippines
Price is an important factor influencing whether you will buy a concrete pump truck in Philippines. We AIMIX GROUP can’t promise we will give you the lowest price for small concrete pumps Philippines, but we can give you the best price! Because we have an office in the Philippines, we can arrange shipment to the Philippines, and give you the best concrete pump price in the Philippines. In addition, we can give you the best service! Any problems, we will help you out immediately, won’t delay your project. Contact us at once!
