Concrete Pump Manufacturers

Concrete pump manufacturers can supply various kinds of concrete pump machines for large, medium, and small concrete projects such as high-rise residential buildings, highways, viaducts, etc. Such as a concrete mixer with pump and concrete trailer pump. When you want to learn about manufacturers, there is a 95% chance that you will buy a concrete pump. So it means to find a reliable manufacturer is your first step. Now, let’s see how to find a reliable manufacturer at first.

Ways to find reliable concrete pump manufacturer

1. Search online. You can search “concrete pump manufacturers” on google, bing, yahoo, and other browsers, then you will get a lot of results.

2. Look at those manufacturers one by one. After comparison, leave about five results for the next comparison.

3. Try your best to pay a visit to the manufacturers you selected. Check the scale, the number of workers, the successful cases, etc. The conclusion is that the bigger the factory, the more reliable.

Next, let’s look at the types of concrete pumps.

Concrete pump models

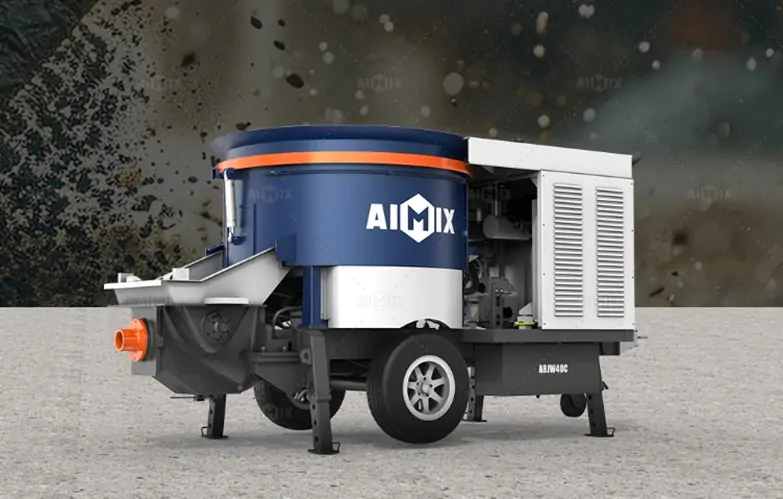

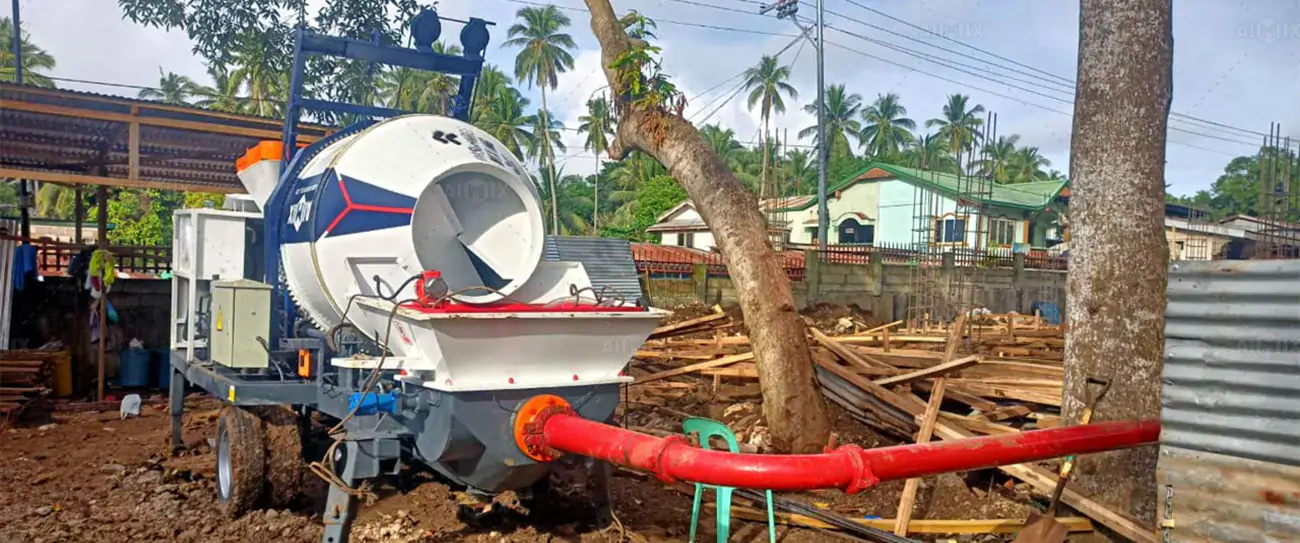

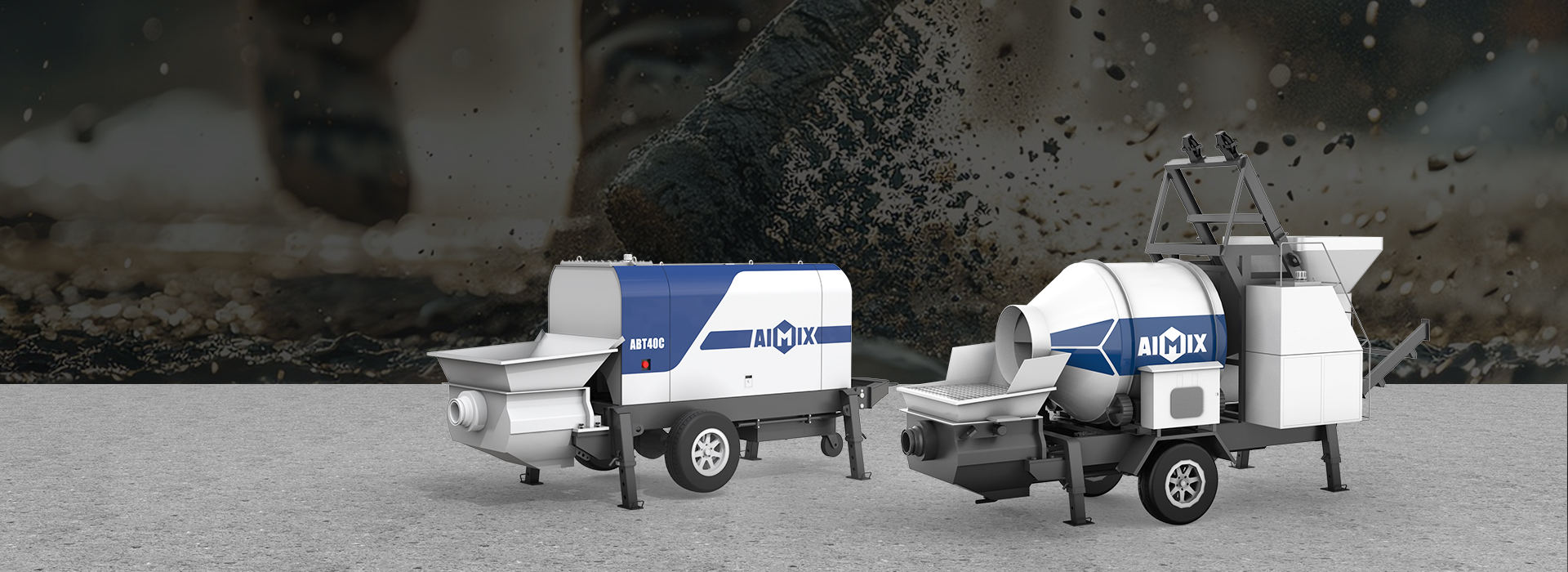

Concrete mixer pump with a concrete drum mixer

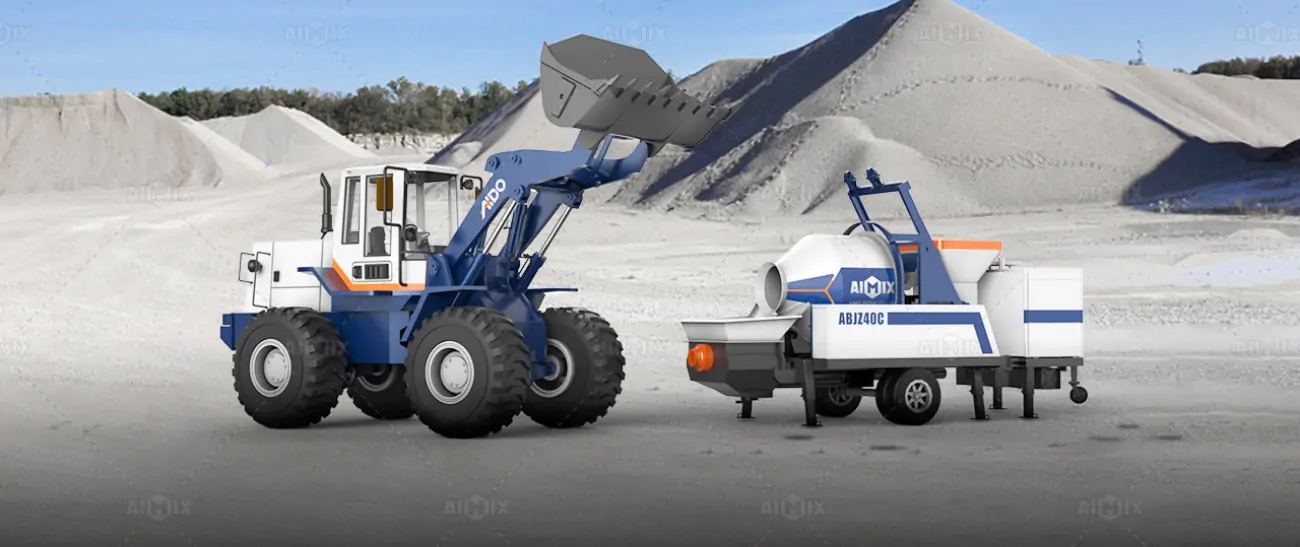

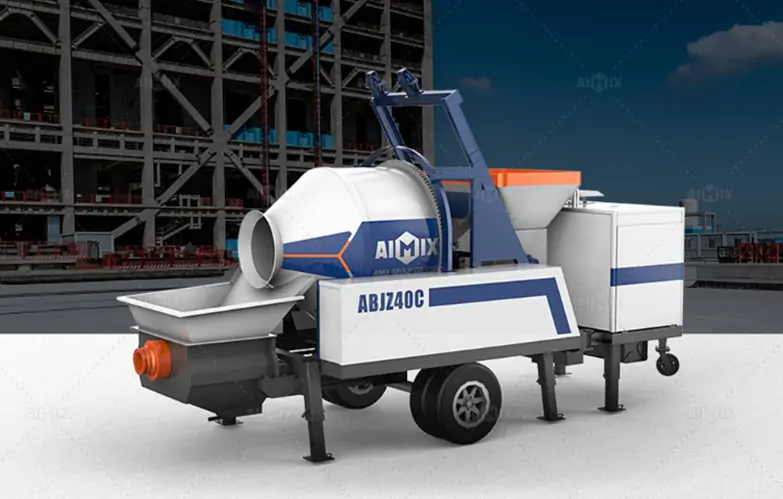

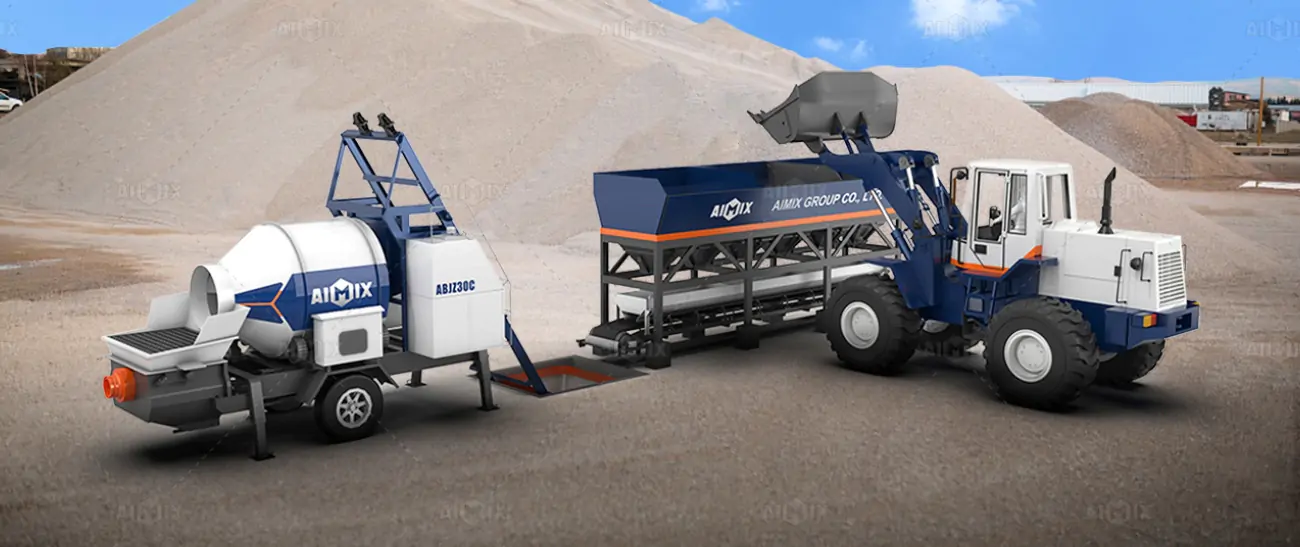

This type of concrete mixer with pump, consists of a concrete drum mixer, which can realize continuous concrete production. It can produce and pump concrete, so it has a good sales volume in AIMIX GROUP. Especially ABJZ40C diesel concrete mixer pump. In addition, we also have small diesel type ABJZ30C, electric type: ABJZ30D and ABJZ40D.

Diesel type

Electric type type

Truck mounted concrete mixer pump

Parameters
No.	Item	Unit	Specification
1	Max. theo. concrete output	m³/h	40
2	Generator power	KW	120
3	Main motor power	KW	45
4	Maximum aggregate	mm	40
5	Concrete pumping pressure	MPa	8
6	Concrete cylinder diameter	mm	200
7	Concrete cylinder stroke	mm	1000
8	Hopper capacity×Loading height	m³×mm	0.7×1400
9	Inside diameter of delivering pipe	mm	φ125
10	Pipe length	m	100
11	Concrete slump	mm	140～220
12	Dimensions	mm	7220×2450×3550
13	Chassis		Chinese V（wheelbase is 3.6 meters）
14	Chassis steering		Left hand steering
14	Max. theo. concrete production capacity	m³/h	30
15	Total mass	KG	13580
Note: S-valve concrete mixer truck pump

This type is on a truck chassis, which is very convenient to move from site to site, needs no installation. It is very efficient and can realize a good mixing effect and produce quality concrete because it is equipped with a twin shaft compulsory concrete mixer.

Advantages of truck mounted concrete mixer pump

1. Full hydraulic control technology;

2. Choose an intelligent electronic control system, simple structure, reduce common failures of household appliances;

3. Automatic identification of gear oil and oil temperature, and real-time maintenance of steam pressure system software;

4. Conveniently work on narrow and small construction sites and reasonably avoid overturning safety accidents

Concrete trailer pump-diesel type and electric type

This type of concrete trailer pump is only used to pump concrete, they can’t produce concrete. AIMIX mainly sells diesel type and electric type. Because they have a trailer tractor, it is easy to move. If you can get a large quantity of concrete, you can choose this type.

Diesel type

Electric type

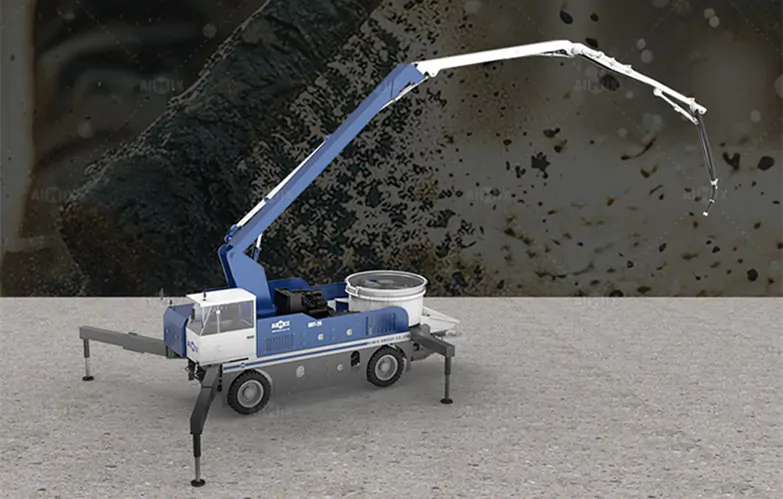

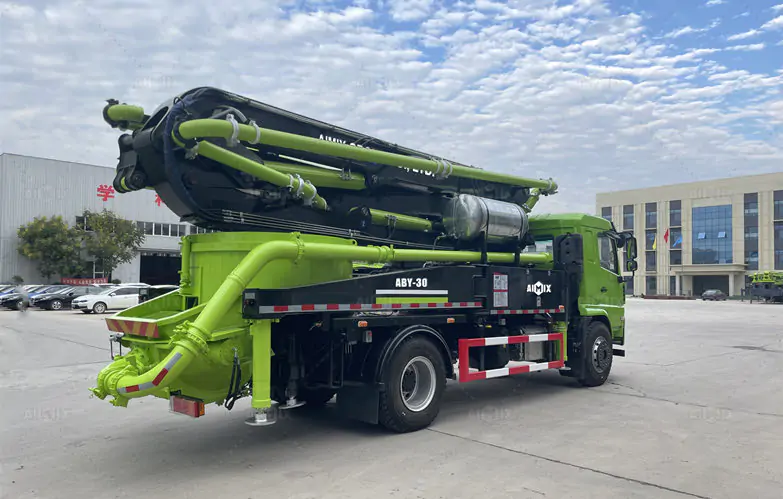

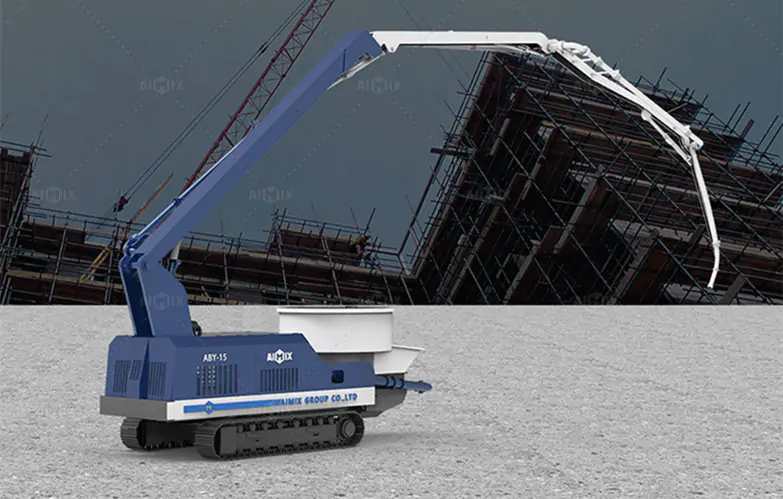

Concrete boom pump truck-21m and 34m

This concrete boom pump truck is also on a truck chassis, and there is a long concrete placing boom, can pump concrete at a high distance. If you want to build a high house or shopping mall, you can invest such a truck mounted concrete boom pump, but you must find a reliable concrete pump supplier because it is difficult to find a proper truck chassis if your truck chassis has some problems.

Name		unit	AJBP-21
Pump	Output In Theory	m3/h	50
	Maximum Theoretical Outlet Pressure	Mpa.	8
	Theoretic Pumping Pressure	Mpa	31
	Bucket Volume	L	400L
	Height Of Top Surface Of Bucket	mm	1500
	Model Of Distribution Valve		S valve
	Concrete Cylinder Diameter×Stroke	mm	200*1000
	Slump	mm	120-230
	Max Aggregate Size	mm	40
	Hydraulic Tank Capacity	L	600
	Clean Model		Water
	Boom Model		RZ
	Max. Operation Height	m	21
	First Boom Length/Angle	mm/。	6510/90°
	Second Boom Length/Angle	mm/。	5733/180°
	Third Boom Length/Angle	mm/。	4613/180°
	Turntable Rotation Angle	。	±360
	Landing Let Model		X
	The maximum pumping height	m	20.1
	The maximum pumping radius	m	16.8
	X leg distance	mm	5010
	Back leg	mm	4350
	Cooling System		Air cooling (24v)
	Control System		Control box +screen
	Main Pump	kw	112
	Diesel engine	kw	92
	Negative Sensitive Multi-Way Valve		KEMAI
	Main Valve Control Form		Hydraulic control reversal
	Mixer		JS500
Chassis	Brand /Model		CDW5160THBA1R5
	Axle(Mm)		4200
	Weight	kg	15580
	Engine Model		118
	Power	kw	YC4S160-50
	Emission Standards		Uro-V
	Dimensions	9	9450*3800*2400

name		unit		AJBP-34
Pump	output in theory	m3/h		60
	Maximum theoretical outlet pressure	Mpa.		11
	theoretic pumping pressure	Mpa		31.5
	bucket volume	L		650L
	height of top surface of bucket	mm		1500
	model of distribution valve			S valve
	Concrete cylinder diameter×stroke	mm		230*1400
	Slump	mm		120-230
	Max aggregate size	mm		40
	max. operation radius	m		29.72
	Main oil cylinder diameter×stroke	mm		140*90/1400
	Hydraulic tank capacity	L		800
	clean model			Water
	Boom model			RZ
	max. operation height	m		34
	First boom length/angle	mm/。		7120/90
	Second boom length/angle	mm/。		5960/180
	Third boom length/angle	mm/。		5795/180
	Forth boom length/angle	mm/。		5751/235
	Fifth boom length/angle
	Turntable rotation angle	。		360
	Landing let model			X
	distance between front & rear landing legs	mm		5340
	diameter of delivery pipe	mm		125
	length of hose pipe	m		4
	quantity of boom			5
	rotary angle of each boom	°		90/180/180/235/215
	remote control distance	m		100m
	Electronic component			Schneider
	Cooling system			Air cooling (24v)
	Control system			Control box +screen
	Main pump			190
	Transfer case			ZHuzhou Grea
	Negative Sensitive Multi-way Valve			KEMAI
	Main valve control form			Hydraulic control reversal
	Main Value			Rexroth
	Mixer			JS500
Chassis	Brand /model	CDW5230THBA1N5	YZZ5230THBSZ5D	EHY5340THBSZ
	Axle(mm)	5300	5200	4750+1300
	Weight (kg)	22600	25000	33000
	Engine Model	YC6JA220-50	YC6JA240-50	YC6JA270-50
	Power (kw)	162	177	199
	Emission Standards	Euro-V

Characteristics of truck mounted concrete boom pump

1. The X-shaped foot design makes the actual operation more stable and safer.

2. Cost-effective, it is easy to help the construction unit to create economic benefits.

Anyway, when you want to purchase a quality concrete pumping machine, you must choose the right concrete pump suppliers, so that no matter pre-sales, on-sales, or after-sales, your budget can get a warranty. There are many concrete pump companies in China, but if you want to find a reputable one, you need to polish your eyes, the most important thing is to visit the factory.

About AIMIX GROUP CO.,LTD

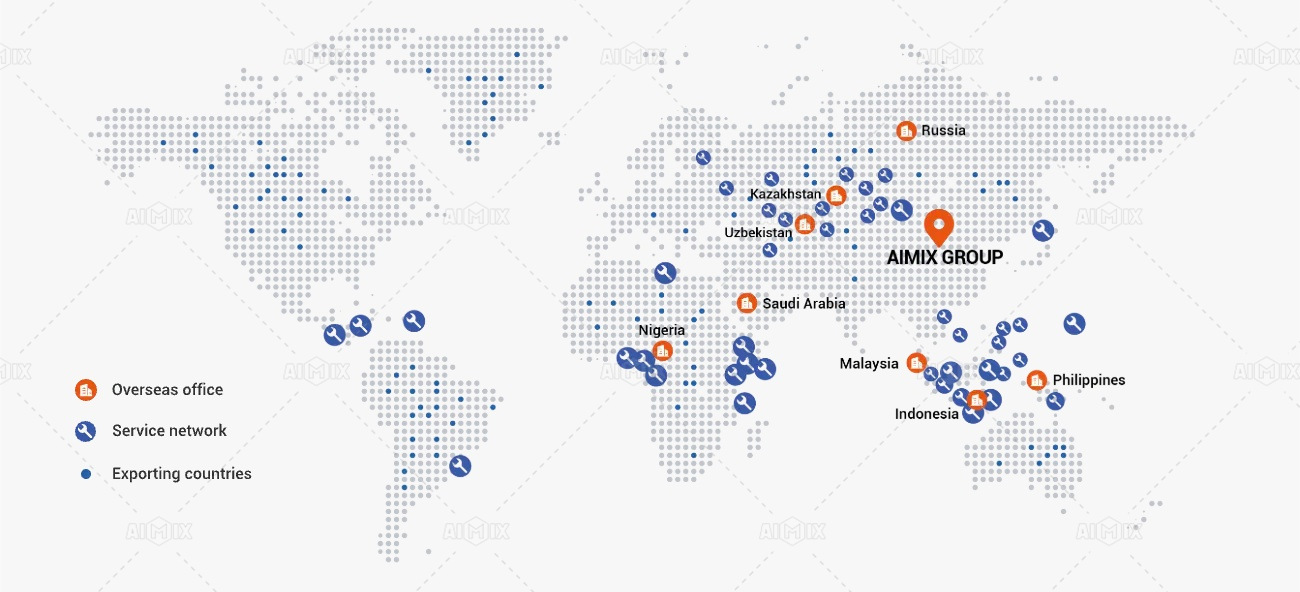

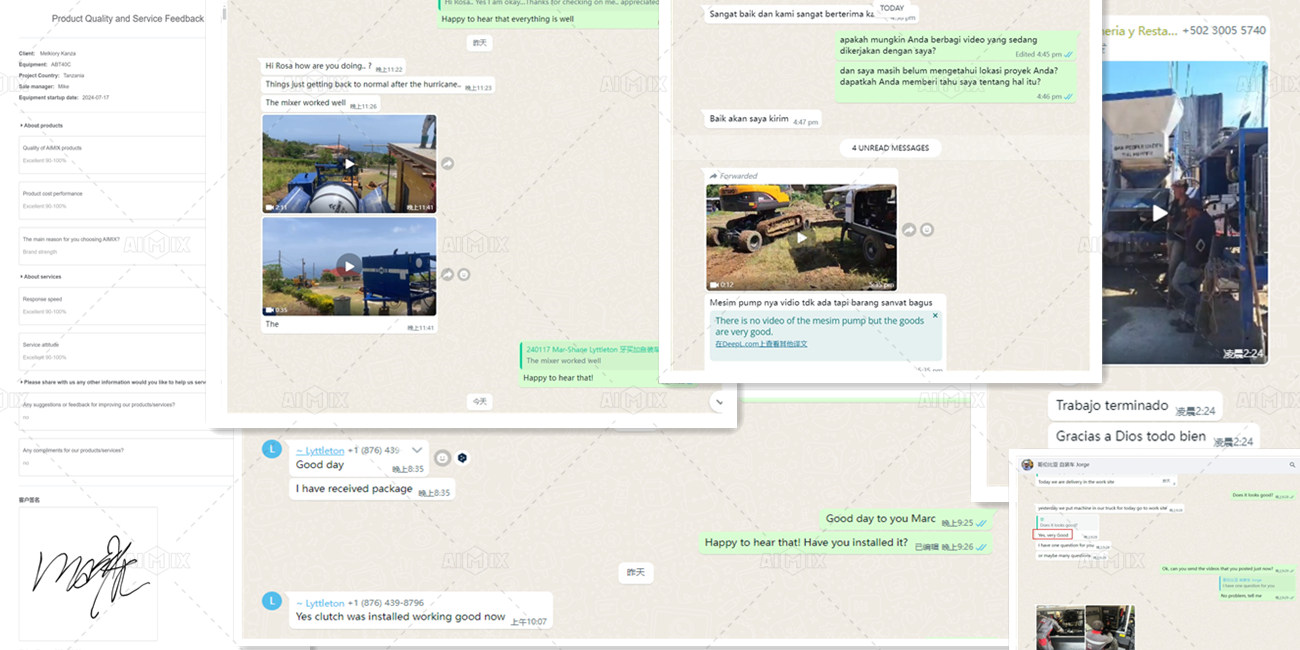

AIMIX GROUP is one of the most reliable concrete pump manufacturers in China. And they have experience in marketing, sales, production, and innovation on the concrete pump for more than 30 years. Meanwhile, this is the tenth year that AIMIX develops overseas branches. They have exported all kinds of concrete pumps more than 200 sets abroad. What’s more, they did after-sales service four times a year, which fully guarantee the good performance of the pump machine.

AIMIX service

1. Within the time specified in the contract, dispatch personnel to guide the installation and commissioning in time;

2. Within one year of shipment, if the product is manufactured due to quality problems, the repair will be provided;

3. Provide users with training for operation and maintenance personnel;

4. Provide lifetime paid maintenance services and spare parts supply for sold products.

5. Deal with various problems in time within 2-24 hours.

Contact us now, we AIMIX GROUP will be your reputable and trustful Chinese concrete pump manufacturer, believe us! We can give you the best factory price and service!
