Portable concrete pump is a convenient type pump machine, it has driving wheels, so it is easy to move from site to site. You can learn more from this page and choose a proper pump machine for your project. In order to meet the needs of concrete users and the market, our company has developed new portable concrete line pump with flexible movement, easy operation, simple maintenance, high efficiency and good quality. It has wide applications in rural areas and towns for its convenience and mobility, especially for small commodity construction, bridge, township construction, agricultural market, tunnel, mine and other areas of construction projects. AIMIX can supply two types portable concrete pumps for sale: trailer type and mixer type. And we can provide you with concrete pumps of diesel engine or electric motor both trailer type and mixer type. At firstly, you can learn about our capacity classifications. It is beneficial for you to choose a right type.
small diesel portable concrete mixer pump
Max. theo. concrete output(L./H)(M3/h): 30
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.35
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): Hydraulic motor
Stir the motor power(KW): Hydraulic motor
Water pump motor power(KW): Hydraulic motor
Electric portable cement mixer and pump
Max. theo. concrete output(L./H)(M3/h): 30
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.35
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): 5.5
Stir the motor power(KW): 4.5
Water pump motor power(KW): 0.55
Max. theo. concrete output(L./H)(M3/h): 40
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.45
Max.concrete pumping pressure(H./L.)(MPa): 10
Distribution valve type: S Valve
Winding motor power(KW): 5.5
Stir the motor power(KW): 4.5
Water pump motor power(KW): 0.55
Max. theo. concrete output(L./H)(M3/h): 40
Concrete mixer model: JS750
Mixer rated feed capacity(m3): 0.56
Mixer rated discharge capacity(m3): 0.75
Max.concrete pumping pressure(H./L.)(MPa): 8
Distribution valve type: S Valve
Winding motor power(KW): 7.5
Stir the motor power(KW): 30
Water pump motor power(KW): 0.75
Trailer type diesel portable concrete pump
Max. theo. concrete output(L./H): 40 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Theoretical Vertical Conveying Distance: 120m
Total weight: 4500kg
Max. theo. concrete output(L./H): 60 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 180m
Total weight: 6500kg
Max. theo. concrete output(L./H): 80 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 200m
Total weight: 6900kg
Trailer type electric concrete pump
Max. theo. concrete output(L./H): 40 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Theoretical Vertical Conveying Distance: 120m
Total weight: 3200kg
Max. theo. concrete output(L./H): 60 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 160m
Total weight: 6500kg
Max. theo. concrete output(L./H): 80 M3/h
Distribution valve type: S Valve
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 200m
Total weight: 6300kg
Successful Cases

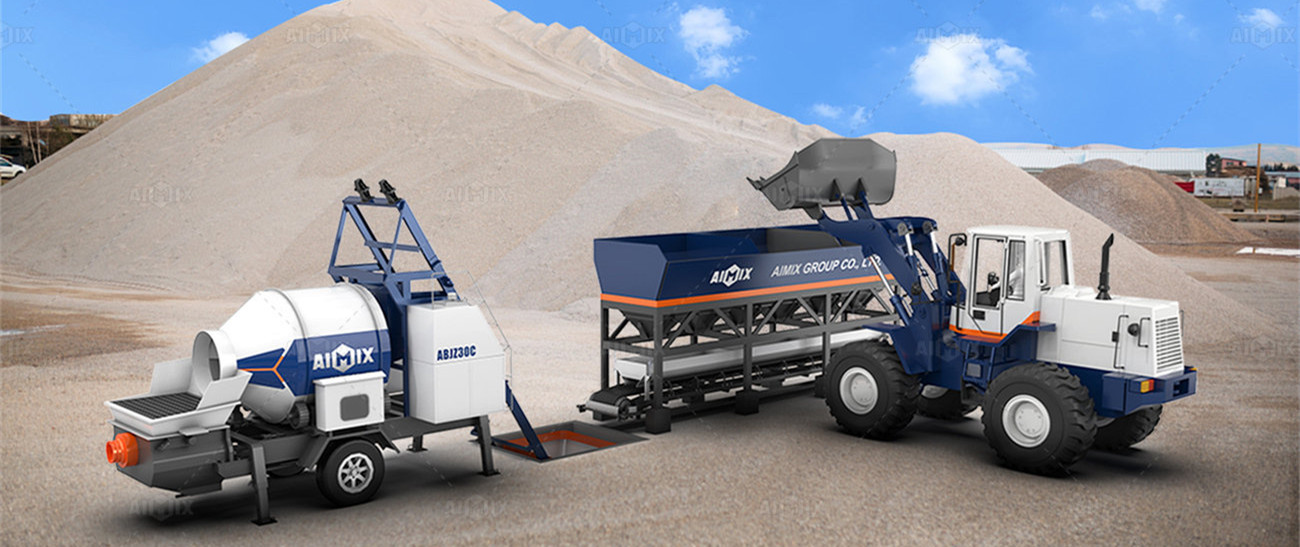

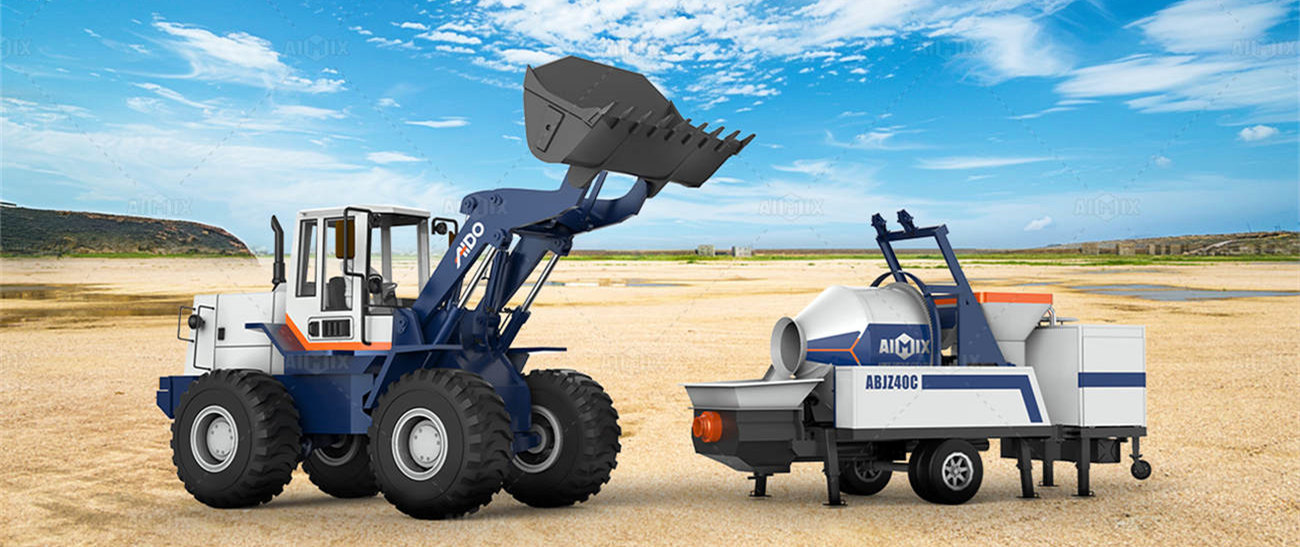

Mixer type
ABJZ40D electric type was sent to Bangladesh
ABJZ40C diesel type was sent to Jamaica
After-Sales Maintenance Of ABJZ40C in Philippines
ABJZ40C in Pakistan
Maintenance of ABJZ40C in Philippines

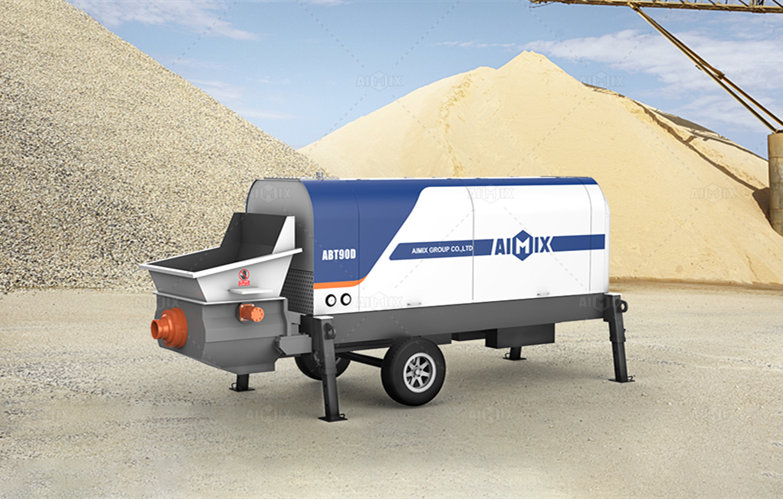

Trailer type
ABT40C in Uzbekistan
ABT40C to Vietnam
Components of Diesel Portable Concrete Pump
Features and Advantages
Our portable concrete mixing pump is supported by four legs, which is very flexible to move as mobile concrete pump.
Our swing cylinders are equipped with a cushioning system to reduce the impact on the hydraulic system and increase the service life of our pump machine.
It uses main oil pump from Japan Kawasaki and the global intelligent hydraulic system, which has a strong power and stable performance.
It is one of the best concrete trailer pumps for sale, which uses the piston type to pump concrete to ensure a low failure rate and good product quality.
Our portable concrete pump uses wireless remote control, which is easy to operate for users.
All lubrication systems are supplied directly. As long as the filter of the grease tank does not leak out and do not flow into the impurities, and there is no problem in lubrication. What’s more, the performance of push mechanism is very stable, as long as users make a good lubrication job in the valve part , the whole portable concrete pumping machine will not go wrong.
Our portable concrete pump for sale has high efficiency and evenly mixing, which can greatly shorten the user’s duration and improve the progress of the construction project.
Highlights of Our Company
Our company is the leading enterprise of China construction equipment, and we have been a verified supplier by BV and Alibaba. In scale, our company covers an area of 120,000 square meters, with a construction are of 60,000 square meters. In technology, we have 16 engineers, 90 professional technicians, 60 administrative staff and 600 skilled workers.
In price, our portable concrete pump has a great advantage of low price due to we are one of large portable, diesel and electric portable concrete pump manufacturers and suppliers and suppliers in China. In service, we have a good pre-sale service, sale service, after-sale service. In product, we offer concrete pump, concrete batching plant, concrete mixer, asphalt mixing plant, dry mortar plant, block making machine, construction lift, concrete mixer truck, stabilized soil plant and other products.
