For contractors working on small-scale projects, efficient concrete production requires equipment that is compact, productive, and easy to operate. AIMIX AJSY40 Compact Concrete Batching Plant combines a highly integrated design, 30% higher mixing capacity, and intelligent one-person operation to help improve productivity while reducing labor requirements and overall operating costs.
Why Small-Scale Projects Need a More Flexible Concrete Production Solution
Small-scale construction projects often have different requirements from large infrastructure projects. Instead of focusing on maximum production capacity, contractors usually need a more practical solution that can provide reliable concrete supply with lower complexity, easier management, and better adaptability to changing project conditions.
Small Projects Require More Flexible Production Planning
Many small construction projects involve limited concrete demand but frequent production needs. Project teams may need concrete for different construction stages rather than continuous large-volume supply, making flexible production capability more important than oversized equipment capacity.
Remote and Distributed Sites Create New Challenges
Small projects are often located in rural areas, residential communities, or locations away from centralized concrete suppliers. In these conditions, transportation distance, supply availability, and project scheduling can affect construction efficiency.
Producing concrete closer to the job site can provide contractors with greater control over their construction progress.
Limited Resources Require Simpler Construction Solutions
Compared with large contractors, small construction teams usually operate with fewer workers and limited project resources. Equipment that requires complex management, extensive preparation, or high operating experience may increase project pressure.
A more practical production solution should match the actual working conditions of small teams.
Frequent Project Changes Demand Better Equipment Adaptability
Many contractors handle multiple projects in different locations, requiring equipment that can adapt to changing working environments. The ability to move between projects and adjust to different site conditions becomes an important factor when selecting concrete production equipment.

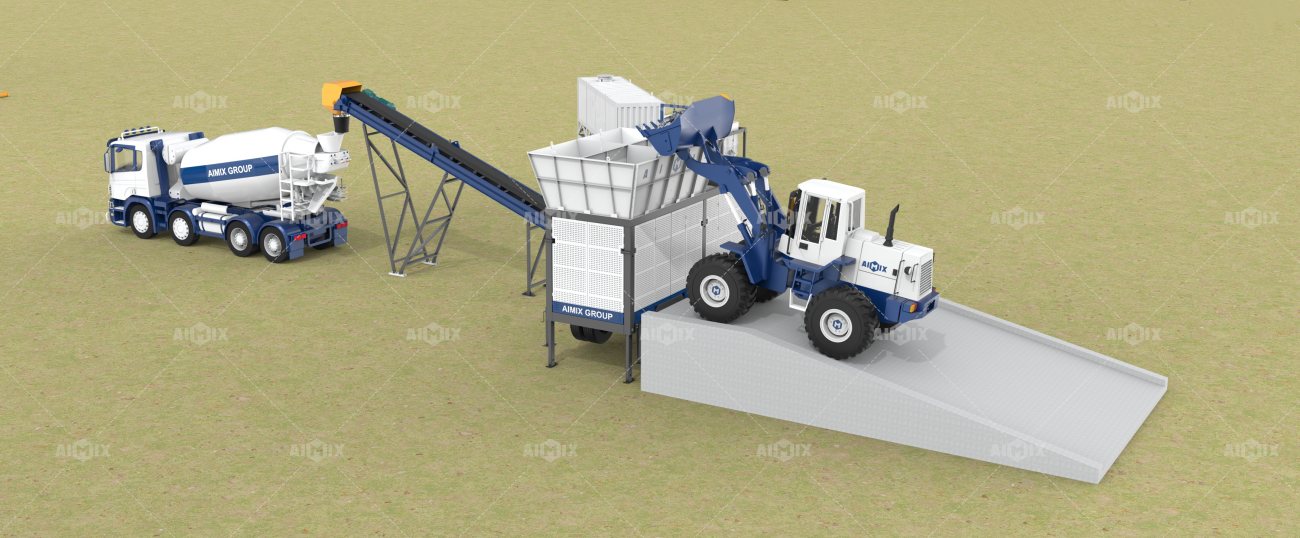

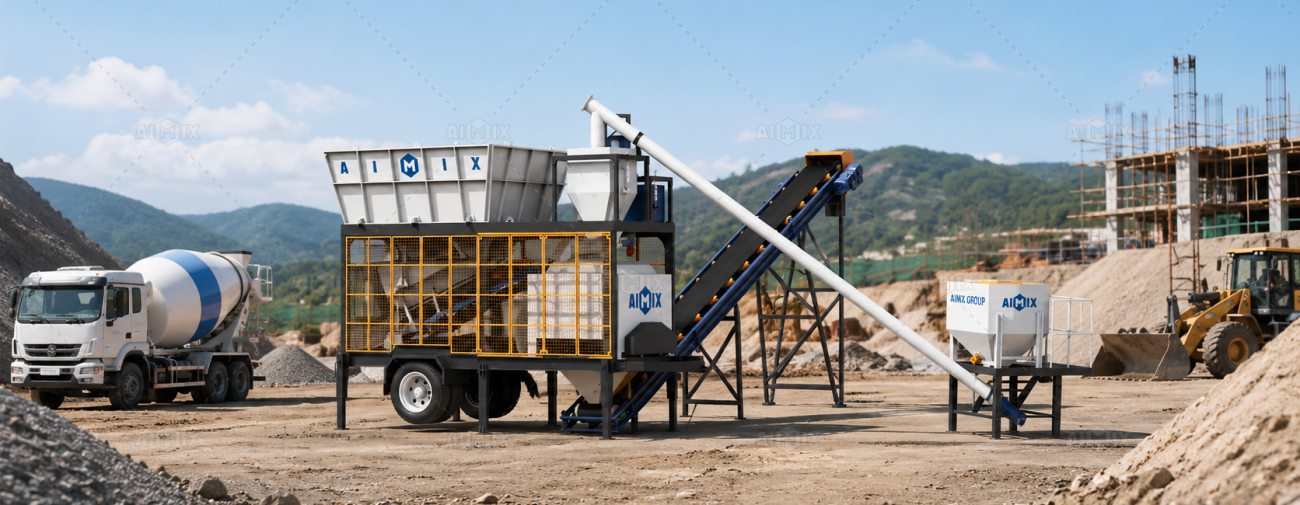

Designed around these real construction needs, the AJSY40 compact mobile concrete plant provides a practical solution for contractors seeking flexible and reliable on-site concrete production.

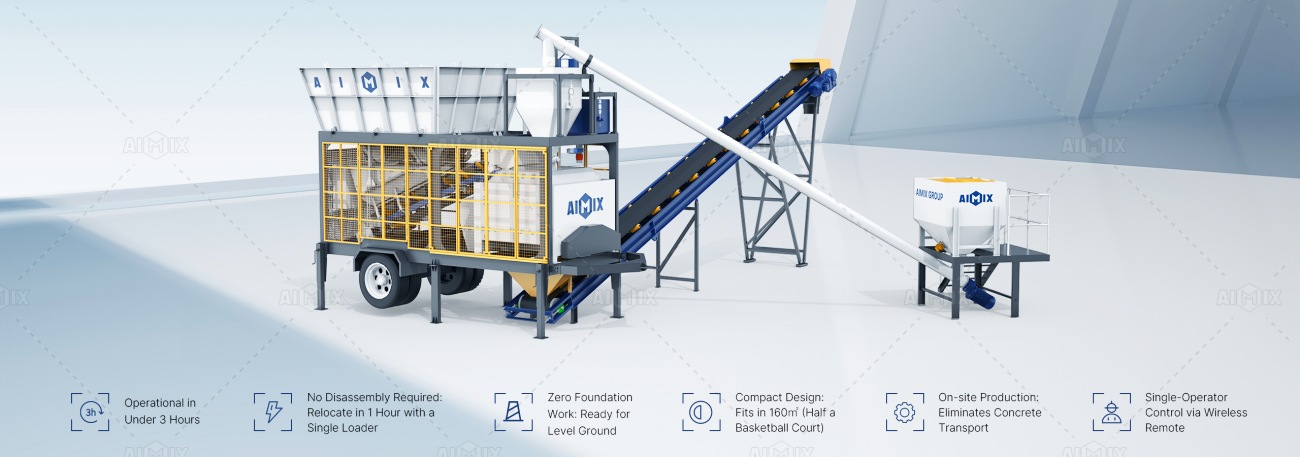

What Makes AJSY40 Compact Batching Plant a Better Choice for Small Concrete Production
The AJSY40 compact batching plant is designed for contractors who need reliable concrete production without the complexity of large-scale equipment. By optimizing production efficiency, batching accuracy, and site flexibility, AJSY40 plant helps small construction teams maintain better control over project schedules, concrete quality, and operating resources.
Higher Productivity Through Optimized Processes
For small construction projects, productivity is not only determined by equipment capacity but also by how efficiently every production step works. AJSY40 compact portable batching plant improves daily output by optimizing mixing, feeding, and operation processes.
- 30% higher mixing capacity increases the amount of concrete produced in each mixing cycle, supporting smoother production during continuous operation.
- 50% faster feeding efficiency reduces waiting time during material loading and improves overall production flow.
- One-person operation allows a single operator to manage the batching process through an intelligent wireless control system, reducing labor requirements.
By improving the efficiency of each production stage, AJSY40 helps contractors complete construction tasks more smoothly with fewer workforce demands.
Consistent Concrete Quality for Every Batch
Stable concrete quality is essential for achieving reliable construction results. AJSY40 small plant helps contractors maintain consistent batching performance by improving material control and production accuracy.
- ±1% weighing accuracy ensures precise proportioning of raw materials for each batch.
- Synchronized weighing and mixing processes support a smoother production cycle and reduce interruptions.
- Stable material control helps minimize variations between batches and maintain uniform concrete quality.
With more consistent concrete production, contractors can reduce material waste and improve confidence in construction quality.
Lower Operating Costs Throughout the Project
For contractors managing multiple small projects, controlling daily operating costs is critical. AJSY40 is designed to improve resource utilization through efficient production, simplified operation, and reduced maintenance demands.
- Lower labor requirements help reduce daily operating expenses.
- Efficient production processes improve the utilization of materials and energy.
- Intelligent monitoring functions help reduce unexpected downtime and maintenance costs.
By keeping operating expenses under control, the concrete plant helps contractors achieve better long-term value from their equipment investment.
Faster Relocation for Changing Construction Sites
Many small construction projects are distributed across different locations, making equipment mobility an important consideration. AJSY40 system combines compact design with practical mobile features to support contractors working across changing job sites.
- Approximately 3-hour installation and commissioning helps contractors start production quickly after arrival.
- Towable mobile design simplifies transportation between different projects.
- Compact footprint of approximately 200 m² allows installation in areas with limited available space.
Whether used for rural housing, municipal projects, or temporary infrastructure construction, AJSY40 mobile plant provides the flexibility needed for changing project environments.
AJSY40 Specifications
| Parameter | AJSY40 |
|---|---|
| Theoretical productivity (m³/h) | 40 |
| Mixer discharge volume (L) | 1000 |
| Mixer feeding volume (L) | 1500 |
| Mixer power (kw) | 18.5×2 |
| Discharge height (m) | 4.1 |
| Aggregate bin configuration (number × single bin volume, m³) | 2×4.5 |
| Cycle time (s) | 60 |
| Maximum aggregate particle size (mm) | 60/80 |
| Cement silo (optional) | 1×100 |
| Aggregate weighing system | ±2% |
| Powder weighing system | ±1% |
| Water weighing system | ±1% |
| Additive weighing system | ±1% |
| Installed power (kw) | ≈70 |
| Control mode | Buttons + Touch Screen + Remote Control |
| Power supply | 220V/415V/440V/380V, 50Hz/60Hz, three-phase |

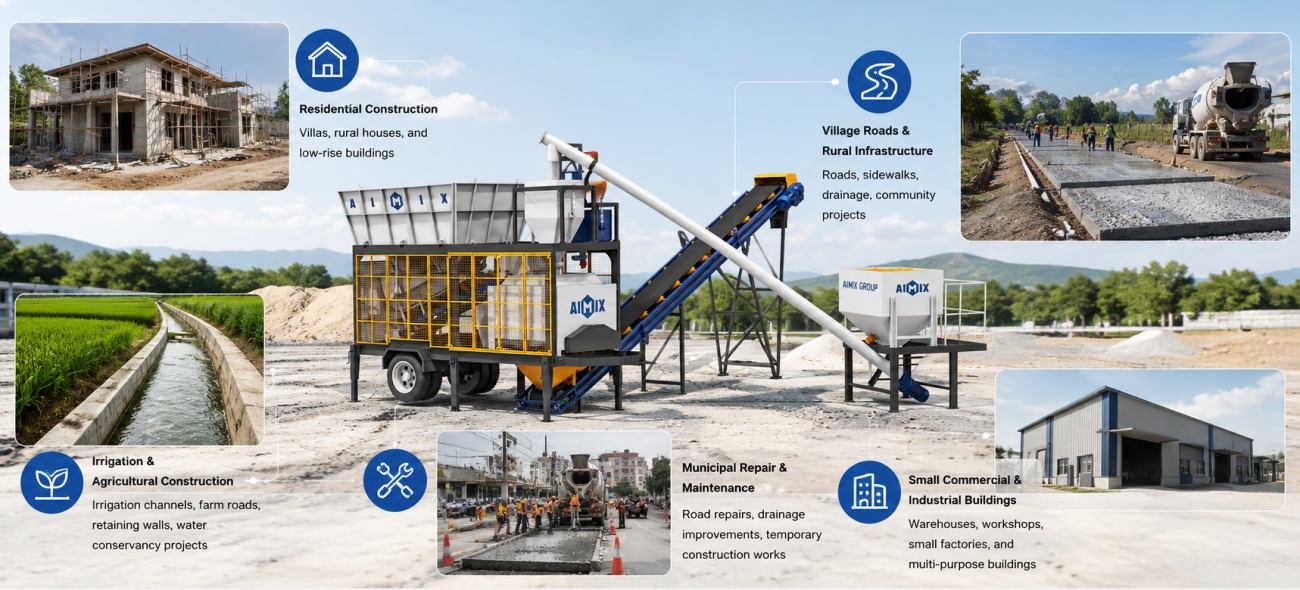

Typical Applications of the AJSY40 Compact Mobile Batching Plant
The AJSY40 compact mobile batching plant is suitable for various small-scale construction projects that require a stable on-site concrete supply. From residential construction to rural infrastructure, its practical design supports contractors working in different environments and project conditions.
Residential Construction and Private Housing
AJSY40 is widely suitable for villas, rural houses, and low-rise residential projects where concrete demand is moderate but continuous. It can support foundation work, structural concrete, slabs, and other common residential construction activities.
Village Roads and Rural Infrastructure
Rural road construction, sidewalks, drainage systems, and community infrastructure projects often require concrete production close to the construction area. The compact plant provides a practical solution for these distributed projects with regular concrete requirements.
Irrigation and Agricultural Construction
Small irrigation channels, farm roads, retaining structures, and water conservancy projects are often located in areas where ready-mix concrete delivery is inconvenient. AJSY40 portable batch plant helps provide a reliable concrete source for these remote construction locations.
Municipal Repair and Maintenance Projects
Road repairs, drainage improvements, and other municipal maintenance works usually involve short construction periods and changing working areas. AJSY40 can support these temporary projects by providing concrete production directly at the job site.
Small Commercial and Industrial Buildings
For warehouses, workshops, and small factory construction projects, AJSY40 compact mobile plant offers suitable concrete production capacity without requiring a large-scale batching facility, making it practical for contractors handling multiple small projects.
Proven Performance of AJSY40 Plants in Real Construction Projects
The AJSY40 compact concrete batching plants have been successfully applied in various construction projects worldwide. These real customer projects demonstrate how contractors use AJSY40 to establish reliable on-site concrete production and improve project efficiency in different working conditions.

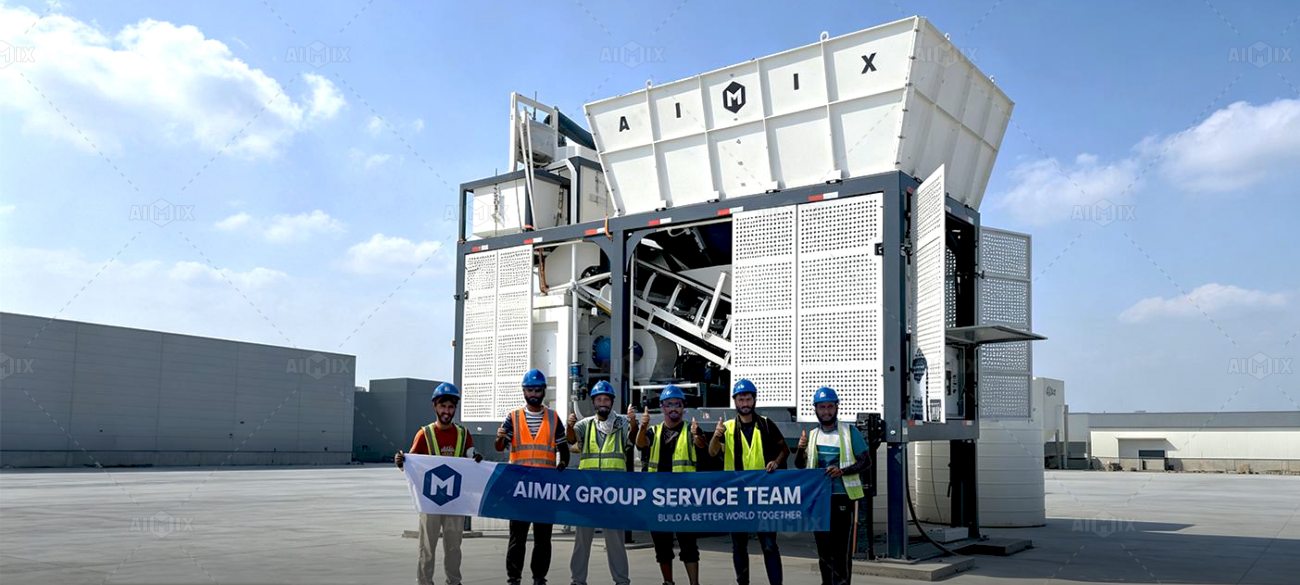

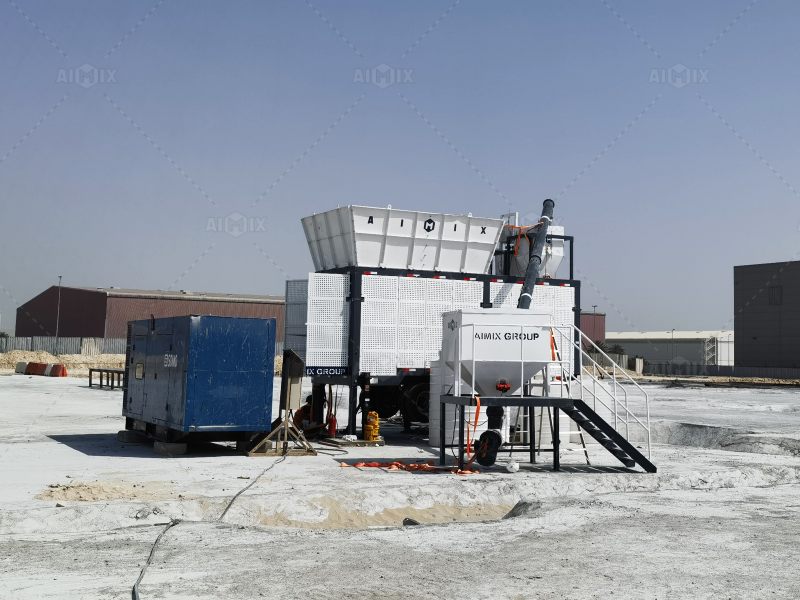

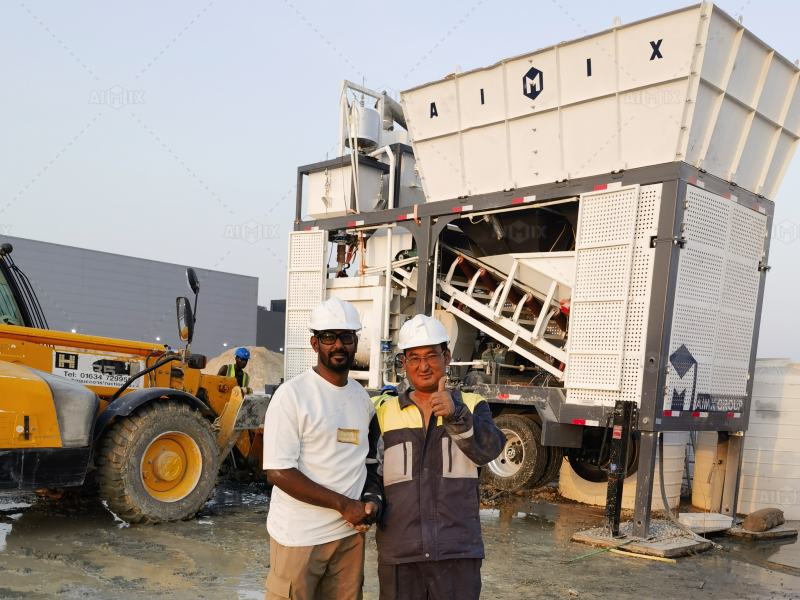

AJSY40 Compact Batching Plant Supports Flexible Warehouse Construction
- Location: Dubai, UAE
- Application: Self-built warehouse construction
On-Site Concrete Production for a Warehouse Project
The customer purchased an AJSY40 batching plant to produce concrete for their own warehouse construction project. The equipment needed to support on-site production while adapting to changing working conditions during the construction process.
Resolving an Unexpected Relocation Challenge
During initial operation, the customer encountered difficulties when relocating the plant according to actual site conditions. As the customer needed to adjust the equipment to the working environment, resolving the issue quickly was important to avoid affecting the construction schedule.
AIMIX Support Keeps the Project Moving
AIMIX’s after-sales team assessed the site conditions and provided targeted solutions and operational guidance to address the relocation issue. The AJSY40 was subsequently put into normal operation, providing a stable concrete supply and helping the warehouse construction project proceed as planned.

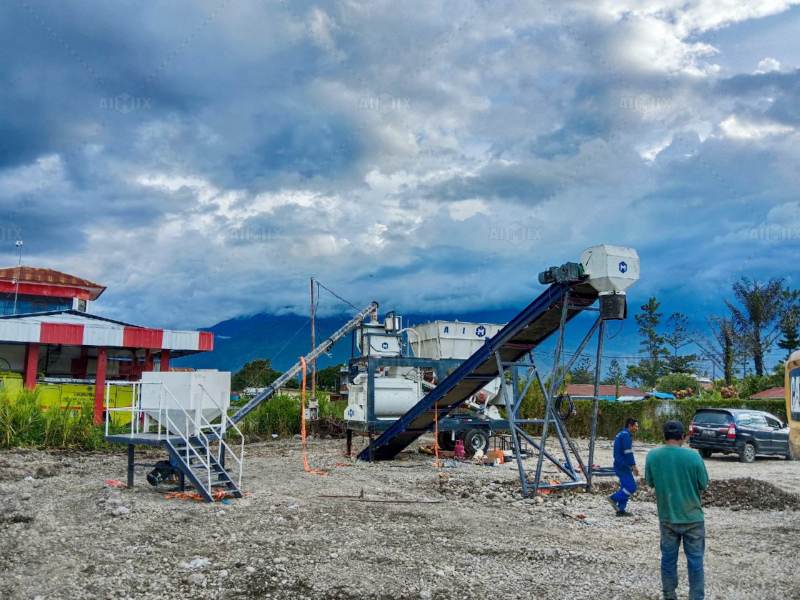

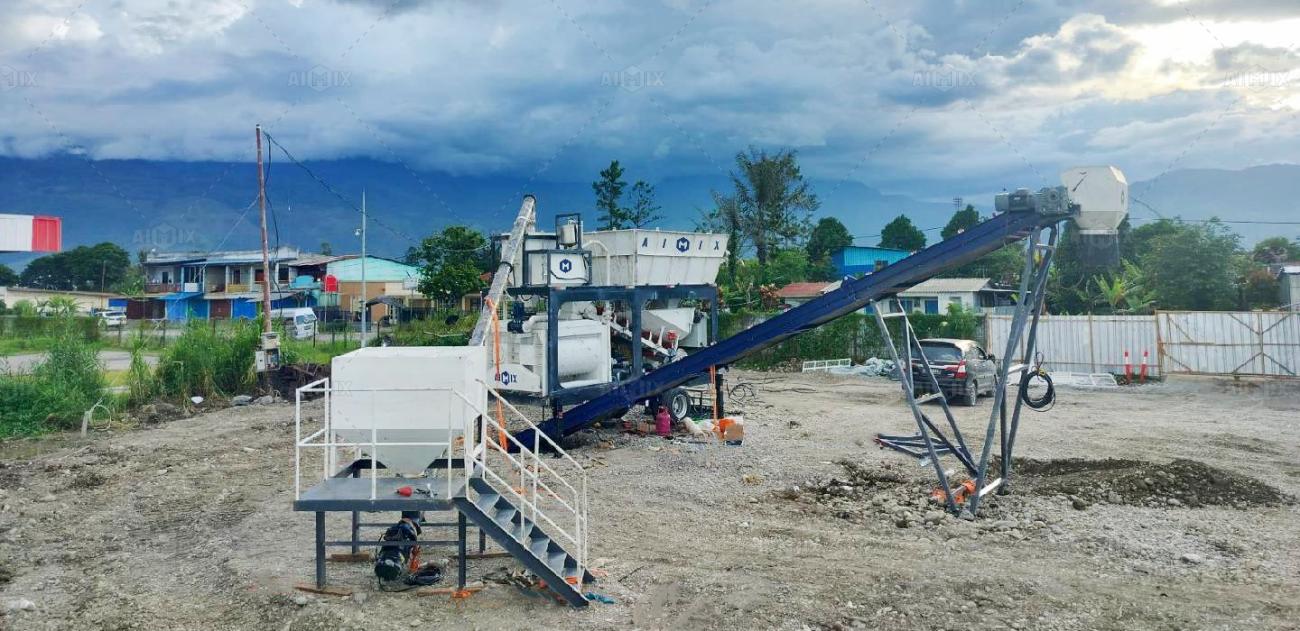

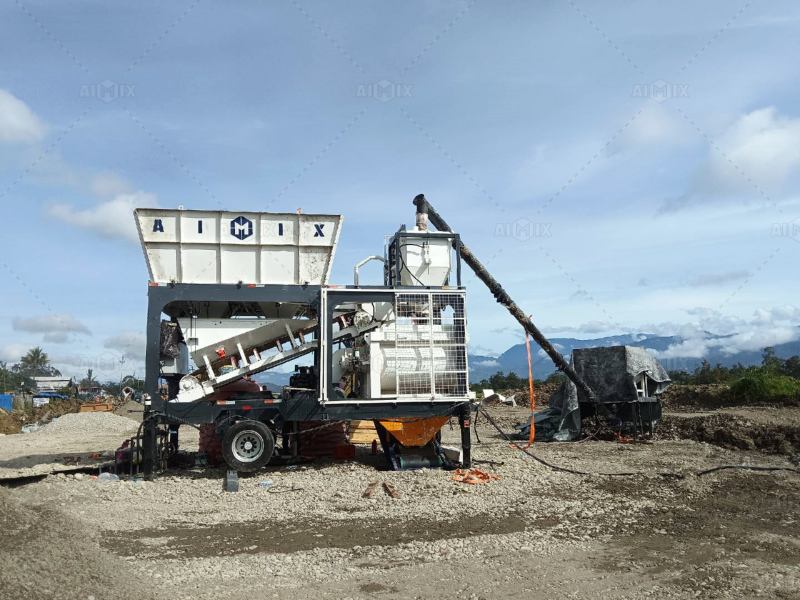

AJSY40 Compact Concrete Plant Enables On-Site Concrete Production for Road Construction
- Location: Papua, Indonesia
- Application: Airport access road construction
Supplying Concrete in a Remote Highland Location
The project was located in a remote mountainous area where local ready-mix concrete was unavailable. Long-distance transportation of fresh concrete was impractical, while major equipment components also faced strict transportation limitations and had to be delivered by air.
Compact Equipment Adapted to Challenging Site Conditions
The customer selected an AJSY40 compact mobile batch plant for its integrated configuration and convenient transportation. AIMIX provided on-site technical support for installation, commissioning, operator training, and production optimization, helping adapt the plant to local conditions including unstable power supply and heavy dust.
Reliable Concrete Supply for Continuous Road Construction
The plant established an independent on-site concrete production system, reducing dependence on external concrete transportation and providing a stable supply of fresh concrete for the airport access road despite the remote and demanding working environment.

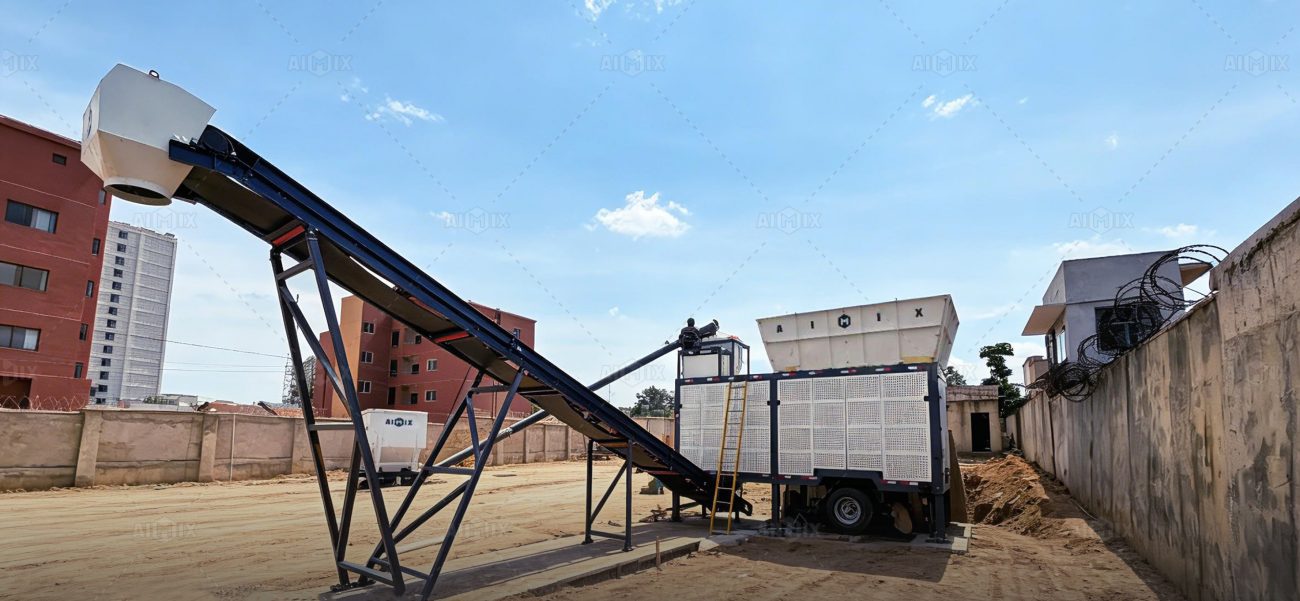

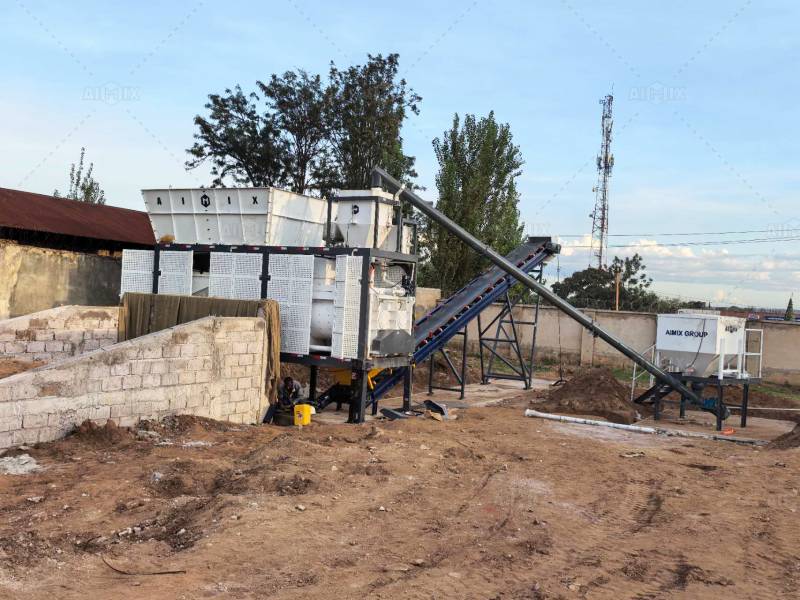

AJSY40 Mobile Concrete Plant Helps a Contractor Establish Independent Concrete Production
- Location: Kolwezi, DR Congo
- Application: Construction Projects
From Ready-Mix Purchasing to Independent Concrete Production
Before the project, the customer relied on local ready-mix suppliers, resulting in high concrete costs, unstable supply, and inconsistent quality. The customer wanted to establish an independent concrete production capability to gain better control over construction needs and future projects.
A Compact Solution for a New Production Setup
Based on the customer’s project conditions and production requirements, AIMIX recommended an AJSY40 batching plant. After comparing suppliers through technical discussions, factory visits, and project references, the customer selected us and received support throughout installation, commissioning, and operator training.
Greater Control Over Concrete Supply
The customer successfully transitioned from purchasing ready-mix concrete to producing concrete independently, gaining greater control over concrete supply and project scheduling while building a production capability that can support future construction needs.

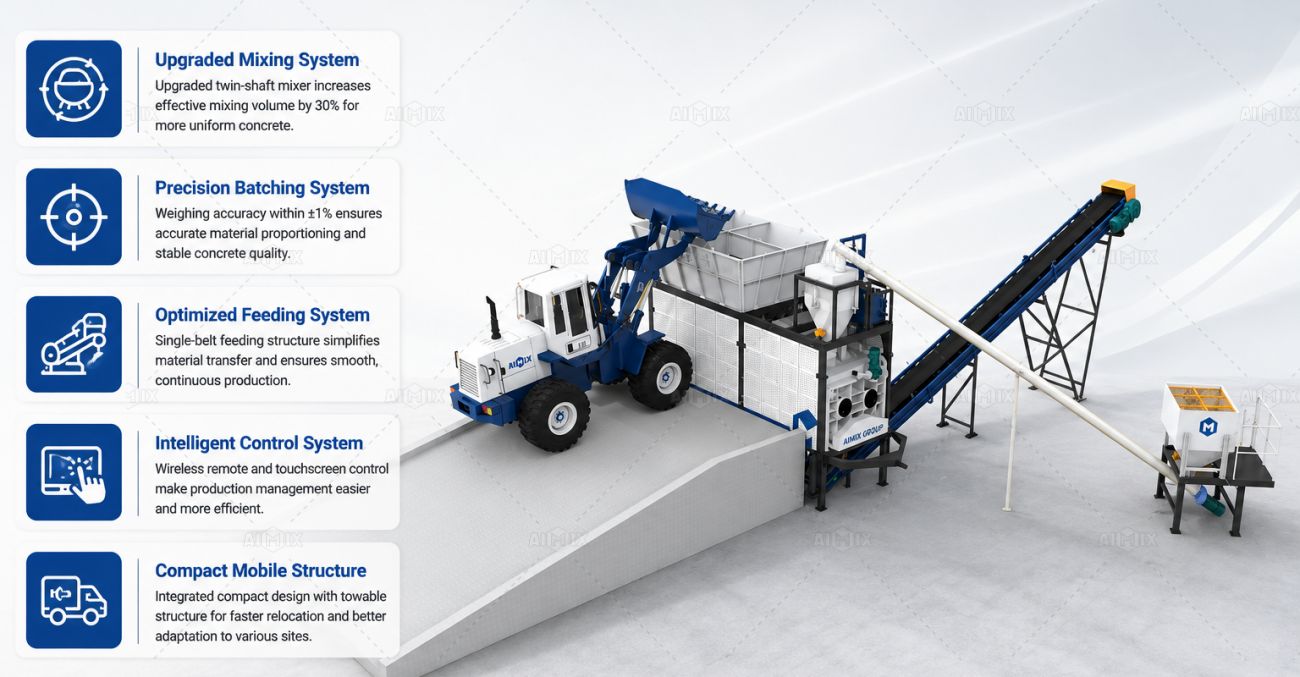

Key Technical Upgrades of AJSY40 Compact Concrete Batching Plant
The AJSY40 compact concrete batching plant features optimized system upgrades and practical engineering improvements. From mixing and batching to material handling and intelligent control, each upgrade is designed to enhance production efficiency, ensure stable operation, and support reliable concrete production in different construction environments.
Upgraded Mixing System for More Uniform Concrete Production
The AJSY40 is equipped with an upgraded twin-shaft mixing system designed to improve mixing performance and concrete consistency. The optimized mixer structure increases the effective mixing volume by 30%, allowing materials to be blended more efficiently during each cycle.
The improved mixing design helps achieve more uniform distribution of aggregates, cement, and water, providing stable concrete quality for daily construction applications.
Precision Batching System for Accurate Material Proportioning
Accurate material measurement is essential for consistent concrete production. The AJSY40 plant integrates a precision batching system with weighing accuracy controlled within ±1%, helping maintain accurate proportions of aggregates, cement, and other materials.
The optimized batching process reduces measurement deviations and supports stable concrete performance throughout continuous production.
Optimized Feeding System for Smooth Material Transfer
The AJSY40 batching plant adopts a simplified single-belt feeding structure to optimize aggregate transportation. The streamlined material transfer design reduces unnecessary complexity while maintaining a stable supply of materials to the mixing unit.
This configuration supports smoother production operation and improves the overall coordination between material feeding and concrete mixing.
Intelligent Control System for Convenient Production Management
The AJSY40 integrates an intelligent control system that combines wireless remote operation and touchscreen control. The system provides a more intuitive interface for monitoring and managing the production process.
Functions such as automatic weighing calibration, fault alarms, and diagnostic support help operators better understand equipment status and manage daily operation more efficiently.
Compact Mobile Structure for Faster Relocation and Site Adaptation
The AJSY40 plant adopts an integrated compact mobile structure that combines key production components into a practical configuration. The optimized layout simplifies transportation and equipment arrangement while maintaining the functions required for on-site concrete production.
With a towable design and compact structure, the small batching plant can better adapt to projects where construction locations change frequently or available space is limited.
Get Your AJSY40 Concrete Plant or Explore Partnership Opportunities
AIMIX provides the AJSY40 Compact Concrete Batching Plant for contractors, construction companies, and project owners looking for a practical concrete production solution. Whether you are planning to purchase an AJSY40 for your own projects or interested in distributing the equipment in your local market, our team can provide professional support.
Contact us today to discuss your AJSY40 purchase or explore distributor and business partnership opportunities.
FAQs About AJSY40 Compact Batching Plant
How Much Concrete Can the AJSY40 Plant Produce Per Day?
Is the AJSY40 Suitable for Small-Scale and Remote Construction Projects?
Can One Person Operate the AJSY40 Compact Concrete Plant?
How Long Does It Take to Install the Plant?
How Much Space Does the AJSY40 Need for Installation?
Can the AJSY40 Plant Be Moved Between Different Job Sites?
What Types of Concrete Can It Produce?
It can produce common construction concrete grades such as C15-C30, meeting the requirements of applications including residential buildings, village roads, small infrastructure projects, and general construction works. The precise batching system helps maintain stable concrete quality for different applications.
