Looking for a 90 TPH asphalt plant that can move with your road projects? The AIMIX ALYQ-90 Mobile Asphalt Batch Plant is a hot-selling model designed for contractors who need reliable asphalt production without being tied to one permanent site. With 90 TPH capacity, batch mixing, and fast relocation, it offers a practical balance of production, flexibility, and asphalt quality for projects where both output and mobility matter. Explore why the ALYQ-90 has become a popular choice for flexible road construction and asphalt production.
| Specification | ALYQ-90 Mobile Asphalt Batch Plant |
|---|---|
| Standard Output | 90 TPH |
| Mixer Capacity | 1,200 kg/batch |
| Cold Aggregate Bins | 4 × 6.5 m³ |
| Hot Aggregate Bins | 4 × 10 m³ |

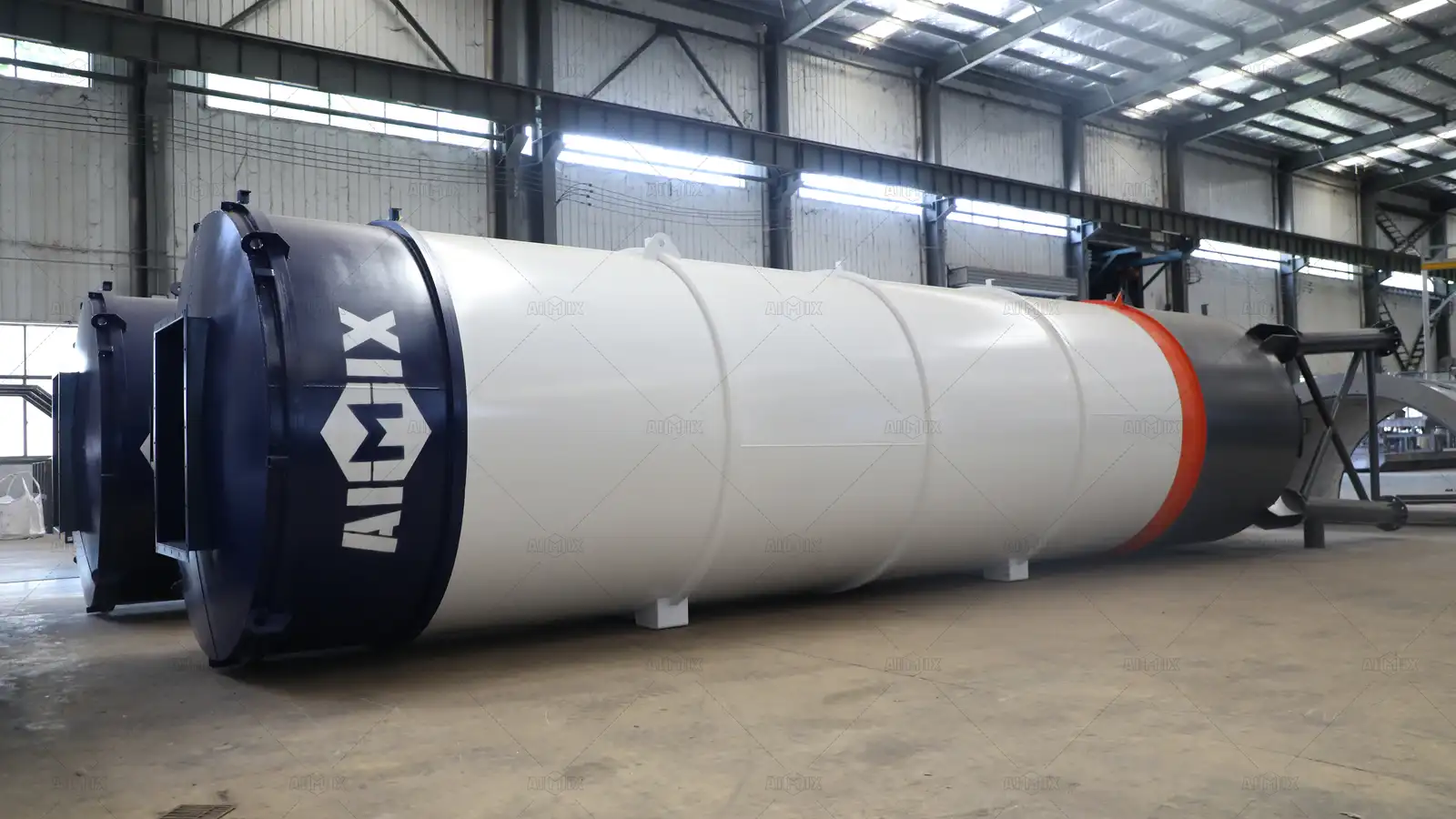

| Filler Silo | 20 m³ |

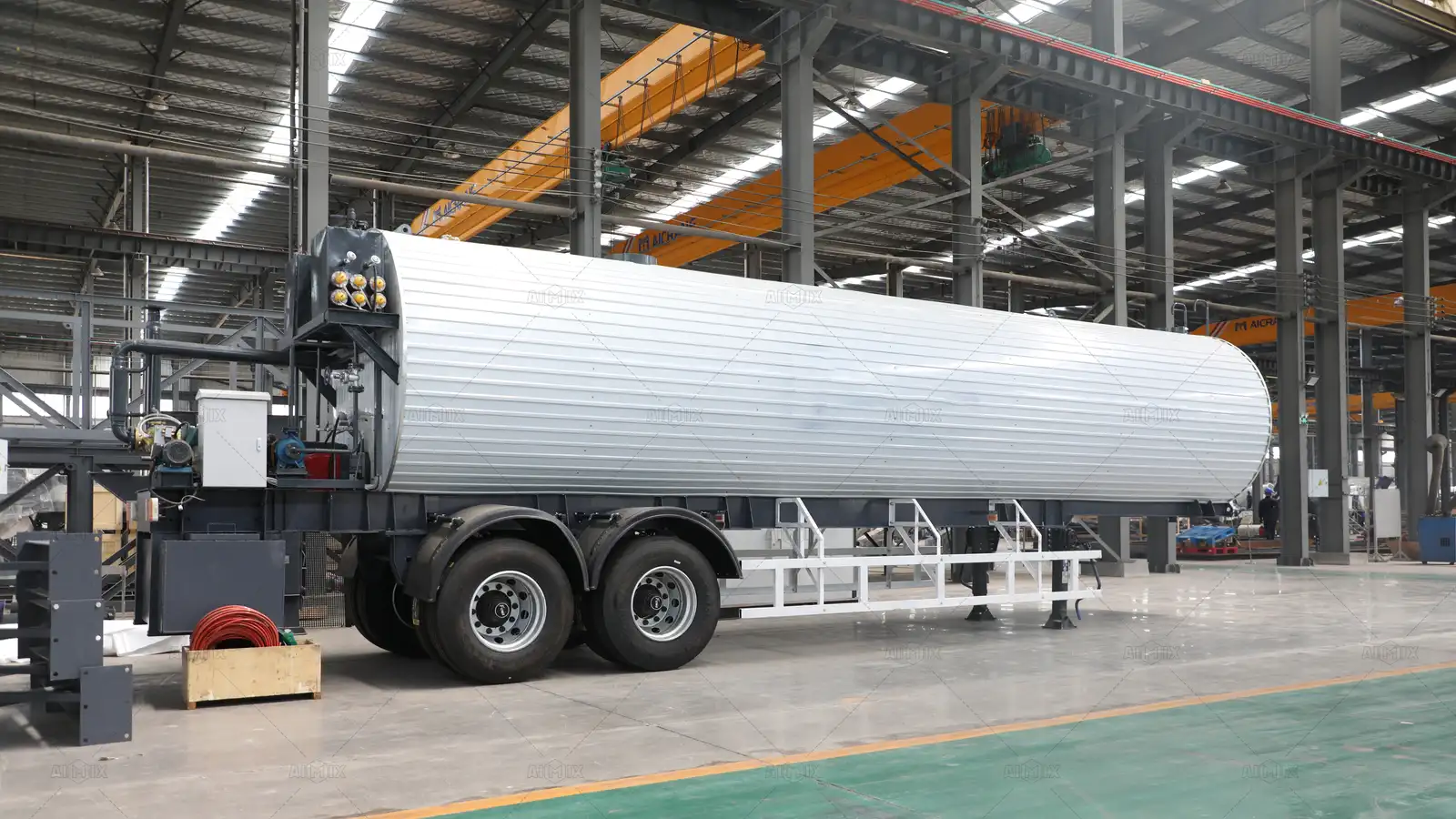

| Asphalt Tank | 30 m³ mobile direct-heating tank |
| Dryer Drum | Ø1.5 × 6.6 m |

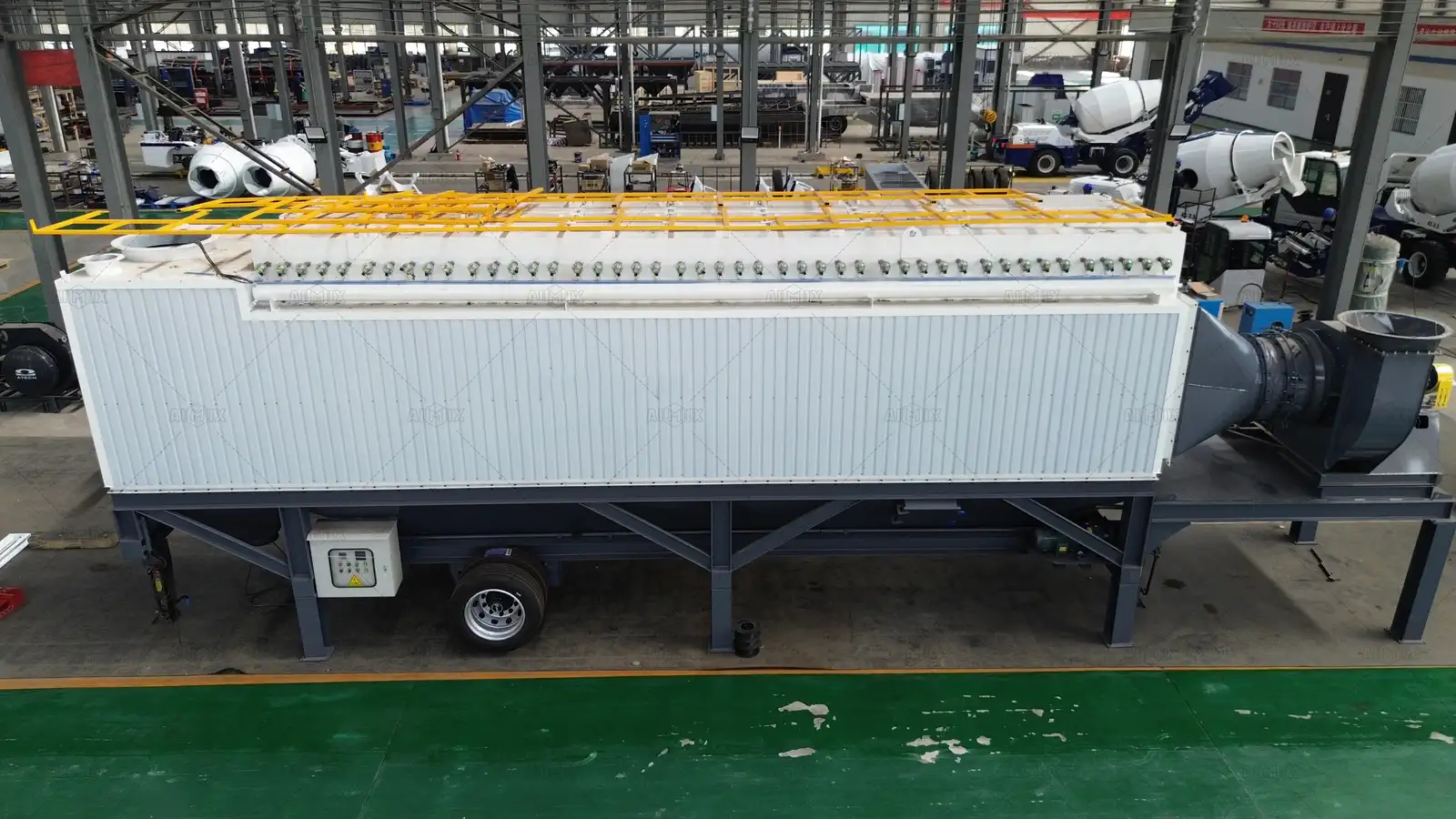

| Dust Collector | Gravity + pulse bag filter; 450 bags; approx. 390 m² |
| Weighing Accuracy | Dynamic ≤ ±1.5%; Static ≤ ±0.3% |
| Total Power | Approx. 270 kW |
| Recommended Site Area | Approx. 3,000 m² |
| Equipment Dimensions | Approx. 30 × 40 m* |
| Mobile Units | 7 |
| Transportation | Approx. 14 × 40 HQ containers* |
| Control System | Siemens PLC + Delixi electrical components |
| Operating Modes | Automatic / Semi-automatic / Manual |
Where Does the ALYQ-90 Mobile Asphalt Batch Plant Fit Best?
The 90 TPH Mobile Asphalt Batch Plant is designed for asphalt production where demand is substantial enough to require a dedicated batch asphalt plant, but projects are not large enough or permanent enough to justify a much larger fixed production setup. Its mobile configuration makes it particularly valuable when asphalt production needs to follow the project location, especially across dispersed, temporary, or changing work sites.
County and Township Road Construction
County and township road programs often involve multiple road sections, dispersed work areas, and phased construction rather than one permanent production site.
ALYQ-90 can provide up to 90 TPH of asphalt production while allowing the production setup to move as the roadwork progresses. It is suitable for:
- Road construction across multiple sections or locations.
- Road upgrades and resurfacing with changing work fronts.
- Projects where transporting asphalt over long distances is inefficient.
- Regional road programs requiring one plant to serve different work areas.
Municipal Road Rehabilitation and Maintenance
Urban and municipal road work often involves phased rehabilitation, resurfacing, widening, and maintenance. Asphalt demand may be spread across different streets or work zones instead of concentrated at one permanent site.
ALYQ-90 asphalt mixing plant can support these operations by providing:
- 90 TPH-class batch production for regular paving demand.
- Flexible production for different work phases.
- A mobile setup that can move when the active work area changes.
- Localized asphalt production where delivery from an existing asphalt plant is inconvenient.
Residential Roads and Parking Areas
Residential developments, commercial developments, industrial parks, and parking projects may require asphalt across multiple relatively compact paving areas.
For these applications, ALYQ-90 offers a balance between production capability and mobility.
It can be used for:
- Internal residential and access roads.
- Commercial and industrial parking areas.
- Estate and development roads.
- Multiple smaller paving projects served by the same mobile asphalt plant.
The 90 TPH capacity provides substantially more production capability than a small on-site plant while avoiding the scale of equipment designed primarily for very high-volume projects.
Small Airport and Supporting Projects
Small airports and related infrastructure can require a reliable local supply of asphalt for runways, taxiways, access roads, service roads, and parking areas.
ALYQ-90 asphalt batch plant is particularly useful when:
- The airport or infrastructure site is far from an established asphalt plant.
- Asphalt demand is concentrated during a defined construction period.
- Different sections need to be completed in stages.
- A mobile production solution is preferred over establishing a permanent plant.
Producing asphalt closer to the work area can also help reduce the logistical challenges associated with long-distance transportation of hot mix asphalt.
Remote and Short-Term Road Projects
Remote locations and temporary projects are among the clearest use cases for a 90 TPH asphalt batch plant.
When a project lasts only several weeks to a few months, establishing a permanent asphalt plant may not be practical. At the same time, relying entirely on asphalt transported from a distant supplier can create logistical challenges.
ALYQ-90 provides a different approach:
- Produce asphalt closer to the project.
- Reduce dependence on long-distance hot-mix transportation.
- Maintain a dedicated 70–90 TPH production range during the construction period.
- Relocate the asphalt plant when the project is completed.
Not every project needs a large permanent asphalt plant. When your work is smaller, more scattered, or constantly moving, the right plant is the one that fits the way your projects actually run. So, what makes ALYQ-90 a practical choice for project-based asphalt production? Let’s look at the value it brings to your daily operations.

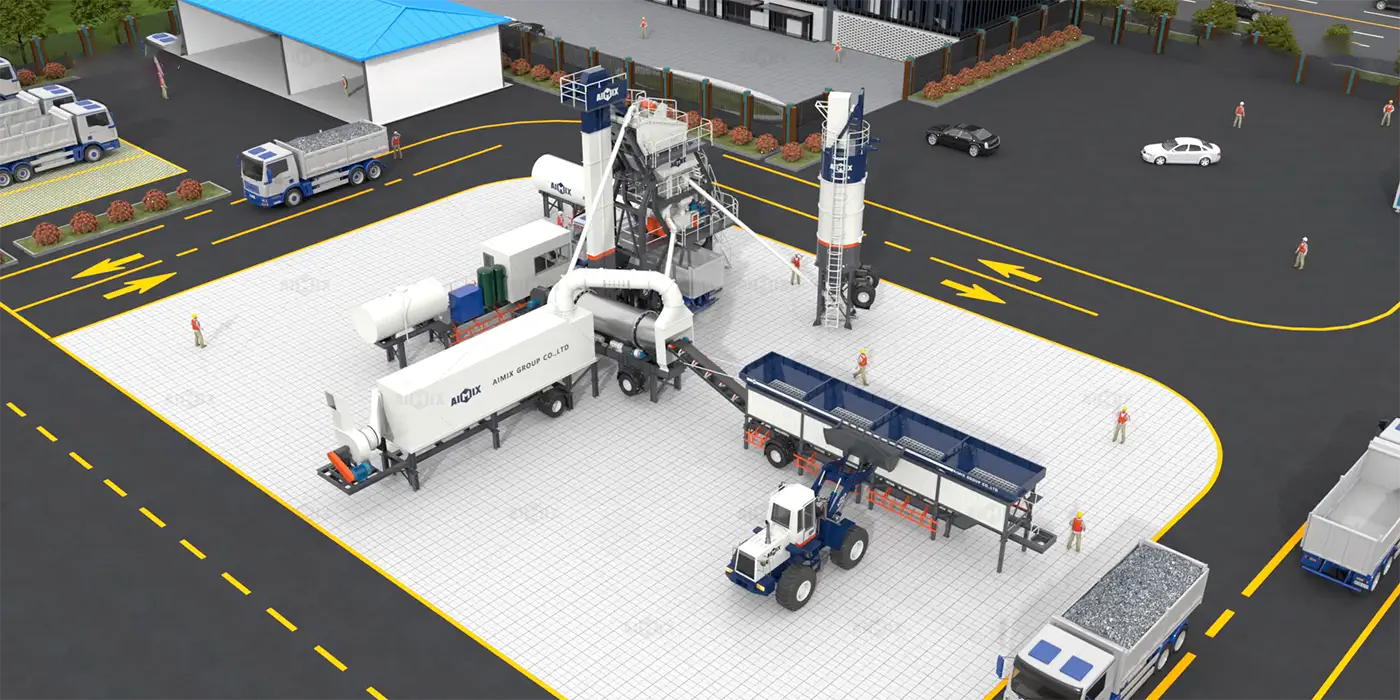

Why Choose ALYQ-90 Mobile Asphalt Plant for Project-Based Asphalt Production?
When asphalt production needs to support multiple projects rather than one permanent location, flexibility becomes an important factor in equipment selection. The ALYQ-90 90 TPH Mobile Asphalt Plant provides a practical solution by combining dedicated asphalt production capacity with the ability to adapt to changing project requirements.
Produce Asphalt Where Your Project Needs It
For projects located far from existing asphalt suppliers, transporting hot mix over long distances can increase logistics complexity and affect paving efficiency. ALYQ-90 mobile asphalt mixing plant allows users to establish asphalt production closer to the construction area. Benefits include:
- Reduce dependence on distant asphalt suppliers.
- Shorten the transportation distance of hot mix asphalt.
- Better coordination between asphalt production and paving schedules.
- Maintain a more stable asphalt supply for changing construction schedules.
The result is a shorter connection between asphalt production and road construction, helping projects maintain better control over supply.
Support Multiple Projects with One Production Solution
For companies handling different road projects throughout the year, equipment utilization is an important consideration. Instead of investing in a permanent asphalt production base for each region, ALYQ-90 mobile asphalt batch plant provides the flexibility to serve different project locations with the same production system.
This helps users:
- Extend equipment utilization across multiple projects.
- Adapt production locations according to project requirements.
- Reduce dependence on fixed production locations.
- Improve the return on investment of the asphalt plant.
Avoid Paying for More Capacity Than You Need
Choosing a larger asphalt plant does not always create better value if the additional capacity cannot be fully utilized. With a 70–90 TPH production range, ALYQ-90 mobile asphalt batching plant provides a practical balance between production capability and investment scale.
It is suitable for users who need:
- Dedicated batch asphalt production.
- Reliable output without excessive capacity.
- A production system matched with real project demand.
Reduce the Fixed-Site Investment of a Permanent Plant
A fixed asphalt plant often requires long-term investment in site preparation, foundations, utilities, and supporting infrastructure. ALYQ-90 90 TPH asphalt plant provides a more flexible production approach by allowing asphalt production to move with project demand.
This helps reduce:
- Long-term dependence on one production location.
- The need for repeated investment in permanent facilities.
- Limitations caused by fixed-site production arrangements.
Choosing ALYQ-90 is not only about getting the right production capacity—it is also about how quickly you can put that capacity to work at each project site. For projects that change locations, every day saved during relocation matters. So, how does ALYQ-90 make moving and restarting production faster?

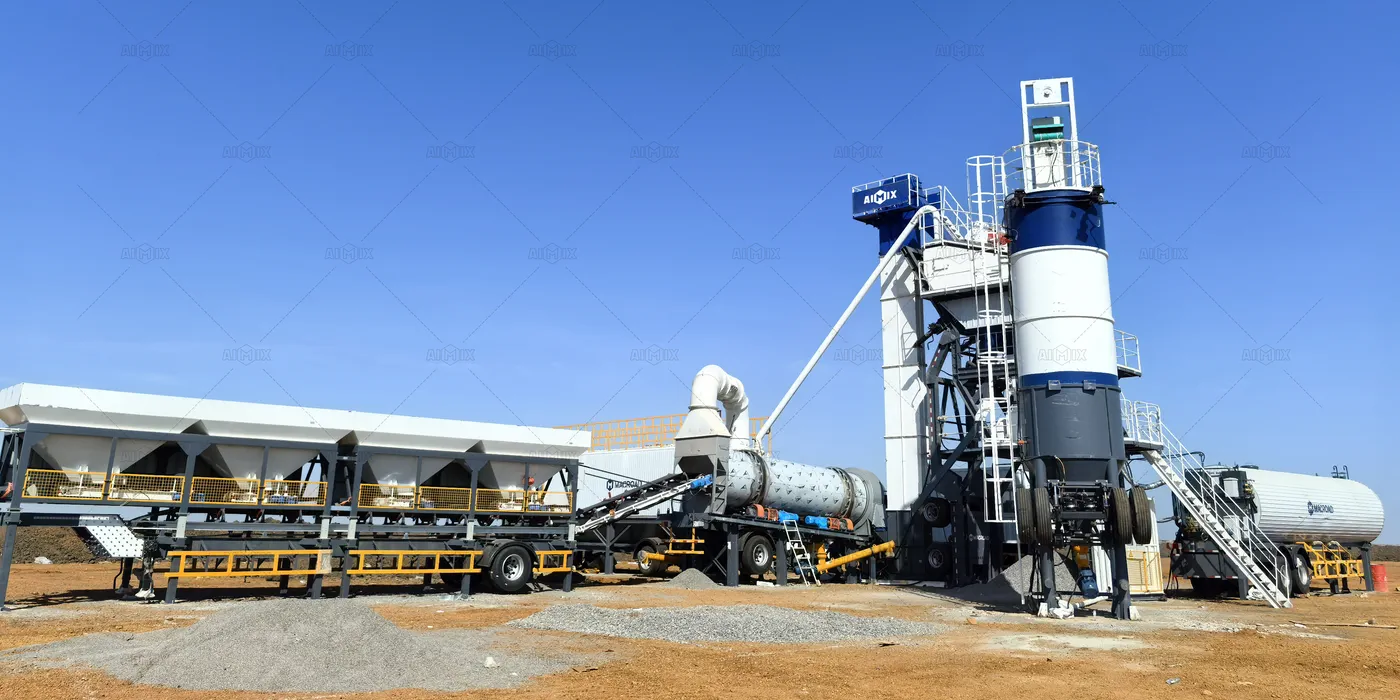

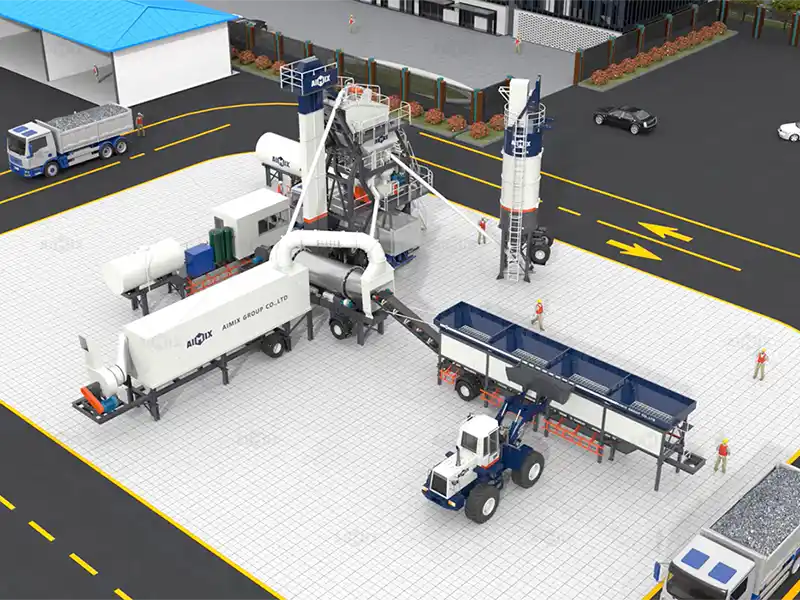

How Does ALYQ-90 Mobile Asphalt Plant Achieve Fast Relocation and Quick Restart?
For project-based asphalt production, reducing downtime between projects is essential. A portable asphalt plant needs to do more than simply move from one location to another — it must also be easy to transport, efficient to reinstall, and ready for production in a shorter time. The ALYQ-90 90 TPH asphalt mixing plant is designed with a modular mobile structure, integrated connection systems, and optimized installation design to simplify relocation procedures. Under suitable transportation and site conditions, the ALYQ-90 can achieve relocation and restart preparation within approximately 24 hours, helping contractors reduce idle time and quickly resume asphalt production for the next project.
7 Mobile Units Make Transportation Between Projects Easier
This design helps:
- Simplify transportation planning for different project locations.
- Reduce complicated dismantling work before relocation.
- Improve loading, transportation, and deployment efficiency.
- Make repeated movement between projects more practical.
By organizing the plant into standardized mobile units, ALYQ-90 90 TPH mobile asphalt plant allows users to transfer asphalt production capability with less relocation complexity.

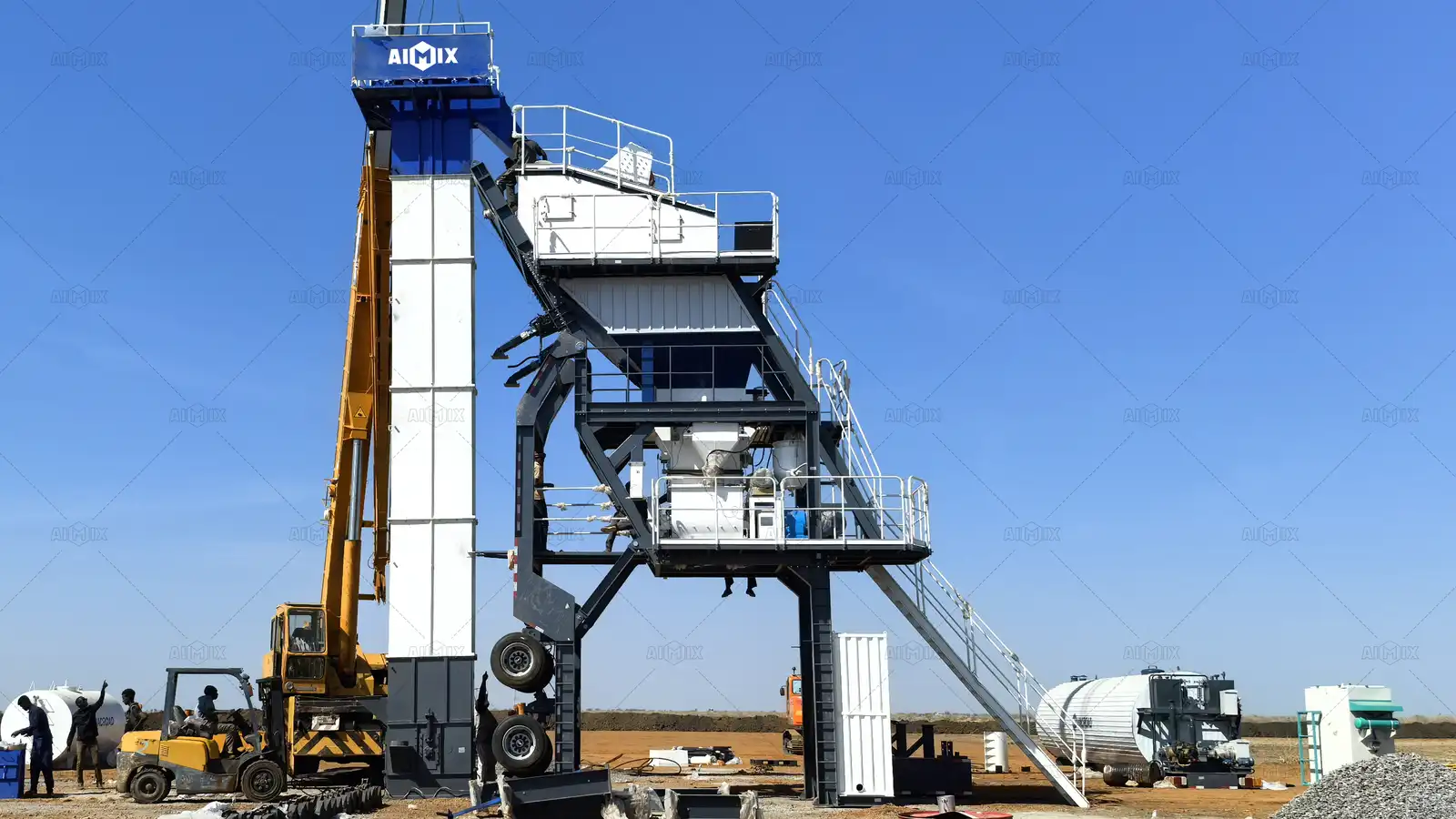

Modular Main Tower Design Reduces Dismantling and Reassembly Work
Key advantages include:
- Reduced dismantling and assembly procedures.
- Easier transportation of major structural components.
- Faster positioning and installation after reaching a new site.
- More consistent installation quality during repeated deployment.
This modular approach helps shorten the transition time between completing one project and preparing for the next.
Plug-and-Play Connections Speed Up On-Site Setup
Benefits include:
- Faster connection between different mobile units.
- Reduced complex field installation work.
- Less dependence on extensive on-site adjustments.
- Easier deployment in different working environments.
These connection designs help simplify the setup process and support a smoother restart after relocation.

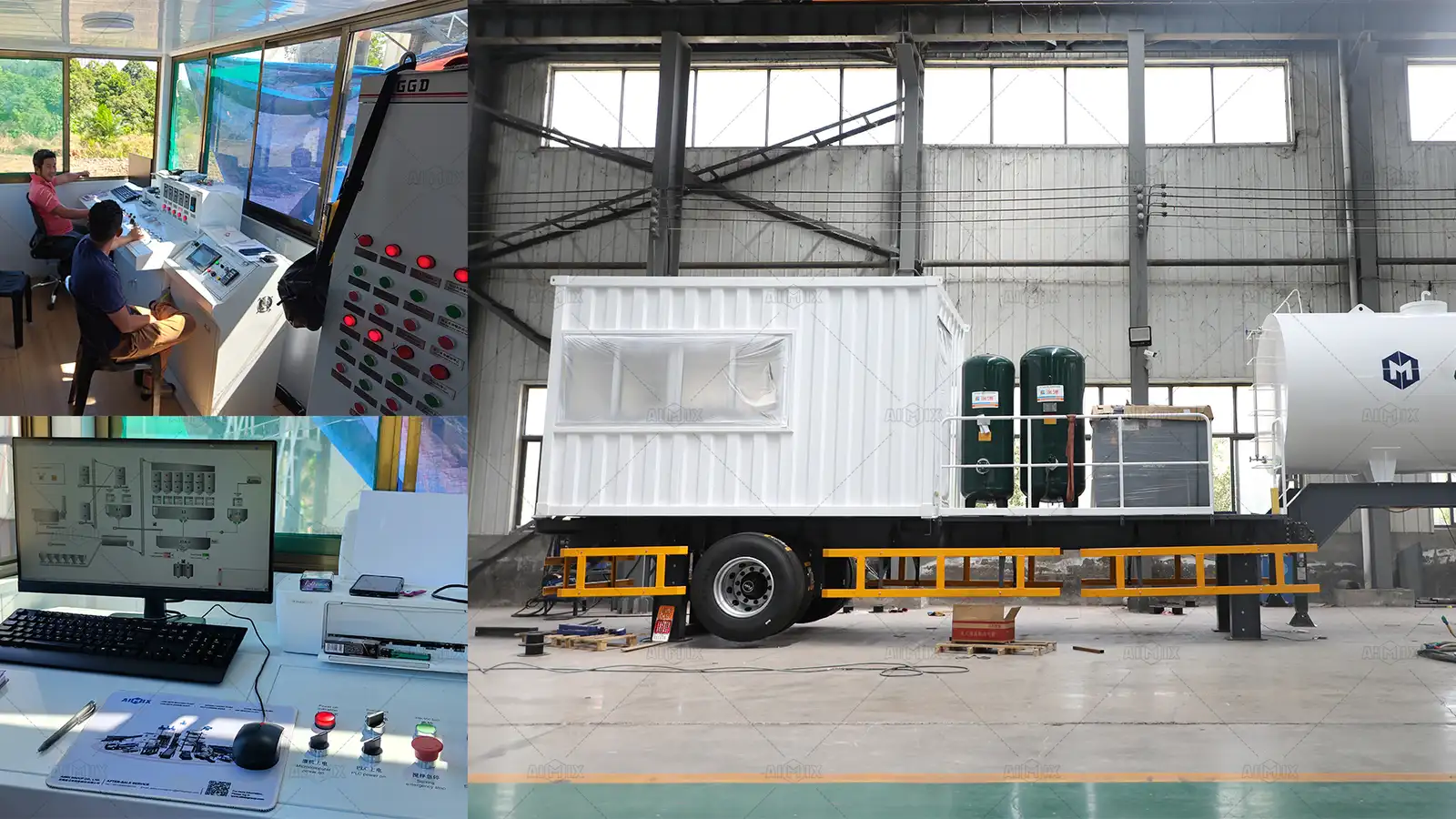

Integrated Electrical Cabinets Minimize Rewiring During Relocation
This helps:
- Avoid frequent disconnection and reconnection of internal electrical lines.
- Reduce electrical installation workload at new sites.
- Improve connection reliability after relocation.
- Simplify commissioning before production starts.
The integrated electrical design makes the relocation process more efficient and reduces unnecessary downtime.
Optimized Duct and Connection Design Shortens Installation Adjustment Time
Key improvements include:
- Flexible dust duct connections with approximately ±3 cm installation tolerance.
- Movable flange designs that help compensate for minor installation deviations.
- Reduced adjustment work during field installation.
- Faster completion of connection and commissioning procedures.
These details help users move from equipment arrival to asphalt production more efficiently.
Fast relocation gets ALYQ-90 where it is needed, but every project ultimately depends on the quality of the asphalt produced. The next question is simple: once the plant is up and running, how does ALYQ-90 keep each batch consistent from aggregate to finished mix? Let’s take a closer look.

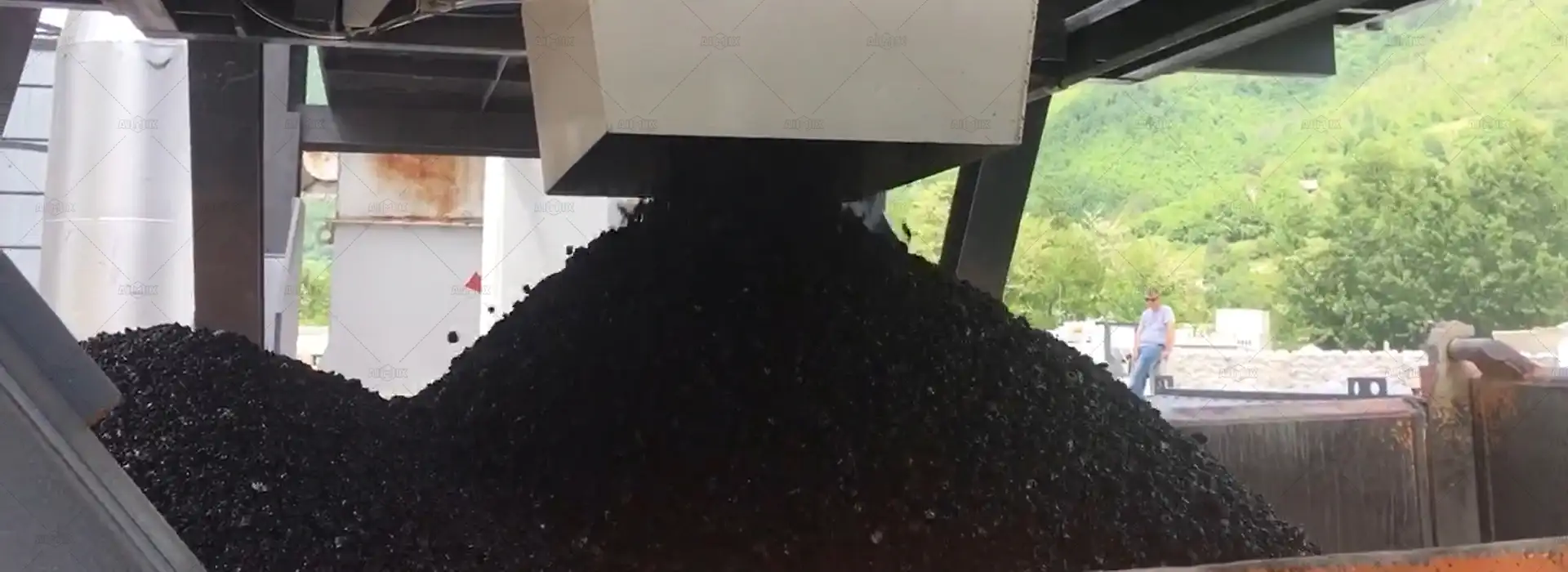

How Does ALYQ-90 Asphalt Plant Maintain Consistent Asphalt Mix Quality?
For project-based asphalt production, consistent mix quality is just as important as production capacity. Variations in aggregate gradation, material proportions, temperature, or mixing can affect the performance of the finished asphalt mixture. ALYQ-90 asphalt plant for sale controls these key variables throughout the production process. Its screening, weighing, temperature monitoring, and forced mixing systems work together to help keep aggregate gradation, material ratios, heating conditions, and mixing uniformity stable from batch to batch.
Four-Deck Screening Helps Keep Aggregate Gradation Consistent
Different aggregate sizes need to be properly separated before they are proportioned and mixed. Otherwise, fluctuations in aggregate gradation can affect the final asphalt mixture.
The 90 TPH mobile batch asphalt plant uses a four-deck vibrating screen with a large screening area to separate heated aggregates into different size fractions.
It provides:
- Four-deck screening for effective aggregate separation.
- Screening efficiency of more than 95% under suitable operating conditions.
- Adjustable vibration amplitude to adapt to material conditions.
- A pull-out screen design for easier maintenance and replacement.
- High-strength manganese-steel screens for durable screening performance.
By keeping aggregate fractions properly separated, the screening system provides a more stable gradation basis for the final mix.
Accurate Weighing Keeps Aggregate, Filler and Bitumen Ratios on Target
Once aggregate fractions are separated, the next priority is maintaining the required proportion of each material.
ALYQ-90 asphalt mixing plant for sale independently weighs aggregate, filler, and bitumen using dedicated weighing systems and branded weighing sensors. Automatic compensation helps reduce the impact of weighing deviations during production.
This allows the plant to better control:
- Aggregate dosage
- Filler dosage
- Bitumen content
- Batch-to-batch material proportions
- The target mix design
More consistent material ratios help reduce fluctuations in finished asphalt mixture properties and unnecessary material consumption.
Automatic Compensation and Easy Calibration Support Stable Weighing
For a mobile asphalt plant, weighing accuracy needs to remain reliable not only during continuous production but also after relocation.
The 90 TPH mobile asphalt batching plant combines automatic weighing compensation with a dedicated calibration platform for easier checking and adjustment.
Operators can use the system to:
- Check weighing performance after relocation.
- Identify deviations before they affect large quantities of production.
- Perform routine calibration more conveniently.
- Maintain stable weighing conditions during long-term operation.
This gives the mobile plant an important practical advantage: relocation does not have to mean complicated weighing-system adjustment before production can resume.
Intensive Forced Mixing Promotes Consistent and Uniform Asphalt Mixtures
Accurate proportions are only useful when the materials are mixed thoroughly.
ALYQ-90 asphalt batch plant for sale uses a 1,200 kg/batch twin-shaft forced mixer to intensively combine heated aggregates, filler, and bitumen.
The forced mixing process helps:
- Distribute bitumen more evenly over aggregate surfaces.
- Improve contact between aggregate and filler.
- Reduce uneven mixing within individual batches.
- Maintain more consistent mixing results during continuous production.
The mixer uses a high-intensity circulating mixing action and wear-resistant mixing components to support stable operation over extended production periods.
Real-Time Temperature Monitoring Helps Keep Heating Conditions Stable
Temperature is another important variable in asphalt production. Aggregate that is underheated, overheated, or inconsistently heated can affect the subsequent weighing and mixing process.
ALYQ-90 mobile asphalt batch plant for sale monitors the aggregate temperature at the dryer outlet, allowing operators to observe heating conditions during production.
The drying and heating system also incorporates:
- Temperature monitoring at the dryer outlet.
- Controlled burner operation.
- Heat-insulating materials around the drying drum.
- Insulated asphalt tanks and pipelines.
- Efficient heating of asphalt before mixing.
Under the standard design condition, the aggregate temperature at the dryer outlet is 160°C. Maintaining stable heating conditions helps provide a more consistent temperature basis for the weighing and mixing stages.
Consistent Quality Comes from Controlling the Whole Production Process
The quality of the finished asphalt mixture is controlled through a connected production sequence:
Aggregate Feeding → Drying & Heating → Four-Deck Screening → Accurate Weighing → Filler & Bitumen Dosing → Intensive Mixing → Finished Asphalt.
Each stage controls a key source of quality variation:
- Screening → aggregate gradation
- Weighing → material proportions
- Compensation & calibration → weighing stability
- Temperature monitoring → heating conditions
- Forced mixing → mixture uniformity
This integrated approach helps ALYQ-90 relocatable asphalt plant maintain more consistent asphalt mixture quality throughout continuous production, rather than relying on a single component to achieve a stable final product.
Consistent mix quality depends on the systems working together, but what you receive matters just as much as how the plant performs. So, what exactly comes with the standard ALYQ-90 HMA plant, and how is the mobile setup configured for real project use? Let’s take a closer look.
What’s Included in the Standard ALYQ-90 HMA Plant?
The standard ALYQ-90 Mobile Asphalt Batch Plant is configured as a complete mobile asphalt production system for project-based road construction. Its modular design integrates material feeding, drying, screening, weighing, mixing, dust collection, asphalt supply, and plant control into 7 mobile units. The standard configuration is designed to provide a practical balance between 90 TPH-class production, mobility, installation efficiency, and on-site operating requirements.

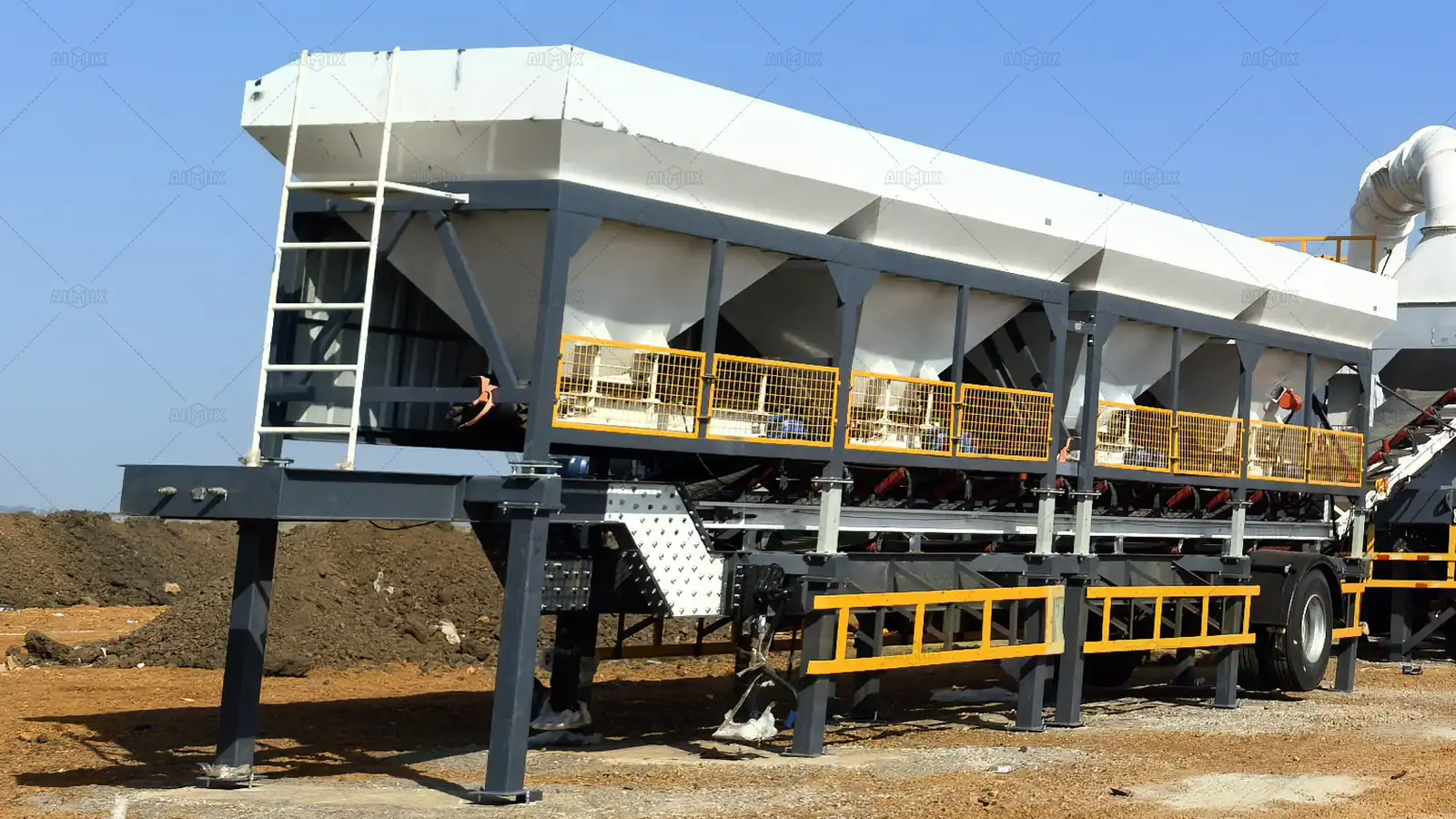

Mobile Cold Aggregate Feeding System
The standard ALYQ-90 mobile HMA plant includes a 4-bin cold aggregate feeding system for controlled feeding of different aggregate sizes.
Key configuration includes:
- 4 × 6.5 m³ cold aggregate bins
- Variable-frequency feeding belts
- Aggregate collecting conveyor
- Independent electrical cabinet
- Plug-and-play aviation connectors
- Low-material alarm and belt protection devices
The modular cold-feed unit simplifies transportation and connection at the project site.

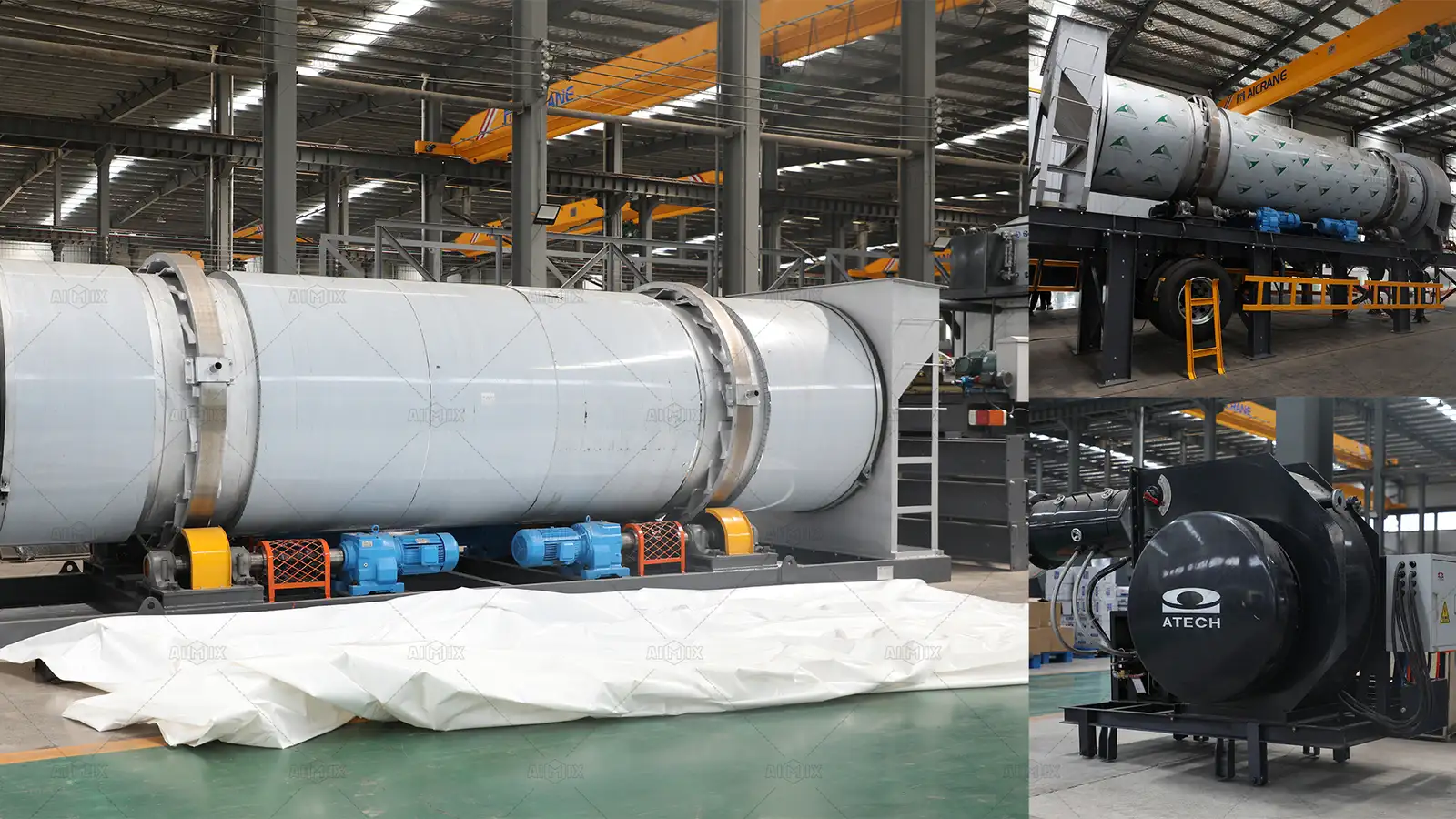

Drying and Heating System
The standard configuration includes a mobile drying system for removing aggregate moisture and heating the material to the required mixing temperature.
It includes:
- Ø1.5 × 6.6 m drying drum
- Four-roller friction drive
- 4 × 7.5 kW drive motors
- Dual-fuel light/heavy oil burner
- 10 m³ fuel tank
- Dryer outlet temperature monitoring
The drying drum uses optimized lifting flights and insulation to improve heat utilization and reduce unnecessary heat loss.
Mobile Dust Collection System
ALYQ-90 hot mix asphalt plant uses a two-stage dust collection arrangement combining gravity dust separation and pulse bag filtration.
The standard configuration includes:
- Gravity dust collector
- Pulse bag filter
- 450 filter bags
- Approximately 390 m² filtration area
- 55 kW induced-draft fan
- Adjustable air damper
The flexible duct and movable flange design also simplifies connection during installation and relocation.
Main Tower and Hot Aggregate System
The mobile main tower integrates the key processes required after aggregate heating.
The standard configuration includes:
- 4-deck vibrating screen
- 4 × 10 m³ hot aggregate bins
- Hot aggregate elevator
- 1,200 kg/batch weighing system
- Aggregate, filler, and bitumen weighing systems
- Twin-shaft forced mixer
- Integrated mobile main tower structure
The main tower is designed as a modular structure to simplify transportation and assembly while providing sufficient maintenance access during operation.
Powder and Filler Supply System
The standard ALYQ-90 mobile batch type asphalt plant includes a dedicated powder supply system for controlled filler storage and feeding.
Standard components include:
- 20 m³ powder silo
- Upper and lower level indicators
- 24-bag silo-top dust collector
- 11 kW discharge screw conveyor
- Anti-bridging system
- High/low material level alarms
This configuration helps maintain continuous filler supply during asphalt production.
Mobile Asphalt Supply System
The standard configuration includes a mobile direct-heating asphalt tank and the associated asphalt supply piping.
Depending on the standard configuration, it includes:
- 30 m³ mobile direct-heating asphalt tank
- Insulated asphalt tank and pipelines
- Asphalt temperature and level monitoring
- Factory-preassembled and pressure-tested pipelines
- Rapid heating system
The mobile design allows the asphalt supply system to move together with the plant instead of requiring a completely fixed tank installation at each project site.
Control Room and Electrical System
The ALYQ-90 batch type asphalt mixing plant includes an integrated mobile control room for centralized operation and monitoring.
The standard electrical configuration includes:
- Siemens PLC control system
- Delixi electrical components
- Industrial computer and touchscreen
- Automatic, semi-automatic, and manual operating modes
- Interlocking and protection functions
- Emergency manual control
- Plug-and-play aviation connectors
- Integrated electrical cabinets
The control system is designed to reduce complicated rewiring during relocation and simplify operation for project-based production.
Knowing what comes with the ALYQ-90 is only the first step. What really matters on a busy project site is how easily your team can run the plant and keep it working day after day. Let’s see how ALYQ-90 makes everyday operation and maintenance simpler.
How Does ALYQ-90 Mobile Asphalt Batch Plant Simplify Operation and Maintenance?
Operating a mobile asphalt plant at different project locations requires more than production capacity. For contractors working on scattered and time-sensitive road projects, the asphalt batch plant should be simple to operate, easy to adjust, and convenient to maintain with limited manpower. The ALYQ-90 fast installation asphalt plant integrates an intelligent control system, automated production functions, and practical maintenance designs to help operators reduce daily workload and keep production running efficiently.
Automated Production Control Simplifies Daily Operation
The ALYQ-90 batch type asphalt plant is equipped with an intelligent control system based on Siemens PLC, designed to simplify asphalt production management and reduce dependence on operator experience.
Key functions include:
- Automatic, semi-automatic, and manual operating modes.
- Automatic material weighing and control.
- Automatic weighing compensation to maintain stable production.
- Production data recording and storage.
- Fault alarms and operation reminders.
- Remote system upgrade capability.
With automated control, operators can manage key production processes from the control room instead of manually adjusting each system, making the plant easier to operate for different project teams.
One-Click Mix Formula Switching Improves Flexibility
Road projects may require different asphalt mixture designs depending on pavement requirements and construction stages.
ALYQ-90 modular asphalt plant allows operators to store and switch production formulas more conveniently.
This helps:
- Reduce repeated manual parameter adjustment.
- Improve switching efficiency between different mix designs.
- Maintain consistent production settings.
- Support multiple asphalt mixture requirements on the same project.
For contractors handling different road projects, faster formula adjustment helps reduce preparation time when production requirements change.
Remote Monitoring and Smart Alerts Reduce Downtime
For mobile asphalt plants operating in remote or temporary project locations, identifying problems early is important for maintaining production schedules.
The ALYQ-90 quick installation asphalt plant intelligent control system provides:
- Remote production monitoring through mobile devices.
- Equipment status checking.
- Fault warning notifications.
- Maintenance reminders.
- Production data tracking.
These functions help operators and managers understand equipment conditions earlier, arrange maintenance in advance, and reduce unexpected production interruptions.
Accessible Maintenance Design Improves Service Efficiency
Daily inspection and maintenance efficiency directly affect the availability of a mobile asphalt plant.
The ALYQ-90 easy installation asphalt plant is designed with maintenance convenience in mind, including:
- Larger maintenance space around key components.
- External foldable maintenance platforms.
- Convenient access to inspection points.
- Integrated electrical cabinets to reduce complicated rewiring.
- Plug-and-play connections for easier connection after relocation.
These designs help maintenance personnel complete routine checks and service work more efficiently, especially when the plant operates at temporary project sites.
Quick Wear-Part Replacement Reduces Interruptions
Wear parts such as screening components and mixing parts directly affect continuous asphalt production.
ALYQ-90 easy relocation mobile asphalt plant improves maintenance efficiency through practical structural designs:
- Pull-out vibrating screen mesh design for faster replacement.
- Removable mixer cover for easier blade inspection and replacement.
- Long-life wear-resistant mixing blades and liners.
- Simple access to key maintenance components.
By reducing the time required for common maintenance tasks, the plant can return to production faster after routine service.
Designed for Reliable Operation Across Multiple Project Sites
Unlike permanent asphalt plants that remain in one fixed location, ALYQ-90 smart asphalt plant is designed for changing project environments.
Its combination of:
- Intelligent operation control.
- Simplified adjustment.
- Remote monitoring.
- Convenient maintenance.
- Modular mobile structure.
helps project teams operate the plant more efficiently even when moving between different construction locations.
A plant can be easy to operate and maintain, but getting the right setup starts before it reaches the project site. From power and materials to transportation and site conditions, a few details can make a big difference. Here’s what you should confirm before placing your ALYQ-90 order.
What Should You Confirm Before Ordering ALYQ-90?
Before ordering an AIMIX ALYQ-90 mobile asphalt batch plant, it is important to match the plant configuration with the actual project conditions. Since ALYQ-90 is designed for project-based asphalt production and repeated relocation, factors such as materials, power supply, site conditions, transportation, and future deployment locations can directly affect the final configuration. Confirming the following information in advance helps ensure that the hot mix plant is properly configured before manufacturing and reduces unnecessary changes after delivery.
Project Location, Size and Expected Relocation Frequency
Before ordering, confirm:
- Project location and country/region.
- Expected project duration.
- Approximate asphalt demand and production schedule.
- Whether the plant will serve one project or multiple projects.
- Expected relocation frequency.
- Planned future project locations, if already known.
If the plant will be moved between several sites, the transportation routes and site conditions of those locations should also be considered before finalizing the configuration.
Aggregate, Asphalt and Mix Design Requirements
Confirm:
- Aggregate types and gradation.
- Maximum aggregate size.
- Aggregate moisture content.
- Aggregate supply and stockpiling method.
- Required asphalt mixture types.
- Target asphalt and filler content.
- Asphalt grade and supply method.
- Whether multiple mix designs need to be produced or switched during the project.
The standard ALYQ-90 design is based on aggregate with a maximum size of 40 mm, moisture content of ≤5%, filler content of 5%, and bitumen content of 5% under the specified standard operating conditions. If actual material conditions differ significantly, the plant configuration and expected output should be reviewed before ordering.
Additives, Fuel and Material Feeding Requirements
Provide information about:
- Whether additives are required.
- Additive type and physical form.
- Required additive dosage.
- Additive storage and feeding method.
- Available burner fuel.
- Fuel quality and supply conditions.
- Aggregate loading method.
- Filler delivery method.
- Bitumen delivery and storage arrangement.
The standard ALYQ-90 mixer includes an additive interface, while additional feeding equipment can be considered according to the actual mix design and additive requirements.
Local Power Supply and Generator Requirements
Check:
- Local voltage.
- Power frequency.
- Available electrical capacity.
- Three-phase power requirements.
- Power stability at the project site.
- Whether a diesel generator is required.
For remote road projects where grid electricity is unavailable or unstable, a suitable generator set may be required. The standard ALYQ-90 fast relocation asphalt plant has a total installed power of approximately 270 kW. The final electrical configuration and generator requirements should therefore be confirmed according to the local power conditions and actual plant configuration.
Site Layout, Ground Conditions and Available Working Space
Confirm:
- Available site area.
- Ground bearing capacity.
- Ground leveling and hardening conditions.
- Drainage conditions.
- Aggregate stockpile area.
- Asphalt and filler storage/access.
- Finished asphalt truck loading area.
- Internal truck and loader routes.
- Maintenance and inspection space.
The ALYQ-90 equipment footprint is approximately 30 × 40 m, while the recommended minimum site area is around 3,000 m² when necessary working and material storage areas are considered. The final layout should be determined according to the actual project site rather than relying only on the equipment footprint.
Transportation, Trailer and Local Road Requirements
Provide:
- Local cargo dimension and weight limits.
- Maximum permitted vehicle height and width.
- Road width and clearance restrictions.
- Bridge and axle-load limitations.
- Trailer type and specifications.
- Trailer deck height.
- Tractor head specifications.
- Kingpin/fifth-wheel coupling type.
- Loading and unloading conditions.
For example, a domestic configuration may use a 50# kingpin with a coupling height of approximately 1,300 mm. However, actual requirements must follow the transportation regulations of the destination country. If the plant will be relocated between multiple projects, the transportation conditions of the planned routes should also be checked in advance.
Climate, Altitude and Working Environment
Confirm:
- Ambient temperature range.
- Rainfall and humidity conditions.
- Site altitude.
- Dusty or corrosive working environment.
- Seasonal operating conditions.
- Local environmental and emissions requirements.
These conditions may affect equipment configuration, heating performance, electrical components, dust collection, and other operating considerations.
Confirm These Details Before Finalizing Your ALYQ-90
- Project → Materials → Mix Design → Additives → Power → Site → Transportation → Climate → Future Relocation.
- Once these conditions are confirmed, AIMIX can match the ALYQ-90 configuration to the actual project requirements, local regulations, and operating environment.
- This is especially important for a mobile asphalt plant, because the equipment may serve different projects and encounter different site conditions throughout its service life.
The right configuration starts with understanding your project needs. But seeing ALYQ-90 in actual road projects gives you a clearer picture of what that choice looks like in practice. Let’s take a look at how customers are putting ALYQ-90 to work on real construction sites.
See How ALYQ-90 Asphalt Plant Is Working on Real Road Construction Projects
ALYQ-90 is already serving road projects in different markets, earning trust through real-world use. Explore the cases below to see the countries, project applications, equipment installations, and on-site photos of ALYQ-90 in operation. These projects offer a closer look at how this 90 TPH mobile asphalt batch plant is being delivered and used by customers around the world.

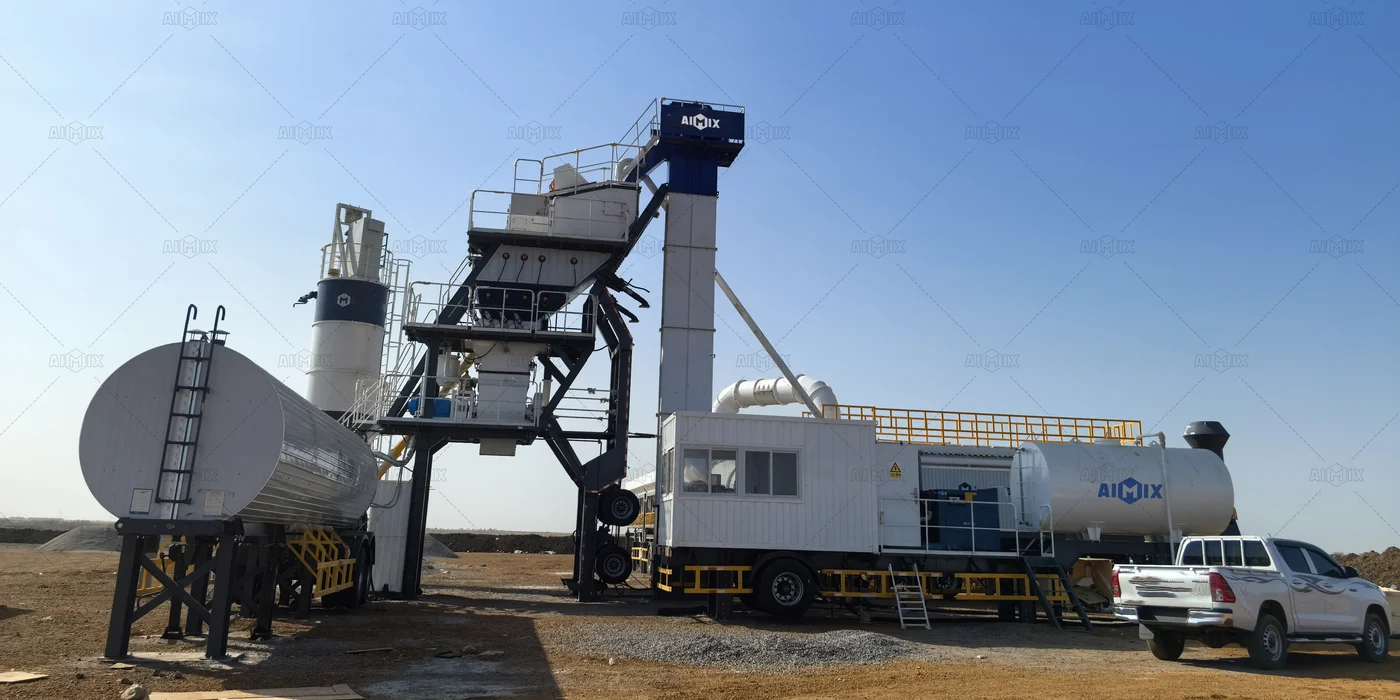

ALYQ-90 Asphalt Plant in Sudan
- Production Capacity: 90TPH
- Type: Mobile Batch Type
- Application: Government Road Building
- Challenge: The project had already started, creating an urgent need for fast plant installation and asphalt production.
Results: “Modular mobile design enabled mechanical installation within 3 days, helping the customer quickly move from equipment delivery to road paving.”

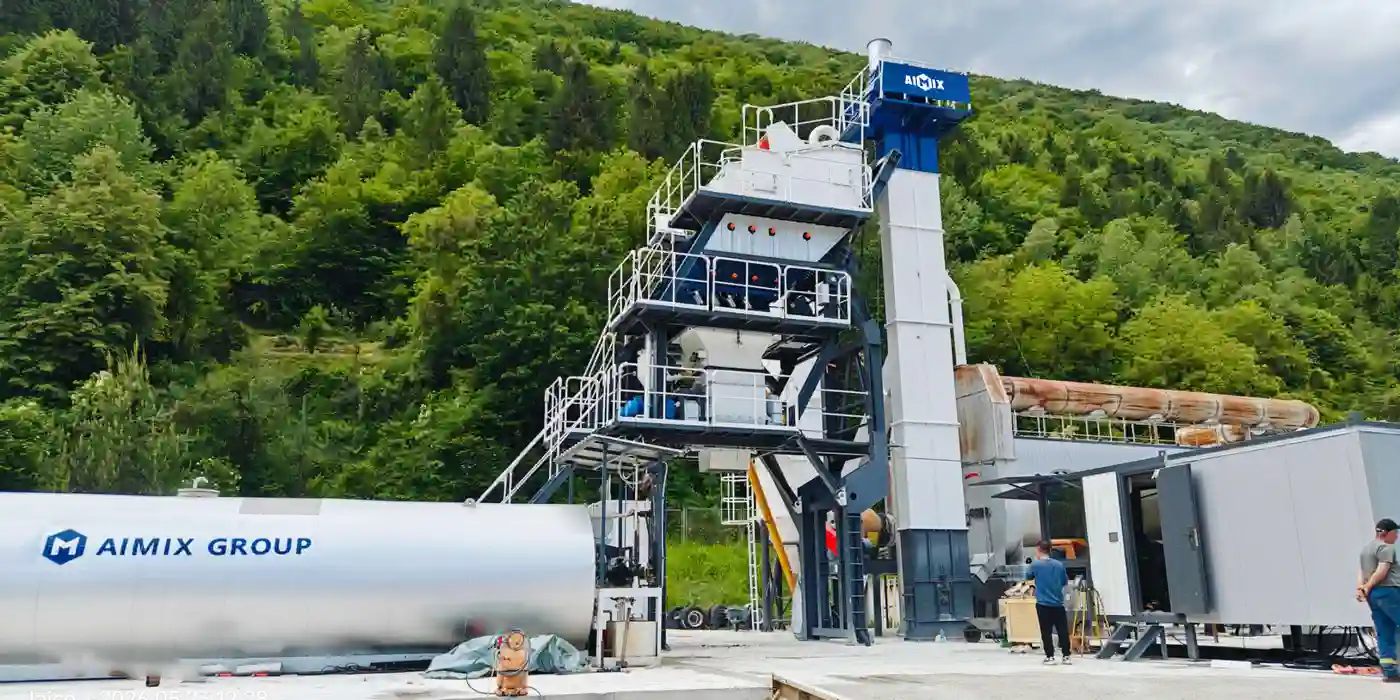

ALYQ-90 in Bosnia and Herzegovina
- Production Capacity: 90TPH
- Type: Mobile Batch Type
- Application: Municipal Road Construction
- Challenge: Flexible asphalt production was needed for a municipal road project.
Results: “The mobile design enabled flexible deployment, providing 90 TPH asphalt production closer to the project site.”
Real projects show how ALYQ-90 performs in the field, but you may still have practical questions before making a decision. From installation and power supply to production and delivery, let’s address the key questions customers often ask about ALYQ-90.
FAQs About ALYQ-90
How Long Does It Take to Deliver and Install ALYQ-90?
For the standard ALYQ-90 configuration:
- Manufacturing period: around 60 working days after order confirmation.
- First installation: approximately 7 days under suitable site conditions.
- Relocation and restart: approximately 24 hours under suitable site and transportation conditions.
Before production, customers should confirm key details such as local voltage, transportation requirements, fuel conditions, and project materials to ensure the plant is delivered with the correct configuration.
Does ALYQ-90 Mobile Asphalt Batch Plant Need a Permanent Foundation?
The site mainly needs:
- A level and stable working area.
- Sufficient bearing capacity.
- Proper ground preparation according to equipment load.
- Suitable drainage conditions.
The exact site preparation method depends on local soil conditions, project requirements, and the supplied foundation drawings.
Can ALYQ-90 Reach 90 TPH Production Capacity?
The actual output depends on factors such as:
- Aggregate moisture content.
- Aggregate gradation.
- Material supply efficiency.
- Asphalt mixture design.
- Operating conditions.
Under standard design conditions, ALYQ-90 is based on:
- Aggregate moisture content ≤5%.
- Maximum aggregate size ≤40 mm.
- Aggregate outlet temperature around 160°C.
Proper material preparation and operation are important for maintaining stable production.
Can ALYQ-90 Fast Installation Asphalt Plant Work at Remote Construction Sites?
It is suitable for:
- Rural and county road projects.
- Municipal road upgrades.
- Road maintenance projects.
- Small and medium infrastructure projects.
- Temporary or scattered construction sites.
For remote locations, customers can choose suitable power solutions such as generator sets when grid electricity is unavailable.
What Power Supply Does ALYQ-90 Mobile Asphalt Plant Require?
- Voltage.
- Frequency (50 Hz or 60 Hz).
- Available power capacity.
- Generator requirements if needed.
The standard ALYQ-90 mobile asphalt batch plant has a total installed power of approximately 270 kW. For remote projects without reliable grid power, the generator configuration should be selected according to the actual operating requirements of the plant.
Can ALYQ-90 Produce Different Asphalt Mixtures?
Operators can:
- Store and switch different production formulas.
- Adjust aggregate, filler, and bitumen ratios.
- Manage different asphalt mixture requirements for different road applications.
The mixer also provides an additive interface, allowing additional additive systems to be considered when special asphalt mixtures are required.
How Is ALYQ-90 Relocated Between Different Projects?
Its relocation efficiency comes from:
- Mobile main units that simplify transportation.
- Modular structures that reduce dismantling work.
- Plug-and-play electrical connections.
- Integrated electrical cabinets that reduce rewiring.
- Flexible connection designs for faster reassembly.
The exact relocation time depends on transportation conditions, site preparation, and local installation requirements.
What Should Be Prepared Before ALYQ-90 90 TPH Mobile Asphalt Plant Easy Installation?
- Project site location.
- Recommended site area (around 3,000 m²).
- Aggregate and asphalt supply conditions.
- Power supply or generator availability.
- Transportation route.
- Local climate and working environment.
Providing these details before ordering helps AIMIX prepare the suitable configuration and reduce delays during installation.
What After-Sales Support Is Available for ALYQ-90 Quick Relocation Asphalt Plant?
- Installation guidance to assist with plant assembly and commissioning.
- Operator training to help teams quickly master daily operation.
- Technical consultation for equipment operation and production questions.
- Spare parts support to reduce maintenance-related downtime.
- Remote troubleshooting assistance for faster problem solving during operation.
For mobile asphalt plants used across multiple project locations, timely technical support helps maintain stable production performance.
Your Next Project Deserves a Smarter Asphalt Solution
Every road project has different challenges — limited sites, changing locations, and tight construction schedules. ALYQ-90 gives you flexible asphalt production with 90 TPH capacity, fast deployment, and reliable operation wherever your project takes you. Share your project requirements with AIMIX, and we will help you find the right configuration to keep your asphalt production efficient from the first project to the next.
