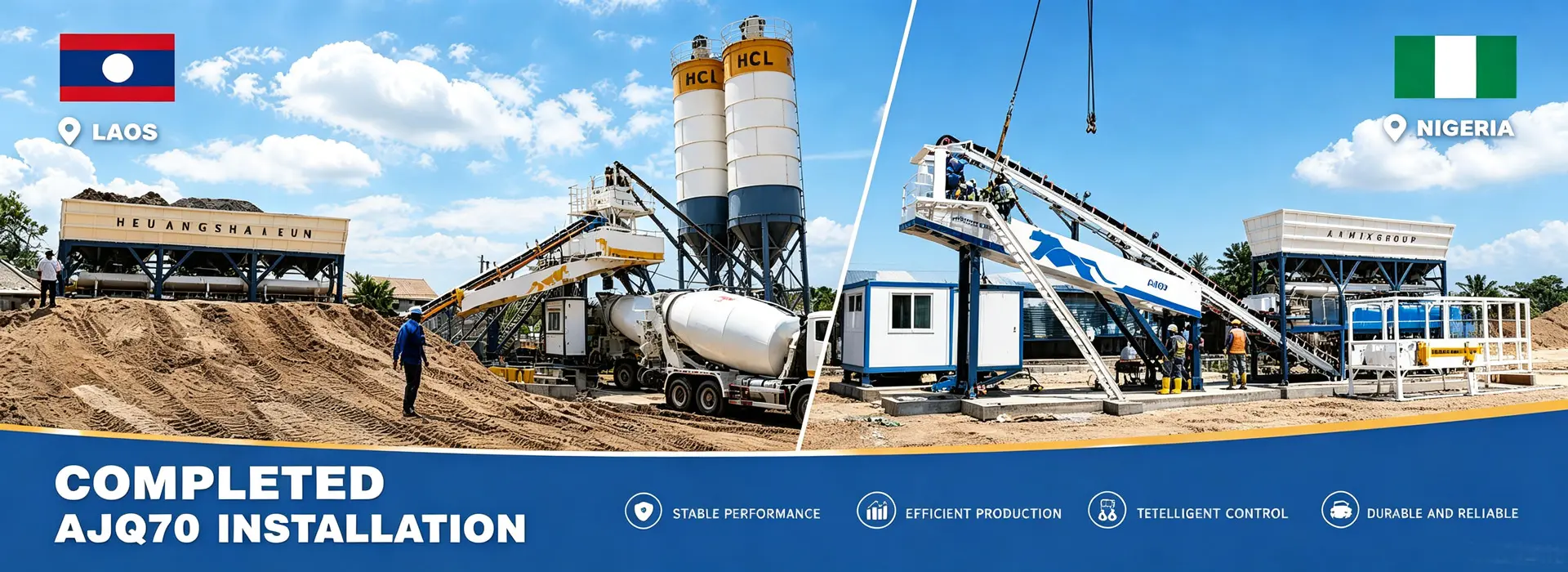

Recently, two of our AJQ70 quick-installation concrete mixing plants successfully completed installation and commissioning in Nigeria and Laos, respectively, and are now ready for immediate operation.
The successful deployment of these two overseas projects marks another significant milestone in the international expansion of the AJQ70 model. It also highlights AIMIX’s comprehensive capabilities in product R&D, project delivery, on-site installation, and global after-sales service. Let’s take a closer look at these two new concrete mixing plants.

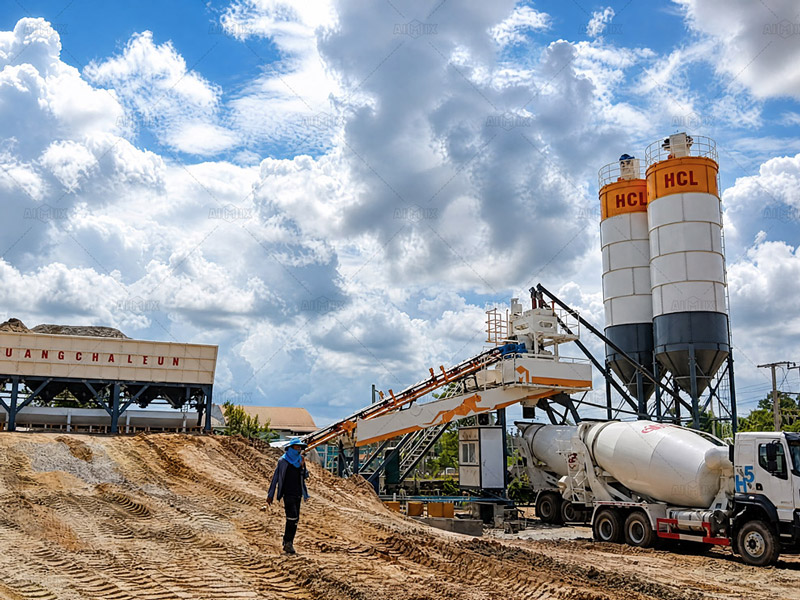

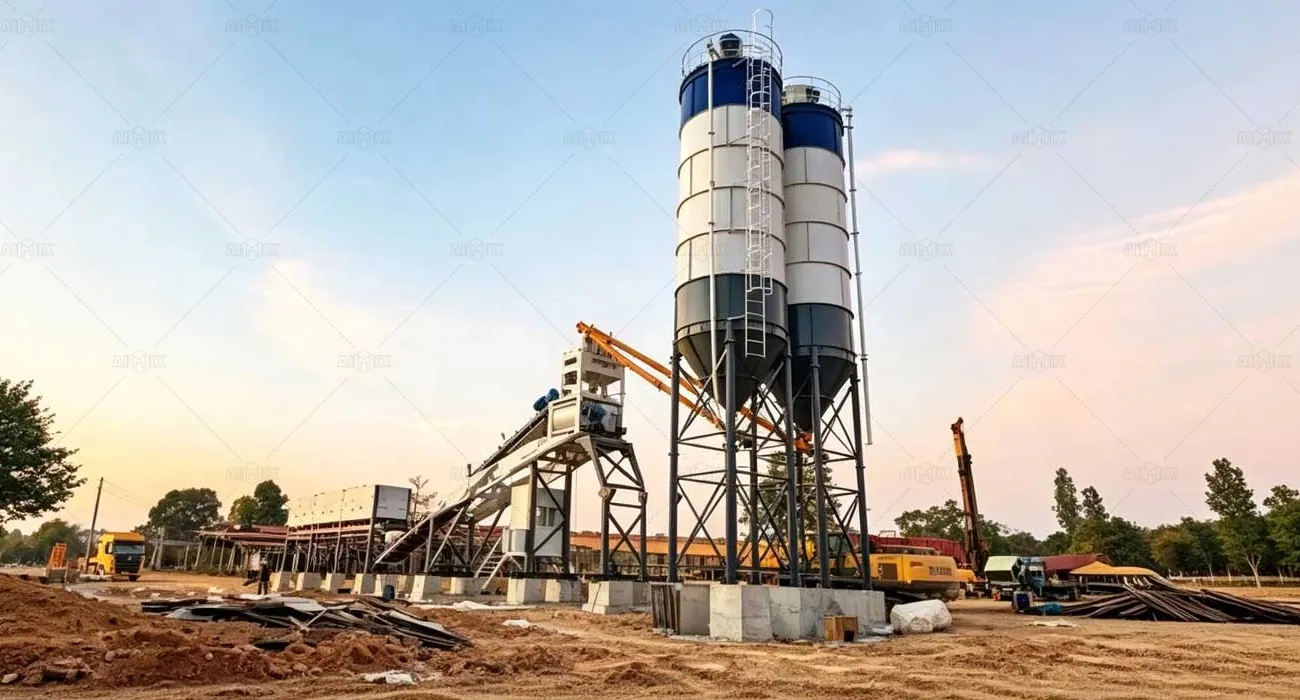

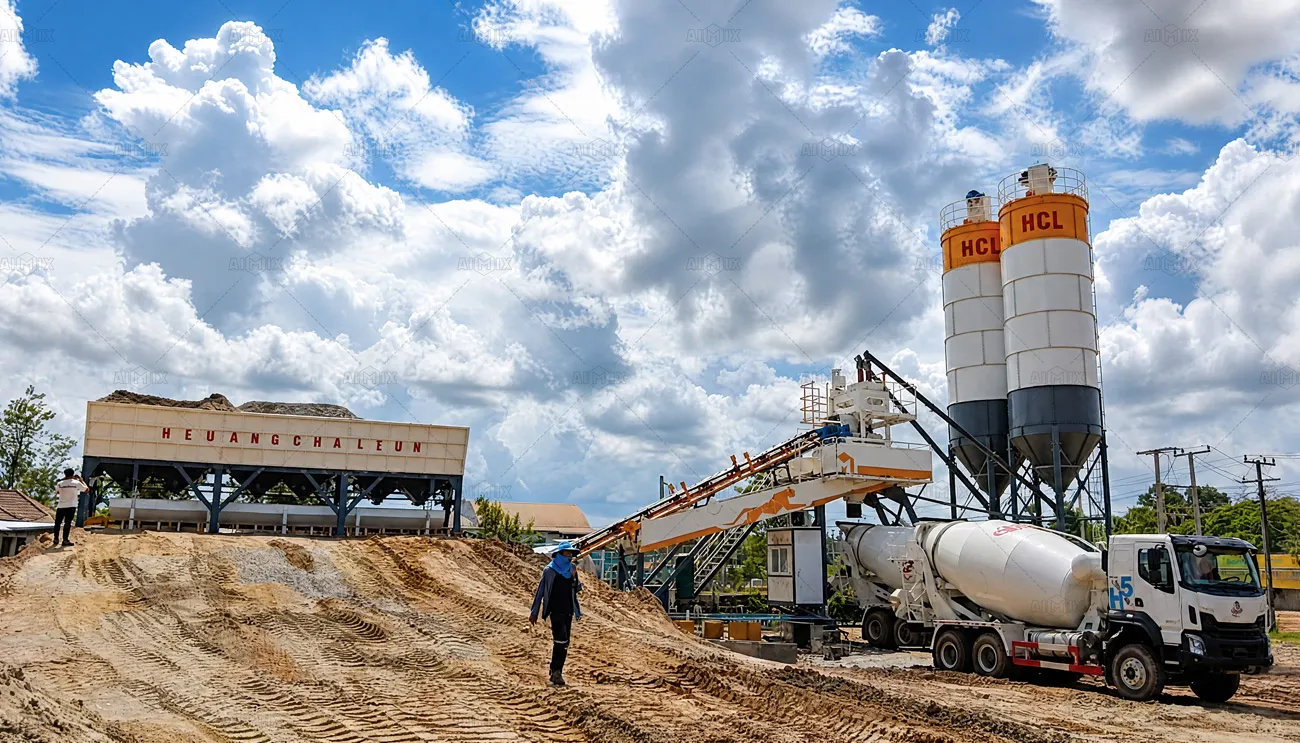

Laos Project Site: A Proven Reputation—Repeat Orders Demonstrate Excellent Suitability
At the project site in Laos, the AJQ70 quick-installation concrete mixing plant successfully passed installation and acceptance checks, earning high praise from the client’s team. Notably, this is the second AJQ70 plant installed in Laos.
Laos features mountainous terrain and complex geology; traditional stationary plants entail high foundation costs and slow startup times, while standard mobile plants often struggle to handle high-intensity, continuous supply demands. The fact that multiple clients in Laos have repeatedly chosen this model fully validates the AJQ70’s perfect suitability for local construction schedules and rigorous operating conditions.

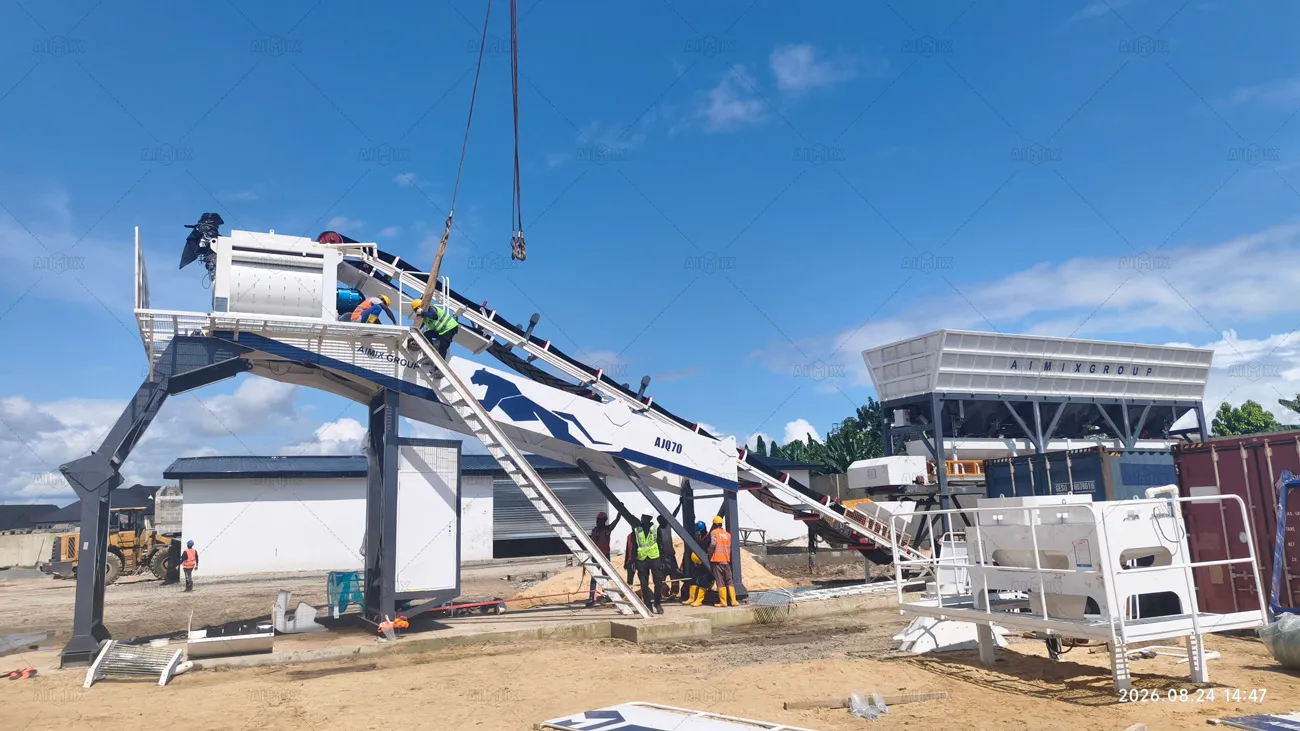

Nigeria Project Site: Overcoming Harsh, High-Temperature Conditions
Facing Nigeria’s high temperatures, heavy rainfall, and complex site conditions, AIMIX’s overseas engineers worked closely with the client to efficiently execute equipment assembly, electrical commissioning, and trial runs, ensuring a smooth and orderly process from start to finish.
For overseas projects, the ability to achieve “rapid deployment, stable operation, and continuous output” is key to profitability. The AJQ70’s outstanding performance in Nigeria demonstrates its resilience in harsh environments and underscores AIMIX’s mature capabilities in global project execution.
Comparison of Key Selection Criteria: Stationary Plant vs. Mobile Plant vs. AJQ70
To help you objectively evaluate equipment types based on project requirements, we have compared these three categories across seven key dimensions of greatest concern to contractors—such as setup time, reliance on civil works, production stability, and relocation difficulty:
| Evaluation Dimension | Traditional Fixed Mixing Plant | Standard Mobile Mixing Plant | AJQ70 Rapid-Assembly Plant |
|---|---|---|---|
| Reliance on Civil Foundations | High (requires deep foundations and extensive concrete work) | Low (requires only leveled ground or simple foundations) | Very Low (foundation-free or simple design; cost-saving) |
| Installation & Startup Time | Slow (usually 20–30+ days) | Very Fast (usually 3–5 days) | Efficient (usually 7–10 days; balances speed and structure) |
| Continuous Production Stability | Very High (rigid structure; suitable for massive volumes) | Moderate (limited by chassis; prone to vibration and structural fatigue) | High (structural strength and stability comparable to fixed plants) |
| Production Capacity & Limits | Covers full range (large, medium, and small capacities) | Primarily small-to-medium capacity; limited scalability | Medium-to-large production capacity (precisely matched to mainstream project volumes) |
| Dismantling and relocation | Extremely difficult (high dismantling costs, significant damage to steel structures) | Extremely easy (tire-towed; ready to move immediately) | Convenient (modular bolted connections; rapid, non-destructive dismantling and relocation) |
| Daily maintenance and servicing | Spacious; easy maintenance | Compact structure; limited space for servicing | Optimized layout; ample space for hassle-free servicing |
| Overall Return on Investment (ROI) | High initial investment; slow residual value recovery after project completion | Suitable for small projects; higher unit production costs for large projects | Optimal (low setup costs + high capacity + high residual value) |
Conclusion: If your project prioritizes ultimate “move-and-go” mobility with low output requirements, a mobile plant is the top choice; if the project spans several years with massive output needs, a stationary plant is more suitable. However, for the vast majority of medium-to-large projects with durations of 1–3 years—where both setup cost control and stable material supply are required—the AJQ70 offers the best overall value.
Eight Core Advantages: How the AJQ70 Redefines Equipment Lifecycle Value
-
Fast Commissioning (Rapid Deployment & Plug-and-Play)
- 24-Hour Rapid Installation & 12-Hour Relocation: Engineered with an innovative Lego-style modular and foldaway design that enables full site assembly within 24 hours. Disassembly takes just 8 hours, reassembly takes 12 hours, and the main unit requires only 2 flatbed trailers for rapid transit.
- Pre-Assembled Quick-Connect System: Electrical lines feature heavy-duty aviation plugs, while air systems use quick-connect fittings. All wiring, water, and additive pipelines are pre-routed and protective-wrapped at the factory, requiring zero complex on-site wiring.
- Ready in Factory (No On-Site Debugging Needed): All motors, sensors, and control systems are pre-assembled and pre-calibrated prior to shipment. The plant is ready to run immediately upon power connection without waiting for factory dispatch technicians.
-
Higher Production Efficiency (Heavy-Duty & Continuous Output)
- Twin-Shaft Spiral Mixer for High-Grade Concrete: Equipped with a high-efficiency twin-shaft spiral mixer capable of producing all concrete grades below C60 (including dry-hard, plastic, and fluid concrete) to satisfy rigorous project standards.
- Stationary-Grade Structural Rigidity: Overcomes the severe vibration and stability issues common in traditional mobile plants. The AJQ70 delivers rock-solid structural integrity for continuous, high-intensity output even under harsh high-temperature and dusty conditions.
-
Cost Savings (Low Civil Works, Reduced Freight & High Residual Value)
- Foundation-Free Design (50% Setup Cost Reduction): Built on an integrated self-supporting chassis that eliminates the need for expensive, time-consuming deep concrete foundations. Simple ground hardening is all that is required, cutting civil engineering and installation costs by 50%.
- Compact Containerized Shipping (50% Freight Savings): Thanks to its compact foldaway structure, the entire plant fits into just 3 high-cube containers (saving 2 containers compared to traditional setups), reducing shipping volume and ocean freight costs by 50%.
-
Labor Savings (AI Smart Steward & Zero-Barrier O&M)
- AI Smart Steward System (1-Hour Onboarding): Features a zero-learning UI and remote monitoring interface that simplifies complex operations. Workers can operate the system independently after just 1 hour of training, drastically reducing labor requirements and dependency on high-skilled operators.
- IoT Maintenance Reminders: Integrated AI-IoT system automatically alerts operators for scheduled maintenance and fault diagnostics, streamlining daily checks and cutting long-term O&M hassle in half.
In summary: While stationary plants prioritize stability and mobile plants prioritize speed, the AJQ70 offers the perfect fusion of both—breaking the mold with rapid installation and standing out through rock-solid reliability!
Specifications Of AJQ70
| Parameter | AJQ70 |
|---|---|
| Theoretical productivity (m³/h) | 70 |
| Mixer discharge volume (L) | 1250 |
| Mixer feeding volume (L) | 1800 |
| Mixer power (kw) | 22×2 |
| Discharge height (m) | 4.1 |
| Aggregate bin configuration (number × single bin volume, m³) | 2×15 |
| Cycle time (s) | 60 |
| Maximum aggregate particle size (mm) | 80/100 |
| Cement silo (optional) | 2×100 |
| Aggregate weighing system | ±2% |
| Powder weighing system | ±1% |
| Water weighing system | ±1% |
| Additive weighing system | ±1% |
| Installed power (KW) | ≈120 |
| Control mode | Fully automated computer (PC) control |
| Power supply | 220/415/440/380V, 50Hz/60Hz, three-phase |
Contact us for a tailored AJQ70 configuration plan
If you are currently evaluating concrete batching plant options and weighing the choice between stationary and mobile batching plants, let our engineering experts prepare a realistic project ROI analysis for you.
Contact us to immediately receive:
- AJQ70 product brochure and detailed technical specifications
- Videos and case details of on-site installation and commissioning in Laos/Nigeria
- Customized site layout and configuration recommendations for your project
- Latest factory-direct promotional pricing and shipping cost estimates
