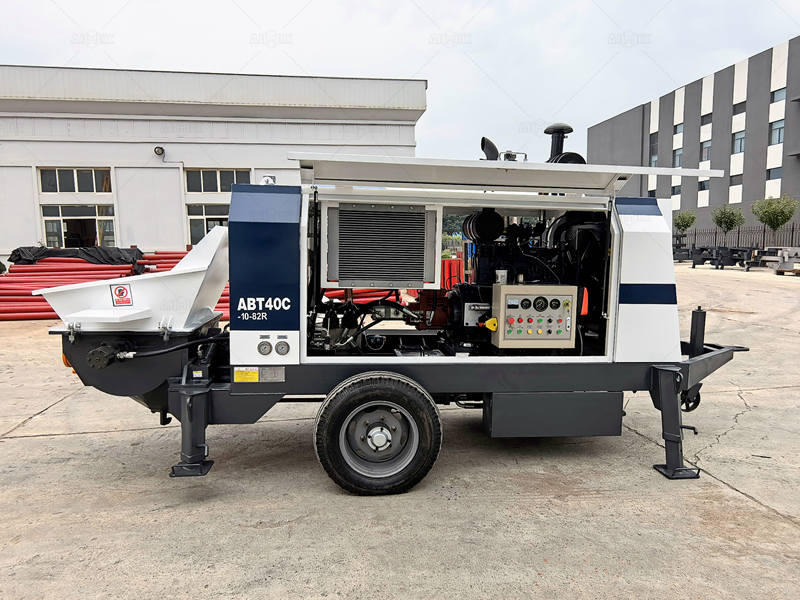

Stationary Concrete Pump For Sale

Stationary concrete pump for sale is used for delivering concrete, because it has four legs, we name it as stationary concrete pump. Stationary concrete pumps consist of pumps and pipes. It can make strong pressure, with the pressure, concrete can be transported to the place where the concrete is needed.

stationary pump machines for sale
stationary pump machines for sale

Wide application

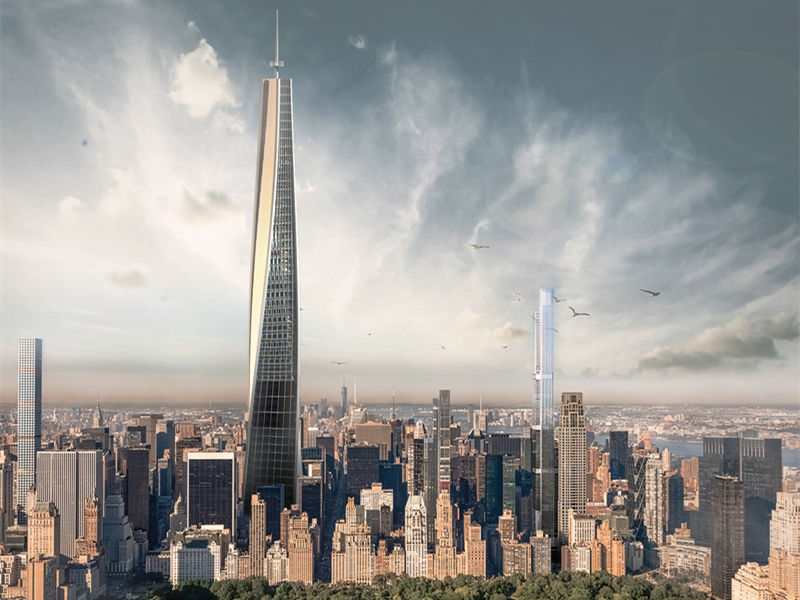

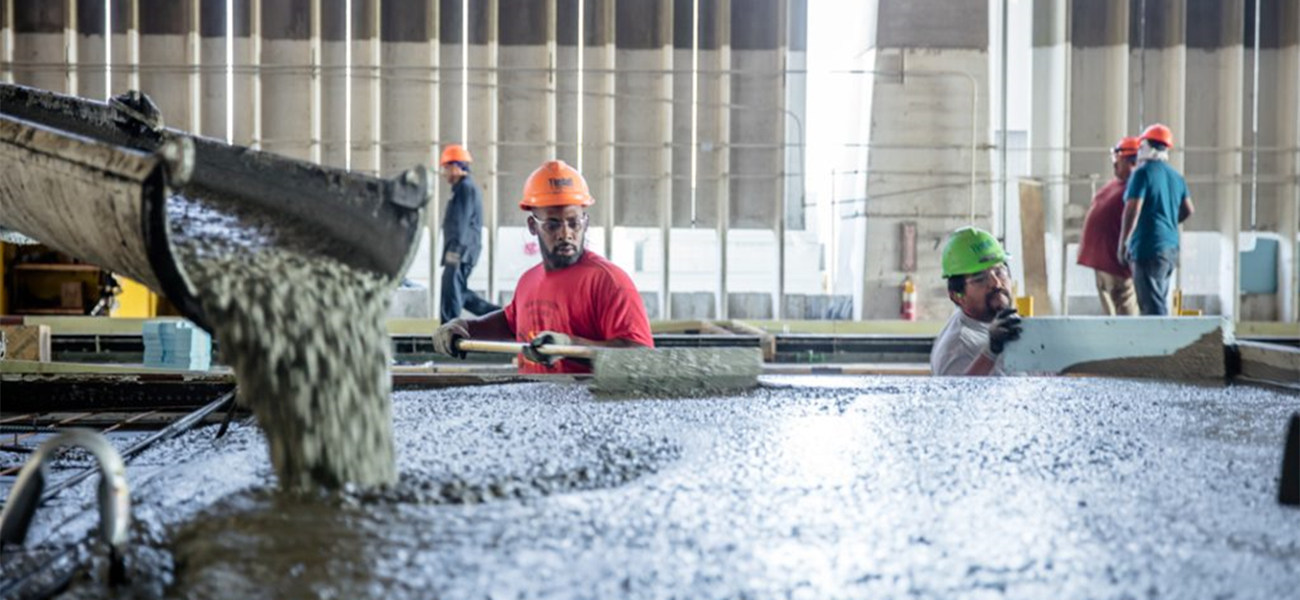

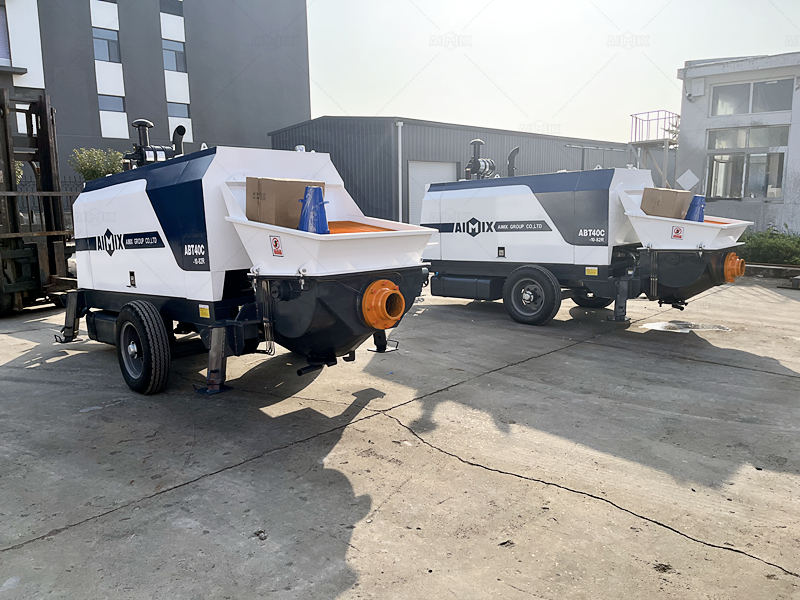

It is suitable for bridge, tunnel, flood control, building, water conservancy engineering and wharf construction.

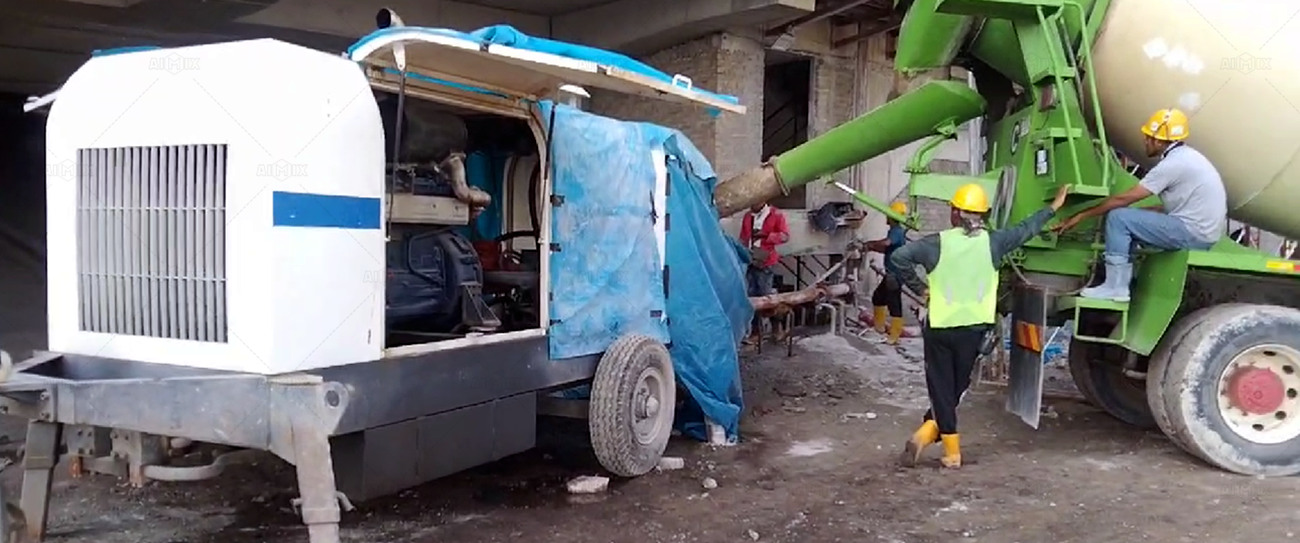

stationary pump for building constuction
stationary pump for building constuction

stationary pump machine for bridge
stationary pump machine for bridge

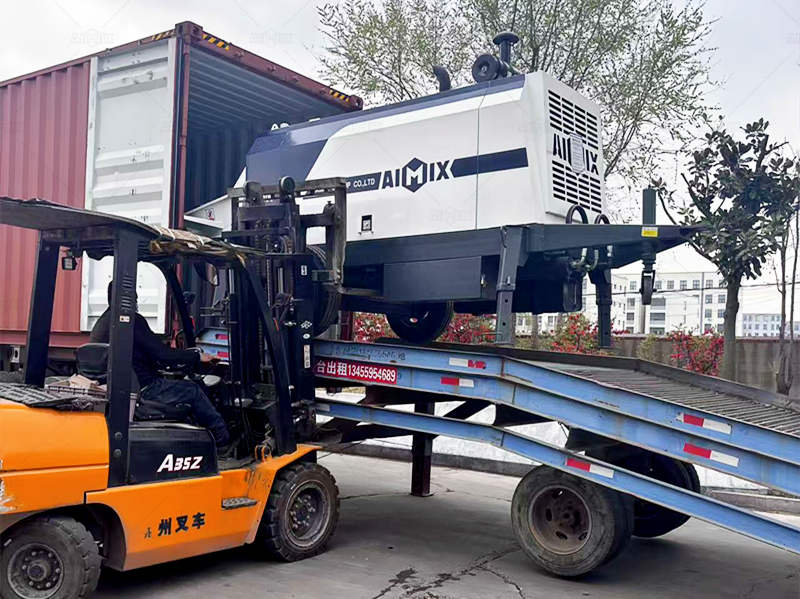

Latest delivery news—40R stationary mixer pump and trailer pump were sent to Pakistan

stationary concrete pumps to Pakistan
new stationary concrete pumps to Pakistan

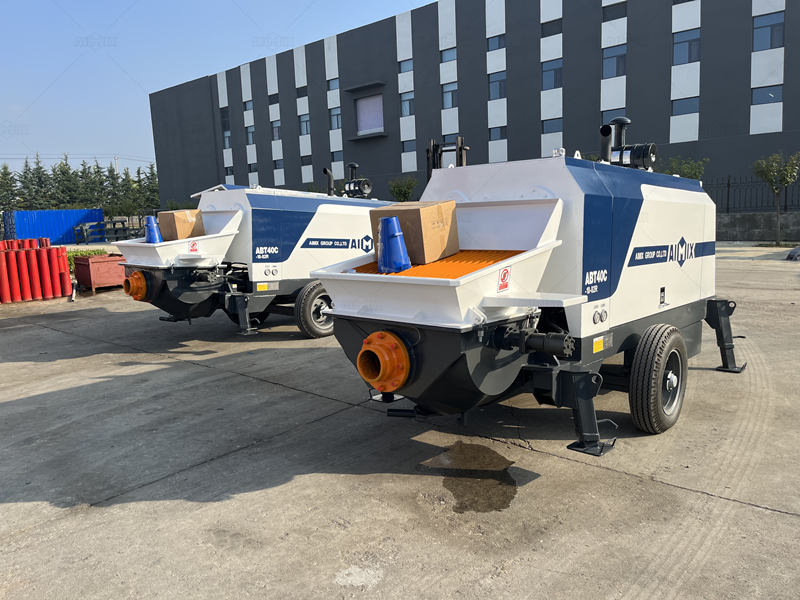

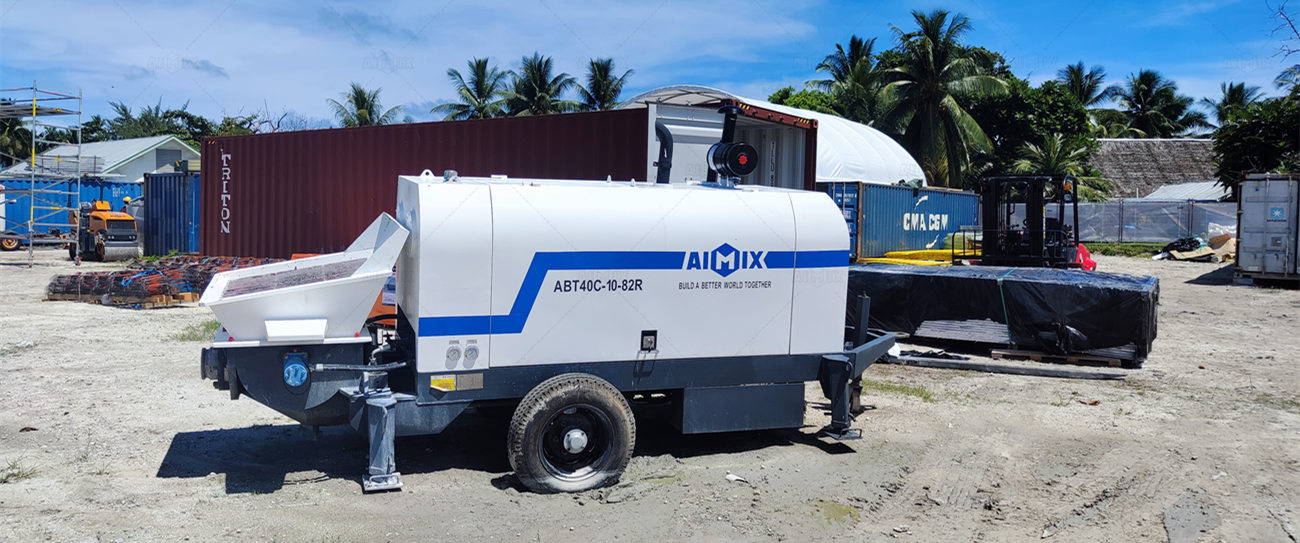

Types of stationary concrete pumps

Static concrete pump has many types, such as, static trailer concrete pumps for sale, static concrete boom pump, static line concrete pump and stationary concrete mixer pump. Various types have various features and applications, you must make clear about your demand. So that it will be very cost-saving for you!

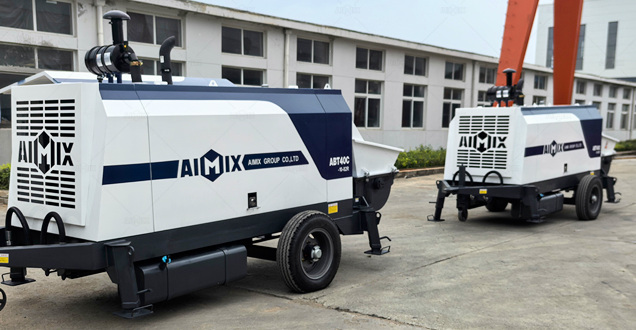

Trailer type: it is towed on a trailer, meanwhile, is with four legs, so it is very convenient to use. We mainly have diesel type and electric type station concrete pump. If your site has efficient electricity, you can choose electric type, otherwise, diesel type will be your ideal choice. Line concrete pump is the same as it.

BS30D diesel static trailer concrete pump
BS30D diesel static trailer concrete pump


HBTS40 diesel station trailer concrete pump
HBTS40 diesel station trailer concrete pump


Item Unit BS30-10-56R
Max. theo. concrete output(L/H) m3/h 30
Max.concrete pumping pressure MPa 10
Concrete cylinder(diameter* stroke) mm 1400×1200
Hopper capacity*feeding height L×mm 400×1200
Outlet diameter mm Ф100
Power kw 56
Rotate speed RMN 1800
Pumping system pressure MPa 26
Mixing system pressure MPa 6—8
Capacity of oil tank L 260
Max. concrete pumping distance(vertical) M 120
Max. concrete pumping distance(horizontal ) M 500
Dimension(length*width*height) mm 4500*1750*1600
Total weight Kg 3500
Item HBTS40-SR HBTS50-SR HBTS60-SR HBTS80-SR HBTS90-SR
Max. Theoretical Throughput (m3/h) 40 50 60 80 90
Max. Pumping Pressure(MPa) 11/13/15 13 13/15/16 16 16/18
Max. Theoretical Vertical Conveying Distance(m) 150 180 190 200 200
Max. Theoretical Horizontal Conveying Distance 600 600 800 1000 1200
Max. Aggregate Diameter(mm) 30/40 40/50 50 50 50
Slump(cm) 12—23 12—23 12—23 12—23 12—23
Conveying Pipe Radius(mm) 125 125/150 150 150 150
Conveying Cylinder Bore X Piston Stroke(mm) Φ180×1300 Φ180×1300 Φ200×1650 Φ200×1800 Φ200×1800
Hydraulic Oil Tank Capacity(L) 370 370 580 580 580
Feeding Height(mm) 1250 1300 1400 1420 1420
Hopper Capacity(m³) 0.6 0.68 0.68 0.68 0.8
Diesel Brand DELIER/DEUTZ DELIER/DEUTZ DEUTZ DEUTZ DEUTZ
Power of Diesel Motor(kw) 56 62 82/129 162 176
Dimension(Length*Width*Weight)(mm) 5000*1850*1700 5000*2100*2260 6000*2160*2600 6700*2160*2700 6750*2160*2700
Total Weight(kg) 4500 4500 6480 7600 7600
HBT30 electric static trailer pump
HBT30 electric static trailer pump


HBT80 electric static trailer concrete pump
HBT80 electric static trailer concrete pump


electric type
electric type

Item HBT-20 HBT-30 HBT-40
Max. Theoretical  Throughput(m3/h) 20 30 40
Max. Pumping Pressure(MPa) 10 11 11/13
Max.Theoretical Vertical Conveying Distance(m) 140 150 150
Max.Theoretical Horizontal Conveying Distance(m) 500 600 600
Max. Aggregate Diameter(mm) 20 20/30 30/40
Conveying Pipe Radius(mm) 100 100 125
Conveying Cylinder Bore X Piston Stroke(mm) Φ140×1000 Φ160×1200 Φ180×1200
Hydraulic Oil Tank Capacity(L) 240 370 370
Feeding Height(mm) 1100 1100 1100
Hopper Capacity(m3) 0.35 0.4 0.6
Power(kw) 37 45 45/56
Dimension(Length×Width×Height)(mm) 4000×1350×1550 4500×1750×1600 4600×1850×1770
Item HBT-50 HBT-60 HBT-80 HBT-90
Max. Theoretical  Throughput(m3/h) 50 60 80 90
Max. Pumping Pressure(MPa) 12/13 13/15/16 16 16/18
Max.Theoretical Vertical Conveying Distance(m) 150 190 200 220
Max.Theoretical Horizontal Conveying Distance(m) 600 800 1000 1200
Max. Aggregate Diameter(mm) 40/50 50 50 50
Conveying Pipe Radius(mm) 125/150 150 150 150
Conveying Cylinder Bore X Piston Stroke(mm) Φ180×1300 Φ200×1650 Φ200×1800 Φ200×1850
Hydraulic Oil Tank Capacity(L) 370 580 580 580
Feeding Height(mm) 1400 1420 1420 1420
Hopper Capacity(m3) 0.68 0.68 0.68 0.8
Power(kw) 75 90 110 110
Dimension(Length×Width×Height)(mm) 5200×2000×2260 6000×2160×2600 6300×2100×2250 6300×2100×2250

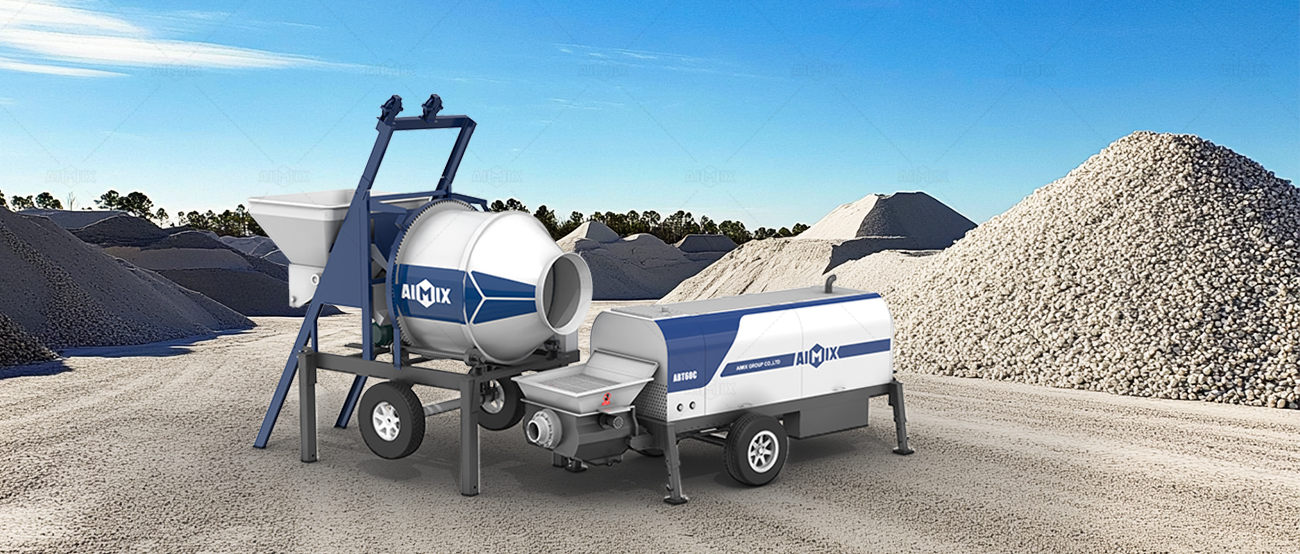

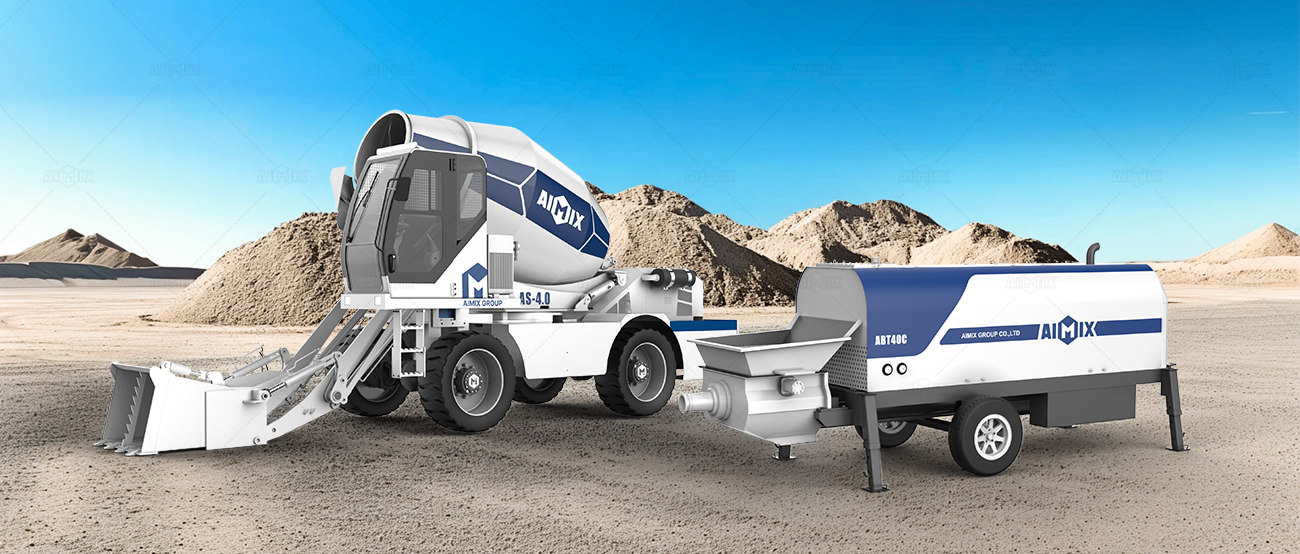

Mixer type concrete pump: it consists of concrete mixer and concrete pump. Not only can pump concrete, but also blend concrete, which is very efficient. Samely, there are two types for users selection: diesel type and electric type. You can check stationary concrete pump specifications here.

JBS40R diesel concrete mixer pump to Jordan

JBS40R concrete mixer pump Jordan
JBS40R concrete mixer pump Jordan

JBS40R diesel concrete mixer pump to Jordan
JBS40R diesel concrete mixer pump to Jordan

JBS40R mixer pump Jordan
JBS40R mixer pump Jordan

Model: JBS40-10-82R
Max. Theoretical Conveying Capacity: 40m3/h
Distribution valve type: S Valve
Diesel engine model: Weichai Duetz
Max. Theoretical Vertical Conveying Distance: 150m
Max. Theoretical Horizontal Conveying Distance: 600m
Max. Aggregate Diameter: Scree: 20-30mm

Our saleman and after-sales team do regular maintenance for JBS40R diesel concrete mixer pump to Philippines

JBS40R diesel concrete mixer with pump
JBS40R diesel concrete mixer with pump

JBS40R mixer pump with diesel engine
JBS40R mixer pump with diesel engine

JBS40R
JBS40R

JBS40-10-82R Diesel Concrete Mixer With Pump Philippines Construction Site

JBS40 electric concrete mixer pump to Bangladesh

cleaning balls
cleaning balls

JBS40 electric concrete mixer and pump
JBS40 electric concrete mixer and pump

main oil pump
main oil pump

Model: JBS40-JZC350
Max. Theoretical Conveying Capacity: 40m3/h
Distribution valve type: S Valve
Electrical Motor: 45kw
Max. Theoretical Vertical Conveying Distance: 100m
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Aggregate Diameter: Scree: 20-30mm

Boom pump: it has long concrete placing boom, which is suitable for high building construction, and it has strict requirement for terrain.
37m boom pump
37m boom pump


44m boom pump truck
44m boom pump truck


Item Unit KNL5206THB 30-4M KNL5231THB 37-5RZ KNL5340THB 44-5RZ
Max. Theor. output(high/low pressure) m3/h 66/111 66/111 75/125
Max. Theor. concrete output Pressure(high/low pressure) MPa 10/6 10/6 10/6
Rated working pressure MPa 32 32 32
Pumping frequency(high/low pressure) min-1 18/30 19/32 15/25
Hopper capacity L 600 600 600
Filling height mm 1200 1200 1400
Hydraulic system type Open loop Open loop Open loop
Distribution valve S valve S valve S valve
Oil cylinder dia.×stroke mm φ125×1400/1400 φ125×1400 φ140×1800
Concrete cylinder dia.×stroke mm φ230×1400/1400 φ230×1400 φ260×1800
Hydraulic oil cooling Air cooling Air cooling Air cooling
Recommended concrete slump cm 12~23 12~23 12~23
Max. aggregate dimension mm 40 40 40
Structure type 30-4M 37-5RZ 44-5RZ
Placing depth m 30 36.1 43.5
Horizontal distance m 26 32.6 40
Placing depth m 22 25.5 29.5
Slewing angle ±270° ±270° 540°
Pipe diameter mm 125 125 125
End hose length mm 3000 3000 3000
Chassis model mm EQ5200GSZ5DJ ZZ5231N521GE1 ZZ5347V524HE1
Wheelbase 5200 5200 4800+1400
Engine type mm YC6A270-50 MC07.31-50 MC11.40-50
Engine power 199kw 228kw 297kw
Oil tank cubage kW 400 400 400
Overall dimensions 10300x2350x3660 9840x2496x3870 11905x2500x3910
Oil tank volume 500 500 600
Control mode L Manual+remote control Manual+remote control Manual+remote control
Maximum water pressure 0.8 0.8 7
Pipe cleaning mode L Water cleaning/dry cleaning Water cleaning/dry cleaning Water cleaning/dry cleaning
50m pump truck
50m pump truck


58m concrete boom pump
58m concrete boom pump

Item Unit KNL5340THB 47-6RZ KNL5350THB 50-6RZ KNL5420THB 58X-6RZ
Max. Theor. output(high/low pressure) m3/h 75/125 75/125 108/183
Max. Theor. concrete output Pressure(high/low pressure) MPa 10/6 10/6 10/6
Rated working pressure MPa 32 32 34
Pumping frequency(high/low pressure) min-1 15/25 15/25 16/28
Hopper capacity L 600 600 600
Filling height mm 1400 1400 1400
Hydraulic system type Open loop Open loop Open loop
Distribution valve S valve S valve S valve
Oil cylinder dia.×stroke mm φ140×1800 φ140×1800 φ140×2100
Concrete cylinder dia.×stroke mm φ260×1800 φ260×1800 φ260×2100
Hydraulic oil cooling Air cooling Air cooling Air cooling
Recommended concrete slump cm 12~23 12~23 12~23
Max. aggregate dimension mm 40 40 40
Structure type 47-6RZ 50-6RZ 58-6RZ
Placing depth m 46.8 49.2 58
Horizontal distance m 42.6 45.3 54
Placing depth m 32.5 35.3 41.2
Slewing angle 540° 540° ±270°
Pipe diameter mm 125 125 125
End hose length mm 3000 3000 3000
Chassis model mm ZZ5347V524HE1 ZZ5356V524ME1 QL5420THBW2TDHY
Wheelbase 4800+1400 4650+1400 1850+4575+1370
Engine type mm MC11.40-50 MC11.40-50 6WG1-TCG51
Engine power 297kw 297kw 338kw
Oil tank cubage kW 400 400 400
Overall dimensions 12295x2550x4000 12230x2550x4000 14040x2500x4000
Oil tank volume 600 600 800
Control mode L Manual+remote control Manual+remote control Manual+remote control
Maximum water pressure 7 7 0.8
Pipe cleaning mode L Water cleaning/dry cleaning Water cleaning/dry cleaning Water cleaning/dry cleaning

Characteristics of station concrete pump

1. Dual pump and dual circuit open hydraulic system, makes simple system, long service life, high reliability, and it is convenient for fault judgement and exclusion.

2. Anti-pumping function, it is beneficial to exclude fault of block, and can stop for waiting materials.

3. Adopt advanced S distribution valve, can automatically compensate wear gap, which has good seal performance.

4. We use wear resistant alloy glasses plate and floating cutting cup, has long lifespan.

hydraulic system
hydraulic system

diesel engine
diesel engine

mechanical system
mechanical system

5. Automatic and centralized lubrication system, ensure the efficient lubrication during the function of the pump.

6. Our pump has remote control function, much more convenient operation.

7. All spare parts adopt national standard, has good interchangeability.

8. Cooling system adopts compulsory air cooled large radiator device, make sure the oil temperature is under 70, then it can make sure the hydraulic system of main engine is in normal working state.

9. Swing cylinder has buffer system, reduce the impact for hydraulic system and prolong the service life of the equipment.

Maintenance of stationary concrete pump for sale

1. When we design and install the pumping pipes, we should avoid designing s-valve and square pipes as much as possible.

2. Do not use pumping pipes with dimples on the surface, which can reduce efficiency of transporting concrete, and avoid blocking in the pipes.

3. In order to ensure that the machine can work continuously, and to ensure the quality of concrete watering, the intermittent time should not too long.

s-valve
s-valve

concrete pumping system
concrete pumping system

4. We have learned that the diameter of the aggregates will affect concrete transportation, so the diameter of aggregates should be strictly selected in according with the diameter of the pipes, otherwise, the concrete will be blocked in the pumping pipes.

5. In the beginning of delivering concrete, check the pumping pipes whether they are smooth. In the end of operation, clean the pipes immediately. The two points are the key for fixed concrete pump maintenance.

6. When concrete pump stationary is used for the first time, the speed of operation needs to slow down, after a period of time, the speed can be appropriately accelerated.

Stationary concrete pump price

Price is always an important issue people concerned. But price is not fixed, it can be affect by many factors, such as, shipment fee, types, configuration, spare part, etc. If you want to know what is the price of stationary concrete pumps for sale, you can mailto me: market@aimixgroup.com. Or leave your needs on my web page directly. You can look through the static concrete pump specifications and make sure which type you need, then ask us for quotes.
Different stationary concrete pump capacity has different price, if you don’t know which type fits your project, you can also leave us message, we will give you professional advice!

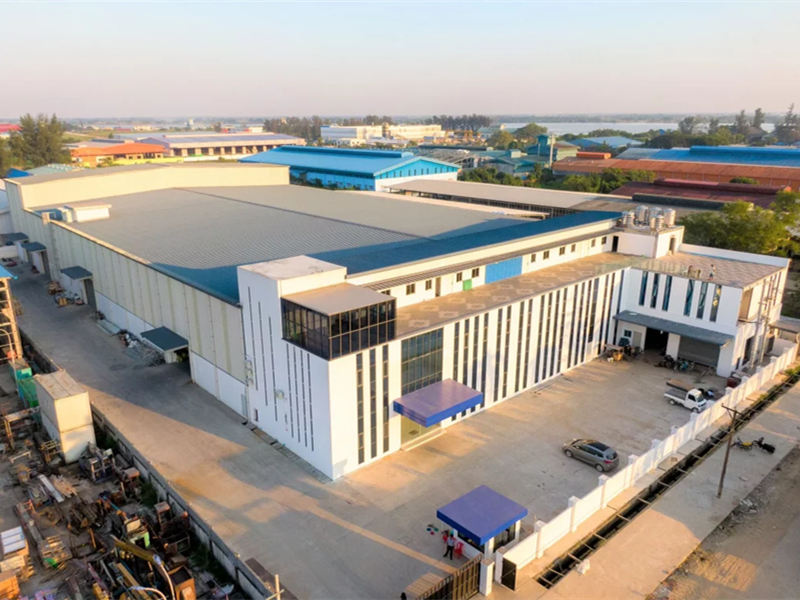

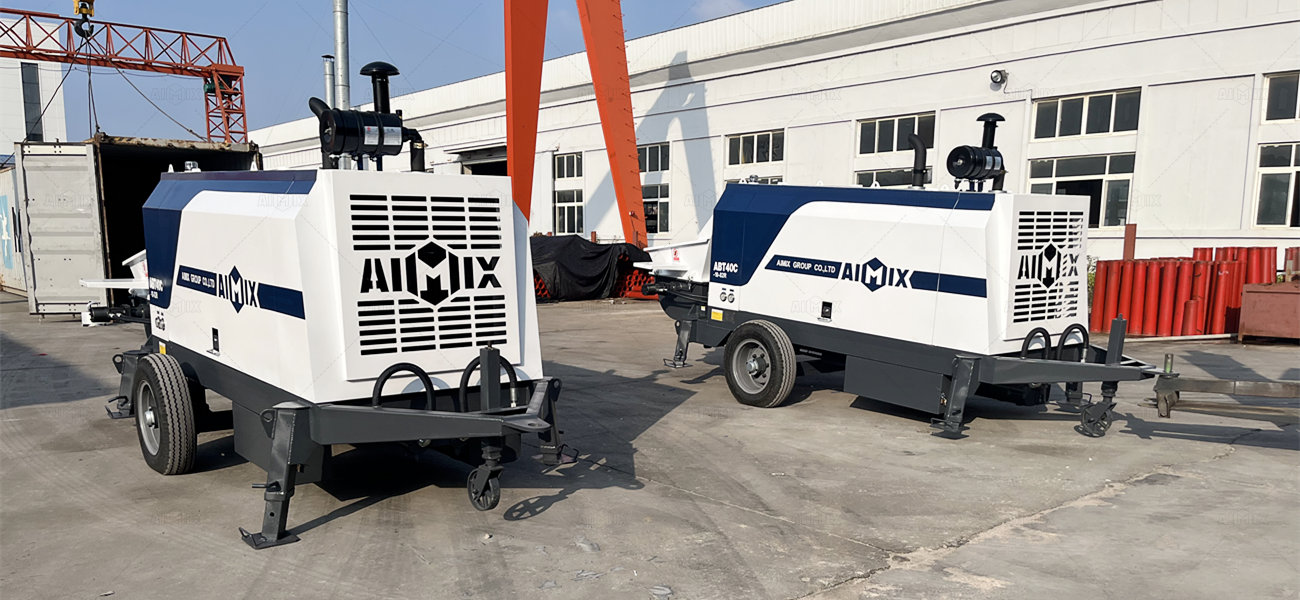

stationary concrete pump machine manufacturers
stationary concrete pump machine manufacturers

The best China static concrete pump manufacturers

With high-quality products, and reliable reputation, AIMIX machinery manufacturer is very famous at home and abroad. Static concrete pump for sale is just one of the products we produce, and we also have the technology of manufacturing concrete mixing plant, asphalt mixing plant, automatic block machine and dry motor plant.

What’s more, our static concrete pumps have been exported to more than 50 countries including Russia, Jordan, Kuwait, Uganda, Kenya, Sri Lanka, Bangladesh, Indonesia, Ethiopia, Pakistan, Korea, Uzbekistan, Ecuador, Kazakhstan, Philippines, Tanzania, Fiji and Australia, and the quality of our pumps is reliable and can realize stable performance. Since 2001, our company has received the honor of Chinese outstanding enterprise, quality trustworthy enterprise and China excellent enterprise. In 2001, we got certificate of ISO9001:2000.

AIMIX Pakistan
AIMIX Pakistan

AIMIX Philippines
AIMIX Philippines

AIMIX Russia
AIMIX Russia

AIMIX Sri Lanka
AIMIX Sri Lanka

AIMIX Uzbekistan
AIMIX Uzbekistan

AIMIX Indonesia
AIMIX Indonesia

Last year, we have set up local based center in Pakistan, Philippines, Indonesia, Bangladesh, Uzbekistan, Sri Lanka, etc, if you are from there, contact us, we will give you prompt help. In addition, if your small stationary concrete pump has some problems, we will send our after-sales team to your site and help you out! What are you waiting for? Learn more right now!
