What is a cone crusher for sale? It is typically used in the secondary and tertiary stages, following primary crushing by jaw crusher or gyratory crusher. After these initial processes, the material size has already been reduced significantly, ensuring that oversized materials are minimal. This makes cone crushers ideal for further reducing material size to meet specific requirements.
- 【Feeding Size】: 65-300mm
- 【Cone Crusher Output Size】: 5 -10 mm; 10-40 mm
- 【Capacity】: 20 -1000T/h
- 【Applicable materials】: limestone, granite, pebbles, basalt, dolomite, bluestone, calcite, iron ore, etc
- 【Applicable Fields】: primarily used in mining, quarrying, and construction to efficiently crush and size a variety of materials, including hard rocks and aggregates.

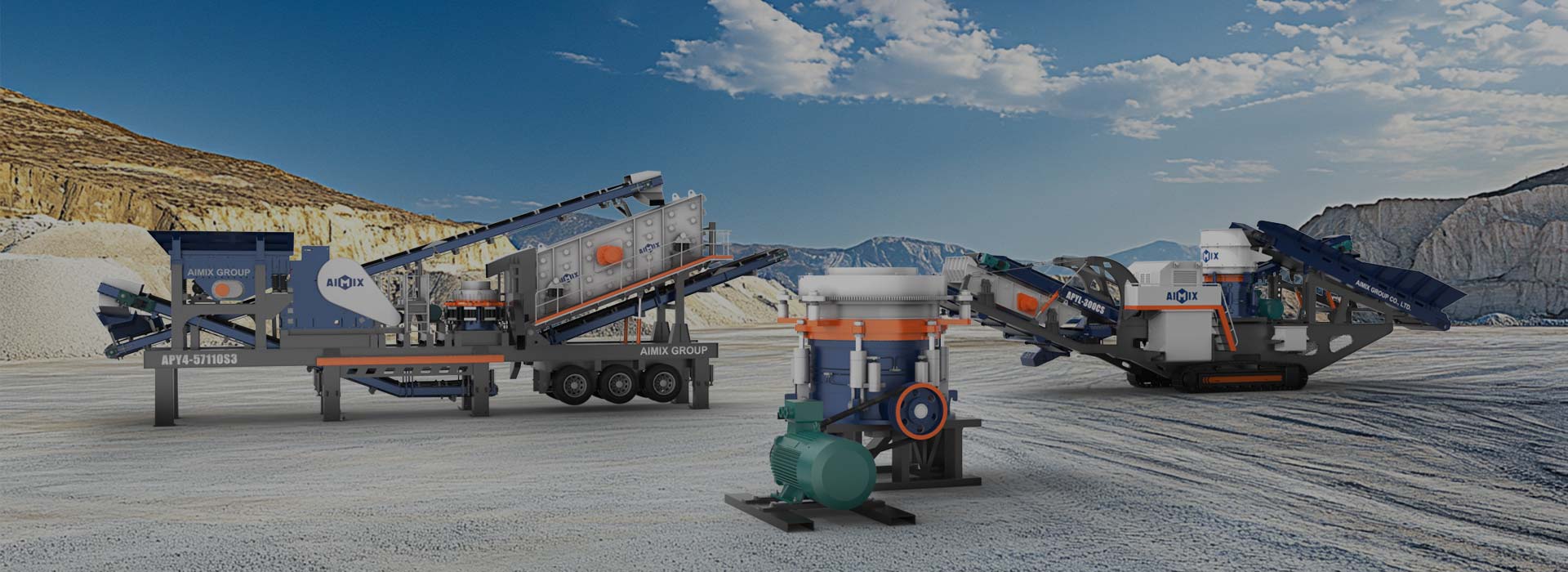

Cone crushers come in various models, differentiated by their crushing principles and the particle sizes they produce. AIMIX Group offers a range of advanced options, including single cylinder hydraulic cone crusher, multi-cylinder hydraulic cone crusher, spring cone crusher and compound cone crusher. Continue reading for an in-depth overview of each model’s unique features, applications and specifications.
Four Types of Cone Crusher

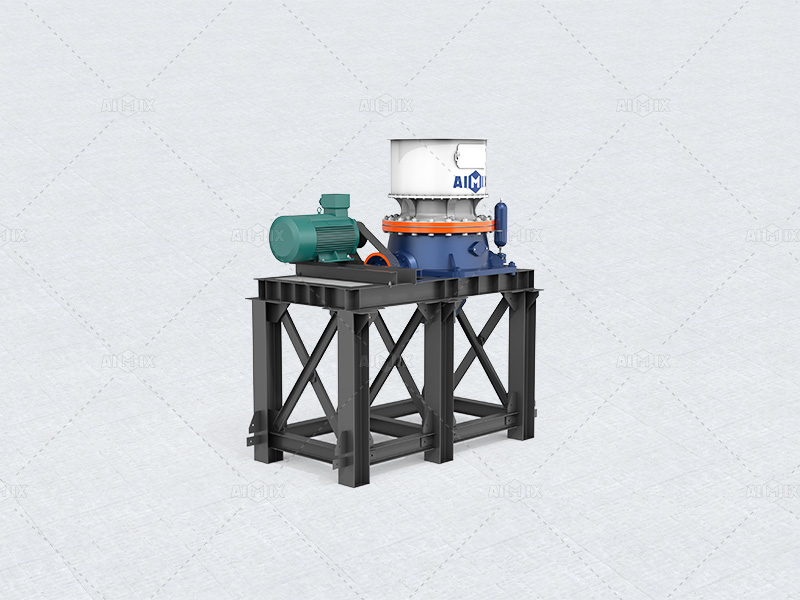

APC-D Single Cylinder Hydraulic Type Cone Crusher
This kind of cone crusher for sale features a single hydraulic cylinder that simplifies operations and provides precise control over the crushing process. It is known for its strong crushing capacity, making it ideal for secondary and tertiary crushing in various applications, including mining, metallurgy, and construction.
- Advanced hydraulic technology and hydraulic adjustment discharge mouth simplify the structure and reduce the weight.
- Thin-oil lubrication, reliable and advanced, improves the service life.
- Low failure rate and low production cost.
- Advanced manufacturing and guaranteed safety.
- Discharge port adjustment is convenient.
- Reduce the replacement time of wearing parts.

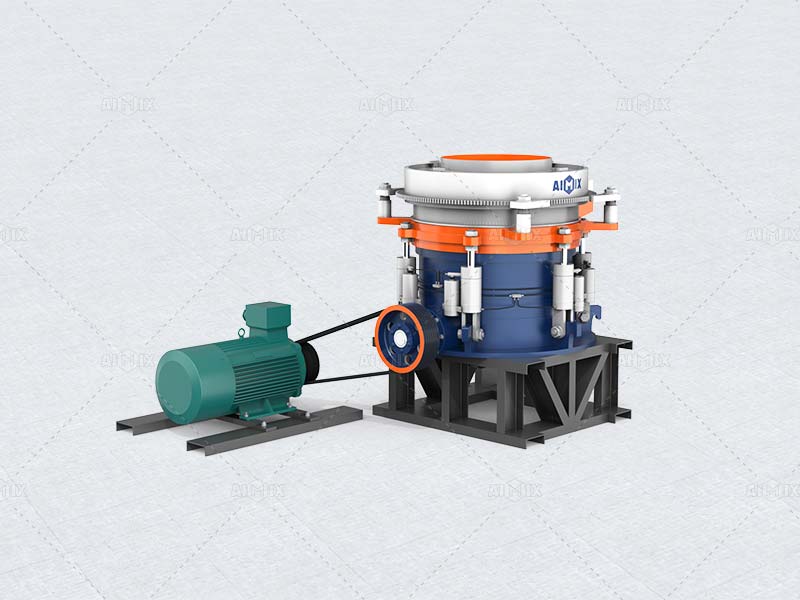

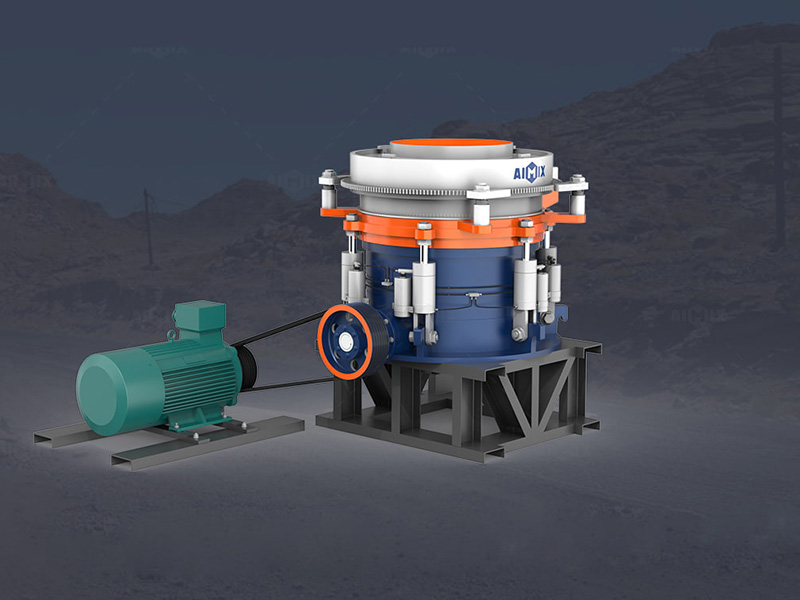

APC-M Multi-cylinder Hydraulic Type Cone Crusher
- The Multi-cylinder hydraulic cone crusher for sale is a robust and efficient machine designed for high-capacity crushing tasks.
- Its innovative multi-cylinder configuration enables it to withstand substantial crushing pressures, ensuring optimal performance in large-scale cone crusher operation.
- The unique design not only enhances stability and wear resistance but also integrates advanced automated control systems, simplifying both operation and maintenance.
- Our multi-cylinder cone crusher is widely used in mining, metallurgy, sand, cement, and other operations. It is suitable for all kinds of metal ore and non-metal ore, medium and fine crushing and fine crushing operations, especially in fine and ultra-fine crushing operations performance is more excellent.
Characteristics Of Multi-Cylinder Rock Cone Crusher
Special Structure And Good Crushing Effect
The combination of high-performance crushing chamber type and high crushing frequency makes the processing capacity of the small cone crusher for sale greatly improved, and because of the lamination crushing principle, the needle shape of broken products is greatly reduced.
High Degree of Intelligence
AIMIX multi-cylinder cone crusher adopts PLC+ touch screen automatic control system to ensure the safe operation of the equipment, with the characteristics of high intelligence, high accuracy of operation, hydraulic insurance, good buffer performance, and good safety performance.
Green and Environmental
The multi-cylinder hydraulic cone crusher machine adopts multiple sealing protection device systems, its sealing performance is good, and the configuration of dust removal, silencing device, better to ensure the cleanliness of lubricating oil and a good workshop environment.
Reliable Quality
Our cone crusher for sale is made of high-quality wear-resistant raw materials cast, liner and other wearing parts less wear, so it has features of stable and reliable operation, low failure rate, long service life, users can save maintenance time, as well as maintenance costs.

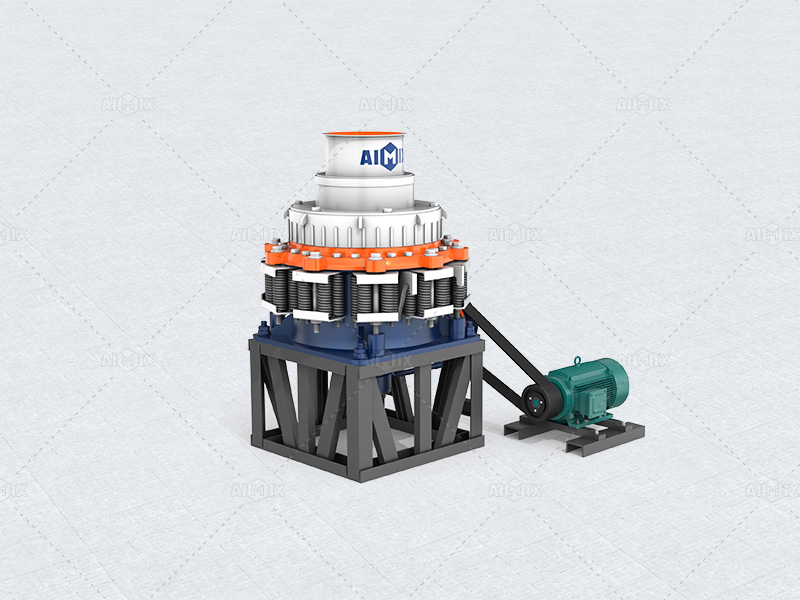

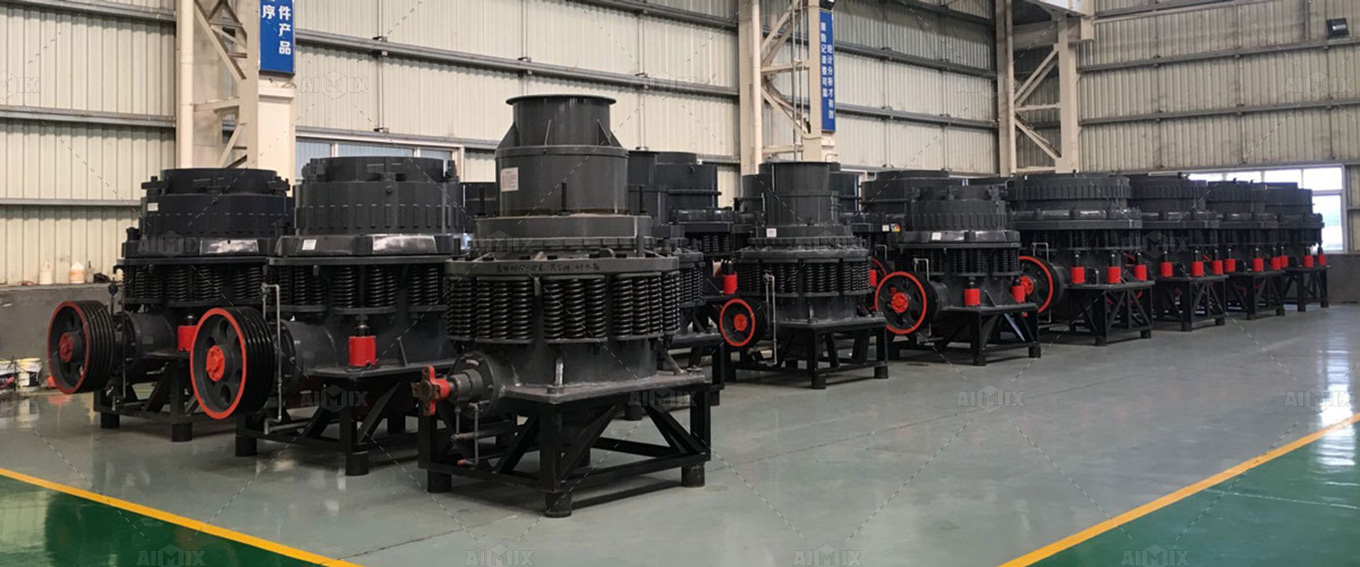

APC-Y Spring Type Cone Crusher Machine
- The spring one is one of the oldest and most commonly used cone crusher types. It is equipped with a spring mechanism that protects the stone cone crusher from overloads.
- The low operational cone crusher cost make it an ideal choice for users with budget constraints, as both manufacturing and maintenance expenses are relatively affordable.
- With excellent adaptability, th APC-Y rock crusher cone for sale near me can handle various materials, especially medium-hard ores.
- Additionally, it provides convenient adjustability, allowing quick chamber changes by simply adjusting the spring height to meet different production requirements.
| Model | Crushing cone diameter (mm) | Cavity type | Maximum feed size (mm) | Adjustment range of discharge port (mm) | Processing capacity (t/h) | Mixing power (km) | Dimension (L×W×H) (mm) | Weight (t) |
|---|---|---|---|---|---|---|---|---|
| APC-600Y | 600 (2’ft) | B | 65 | 12-25 | 12-25 | 30 | 1740×1225×1940 | 5.5 |
| D | 35 | 3-13 | 5-23 | |||||
| APC-900Y | 900 (2’ft) | B | 115 | 15-50 | 50-90 | 55 | 1990×1640×2380 | 10.2 |
| Z | 60 | 5-20 | 20-65 | |||||
| D | 40 | 3-13 | 15-50 | |||||
| APC-1200Y | 1200 (2’ft) | B | 145 | 20-50 | 110-200 | 110 | 2805×2300×2980 | 25.5 |
| Z | 100 | 8-26 | 50-150 | |||||
| D | 50 | 3-15 | 18-105 | |||||
| APC-1750Y | 1750 (2’ft) | B | 215 | 25-60 | 280-480 | 160 | 3610×2950×4185 | 50.5 |
| Z | 185 | 10-30 | 115-320 | 51 | ||||
| D | 85 | 5-15 | 75-230 | 52 | ||||
| APC-2200Y | 2200 (2’ft) | B | 300 | 30-60 | 590-1000 | 260-280 | 4790×3430×5080 | 84 |
| Z | 235 | 10-30 | 200-580 | 85 | ||||
| D | 110 | 5-16 | 120-340 | 85 |

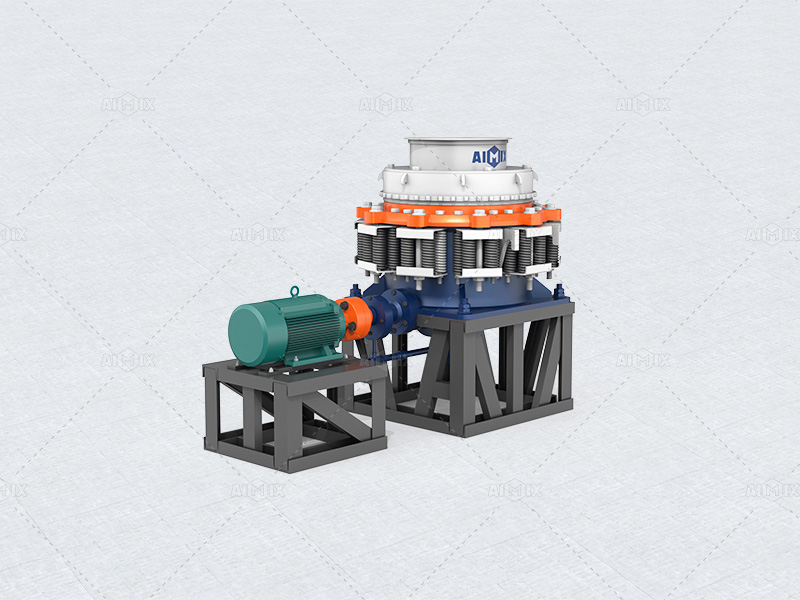

APC-C Compound Type Cone Crushing Machine
- The APC-C Compound Type cone crusher in AIMIX, also known as the Symons cone crusher, combines the benefits of spring and hydraulic systems to deliver enhanced crushing performance.
- With a high crushing ratio and substantial production capacity, it is well-suited for large-scale operations.
- It is capable of processing materials of varying hardness, such as shale, bluestone, and metal ores, making it ideal for use in industries like metallurgy, road construction, and building materials.
- Its efficient design also simplifies maintenance and reduces downtime, ensuring higher productivity and finer output quality.
| Model | Crushing cone diameter （mm） | Cavity | Max.feed size (mm) | Outlet adjustment range (mm) | Capacity (t/h) | Power (kW) | Dimensions L×W×H(mm) | Weight (t) |
|---|---|---|---|---|---|---|---|---|
| APC-30C | 600 (2'ft) | C | 95 | 10-38 | 20-75 | 30 | 2195×1158×1650 | 5.3 |
| F | 72 | 6-38 | 18-60 | 30 | 2195×1158×1650 | 5.3 | ||
| APC-75C | 900 (3'ft) | C | 150 | 25-38 | 59-129 | 75 | 2660×1640×2240 | 9.9 |
| M | 150 | 13-38 | 45-91 | 75 | 2660×1640×2240 | 9.9 | ||
| F | 85 | 45191 | 27-90 | 75 | 2660×1640×2240 | 9.9 | ||
| APC-110C | 1000 (3.3'ft) | C | 160 | 13-31 | 80-235 | 110 | 2760×1954×2255 | 10.8 |
| M | 115 | 45224 | 65-150 | 110 | 2760×1954×2255 | 10.8 | ||
| F | 80 | 45163 | 50-95 | 110 | 2760×1954×2255 | 10.8 | ||
| APC-132C | 1200 (3.75'ft) | C | 180 | 13-38 | 115-260 | 132 | 2850×2365×2340 | 15.5 |
| M | 130 | 45224 | 100-175 | 132 | 2850×2365×2340 | 15.5 | ||
| F | 90 | 45218 | 80-140 | 132 | 2850×2365×2340 | 15.5 | ||
| APC-160C | 1295 (4.25'ft) | C | 200 | 16-51 | 150-390 | 160 | 2960×2450×3155 | 23 |
| M | 150 | 13-25 | 115-210 | 160 | 2960×2450×3155 | 23 | ||
| F | 102 | 45218 | 90-160 | 160 | 2960×2450×3155 | 23 | ||
| APC-220C | 1400 (4.5'ft) | C | 215 | 19-51 | 200-420 | 220 | 3430×2690×3380 | 27 |
| M | 160 | 16-38 | 155-220 | 220 | 3430×2690×3380 | 27 | ||
| F | 115 | 13-22 | 150-230 | 220 | 3430×2690×3380 | 27 | ||
| APC-250C | 1650 (5'ft) | C | 235 | 22-64 | 240-570 | 250 | 3940×2954×3770 | 37.8 |
| M | 175 | 19-38 | 215-320 | 250 | 3940×2954×3770 | 37.8 | ||
| F | 130 | 13-25 | 180-275 | 250 | 3940×2954×3770 | 37.8 | ||
| APC-315C | 1800 (5.5'ft) | C | 267 | 22-64 | 330-655 | 315 | 4310×3250×4530 | 44.3 |
| M | 203 | 16-25 | 230-330 | 315 | 4310×3250×4530 | 44.3 | ||
| F | 140 | 13-22 | 185-340 | 315 | 4310×3250×4530 | 44.3 | ||
| *Note: Technical parameters are subject to change without notice. C type: coarse crushing cavity; M type: medium crushing cavity; F Type: fine crushing cavity; 1. The output is calculated based on medium-hard materials and a bulk density of 1.6t/m3. 2. The power is calculated based on medium-hard materials and an altitude below 1000 meters. 3. It can be made into an assembly module structure to meet the requirements of tunnels and transportation. | ||||||||
With diverse cone-type crushers’ choices, you can select a suitable one to use. However, how do you use a cone crusher? You can only use the mining cone crusher for your projects, also you can put it into a crushing plant, such as you can add a vibrating screen, which will be much more efficient. If the mini cone crusher is used to treat the raw stone directly from your site, the raw stone must be pre-screened to remove the super diameter stone from the raw material. Next, I will show you some crushing plant solutions that adopt stone cone crusher machine.
Cone Crusher Plant Solutions
We understands that every project is unique. Thus, we will offer you customizable crushing solutions tailored to specific requirements, including different sizes and configurations. Nowadays, AIMIX can provide two types of plant solutions: stationary cone crushing plant and mobile cone crusher line.

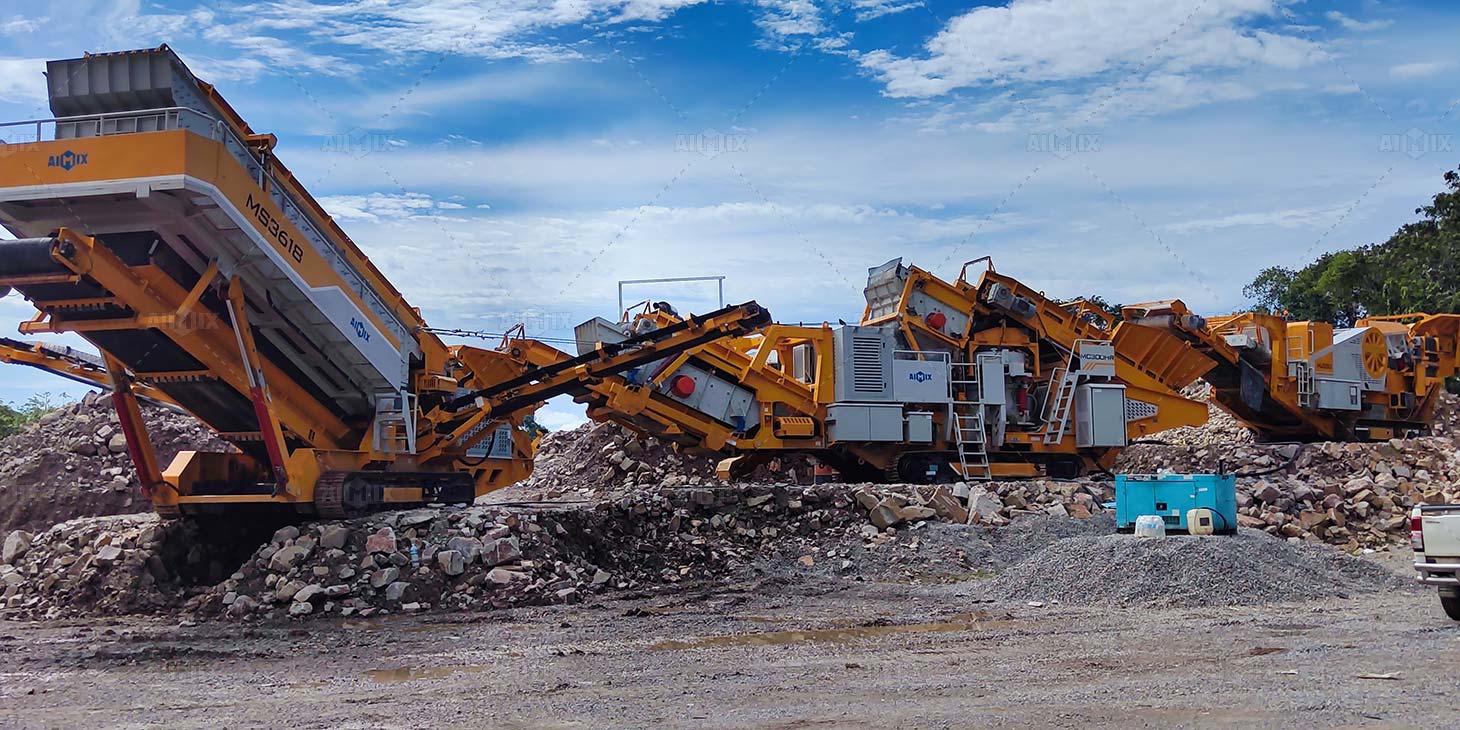

Mobile Cone Crusher Solution

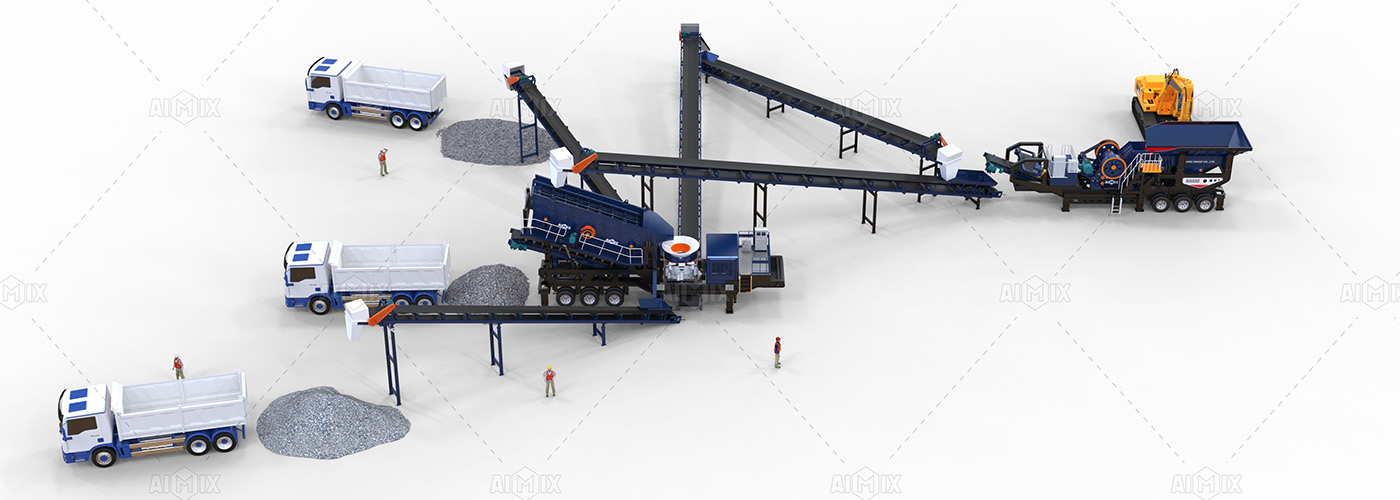

First, I introduce you the hottest mobile crushing solution in AIMIX Group now. It is a multifunctional 4-in-1 mobile crushing plant that integrates multiple functions into a single unit. It combines a cone crusher, a jaw crusher, a screening system, conveyor, and an optional integrated feeding unit, allowing for a complete crushing process in one mobile system. The mobile crushing plant is easy to move, and flexible to transition, and modular design can greatly save assembly and installation time. Thus, it is ideal for you who seek efficiency, versatility, and simplified operation.

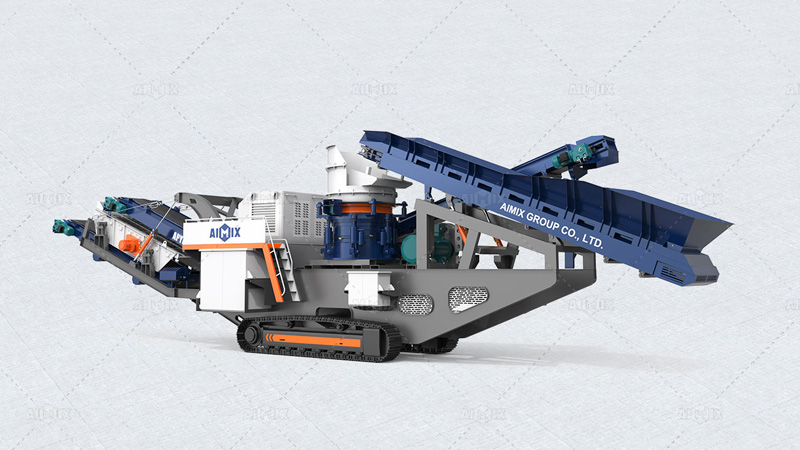

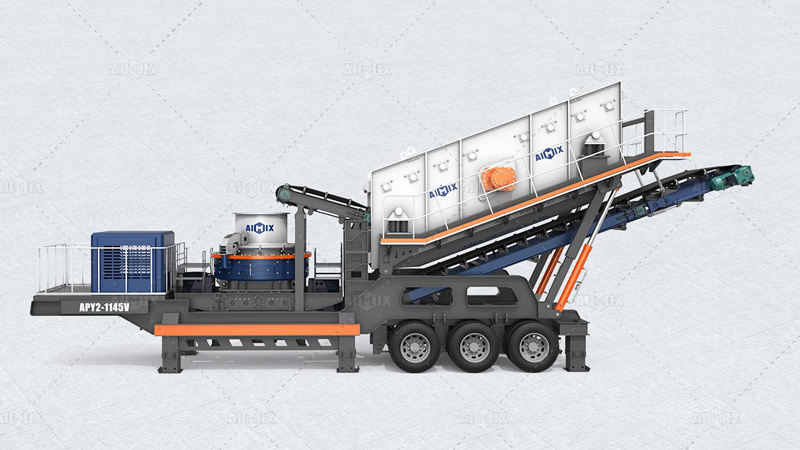

Apart from it, you also can choose a standalone mobile cone crusher, wheeled type or crawler type, to achieve your crushing operations. Whether you opt for a standalone mobile cone crusher or a multifunctional 4-in-1 plant, you’ll benefit from high performance, mobility, and cost savings, making it a perfect choice for modern construction and mining projects.
Stationary Crushing Solution
A stationary cone crusher plant is designed for long-term crushing operations at a fixed site. It provides high efficiency and stability for crushing hard materials such as granite, basalt, and metal ores. Unlike mobile units, the stationary cone crusher plant is typically used in large-scale projects where consistent output is needed over extended periods. It also needs to cooperate with other kinds of equipment, like jaw cruhsher, impact crusher, screen to form a crushing line.
The above stationary and mobile crushing solutions are widely applied in various projects across the globe, particularly in the production of high-quality aggregates. They can efficiently process different types of hard rocks, such as granite and basalt, ensuring that the produced aggregates meet the strict standards required for construction and road building. Next, we will focus on the unique advantages of cone crushers for aggregate production, along with their successful applications.
Cone Crushers Application in Aggregate Production
Cone crushers are a cornerstone in the aggregate production process, known for their efficiency in crushing hard and abrasive materials. Below are some of the key advantages of using cone crushers in aggregate production:
- High Efficiency: Fine cone crusher provides consistent, high-capacity output, ideal for large-scale projects.
- Precise Grain Shape: They produce uniform, well-shaped aggregates, essential for durable construction.
- Crushing Versatility: AIMIX cone crushers handle a wide range of materials, reducing equipment needs.
- Durability & Low Maintenance: Designed for long-term use with minimal maintenance and easy hydraulic adjustments.

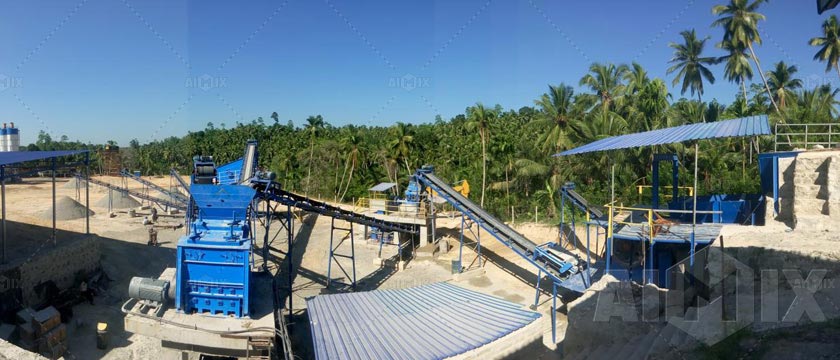

The standard cone crusher has been widely used in aggregate production projects in many countries. You can learn more about the case details below.
- Capacity: 150 tons per hour
- Feed Size: Up to 400 mm
- Output Size: 0-40 mm aggregates
- Key Equipment: Multi-cylinder hydraulic cone crusher, vibrating feeder, jaw cruhsher, belt conveyor, and vibrating screen.
- Case Overview: In a major quarry project in the Philippines, AIMIX’s multi-cylinder hydraulic cone crusher was used to process river stone. The cone crusher capacity can reach 500 tons per hour, producing high-quality aggregates ideal for raw materials of concrete batching plants.
- Capacity: 300 tph
- Feed Size: Up to 300 mm
- Output Size: 0-30 mm crushed stone
- Equipment: tracked cone crusher, vibrating screen, and mobile jaw crusher for pre-crushing.
- Case Details: AIMIX’s stationary cone crushing solution was chosen for a large-scale road construction project in Malaysia. The project required consistent production of well-shaped aggregates through cobbles crushing for durable road surfaces..
- Capacity: 400 tons per hour
- Feed Size: Up to 450 mm
- Output Size: 0-50 mm aggregate for concrete and asphalt.
- Equipment: Single-cylinder hydraulic cone crusher, vibrating screen, jaw crusher, belt conveyor, and dust removal system.

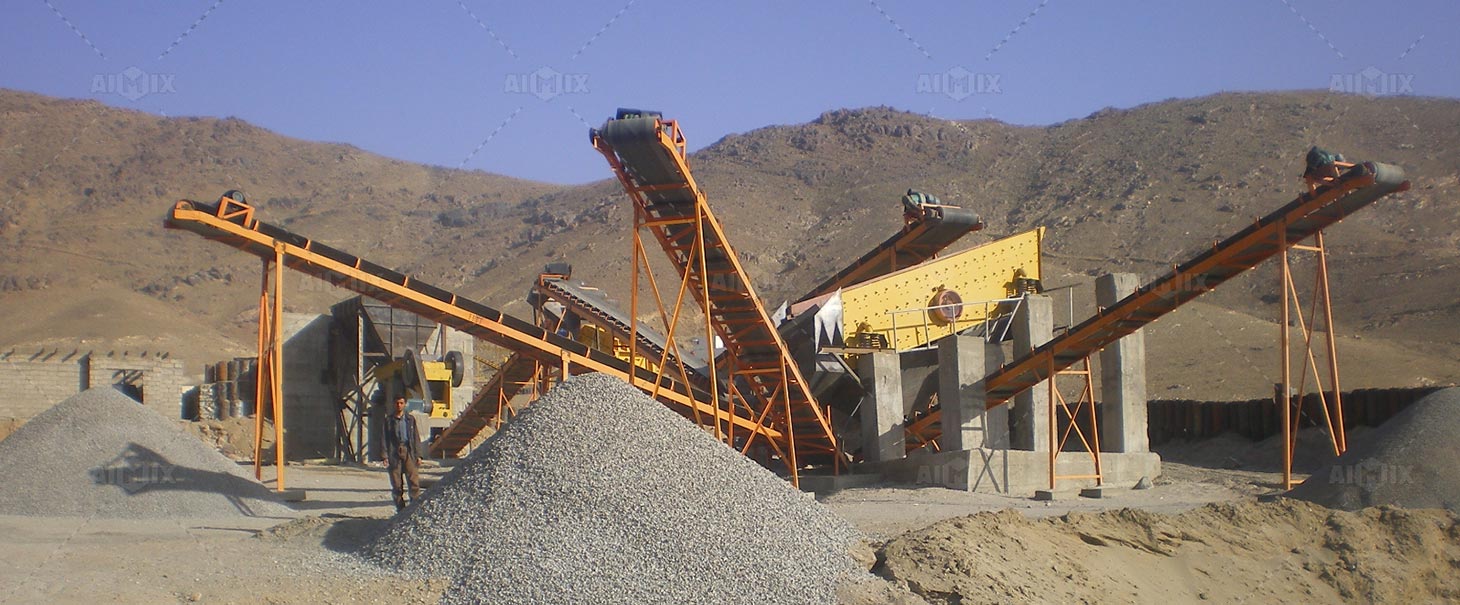

- Case Overview: In Tanzania, the cone crushing solution played a crucial role in the production of aggregates for multiple infrastructure projects, including highways and urban development. The single-cylinder hydraulic cone crusher can process large feed sizes and deliver high-quality output was a significant advantage in meeting the region’s growing construction demands..
Are you ready to use a cone crusher for your stone crushing business? If ready to invest, you maybe want to know how much it costs to invest in such a crushing plant for stone. Next, I will introduce you the cone crusher price details.
How Much Does A Cone Crusher Cost?
The price of cone crusher in AIMIX Group can vary widely based on several factors, including the model, capacity, features, and any additional customizations. Besides, the prices in different cone crusher manufacturers are also various. Here I can explain the stone crusher price details in our company as follows:
- If you need a standalone cone crusher machine, its price ranges from $26000 to $450000;
- Otherwise, if you need standalone mobile type, the mobile cone crusher machine price is at least $620000;
- If you need to cuztomized a crushing line for project, it is better to consult our sales manager for for the most up-to-date pricing and options tailored to your specific needs.
How Does A Cone Crusher Work?
1. The motor drives the eccentric sleeve to rotate through the transmission device, and the moving cone rotates and oscillates under the forced action of the eccentric shaft sleeve.
2. The section of the moving cone close to the static cone becomes the crushing chamber, and the material is crushed by the multiple extrusion and impacts of the moving cone and the static cone.
3. When the moving cone leaves the section, the material that has been broken to the required size falls under the action of its own gravity and is discharged from the bottom of the cone.
Here is a video about how cone crusher works that can better help you understand the hydraulic cone crusher working principle.
Cone Crusher VS Jaw Crusher
Jaw cone crusher are the two types of crushers commonly used in the crushing plant. What is the main difference between jaw and cone crusher? Here is a simple analysis of them. You can check for references when choosing a crusher machine for sale.
| Cone Crusher | Jaw Crusher | |
|---|---|---|
| Crushing Stage | used as the secondary crusher or three-stage crusher machine | used as a primary crusher and second-class crusher |
| Crushing Principle | adopting the extrusion process between the moving jaw plate and the static jaw plate | adopting the extrusion process between the grinding wall and the crushing wall |
| Adapt To Different Material | not suitable for crushing viscous materials containing moisture. | dealing with materials with high moisture content and high viscosity without blocking |
| Feeding Way | full load material, directly feeding materials without vibration feeder. | even material feeding, not full, materials in the jaw crusher chamber not exceed 2/3 of the crushing chamber height |
| Advantages | high productivity, less power consumption, work more stability, small vibration crushing ratio, product granularity is more uniform | simple structure, low manufacturing cost, convenient maintenance, small machine height, easy to configuration |
Based on the comparison, you can choose a suitable one according to requirements. In addition, the jaw crusher and cone crusher can cooperate. The matching of them is based on the crushing segmentation. Customers should consider whether the particle size of the jaw crusher can enter the cone crusher to form secondary crushing. If you wanna get a customized scheme according to your project, please contact us for solutions! Leave your basic requirements in the following form, or WhatsApp us right now! We will send you solutions in 6 hours.
