The jaw crusher for sale is a powerful crushing machine used primarily in the mining, construction, and recycling industries for crushing various materials, including rocks, ores, and concrete. With its simple design, high crushing capacity, and user-friendly operation, AIMIX jaw crushers stand out as the ideal crushing solution for your material processing needs.
- 【Feeding Size】: ≤ 1000mm
- 【Output Size】: 15 – 300mm
- 【Capacity】: 50 – 800T/H
- 【Crushing materials】: Quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
- 【Applications】: Widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc.
Whether you need to crush hard rock, pebbles, recycle concrete, or process aggregate, it is necessary to equip with a high quality jaw crusher machine. The processed finished products have characteristics of uniform particle size, high content of three-dimensional finished products, and high sales of finished products, which can meet the high-standard material requirements in the construction field.
If you are a beginner and do not know about jaw crusher machines, tell us your raw material characteristics, finished product requirements, site conditions, production budget, hourly production, and other requirements, we have professional engineers to equip you with a suitable model at a reasonable price. Next, let’s see the types of jaw crusher we can supply. Learn more about each jaw crusher specification and application.
Type of Jaw Crusher for Sale – Single Equipment
APJ-E jaw crusher for sale is suitable for crushing various hardness materials such as rocks, ores, slag, concrete and construction waste. Among the three types of single-machine, it is the most clients’ choice. It features two stone crusher jaws, one fixed and one moving, which crush the material as they close together. Typically, the APJ-E jaw crushing machine has a simpler design and is more basic in terms of features.
Model | Feed opening (mm) | Max feeding size(mm) | Output size(mm) | Capacity(t/h) | Power(kw) | Overal dimension(mm) | Weight(t) |
---|---|---|---|---|---|---|---|
APJ-1525E | 150×250 | 130 | 15-45 | 1-4 | 5.5 | 896×745×935 | 0.8 |
APJ-2540E | 250×400 | 210 | 20-80 | 5-20 | 15 | 1450×1315×1296 | 2.8 |
APJ-4060E | 400×600 | 340 | 40-100 | 16-60 | 30 | 1565×1732×1586 | 6.7 |
APJ-5075E | 500×750 | 425 | 50-100 | 40-110 | 55 | 1890×1916×1870 | 11.7 |
APJ-6090E | 600×900 | 500 | 65-180 | 80-180 | 55-75 | 2305×1840×2298 | 16 |
APJ-7510E | 750×1060 | 630 | 80-180 | 110-320 | 90-110 | 2450×2472×2840 | 28 |
APJ-8010E | 800×1060 | 680 | 100-200 | 140-340 | 90-110 | 2610×2556×2800 | 30 |
APJ-8710E | 870×1060 | 720 | 170-270 | 180-360 | 90-110 | 2260×2556×2800 | 31.5 |
APJ-9012E | 900×1200 | 750 | 95-225 | 220-450 | 110-132 | 3335×3182×3025 | 49 |
APJ-1012E | 1000×1200 | 850 | 125-280 | 280-550 | 110-132 | 3435×3182×3025 | 52 |
APJ-1215E | 1200×1500 | 1000 | 150-300 | 400-800 | 160-220 | 4200×3732×3843 | 101 |
The European jaw crusher is an advanced version of the ordinary APJ-E jaw crusher, designed with improvements for efficiency and performance. Also, European jaw crusher machine price is a little expensive than ordinary ones.
The best jaw crusher features a more complex structure, often including a larger feed opening and a more reliable adjustment system. It provides higher throughput and better crushing efficiency due to its optimized design. In addition, it is made from higher-strength materials to extand its life span.
These advantages of jaw crusher european type make it also favouriate among clients. Therefore, If you are in the mining or construction industry needing efficient and durable jaw crusher machines, choose this European APJ-V series jaw crushers for sale.
Model | Feed opening (mm) | Max feeding size(mm) | Output size(mm) | Capacity(t/h) | Power(kw) | Overal dimension(mm) | Weight(t) |
---|---|---|---|---|---|---|---|
APJ-80V | 510×800 | 420 | 40-175 | 65-220 | 75 | 2500×1750×1950 | 7.5 |
APJ-100V | 760×1000 | 640 | 70-200 | 150-350 | 90-110 | 3100×1980×2490 | 20 |
APJ-106V | 700×1060 | 600 | 70-200 | 150-400 | 110 | 3450×1900×2490 | 13.5 |
APJ-110V | 850×1100 | 720 | 70-200 | 190-450 | 160 | 3750×2280×2880 | 25 |
APJ-125V | 950×1250 | 800 | 100-250 | 290-500 | 160 | 4870×2850×3570 | 36.7 |
APJ-140V | 1070×1400 | 900 | 125-250 | 350-550 | 200 | 5100×3050×3790 | 45.3 |
APJ-145V | 1100×1400 | 930 | 125-275 | 400-650 | 200 | 5300×3150×3890 | 53.8 |
APJ-160V | 1200×1600 | 1000 | 150-275 | 500-800 | 250 | 5500×3250×3990 | 68.6 |
The fine jaw crush type is a specialized equipment to crush materials to a finer size. It has a narrower and deeper crushing chamber to ensure more efficient reduction of material size.
This kind of jaw crusher size output ranges from 18mm to 90mm. Thus, the fine jaw crusher for mining is more suitable for secondary and tertiary crushing.
Generally, it is ideal for industries requiring finely crushed materials, such as in the production of sand, gravel, and fine aggregates for construction.
Model | Feed opening (mm) | Max feeding size(mm) | Output size(mm) | Capacity(t/h) | Power(kw) | Overal dimension(mm) | Weight(t) |
---|---|---|---|---|---|---|---|
APJ-1575X | 150×750 | 120 | 18-48 | 8-25 | 15 | 1380×1658×1025 | 3.5 |
APJ-2575X | 250×750 | 210 | 25-60 | 13-35 | 30 | 1545×1667×1330 | 5 |
APJ-2510X | 250×1000 | 210 | 25-60 | 16-52 | 30-37 | 1530×1992×1380 | 6.5 |
APJ-2512X | 250×1200 | 210 | 25-60 | 20-61 | 37-45 | 1900×2192×1430 | 8.8 |
APJ-3013X | 300×1300 | 250 | 20-90 | 25-95 | 55-75 | 1750×2320×1724 | 12.6 |
In fact, the jaw crusher equipment can not only be used alone, but also combined with other kinds of crushing equipment to achieve a more efficient production process. You can combine primary jaw crusher for sale with impact crusher, cone crusher and other equipment to form a crushing production line to improving the overall crushing effect and production capacity. Next, let’s explore take a deeper look at the application of jaw crusher in crushing production line.
Jaw Crusher Application in Crushing Plants
Stationary Crushing Plant Working in El Salvador
- Raw Materials: granite
- Capacity: 50-80TPH
- Output Size: 0-10mm; 10-20mm; 20-30mm
- Configurationas: jaw crusher and cone crusher
- Application Field: Aggregates Production Sale
Jaw Crusher and Impact Crusher For Limestone Crushing in Tanzania
- Raw Materials: limestone
- Capacity: 100-120TPH
- Output Size: 5-10mm; 15-25mm; 25-30mm
- Configurationas: industrial jaw crusher, impact crusher, screens, etc.
- Application Field: Aggregates Production Sale
Jaw Crusher Plant Working in the Philippines
- Raw Materials: river stone
- Capacity: 30-50PTH
- Output Size: Sand, 3/8, 3/4, G1,G2
- Configurationas: primary jaw crusher, secondary jaw crusher, screens, etc.
- Application Field: Produced Aggregates as the raw material of concrete batching plant

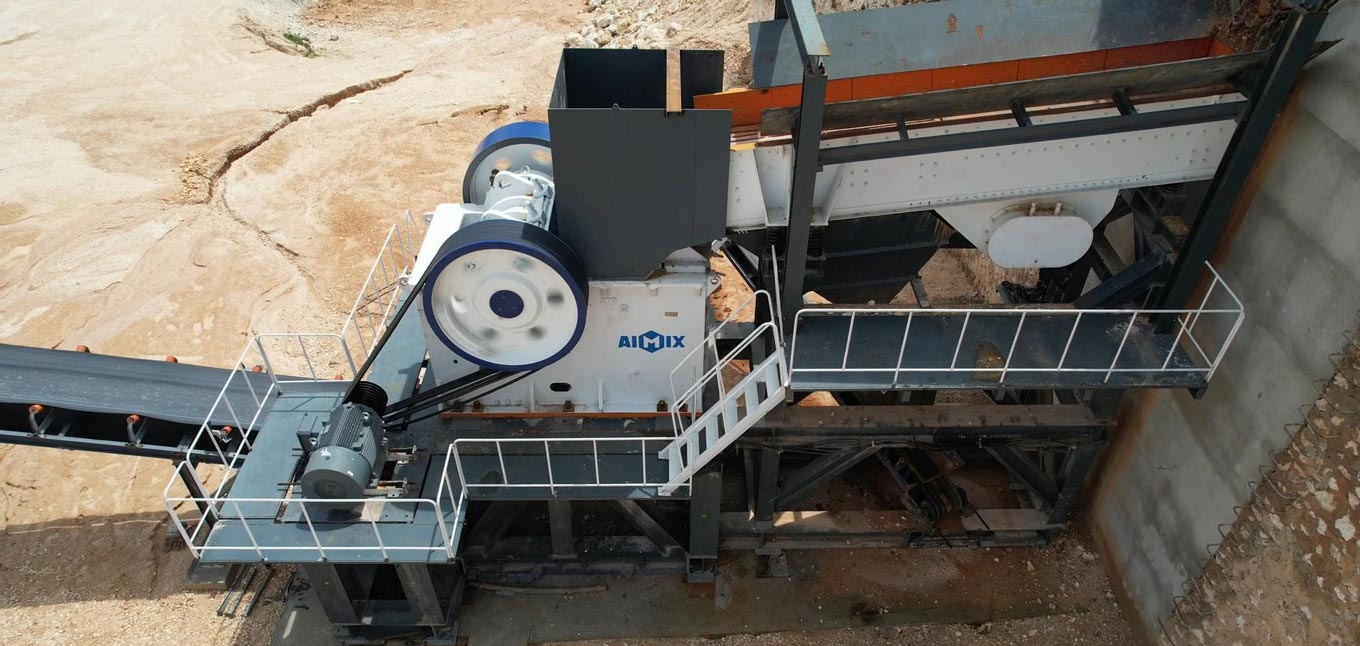

In the stationary crushing plants, the stone jaw crusher for sale is widely used by users around the world for efficient crushing performance and reliable operation. However, with the diversification of engineering needs and the increase in flexibility requirements, mobile crushing solutions have gradually become an important trend. To meet users’ deamnds, AIMIX Group also have manufactured mobile jaw crusher plants and 4 in 1 mobile crushing plants. Continue to explore more about the mobile types.
Mobile Type Jaw Crusher: Flexible and Efficient Crushing Solution
Hottest 4 in 1 Mobile Crushing Plant
The AIMIX 4 in 1 mobile crushing plant is an innovative solution that combines four different crushing processes into a single unit. It generally includes a primary jaw crusher, secondary crusher(e.g.cone crusher and impact crusher), screening unit, and a belt conveyor, providing a complete crushing and screening solution. The 4 in 1 design minimizes the need for multiple machines, saving space and reducing operational costs.
Model | APY4-4660S | APY4-4690S | APY4-57110S | APY4-6912S |
---|---|---|---|---|
Feeder model | APG-3090W | APG-3090W | APG-3090W | APG-3896W |
Primary crusher model | APJ-4060E | APJ-4060E | APJ-5070E | APJ-6090E |
Secondary crusher model | APC-600Y | APC-900Y | APC-110C | APF-1214 |
Vibrating screen model | APS-1237Y | APS-1548Y | APS-1848Y | APS-1848Y |
Tire configuration | Parallel three shafts | Parallel three shafts | Parallel three shafts | Parallel three shafts |
Return belt conveyor model | B500 | B650 | B800 | B1000 |
Feeder belt conveyor model | B500 | B650 | B00 | B1000 |
Under-sieve belt conveyor model | B650 | B800 | B1000 | B1200 |
Production capacity (t/h) | 16-40 | 16-65 | 50-100 | 60-160 |
Transport length (mm) | 15500 | 16500 | 16500 | 16500 |
Transport width (mm) | 2800 | 2850 | 2950 | 2950 |
Transport height (mm) | 4200 | 4200 | 4200 | 4200 |
Weight (t) | 41 | 45 | 53 | 50 |

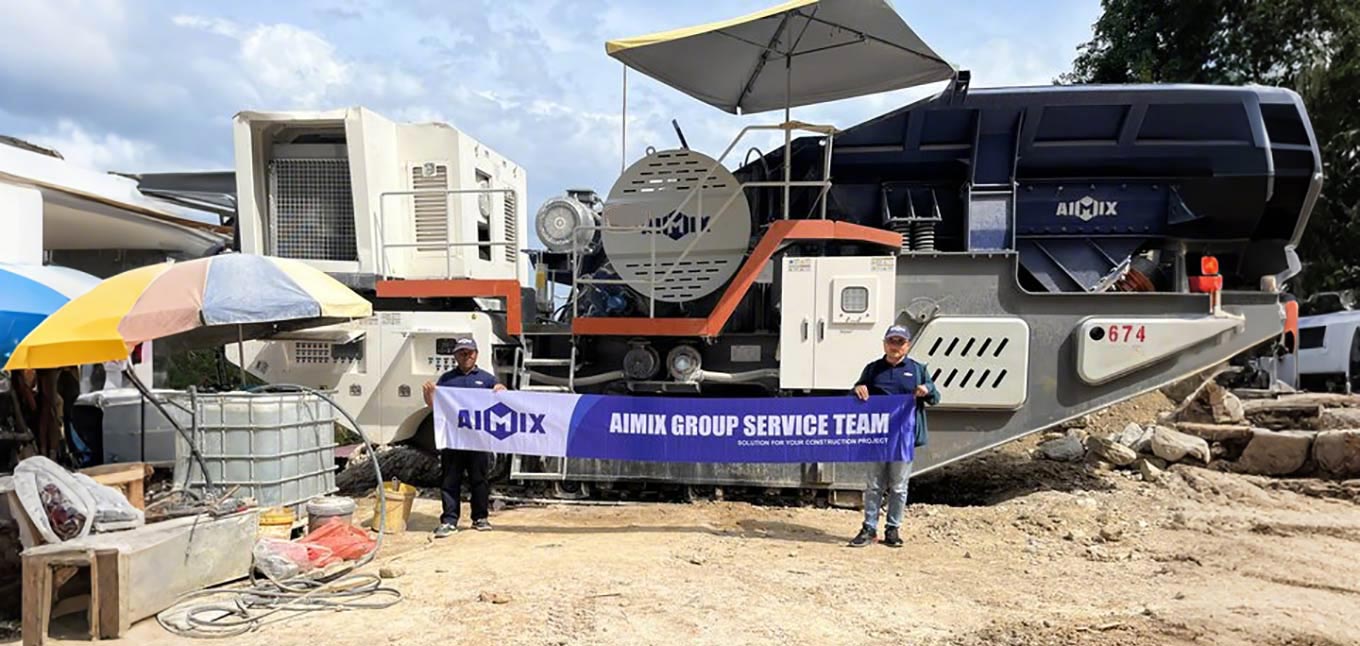

Apart from the above wheeled chassis type, AIMIX jaw crusher machine manufacturer also has produced tracked jaw crusher for choices. If your crushing environment is more complex, the track jaw crusher may be your best choice.
Tracked Jaw Crushers – Easier Navigate on-site
The track system offers excellent maneuverability, making the track mounted jaw crusher to navigate rough terrains and tight spaces with ease. Equipped with a jaw crusher machine for sale, track crusher delivers impressive crushing force, making it effective for various materials, especially for construction waste.
The AIMIX jaw crusher on tracks stands out as efficient mobile crushing solution. Whether you’re involved in construction, mining, or recycling, the mobile jaw crusher use can provide the flexibility and reliability needed to get the job done effectively.
Deciding between stationary or mobile jaw crushing plants is simple; it mainly depends on whether frequent relocation is required. However, when it comes to selecting the right jaw crusher, more technical details and performance factors need to be considered. Below, we will explore the key factors that should be taken into account when choosing a jaw crusher for sale.
What Should You Consider When Selecting A Jaw Crusher?
If you plan to buy jaw crusher China for business, it is necessary to consider a lot of things ahead, such as capacity, feeding size, discharge aggregate size, applications, prices, service, returns, etc. Here I have listed significant parts that should be noticed.
Feeding size
The first thing that should be considered is the feeding size. The customer should know the size of the aggregate of materials before crushing. Because the model of jaw crusher is divided based on the feeding sizes.
Capacity
The capacity is also should be taken into consideration. If you plan to crush large quantities of aggregate in a day, it is better to choose the large-capacity crusher. Otherwise, the small size is more suitable.
Price
The jaw crusher cost is the most important aspect for customers to consider. It is important for customers to choose the right one with the best jaw crusher machine price, which is under budget. The price range of Aimix best jaw crusher for sale is 3000USD-130000USD. Different models have various prices. Contact us and get the latest primary jaw crusher price!
Service
As for a large mining construction machine, it is necessary for customers to choose one from a reliable manufacturer of jaw crusher that can provide considerate service. As we all know, the crushing line is a customized solution for customer. Therefore, it needs constant communication, following up, and feedback. Best service can help save a lot of maintenance after-sales service costs for customers.
Worth mentioning, among these factors, the importance of service cannot be overstated. A reliable jaw crusher supplier that offers strong support and communication can significantly enhance the efficiency and longevity of your equipment. This is particularly vital in the mining sector, where customized solutions and ongoing assistance are key to success. In the following section, I will introduce what AIMIX jaw crusher company can do for you regarding service, ensuring you get the most out of your investment.
What Can AIMIX Do for You About Jaw Crusher Service?
- Pre-sales service: According to your requirements, tailor-made solutions, project managers one-to-one service, factory and workshop-visiting, spot supply, free test equipment with materials, and inspection site nearby.
- On-sale service: Delivery on time, guide the installation, and guide the test equipment on-site, until the normal production and operation.
- After-sales service: Provide customers with remote assistance services at any time. If it cannot be solved, a professional engineer can be assigned to the site to solve after-sales problems. It will arrive at the scene within one day in China and within one week in foreign countries. The primary jaw crusher mining is guaranteed for one year and repaired for life.
AIMIX’s service is truly the icing on the cake, providing invaluable support to you. However, what truly sets us apart is our unwavering commitment to crusher plant quality and performance. You can rest assured that our jaw crushers are built to the highest standards, ensuring reliability and efficiency in your operations. In the following section, you can discover more about the distinctive features of AIMIX jaw crushers.
Features of Jaw Crusher Machine
V-Shaped Crushing Cavity Design
The mining jaw crusher adopts a “V-shaped” crushing cavity design, the optimized configuration of the crushing cavity structure and moving jaw motion trajectory parameters, and a large stroke maximizes the feed size, output, and crushing ratio.
Wedge Adjustment Mechanism
The use of wedge adjustment instead of the traditional pad-type discharge opening adjustment makes the adjustment of the discharge opening easier to achieve step-less adjustment.
Shock Absorption Technology
The elastic limit block and rubber damping device are used to replace the original rigid foot connection, which can effectively absorb the shock peak load, thereby reducing the mutual impact between the crusher and the foundation and increasing the service life of the equipment.
Integrated Motor Base Design
The integrated motor base design reduces the installation space of the equipment and makes the power output more stable.
Oversized Tapered Roller Bearings
The oversized tapered roller bearings have uniform inner and outer bearing models, which reduces the number of jaw crusher parts.
Working Principle of Jaw Crusher Machine
The jaw crusher working principle revolves around compressive force to break down materials like rocks and ores.
- Feeding: Material is fed into the top of the jaw crusher through a hopper.
- Crushing: The main jaw crusher components are two plates: a fixed jaw and a movable jaw. The movable jaw is mounted on an eccentric shaft, which causes it to move back and forth.
- Compressing: As the mobile jaw moves towards the fixed jaw, the material in between is subjected to compressive force. The movable jaw is powered by an eccentric shaft that imparts a back-and-forth motion, crushing the material against the stationary jaw.
- Downward Movement: Once the material is crushed to smaller pieces, it moves down the crusher chamber due to gravity. The crushed pieces become finer as they move downward and are exposed to repeated compressive force.
- Discharge: Once the material is crushed to the desired size, it falls through the discharge opening at the bottom of the crusher machine.
Here is a jaw crusher animation and jaw crusher video that have shown how it works. You can have a good knowledge of it after visiting them below.
In summary, understanding the working principle of a jaw crusher highlights its role in maximizing crushing efficiency and reliability. A well-chosen jaw crusher can significantly improve your productivity, ensuring smooth operation across various applications. In AIMIX, we not only offer top-of-the-line jaw crushers but also provide comprehensive service and support, ensuring optimal performance and long-term durability.
