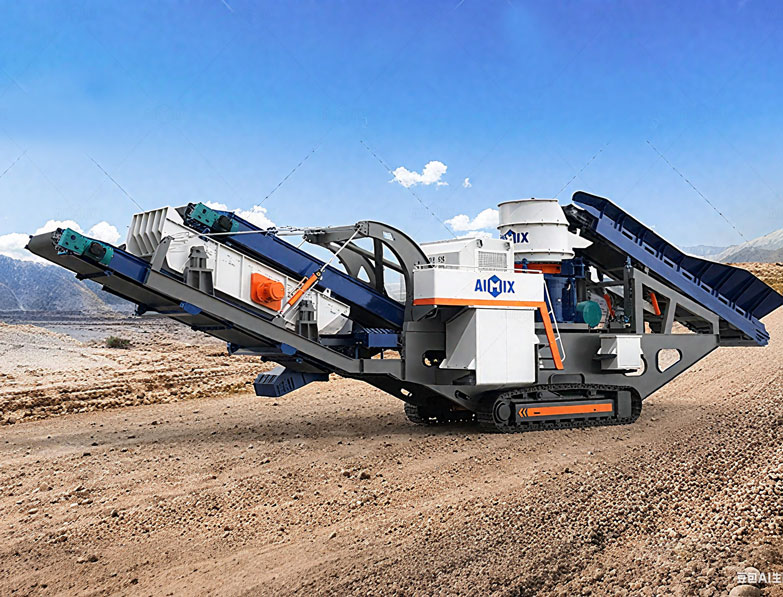

Mobile Cone Crusher

Mobile cone crusher can process granite, basalt, quartz, limestone, sandstone and other raw materials into well-shaped and cubical particles, which are desirable for certain applications like concrete production and asphalt production.

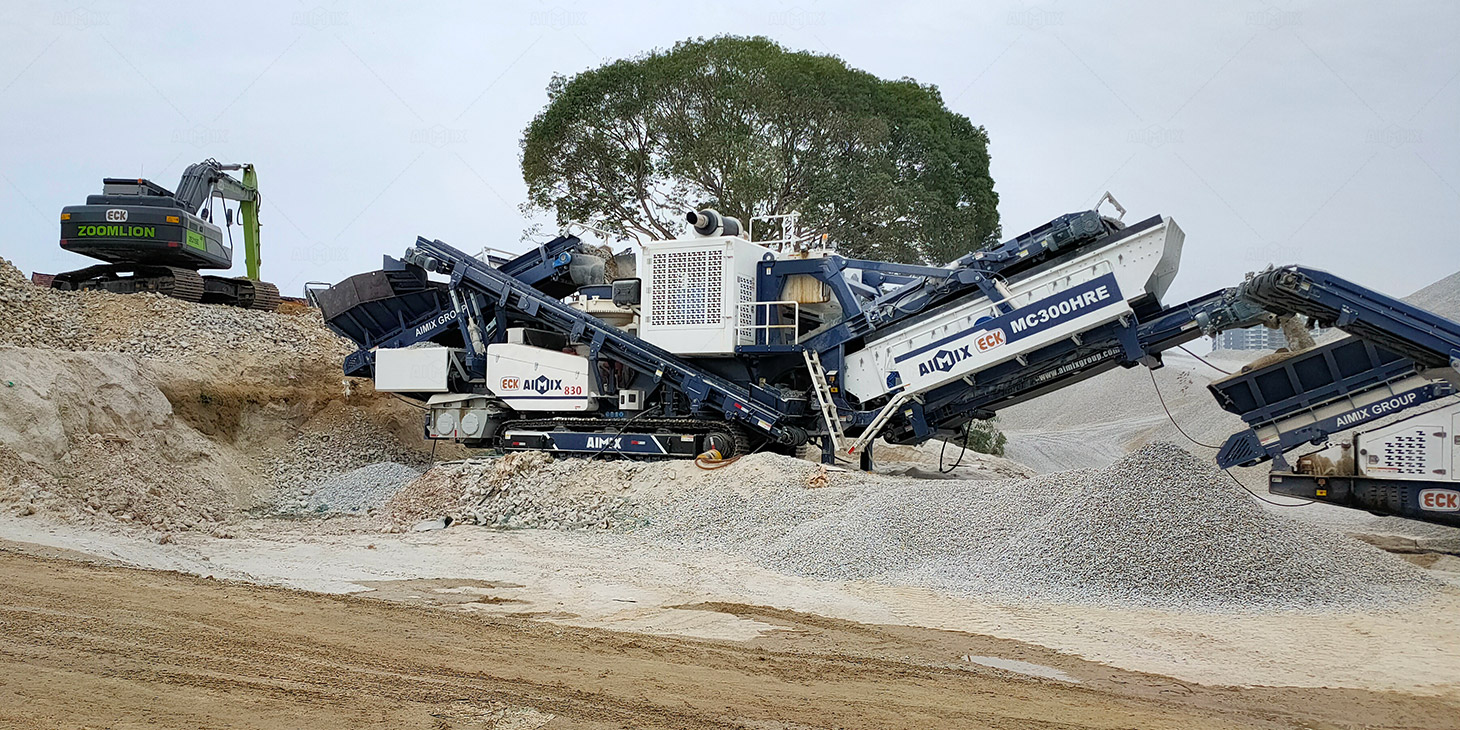

Below I want to share with you the installation of our 180t/h crawler mobile cone crusher in Malaysia. You can check more pictures taken by our engineers.

AIMIX installed one set of crawler mobile cone crusher in Malaysia

crawler mobile cone crusher in Malaysia
Malaysia crawler mobile cone crusher
AIMIX crawler mobile cone crusher Malaysia
cone crusher for crawler mobile crusher

The production capacity of our mobile cone crushers are 70-285t/h, and we use the triaxial or dual axis frame chassis, hydraulic system is hydraulic take-off and landing.

Now you have learn about what is mobile cone crusher, next, let’s go on why you need to invest such a mobile cone crusher for your project, we will explain below.

Reasons for investing a mobile cone crusher

Whether you know or do not know the benefits of buying a mobile cone crusher, we hold a sincere attitude for you to carefully analyze the prospects of the industry, the following I will elaborate from several aspects below if you have the money, the benefits of investing in cone mobile crusher plants.

Application Versatility

Wide Range of Materials: Mobile cone crusher plants can handle various materials, from hard rocks to softer aggregates, including granite, limestone, quartz, ores, minerals, and sandstones.

Multiple Applications: They are suitable for aggregates production, mining operations, construction waste recycling, infrastructure projects, quarrying, and more, making them adaptable to different project requirements.

However, the capacity and finished products of mobile cone crusher for sale equipped with different types of mainframes is also very different.

Below is an overview of the types of mobile cone crushers that AIMIX can provide to its customers according to the different application areas of mobile cone crushers.

Mobile cone crusher for aggregate production

mobile cone crusher plant for aggregate production

APS-2160Y4 vibrating screener in aggregate production
APS-2160Y4 vibrating screener
APC-200C compound cone crusher in aggregate production
APC-200C compound cone crusher
APG-4211W vibrating feeder in aggregate production
APG-4211W vibrating feeder
APJ-7510E-jaw-crusher for aggregate production
APJ-7510E jaw crusher
  • Configurations: APG-4211W (vibrating feeder) + APJ-7510E (jaw crusher) + APC-200C (medium crushing compound cone crusher) + APS-2160Y4 (Finished vibrating screen)
  • Raw Materials: Hard rocks and mountain rocks (maximum 600mm)
  • Finished Products: Sand and gravel aggregates (between 0-24mm)
  • Application Field: Various building
  • Yield demands: 200t/h
  • Main Crusher: APC-200C compound cone crusher
  • Customer Feedback: This plant can greatly meet my requirements, thanks AIMIX to help me customize such an efficient production line. Once this finished, I will consider another investment.

Mobile cone crusher machine for producing quartz sand

mobile cone crushing plant to produce quartz sand

APV-9532 vsi crusher in quartz sand processing
APV-9532 vsi crusher
APC-160C compound cone crusher in quartz sand processing
APC-160C compound cone crusher
APG-3895W vibrating feeding machine in quartz sand processing
APG-3895W vibrating feeding machine
APS-1860Y2 vibrating screen in quartz sand processing
APS-1860Y2 vibrating screen
  • Configurations: APG-3895W (vibrating feeder) + APJ-6090E (jaw crusher) + APC-160C (middle crushing compound cone crusher) + APS-1860Y2 (primary vibrating screen) + APV-9532 (vsi sand making machine) + APW-2816D (sand washing machine)
  • Customer feedback: “This mobile crusher plant is very convenient to use. After the crusher plant arrived, I finished the installation shortly. Now that my project is coming to an end, someone locally has asked me to rent this equipment to him. I’m glad I chose a mobile crushing plant. Now I can not only use it myself but also rent it out, which is a good investment.”

  • Configurations: APG-3895W (vibrating feeder) + APJ-6090E (jaw crusher) + APC-160C (medium crushing compound cone crusher) + APS-1860Y2 (primary vibrating screen) + APV-9532 (vsi sand making machine) + APW-2816D (sand washing machine)
  • Raw Materials: Quartz (up to 400mm)
  • Finished Products: quartz sand (medium and fine sand between 0-3mm)
  • Application field: Glass and ceramics
  • Yield demands: 150t/h
  • Main Crusher: APC-160C compound cone crusher
  • Customer Feedback: This mobile cone crusher equipment can greatly meet my requirements, thanks AIMIX to help me customize such an efficient production line. Once this finished, I will consider another investment.

Mobile Crushing Plant Building Roads In Madagascar

APY-4460S mobile jaw and cone crushing and screening machine

the scene of mobile cone crusher plant
crusher cone and jaw mobile was sent to madagascar
  • Country:Madagascar
  • Output:250 t/h
  • Project:Road construction
  • Processing material: Limestone
  • Customer Feedback: Thanks AIMIX for their comprehensive consideration of factors such as transportation, power supply and operational logistics, this plant is very cost-saving in transportation.

Cost Efficiency

  • Reduce Transportation Costs: Mobile cone crushers eliminate the need for transporting materials to a stationary cone crusher. This significantly reduces transportation costs, especially for remote or multiple job sites.
  • Reduce disposal costs: Mobile cone crusher for sale allows you to recycle materials directly on-site, reducing disposal costs and contributing to sustainability.

Time Savings

  • Quick Setup: Mobile cone crusher can be set up quickly, reducing the time it takes to start crushing operations compared to stationary type crushers.
  • Flexibility in Deployment: Easily move the crusher from site to site, accommodating changing project demands without significant delays.

Small Land Occupation

  • Space-Saving Design: Mobile cone crushers have a compact footprint, making them suitable for confined spaces and urban environments.
  • Reduced Site Footprint: Their mobility reduces the need for large working areas, optimizing site utilization.

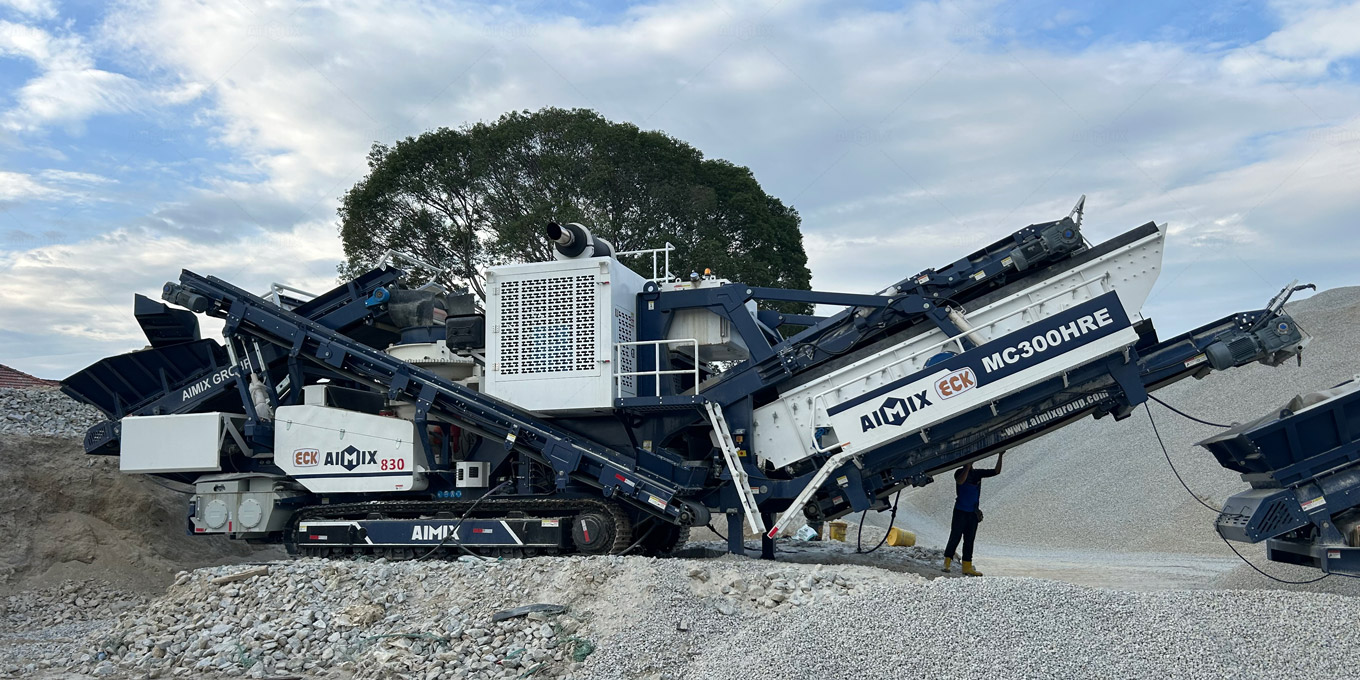

working site of mobile cone crushing plant

Environmental Protection

  • Lower Emissions: Some mobile cone crushers are designed with reduced emissions and noise, contributing to a healthier work environment and compliance with regulations.
  • Sustainable Practices: On-site recycling and reduced transportation translate to lower carbon footprint and promote sustainable construction practices.

After-Sales Service

  • Manufacturer Support: Reputable mobile cone crusher manufacturers provide comprehensive after-sales support, including technical assistance, training, and spare parts availability.
  • Responsive Assistance: Mobile “>cone crusher manufacturers often offer prompt technical support and troubleshooting, ensuring minimal disruptions to your operations.
  • Easy Access for Maintenance: Portable cone crusher for sale is designed with easy access to key components, simplifying maintenance tasks and reducing downtime.
  • Remote Monitoring: Advanced models offer remote monitoring capabilities, allowing maintenance teams to diagnose issues and plan maintenance more efficiently.

AIMIX engineers

So after knowing so many features and advantages of portable cone crusher, are you moved? Choosing the right product is important, but choosing the right model is the most important. Choosing the right model to match your project can help you maximize the use of your funds, and will not cause a waste of funds or raw materials.

Quickly follow my footsteps to see what mobile cone crushers you can choose!

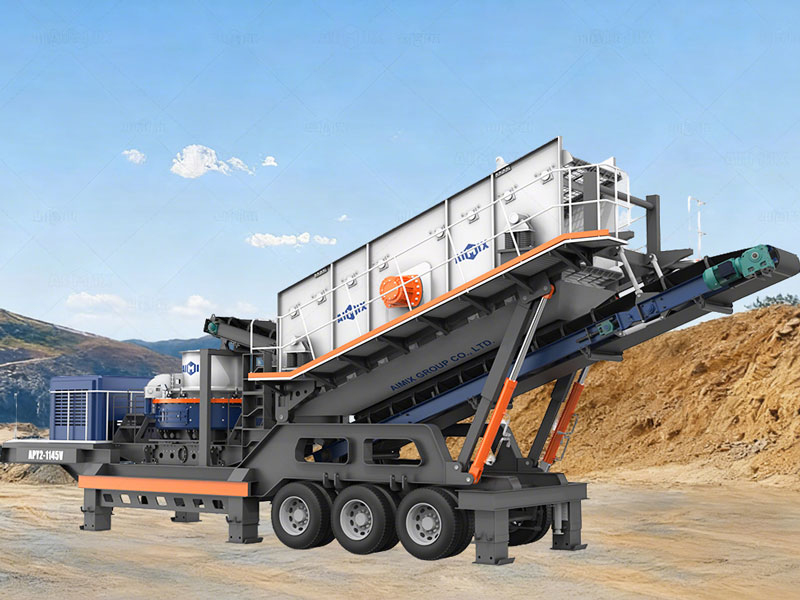

Three types of mobile cone crushers are available

AIMIX mainly have three type of mobile cone crushers for your selection: APY2-110C, APY2-160C, and APY2-200C, as for how to choose from them, I will show you some ideas.

APY2-200C mobile cone crusher plant

Specifications of APY-C series

Crusher modelAPC-110CAPC-160CAPC-200C
Vibrating screen modelAPS-1848YAPS-1860YAPS-2160Y
Maximum feed size (mm)160200215
Tire configurationParallel double shaftParallel double shaftParallel double shaft
Feeding belt conveyor model (optional)B650B800B1000
Output belt conveyor model (optional)B500B650B650
Under-sieve belt conveyor modelB650B800B1000
Generator power (kW) (optional)240280320
Production capacity (t/h)50-23080-390120-420
Transport Length (mm)138001380014500
Transport width (mm)300030003000
Transport height (mm)440044004500
Weight (t)323742

The above is part of the core parameters of the three kinds of portable cone crushers, in general, reference to these parameters can already help you choose the right capacity, if you still have questions, you can also contact us through the website placed in the contact information, we will have professional engineers to customize the most suitable for your program configuration.

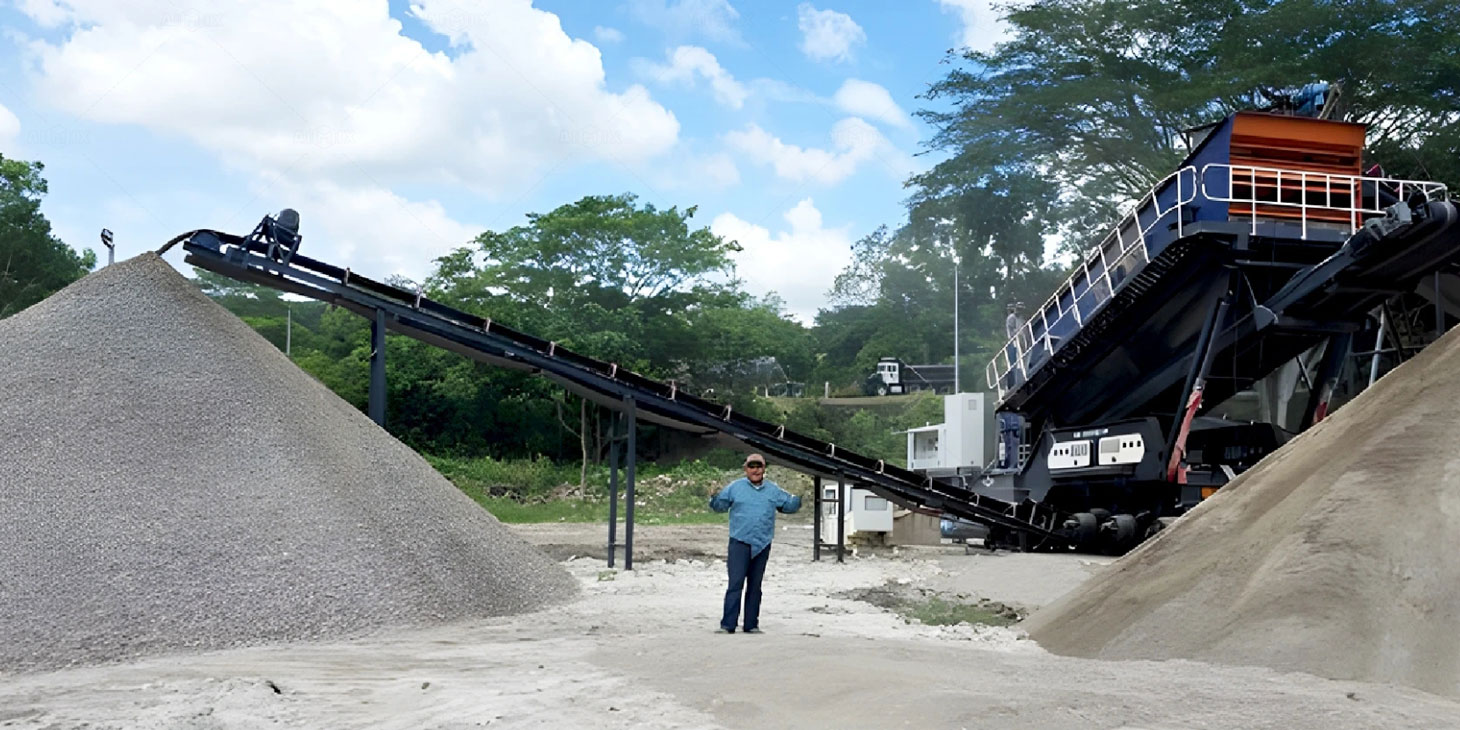

But to find a good mobile cone crusher, finding a reliable mobile cone crusher manufacturer is the most crucial first step.

Nowadays, there are indeed many companies in the market that simply do foreign trade, but have no physical factories. Therefore, when you are selecting a trustworthy manufacturer, it is best to find a mobile cone crusher factory directly, and such a search mode can help you shield yourself from a large number of foreign trade companies.

As for how to find a reliable mobile cone crusher manufacturer, I will provide you with some steps. As long as you strictly follow the following steps, probably you will be able to find a mobile cone crusher manufacturer that is not only famous but also has a good reputation.

combined mobile cone crushing plants

Steps to find a reliable mobile cone crusher manufacturer

Finding a reliable mobile cone crusher manufacturer is crucial to ensure you get a high-quality product that meets your requirements. So here I will list some steps you can take to find a trustworthy manufacturer:

  • Research Online: Start by searching online for mobile cone crusher manufacturers. Look for reputable companies with a strong online presence, informative websites, and positive customer reviews. You can also explore industry forums and discussion boards for reviews.
  • Check Credentials: Verify the manufacturer’s credentials, such as certifications, licenses, and memberships in relevant industry associations. This indicates their commitment to quality and adherence to industry standards.
  • Product Portfolio: Review the manufacturer’s product portfolio to ensure they offer a variety of mobile cone crusher models. A diverse range of products demonstrates their expertise and capability in designing and manufacturing different types of crushers.
  • Experience: Choose a manufacturer with a proven track record and years of experience in producing mobile cone crushers. An experienced manufacturer is more likely to produce reliable and durable equipment.
  • Technical Support: Inquire about the manufacturer’s technical support and after-sales service. A reliable manufacturer should provide excellent customer support, including assistance with installation, maintenance, and troubleshooting.
  • Quality Assurance: Ask about the manufacturer’s quality control processes. A reputable company should have stringent quality assurance measures in place to ensure that their products meet or exceed industry standards.
  • References and Case Studies: Request references or case studies from the manufacturer. This allows you to learn about their past projects, customer satisfaction, and the performance of their mobile cone crushers in real-world applications.
  • Visit the Facility: If possible, visit the manufacturer’s facility to get a firsthand look at their production process, quality control procedures, and the overall working environment. This can give you insights into their operations and commitment to quality.
  • Ask Questions: Reach out to the manufacturer with specific questions about their products, manufacturing process, materials used, and customization options. A reliable manufacturer will be transparent and willing to provide detailed information.
  • Warranty: Inquire about the warranty offered on their mobile cone crushers. A manufacturer that stands behind their products with a comprehensive warranty demonstrates confidence in their equipment’s quality and performance.
  • Price Comparison: While price should not be the sole determining factor, it’s essential to compare the prices of mobile cone crushers from different manufacturers. Be cautious of significantly lower prices, as they may indicate subpar quality.
  • Customer Feedback: Seek feedback from other customers who have purchased mobile cone crushers from the manufacturer. Their experiences and testimonials can provide valuable insights into the manufacturer’s reliability and product performance.

By following these steps and conducting thorough research, you can identify a reliable mobile cone crusher manufacturer that delivers high-quality products and exceptional customer service. This ensures that you make a well-informed decision and invest in equipment that meets your needs and contributes to the success of your projects.

Finally, we will give you a list of the original mobile cone crusher wearing parts that we can provide for you, because the mobile cone crusher works strenuously, and the degree of wear and tear on the equipment is higher than that of other construction equipment, wear-resistant spare parts for mobile cone crushers are essential components that ensure the efficient and continuous operation of the equipment while withstanding the harsh conditions of crushing abrasive materials.

Enough spare wearing parts to help you reduce many unnecessary troubles, and the smooth development and completion of the project is our sincere wish.

80ton mobile cone crushing plant to Tanzania

AIMIX mobile cone crusher plant
cone crusher plant mobile delivery

Key wear-resistant spare parts for mobile cone crushers

  • 1. Mantle and Concave: These are crucial components of the cone crusher that form the crushing chamber. They come into direct contact with the material being crushed and are designed to withstand abrasion and high pressure.
  • 2. Bowl Liner: The bowl liner is another wear-resistant part that protects the cone crusher’s mantle and concave from wear caused by the constant crushing action.
  • 3. Eccentric Bushing: This component provides support for the main shaft and helps maintain the proper alignment of moving parts. It is subjected to friction and wear during operation.
  • 4. Main Shaft Sleeve: The main shaft sleeve protects the main shaft from wear and damage, ensuring smooth operation of the crusher.
  • 5. Feed Plate and Distributor Plate: These plates guide the incoming material into the crushing chamber and distribute it evenly. They are exposed to wear and impact forces.
  • 6. Spider Bushing: Found in gyratory cone crushers, the spider bushing supports the main shaft and is designed to withstand wear and friction.
  • 7. Thrust Bearing: Thrust bearings are used to support the axial loads in cone crushers and are designed to endure continuous wear.
  • 8. Adjustment Ring: The adjustment ring is subjected to frequent adjustment and movement, making it susceptible to wear over time.
  • 9. Hydraulic Cylinder Components: Components such as piston seals, rod seals, and cylinder liners within hydraulic cylinders ensure proper functioning and minimize wear.
  • 10. Sealing Rings and Gaskets: These components ensure a secure and leak-free operation by preventing the ingress of contaminants and fluids.
  • 11. Bearing Housings: Bearing housings protect bearings from environment.

mobile cone crushers in Malaysia

Above is the introduction of mobile cone crusher I made for you, if you still have more details to know, welcome you to contact me by phone or email! Our business consultant will reply you within 2 hours. Thank you for your time!
