The stone crusher plant price typically ranges from $30,000 to over $1,000,000, depending on the various factors, like capacity and configuration. Generally, the price range can be categorized as follows:
| Plant Scale | Typical Price Range |
|---|---|
| Small-scale crushing plant | $30,000 – $100,000 |
| Medium-capacity crushing plant | $100,000 – $300,000 |
| Large stationary crushing plant | $500,000 – $1,000,000+ |
At AIMIX Group, we understand that every crushing project has different requirements. The final stone crusher plant cost is determined by factors such as raw material characteristics, required output capacity, equipment selection, installation requirements, and project location. Our engineers analyze your specific needs and provide a customized crushing solution with a transparent cost estimate, helping you make a reliable crusher plant investment decision.
Stone Crusher Plant Price By Capacity: 50, 100, 150, 200, 250 and 500 TPH
The production capacity of a stone crusher plant is one of the most important factors affecting the total investment cost. In general, larger-capacity crushing plants require bigger equipment, more crushing stages, and more supporting systems, which leads to higher prices. Based on our project experience, 50 TPH, 100 TPH, 150 TPH, 200 TPH, 250 TPH, and 500 TPH stone crushing plants are among the most commonly requested capacities. The following stone crusher price guide provides a reference for different production levels.

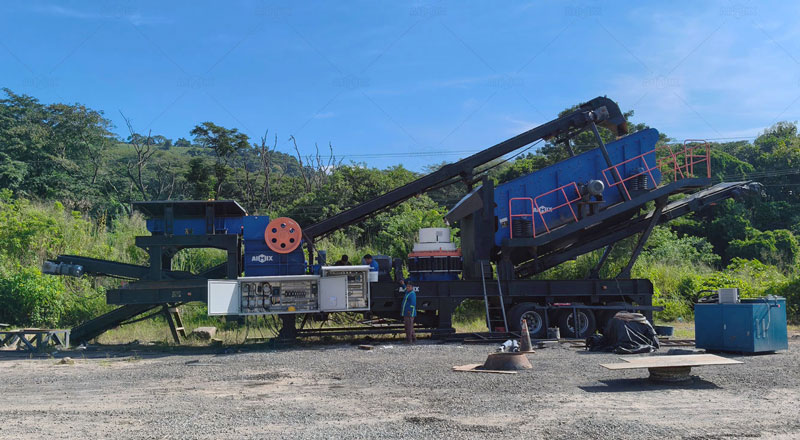

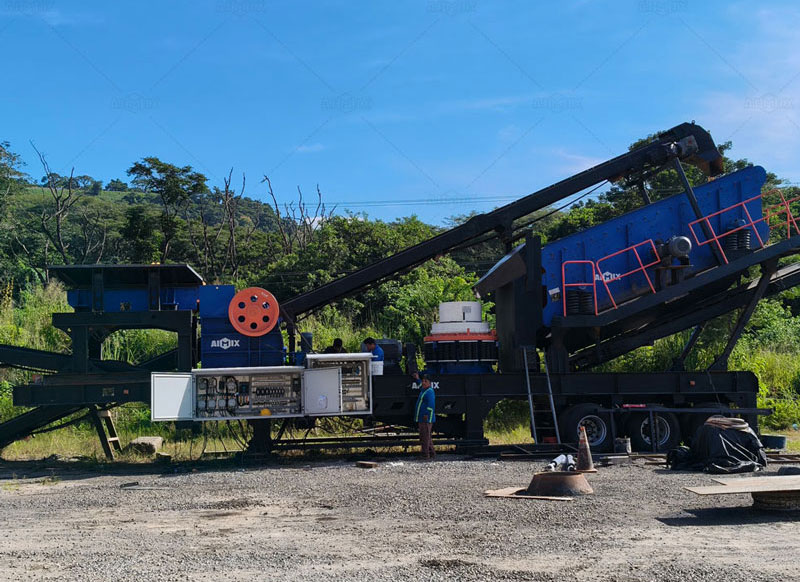

50 TPH Stone Crusher Price Range – $80,000 – $120,000
- Optimal Equipment Configuration: Features a highly cost-effective 2-stage crushing process: Vibrating Feeder + Primary Jaw Crusher + Fine Jaw Crusher / Impact Crusher + Vibrating Screen.
- Mobile Setup: For a 50 TPH capacity, we highly recommend our wheel-mounted mobile crusher plant. It requires no concrete foundation, simplifies moving between sites, and saves significant civil engineering costs.
- Quick Investment Payback (ROI): Low power consumption (80-120 kW) and low labor requirements. It is an ideal entry-level plant for small quarry owners, with an average investment recovery period of 4 to 6 months.
100-150 TPH Stone Crusher Price Range – $150,000 – $300,000
- Customization for Hard & Soft Rock: Configured with a Jaw Crusher + Impact Crusher for soft rocks like limestone. For hard rocks like granite or basalt, we replace the impact crusher with a Cone Crusher to minimize wear-part replacement costs.
- High-Quality Aggregate Output: Easily adjusted to produce standard market sizes 0-5mm, 5-10mm, $10-20mm, 20-40mm with excellent cubical shape, meeting strict construction and concrete batching plant standards.
- Fast Foundation & Setup Guide: We provide free tailored civil foundation drawings. Under the guidance of our on-site installation engineers, a standard 100-150 TPH crusher plant can be fully set up and running within 20 to 40 days.
200-250 TPH Stone Crusher Price Range – $300,000 – $600,000
- High-Efficiency 3-Stage Crushing: Includes a Feeder + Primary Jaw Crusher + Secondary Cone Crusher (or Impact Crusher) + VSI Sand Maker + Screens. This configuration guarantees continuous, high-volume production even with extremely hard materials.
- Eco-Friendly & Dust Control System: Equipped with an advanced bag-house dust collector, water spray nozzles at transfer points, and conveyor belt covers. This ensures your plant easily passes local environmental inspections and runs legally.
- Optimized OPEX & Long-Life Spare Parts: Engineered to lower your per-ton operating cost. We use high-manganese and ultra-high-chrome alloys for jaws, mantles, and blow bars, extending wear life by over 30% compared to standard market parts.
Over 500 TPH Stone Crusher Price Range – $800,000+
- Smart PLC Automation Control: Features a centralized PLC control cabin allowing one-touch start/stop, real-time temperature and vibration monitoring, and auto-overload protection. The entire plant requires only several operators on-site.
- Heavy-Duty & High-Performance Machinery: Built with a massive primary jaw crusher and multi-cylinder hydraulic Cone Crushers. They easily handle large feed sizes and automatically clear crushing chambers.
- Turnkey Project Service: From geological mine surveying, customized flow chart design, steel structure fabrication, to final on-site commissioning and operator training, we handle everything under one unified contract.
Price Table for Quick Reference
| Plant Capacity | Typical Price Range | Common Application |
|---|---|---|
| 50 TPH | $80,000 – $120,000 | Small quarry and aggregate production |
| 100 TPH | $150,000 – $200,000 | Medium aggregate projects |
| 150 TPH | $250,000 – $300,000 | Commercial aggregate production |
| 200 TPH | $300,000 – $500,000+ | Quarry and infrastructure projects |
| 250 TPH | $400,000 – $600,000+ | Large aggregate production |
| Over 500 TPH | $800,000+ | Mining and large-scale production |
Tips: These prices are general estimates. The actual stone crusher plant setup cost depends on the selected equipment configuration, automation level, installation requirements, shipping distance, and project conditions.

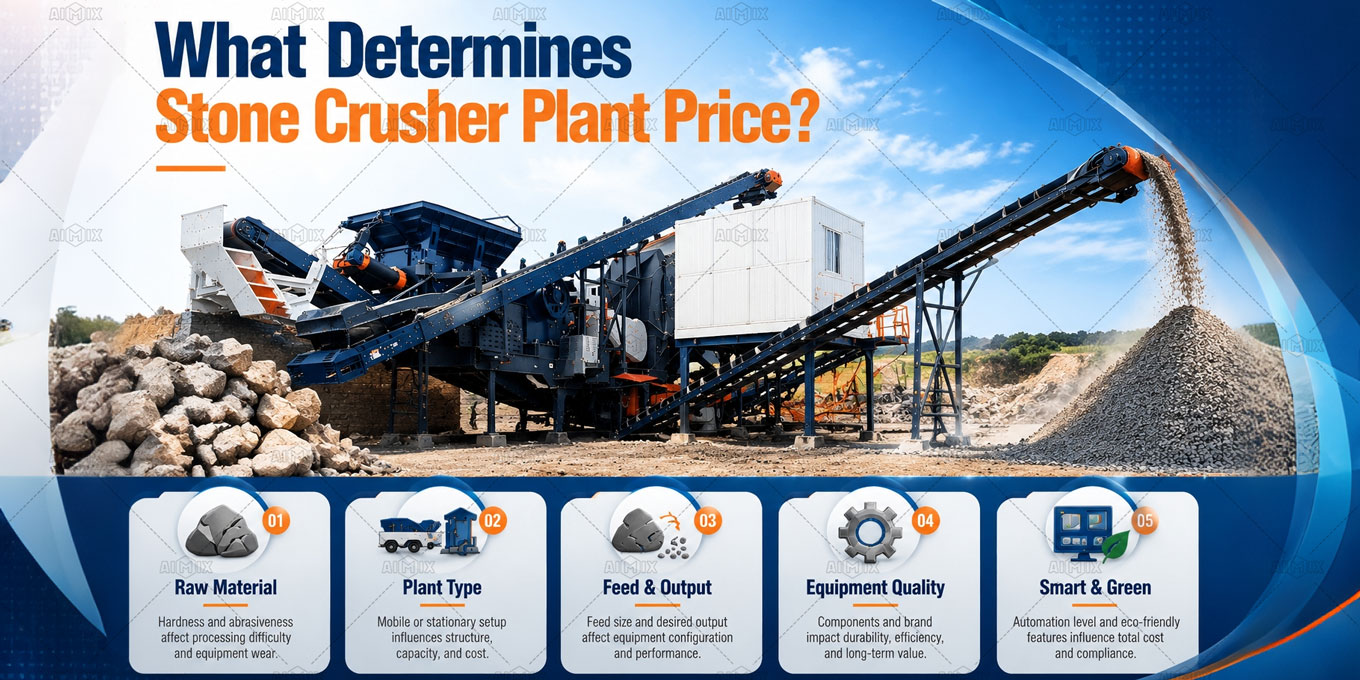

What Factors Affect Stone Crusher Plant Price?
When investing in a stone crushing production line, it is easier to notice that two crushing plants with the exact same capacity (e.g., 100 TPH) can have vastly different price tags. That is because a stone crusher plant is a highly customized system, not a single off-the-shelf product. The overall cost of stone crusher investment is primarily driven by the following factors:
Raw Material Hardness & Abrasiveness
-
The type of rock you crush dictates your choice of machinery, which is the biggest cost driver.
- Soft to Medium Rock (e.g., Limestone, Gypsum): These materials can be processed using a standard Jaw Crusher + Impact Crusher setup. The wear parts last longer, making the initial investment significantly lower.
- Hard & Abrasive Rock (e.g., Granite, Basalt, River Pebbles): High-silica rocks will rapidly destroy impact blow bars. To avoid catastrophic wear costs, it is necessary to configure a Jaw Crusher + Cone Crusher setup. Cone crushers have a higher upfront cost but lower your long-term operating expenses.
Crusher Plant Mobility: Stationary vs. Mobile Setup
-
How you want your crushing plant structured changes the cost allocation between machinery and civil engineering.
- Stationary Crushing Plants: The equipment itself is more affordable. However, it requires a significant budget for heavy concrete foundations, steel structures, and a long installation period (30–45 days).
- Mobile Crushing Plants (Wheel or Crawler Mounted): These feature a higher upfront machinery cost because the crushers, screens, and feeders are integrated onto a heavy-duty chassis. However, they require zero concrete foundation work and can start working immediately, saving massive labor and site preparation costs.
Maximum Feeding Size vs. Output Specifications
-
The size of the rock going in and the precision of the aggregate coming out determine how heavy and long your stone crushing production line needs to be.
- Feeding Size: If your blasted raw material is large (over 500mm), you need a massive primary jaw crusher and a heavy-duty vibrating feeder to handle the impact, which drives up the base price.
- Output Sizes: Are you producing 1 or 2 sizes of coarse gravel, or do you need high-specification manufactured sand (0-5mm)? Producing high-quality cubical sand requires adding a VSI Sand Making Machine and multi-deck screens, expanding the line and the price.
Equipment Component Quality & Brand Configurations
-
The internal engineering of the stone crusher machines separates cheap equipment from reliable, industrial-grade machinery.
- Core Components: Premium setups feature world-class components like Siemens/ABB motors, SKF/Timken bearings, and advanced hydraulic adjustment systems. These increase the price but maximize machine uptime.
- Steel & Alloys: Heavy-duty frames built with thick Q345B manganese steel and wear parts forged with high-chromium or ultra-high-manganese alloys cost more upfront but extend part life by over 30%.
Automation Level & Environmental Compliance
-
Modern regulations and labor costs require different levels of smart control and dust management.
- Smart Automation: Upgrading from a traditional manual electrical cabinet to a centralized PLC Smart Control System (with touch screens, automated overload protection, and fault diagnostics) adds to the cost but reduces on-site labor to just 2 or 3 operators.
- Eco-Friendly Extras: Meeting strict local environmental laws requires adding enclosed conveyor belt covers, high-pressure water spray dust-suppression systems, and pulsed bag-house dust collectors, which increase the total project budget.
Every crushing project is different, which is why there is no one-size-fits-all quotation. At AIMIX, our engineers evaluate your raw material, required capacity, finished product sizes, site conditions, and budget before recommending a suitable crushing solution. Tell us about your project, and we’ll provide a customized stone crusher plant quotation based on your actual production needs.
Mobile vs. Stationary Stone Crusher Plant Price: Compare Costs and Choose the Right Solution
Mobile and stationary crushing plants have different cost structures. Mobile crusher plants usually require a higher initial investment because of their integrated design and mobility features, while stationary crush plants often provide a more economical solution for long-term production. The right choice depends on your project requirements, site conditions, and expected return on investment.

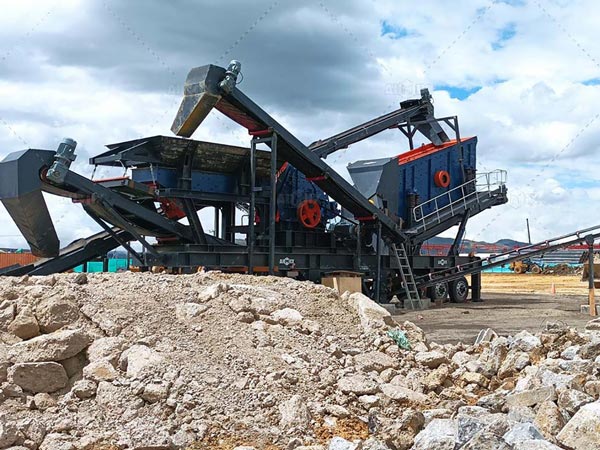

Mobile Crusher Plant Price: Flexible Solutions with Higher Initial Investment
Mobile crushing plants integrate feeding, crushing, screening, and conveying systems on a movable chassis. The additional mobility components, hydraulic systems, and integrated structure increase the initial equipment cost.

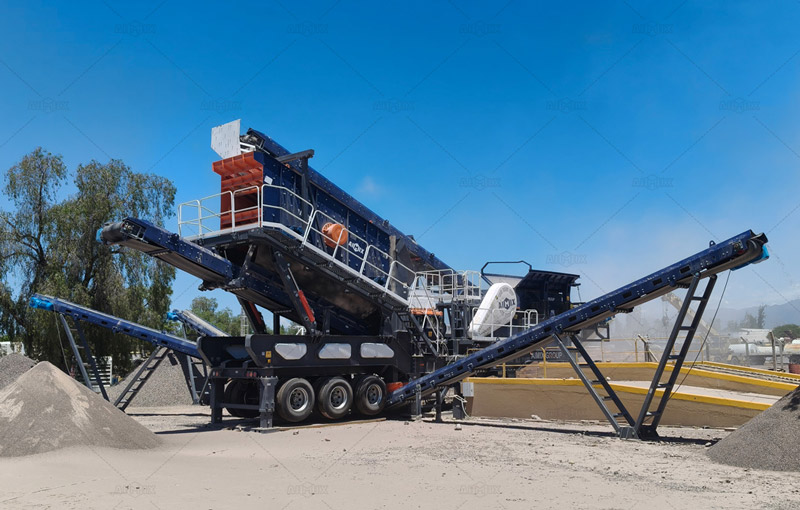

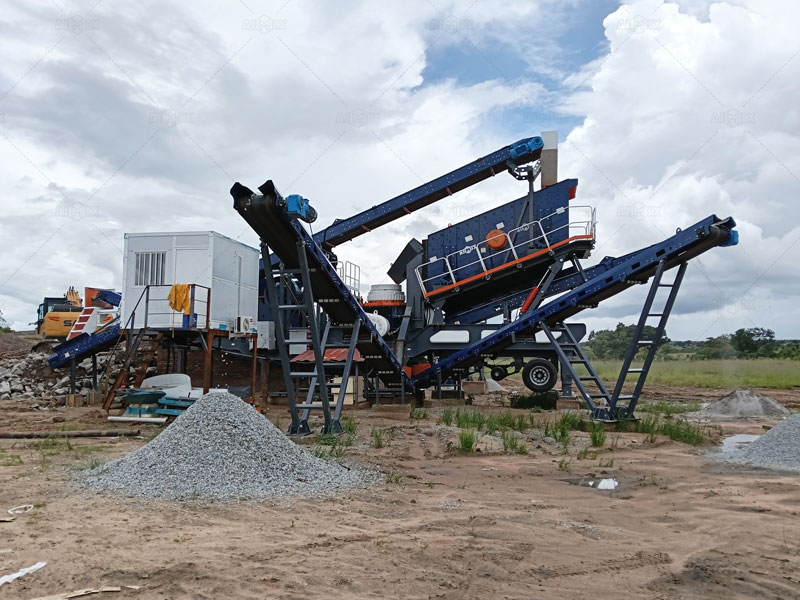

APY4 Wheeled Model – Newly Designed – Hot-Sale
Capacity: 50tph80tph100tph120tph
Price Details: At least $100,000
Crushers: Jaw Crusher + Jaw Crusher; Jaw Crusher + Cone Crusher; Jaw Crusher + Impact Crusher
Finial Products Size: 0-5mm, 5-10mm, 10-20mm, 20-25mm, above
Advantages: Modular design, easy installation, quick transition; Mostly suitable for transportation on flat roads

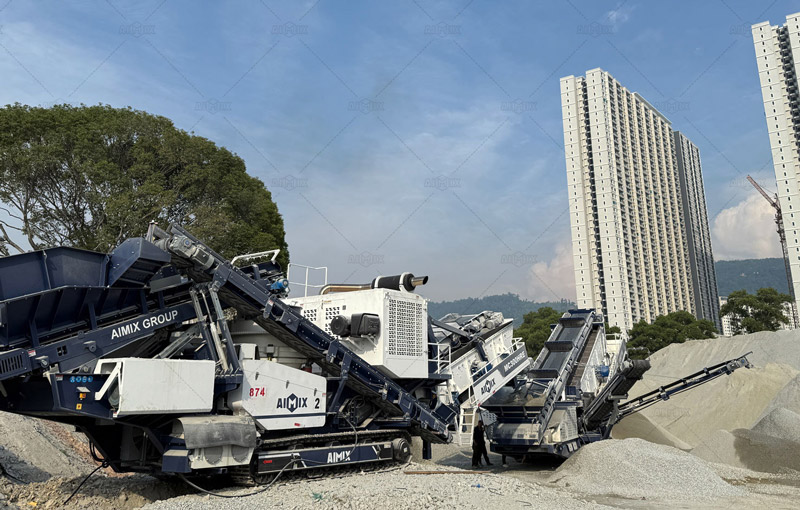

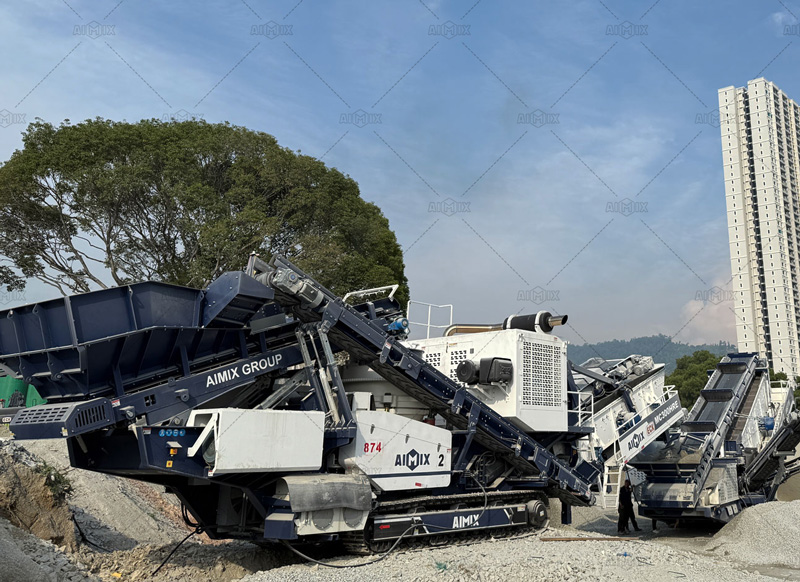

APYL Crawler Type – Powerful for Crushing
Capacity: Less than 400tph
Price Details: At least $300,000
Processing Materials: Construction Waste, granite, cobblestone, basalt, limestone, mining ores, etc.
Advantages: Quick relocated; moving alone on the crushing site; suitable for complex terrain, including rocks and rough and uneven roads,

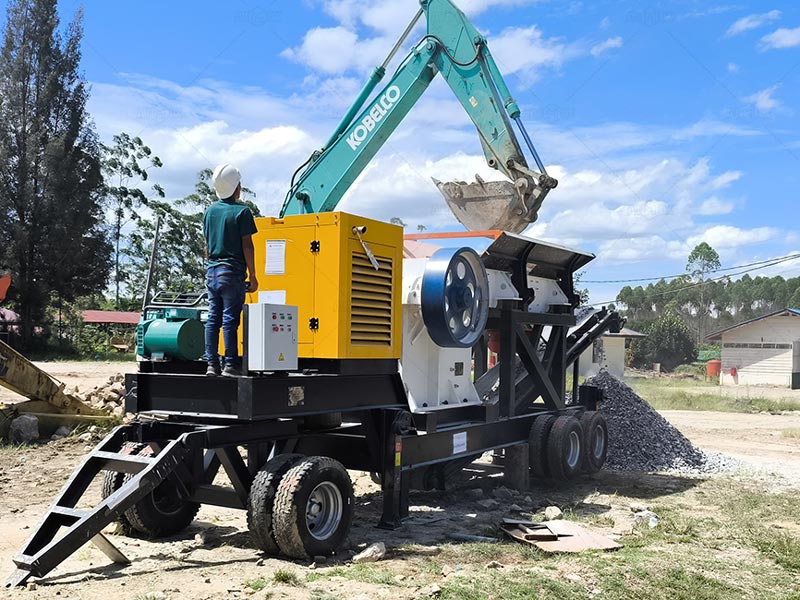

Small Mobile Stone Crusher Machine Cost – Less Than 50tph Capacity
Capacity: 30tph50tph
Price Details: At least $80,000
Chassis Type: Wheeled Chassis or Crawler Chassis
Main Applications: small size projects, especially for small scale concrete production, road repairing, and waste concrete crushing work

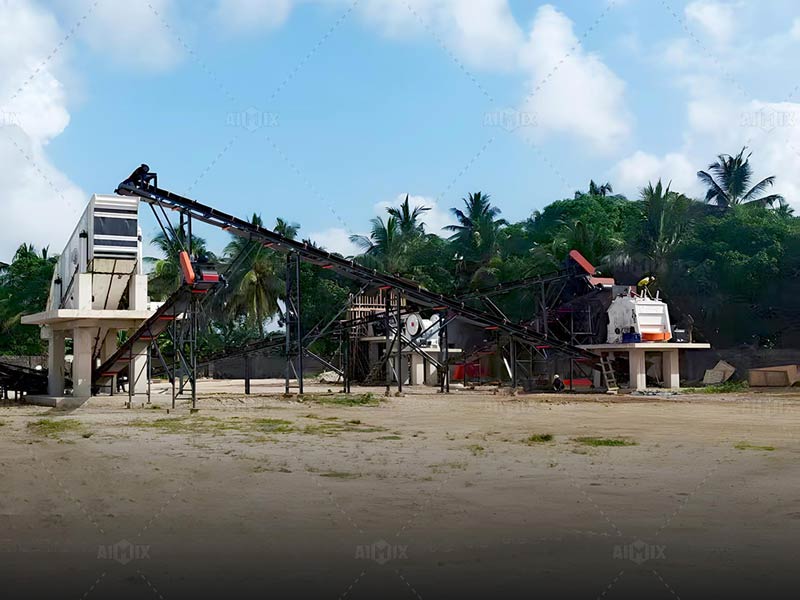

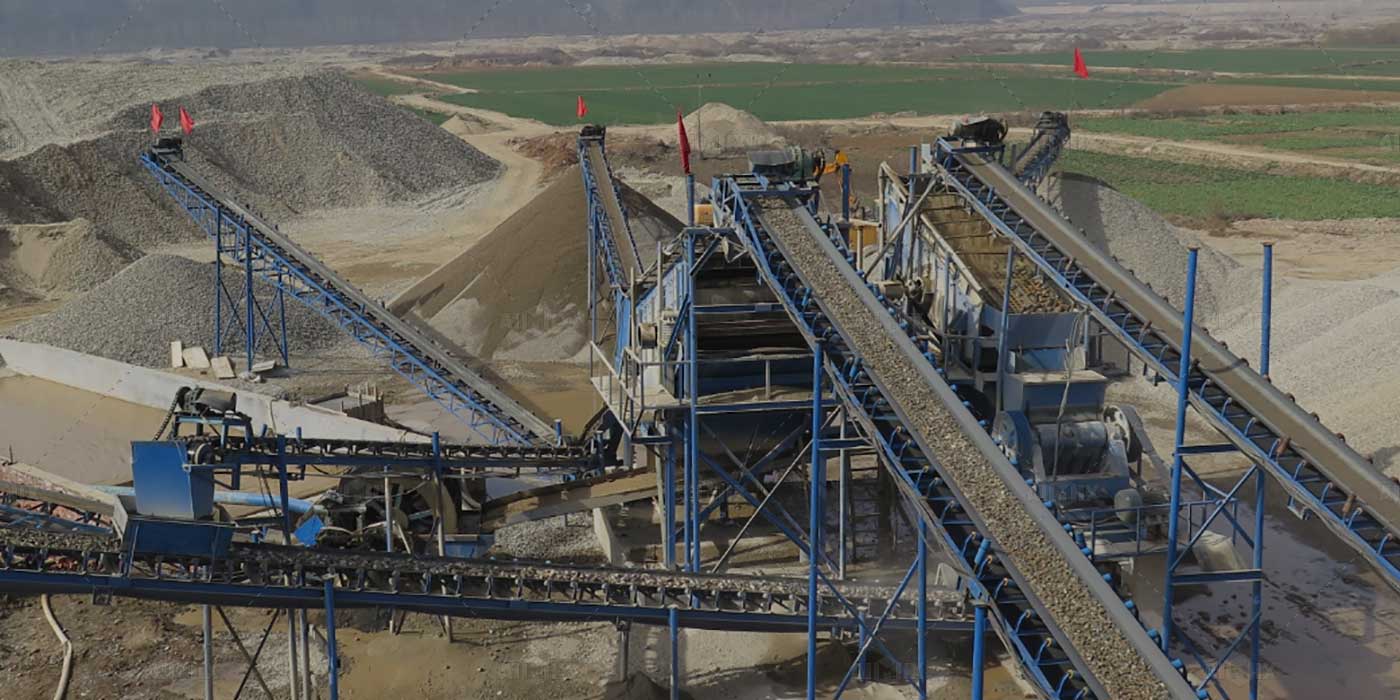

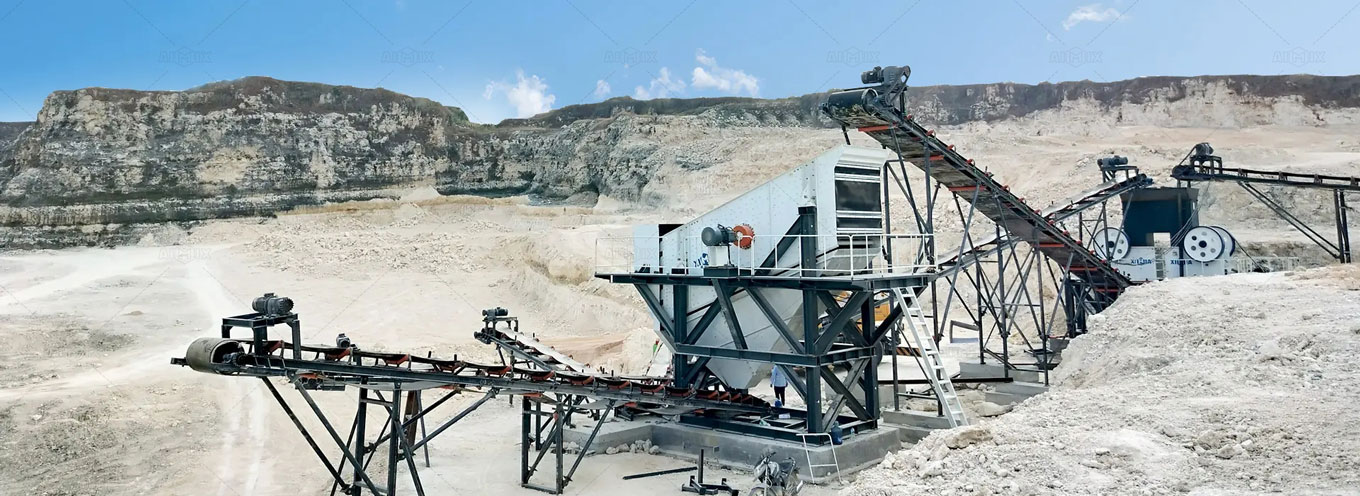

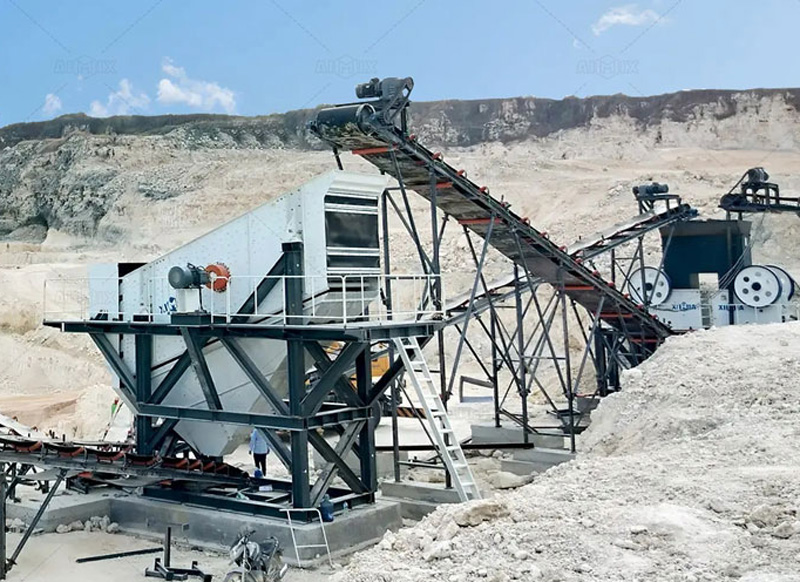

Stationary Crusher Plant Price: Lower Equipment Cost for Long-Term Productio
Stationary crushing plants are usually more economical for long-term quarry operations because the equipment does not require a mobile chassis. However, the total investment depends heavily on the process design and selected equipment configuration. The stationary stone crusher plant cost include feeder, crushers, screens, conveyors, control systems, etc.
APJ Jaw Crusher Stone Price
$9,800-$210,000
APC Cone Stone Crusher Machine Price
$46,000-$450,000
APF Impact Crusher Stone Machine Price
$19,000-$140,000
Mobile vs Stationary Crusher Plant: Total Cost Comparison
| Cost Factor | Mobile Crushing Plant | Stationary Crushing Plant |
|---|---|---|
| Equipment Purchase Cost | Higher due to integrated chassis, hydraulic system, and mobility components | Lower for the bare equipment itself, as it lacks the integrated chassis, walking legs, and on-board power pack of the mobile unit. |
| Foundation & Civil Work | Minimal foundation requirements, reducing construction cost | Requires concrete foundation and site preparation |
| Installation Time | Faster installation and commissioning | Longer installation period due to fixed layout |
| Transportation Between Sites | Easier relocation with lower moving costs | Requires dismantling and transportation equipment |
| Site Preparation | Less demanding, suitable for temporary or changing sites | Requires permanent site planning |
| Maintenance Cost | May be higher due to mobile components and frequent movement | Usually lower for stable long-term operation |
| Production Stability | Good flexibility but depends on operating conditions | Excellent for continuous large-scale production |
| Long-Term Operating Cost | Lower when projects require frequent relocation | Lower when operating at one fixed quarry |
Which Crushing Plant Provides Better Value? – Choose Based on Your Project Requirements
| Your Project Situation | Recommended Solution | Why |
|---|---|---|
| You move between multiple construction sites | Mobile Crushing Plant | Reduces relocation time and avoids repeated installation |
| You operate a permanent quarry | Stationary Crushing Plant | Provides stable production and lower operating cost |
| You need fast project deployment | Mobile Crushing Plant | Requires less civil construction and faster setup |
| You process large rock volumes continuously | Stationary Crushing Plant | Better suited for high-capacity production |
| Your site has difficult terrain | Crawler Crusher | Excellent mobility and adaptability |
| You need the lowest initial investment | Stationary Crush Plant | Lower equipment cost for fixed-site projects |
| You need maximum flexibility | Mobile Crush Plant | Can be moved according to project needs |
AIMIX Engineering Insight: The cheapest crushing plant is not always the most economical choice. For contractors working on multiple projects, a mobile stone crusher machine price maybe higher, but the mobile crusher equipment provide better returns by reducing installation time and relocation expenses. For permanent quarry operations, a stationary crush plant usually delivers better long-term efficiency.

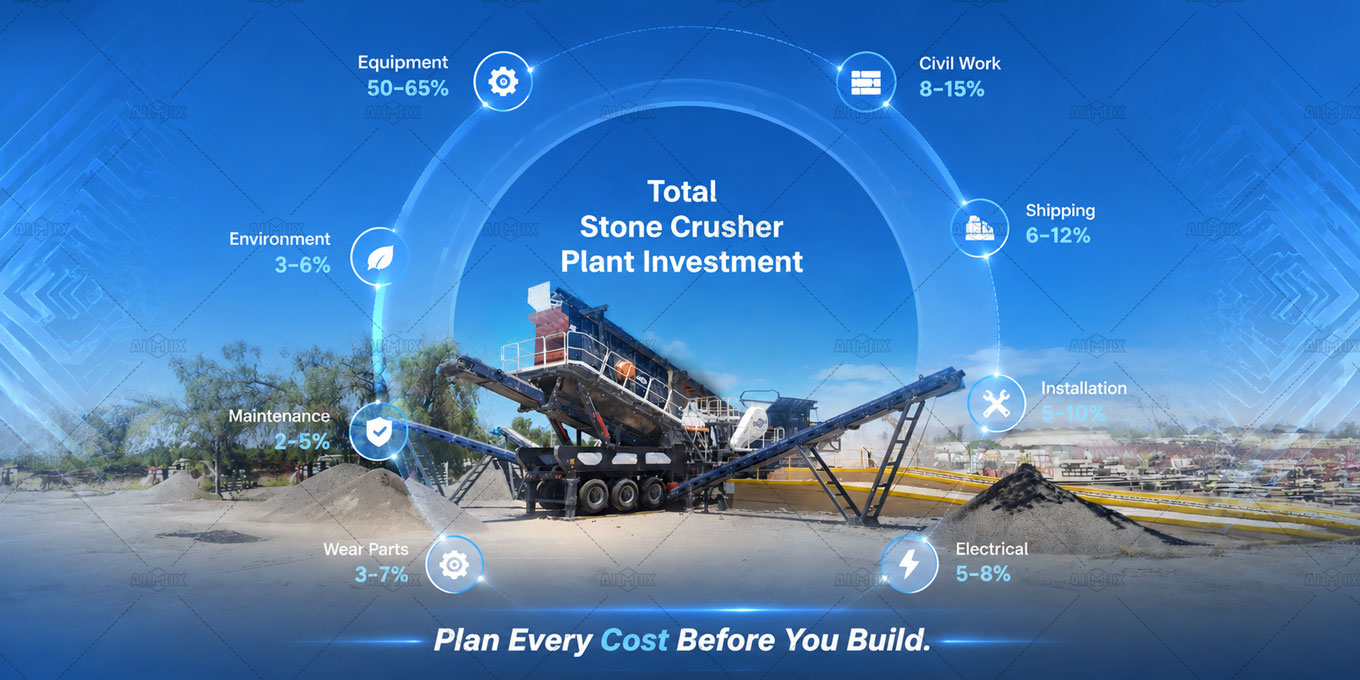

What’s Included in the Total Cost of A Stone Crusher Plant?
Building a stone crusher plant is not just about buying a machine. It is a system investment. Many buyers focus only on the price of stone crusher machine, but the final invoice often surprises them. We want you to see the full picture upfront — so you can budget accurately and avoid costly delays. Below, we break down every major cost component. We also share real data ranges, so you know where your money goes — and where you can save.
Equipment Cost – The Core Investment of Your Crushing Line
-
Your crushing equipment take the largest slice of the budget — typically 50–65% of your total stone crushing plant cost. Sometimes two crusher plants with the same tonnage can differ by 30% in price. Why? Because configuration matters.
We recommend you match the equipment type to your feed size, abrasiveness, and required output gradation. That is how you avoid paying for capacity you do not need — or under-investing and hurting your production later.
Foundation & Civil Works – The Hidden Cost Under Stationary Setup
Many buyers forget that the stationary crush plant must stand on solid ground. Foundation and civil work usually take up 8–15% of the total investment. This covers concrete footings, steel structures, anchor bolts, drainage channels, and vibration-absorbing pads.
The real variable? Your site conditions. Rocky terrain requires more blasting and leveling. Wet seasons demand better drainage to prevent sinking. Soft soil needs deeper piles — which adds both material and labor.
We always advise: do not cut corners here. A weak foundation will misalign your crushers within months, causing premature bearing failures and unscheduled downtime. That costs far more than proper concrete work upfront.
Installation & Commissioning – From Parts to Production
- Self-installation — cheaper, but slower and riskier if your team lacks crusher experience.
- Manufacturer engineer dispatch — we send our technicians to supervise or do the full installation. This costs more per day but cuts commissioning time by half and prevents assembly errors.
Once your equipment arrives and the foundation is ready, you need to put everything together. Installation and commissioning typically represent 5–10% of your total cost. You have two options here:
Shipping & Logistics – Getting Heavy Equipment to Your Site
-
Shipping is often the second-largest surprise in a project budget. Expect logistics to consume 6–12% of your total cost, depending on your location. Key factors that drive shipping costs:
- Distance from port — inland delivery costs more, especially in landlocked countries.
- Road conditions — narrow mountain roads require special trailers.
- Oversize permits — crushers and screens often exceed standard container sizes, so we ship them as break-bulk or in flat racks.
- Insurance — we strongly recommend all-risk marine insurance, typically 0.5–1.5% of the equipment value.
We work with multiple freight forwarders and compare routes for you. In fact, we have saved clients up to 15% on freight simply by choosing the right port and shipping season.
Electrical System & Control – The Nervous System of the Plant
Your plant cannot run without power — and how you distribute that power matters. Electrical and control systems usually account for 5–8% of the total budget.
The biggest cost driver here is automation level. A fully automated plant with remote monitoring costs more upfront but reduces your labor cost by 2–3 operators per shift. For many clients, that pays back in less than 18 months.
Also, do not forget: we customize the electrical system to match your local voltage and frequency (e.g., 380V/50Hz or 440V/60Hz). That saves you from buying expensive step-up transformers later.
Wear Parts & Consumables – The Cost That Keeps Running
- Jaw plates and cheek plates
- Blow bars or cone mantles and concaves
- Screen meshes
- Conveyor belts (splicing and replacement)
- Grease and lubricating oil
- Crushing granite wears out manganese jaw plates 30–40% faster than crushing limestone.
- Crushing river pebbles with a VSI will consume more rotor tips than crushing soft feed.
Here is a cost that many first-time buyers overlook: wear parts. While they are not part of the initial purchase, they will become your single largest operating expense over time. Plan for 3–7% of your annual revenue to go into wear items. Typical consumables include:
The type of rock you crush makes a huge difference. For example:
We provide you with a wear-part consumption forecast based on your specific material. That way, you can stock the right parts before you need them — and avoid a 2-week shutdown waiting for shipping.
Maintenance & Spare Parts Inventory – Keeping Downtime Low
- Scheduled lubrication and filter changes
- Belt tensioning and tracking adjustments
- Inspection of wear liners and shaft seals
- A strategic stock of high-failure items (bearings, seals, belts, sensors)
Maintenance is not an expense — it is an investment in uptime. We recommend allocating 2–5% of your equipment cost annually for routine maintenance and critical spare parts. This budget covers:
Data shows that plants with a preventive maintenance schedule achieve 92–95% availability, while those relying on reactive maintenance drop to 70–75%. For a 200 tph plant, that 20% difference means losing 200–300 tons per day — which directly hits your revenue.
Our stone crushing plant is with advanced PLC system, which can track running hours, alerts you before parts reach their limit, and even suggests when to order replacements.
Environmental Compliance – Dust & Noise Control (If Required)
- Water spray systems at transfer points and feed hoppers
- Baghouse dust collectors for dry screening and VSI operations
- Sound enclosures around crushers and screens
- Settling ponds for runoff water
More and more countries enforce strict environmental standards for crushing plants. If your site falls under regulation, plan 3–6% of your budget for dust and noise control systems. Typical solutions include:
The exact cost depends on your local emission limits. For example, if your country requires PM2.5 below 150 μg/m³, you will need a full dust collection system. If regulations are more relaxed, water sprays may suffice.
We design these systems based on your local environmental code. That means you pass inspection the first time, without expensive retrofits.
Every crushing project is different, so there is no standard investment formula. A complete budget should consider not only equipment costs but also civil works, transportation, installation, and long-term maintenance.
At AIMIX, we provide customized budget planning based on your production capacity, raw materials, site conditions, and project goals, helping you understand the full investment before making a purchase.
How to Get an Accurate Stone Crusher Plant Quote: A Step-by-Step Guide
Getting an accurate quotation requires more than simply asking for a stone crusher plant price. Since every crushing project has different requirements, suppliers need to evaluate your production capacity, raw materials, finished product specifications, and site conditions before recommending the right solution.
Providing complete project information and comparing quotations based on the total investment will help you choose a reliable crushing solution with better long-term value.
Define Your Production Requirements
The first step to getting an accurate quotation is to clearly define your production goals. A complete project description helps engineers design the appropriate crushing process and avoid unnecessary equipment costs. Before requesting a quotation, prepare information such as:
- Required production capacity (TPH)
- Raw material type (granite, limestone, basalt, river stone, etc.)
- Maximum feeding size
- Required final product sizes
- Expected working hours per day
- Stationary or mobile plant preference
Provide Raw Material and Site Information
Raw material characteristics and project location directly affect the rock crushing plant design and final quotation.
Engineers need to understand not only what material you are processing, but also how the plant will operate in the field. Important information includes:
- Material hardness and abrasiveness
- Moisture content
- Available installation area
- Quarry or construction site conditions
- Local power supply and environmental requirements
For example, hard and abrasive materials usually require more durable crushing equipment and wear-resistant components, which can increase the initial investment. Meanwhile, difficult site conditions may influence the choice between mobile and stationary solutions.
Request a Complete and Itemized Quotation
A professional stone crusher plant quotation should include more than the crusher stone machine price. A complete quotation should clearly explain what equipment and services are included. A detailed quotation usually covers:
- Primary crushing equipment
- Secondary or tertiary crushing equipment
- Vibrating feeders and screens
- Belt conveyors
- Electrical control system
- Installation requirements
- Spare parts recommendations
- Optional equipment
An itemized quotation makes it easier to compare different suppliers and understand whether a lower price is based on a simpler configuration or missing components.
Compare Total Investment, Not Only Stone Crusher Plant Price
The lowest quotation is not always the most economical choice. A complete evaluation should consider the total cost throughout the project lifecycle. Besides the initial equipment investment, consider:
- Installation and commissioning costs
- Transportation and logistics expenses
- Energy consumption
- Wear part replacement costs
- Maintenance requirements
- Production efficiency
A well-designed crushing plant may require a higher initial investment but deliver better performance, lower downtime, and improved operating efficiency over many years.
Evaluate Supplier Experience and After-Sales Support
Choosing the right supplier is just as important as choosing the right equipment. A reliable manufacturer should provide complete support from project design to plant operation. When evaluating suppliers, consider:
- Experience in similar crushing projects
- Previous installation cases
- Engineering and technical support
- Installation guidance
- Spare parts availability
- After-sales service capability
A supplier with extensive project experience can help identify potential problems in advance and provide a crushing solution that is more suitable for your actual working conditions.
Since every crushing project has unique requirements, accurate pricing requires professional evaluation rather than a standard price list. At AIMIX, our engineers analyze your material characteristics, production targets, finished product requirements, and site conditions to design a suitable crushing solution and provide a detailed quotation. Share your project details with us and get a customized stone crusher plant proposal based on your actual needs.
FAQs
Can I get a fixed price for a stone crusher plant before sharing my project details?
However, we can provide an estimated price range based on similar projects. After evaluating your specific requirements, a more accurate quotation can be prepared.
Does a higher stone crusher plant price mean better performance?
- A large crusher may increase investment without improving efficiency if the capacity requirement is small.
- Additional equipment may increase cost without providing meaningful benefits.
The right configuration is more important than simply choosing the most expensive equipment.
How long does it take to receive a stone crusher plant quotation?
Providing complete project details helps shorten the quotation process.
Why do I see such wide price differences for the same capacity?
- Different crushing stages
- Different automation levels
- Different equipment quality
- Different service packages
For example, a 200 TPH granite crushing plant usually requires a different configuration from a 200 TPH limestone crushing plant.
Do I really need a PLC automatic control system? Is it worth the extra cost?
- Reduces operator headcount by 2 people per shift – payback in 12–18 months
- Automatically adjusts feeder speed to prevent choke-feeding – boosts actual throughput by 5–8%
- Provides real-time alarms and fault diagnosis – cuts troubleshooting time by 70%
For any plant above 100 tph, we strongly recommend PLC.
