Wall Putty Manufacturing Plant

Wall putty manufacturing plant is used to produce all kinds of wall putty, such as internal and external wall putty powder, thermal insulation surface, color decorative mortar, etc.



We are from China, and we are a professional wall putty plant manufacturer because we can supply users with all kinds of wall putty plants, such as automatic wallputty manufacturing plant, simple dry mix wall putty powder production line, and fully automatic wall putty powder production line, etc. Our plants can meet different requirements of projects. Up to now, there are more than 50 customers who chose us, we also built a friendly relationship.

Latest news

2tph installed in Zambia

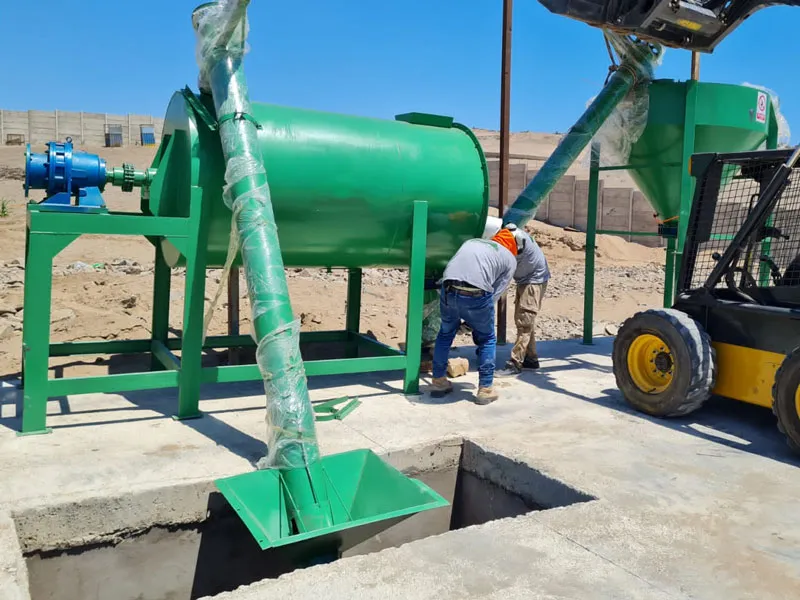

2 ton wall putty plant installed in Zambia

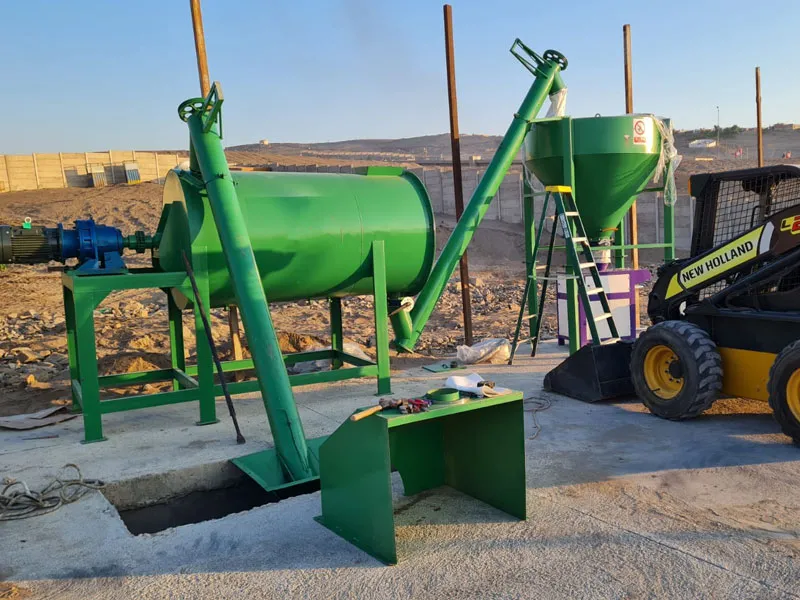

2 ton wall putty plant in Zambia
putty plant in Zambia

10tph installed in Malaysia

10pth wall putty making machine installed in Malaysia

What are the types of wall putty plants?

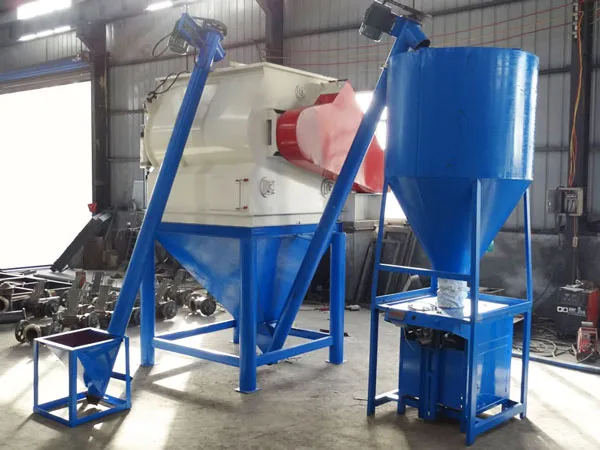

Simple Wall Putty Making Machine: 2tph-9tph

TypeGJ03GJ06GJ09
Production capacity3t/h6t/h9t/h
Production circle20 min20 min20 min
Number of sand bins000
Number of powder bins000
Production mortar typeordinary mortarordinary mortarordinary mortar
Power(kw)23.532.536.5
Floor area20-30m220-30m230-40m2

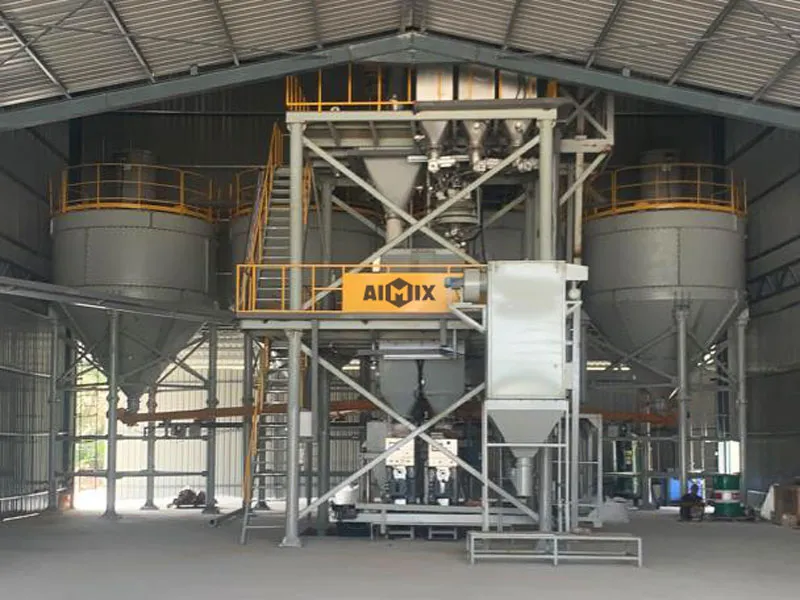

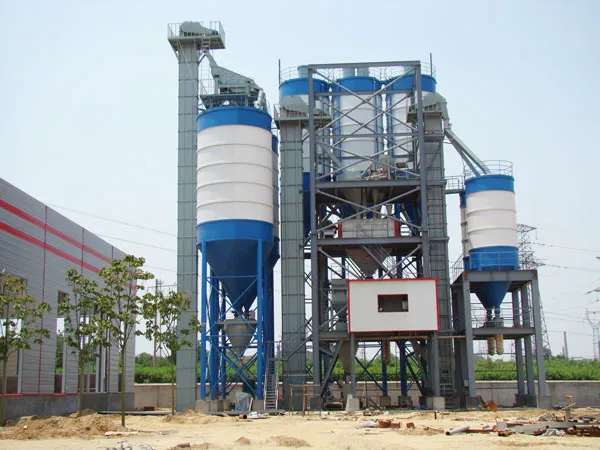

Automatic Wall Putty Mixing Plant: 10tph-100tph

TypeGJ10GJ20GJ30
Production capacity5-10t/h15-20t/h20-30t/h
Production circle5 min5 min5 min
Number of sand bins2x100T2x100T2x100T
Number of powder bins2x100T2x100T2x100T
Production mortar typeOrdinary mortar and some special mortarOrdinary mortar and some special mortarOrdinary mortar and some special mortar
Power(kw)120150180
Floor area37x10m37x10m37x10m

Cases about wall putty machines

30tph installated in Indonesia

30 ton putty manufacturing plant Indonesia

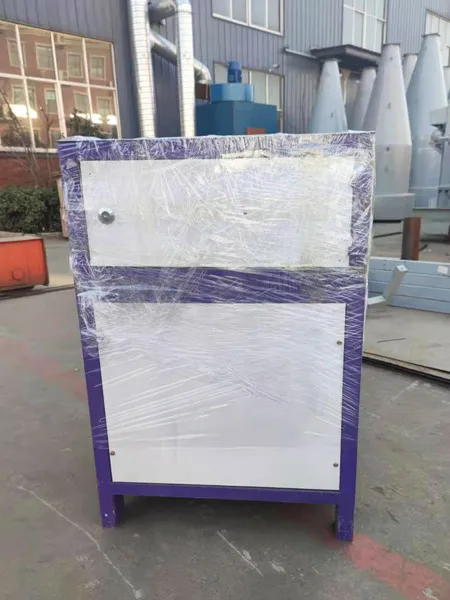

packing machine
AIMIX service team in Indonesia
dry mortar mixer plant in Indonesia

Export 3tph to UAE in April

3tph to Malaysia

3tph walll putty making machine to Malaysia

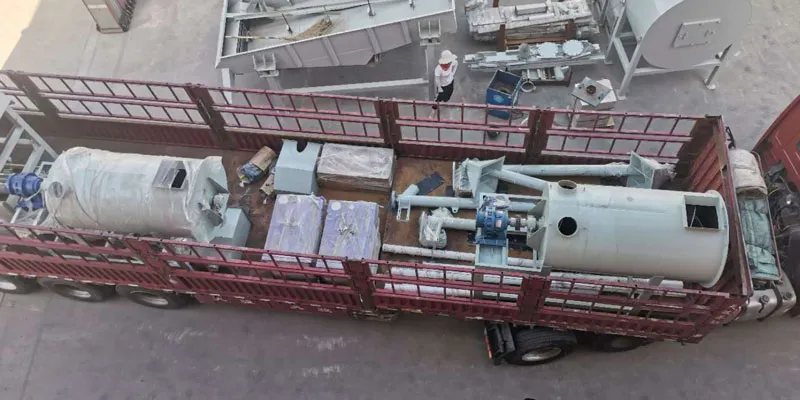

3 ton wall putty manufacturing machine shipment

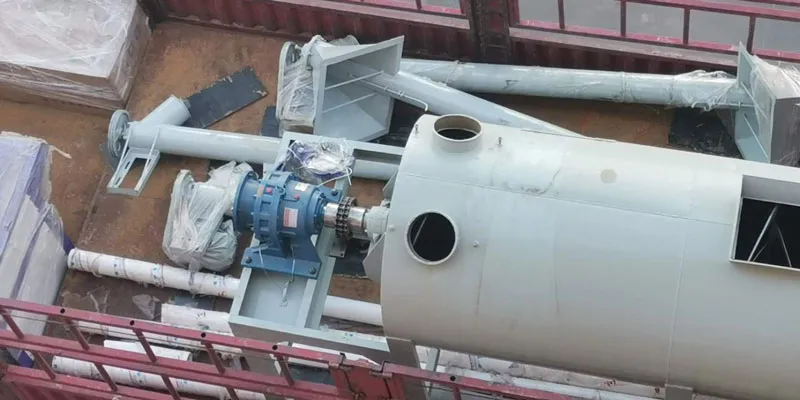

3 ton wall putty manufacturing machine

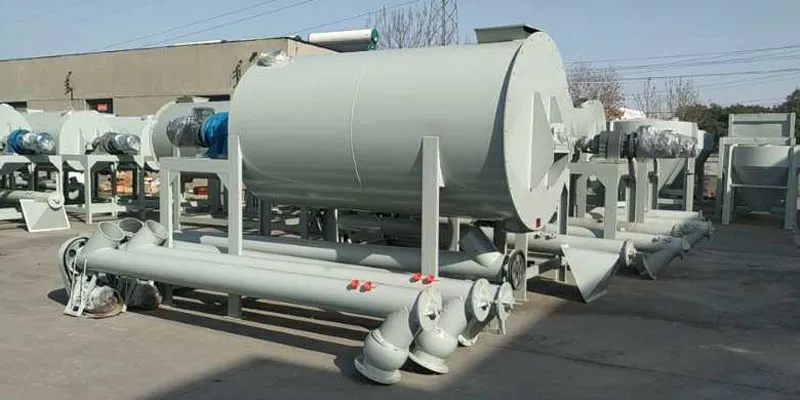

3tph wall putty machine to Malaysia

2tph to Kenya

2 ton wall putty plant to Kenya

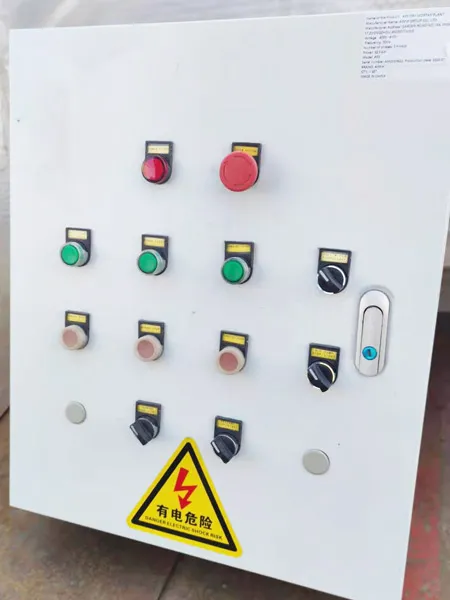

control panel
adhesive making machine to Kenya
packing machine

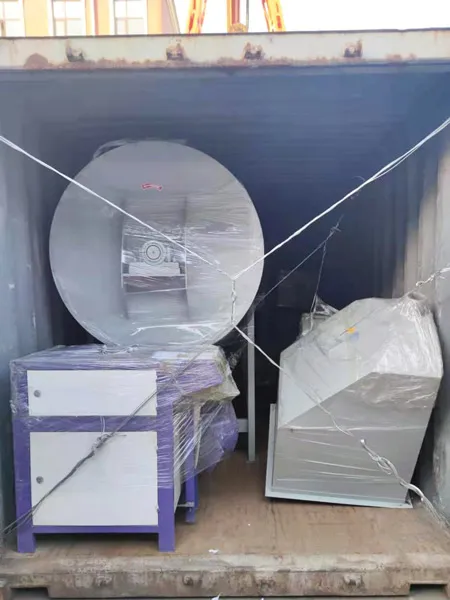

tile adhesive machine delivery

Simple wall putty machine worked in Malaysia

5tph to Peru

5 ton adhesive machine

5 ton tile adhesive making plant
packing machine

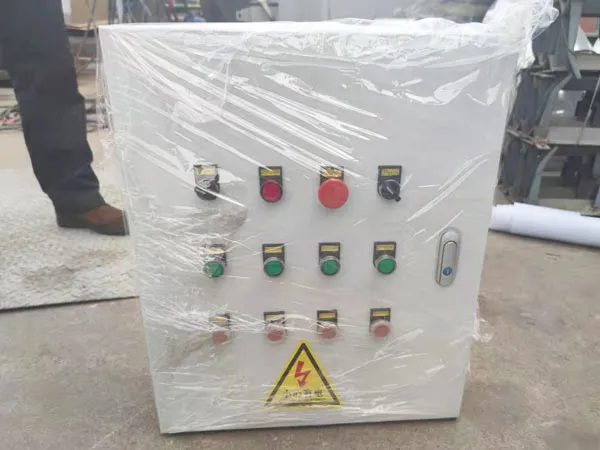

control panel of adhesive machine

Manufacturing Process Of Wall Putty Manufacturing Plant

Depending on the requirements and market. Popular wall putty plant is usually station layout, ladder layout, tower layout, and so on. In the general process, all the pretreated raw materials are lifted to the top of the raw material silo, and naturally, flow out from the cement silo by the weight of the raw material itself, and become the final products after weighing, batching, mixing, packaging, etc. All production is done under the operation of a modern microcomputer control system.

As long as the operator specifies the types and quantities of the products, all other operations will be automatically performed by the control system without a manual monitor. We adopt full-closed production system equipment, on-site cleaning, no dust pollution, to ensure the health of workers. The wall putty manufacturing plant is modular structure, the production capacity can be connected with the development of the market, it has characteristics of high batching precision, high flexibility, and high efficiency.
procedure of wall putty production

Why You Choose Aimix Wall Putty Manufacturing Plant Manufacturer

1. Diverse product structure

According to the customer’s requirements and different investment scales, tailor-made to give customers the best and most economical equipment solutions.

2. Stable and reliable system performance

The strong R and D design team is the software guarantee for system design innovation. At the same time, the mechanical and electrical products supporting the equipment are well-known brands at home and abroad. This is the hardware guarantee for the stable operation of the system.

3. Equipment green energy saving and environmental protection

The optimal structural design, stable and reliable system performance, is an important guarantee for the energy-saving operation of equipment. At the same time, various types of dust collectors can best meet the dust removal of equipment and effectively ensure the green energy-saving and environmentally friendly operation of equipment.

4. Service quality innovation is first-class:

Service teams all over the country, skilled technical personnel, wholeheartedly care for your equipment. What’s more, we have established four overseas warehouses in Uzbekistan, the Philippines, Sri Lanka, and Pakistan. Ensure that your equipment is put into production with the strongest combat power. At the same time, it can effectively reduce the maintenance, maintenance, and maintenance costs of the equipment, and maximize the output value and profit of your equipment.

wall putty making machine from AIMIX

Compositions Of Wall Putty Manufacturing Plant

1. The drying system is a core of the entire wall putty plant and a key point that determines overall production efficiency. At present, the single-cylinder dryer has been gradually eliminated, because the single-cylinder dryer is not only large in area, but also high in coal consumption, and it is easy to maintain. With the maturity of the three-cylinder dryer technology, we started to use the three-cylinder dryer. The overall production efficiency of the three-cylinder dryer can be divided into 20, 30, 40, 50, 60, and other series. Refers to the dry sand production per hour. Generally, 30 can reach 25~28 tons of output, then the mortar can be stirred is 35~40 tons.

2. The heat source selection of the wall putty making machine can be selected from a hot air furnace, a boiling furnace, and the like. The hot blast stove has a lower cost, but it needs to burn coal and does not produce slag. The boiling furnace has a relatively high cost and can burn coal. The selection of drying equipment is mainly based on local conditions. If it is in the coal-producing area and the environmental protection requirements are not strict, then a boiling furnace can be used.

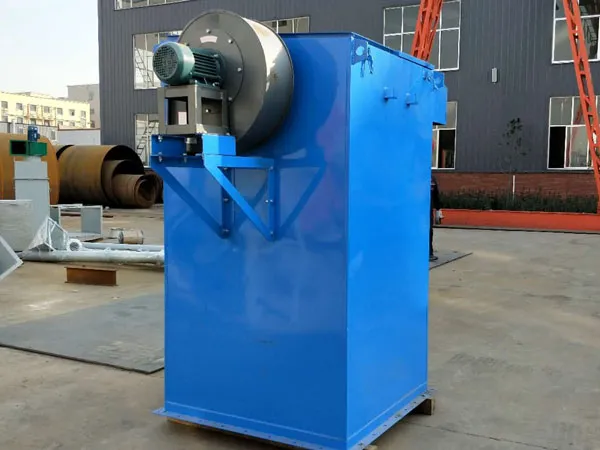

pulse dust collector
pulse dust collector

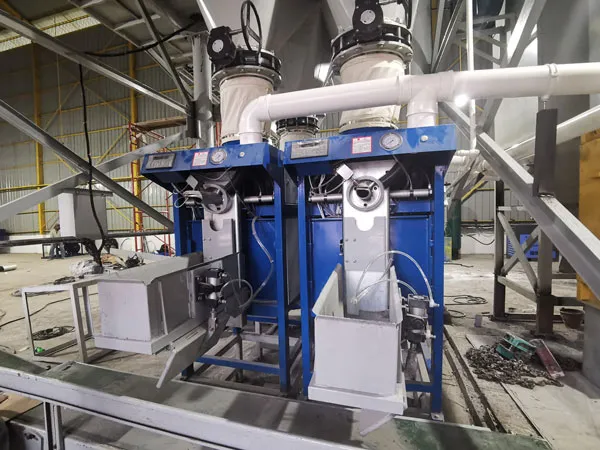

valve packing machine
valve packing machine
burner
burner
diesel combustion chamber
diesel combustion chamber

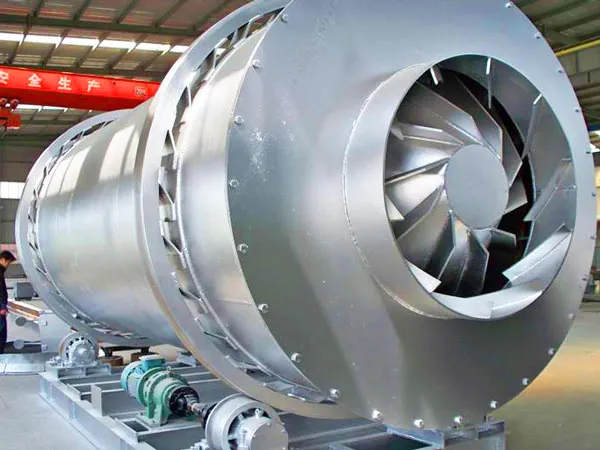

drying system
drying system

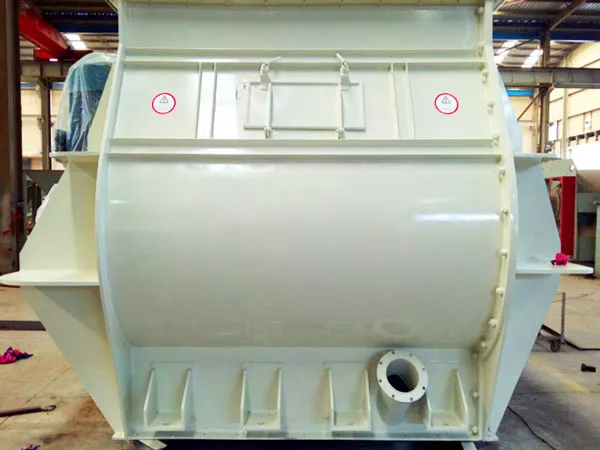

mixing system
mixing system

3. The screening system can use a single-stage linear vibrating screen or a grading screen. Some wall putty manufacturing plant manufacturers also add a vibrating crushing device to recycle the screened coarse sand and recycle it. The selection points of the screening system are: according to the actual sand selection, if the general river sand is used, and there is no crushing device, then the ordinary linear vibrating screen can be used. If it is necessary to use the stone powder, it is better to use the drum screen.

4. The mixing system of wall putty making plant generally adopts a single-axis pear knife type or a double shaft without gravity: https://www.pinterest.com/companyaimix/dry-mix-mortar-plant/. Both mixers can be used in mortar stations, but they are also very particular in terms of equipment selection. The single-axis pear knife mixing machine can stir more fully, especially some very small additives, so it can be used to produce special mortar. The disadvantage is high cost and low mixing efficiency. The double-axis gravityless mixing host has high mixing precision. Fast speed, low energy consumption, and sealable operation, suitable for the production of ordinary mortar.

5. Other components include metering systems, bulk and packaging systems, dust removal systems, control systems, and more.

Last but not least, if you want to learn more about wall putty manufacturing plant, please contact us and leave us a message!
