Overview of the Main Asphalt Mixing Plant Parts

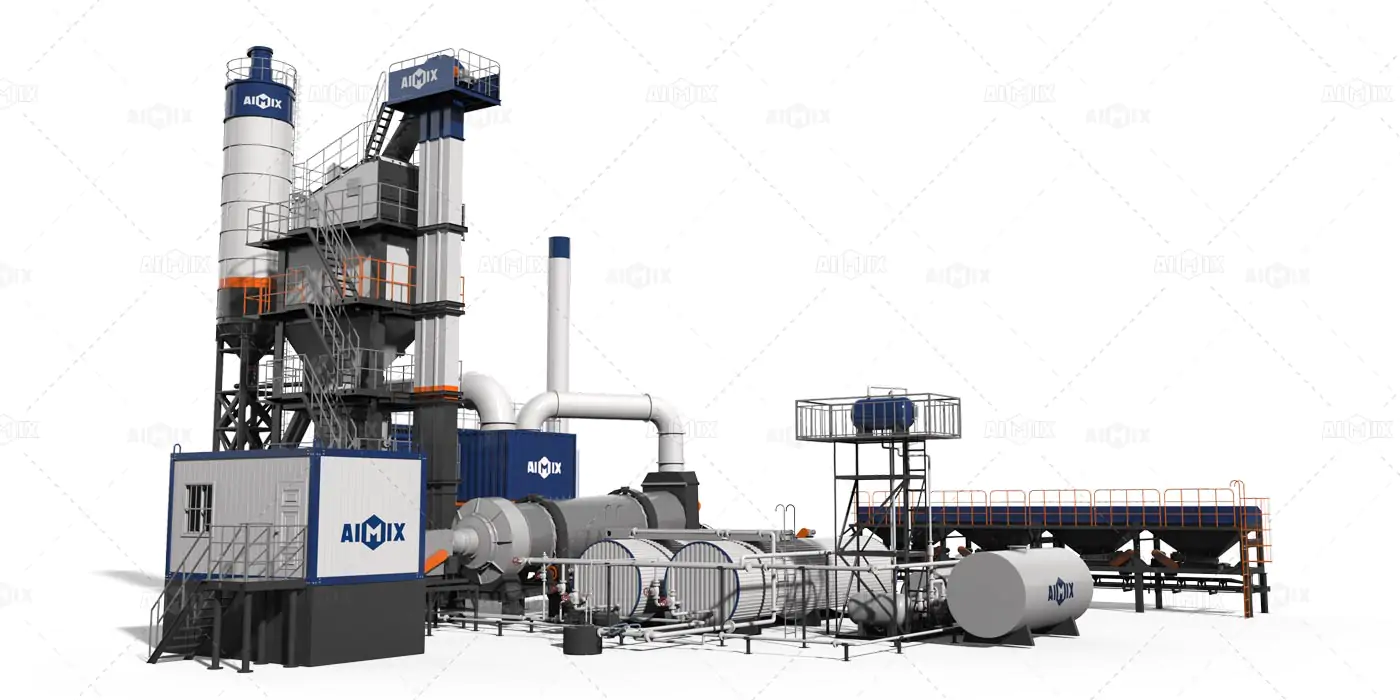

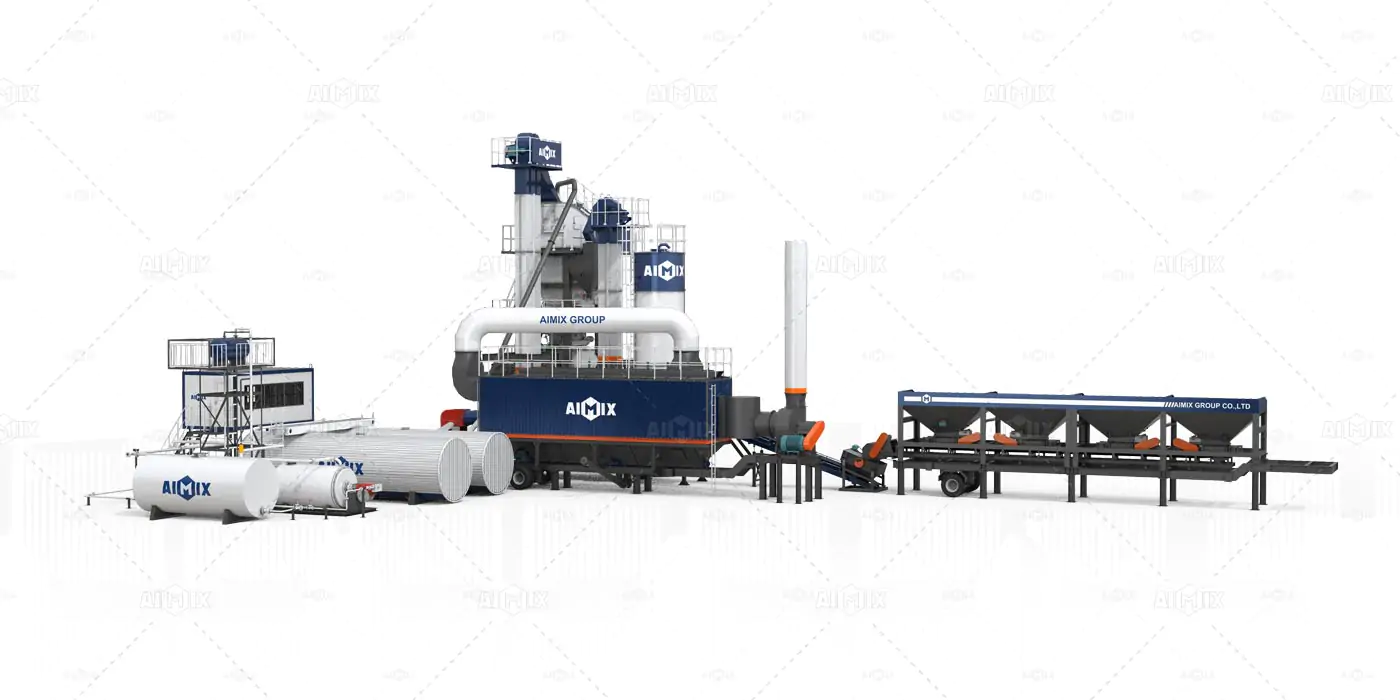

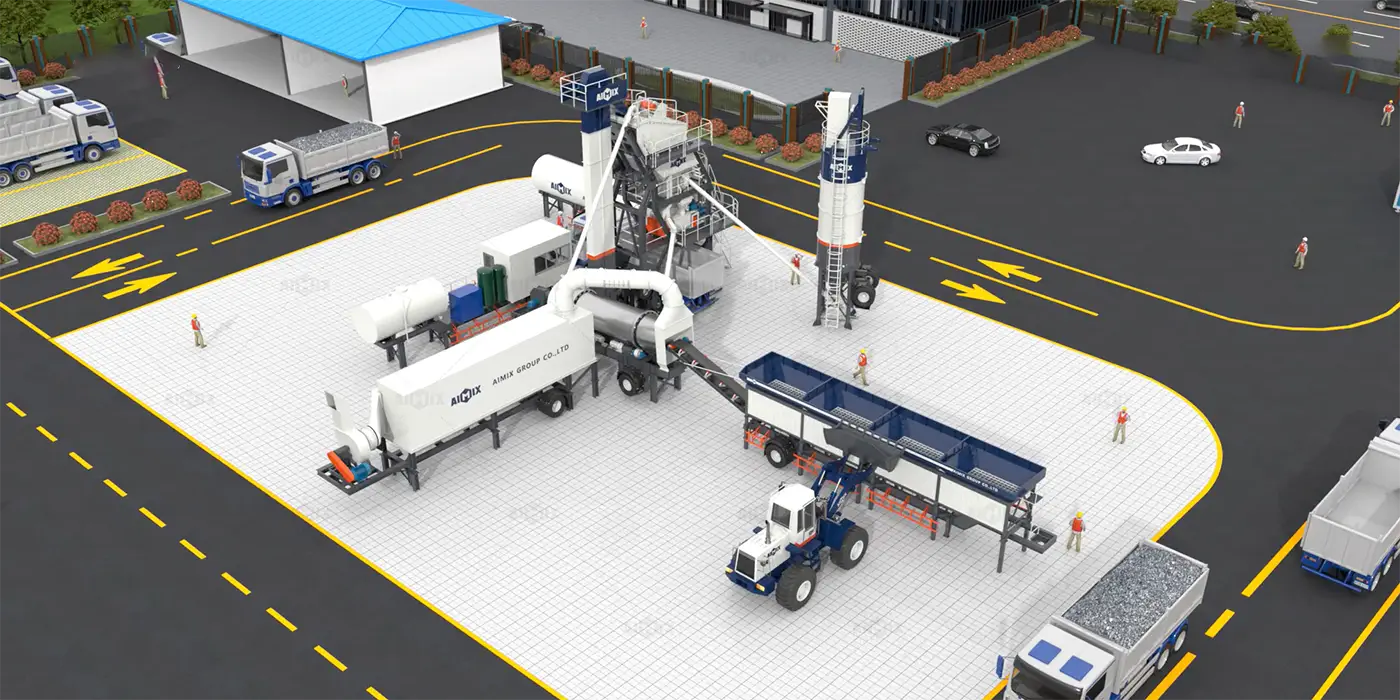

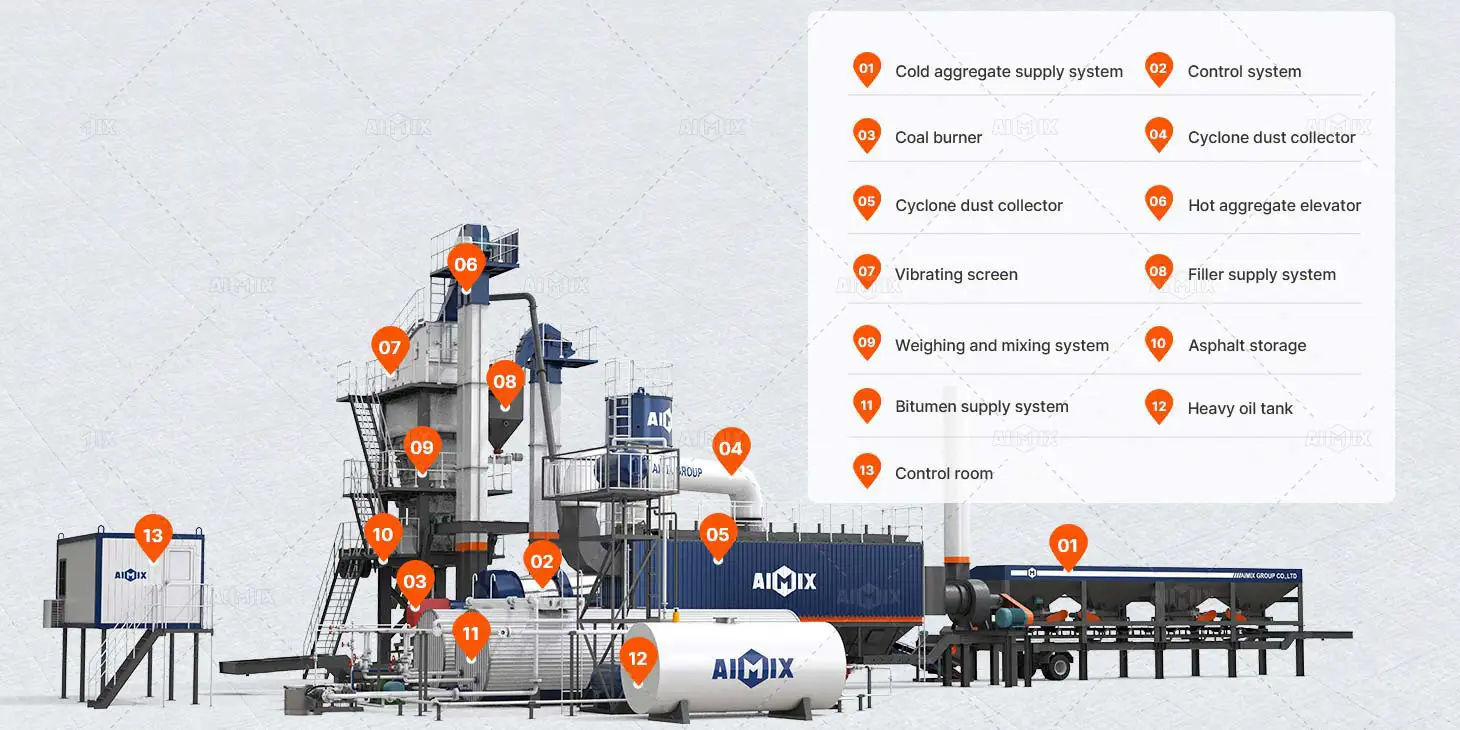

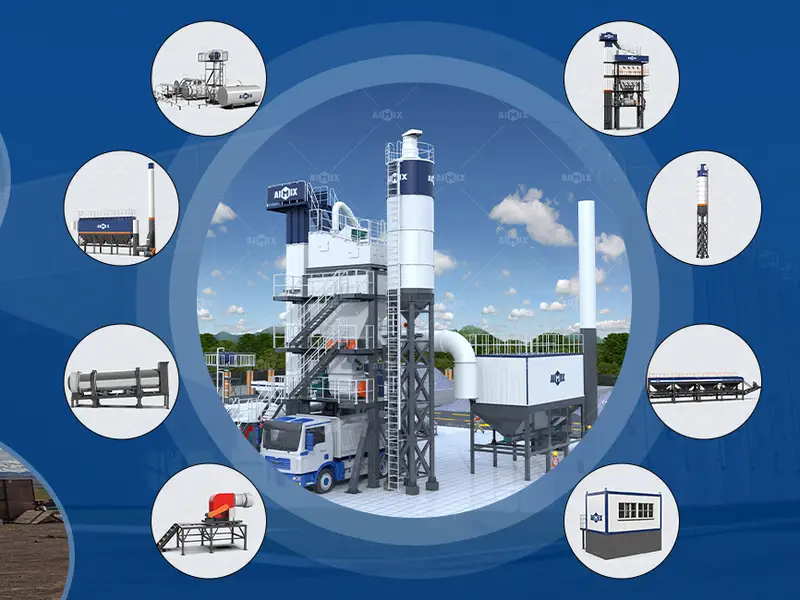

What are the main structure of asphalt mixing plant? What are the components of an asphalt plant? As a key piece of equipment for road construction, an asphalt mixing plant consists of several important hot mix plant components. The asphalt plant components include cold aggregate supply system, dryer drum, coal-fired burner, cyclone dust collector, bag filter, hot aggregate lifting system, vibrating screen, filler supply system, weighing and mixing system, asphalt storage tanks, asphalt supply system and control room.

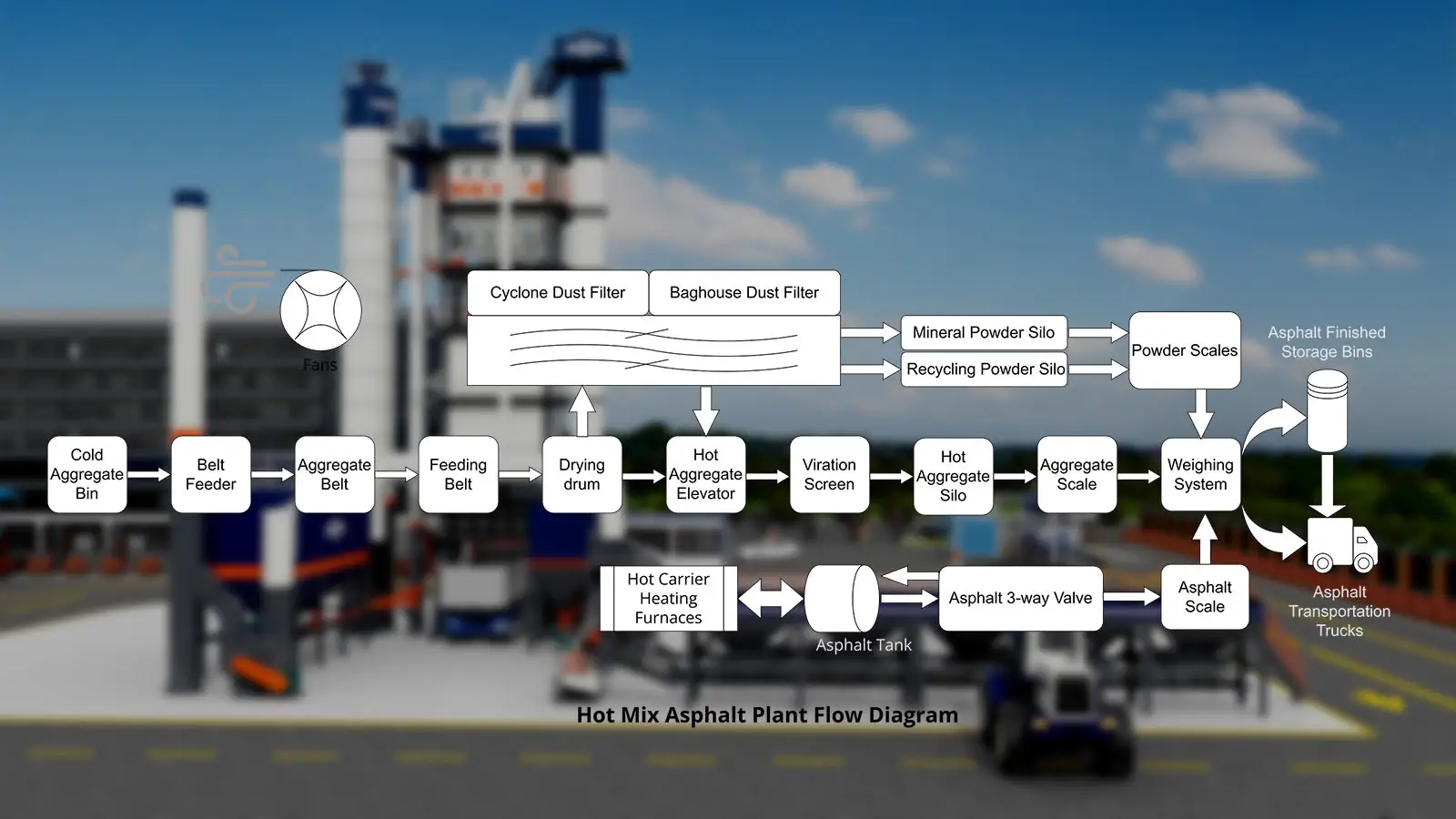

These systems work in tandem to ensure that every step of the process, from raw material transportation, heating, purification, lifting, screening, to final mixing and storage, is efficient and stable for the production of high-quality asphalt mixtures. Let’s learn together next to help you understand every detail of what are the components of an asphalt plant in depth.

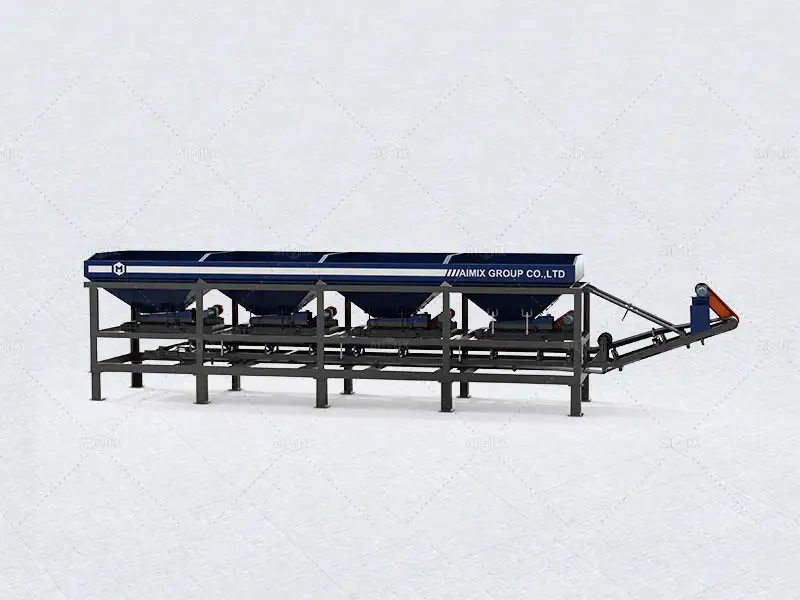

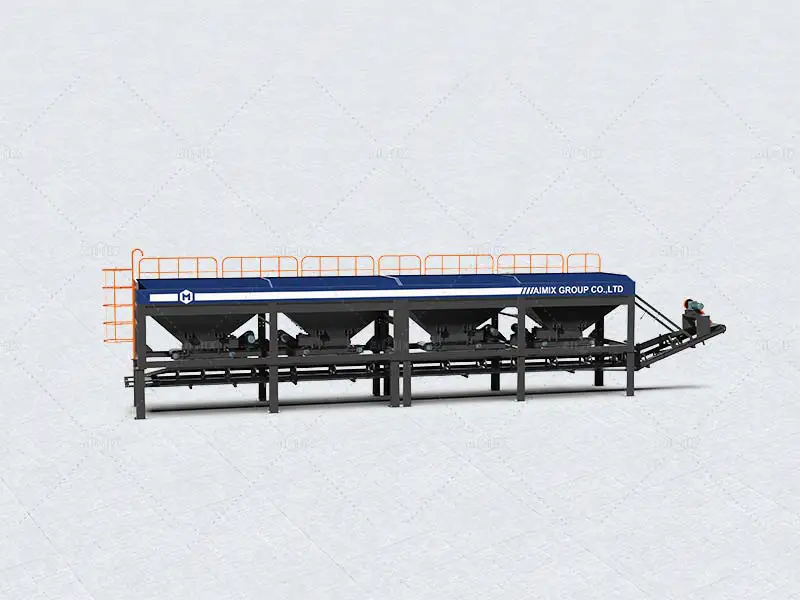

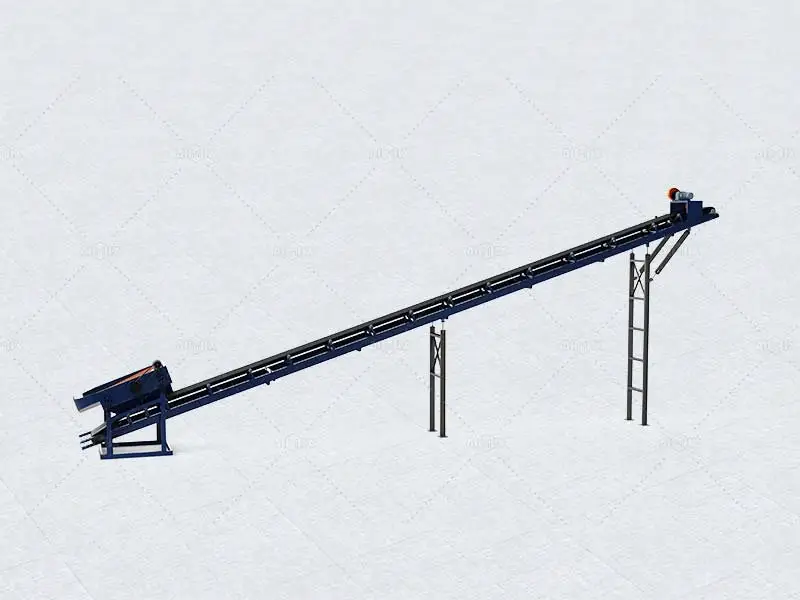

Cold Aggregate Supply System
- This system typically consists of aggregate bins, conveyors, and metering devices.
- The aggregate bins store aggregates of different sizes, usually in multiple compartments.
- Aggregates are transported to the next process by conveyors and weighed accurately by metering devices before entering the drying drum.
- This process requires stable conveying capability and uniform distribution of aggregates, creating favorable conditions for subsequent heating and mixing.
- The cold aggregate supply system ensures the uniformity and stability of raw materials.
Next, we will see how they are processed through the drying drum.

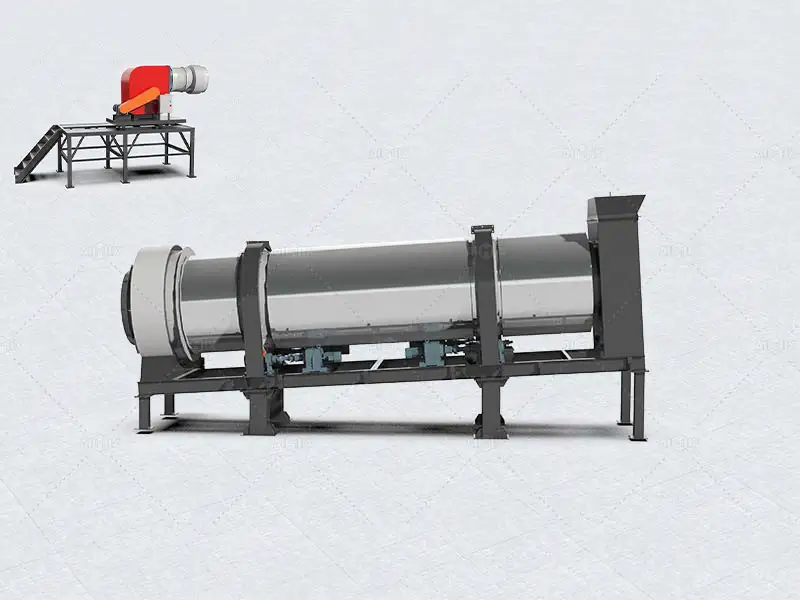

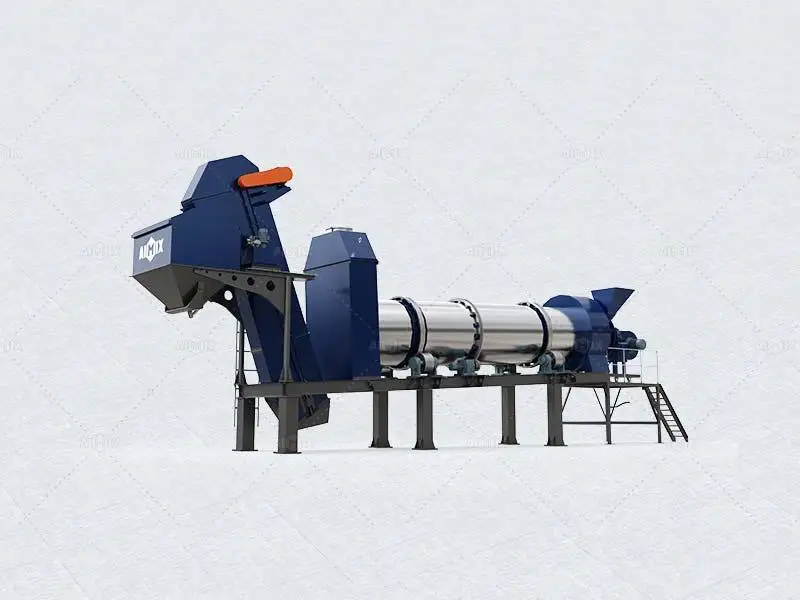

Drying Drum
The drying drum is a core components of the hot mix plant, responsible for heating the wet, cold aggregates to the appropriate temperature.
- The design of the drying drum directly affects the heating efficiency and uniformity of the aggregates.
- The drying drum is equipped with spiral blades that continuously turn the aggregates during rotation, ensuring even heating.
- Efficient drying drum design reduces heat loss while ensuring rapid evaporation of moisture in the aggregates.
- Typically, the drum’s exterior has insulation to enhance heating efficiency and reduce energy consumption.
- Thus, aggregates are adequately heated in the drying drum.
Therefore, we can know the dryer drum as one of core components of asphalt batching plant. To better control pollution during the heating process, we also need an efficient coal burner of asphalt plant.

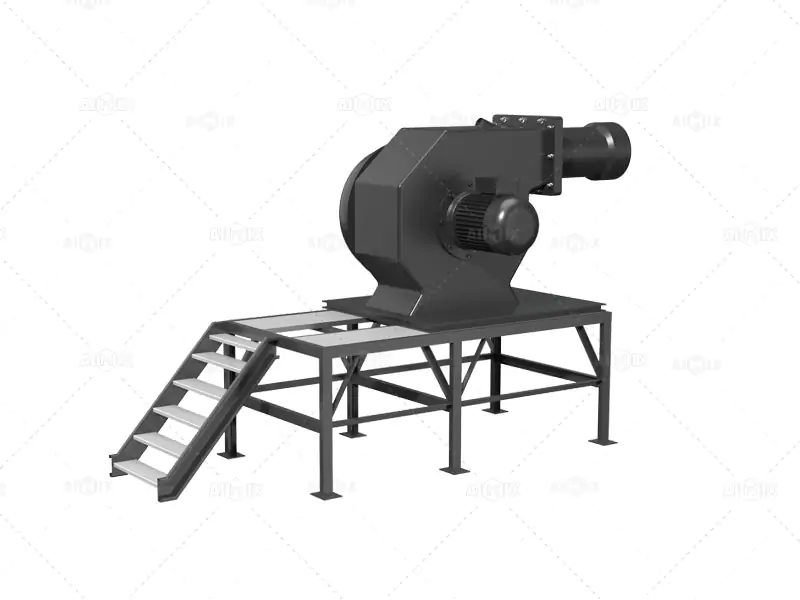

Coal Burner
- The coal burner provides a stable heat source for the drying drum.
- Its performance directly impacts the production efficiency and environmental performance of the asphalt mixing plant.
- Modern coal burners use advanced combustion control technology to provide more efficient, low-emission heat energy.
- These burners are usually equipped with automatic adjustment systems that precisely regulate fuel supply and airflow according to the drying drum’s actual needs, achieving optimal combustion efficiency.
- The burner design must also consider the treatment of combustion exhaust gases to meet environmental standards.
The coal burner provides stable heat energy. To further enhance environmental standards during production, we need to effectively handle exhaust gases.

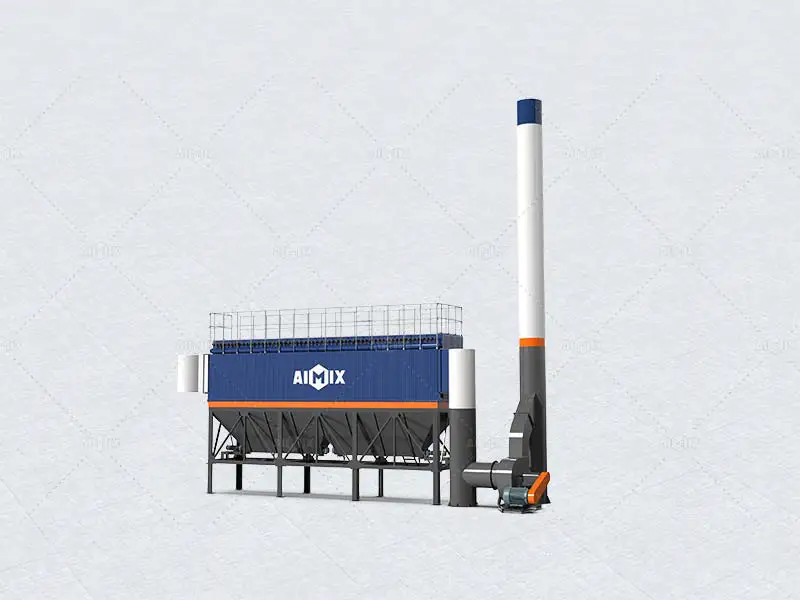

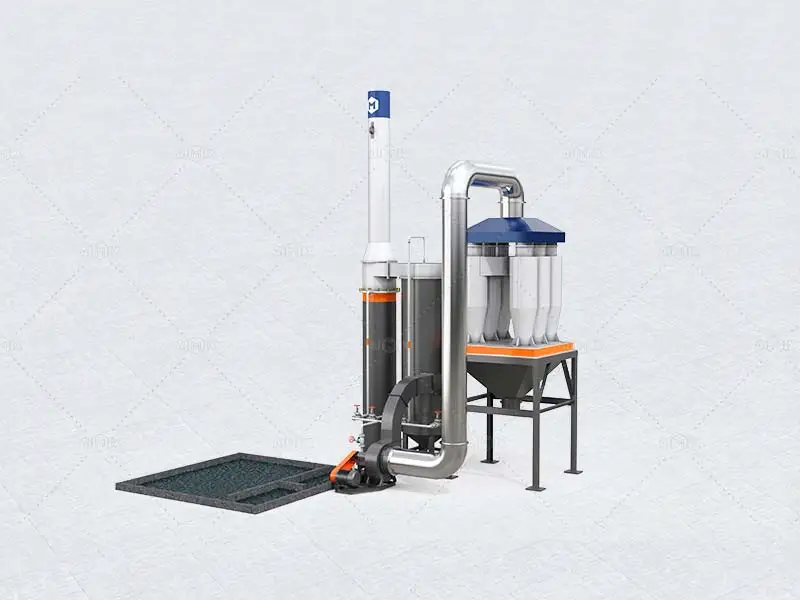

Dust Removal System
Handling dust in exhaust gases is an important environmental aspect during the asphalt batch mix plant operation and components. The dust removal system includes cyclones and bag filters, working together to ensure a clean production environment.
Cyclone Dust Collector
The cyclone dust collector uses centrifugal force from rotating airflow to separate large dust particles from the exhaust gases. This device is simple in structure and easy to maintain, typically used as the first dust removal equipment.

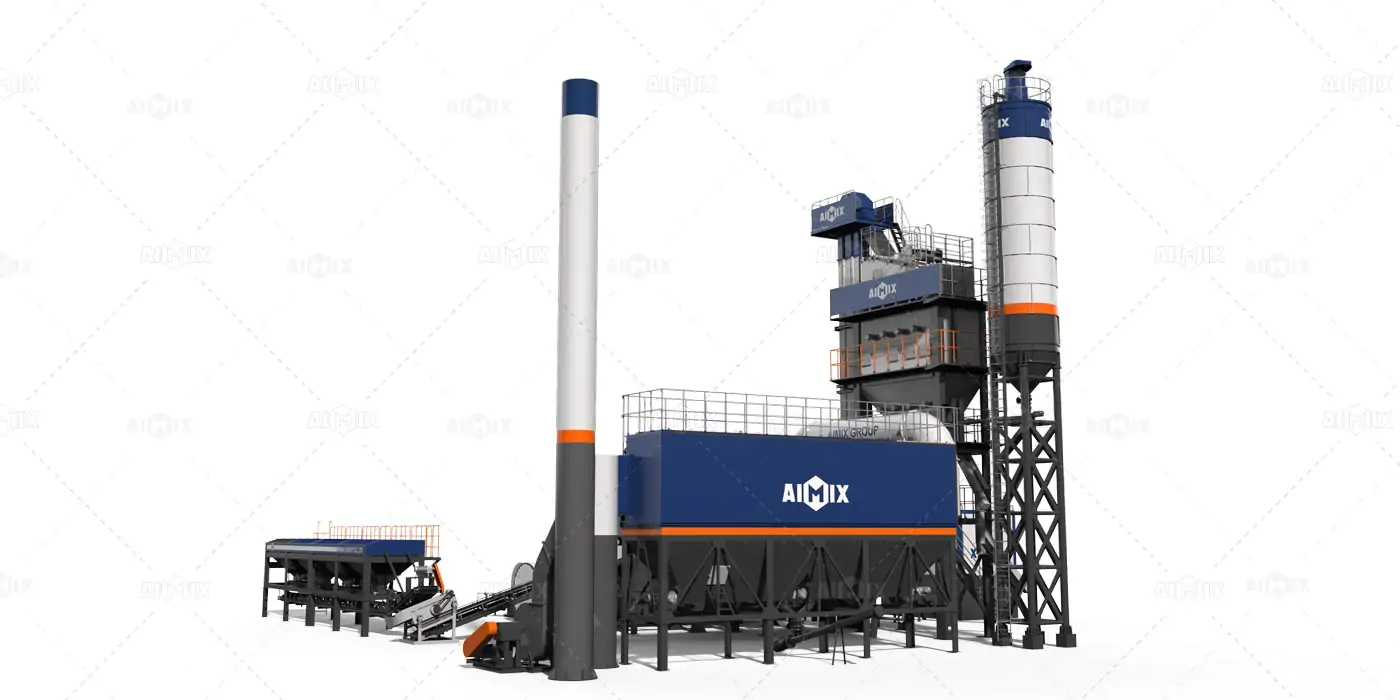

Bag Filter

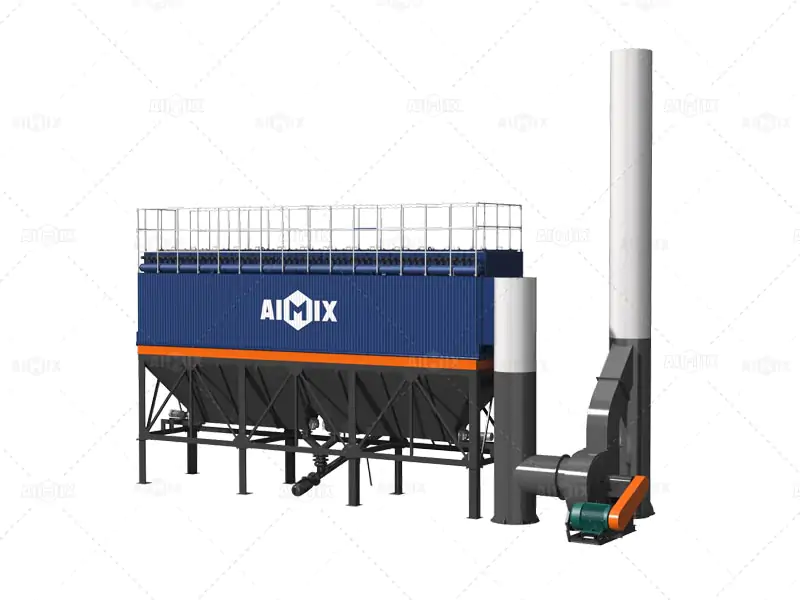

The bag filter captures fine dust in the exhaust gases through filter bags, achieving further purification. Bag filters usually have automatic cleaning devices that periodically blow reverse airflow to remove dust from the bags, ensuring effective filtration.
Dust in exhaust gases is effectively controlled by the combined use of cyclones and bag filters. Next is the hot aggregate elevator system.
Hot Aggregate Elevator System
- The hot aggregate elevator system transports the dried and screened hot aggregates to the vibrating screen.
- This process requires efficient lifting capability and must ensure the stability and continuity of the aggregates during transportation.
- The hot aggregate elevator system typically uses bucket elevators, which achieve significant height transportation of aggregates in a relatively small footprint.
- The elevator design must consider the wear characteristics of the aggregates to choose suitable materials and structures, extending the equipment’s service life.
The hot aggregate elevator system ensures efficient transportation of aggregates. Next, we need to further screen these aggregates to ensure quality.

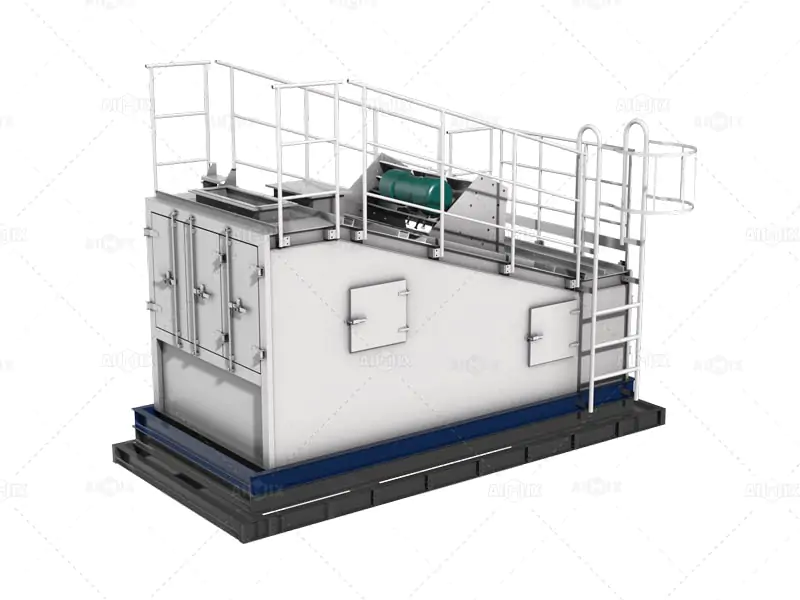

Vibrating Screen
- The vibrating screen is crucial for ensuring uniform aggregate size.
- It separates aggregates of different sizes through multiple layers of screens.
- The design of the screens and the setting of vibration parameters directly affect the screening efficiency.
- Vibrating screens usually have multiple layers, each with different screen apertures to achieve layered screening of aggregates.
- Screened aggregates are stored in separate bins for subsequent production use.
- Efficient vibrating screens improve aggregate uniformity and reduce rework rates during production.
Aggregates are effectively screened through the vibrating screen. Next, we need to supply filler to the system.

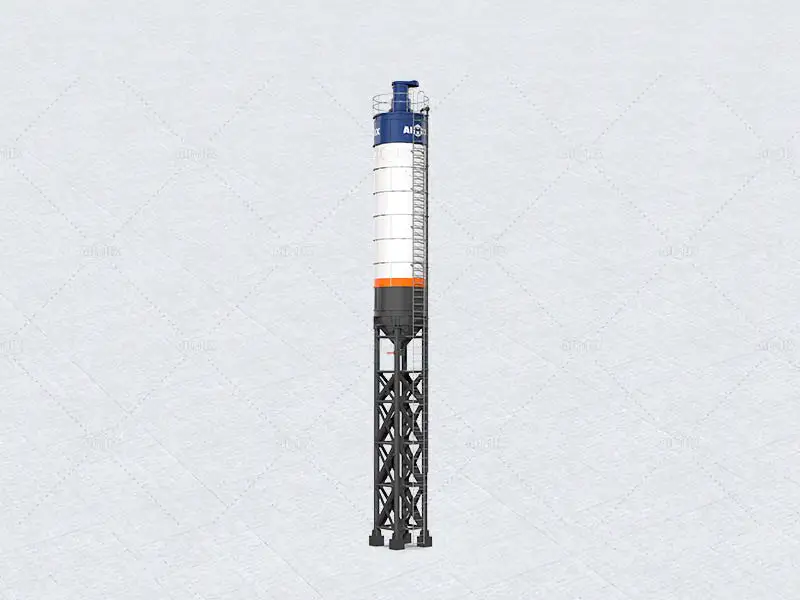

Filler Supply System
- The filler supply system provides the necessary mineral powder and other fillers for production. This system typically includes filler bins, screw conveyors, and metering devices.
- Filler bins store different types of fillers, which are transported to metering devices by screw conveyors for precise weighing before being added to the mixing system.
- Uniform filler supply and precise metering are crucial for the quality of the asphalt mix, so the design of the filler supply system must consider material flow and metering accuracy.
The filler supply system provides the necessary fillers for production. Next is the weighing and mixing system.

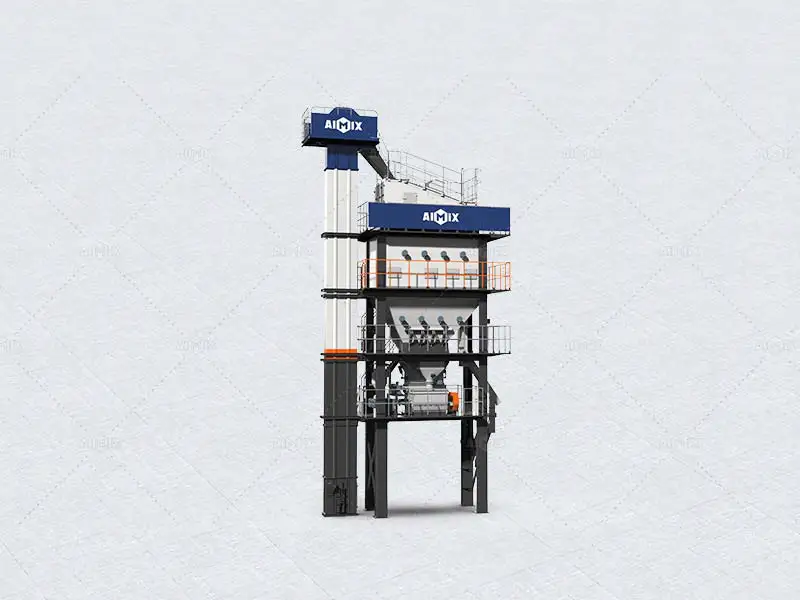

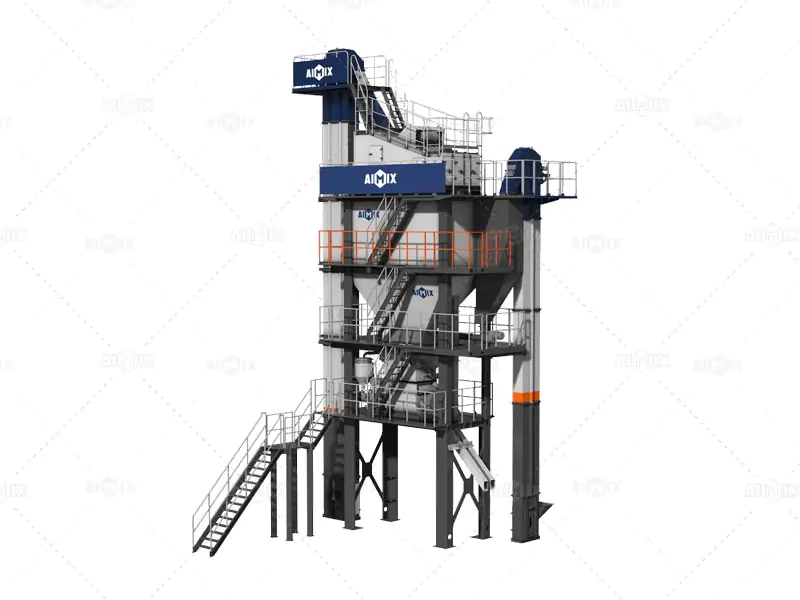

Weighing and Mixing System
The weighing and mixing system is one of core parts of an asphalt plant. It accurately weighs aggregates, fillers, and asphalt according to set proportions and thoroughly mixes them in the mixer.
Weighing System
The weighing system typically includes aggregate scales, filler scales, and asphalt scales, each used for weighing different materials. The weighing accuracy of each material directly impacts the final asphalt mix ratio, so the weighing system must have high precision and stability.

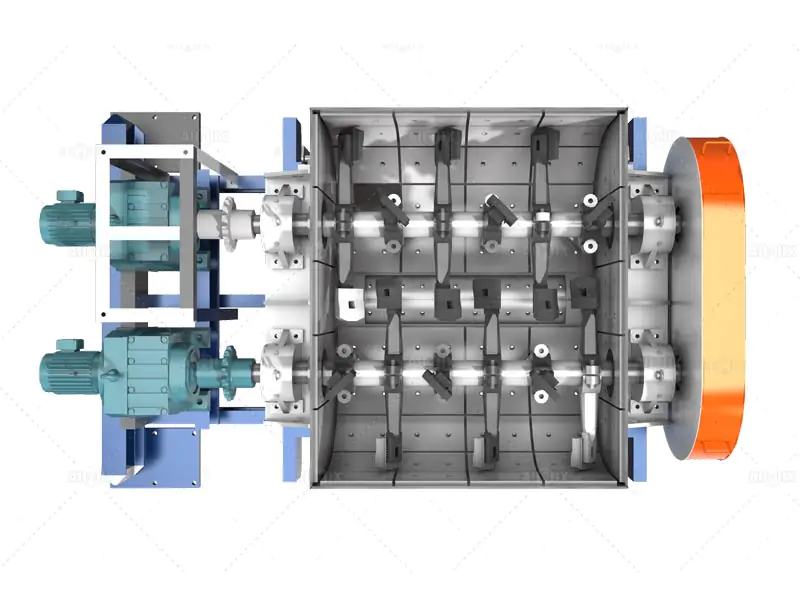

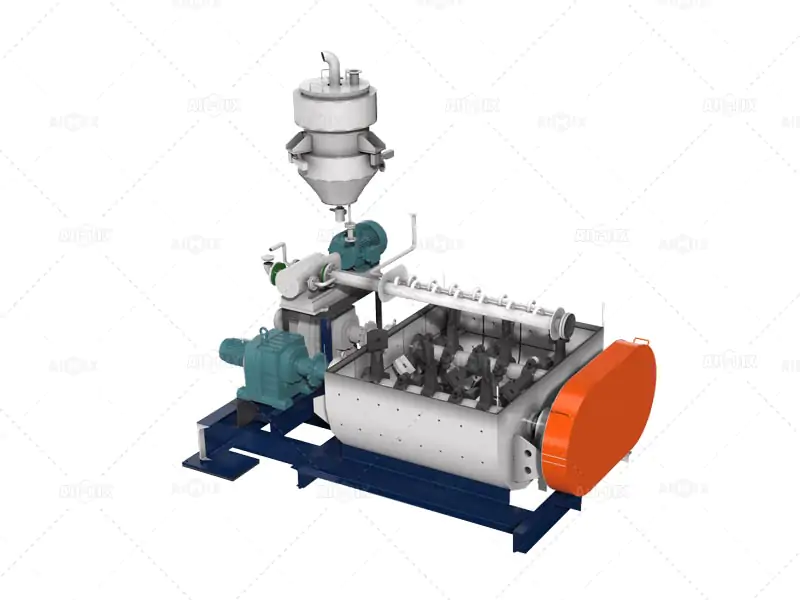

Mixing System
The mixing system uses mixing arms and a drum to evenly mix all materials. Modern mixing systems usually have automatic control systems that adjust mixing time and speed according to production needs for optimal mixing effects.
The weighing and mixing system ensures the quality and uniformity of the asphalt mix. Next, we need to store and supply the mixed material.

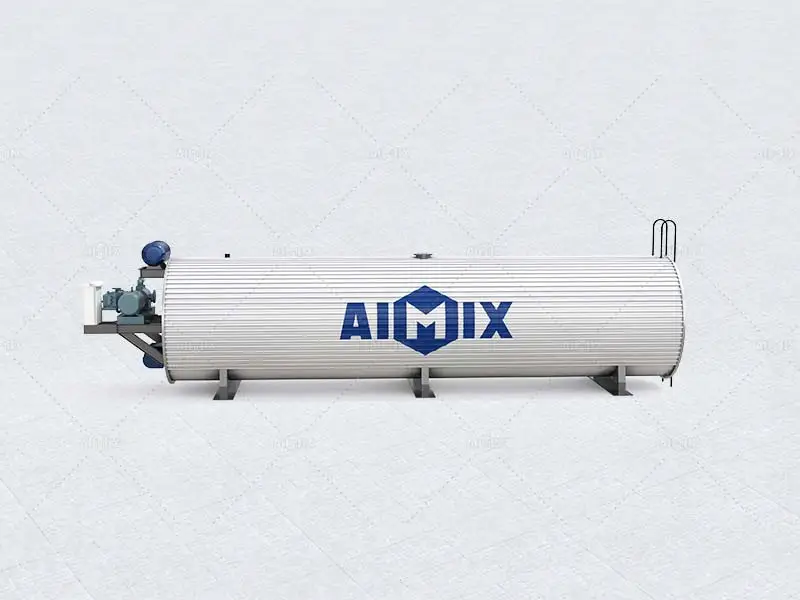

Asphalt Storage Tank
The asphalt storage tank stores the asphalt needed during production. It is typically equipped with heating and insulation devices to ensure the asphalt is stored and used at suitable temperatures.
Modern asphalt storage tanks use automatic temperature control systems that adjust storage temperature according to actual needs, ensuring the asphalt’s viscosity and fluidity. The insulation design of the storage tank in the asphalt batch mix plant reduces heat loss and improves energy efficiency.
The asphalt storage tank provides a stable supply of asphalt for the production process. Next, we need to transport the asphalt to the mixing system.

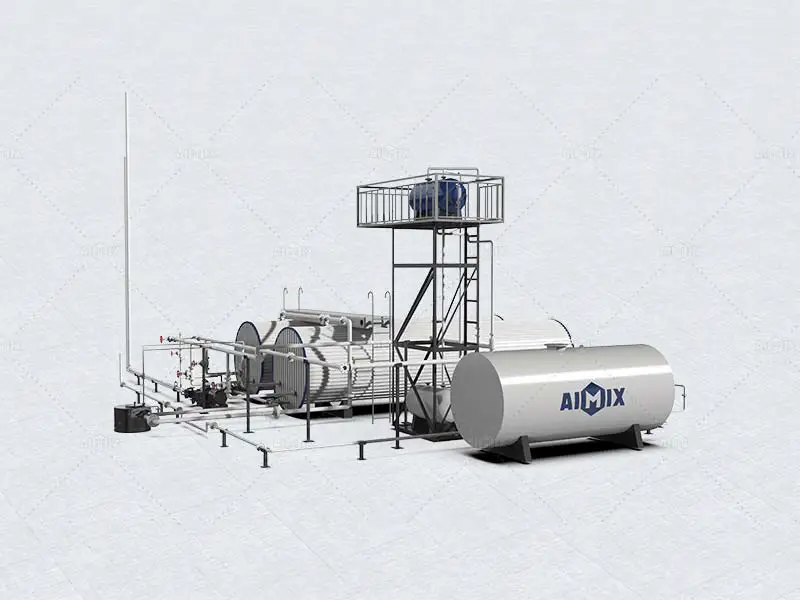

Asphalt Supply System
- The asphalt supply system transports asphalt from the storage tank to the weighing system and precisely controls its flow and temperature to meet production needs.
- This system typically includes pipelines, metering devices, and heating devices. It achieves stable asphalt supply through automatic control systems.
- The design of the asphalt supply system must consider the viscosity and temperature changes of the asphalt to ensure smooth and stable transportation.
The asphalt supply system ensures precise asphalt supply. Finally, let’s explore the control room of the asphalt plant near me.

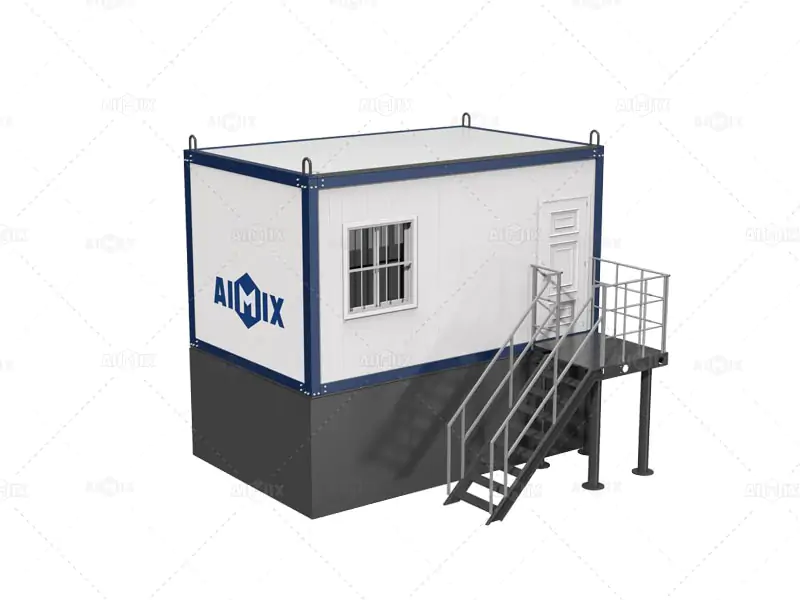

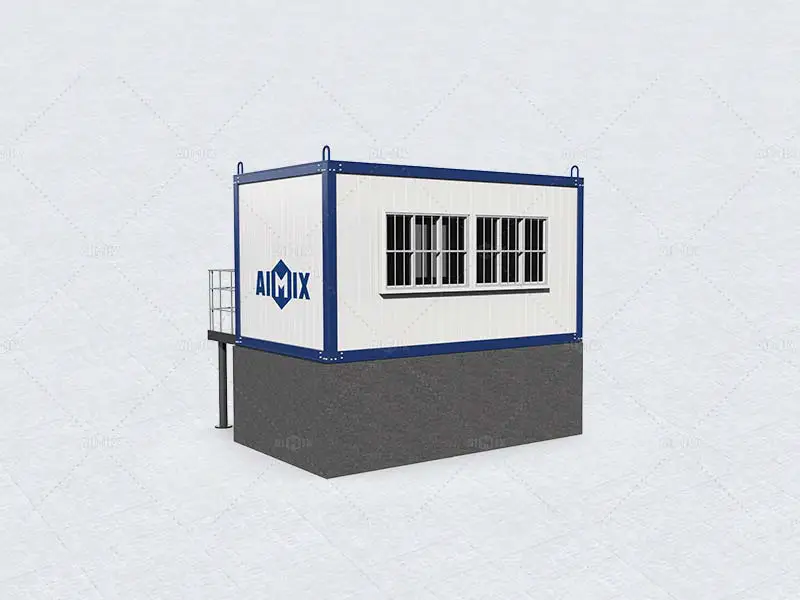

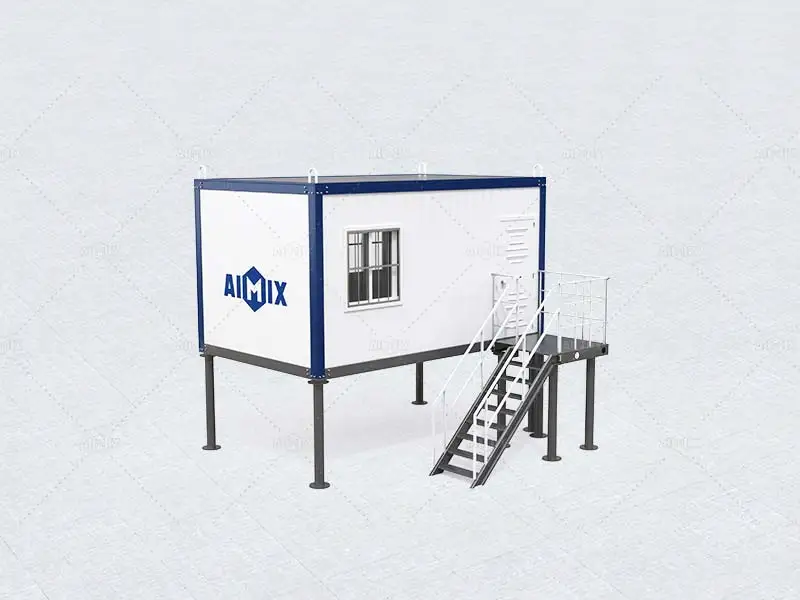

Control Room
- The control room is the brain of the plant asphalt, responsible for monitoring and regulating the entire production process.
- Modern control room has advanced automatic control system that can monitor the status of each production stage in real time and adjust production parameters as needed.
- The control room’s operating system usually includes touch screens, monitors, and control panels.
- Operators can use these devices to view production data in real time, adjust production plans, and diagnose faults.
- Efficient control room design not only improves production efficiency but also significantly reduces manual labor.
Efficient management in the control room ensures the operation of the asphalt batch mixing plant. The above is the total asphalt plant components introduction. If you want to see how an asphalt plant works, click it at right. Next, let’s learn more not just the asphalt plant parts we’ve introduced.

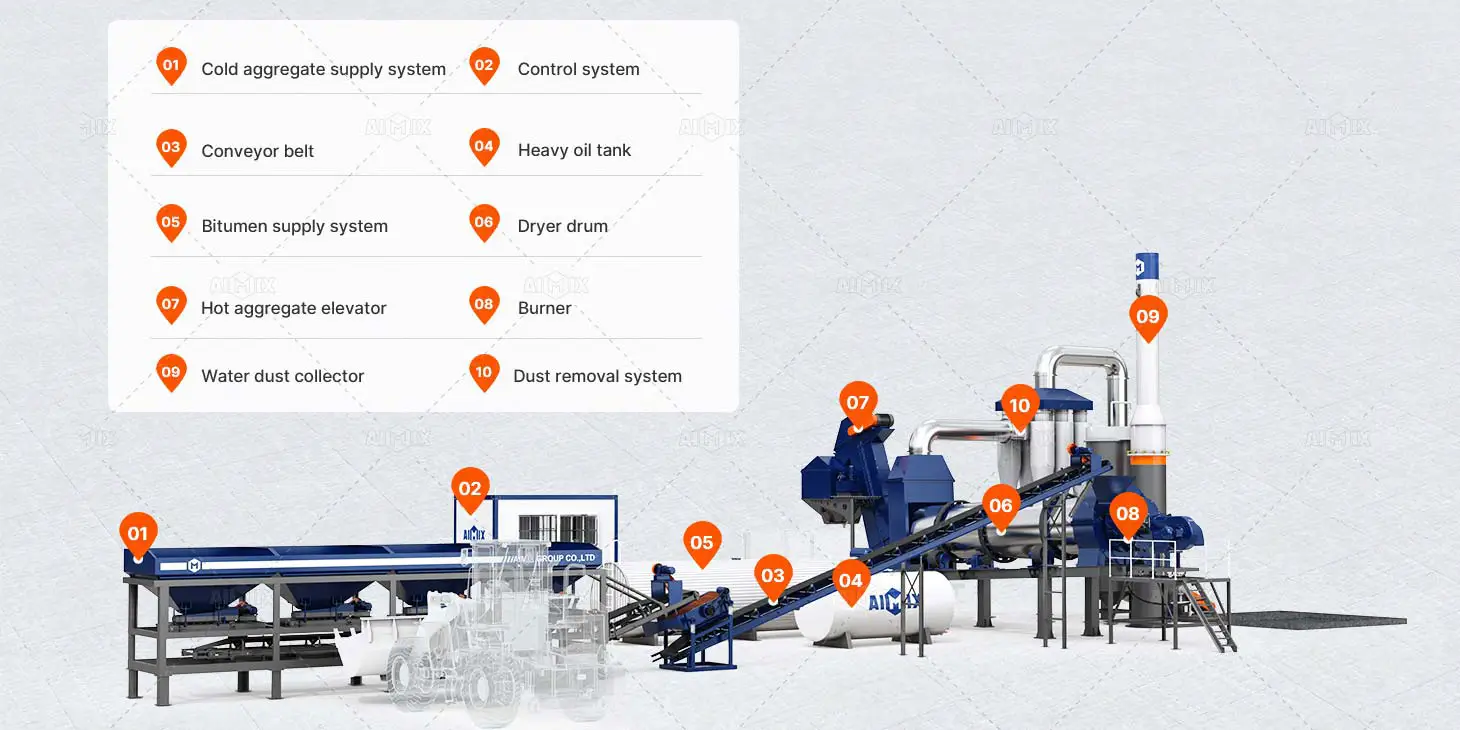

Key Component Differences Between Drum Mix and Batch Type Asphalt Plants

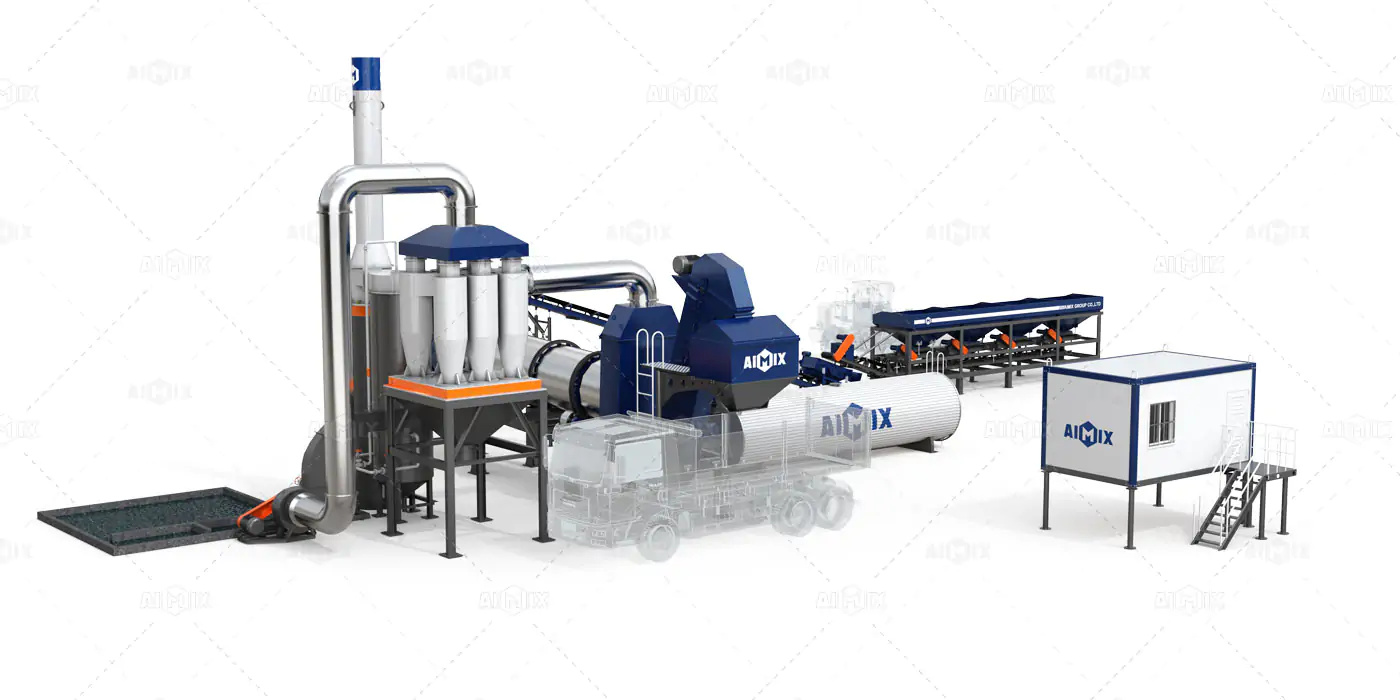

Drum Mix Asphalt Plants and Batch Mix Asphalt Plants have distinct component differences. These differences impact their production methods and application scenarios. Here’s a summary of their main differences about the different components of asphalt drum mix plant and asphalt batching plant components:
- Production Process: Drum mix plants use continuous production, while batch plants produce in batches.
- Mixing Equipment: Drum plants combine drying and mixing in one drum, whereas batch plants have separate drying drums and mixers.
- Material Storage: Drum plants lack a separate material storage system, while batch plants include hot aggregate elevators and vibrating screens.
- Dust Collection System: Drum plants have simpler dust collection systems, while asphalt batch plants use complex systems.
- Control Systems: Drum plants feature simpler control systems, whereas asphalt batch plants have more complex control systems.
These differences make drum mix plants ideal for continuous, large-scale production, whereas batch asphalt plants suit diverse and precise production needs. Learn more about difference between batch mix plant and drum mix plant.
What Are the Advantages of AIMIX Asphalt Mixing Plants in Components?
User-Friendly Control System
Automated Control Room: Features advanced software for easy operation and monitoring.
Real-Time Feedback: Offers immediate data on the mixing process, enabling quick adjustments for improved efficiency.
Sturdy Mixing System
Top-Grade Mixing Arms and Blades: Made from wear-resistant materials, they ensure reliable mixing and extended lifespan.
Effective Mixing: Achieves thorough, even mixing of asphalt and aggregates for high-quality output.
Dependable Drying System
Durable Drying Drum: Optimizes heat transfer, ensuring efficient aggregate drying.
High-Performance Burner: Uses fuel efficiently and heats quickly, maximizing productivity.
Effective Dust Collection
Cyclone Dust Collector: Captures large particles, reduces emissions, and recycles aggregates effectively.
Baghouse Filter: Filters fine dust, keeping emissions low and meeting environmental standards.
Accurate Aggregate Handling
Cold Aggregate Feeding System: Includes multiple bins and precise feeders for different aggregate sizes.
Vibrating Screen: Ensures correct aggregate sizing, improving final product quality.
Precise Weighing and Mixing
Weighing System: Measures aggregates, fillers, and bitumen accurately, ensuring consistent asphalt production.
Efficient Mixer: Delivers homogeneous mixing, producing high-quality asphalt.
Advanced Asphalt Storage and Supply
Insulated Asphalt Storage Tanks: Maintain optimal bitumen temperature, preventing heat loss.
Reliable Asphalt Supply System: Provides a steady bitumen flow to the mixing drum.
AIMIX asphalt mixing plants, with their high-quality asphalt plant parts, offer durability, efficiency, and precision. Their advanced systems for drying, mixing, dust collection, and control ensure reliable and effective asphalt production. Opt for AIMIX to achieve robust performance and superior asphalt quality. For more details, let’s see AIMIX asphalt plant advantages introduction.
AIMIX Asphalt Plant Wear Parts Supply
Wear Parts Supply
High-Quality Components: We supply mixing arms, blades, drum liners, vibrating screens, belts, elevator buckets, burner nozzles, and filter bags.
Perfect Fit: Our parts perfectly match the equipment, ensuring peak performance.
Regular Maintenance
Scheduled Checks: We offer routine inspections and replacements of wear parts to avoid unexpected failures.
Skilled Team: Our experienced team quickly identifies and replaces worn parts.
Technical Support
Expert Advice: We provide professional guidance on using and maintaining wear parts.
Online Help: We offer remote support to promptly resolve any issues.
Inventory Management
Spare Parts Stock: We maintain inventories in multiple regions to ensure quick supply.
Inventory Optimization: We help customers manage their wear parts stock efficiently, reducing costs.
Custom Services
Special Requirements: We offer customized wear parts services to meet specific needs.
Material Improvements: We continuously enhance materials and designs for better durability.
Choosing AIMIX wear parts services ensures stable equipment operation, reduces downtime, and boosts production efficiency.
In Conclusion
All in all, you can know what is part of an asphalt plant. The asphalt plant parts work together to form an efficient production system. From cold aggregate supply, drying, and dust removal to mixing, storage, and control, each link is crucial. For road and bridge construction companies, choosing a high-efficiency, reliable asphalt plant can improve production efficiency and ensure construction quality.
If you are looking for an advanced amp asphalt mixing plant, AIMIX offers the best asphalt plant equipment for you. Our equipment integrates the latest technology and extensive experience to meet various construction needs. Contact us now to learn more about AIMIX types of asphalt plants and provide reliable support for your construction projects!
