Aimix trailer concrete pump is a high-performance machine that uses hydraulic system to pump concrete to different locations through a pipeline. Mounted on a trailer for easy mobility, this pump can delivery concrete precisely where needed.
What can it do:
- Pumps concrete over long distances
- Works in Narrow spaces
- Deliveries concrete to hard-to-reach areas
So whether you’re tackling large-scale commercial projects or smaller residential jobs, the Aimix trailer pump concrete is engineered to meet diverse construction needs.
Latest Cases

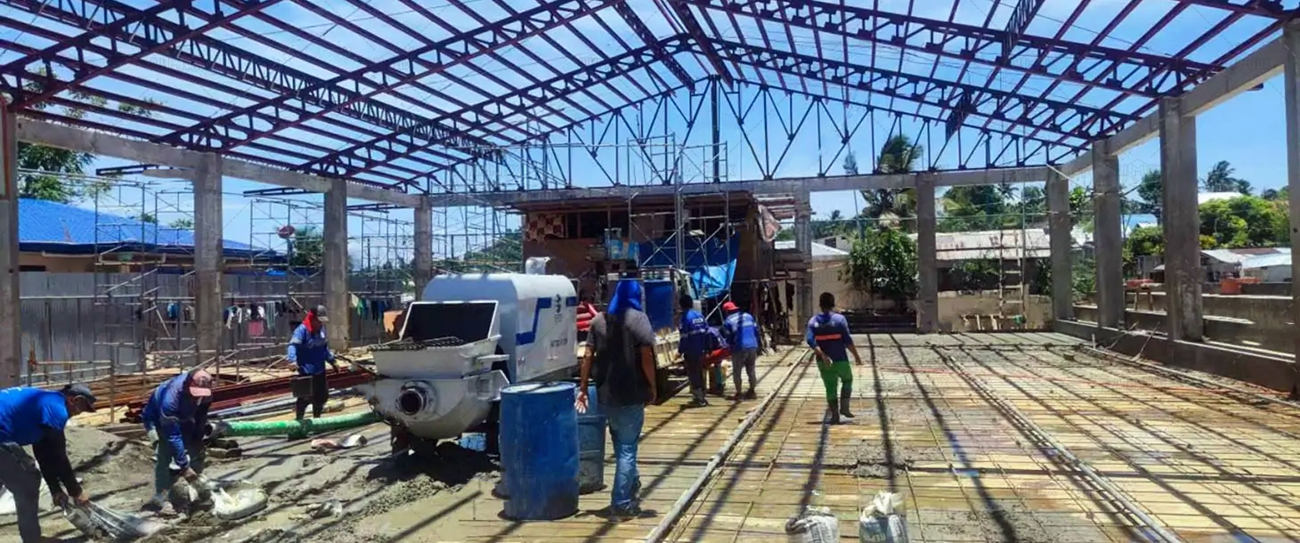

A client in the Philippines utilizes trailer concrete pumps to seamlessly deliver concrete during construction projects. The project was shortened and made more efficient.

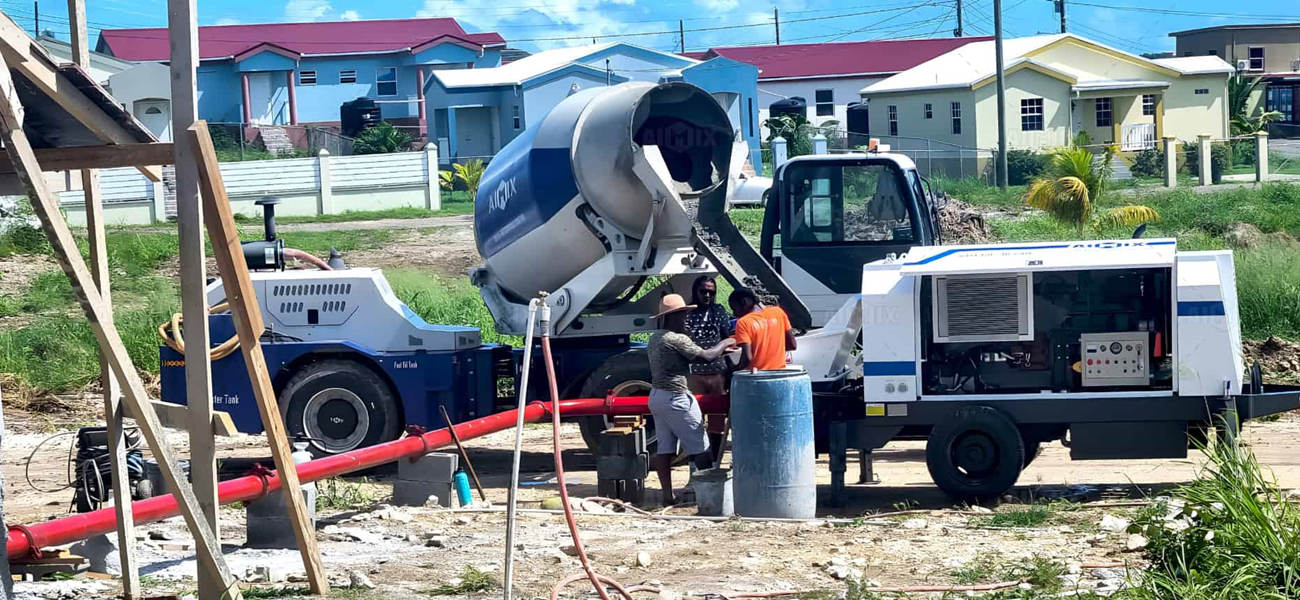

A customer in Malaysia has improved construction efficiency by combining trailer concrete pumps and self-loading mixers to achieve on-site production and pumping of concrete.
Trailer concrete pumps enable faster completion of a residential development in Indonesia.
Types of Trailer Concrete Pump
Depending on different project requirements, Aimix has designed diesel and electric trailer concrete pumps for you to choose from. Our concrete trailer pumps models include ABT30, ABT40, ABT50, ABT60, ABT80, and ABT90(Numbers represent outputs, eg. 30 represents 30m³per hour output). They all have diesel and electric types for choices.
Diesel type – Ideal for Areas with Insufficient Electricity
Model: ABT40C
Max. theo. concrete output(L./H): 40 M3/h
Diesel Engineering Power: 82kw
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Theoretical Vertical Conveying Distance: 120m
Total weight: 4500kg

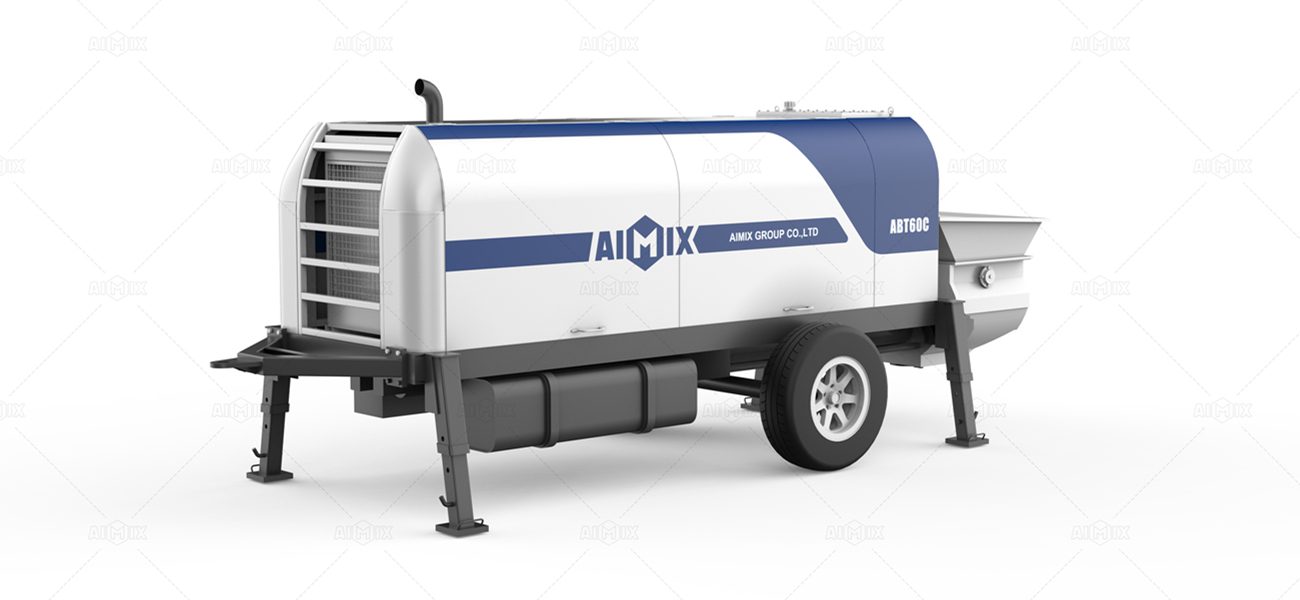

Model: ABT60C
Max. theo. concrete output(L./H): 60 M3/h
Diesel Engineering Power: 129kw
Max. Theoretical Horizontal Conveying Distance: 1000m
Max. Theoretical Vertical Conveying Distance: 180m
Total weight: 6500kg
Model: ABT80C
Max. theo. concrete output(L./H): 80 M3/h
Diesel Engineering Power: 176kw
Max. Theoretical Horizontal Conveying Distance: 1200m
Max. Theoretical Vertical Conveying Distance: 260m
Total weight: 6900kg
Electric type – Eco-Friendly and Efficient Option for Urban and Residential Projects
Model: ABT40D
Max. theo. concrete output(L./H): 40 M3/h
Electrical Engineering Power: 45kw
Max. Theoretical Horizontal Conveying Distance: 500m
Max. Theoretical Vertical Conveying Distance: 120m
Total weight: 3200kg
Model: ABT60D
Max. theo. concrete output(L./H): 60 M3/h
Electrical Engineering Power: 90kw
Max. Theoretical Horizontal Conveying Distance: 800m
Max. Theoretical Vertical Conveying Distance: 160m
Total weight: 6000kg
Model: ABT80D
Max. theo. concrete output(L./H): 80 M3/h
Electrical Engineering Power: 110kw
Max. Theoretical Horizontal Conveying Distance: 1000m
Max. Theoretical Vertical Conveying Distance: 200m
Total weight: 6300kg
Successful Cases in Different Applications
Aimix trailer concrete pumps for sale have been widely recognized for their reliability, efficiency, and versatility in a variety of construction projects around the world. Here are some notable successful cases in different applications:
Residential Construction in Indonesia
Most customers in Indonesia have invested in concrete pump trailer for rural and urban construction projects, especially in house building projects. It is very convenient and efficient to transport the concrete mixture through pipes to where it is needed. In addition, the operation and maintenance of the concrete trailer pump is easier due to its electronic control system.
Commercial Buildings in Russia
Highly accurate and efficient concrete delivery was required to ensure the structural integrity of office space, shopping centers and other commercial facilities on a multi-building commercial construction project in Russia. They selected ABT40C trailer concrete pump to provide the necessary power and reliability for this large-scale project.
Infrastructure Projects in Uzbekistan
Aimix concrete trailer pumps are being used in several infrastructure projects in Uzbekistan, including motorway expansion, bridge construction and public transport facilities. Aimix trailer concrete pumps are ideal for these projects because of their high output capacity and robust hydraulics, as well as the need for pumps that can work reliably in harsh conditions in the difficult terrain. The video below shows the ABT60D concrete trailer pump being shipped to Uzbekistan.

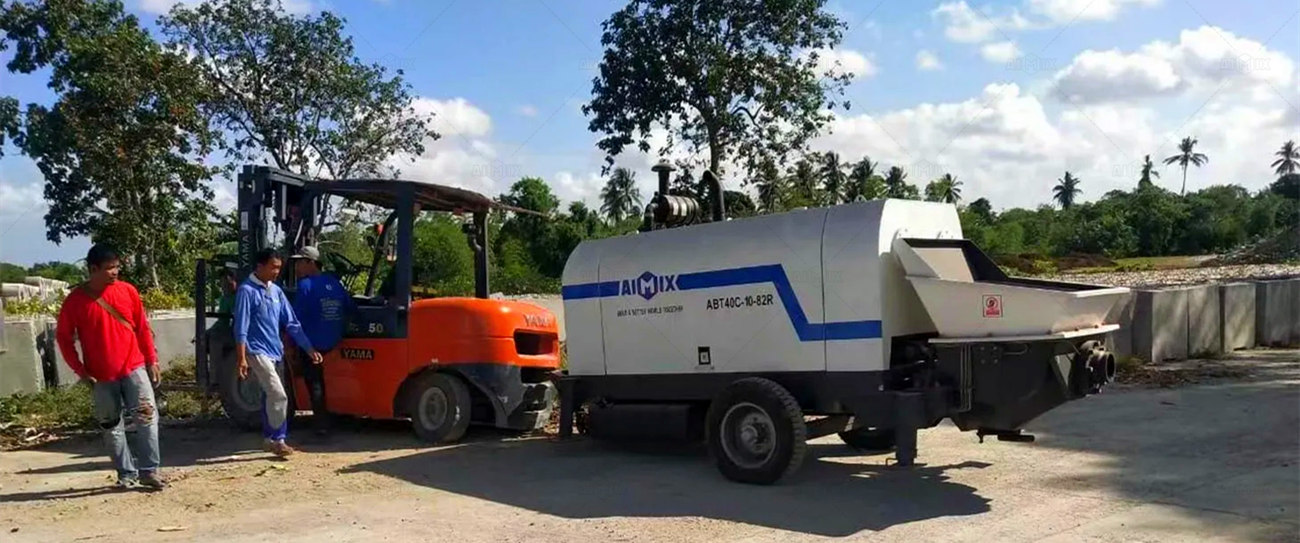

Industrial Projects in Philippines
The video shows an Aimix diesel concrete pump trailer being used for an industrial project in the Philippines, including factory construction and warehouse development. The output capacity and pumping efficiency of the trailer pumps is critical to the customer’s project, and the ABT60C model ensured consistent and reliable concrete delivery, contributing to the successful completion of these industrial facilities.
These cases show how efficiently trailer pumps work in different building construction projects. So how do they work? Understanding how these concrete pumps work can help operators and construction professionals make the most of them. Below, we’ll explore the working principles of trailer concrete pumps.
Working Principle of Concrete Pump Trailer for Sale
The working principle of Aimix trailer concrete pumps is divided into 4 stages as follows：
Concrete Loading
The concrete mix is loaded into the hopper. The one-piece press moulding design of the hopper ensures that the concrete mix remains uniform, preventing segregation. An agitator within the hopper continuously stirs the concrete to maintain consistency.
Suction Stroke
During the suction stroke, one of the hydraulic cylinders retracts, creating a vacuum that draws the concrete from the hopper into the cylinder. The S-valve is positioned to allow the concrete to flow into the cylinder.
Delivery Stroke
In the delivery stroke, the hydraulic cylinder extends, pushing the concrete from the cylinder into the delivery pipeline. The S-valve shifts to the opposite position to direct the concrete flow into the delivery pipeline. This process repeats continuously, with the S-valve alternating positions to facilitate uninterrupted pumping.
Concrete Delivery
The concrete is transported through the delivery pipeline to the desired location. The pipeline can be extended and maneuvered to reach various heights and distances, making it suitable for a wide range of construction applications, including high-rise buildings, bridges, and tunnels.
In the work process of the trailer concrete pump, there are some key components play an important role, below I will introduce you specifically these components.
Key Components
Aimix trailer concrete pump consists of several critical components that work in unison to deliver concrete efficiently:
- Hopper: The hopper is a large container that holds the concrete mix. It is designed to prevent segregation and ensure a consistent flow of concrete into the pumping system.
- Concrete Pumping System: This system includes hydraulic cylinders, pistons, and valves. The pumping system is responsible for moving the concrete from the hopper to the delivery pipeline.
- Hydraulic System: The hydraulic system powers the movement of the pistons and the S-valve. It includes hydraulic pumps, cylinders, and oil reservoirs.
- S-Valve: The S-valve is a crucial component that directs the flow of concrete from the hopper to the delivery pipeline. It alternates between two positions to facilitate continuous pumping.
- Delivery Pipeline: The delivery pipeline, also known as the boom, is a series of connected pipes that transport the concrete from the pump to the desired location. It can be extended and maneuvered to reach various heights and distances.
- Control System: The control system allows the operator to control the pump’s operation, including the flow rate, pressure, and direction of the concrete.
How To Operate A Concrete Trailer Pump?
Below I will use a video to visually show you how to operate a concrete trailer pump.
Features of Our Trailer Concrete Pump for Sale
Our trailer concrete pumps provide a reliable and efficient solution for construction projects of all sizes. Below we explore some of the key features of Aimix concrete trailer pumps.
small size
Our pump has features of small size, light weight and high mobility, which has easy access to concrete construction sites.
simple operation
- User-Friendly Control System: The control system is intuitive and easy to navigate, allowing operators to manage the pump’s functions with minimal effort. The controls facilitate precise adjustments to the flow rate, pressure, and direction of the concrete.
- Remote Control Functionality: Equipped with a wireless remote control device that allows the operator to control the pump from a distance, thus improving safety and convenience at the job site.
- Clear Display Panel: The control panel features clear indicators and displays that provide real-time information about the pump’s status, making it easy for operators to monitor and adjust the pump’s operation.
S-Valve
Our pumps adopt S-valve, which has advanced technology, good sealing and reliable performance. Its robust design ensures smooth and continuous concrete flow, minimizing blockages and downtime.
In addition, the valve components are made from high-quality, wear-resistant materials that ensure durability and long service life, even under challenging conditions.
Durable accessories
The hydraulic hose of the trailer concrete pump uses the American Eaton hydraulic hose, which is superior in pressure resistance, abrasion resistance, corrosion resistance and heat resistance.
One-piece press-formed hopper
The one-piece press-formed design eliminates seams and joints, reducing the risk of leaks and ensuring a consistent flow of concrete.
What benefits do these key features of Aimix trailer concrete pumps bring to customers, as we explore below.
What Are the Benefits by Using A Trailer Concrete Pump?
Aimix trailer concrete pumps are designed to deliver exceptional performance and reliability, providing numerous benefits for various construction projects. Here are the key advantages of using an Aimix trailer mounted concrete pump, focusing on cost-effectiveness, project efficiency, safety, and environmental friendliness.
Cost-Effective Solution
- Reduced Labor Costs: Traditional concrete placement methods require a significant workforce to transport and place the concrete manually. With an Aimix trailer concrete pump, the need for manual labor is minimized, as the pump delivers concrete directly to the desired location.
- Minimized Material Waste: The precise delivery system of an Aimix towable concrete pump ensures that concrete is placed exactly where needed, reducing material waste and associated costs of a concrete pump.
Improved Project Efficiency
- Faster Concrete Placement: The pump can deliver concrete quickly and continuously, significantly speeding up the placement process compared to manual methods.
- Extended Reach: The delivery pipeline of an Aimix trailer concrete pump can reach various heights and distances, making it ideal for high-rise buildings, bridges, tunnels, and other challenging locations.
- Consistent Flow: The advanced pumping system ensures a steady and uniform flow of concrete, resulting in higher-quality construction with fewer delays.
Enhanced Safety
- Remote Control Operation: Aimix trailer concrete pumps come with remote control functionality, allowing operators to control the pump from a safe distance, minimizing exposure to hazardous conditions.
- Robust Design: Our tow behind concrete pumps are built with safety features and robust design elements that ensure stable and secure operation, even in challenging conditions.
Environmentally Friendly
- Reduced Emissions: By minimizing the need for multiple pieces of equipment and reducing material waste, Aimix trailer concrete pumps help lower the overall carbon footprint of construction projects.
- Efficient Use of Materials: The precise delivery system ensures that concrete is used efficiently, reducing excess material waste and conserving resources.
- Lower Noise Pollution: Our trailer concrete pumps typically generate less noise compared to traditional concrete placement methods, contributing to a quieter and more environmentally friendly job site.
Factors to Consider before Buying A Trailer Concrete Pump
Assess Your Project Needs
Evaluate the size and scope of your project and consider the maximum distance and height required to pump the concrete, and select a pump with the appropriate delivery distance to meet your project needs.
Consider Power Source and Efficiency
Trailer concrete pumps can be powered by diesel engines or electric motors. Diesel pumps are ideal for remote locations without access to electricity, while electric pumps are more suitable for urban areas with reliable power supply. You can select based on the conditions of the construction site.
Manufacturer Reputation and Support
Choosing a reputable trailer concrete pump manufacturer can have a major impact on the use and maintenance of your trailer concrete pump. This can be done by looking up reviews, testimonials and case studies from other customers to gauge their satisfaction with the product and brand.
Safety Features
Safety should be a top priority when choosing a trailer mounted boom concrete pump. Note that the equipment needs to have an emergency stop, a reliable emergency stop allows the operator to quickly switch off the pump in case of emergency. It is also desirable to have remote control, which allows the operator to control the pump from a safe distance, thus reducing the risk of dangerous situations. Aimix trailer concrete pumps are safe with remote control.
Warranty and Support
A comprehensive warranty and strong support services can provide peace of mind and protect your investment.
Environmental Considerations
Ensure the concrete pump meets local emissions regulations. Choose models with low-emission engines or electric motors to reduce environmental impact. The Aimix trailer pumps feature low emissions and are also available in electric versions for you to choose from.
What After-Sales Services Aimix Provides?
- Warranty and Guarantee – Aimix products come with a comprehensive warranty that covers major components and parts. The warranty period varies depending on the specific product and model, ensuring you have peace of mind regarding the reliability of your equipment.
- Customer Support – Aimix offers a 24/7 customer support line to ensure that you can contact our support team at any time for help with your equipment.
- Maintenance Services – Aimix provides scheduled maintenance services to keep your equipment in top condition. Our technicians perform thorough inspections, lubrication, and adjustments to ensure your equipment operates efficiently.
- Spare Parts Availability – Aimix stocks a comprehensive inventory of genuine spare parts for all our equipment models. Using genuine parts ensures compatibility and reliability.
- Training – Aimix provides hands-on operator training to ensure your team understands the proper operation and safety procedures for using the equipment. This training helps maximize efficiency and minimize the risk of accidents.
Maintenance Tips
Proper maintenance of your trailer pump is essential to ensure its optimal performance and longevity. Here are some key maintenance tips to keep your trailer pump in top condition:
Regular Cleaning
- Daily Cleaning: After each use, thoroughly clean the pump and its components to remove any concrete residue. Use water and appropriate cleaning agents to ensure all parts are free from build-up.
- Hopper Cleaning: Pay special attention to cleaning the hopper, as concrete build-up in this area can cause blockages and affect the pump’s performance.
- Pipeline Cleaning: Clean the delivery pipeline regularly to prevent blockages and ensure smooth concrete flow. Use specialized pipeline cleaning equipment if necessary.
Lubrication
Proper lubrication is essential to reduce friction, prevent wear and tear, and ensure the smooth operation of moving parts.
- Follow Manufacturer’s Guidelines: Adhere to the lubrication schedule and recommendations provided by the manufacturer. Use the specified lubricants for different components.
- Hydraulic System: Change the hydraulic oil at recommended intervals and check for leaks. Ensure the hydraulic system is properly lubricated to maintain its efficiency.
Inspection
Regular inspections help identify potential issues early and prevent costly breakdowns.
- Component Checks: Regularly inspect critical components such as the pistons, cylinders, and valves. Look for signs of wear or damage and address any issues promptly.
- Electrical System: Check the electrical system, including wiring, connectors, and switches, for any signs of wear or damage. Ensure all connections are secure and functioning properly.
- Pressure and Flow Rate: Monitor the pump’s pressure and flow rate regularly to ensure it is operating within the recommended parameters. Address any deviations promptly.
Replacement of Consumables
- Wear Parts: Regularly check and replace wear parts, such as wear plates, cutting rings, and delivery pistons. These parts are subject to significant wear and tear and should be replaced as needed.
- Filters: Replace hydraulic and fuel filters at recommended intervals to ensure the hydraulic and fuel systems remain clean and efficient.
- Seals and Gaskets: Inspect seals and gaskets for signs of wear or damage and replace them as necessary to prevent leaks and maintain system integrity.
- Hoses and Fittings: Check hoses and fittings for signs of wear, cracks, or leaks. Replace any damaged or worn hoses and fittings promptly.
By following these maintenance tips, you can keep your trailer concrete pump in top condition and minimize downtime.
AIMIX Group is committed to providing high-quality construction equipments and comprehensive after-sales services to support your maintenance efforts. Invest in Aimix trailer concrete pumps and benefit from our dedication to quality and customer satisfaction!
