What is stationary concrete batching plant?
A stationary concrete batching plant is a facility installed at a specific location, remaining in place regardless of construction project movements. It provides continuous and stable concrete supply for large-scale construction projects or sites with long-term concrete needs, featuring consistent production capacity and high efficiency.
As a batching plant manufacturer with continuous effort and innovation, we have updated our plants in many aspects. Let me provide you with a detailed introduction below.

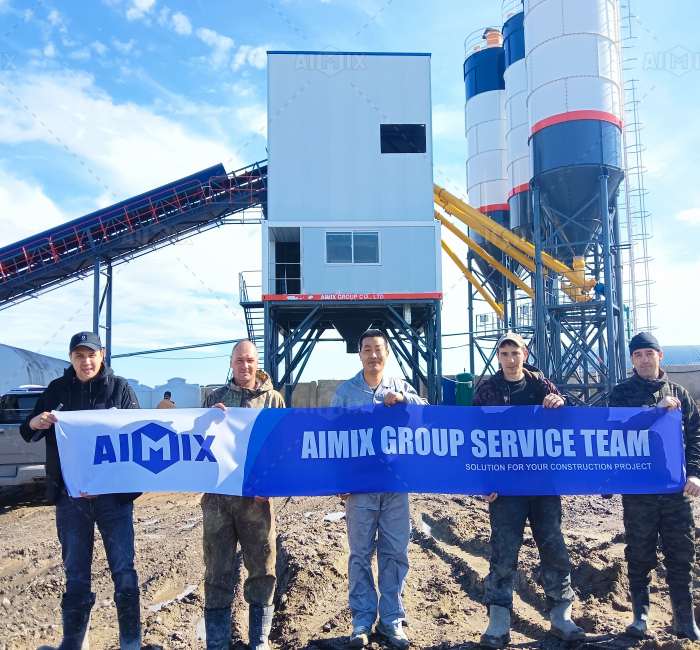

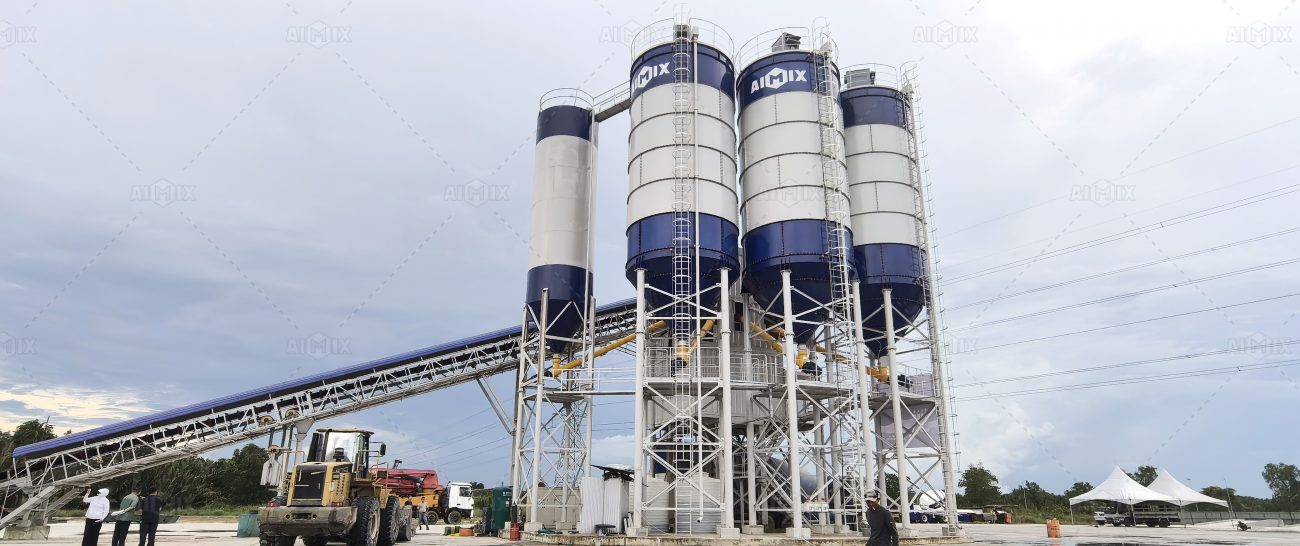

Projects of AIMIX Stationary Concrete Batching Plants

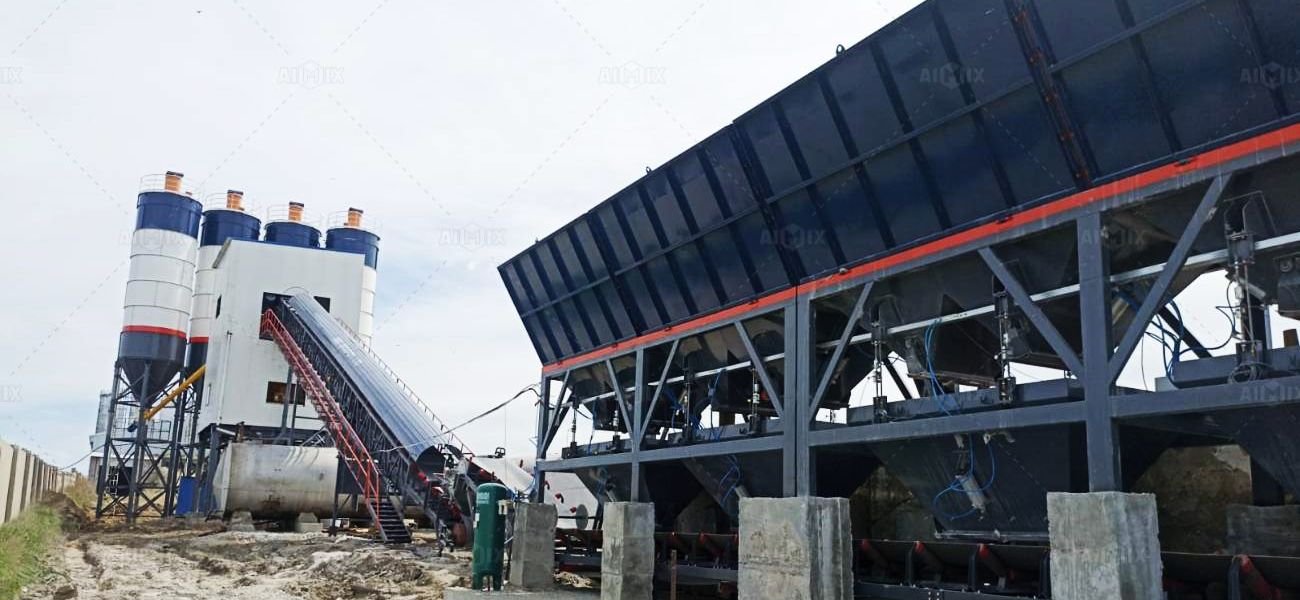

AJ-180 Stationary Concrete Batching Plant for Sale
Delivery time: April 2024
Location: in Kazakhstan
Services Provided: Safe Delivery, Installation, Commissioning, Operational Training
Customer Feedback: “Aimix team is professional in intalling the batching plant and always offers rapid support. This AJ-180 stationary plant meets our concrete production needs. We would be glad to introduce Aimix to other customers who have the need of concrete plants”

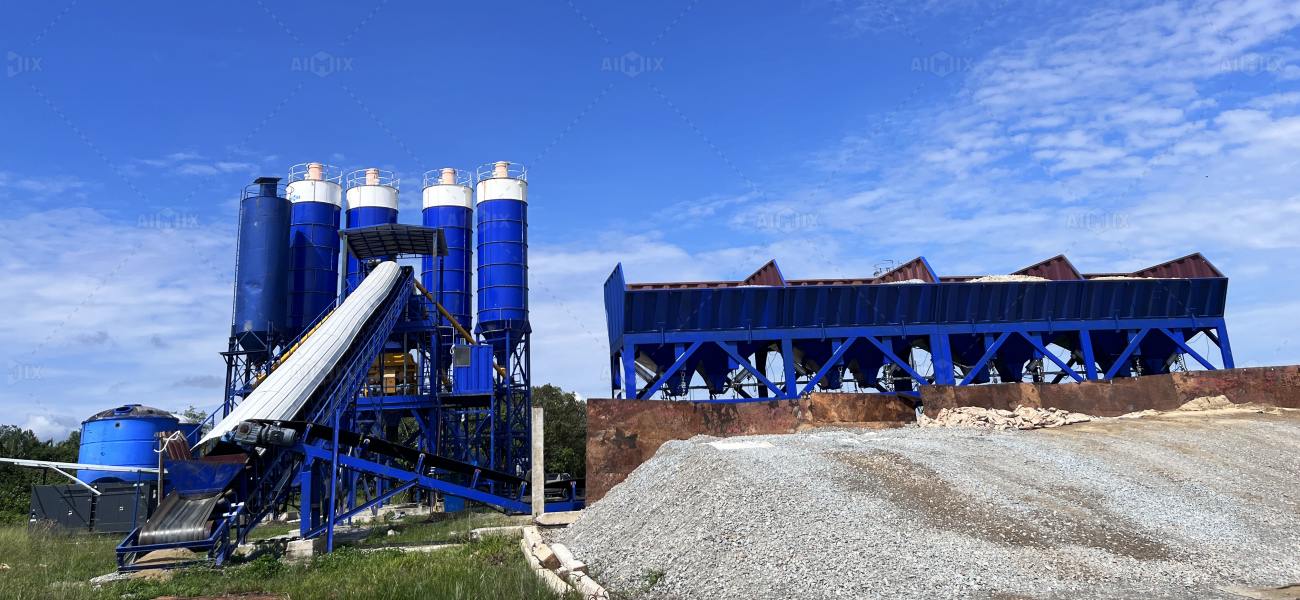

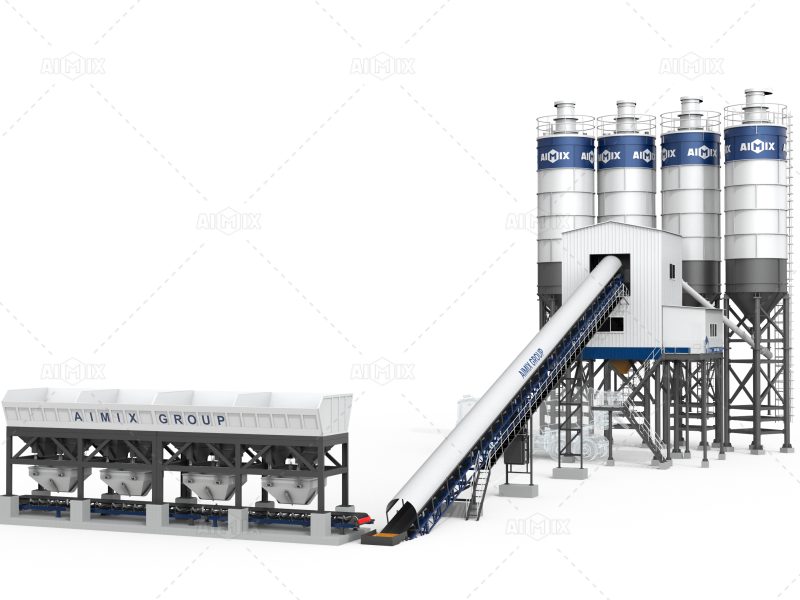

AJ-180 Stationary Batch Plant for Sale
Delivery time: Dec 2022
Location: in Malaysia
Services Provided: Safe Delivery, Installation, Commissioning, Operational Training
Customer Feedback: “This batching plant works efficiently and reliably, producing high-quality concrete for our projects. It is a cost-effective solution for us. Aimix has branch office here and is a reliable partner because the team can provide service and support for us anytime we need.”

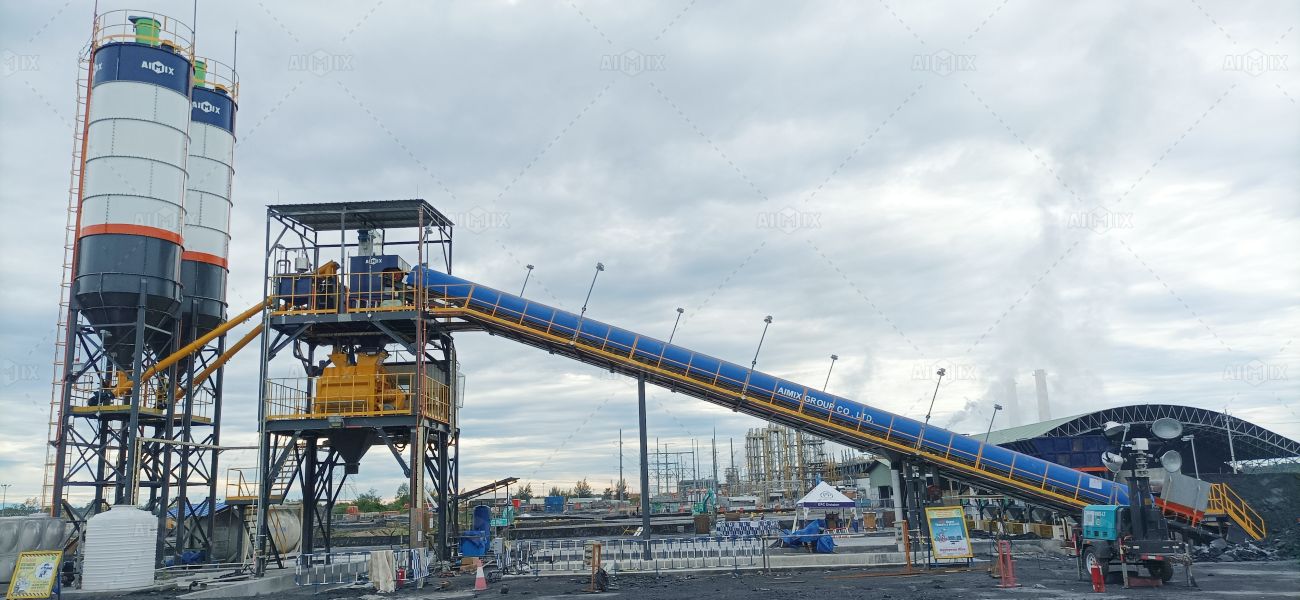

AJ-60 Stationary Concrete Mixing Plant for Sale
Delivery time: Feb 2024
Location: in Indonesia
Services Provided: Safe Delivery, Installation, Commissioning, Operational Training, Maintenance Training
Customer Feedback: ” We appreciate Aimix’s profession and timing aftersales service. This concrete plant works reliably now and can meet our requirements of concrete production. We would like to cooperate with you again in the future.”
Stationary Concrete Batching Plant Models and Applications
Every construction project requires precisely mixed concrete, stationary concrete batching plants offer a versatile solution for various construction projects, ensuring efficiency and quality across different applications.
Types of Stationary Batching Plants
Aimix provides different types of stationary plants to suit specific projects needs. According to the aggregate conveying method, there are two types: hopper type concrete batching plant and belt type concrete batching plant.

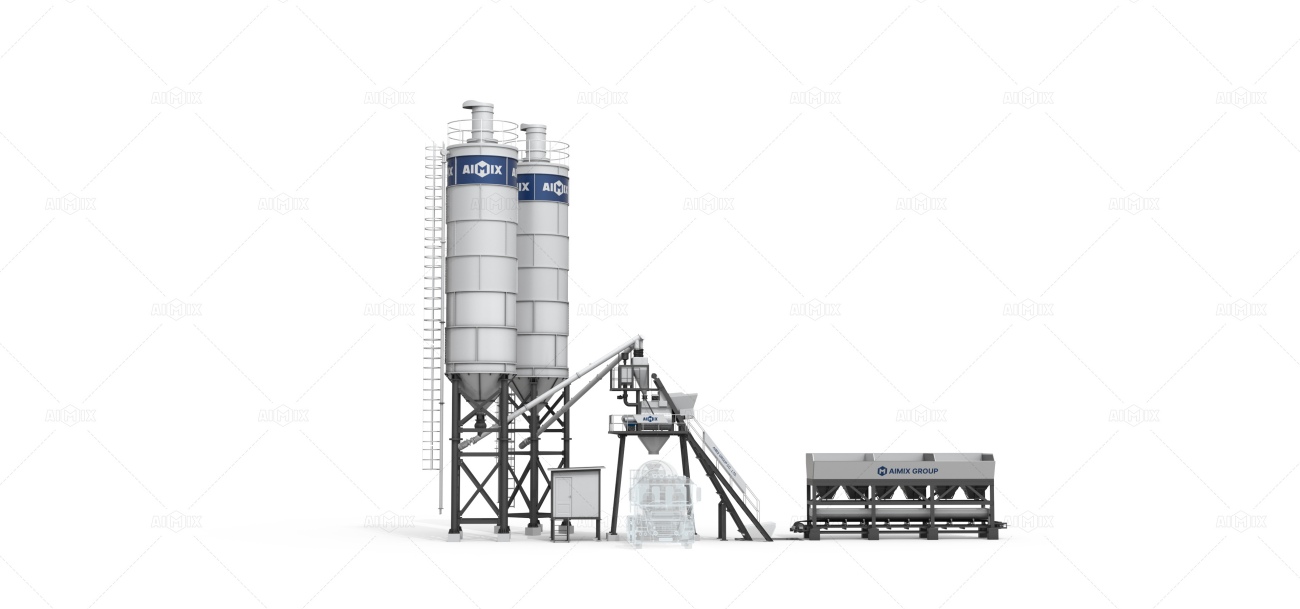

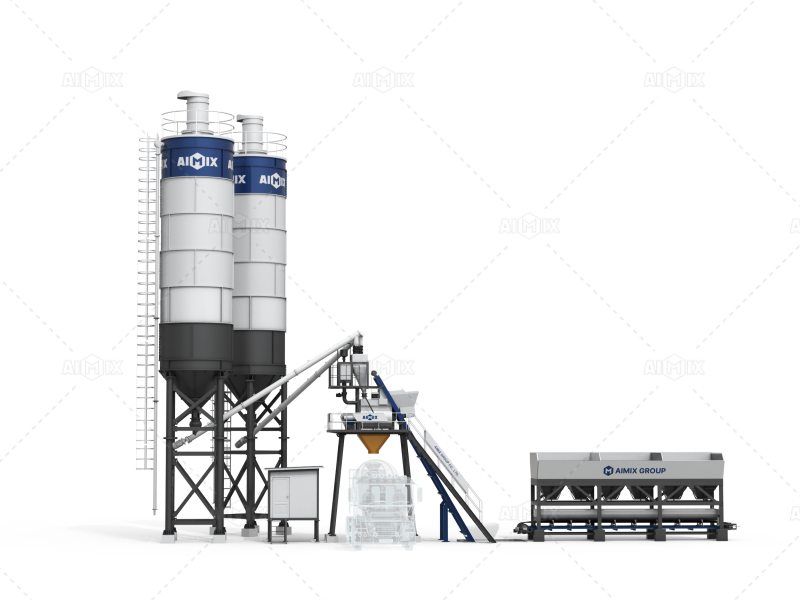

Our hopper type concrete plant models include AJ-25, AJ-35, AJ-50 and AJ-75, and belt type concrete batching plant models consist of AJ-60, AJ-90, AJ-120 and AJ-180.
- Suitable for Small-Scale Projects or Self-Use: The design of the feeding mechanism makes
hopper type batching plants more suitable for projects with not very high production demand, such as small construction sites, road maintenance, etc. This type of batching plant is often used to meet the concrete needs of its own projects. - Economical and Practical: For users who do not require large-scale continuous production of concrete, hopper type batching plants are an economical and practical choice due to their lower investment and operational costs.
- Small Footprint: In urban or space-limited projects, these concrete batching plant is particularly popular due to its compact layout design.
- High Efficiency: The use of belt conveyors greatly improves the efficiency of raw material transportation, suitable for large-scale concrete production to meet the needs of large construction projects.
- Quality Control: During continuous production, precise proportioning and stable material supply allow the belt type batching plant to ensure more stable and reliable concrete quality.
- Suitable for Commercial Sales: For professional concrete production enterprises or projects that need a large amount of external sales of concrete, belt type batching plants, due to their high production capacity and excellent concrete quality, become a more ideal choice.
Understanding the various models is crucial for selecting the most efficient and cost-effective concrete batching plant for your construction project’s specific needs.
Real-World Applications of Stationary Concrete Batching Plants
A stationary concrete batching plant is commonly used in a variety of construction and engineering projects due to its ability to produce a large volume of concrete at a single location.

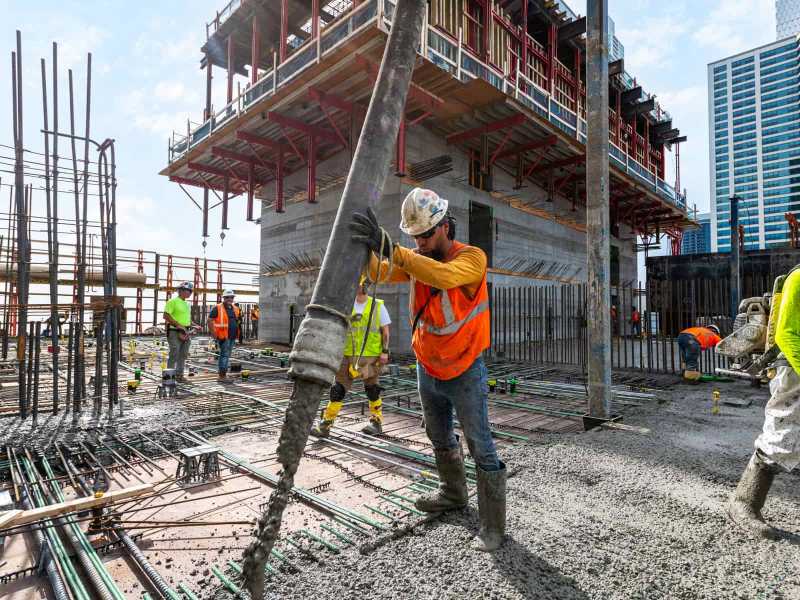

- Construction Industry: For high-rise buildings and residential complexes, stationary concrete batching plants can supply continuous and stable concrete. Commercial and office buildings are often located in city centers, these batching plants can ensure concrete quality by precisely controlling the mix and production process.

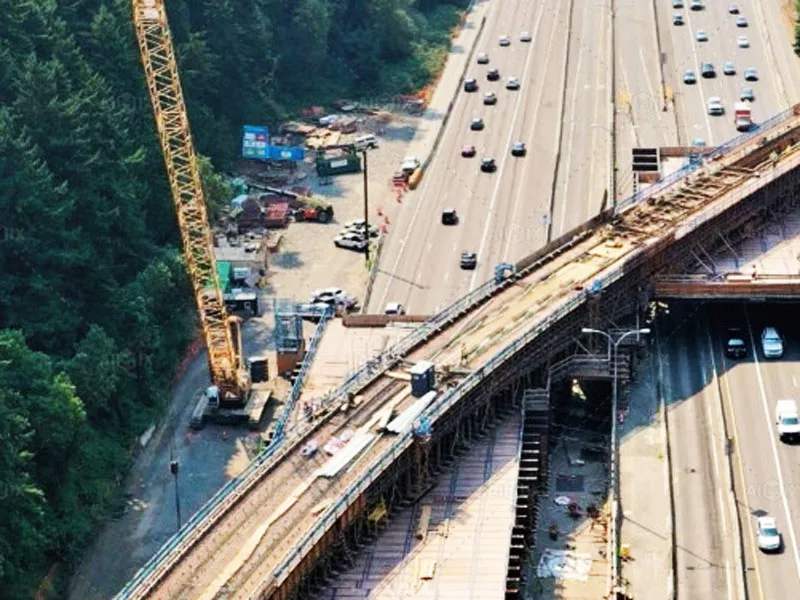

- Infrastructure Construction: Infrastructure projects such as roads, bridges, tunnels, and subway construction, require a continuous, large supply of concrete. Fixed batching plants can meet these needs and ensure uniformity and stability of the concrete.

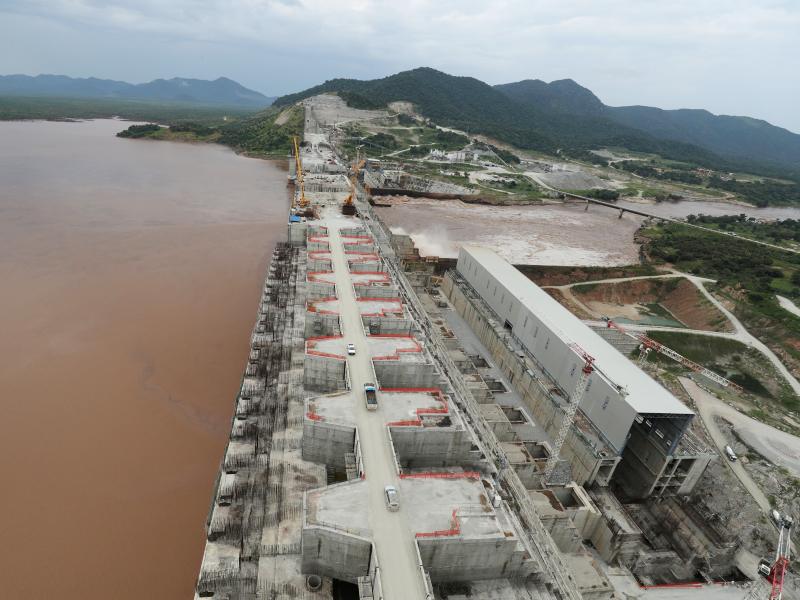

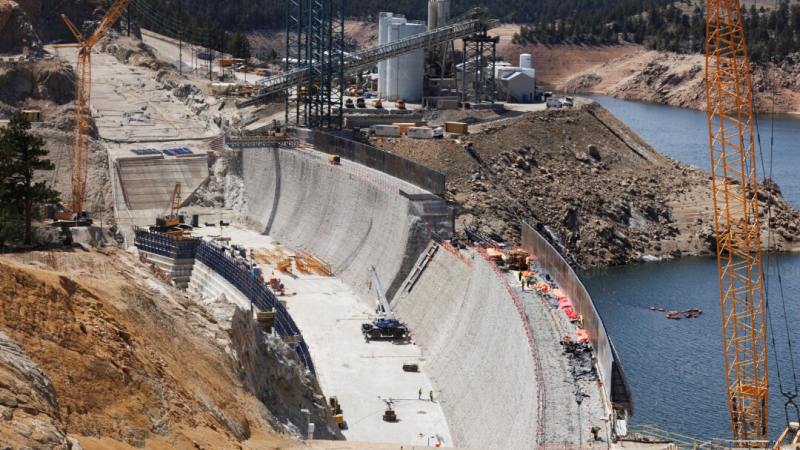

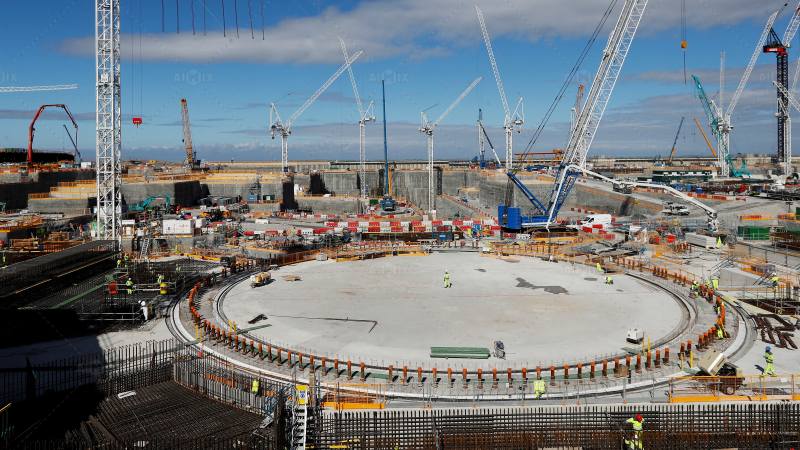

- Water Conservancy and Power Engineering: Large-scale water conservancy projects like dams demand high quantities and quality of concrete, and fixed batching plants can ensure long-term, high-quality concrete production and supply.
- Precast Parts and Special Engineering Applications: Stationary batching plants are suitable for producing various precast components like pipe pieces, wall panels, bridge elements, etc., and can adjust the concrete mix and properties according to the specific requirements of the precast parts.
- Special Engineering Applications: Environmental protection projects, chemical plant construction, etc., these projects may require concrete with special functions (such as chemical resistance, high-temperature crack resistance, etc.). Stationary concrete batching plants can be specially designed to meet the needs.
Specifications of Stationary Concrete Plants
Hopper type plant
Types | Hopper type | |||
---|---|---|---|---|
Model | AJ-25 | AJ-35 | AJ-50 | AJ-75 |
Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 |
Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1500 |
Mixer Power (kW) | 18.5 | 30 | 2×18.5 | 2×30 |
Mixing Cycle Period (s) | 72 | 72 | 72 | 72 |
Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ80 |
Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 | 3×12 |
Kind of Aggregate | 3/4/2002 | 3/4/2002 | 3/4/2002 | 3/4/2002 |
Max. Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
Overall Weight (ton) | ≈15 | ≈18 | ≈23 | ≈30 |
Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase |

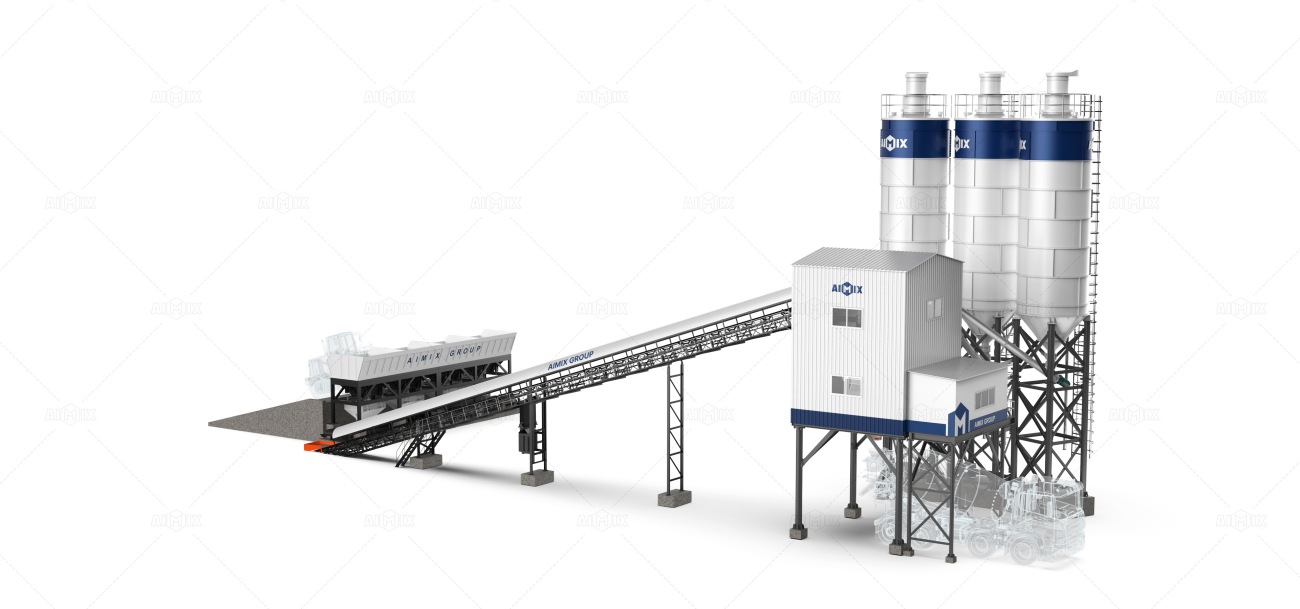

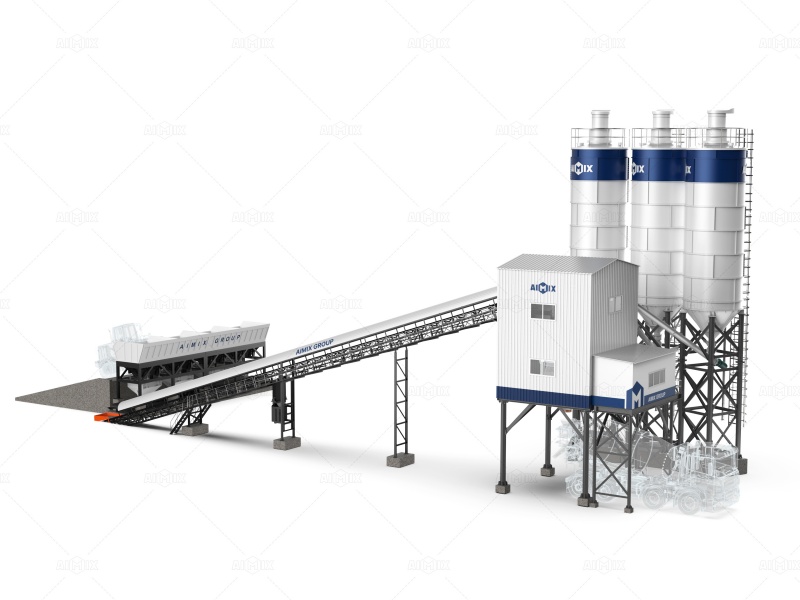

Belt type plant
Types | Belt type | |||
---|---|---|---|---|
Model | AJ-60 | AJ-90 | AJ-120 | AJ-180 |
Theoretical Productivity (m³/h) | 60 | 90 | 120 | 180 |
Mixer Model (Mixer Output L) | JS1000 | JS1500 | MAO3000/2000(SICOMA) | MAO4500/3000(SICOMA) |
Mixer Power (kW) | 2×18.5 | 2×30 | 2×37 | 2×55 |
Mixing Cycle Period (s) | 60 | 60 | 65 | 65 |
Max.Aggregate Size (mm) | Φ60 | Φ80 | Φ80 | Φ80 |
Standard Aggregate Bin Capacity (m³) | 4×7 | 4×15 | 4×15 | 4×20 |
Kind of Aggregate | 3/4/2002 | 3/4/2002 | 3/4/2002 | 3/4/2002 |
Max. Discharging Height (m) | 4.1 | 4.1 | 4.3 | 4.3 |
Overall Weight (ton) | ≈40 | ≈68 | ≈93 | ≈101 |
Installation Power (kW) | ≈110 | ≈160 | ≈220 | ≈290 |
Why Choose a Stationary Concrete Batching Plant?
1. High Production Efficiency
Stationary batching plants use automated control systems, capable of continuously producing consistent quality concrete, suitable for long-term and large-volume production demands.
2. Cost Savings
Although the initial investment is relatively high, stationary concrete batch plants can achieve large-scale production, reducing labor costs and material wastage. In the long run, they are economically beneficial.
3. Environmental Protection
Stationary batching plants usually have strict environmental protection measures, such as dust collection and wastewater recycling, reducing pollution during the production process.
4. Wide Application
Stationary batching plants are not only suitable for large construction projects, road and bridge constructions but also can serve projects like hydropower stations and ports, showing strong adaptability.
5. Better Control and Automation
Advanced automation and control systems make the stationary batch plant easy to operate, monitor, and adjust, ensuring that production runs smoothly and efficiently with minimal manual intervention.
6. Easy Maintenance
A well-designed stationary batching plant is easy to maintain daily and for periodic servicing, ensuring long-term stable operation.

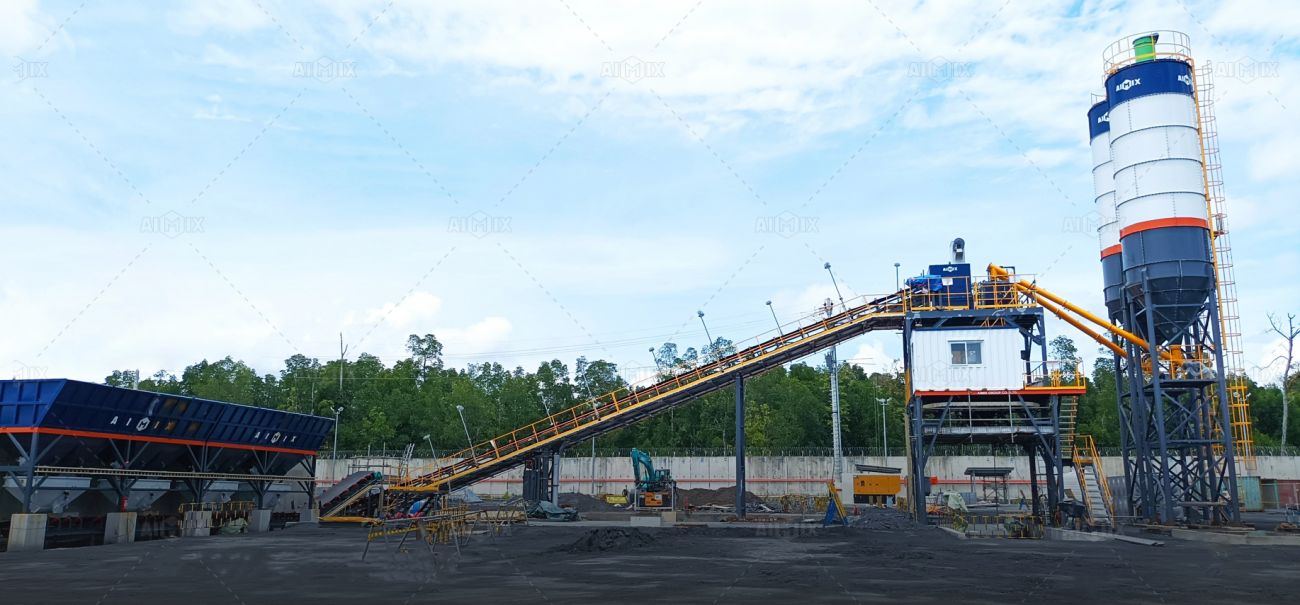

Factors to Consider When Choosing a Stationary Concrete Batch Plant
Production Capacity Requirements
Assess the expected volume of concrete needed for your construction projects. Choose a stationary batch plant that can meet your production demands efficiently without compromising quality.
Budget and Operational Costs
Evaluate your budget for both initial investment and ongoing operational costs of the batching plant, including maintenance, labor, and utilities. A cost-effective solution will maximize your return on investment.
Available Space and Location Constraints
Consider the physical space available for installation and operation. Ensure that the stationary concrete batch plant fits within your site’s layout and complies with local zoning and space regulations.
Environmental Regulations and Considerations
Research local environmental laws and standards. Select a stationary mixing plant equipped with features that minimize dust, noise, and waste, ensuring compliance with regulations and promoting sustainability.
Stationary Concrete Batching Plant Price
The stationary concrete batching plant price can vary based on several factors, including the plant’s production capacity, configuration, level of automation, custom features and others. Here we offer the price ranges of our different stactionary concrete plant models for reference when you are considering buying a batching plant. The final batching plant price will depend on the specific needs.
Model | Price |
---|---|
AJ-25-AJ-50 | $33000-$48000 |
AJ-60-AJ-180 | $78000-$210000 |
Critical Components of Stationary Concrete Batching Plants

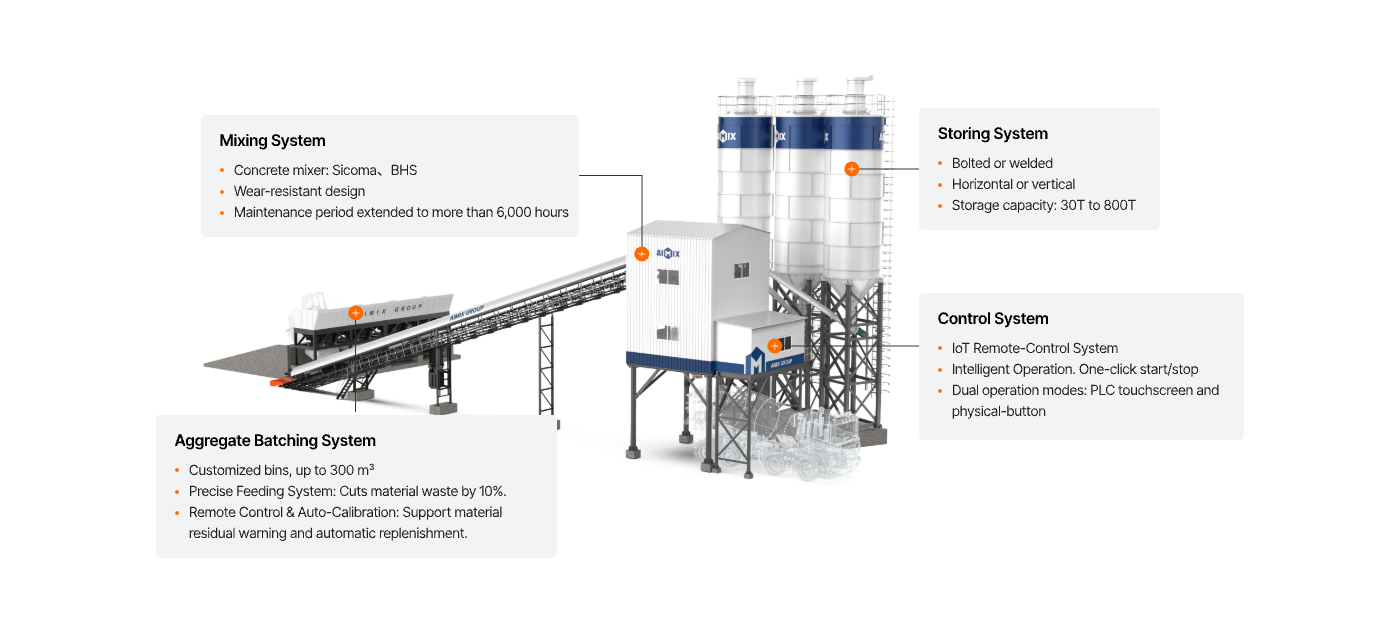

A stationary concrete batching plant consists of five main systems: the mixing system, storage system, conveying system, weighing system, and control system. Let me introduce the detailed components of each system one by one.
In stationary concrete mixing plants, we adopt the JS series twin shaft concrete mixer as the mixing console.
JS series concrete mixer is composed of a feeding system, mixing system, discharging system, water supply system, and electrical control system.
The smart design of the Aimix JS mixer, with its unique spiral blades and seals, uses less energy and hardly makes any mess.
The storage system of stationary concrete batching machine helps keep materials organized.
- Aggregate bins are big containers for storing different kinds of small rocks and sand needed for the concrete.
- Cement Silos are tall tanks that hold the cement powder. Cement silos store bulk cement for construction projects like buildings, roads, bridges, and water projects. They also hold cement in stationary concrete plants. The top has a dust collector to stop leaks. The bottom has an arch breaker to prevent clumps and ensure smooth discharge.
You can choose conveyor belts or hoppers for the transportation of aggregates.
- Using hopper: Simple structure and less space occupation, the cost is low, and it has less application in large stationary concrete batching plant solutions.
- Using belt: High working productivity, long conveying distance, stable performance, low maintenance cost and it is easy to close and will not be limited by weather conditions.
The screw conveyor is used to convey the cement and fly ash to the weighing hopper. It is a conveying equipment and it has a wide application in departments of chemical engineering, building materials, and grain.
Before mixing, aggregates are weighed in the batcher through separate weighing or accumulative weighing.
The powder, additive, and water also get weighed precisely with electronic scales that work based on leverage, ensuring the mix is just perfect. The weighing system of aimix ready mix concrete equipment is accurate.
Aimix provides a fully automatic control system: PLC with a computer, it can print all kinds of report forms and display the details.
The system makes sure everything is mixed precisely and keeps track of all the mixing details of the automatic batching plant.
After knowing the main components of the stationary concrete batching plant, next, let’s take a look at how it operates as a whole unit.
Working Steps Of Stationary Concrete Batching Plant
A stationary concrete batching plant is a high-efficiency, reliable system designed to produce large volumes of concrete at a fixed location. Let’s take a closer look at how it works in the concrete production process:
- Aggregate Handling: Aggregates are first sent to the weighing system. Once properly weighed, the proportioned aggregates are transported to the waiting storage bin using either a hopper or belt conveyor.
- Cement and Powder Management: Cement is discharged from the silos into the screw conveyor, which transports the material to the powder weighing hopper. After weighing, the powder is transferred to the mixing console.
- Water and Additive Handling: Water is pumped from the pool to the water weighing hopper, while additives are pumped from their storage to the additive weighing hopper. After weighing, the additives are combined with the water in the water weighing hopper, and the mixture is discharged into the mixing console.
- Mixing Process: The powder and water-additive mixture are added to the mixing console first. Then, the weighed aggregates are introduced, and everything is mixed together. Once the mixing process is complete, the concrete mixture is discharged into a concrete mixer truck, ready for delivery to the construction site.
The first three steps are conducted at the same time, which shortens the construction period effectively.
There is a 3D working video of a stationary concrete batching plant,helping you understand the working process of the concrete plant more intuitively.
FAQs of Stationary Concrete Plants
Q: What is the difference between a stationary concrete batching plant and a mobile concrete batching plant?
A: Stationary concrete batching plants are typically established at a designated location and do not move with changes in project sites, making them suitable for long-term, large-scale engineering projects. They have higher production efficiency and capacity.
Mobile concrete batching plants can be moved to different locations as required by the project, making them suitable for changing construction environments and small to medium-sized projects, offering greater flexibility.
Q: What should be considered when installing a stationary batching plant?
A: You need to pay attention to the following aspects:
Location:The site should be convenient for material access and located away from residential areas to minimize the impact of noise and dust pollution.
Foundation construction:Design and construct a solid foundation according to the equipment’s load requirements.
Compliance:Ensure the project complies with local environmental protection, safety, and other relevant regulations.
Professional installation: Use a professional team for equipment installation to ensure the safe and efficient operation of the plant.
Q: What are some maintenance tips for stationary concrete batching plants?
A: Effective maintenance of these batching plants includes:
Regular inspection:Periodically check various systems of the plant, including electrical, mixing, feeding systems, etc., to identify and solve problems early.
Cleanliness: Keep the equipment and surrounding environment clean, especially the interior of the mixer and discharge port.
Lubrication: Regularly lubricate rotating parts, bearings, etc., to ensure smooth operation of the equipment.
Anti-freezing measures:In cold regions, measures should be taken to prevent water pipes, tanks, etc., from freezing.
Spare parts management:Keep some common wear-and-tear spare parts ready for quick replacement when needed to minimize downtime.
Q:If I have special requirements regarding environmental protection, can Aimix provide me with a solution?
A: Aimix customized eco-friendly concrete batching plant services are designed to meet the specific needs of customers who prioritize environmental protection in their construction projects.
Consultation: First, there’s a talk to understand what environmental goals you have and what you need for your project.
Custom Design: The plant is specially designed to be as eco-friendly as possible. This could mean using less energy, recycling water, controlling dust, and choosing materials that don’t harm the environment.
Emission Control: Aimix puts in systems to cut down dust, noise, and pollution, making sure the plant follows strict environmental rules.
Water Management: The plan includes reusing water and maybe collecting rainwater to save water.
Energy Efficiency: The goal is to make the plant use as little energy as possible, possibly through automation and smart management.
Training: Aimix will teach your staff how to run the plant in an eco-friendly way and offer ongoing support to keep the plant green.
Certification Help: Our group can assist in getting environmental certifications, which can make the project more appealing and compliant.
Q: What are the materials for the foundation of a stationary batching plant? How is the foundation of the stationary plant constructed?
A: Ordinary concrete, embedded steel plates, and embedded rebars;
First, draw the foundation dimensions according to the foundation drawings and excavate the foundation pit (the depth can be adjusted based on local soil conditions);
Next, place the embedded rebars in the pit and pour concrete;
Then, place the embedded plates on the embedded rebars, with the rebars penetrating through the embedded plates;
Finally, after the concrete solidifies, weld the embedded plates to the embedded rebars together.
