China export brand No.1|Hydrostatic drive technology|On-site production and pouring|Local service|
Self loading concrete mixer is a multifunctional vehicle integrating concrete production, transportation and discharging functions. It has the ability of automatic loading, automatic mixing, automatic transportation and automatic unloading, which is a kind of efficient equipment in the field of concrete construction. Many people also call it a small mobile concrete batching plant.
Weighing error＜2%, other brand is around 30%
Safe operation: The entire vehicle wiring harness is waterproof
Sufficient water supply: 800L, increased by 29%

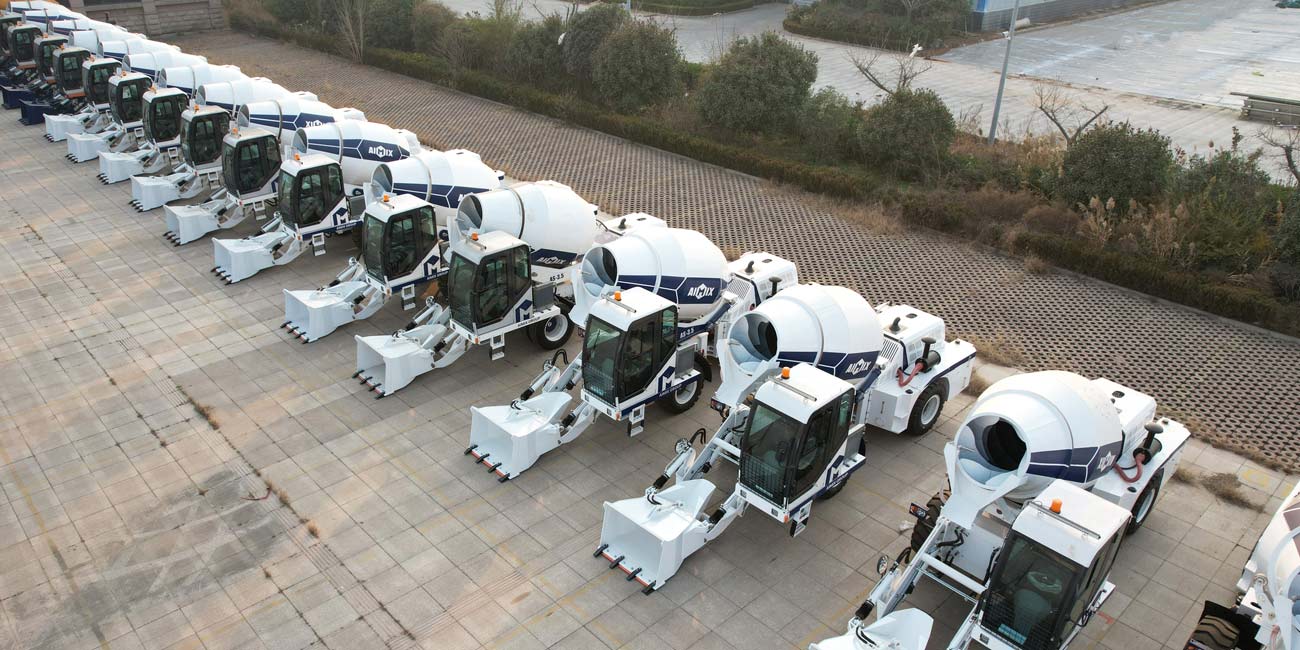

AIMIX – China’s No.1 brand of self loading concrete mixers
Hello friends from all over the world, before continuing to learn about self loading concrete mixers, I hope you can stop and take a closer look at our past sales. Good products do not need to brag, sales are the best proof.
Here I downloaded the export data from Globalwits of self-loading concrete mixers in China in the past year. You can see that Aimix self loading concrete mixer export sales has jumped to the first place. In addition, I also counted the sales volume of our company since the sale of this equipment for nearly 5 years!
We thank all new and old customers for their love. All our employees and R&D personnel would like to express their sincere thanks here. At the same time, we also look forward to witnessing our next peak moment with you. We will uphold our original intention and develop the most suitable self loading mixer for your project.
(Note: Click to enlarge the picture for a clearer view.)
Global Projects of Self Loading Concrete Mixer

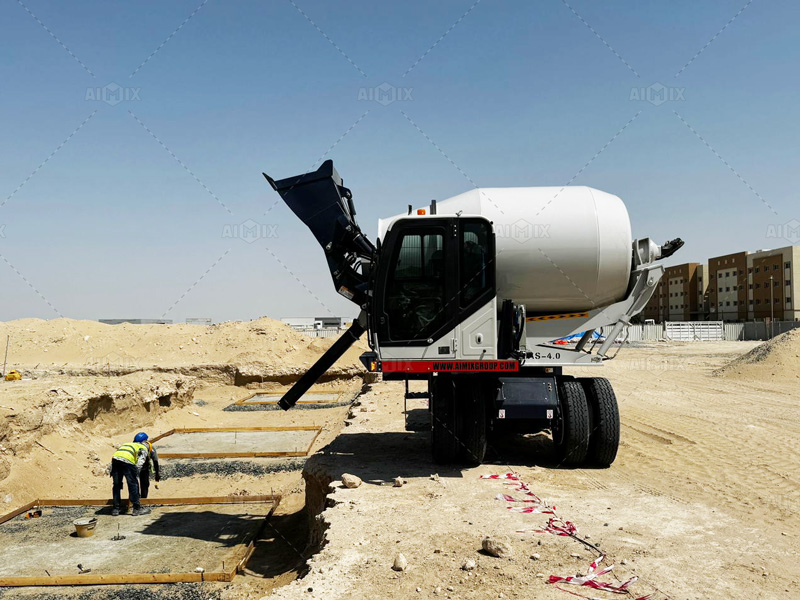

AS-4.0 Self Loading Concrete Mixer for Factory Construction
- Location: in UAE
- Services Provided: Installation Testing, Safe Delivery, Operational Training
Customer Feedback: “The self loader concrete mixer is easy to transport between job sites. Its compact design and mobility features make it a versatile addition to our equipment fleet.”

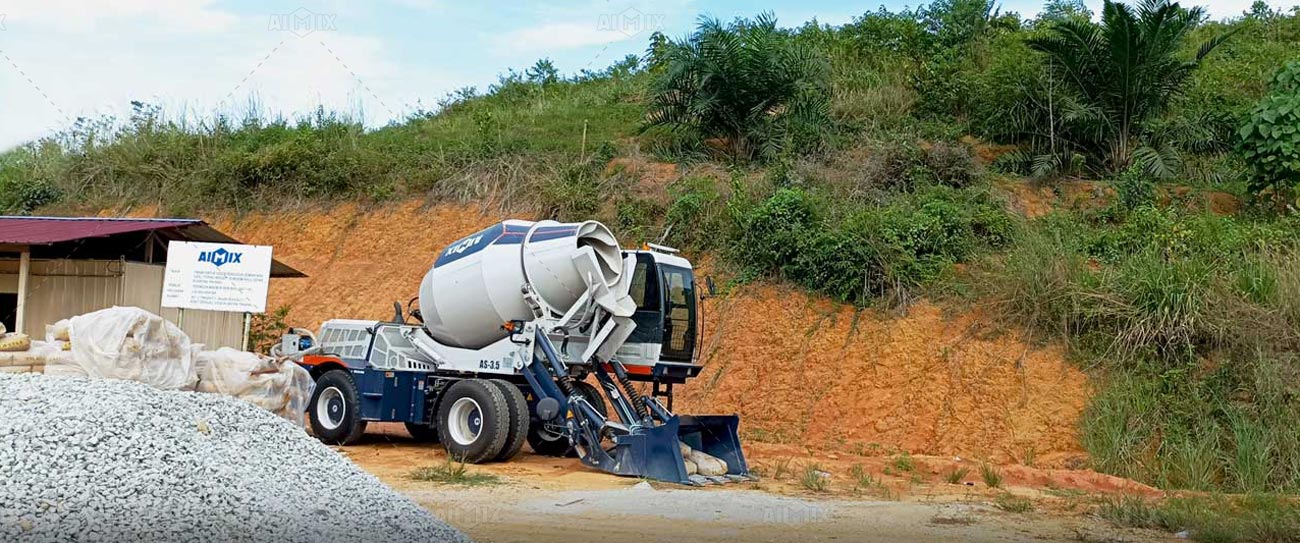

AS-3.5 Self Loading Mixer Concrete for Construction Project
- Location: in Indonesia
- Services Provided:Installation Testing, Safe Delivery, Operational Training
Customer Feedback: “China Aimix self loading cement mixer is easy to operate, flexible, efficient and reliable, making it ideal for cost-saving and efficient construction.”

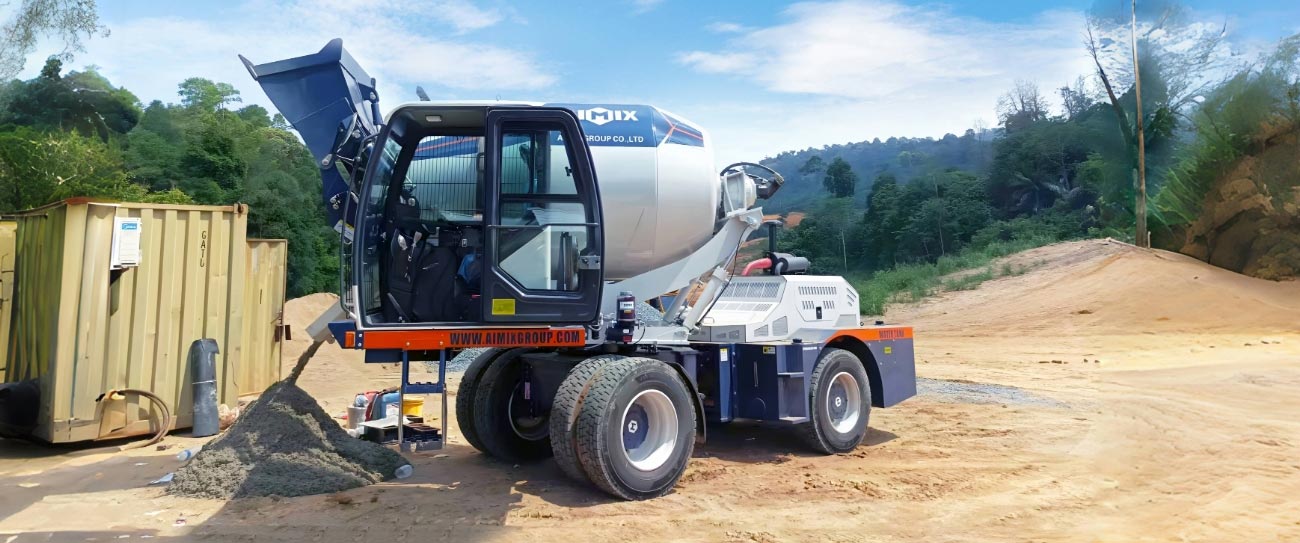

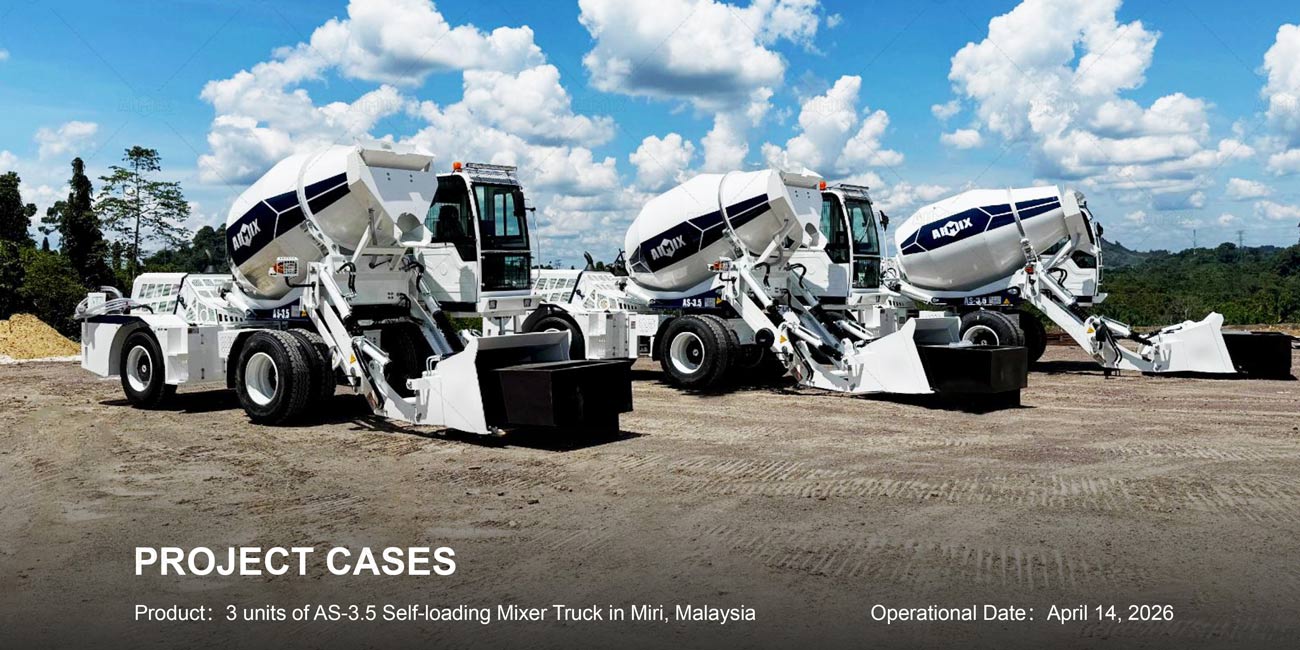

AS-3.5 Self Loading Concrete Mixer for House Buliding
- Location: in Malaysia
- Services Provided: Installation Testing, Safe Delivery, Operational Training
Customer Feedback: “Aimix self loaded concrete mixer has significantly reduced our mixing time. We can now produce high-quality concrete in a fraction of the time it used to take.”
Unique Features of Our Self Loading Concrete Mixer Machine
AIMIX only makes high-end self-installed concrete mixers, which are highly competitive in appearance, processing details, assembly details, product configuration, materials, etc., and are high-end models in the industry. In addition, AIMIX has its own R&D team, dedicated to providing customers with high-quality products and services. Let’s take a look at AIMIX’s self-loading concrete mixer together!
Simple but Accurate Weighing
Intelligent Control System:
One button start, intuitive operation interface, one person can complete the operation..

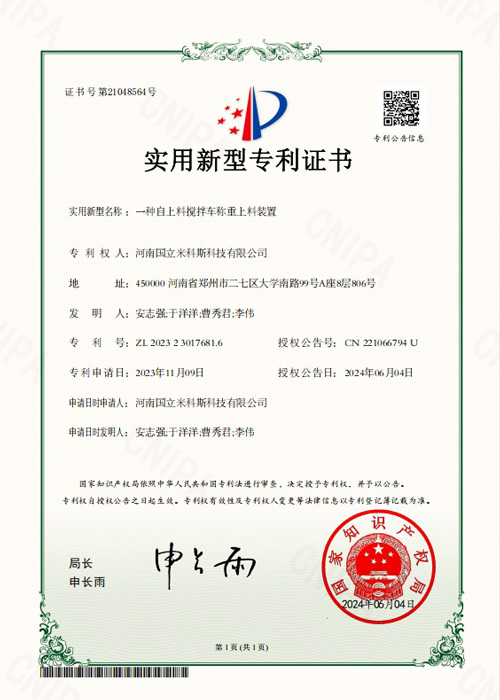

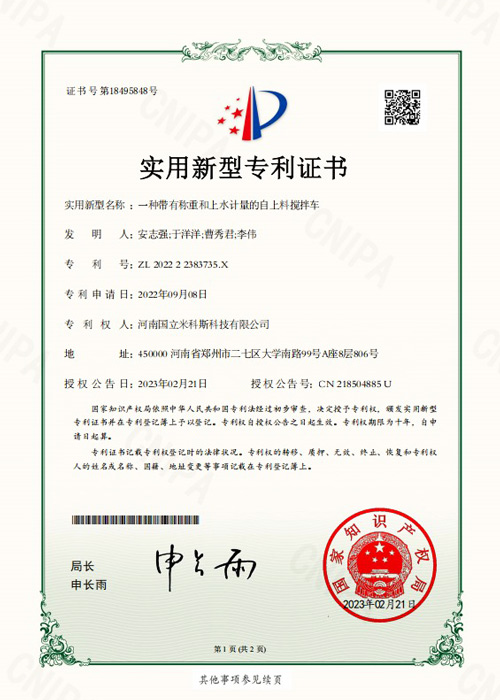

Precise Weighing System – Production Patent:
Adopting new algorithm, the error is less than 2%, and the accuracy is 10 times of the peers.
13.5-Inch High-Definition Touch Screen:
Touch screen operation is simple and convenient, responsive, as easy as operating an iPhone.
Innovative Formula Management System
Our mobile self loading concrete mixers supports a variety of proportioning modes, easily adapting to various production needs.
Guided Weighing Calibration System
The first operation guidance function simplifies the calibration process and effectively improves production efficiency of slm concrete machine.

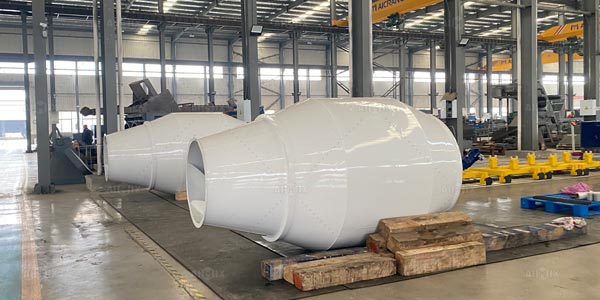

Improved Spraying Process
All structural parts of this self mixing concrete truck are coated with epoxy primer to prevent rust and corrosion and adapt to various climates.
New Products On Line – Hydrostatic Concrete Mixer Self Loading
We have continued to innovate and upgrade our products, the new hydrostatic self load concrete mixer, using hydraulic transmission, the transmission medium is hydraulic oil, an effective solution to the problem of hydraulic oil cleaning.

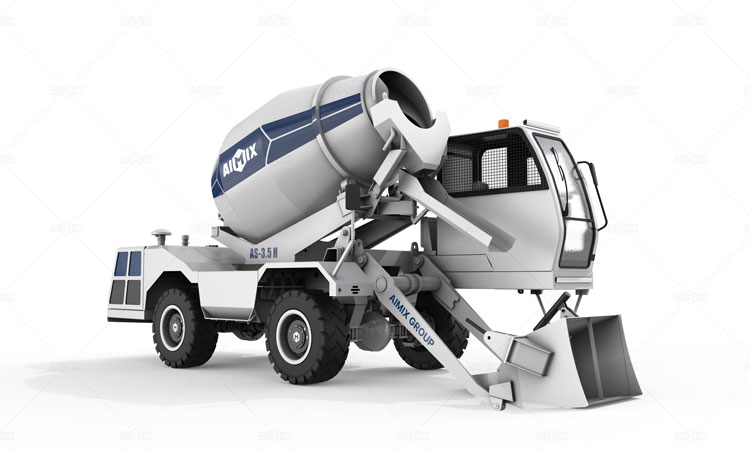

AS-3.5H Fully-hydraulic Self Loading Concrete Mixer
- Fully hydraulic system: Hydraulic brake, driving system, mixing pump, water pump etc
- Simpler operation: only 1 operation lever, no need to switch frequently.
- More compact structure: 10% reduction in length and 20% reduction in height
- Bigger water tank: 800L – 22% increase in volume
| Transmission | Speed | Engine |
| 4×4 Hydraulic | 0～30km/h | Yuchai |
Self Loading Concrete Mixer Capacity – 7.2m3 To 26m3/h – For All Your Project Needs!
AIMIX concrete self loading mixer has many models for your reference: AS-1.8, AS-2.6, AS-3.5, AS-4.0, AS-5.5, and AS-6.5. During project, without any auxiliary equipment, they can complete the project smoothly and efficiently. The following are the parameters for the different models of self loading mobile concrete mixers:

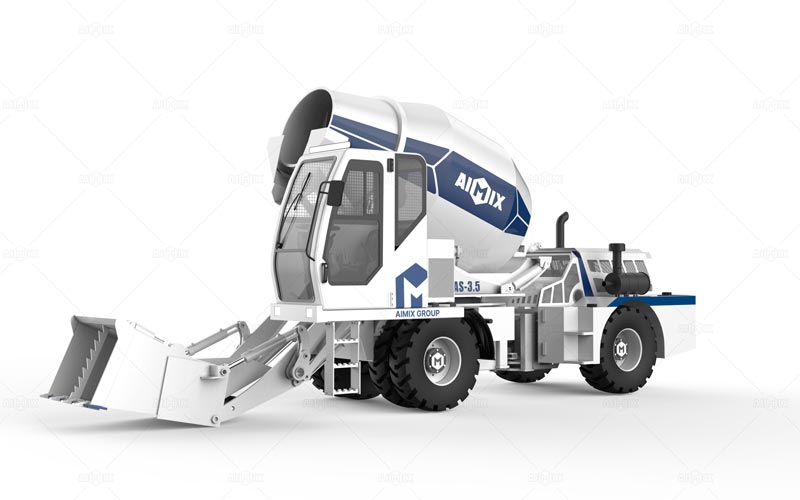

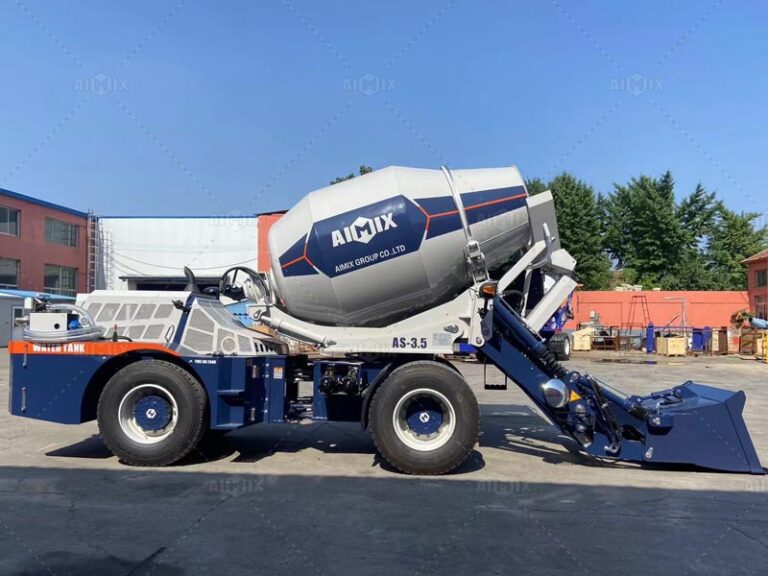

AS-3.5: Hot Type, Save 5 Labors
3500LDischarge Capacity
14 m³/hConcrete Output
4740LMixing Drum Capacity
620LWater Tank
8000kgTotal Weight
3250mmMini Turning Radius
AS-1.8: Cost-Effective, Save Three Labors Costs
1800LDischarge Capacity
7.2 m³/hConcrete output
2680LMixing drum capacity
400LWater tank
4920kgTotal Weight
4700mmMini Turning Radius
AS-2.6: Good Choice for Small to Medium Sized Projects
2600LDischarge Capacity
10.4 m³/hConcrete output
78kwEngine power
3580LMixing drum capacity
7280kgTotal Weight
3300mmMini Turning Radius

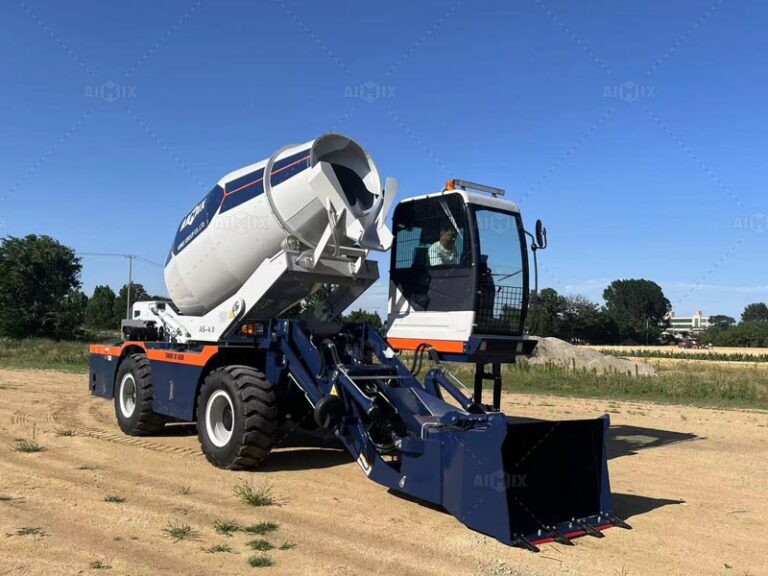

AS-4.0: Max Speed 35km/h, Discharging Concrete At 270 Degrees
4000LDischarge Capacity
16m³/hConcrete output
91kwEngine power
6000LMixing drum capacity
8250kgTotal Weight
4050mmMini Turning Radius

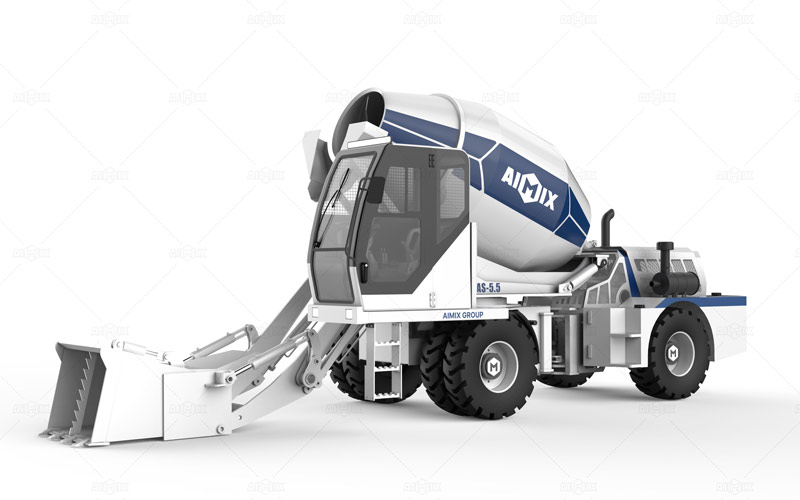

AS-5.5: Ideal Choice for Medium Projects
5500LDischarge Capacity
22 m³/hConcrete output
7800LMixing drum capacity
92kwEngine power
11200kgTotal Weight
6200mmMini Turning Radius

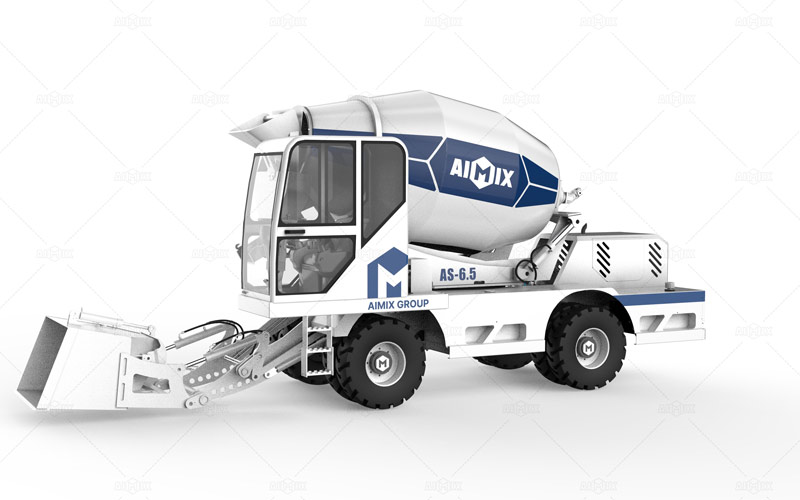

AS-6.5: Maximum Capacity, Higher Efficiency
6500LDischarge Capacity
26 m³/hConcrete output
9000LMixing drum capacity
92kwEngine power
12520kgTotal Weight
4800mmMini Turning Radius
Take A Look At The Busy Life Of The Self loading Mixer – Videos Gallery
Mixing drum rotating 360 degrees?!?!?!
Working in a rainy day~~!
Build a factory? Piece of cake!

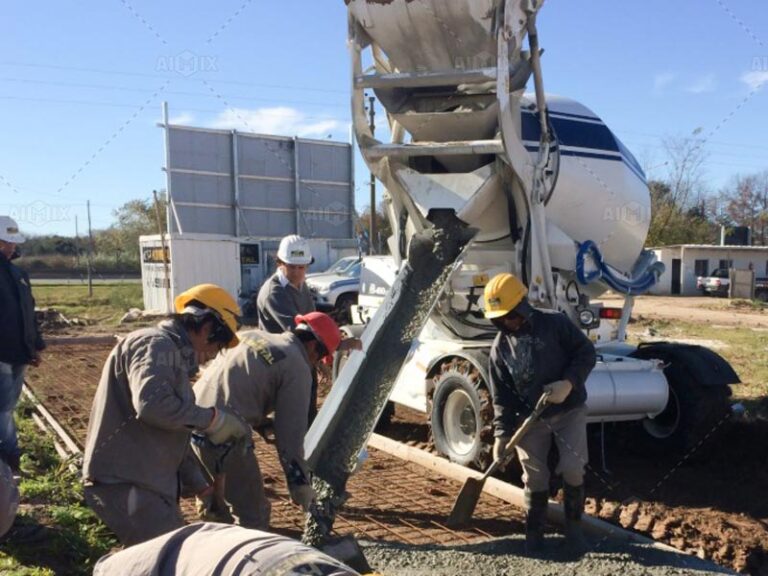

I’m good at building foundations.
Guess what my four brothers are doing?
Another day of being praised.hahahaha
Recommended Self-Loading Mixer Combinations: High Efficient!!!
The combination of a concrete self loader mixer and a concrete trailer pump is a powerful combination that can significantly improve the efficiency, productivity and quality of a construction project. This synergistic pair brings both the convenience of on-site concrete mixing and the ability to precisely pump the mixed concrete to various locations, even over considerable distances or heights. Below you will find two popular combinations:

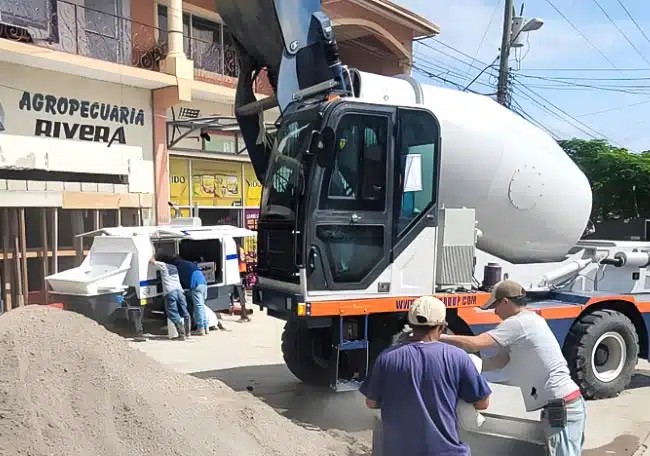

AS-3.5+ABT40C
- Production Capacity: 14m3/h
- Pumping Capacity: 40m3/h
- Pumping distance: 120m (Vertical Conveying Distance) 500m (Horizontal Conveying Distance)

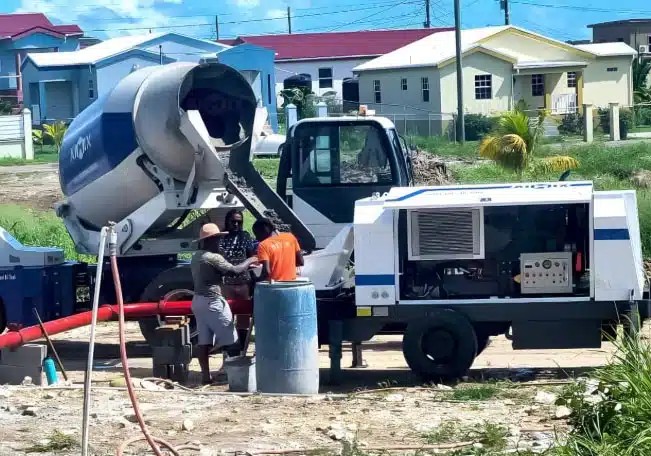

AS-4.0+ABT60C
- Production Capacity: 16m3/h
- Pumping Capacity: 60m3/h
- Pumping distance: 180m (Vertical Conveying Distance) 100m (Horizontal Conveying Distance)
Spraying at high altitude – so cool
Contributes to infrastructure projects

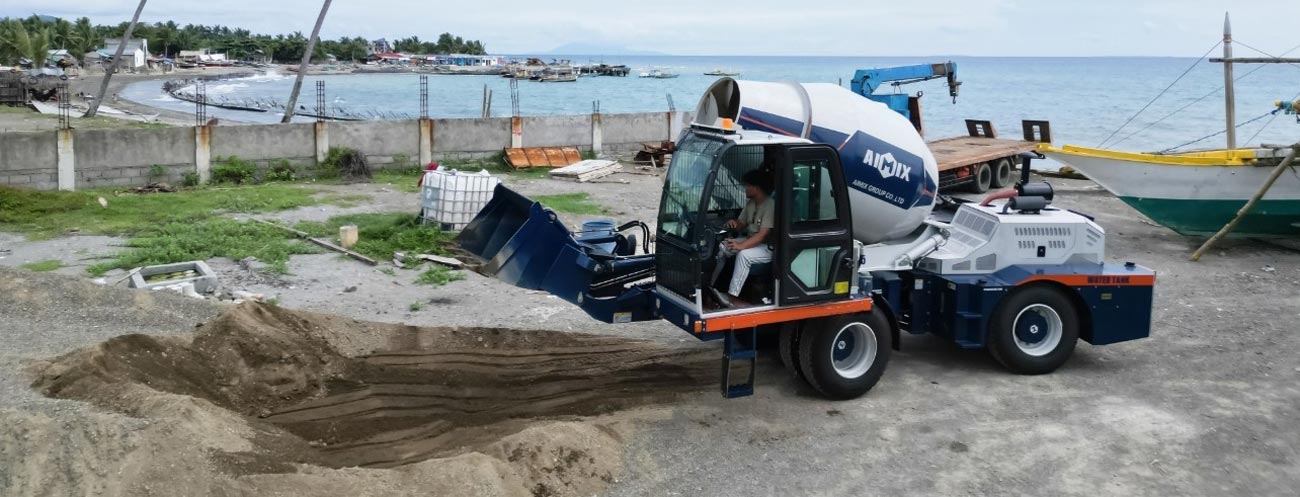

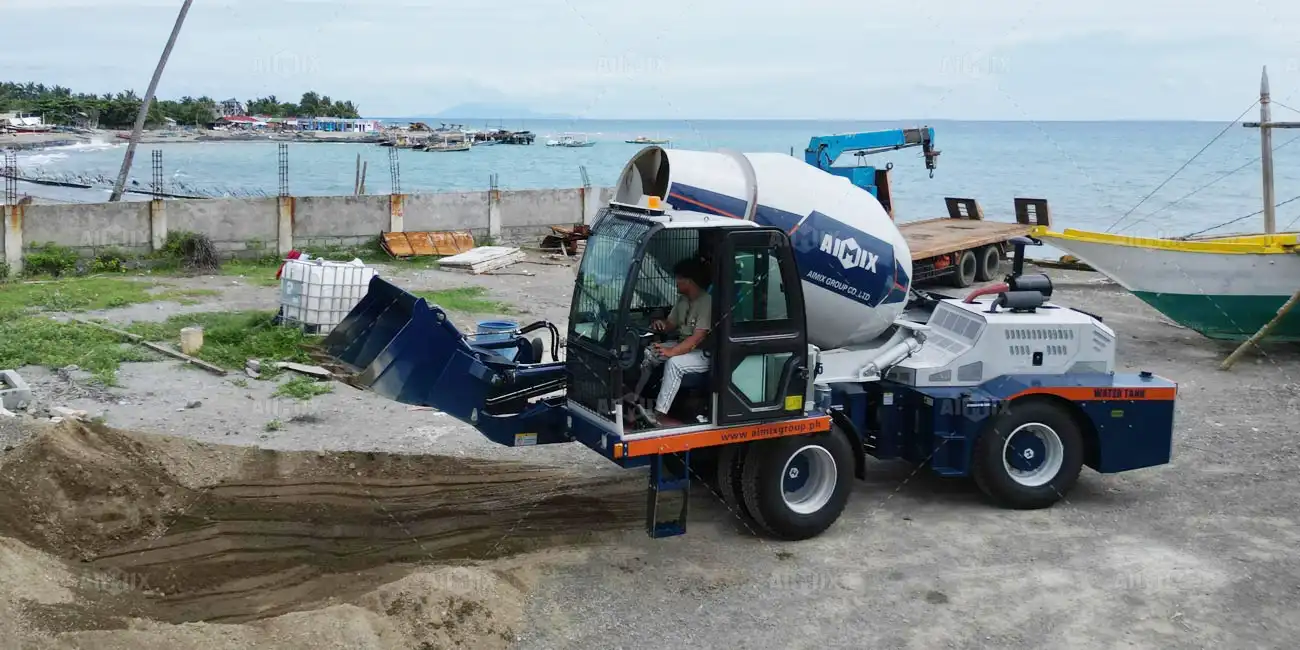

To lay a foundation in the Philippines again.
Advantages of using this combination:
Integrated Process
- A self propelled concrete mixer eliminates the need for separate loading and mixing processes. It automatically loads, mixes, and prepares the concrete, ready for pumping.
- The concrete pump then efficiently transports the freshly mixed concrete to the desired location, ensuring a continuous supply of material to the worksite.
Efficiency and Speed
- With this combination, concrete can be mixed and pumped directly to where it’s needed, significantly reducing transportation time and labor costs.
- Slm concrete mixer can quickly and efficiently prepare concrete on-site, while the pump ensures fast and accurate delivery.
Versatility and Convenience
- This system is suitable for various construction projects, from small residential repairs to large-scale infrastructure developments.
- The self-loading mixer’s mobility allows it to operate in different locations, while the pump can reach even the most inaccessible areas.
Cost-Effectiveness
- By combining mixing and pumping functions, this system eliminates the need for multiple machines and operators, reducing overall costs.
- Less material waste is generated due to the continuous mixing and pumping process, further enhancing cost-efficiency.
Precise Mixing and Pumping
- Modern loader concrete mixer and concrete pumps are equipped with advanced control systems, ensuring precise mixing ratios and pumping pressures.
- These machines can handle large volumes of concrete, with some models capable of mixing and pumping up to several cubic meters of concrete per hour.
Components of Self Loading Concrete Mixer
| Self-priming Water Pump | This pump allows the self loader mixer to draw water from external sources without the need for external priming. It ensures a continuous water supply for mixing concrete, essential for the concrete mixing process. |
| Rear Frame | The rear frame supports the mixing drum and provides stability to mixer beton self loading. It is designed to withstand the weight and movement of the mixed concrete. |
| Fuel Tank | Stores fuel, typically diesel, which powers the self concrete mixer machine’s engine. Adequately sized to ensure long operational hours before refueling is needed. |
| Front Rack | This is a support structure at the front of the china self loading concrete mixer, often used for mounting attachments or additional equipment. It can also provide stability and balance to the self loading concrete truck mixer. |
| Bucket | Used for scooping and loading raw materials into the concrete mixer loader. It is optimized in size and shape with a circular press for efficient material collection. |
| Hydraulic Oil Tank | Stores hydraulic oil, which is crucial for powering the hydraulic system of the self loading truck mixer. The hydraulic system controls various movements of the components of self loading mixer truck. |
| Driver’s Cab | A protected area where the operator controls the concrete mixer truck self loading. Equipped with controls and instruments necessary for operating the self loading concrete mixer truck. |
| High-Pressure Water Pump | Used for cleaning or for providing additional water pressure during mixing. Ensures adequate water flow for various mixing and cleaning tasks. |
| Powertrain | Includes the engine, transmission, and other drive components. Transfers power from the engine to the wheels or tracks, enabling movement. |
| Water Tank | Stores water used in the mixing process. Can be filled manually or via the self-priming water pump. |
| Mixing Tank | where raw materials are mixed to produce concrete. Aimix self loading mixer mixing tanks have built-in 6 spirals and 8 paddles to ensure even mixing and increase mixing efficiency. |
| Brake Booster Pump | Assists in providing additional braking force when needed. Enhances safety by ensuring effective braking in various conditions. |
Each component of the self-loading concrete mixer is carefully designed and integrated to provide efficient, safe, and reliable concrete mixing and transportation on construction sites.
Working Principle of Self Loading Concrete Mixers – Produce Precast Concrete Parts
Having explored the various components of a self-loading concrete mixer, it is crucial to understand how these elements work in unison to achieve efficient concrete mixing. Let’s take the production of precast concrete parts as an example to take a deeper look at the working principle of self-loading concrete mixers.
Firstly, this concrete mixer truck drives to the construction site to load the raw materials (cement, sand, aggregate). The self loading mixer utilises the newly upgraded third generation bucket to automatically load the materials into the mixing drum. This eliminates the need for manual labour and ensures a consistent material intake.
The weighing system verifies the amount of material before mixing. Our mixers are equipped with precision sensors that measure ingredients such as cement and sand with greater than 99% accuracy. Formula calibration prior to use allows the system to meet the requirements of your specific project, such as slump or strength goals.

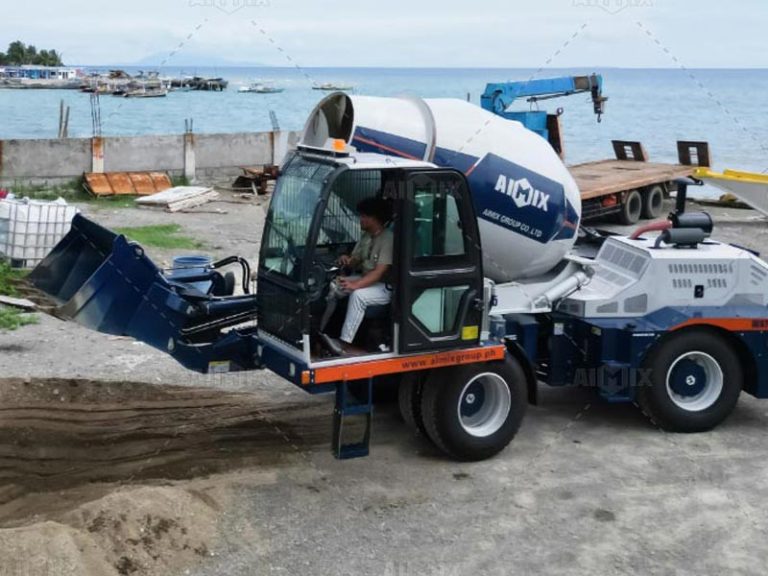

After weighing the materials, the drum rotates at a uniform speed of 360°, and each batch of materials is mixed for 15 minutes. The stirring process ensures the uniform distribution of cement slurry and aggregates, achieving processability for prefabricated applications.
Rapid and uniform stirring can enhance adhesion, which is crucial for components such as plates or columns that require structural integrity.
The fully mixed concrete is transported to the pouring area. Designed for off-road mobility (e.g. four-wheel drive at speeds of up to 45 km/h), the self mix concrete truck features a 270° discharge angle for flexible pouring. This minimises transport time, maintains the slump and reduces the risk of segregation.
At the precasting site, the drum is tilted or rotated to unload concrete directly into the mould. Automatic controls of this self loading concrete mixer with pump can regulate the flow rate to ensure uniform filling and minimise air pockets. The process supports rapid batch turnaround, aligning with the precast production schedule of components such as beams or panels.

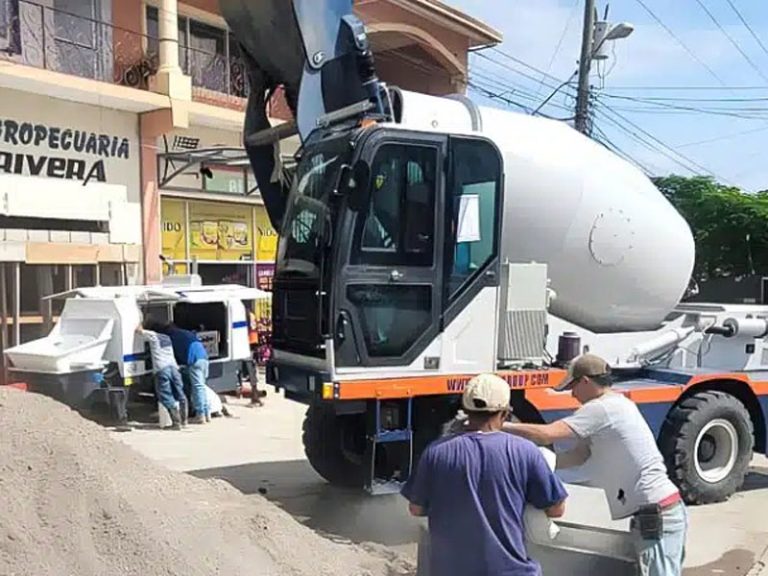

How to Operate the Self Loading Mixer?
Correct operation helps to maximize the performance of the self-loader mixer and minimize accidents. Aimix self-loading mixers are simple to operate and following the steps below will ensure safe operation.
01Inspect Equipment
Checking fluid levels: Inspect the levels of basic fluids such as hydraulic fluid, engine oil and coolant. If the fluid is too low, it should be refilled in time. Check tyre pressure: Proper tyre pressure is critical to the stability and mobility of your mixer.
02Start the Device
Start the engine by first turning the key. Then switch on the control panel, the screen will show the weighing system and the watering system etc. Familiarize yourself with the various controls and set to the appropriate settings.
03Control Equipment
Using the electronic gear lever to control your self-loading mixer moving flexibly, the mobile operating lever can control concrete’s loading and unloading, enabling the production and pouring of concrete on site.
04Clean Equipment
After completing the pour, switch off the power supply and connect a high- pressure pump to rinse the surface of the equipment. After basic rinsing you can use scrapers and brushes to clean up the small amount of concrete left behind.
By following these steps you can ensure efficient and safe operation of your mixer. If you want more specific information about operating a self-loading mixer, you can open this page.
Reasons To Invest A Self Loading Concrete Mixer
Save Electricity
Efficient Hydraulic System: The hydraulic system in the Aimix self-loading mixer is designed for efficient energy use. The whole mixer is driven by hydraulic motors, and does not need to be energized for use. Advanced hydraulic components reduce energy losses and improve the efficiency of operations such as loading and discharging, which means less power is required.
Optimized Mixing Process: The design of 8 mixing blades ensures thorough mixing in less time, thereby reducing the energy required for the mixing process.
Save Time
Self-loading concrete mixers can solve the time spent using mixers to load and unload concrete back and forth. At the same time, the use of self-loading mixers delivers concrete on demand, ensuring that work continues and unproductive downtime is reduced.
Save Cost
Reduction in Labor Costs: Traditionally, mixing concrete involves loading materials such as cement, sand, gravel and water separately, mixing them, and transporting them to the site. Each step typically involves different sets of workers. Self-loading concrete mixers combine these steps into one machine operated by a single individual, dramatically reducing the number of laborers required.
Decrease in Material Costs: Self-loading mixers allow for precise control over the amounts of materials used in the concrete mix, reducing the likelihood of excess material that usually results from manual measurement errors. This precision helps in minimizing waste, leading to significant savings in material costs over time.
Reduction of Fuel Costs: The all-in-one nature of self loading mixer for sale means that only one machine needs to be fueled and maintained instead of multiple vehicles like traditional loaders, mixers, and transport trucks. This consolidation results in lower fuel consumption and maintenance costs.
Convenient to Move
- Four-wheel drive: This auto loading concrete mixer adopts off-road axles to achieve 30° climbing ability and stress-free driving in mud and slopes.
- Hydrostatic transmission: Hydrostatic system provides stepless speed change (0-45 km/h travelling speed), strong torque at low speed to reduce slipping in complex terrain.
- All-terrain tyres: our self loading rough terrain concrete mixers are equipped with engineering-specific anti-slip tyres. The deep grooves in the tread design enhance grip in the mud while reducing pressure on soft surfaces.
Easy Operation
Aimix self loading concrete mixers are easy to operate thanks to their integrated loading system, user-friendly controls, and efficient mixing mechanism. It can speed up the concrete mixing and delivery process, and can complete construction projects faster.
Wide Range of Application Fields
Self loading concrete machine is not only suitable for narrow construction sites, such as residential buildings, road construction, road maintenance, small building construction, infrastructure projects, precast concrete production, bridge construction, etc., which saves a lot of cost for our users.
It can also be used for concrete road repairs, three to five storey buildings, bridges, car parks, warehouses, workshops and more.
Technological Innovation

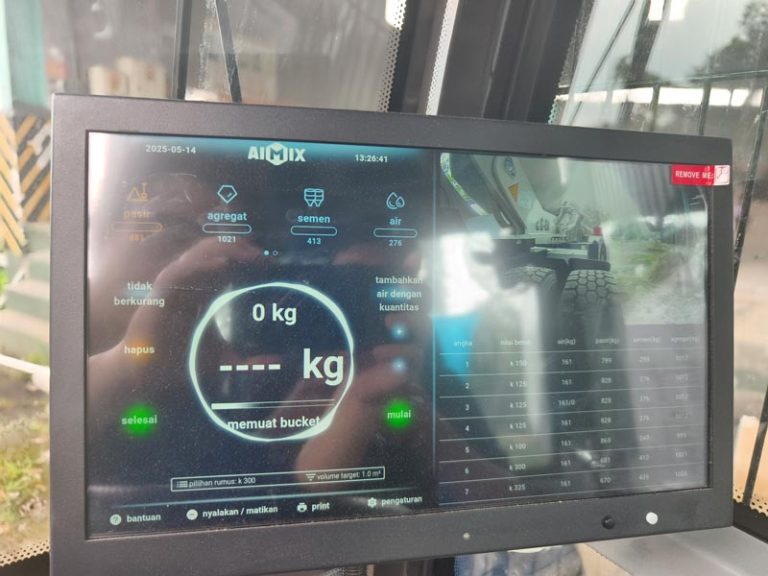

Weighing System
- Precision Sensors: Aimix self-loading mixers are equipped with high-precision sensors that ensure accurate measurement of materials. This reduces the error to 2%(Other products on the market are 20%-30%).
- Digital Display: The weighing system often features a digital display, making it easy for operators to monitor and adjust the material quantities in real-time.
- Arbitrary Proportioning: Add recipe management, can produce different types of concrete.
Hydraulic components: The use of joint venture, Sunny, Parker, Rexroth piston motor.
Engine: Before we mainly use Yuchai engine, now for different project needs, we also successfully tested other engines, but we still mainly use Yuchai engine, the rest of the customers can also choose Weichai, Deutz, Cummins according to demand.
Axle: Previously used is customized to increase the load-resistant axle, nowadays the axle shell is enlarged, thickened, internal important parts load-resistant axle.
Ensure Safety
Brake Safety: The braking system with dual air pumps and dual brake pads not only guarantees the fixed parking, but also ensures the safety of the operator.
Produce Safety: Adopting an integral body structure. The advantage of this structural design is that when it is fully loaded, the center of the entire body will be in the middle of the four wheels, and the stability during operation is very good.
Factors to Consider When Choosing A Self-Loading Mixer
Self-loading concrete mixers have so many benefits and advantages, but there are some factors you need to consider if you want to get a good value of self loading concrete mixer:
Consider the suppliers and manufacturers
Make a detailed comparison of several self loading concrete mixer suppliers in order to get a more affordable and reasonable price of self loading concrete mixer. Aimix is a reliable supplier and we can offer you the most competitive price.
Aimix not only has large factories and workshops in China, advanced technology and professional technicians and so on, but also abroad. We have LBS centers in Uzbekistan, Russia, Malaysia, Saudi Arabia, Kazakhstan, United Arab Emirates, Philippines and Indonesia. If you choose us, you will save a lot of transport cost and maintenance cost.
Consider the brand of spare parts
Look at the export cases
In addition self loading concrete mixer price, parts, comprehensive strength, export cases will be best evidence to evaluate a self loading concrete mixer supplier.
Aimix has exported more than 3000 sets of self loading transit mixers to abroad, such as, Argentina, Botswana, Russia, Pakistan, Philippines, Sri Lanka, Kenya, Zambia, Zimbabwe, Uzbekistan, etc. The export volume of Aimix self-loading mixers ranked first in China and third in the world!

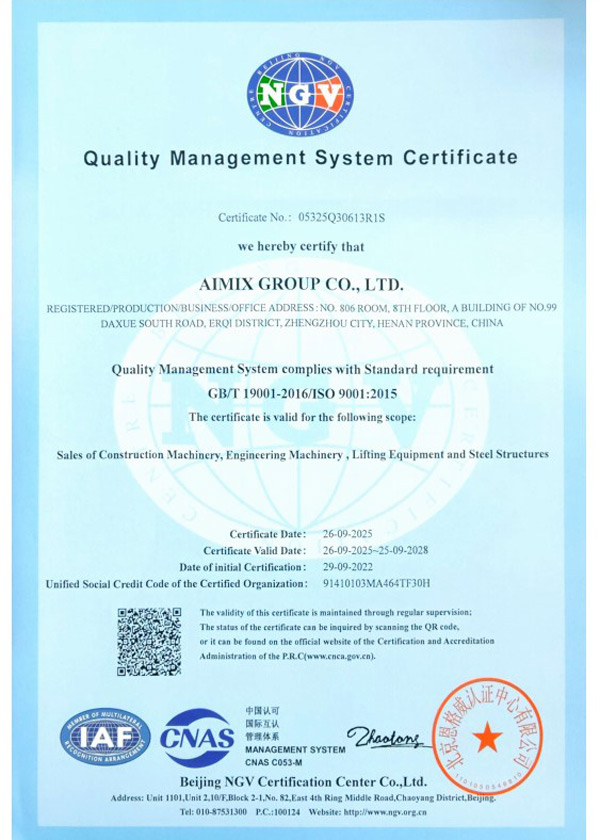

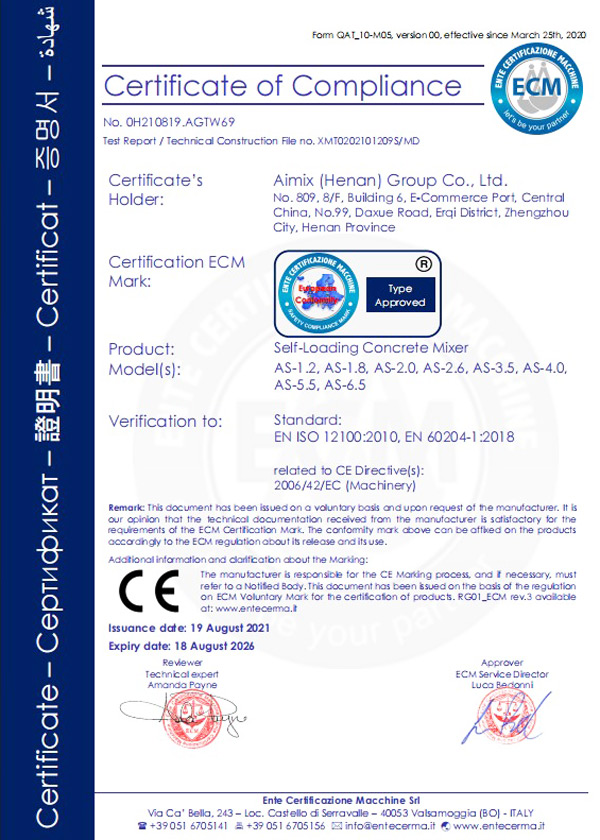

ISO certificate
Service conce
Our service concept is to make customers have a satisfactory selection, secure purchase, and happy utilization.
And one-stop service means once you place an order, we will eliminate your trouble back at home and we will do everything for you, for our mission is to make it easier to buy and sell industrial products and we put the customers first.
Basic Need
Saving Cost: Self load concrete mixer for sale is like a small mobile concrete batching plant that can complete the entire concrete production process. Investing in a self-loading mixer is much more profitable compared to a batching plant.
One Operator: Self-loading concrete mixer is small in size and has a large cab, so one person can achieve the complete operation.

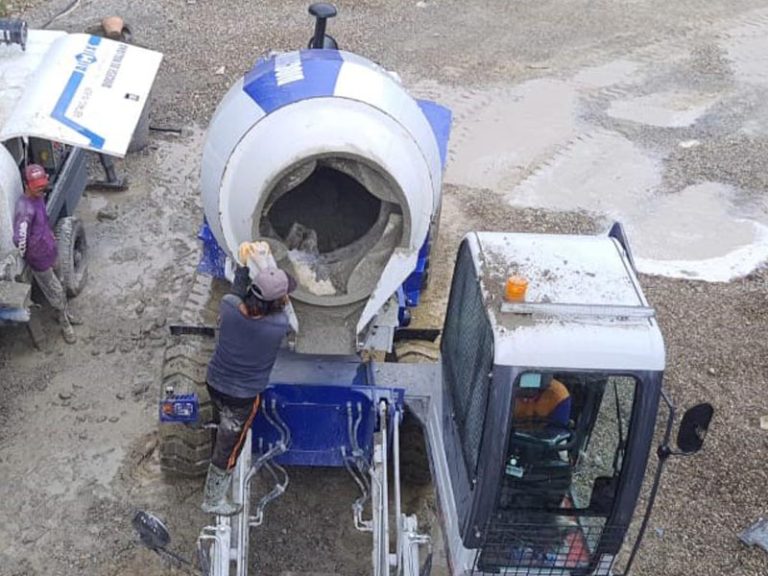

FAQs of Self Loading Concrete Mixer
What is the self loading concrete mixer price?
What are the effects of self loading concrete mixer more concrete?
New self loading concrete mixer is generally more likely to have problems in a few years?
The drying material is generally five years, and the wet material is generally seven years.
Generally, the self loading concrete mixer is prone to problems after 3 years. The problem of self loading concrete mixer has a lot to do with personal maintenance and manufacturers.
What should I do if the concrete solidification is in a self loading concrete mixer?

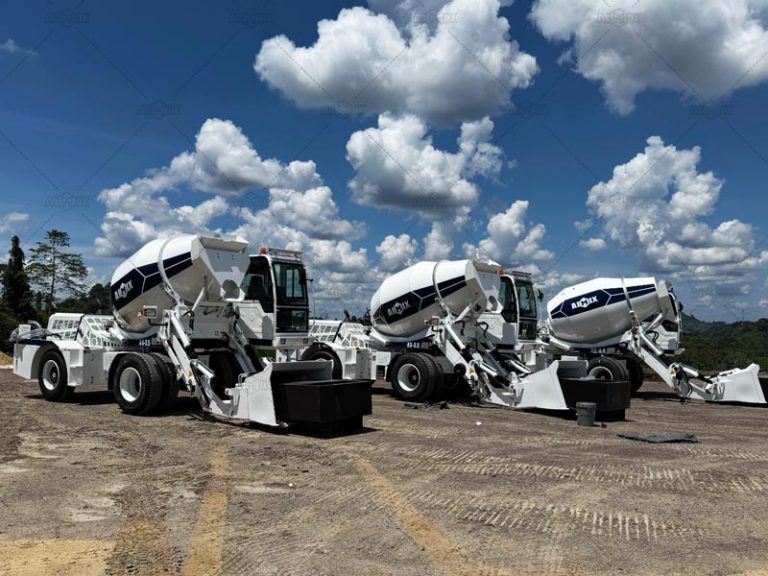

What does the self loading concrete mixer refer to?
Is the hydraulic pump of the small square measuring self loading concrete mixer be selected or the variable pump?
What is the welding process of a mixer truck?
What is the payment method of self loading concrete mixer?
What should I do if my self loading concrete mixer is worn? Is there a better way to add water?
After-Sales Service
Above all is our pre-sales service and on-sale service, we also pay much more attention to after-sale service.
Warranty
One year warranty.
Install and Debug
Go to your site and help you install and debug.
Operator Training
Free training for your operator.
Check and Maintain
Any problem, we will be here to serve you, or go to your city, check and maintain.
Shipment within 48 Hours
The mixers are in stock, any needs, please leave your message on my website, we will arrange shipment within 48 hours.
Spare Parts Supply
Provide original spare parts to ensure that any parts damaged during the operation of the equipment can be replaced in time.
If later there are some problems in machine, you can ask us for help, we will provide you with an online reply or phone call, even going to help you! You are the first position in our heart, we will try our best to serve you!
Our service concept is to make customers have a satisfactory selection, secure purchase, and happy utilization. And one-stop service means once you place an order, we will eliminate your trouble back at home and we will do everything for you.
More Successful Cases
The Aimix Group has supplied self loading concrete mixer for sale to a number of projects around the world and has received a large number of positive customer reviews. Below you will find more successful cases where you can see the positive effects of self-loading mixer trucks in different environments and applications.
Be A Distributor
AIMIX invites you to become our distributor to get the regional exclusive rights and establish a long-term business relationship, be a distributor now!.
