Asphalt Batch Plant

In the road and bridge industry, asphalt batch plant is a key equipment for producing high quality asphalt mixture. This kind of equipment plays a vital role in the construction of highways, airports, harbors and other infrastructures. In the following, AIMIX will bring you a deep understanding of batch type asphalt plant, help you better choose the right asphalt batch plant to improve project quality and construction efficiency.

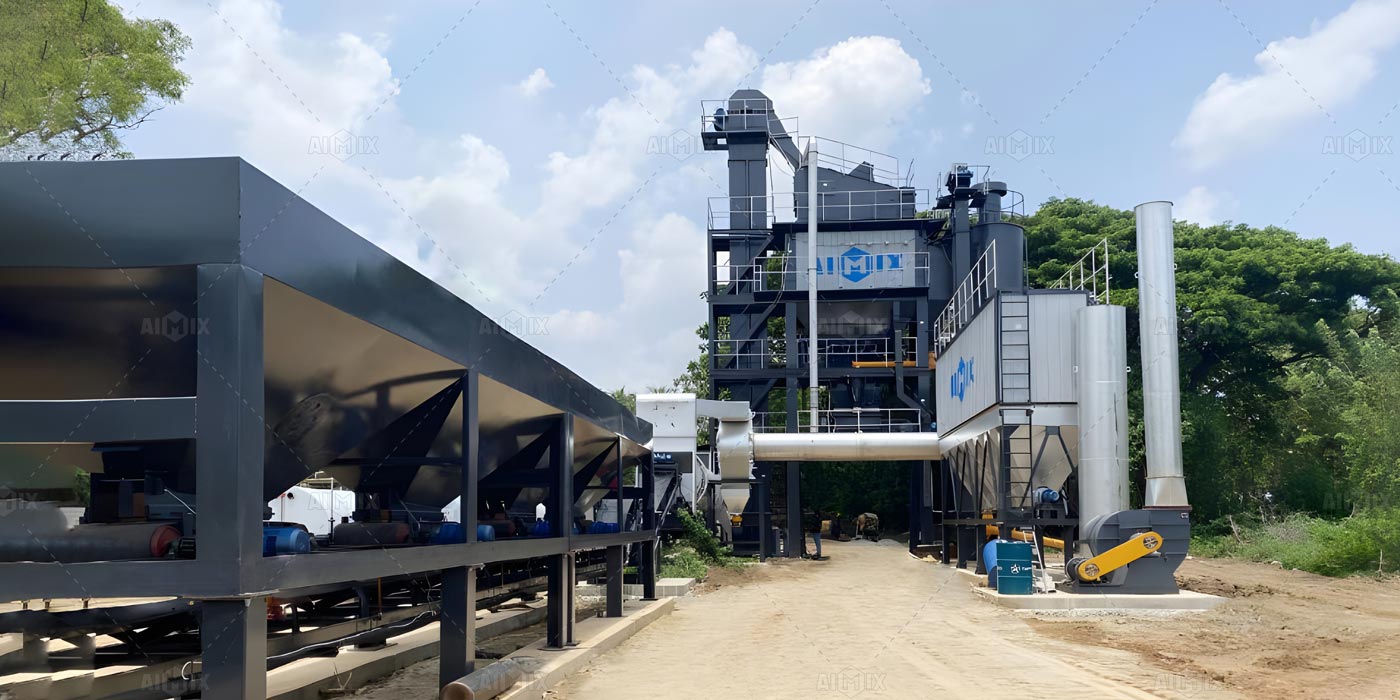

Aimix Asphalt Batch Mixing Plant

Basic Things You Should Know About Asphalt Batch Plant

What Is an Asphalt Batch Plant?

Want to know what is a batch plant asphalt? Don’t know what is an asphalt batching plant? Asphalt Batch plant is a highly efficient production plant specialized in preparing hot mix asphalt mixtures (HMA). The intermittent asphalt plant produces high quality asphalt mixtures that meet the requirements of road and bridge construction by accurately mixing various aggregates (e.g. sand, stone, gravel) and asphalt binder. Asphalt batching plants operate on a batch-by-batch basis, where each batch of mix is produced independently and unloaded into trucks or silos to ensure consistency and quality of material. This type of equipment plays a key role in modern infrastructure construction, guaranteeing the durability and stability of roads and bridges. Then you can have a clear understanding about what is asphalt plant.

Asphalt Concrete Batch Plant for road and bridge construction

What Are the Main Components of an Asphalt Batch Mix Plant?

Asphalt batch mixing plant, as a key equipment for the production of asphalt mixture, usually consists of several main asphalt batch plant components, each of which has a specific function and role. The following are the basic asphalt plant parts of asphalt mixing plant.

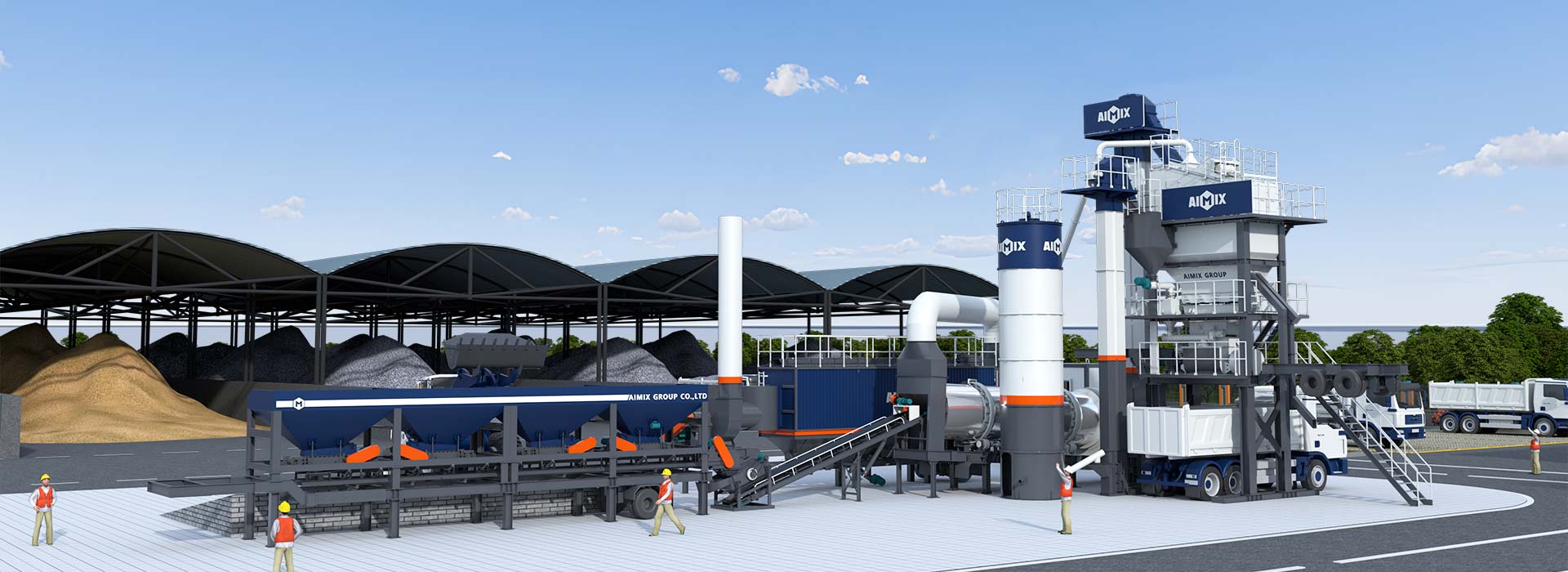

portable type asphalt mixer plant
  • Cold storage: storage of aggregates.
  • Conveyor: conveys the aggregate.
  • Drying drum: heats the aggregate.
  • Burner: Provides heat.
  • Vibrating screen: screens the aggregate.
  • Hot bin: stores the hot aggregate.
  • Weighing system: precise weighing.
  • Mixer: mixes aggregate and asphalt.
  • Asphalt Storage Tank: Stores asphalt.
  • Dust Collector: Disposal of dust.
  • Finished product silo: storage of asphalt mixture.
  • Control system: automated control.
  • Loading system: loading and transporting.

How Does an Asphalt Batch Plant Work?

How does an asphalt batch mix plant works? The working principle of batch mix asphalt plant mainly includes key steps such as aggregate processing, asphalt processing, mixing and conveying of finished products. Let’s learn how does an asphalt batch plant work together!

1. Aggregate Handling

Storage and Conveying: various aggregates (e.g. sand, gravel, mineral powder) are stored separately in silos and fed into subsequent processing plants via a conveying system.

Screening and drying: Aggregates may need to be screened and dried to remove impurities and moisture and to improve their quality and stability.

Heat Treatment: Sometimes it is necessary to heat the aggregate to bring it to the temperature required for construction, especially during the cold season or at high altitudes.

2. Asphalt Treatment

Heating and storage: The asphalt binder is stored in asphalt tanks and heated to the proper temperature by means of heating equipment to ensure that it has suitable flow and adhesion properties.

Measuring and batching: The required amount of asphalt is accurately measured by means of a metering system and conveyed to the mixing and blending plant.

3. Mixing and Blending

The Mixing process: In the mixing and blending plant, the pre-heated and treated aggregates are mixed with the asphalt binder in precise pre-determined proportions.

Time and speed: The asphalt batch mix plant usually has a highly efficient mixing mechanism, which ensures that the various aggregates and asphalt are evenly mixed to form a stable asphalt mixture.

4. Finished Product Transportation

Unloading and storage: The mixed asphalt mixture is unloaded from the asphalt batch plant and transported through a conveyor system to a storage facility or loaded directly into a transportation equipment (e.g. truck).

Transportation and application: the finished asphalt mix is transported to the road construction site for use in construction works for paving and building roads, airport runways or other related infrastructure.

5. Control System

Automated control: The entire strong-mix asphalt mixing plant is usually equipped with an advanced automated control system capable of monitoring and regulating the operating parameters at each stage to ensure that the asphalt mixture produced meets the quality requirements and technical specifications of the project design.

Through the coordinated operation of these key steps and equipment, the batch asphalt plant is able to efficiently and accurately produce high-quality hot-mix asphalt mixtures that provide reliable construction materials for road and bridge construction.


What Are the Features of Asphalt Batch Plant

What are features of advanced asphalt batch mix plant? Asphalt batch plant for sale, as the key equipment for asphalt mixture production, has a variety of significant features and advantages that make it widely used in road construction and maintenance. The following are the main features of batch mix asphalt plant:

Production Process

Asphalt mixing and batching plant operates on a batch basis. Each batch is produced independently, from feeding, heating, mixing to discharging, to ensure that the composition and quality of asphalt mixture in each batch is consistent.

Forced Mixing

The forced mixing technology is adopted to realize the full mixing of aggregate and asphalt binder through the efficient movement of mixing blades. This process ensures the uniformity and high quality of the mixture.

Precise Metering

The feeding of each component is precisely controlled by advanced metering system to ensure the exact ratio of each batch to meet different construction requirements.

Temperature Control

Through the efficient heating system, the aggregate and asphalt are always kept within the optimal temperature range during mixing to ensure the good adhesion and working performance of the mixture.

Automation Control

Modern asphalt batch plants for sale are usually equipped with automated control systems to monitor and regulate all aspects of production, ensuring easy operation, safety and efficiency.

In summary, asphalt batch mix plant for sale provides high quality, stable and reliable asphalt mixture for road construction with its accurate batching, forced mixing, high efficiency, automatic control and good adaptability, and is one of the indispensable key equipments in modern road infrastructure construction. Therefore, that’s why you should buy your own asphalt plant.

Flow Diagram of the Asphalt Batch Mix Plant Process

Cold material bin → drying drum → vibrating screen → weighing → mixer → product bin → loading

AIMIX asphalt batch mixing plant for sale

asphalt batch mixing plant

What Are the Advantages of Asphalt Batch Plant

What are the advantages of asphalt batching plant? Batch asphalt plant has many advantages in road construction and maintenance, making it one of the preferred equipment. The following are its main advantages of asphalt mixing plant:

High Quality Asphalt Mixture

  • Uniformity and consistency: The plant uses forced mixing technology to ensure a stable and uniform asphalt mixture meeting engineering standards.
  • Precise batching control: Advanced metering system ensures precise batching control, improving mixture accuracy and production consistency.

Highly Efficient Production

  • Rapid production cycle: Intermittent asphalt plant for batch production meets large-scale road projects’ needs, enhancing progress efficiency.
  • Continuous production capacity: The plant has continuous production capacity to quickly produce multiple asphalt batches for large projects.

Flexibility and Adaptability

  • Diversified mixture formulations: The asphalt mixing plant can be adjusted to meet different project requirements, accommodating various road structures and conditions.
  • Versatile in construction settings: Asphalt batch plant for sale offers versatile asphalt mixtures for diverse construction settings and climates.

Environmental Protection and Energy Saving

  • Efficient Dust Removal System: The plant has modern dust removal equipment to capture and treat dust and gas, meeting environmental protection requirements.
  • Energy-saving design: The equipment’s energy-saving design, including the heating system and other key components, minimizes costs, enhances efficiency.

Automation and Easy Operation

  • Fully automated control system: Modern batch type asphalt plant has advanced control system for automated, error-reducing production management, enhancing efficiency and stability.
  • Convenient operation and maintenance: The clear modular design makes operating and maintaining equipment easy, reducing maintenance time and extending service life.

Economic Benefits and Cost Control

  • Reduce construction cost: Enhance asphalt production to lower costs, reduce material loss, and boost construction efficiency.
  • Reduce maintenance cost: The equipment’s high stability and low failure rate lead to reduced maintenance, part replacement, and operation costs.

Modern road construction depends on asphalt plants for top-notch asphalt, efficient production, adaptability, environmental benefits, energy savings, and easy maintenance. It offers technical support, material guarantee, and production efficiency to enhance construction quality for road and infrastructure projects.

What Are the Applications of Asphalt Batch Plants?

Asphalt batch mix plant for sale has wide and critical applications in modern road construction. The following are its main application areas and roles:

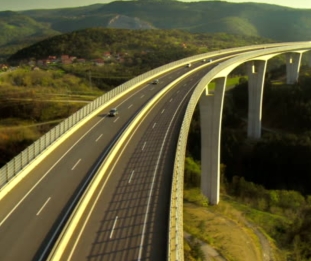

Highway Construction

Asphalt batch plants for sale produce quality asphalt for highway paving. These roads need durable, consistent asphalt mixes due to heavy traffic for long-term use.

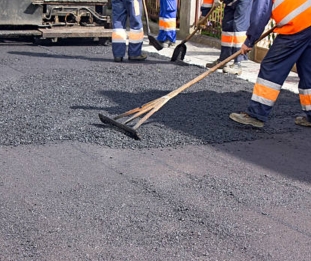

Municipal Roads and City Streets

In urban environments, asphalt batch plants are used to produce asphalt mixtures suitable for municipal roads and streets. These roads typically require high levels of smoothness and durability to cope with changing traffic and weather conditions.

Airport runways and aprons

Asphalt mixtures for airport runways and aprons need to be able to withstand the weight and high speeds of airplanes, as well as have good skid resistance and levelness to ensure safe aviation and comfortable flight operations.

Heavy Industrial Roads

Strong mix asphalt batching plants produce asphalt mixtures suitable for heavy industrial roads to withstand the frequent passage and heavy loads of large vehicles and mechanical equipment.

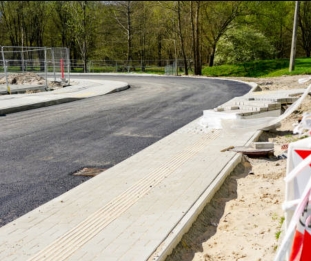

Specialty Roads and Groundworks

In addition to conventional roads, Strong Mix Asphalt Batching Plants can be used to produce roads suitable for specific needs, such as environmentally vulnerable areas, mountainous roads, high alpine and marine environments, and other special ground engineering projects.

Batch plant for asphalt is widely used for road construction due to high efficiency, precise control, and quality mixing. It supplies top-notch asphalt mixes for various projects, boosting modern transportation infrastructure growth. Batch type asphalt plant produces project-compliant asphalt, supporting diverse construction projects for safer, efficient road transport.

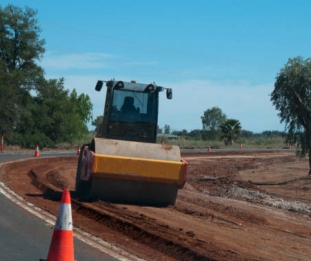

country road

highway

national road

repairing road

tunnel

bridge

Types of Asphalt Batch Plant

AIMIX offers several different types of intermittent asphalt batch plants, each with specific application scenarios and advantages. Here are their main different types of asphalt batch mix plants:

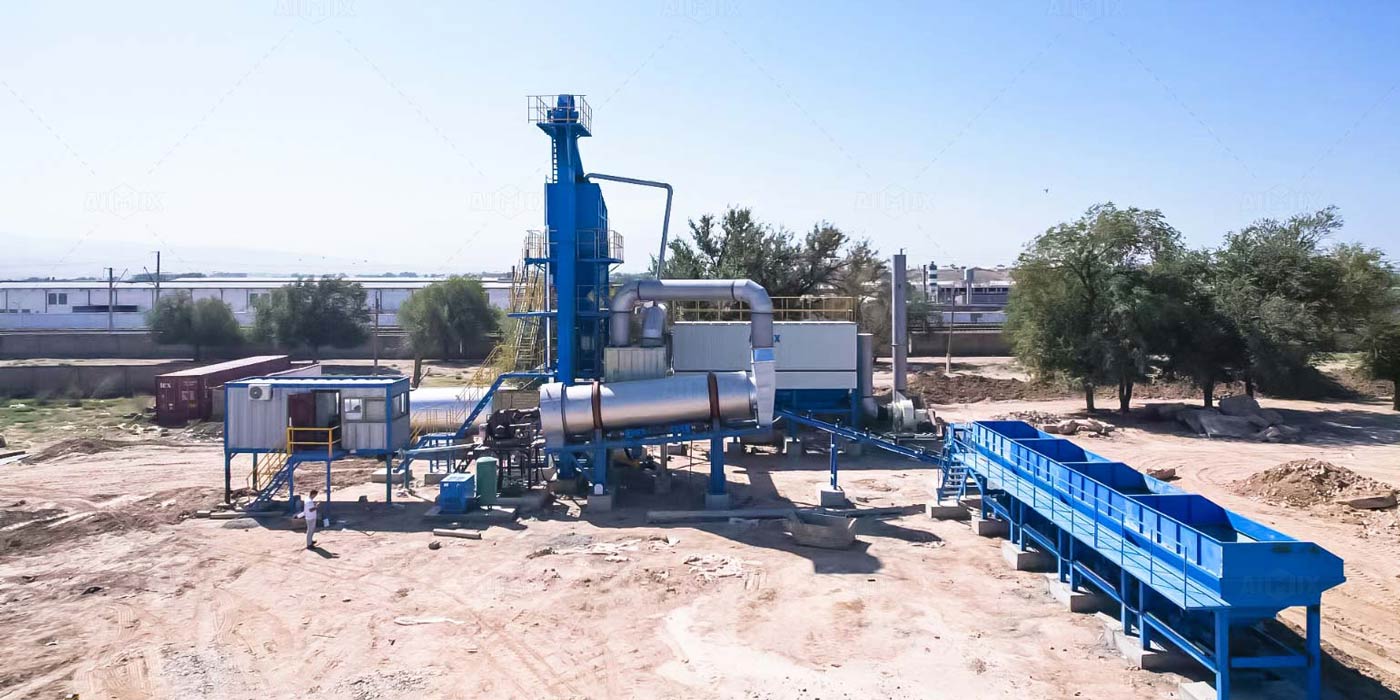

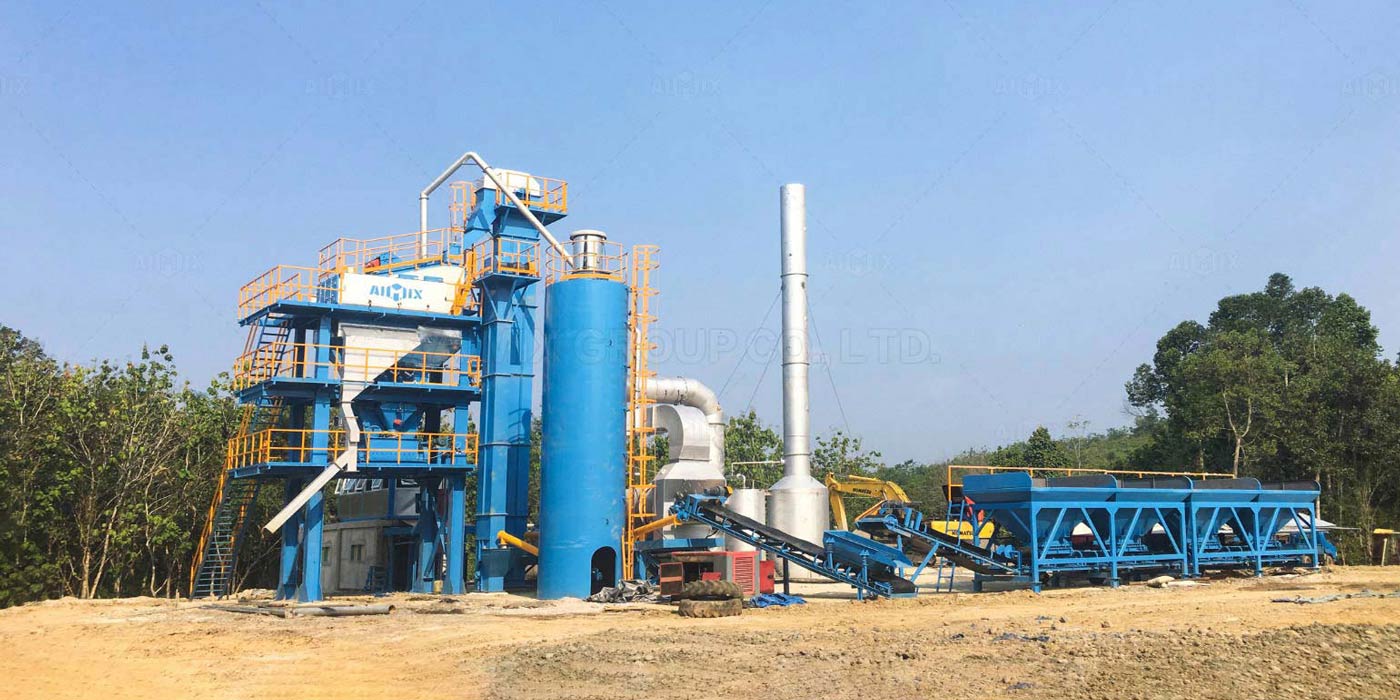

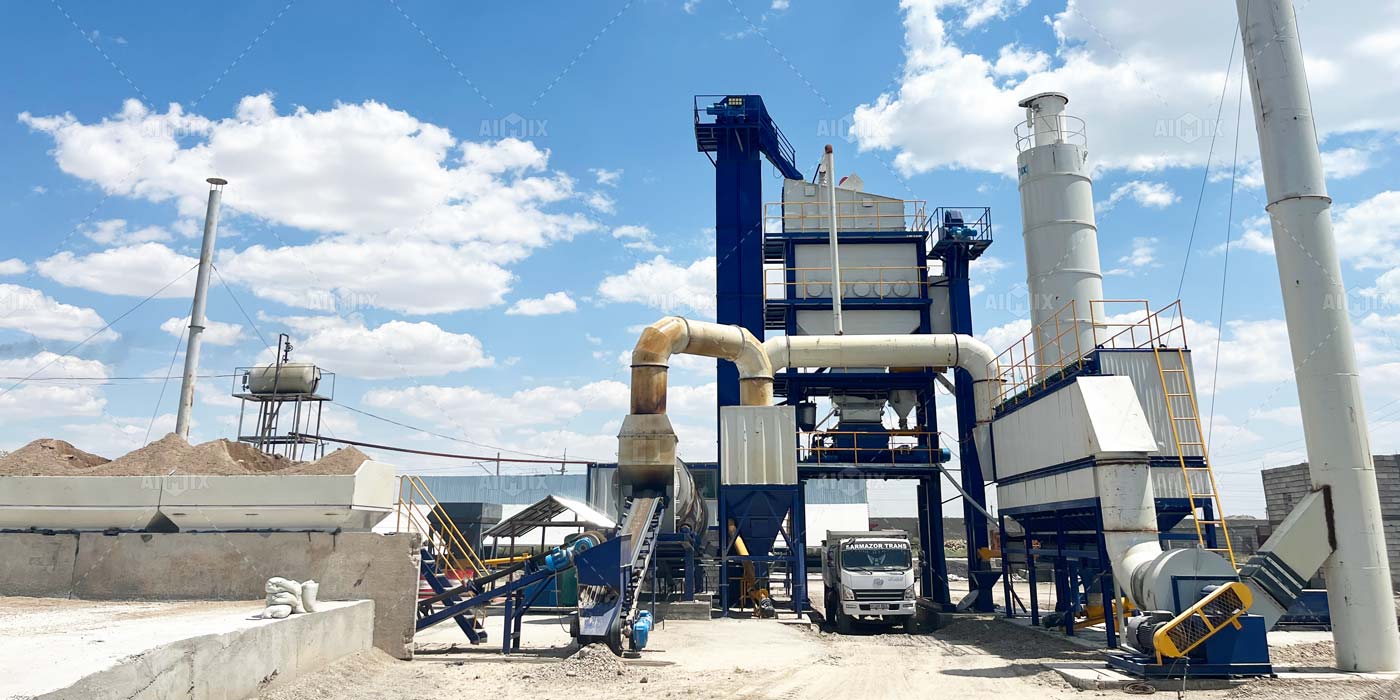

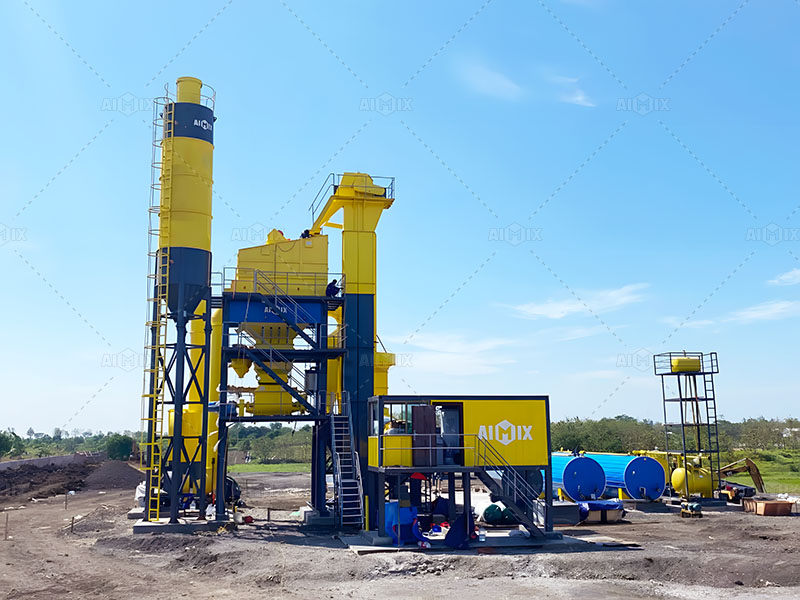

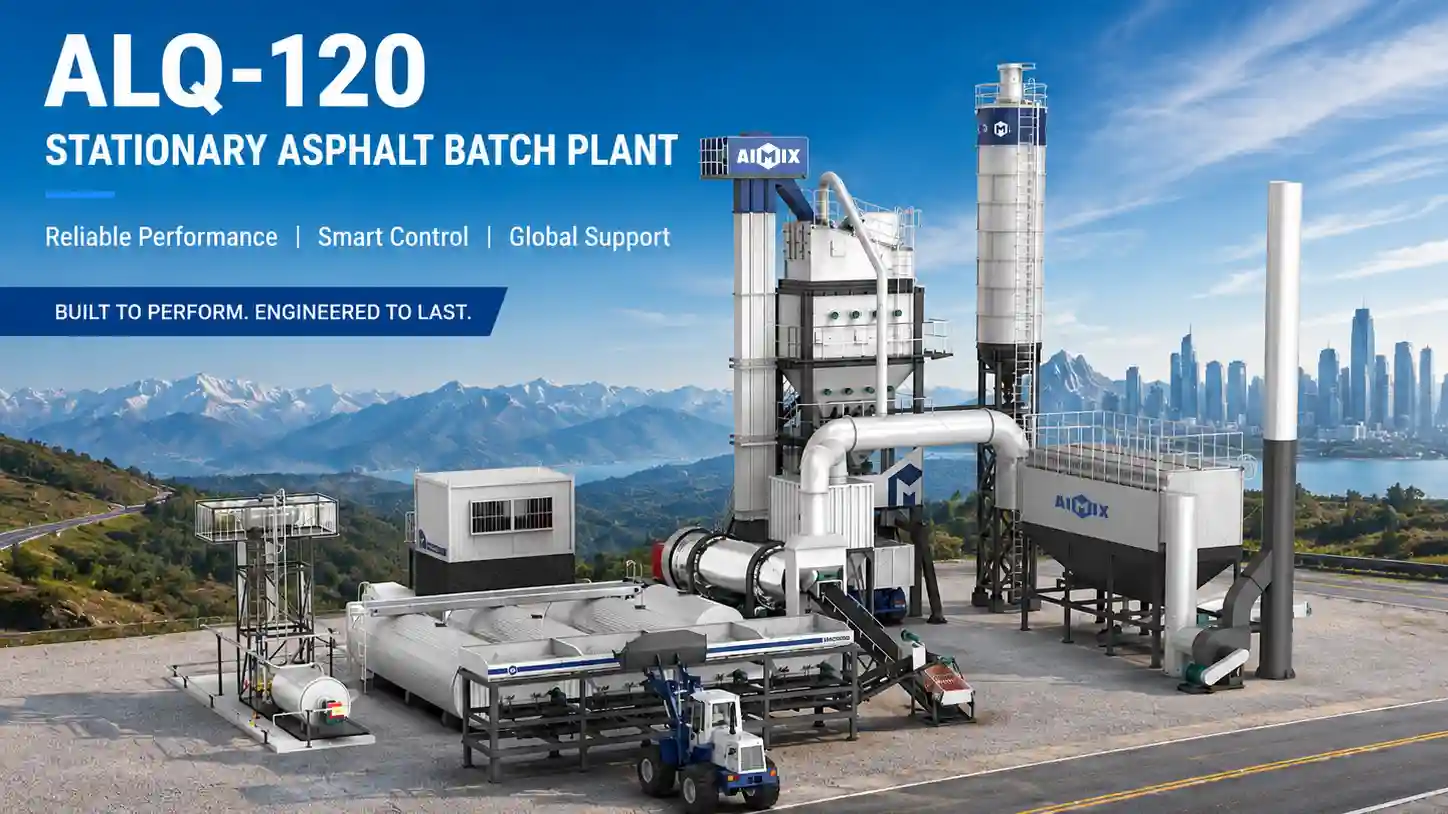

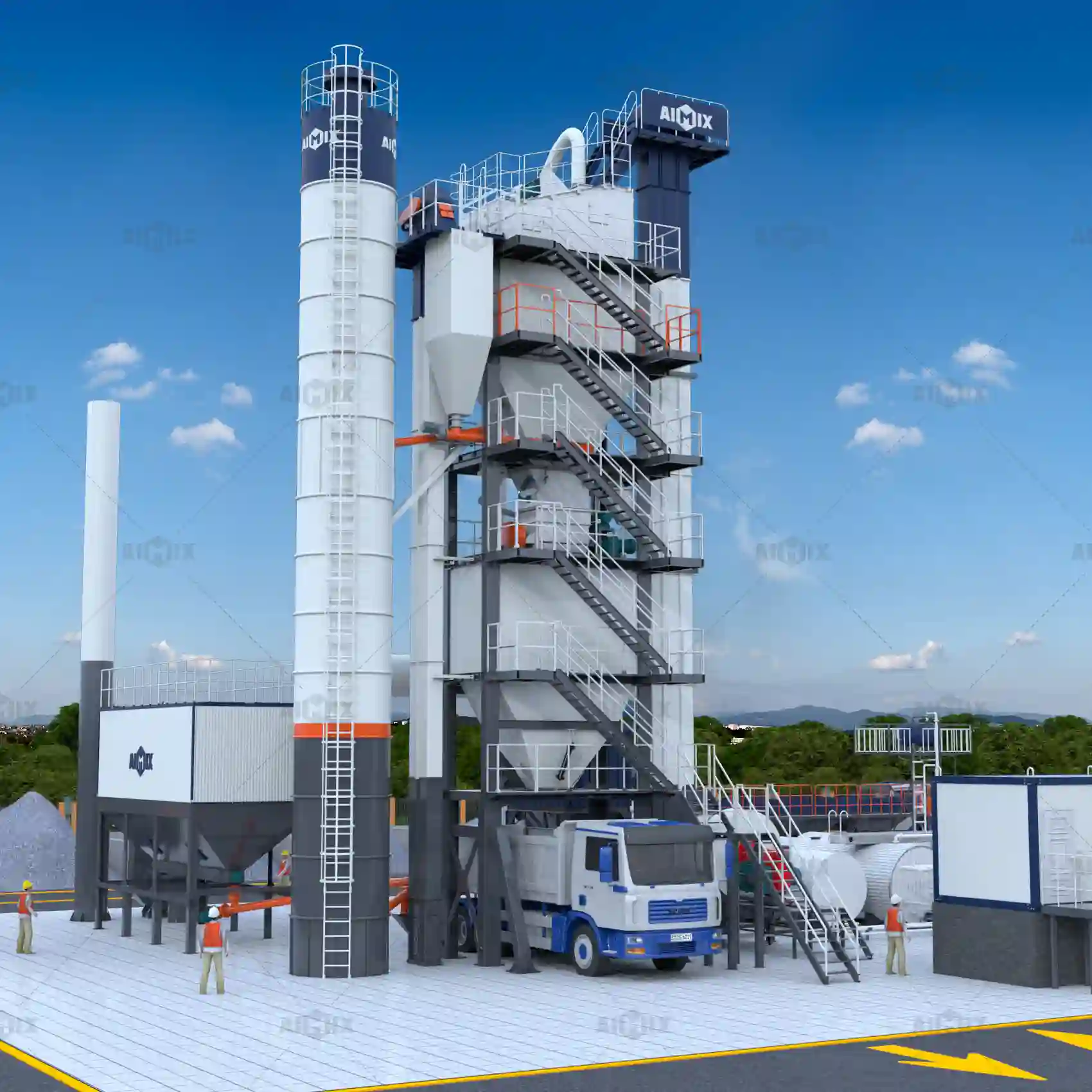

ALQ Series Stationary Asphalt Batching Plant

According to output, we offer ALQ series asphalt batching plant capacity from 40 to 320 t/h, ALQ40, ALQ60, ALQ80, ALQ100, ALQ120, ALQ160, ALQ180, ALQ200, ALQ240, and ALQ320. ALQ series asphalt concrete batch plant is a stationary one.

  • Characteristics: suitable for long-term fixed production at one construction site.
  • Advantage: high stability, more reliable production efficiency and mix quality.
  • Applicable scene: suitable for large-scale projects, such as highways, bridge construction and other occasions that require long-term supply of stable asphalt mixture.

Advantages of ALQ Series Asphalt Batch Plant

ALQ series asphalt batch mix plant has several advantages:

01

Good sealing and clean working environment: dust will not fly out, keeping the working environment clean.

02

Cold Aggregate Supply System: with special outlet, reducing belt wear and improving durability.

03

Automatic alarm device: automatic alarm when aggregate is insufficient, improving automation and energy saving.

04

Heat insulation design for drying drum: reduce heat loss and save fuel consumption.

05

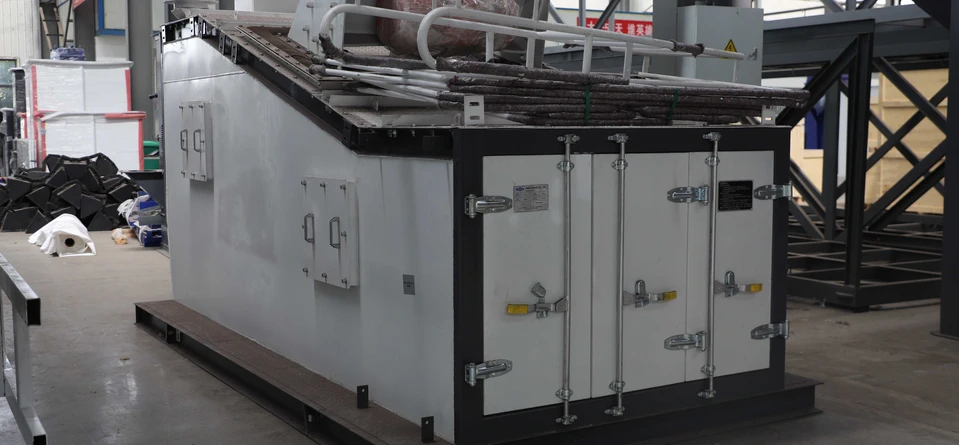

Vibrating screen using well-known bearings: ensure quality and improve reliability.

06

Maintenance port design: large size, more convenient for replacement and maintenance.

07

Insulation layer of asphalt supply system: reduce heat loss and improve energy efficiency.

08

Durable vibrating screen mesh: lasts 4-8 times longer than standard mesh, ideal for screening heavy and large materials.

09

Control system: Adopting international famous brand controller, safe and reliable, supporting automatic and manual switching.

These features make the ALQ series batch plant for asphalt have significant advantages in terms of efficiency, durability and energy utilization efficiency. Learn more about the stationary asphalt batch plant.

ModelALQ40ALQ60ALQ80ALQ100ALQ120ALQ160ALQ200ALQ240ALQ320
Capacity40 t/h60 t/h80 t/h100 t/h120 t/h160 t/h200 t/h240 t/h320 t/h
Cold Aggregate Hoppers4×4.5m³4×6.5m³4×7.5m³4×7.5m³5×7.5m³5×12m³5×12m³5×12m³6×15m³
Dryer Sizeφ1.2m×5.2mφ1.5m×6mφ1.5m×6.7mφ1.65m×7mφ1.8m×8mφ2.2m×9mφ2.6m×9mφ2.6m×9.5mφ2.8m×10.2m
Fuel consumption70-300kg / h100-400kg / h120-600kg / h150-1000kg / h150-1000kg / h150-1400kg / h180-1800kg / h180-1800kg / h260-2500kg / h
Vibrating Screen (Layer)4 layers4 layers4 layers4 layers5 layers5 layers5 layers5 layers6 layers
Mixer Capacity500kg800kg1000kg1250kg1500kg2000kg2500kg3000kg4000kg
Cycle Time45s45s45s45s45s45s45s45s45s
Filter Area230m²300m²420m²480m²550m²650m²700m²1050m²1350m²
Asphalt Temperature140-180 ℃140-180 ℃140-180 ℃140-180 ℃140-180 ℃140-180 ℃140-180 ℃140-180 ℃140-180 ℃
Total Power170kw200kw300kw350kw380kw490kw550kw670kw865kw

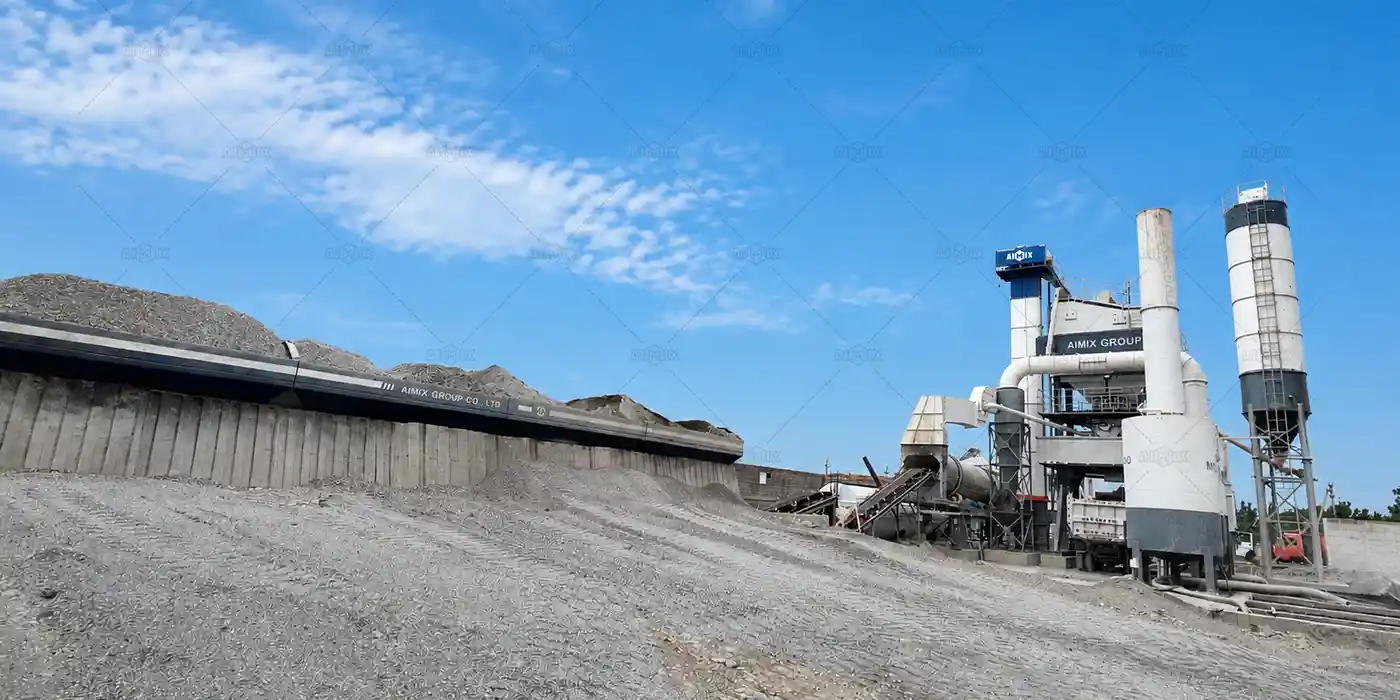

Aimix batch plant for asphalt aggregate

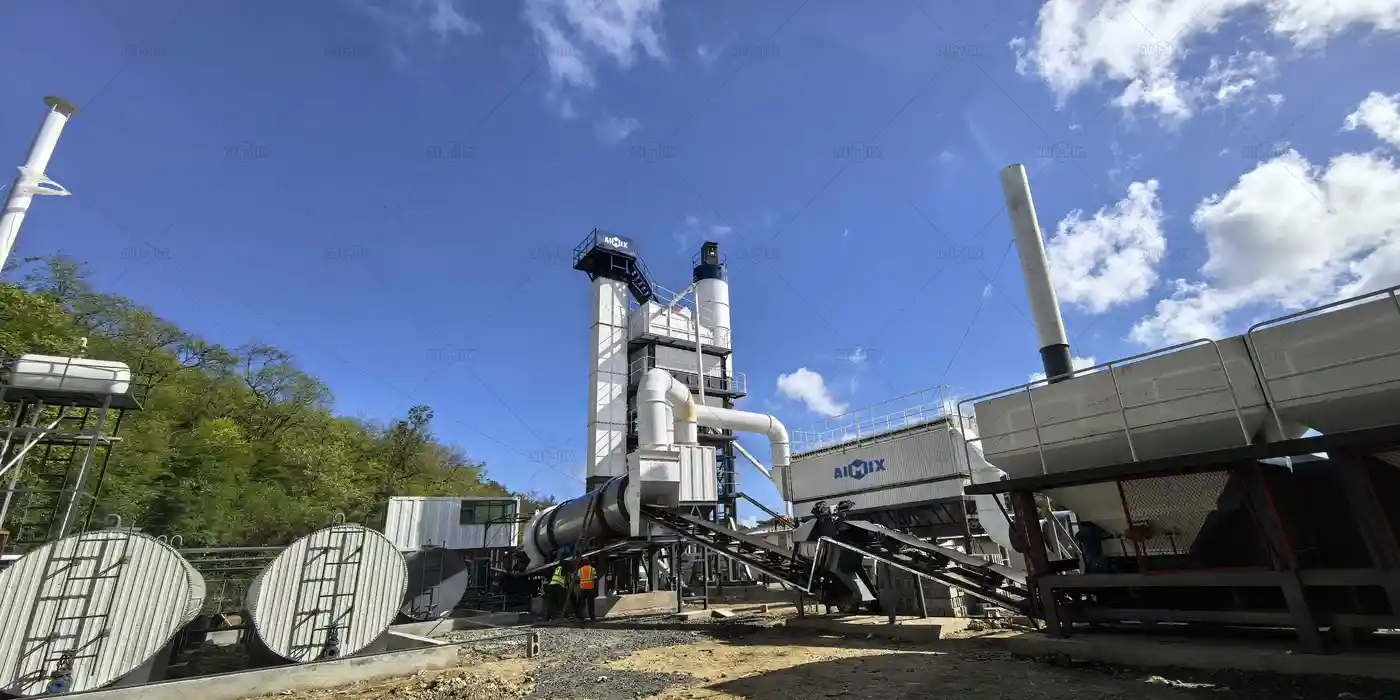

Batch Asphalt Mixing Plant for Sale

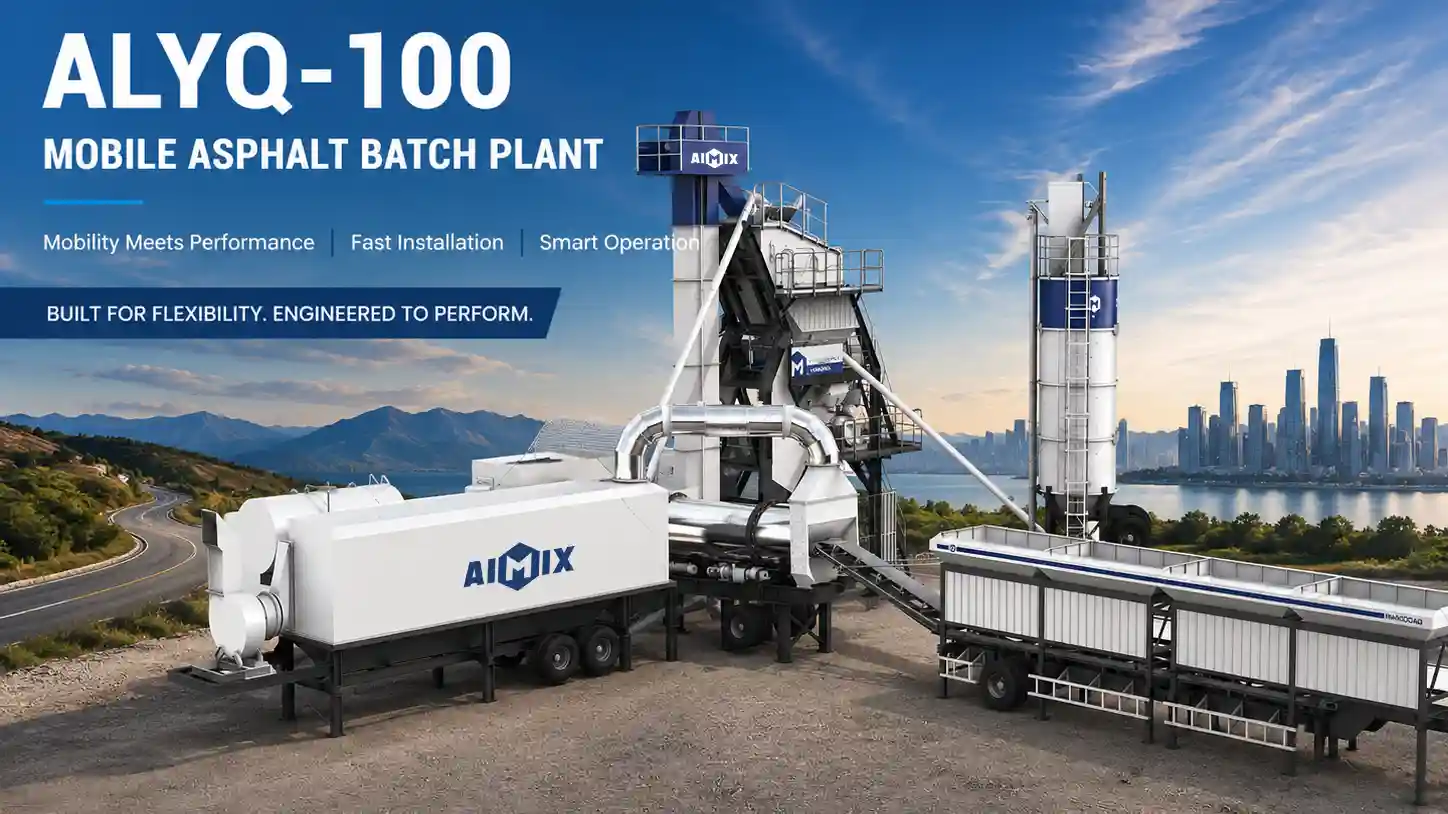

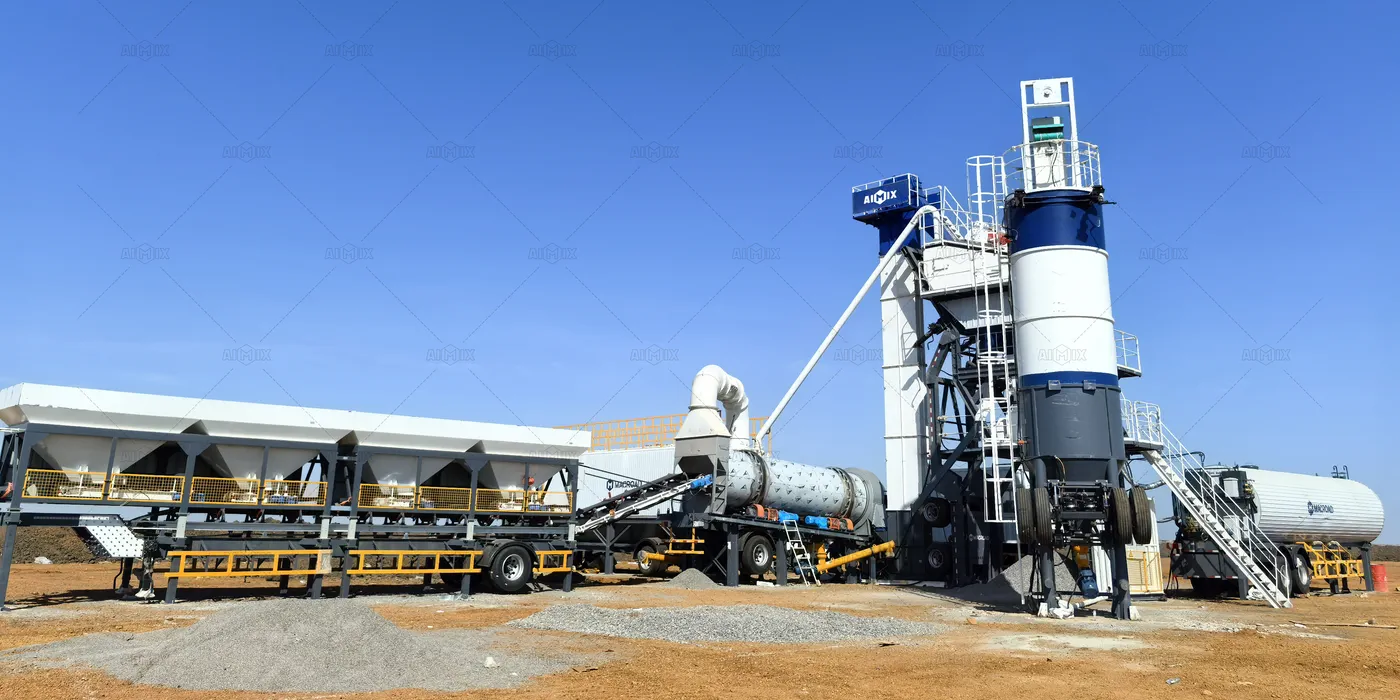

ALYQ Series Mobile Asphalt Batch Plant

According to output, we offer ALYQ series from 60 to 160 t/h, ALYQ60, ALYQ80, ALYQ100, ALYQ120, ALYQ160. The ALYQ mobile asphalt plant has a horizontal dual shaft drum, simple structure, and is easy to transfer. Moreover, it occupies a small ground area and can work in narrow spaces. It integrates heating and mixing, so it has low investment. If you don’t have a large budget and are going to use asphalt batch mix plants for temporary projects or small projects, ALYQ mobile asphalt batch plant is the best choice.

  • Characteristics: The overall design of the equipment is mobile, which facilitates quick turnaround and deployment.
  • Advantage: Suitable for construction sites that require flexible movement and quick response.
  • Applicable Scenario: Temporary construction projects or situations that require frequent movement, such as highway maintenance and small construction projects.

ModelALYQ60ALYQ80ALYQ100ALYQ120ALYQ160
Capacityt / h6080100120160
Mixer capacitykg8001200130017002200
Mixing cycles4545454545
Total powerGasoline(kW)5463.5104.5125157.5
Coal(kW)7586.5127.5169205
filter aream2370420480510620

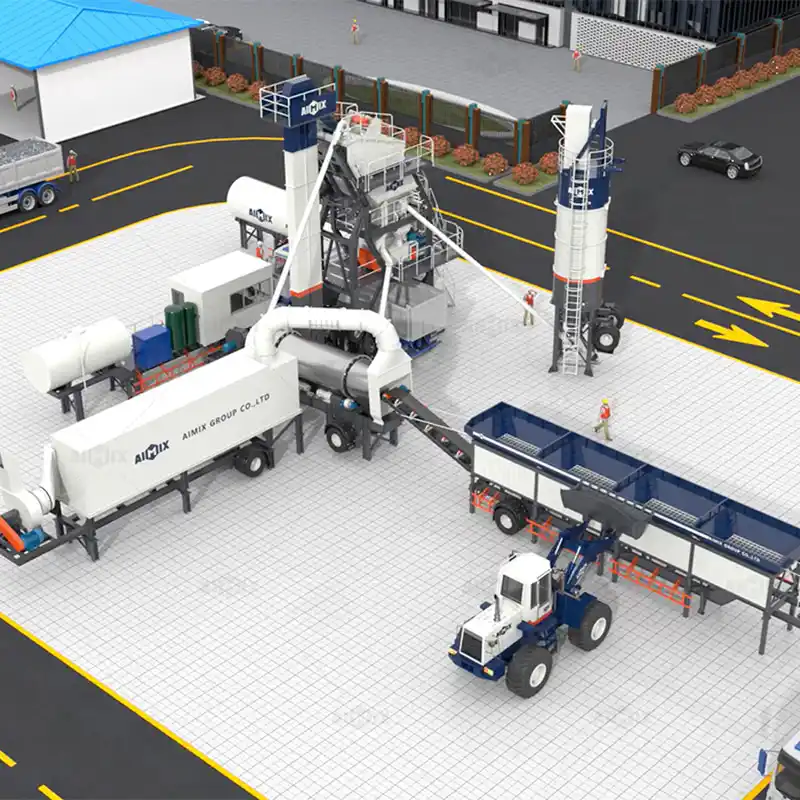

asphalt batch mixing plant AIMIX

ALYJ Series Simple Mobile Asphalt Batch Plant

The ALYJ series refers to a type of simple mobile asphalt batch plant. It has the asphalt plant capacity ranging from 10tph to 80 tph including ALYJ10, ALYJ15, ALYJ20, ALYJ30, ALYJ40 ALYJ60, and ALYJ80. Here are some key features and characteristics typically associated with the ALYJ series portable asphalt plant:

  • Characteristics: light and simple mobile equipment, suitable for small-scale projects and temporary construction needs.
  • Advantage: easy to operate, suitable for small-scale projects and mix production with low demand.
  • Applicable scenarios: rural road construction, municipal engineering maintenance and other small-scale engineering projects.

ModelALYJ10ALYJ15ALYJ20ALYJ30ALYJ40ALYJ60ALYJ80
Capacity10 t/h15 t/h20 t/h30 t/h40 t/h60 t/h80 t/h
The ability toPetrol48kw59kw68kw106kw132kw146kw186kw
Burning coal67kw78kw91kw129kw170kw192kw262kw
Cold Aggregate Hoppers3m³×33m³×33m³×35m³×35m³×35m³×35m³×4
Finished Product Hopper2t5t5t9t9t9t20 t
Asphalt Temperature120-180 ℃
Fuel consumptionPetrol5-7.5kg/t
Burning coal13-15kg/t
OptionWater dust filter, Bag dust filter, Control room, Asphalt heat tank, Mineral flour tank

simple type batch asphalt mix plant

simple type asphalt batch mix plants on site

The choice of these equipment types depends on the specific requirements of the project and the site conditions. The ALQ series is suitable for long term and stable large scale production needs. The ALYQ series is suitable for temporary projects that require flexibility and quick response. While the ALYJ series is for small scale and easy mix production needs. Choosing the right asphalt mixing plant can maximize your project’s efficiency and cost-effectiveness.

Asphalt Batch Plant Price List

AIMIX’s asphalt mixing plant prices vary depending on the model and specifications. Below is a price range for some of the major models. Let’s learn the asphalt plant price together!

ALQ Stationary Asphalt Batch Plant Price Range

ALQ40-ALQ320: $220,000-$1,220,000

These plants are suitable for large projects with stable production capacity.

ALYQ Mobile Asphalt Batch Plant Price Range

ALYQ60-ALYQ160: $270,000-$600,000

These mobile asphalt plants cater to mobile or small to medium projects, providing flexibility and efficiency.

ALYJ Compact Mobile Asphalt Plant Price Range

ALYJ10-ALYJ80: $50,000-$200,000

Compact mobile asphalt plants for small projects or temporary setups offer basic mixing and mobility.

Prices are for reference; actual prices may vary due to market conditions, customization, and transportation costs. AIMIX offers a wide range of products to suit customers’ varied project needs and budgets. Want to buy asphalt plant, please contact us now!

Model Selection Guide

Choosing the right intermittent asphalt mixing plant is an important decision that involves many considerations. Here are some guidelines to help you make an informed choice based on your specific needs and conditions:

1. Calculate Production Size of Batch Type Asphalt Plant

Determine the production capacity of the asphalt batch mixing plant based on the annual production of the project:

Annual production within 200,000 tons: the production rate should not be less than 80 tons/hour.

Between 200,000 and 300,000 tons per year: the production rate should be 120 tons per hour.

For an annual production of more than 300,000 tons: Typically, a production rate of 150-200 tons/hour is usually required.

For example, the ALQ80 asphalt batching plant, for example, with a production rate of 80 t/h, is suitable for 8 hours of work per day and can produce up to 640 tons per year. While ALQ100 can produce 800 tons per day, which is suitable for projects with an annual output of more than 250,000 tons.

2. Construction Site Conditions

Considering the special requirements and site conditions of each construction, the site selection needs to meet the following considerations:

Space layout: The decision between a mixing plant or blending plant depends on the construction site’s size and layout.

Convenience of equipment layout: Ensure that the equipment layout is reasonable and convenient for the supply of raw materials and unloading of mixing materials.

Production and installation period and one-time investment cost: Consider the equipment’s installation time and initial cost for a successful project launch as planned.

3. Technical Performance and Quality Requirements

The technical performance of the asphalt mixing plant directly affects the production efficiency and the quality of the mixture:

Measuring accuracy: The plant’s measuring system needs to be precise and reliable to ensure the accuracy of the mix proportion.

Mixing quality: The asphalt batching plant must ensure uniform mixing for quality mix meeting standards.

Efficiency and Energy Consumption: Select equipment that operates efficiently and consumes less energy to reduce production costs and increase productivity.

4. Cost-Effectiveness Considerations

Comprehensively consider the initial investment and operating costs of the equipment and the productivity and quality improvement it brings:

Equipment price: Evaluate the price and performance ratio of the equipment and choose the product with high cost performance.

Operation and maintenance cost: Consider equipment maintenance costs and after-sales service quality for long-term stable operation.

5. Mix Quality Requirements and Flexibility

According to the specific requirements of the project, consider the need for mix quality and flexibility of the equipment:

Mixture quality: batch type asphalt plant can provide accurate mixture ratio and uniform mixing effect, suitable for projects with high requirements on mixture quality.

Work Flexibility: Ensure flexibility and adaptability by choosing a plant that can adjust the production recipe as needed and adapt to different project requirements.

By comprehensively considering the above factors, you can better select a suitable asphalt batch plant near me to ensure the smooth running of your project and achieve the expected production results and quality standards. Learn more about how to choose asphalt batch mix plant. Please feel free to contact us if you have more specific questions or need further advice.

two types of batch asphalt mixing plant for Scene Effects

Difference Between Asphalt Batch Plant vs Drum Plant

When selecting an asphalt plant, decide between intermittent and drum mix plants to avoid confusion. What is the difference between batch plant and drum plant? Batch plant vs drum mix plant differs in working principle, production process, and application scope.Therefore, let me help you sort out some key points about asphalt batch plant vs drum plant.

Working Principle

Production Process

Scope of Application

Cost and Maintenance

asphalt batching plant vs asphalt drum plant

Working Principle

Intermittent Asphalt Mixing Plant

  • Batch Production: each batch of production is carried out separately, and only after completing one batch will the next batch be started.
  • Forced Mixing: Aggregate is mixed with asphalt binder using a forced mixer to ensure a homogeneous mix.

Drum Mix Asphalt Plant

  • Continuous Production: Aggregate and asphalt binder mix nonstop in a drum during production.
  • Drum Mixing: Mixing occurs in a rotating drum to achieve uniform mixture by turning it.
asphalt batching plant machine

Production Process

Intermittent Asphalt Mixing Plant

  • Batching, heating, and mixing occur step by step: each step is carried out sequentially and one batch is completed before the next batch is carried out.
  • Precise control: the proportion of raw materials and mixing time of each batch can be precisely controlled, which is suitable for the production of high-quality mixes.

Drum Mix Plant

  • Continuous operation: Raw materials enter the drum, mixing and heating synchronously.
  • Higher efficiency: suitable for large-scale, continuous asphalt mixture production, but the precise control of the ratio and mixing time is more difficult.
Application Range

Scope of Application

Asphalt Batch Plant

  • Projects with high quality requirements: such as highways, airport runways, bridges and other projects that require high quality mixes.
  • Flexible projects: suitable for multiple formulations and different batches of production needs.

Asphalt Drum Mix Plant

  • Large-scale continuous production projects: such as general highways, municipal projects and other projects that require large quantities of continuous supply of mixes.
  • Lower cost projects: high production efficiency, suitable for projects with relatively low quality requirements but requiring mass production.
cost and maintenance

Cost and Maintenance

Asphalt Batch Mix Plant

  • Higher initial investment: complex equipment, high degree of automation, higher investment cost.
  • Maintenance is complex: more equipment parts, high maintenance requirements, but the asphalt produced is of higher quality.

Continuous Asphalt Plant

  • Lower initial investment: simple equipment structure, lower investment costs.
  • Simple maintenance: The asphalt plant’s straightforward design allows for simple upkeep, yet its output quality hinges on equipment precision.

All in all, Intermittent asphalt plant meets high quality standards, versatile for various formulations, but entails higher investment and maintenance costs. Drum asphalt mixing plant is ideal for large-scale projects with high efficiency and low costs, despite challenging quality control. We aim to clarify the distinctions, pros, and cons of both asphalt plant types for better decision-making regarding your project. Feel free to contact us for any more questions or assistance; we’re here to provide you with support.

What Are The Initial Steps To Start An Asphalt Plant Business?

Want to start an asphalt plant business? Starting an asphalt plant business is a complex and multifaceted process that requires careful planning and implementation. Here are some steps of opening an asphalt plant: how to start your business in road construction and asphalt production. Let’s learn more about how to open your own asphalt plant together!

Market Research

Develop A Business Plan

Site Selection and Planning

Obtaining Necessary Licenses

Purchase Equipment and Raw Materials

Construction of Plant and Installation

Recruitment and Training of Staff

Trial Production and Commissioning

Marketing and Sales

how to start an asphalt plant business

Market Research

Assess demand: Understand the demand for asphalt in the target market.
Analyze competition: study existing competitors and market prices.

business plan

Develop A Business Plan

Budget Planning: Estimate start-up capital and operating costs.
Profit Forecasting: Develop sales strategies and revenue projections.

asphalt plant business plan

Site Selection and Planning

Selection of location: Choose a location that is easily accessible and close to raw material supplies.
Infrastructure: Plan the layout of the plant and ensure that water and electricity facilities are available.

business permit and license

Obtaining Necessary Licenses

Business license: Apply for an industrial and commercial business license.
Environmental Protection Permit: Obtain environmental protection and sewage discharge permits.
Safety Permit: Pass the safety inspection.

AIMIX Asphalt Mixing Plant for Sale

Purchase Equipment and Raw Materials

Purchase of equipment: Choose the right asphalt mixing plant equipment.
Raw material supply: establish a stable supply chain for raw materials.

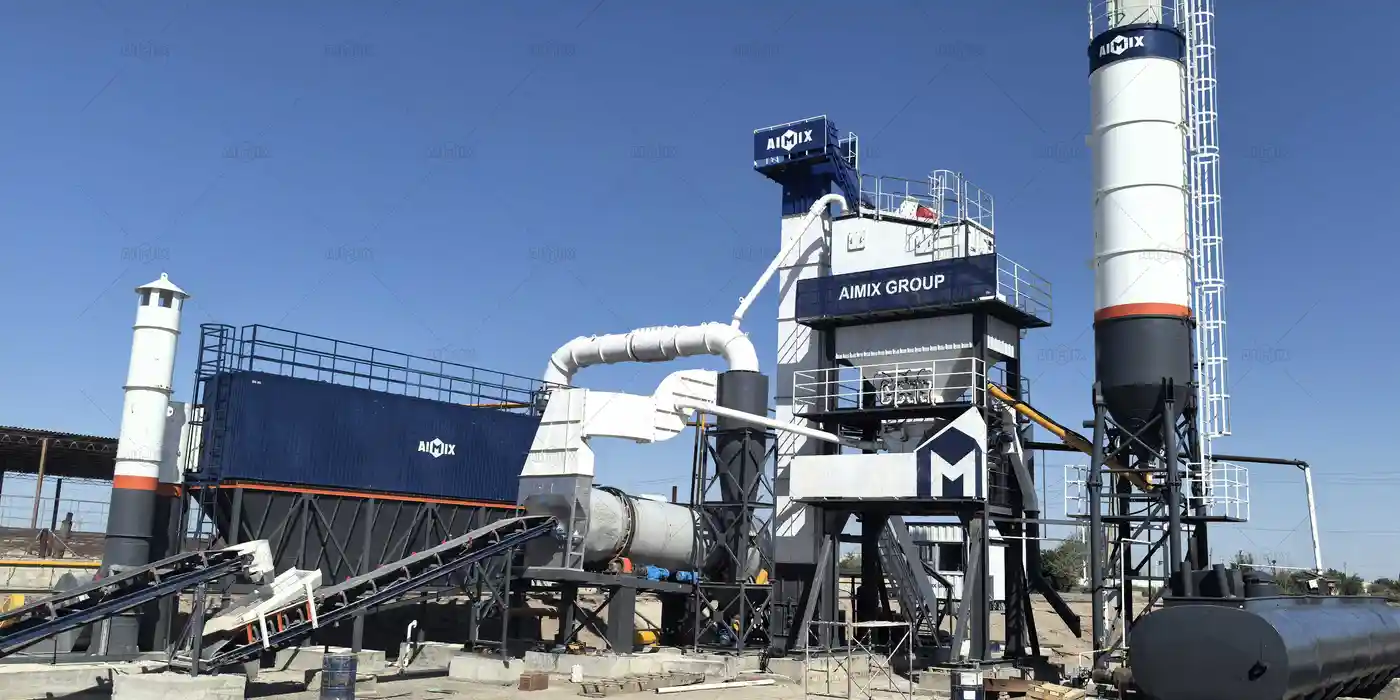

Stationary Asphalt Batch Mixing Plant

Construction of Plant and Installation of Equipment

Plant construction: Build production plant and storage facilities.
Equipment Installation: Installation and commissioning of asphalt mixing plant equipment.

asphalt road

Recruitment and Training of Staff

Recruitment of staff: Hire managers and operators.
Employee training: Provide operation and safety training.

Asphalt Plant di Indonesia

Trial Production and Commissioning

Trial production: carry out small-scale trial production, testing equipment and processes.
Quality testing: to ensure that the products meet quality standards.

80 tons Asphalt batch mix plant installed in Uzbekistan

Marketing and Sales

Brand establishment: create brand image and promotional materials.
Develop customers: Establish sales channels and customer networks.

Through these steps, you can effectively plan and launch your asphalt plant business. aimix provides comprehensive asphalt mixing plant equipment and support services to help you start up your asphalt plant smoothly and achieve efficient production and stable operation. If you need more help and advice, please feel free to contact us.

Precautions for Using A Batch Type Asphalt Plant

When using an asphalt batch plant in construction, strictly observe precautions for safe, effective operation and construction environment.

Construction Environment Requirements

  • Good construction environment: The construction site needs favorable conditions for smooth progress.
  • Safety management regulations: Personnel must adhere to site safety regulations for safe construction site operations.

Safety Signage Setup

  • Entrance of construction site: Place safety signs at the construction site entrance to remind personnel to pay attention to safety.
  • Dangerous working area: Warning signs placed in high-temperature and machinery operation areas prevent accidental injuries.

Personnel Dafety Education

  • Pre-job safety education: construction personnel must have pre-job safety education and understand the safety operation regulations.
  • Safety production manual: Create safety manuals for each work type and provide one to every construction worker.
  • Training for special trades:Trades like electrician and welder need professional training and licensing. AIMIX offers multilingual manuals for global projects.

Protective Measures

  • Fire prevention measures: The construction site needs fire protection and adequate extinguishing gear.
  • Anti-electricity measures: Ensure safe grounding of all electrical equipment to prevent electric shock accidents.
  • Explosion-proof measures: Take necessary explosion-proof measures in work areas with explosion hazards.
  • Fall prevention measures: To work at height safely, use fall prevention devices, safety ropes, and harnesses.
80 ton asphalt mixing plants
ALYQ asphalt batch plant

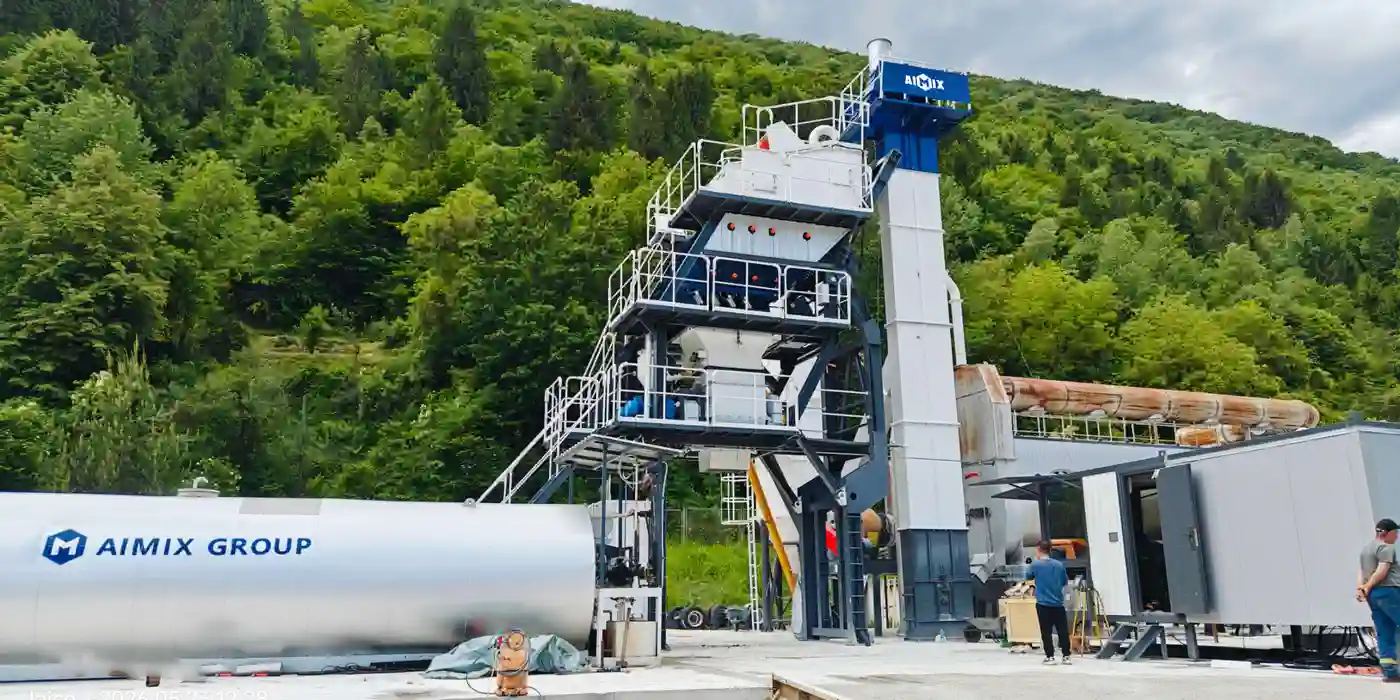

Simple Mobile Asphalt Batch Plant

AIMIX Asphalt Mixing Plant After-Sales Service

AIMIX ensures efficient operation and stability of asphalt batching plants by providing comprehensive after-sales service to customers. AIMIX’s after-sales service ensures efficient, safe, and stable equipment operation by offering comprehensive customer support. We aim to foster lasting partnerships with customers, aiding their project success. The following are our main after-sales services:

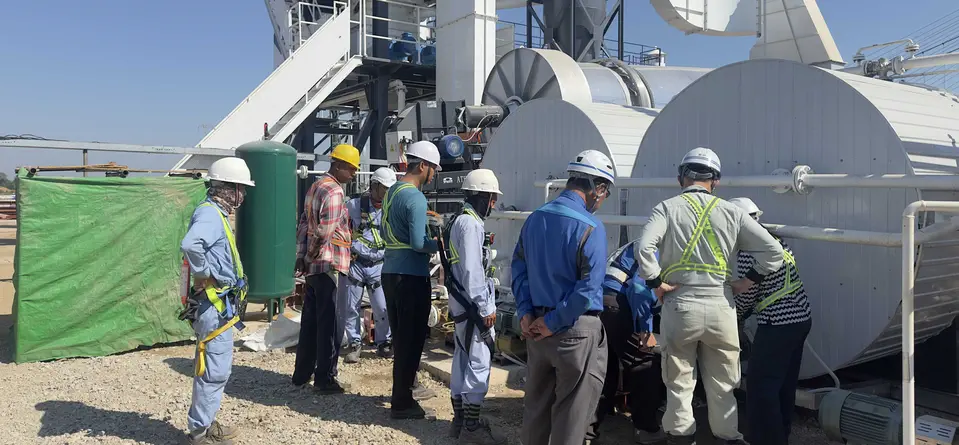

Installation and Commissioning

Professional team: AIMIX’s technical team does asphalt batch mix plant installation and commissions on-site to ensure consumer plant operation.
Comprehensive testing: After installation, we conduct comprehensive testing to ensure optimal functionality.

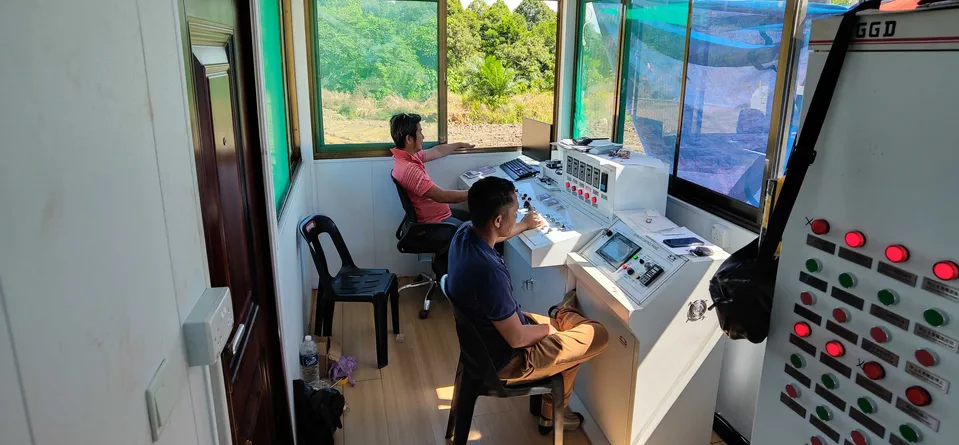

Technical Guidance

Customized training: Provide technical guidance on use, operation and maintenance according to consumers’ specific requirements.
Multi-language manuals: provide multi-language manuals and operation guides to facilitate the use of international customers.

Repair Parts Supply

Adequate stock: Ensure adequate supply of repair parts to meet customers’ repair needs in time.
Rapid Response: When customers require replacement parts, we promptly supply quality ones for equipment operation.

Repair Service and Regular Maintenance

Professional maintenance: Provide professional maintenance service to solve various problems encountered by customers in the process of use.
Regular Maintenance: Perform regular maintenance to prolong equipment service life and maintain production stability.

Regular Inspection Service

Telephone return visit: Regularly call customers to offer timely technical support and understand equipment status.
Door-to-door service: Schedule regular asphalt batch plant inspections by technicians to maintain asphalt mixing plant performance and prevent failures.

service department in AIMIX

In Conclusion

As a top asphalt batch mix plant supplier, AIMIX has gained global trust for innovation, quality products, and after-sales service. We prioritize meeting customer project needs while providing advanced production equipment. AIMIX asphalt batch plants near me are efficient, reliable, and eco-friendly, delivering top performance and productivity for road and bridge construction projects. Therefore, choosing AIMIX asphalt plant is a guarantee of superior quality and lasting value. Contact us and we are waiting for you!

    Customize Your Solutions

    Contact us now via email: market@aimixgroup.com, or WhatsApp me, or fill in the form below.

    FEW TIPS:

    • Please describe the type of project (e.g., building house, factory, road, bridge, dam, airport, etc.).

    • Please list the specific equipment or type (e.g., crushing plant, asphalt plant, batching plant, self-loading mixer, concrete pump, etc.).

    • Please tell us your estimated equipment or project start-up date.

    • Please detail your specific requirements or expectations (e.g., project site, voltage, climate, etc.).

    • If you are interested in becoming our distributor, please let us know.

    AIMIX Hot Products Are All Over The World

    AIMIX Hot Products Are All Over The World Map
