Mobile crusher plant combines several equipment components into a single unit, which enables efficient and flexible operations in various locations. It is designed for crushing various types of materials on-site , such as rocks, ores, and construction waste, into smaller sizes for further processing or recycling.
Hot-sale Mobile Crushing Plant – 4 in 1 Unit

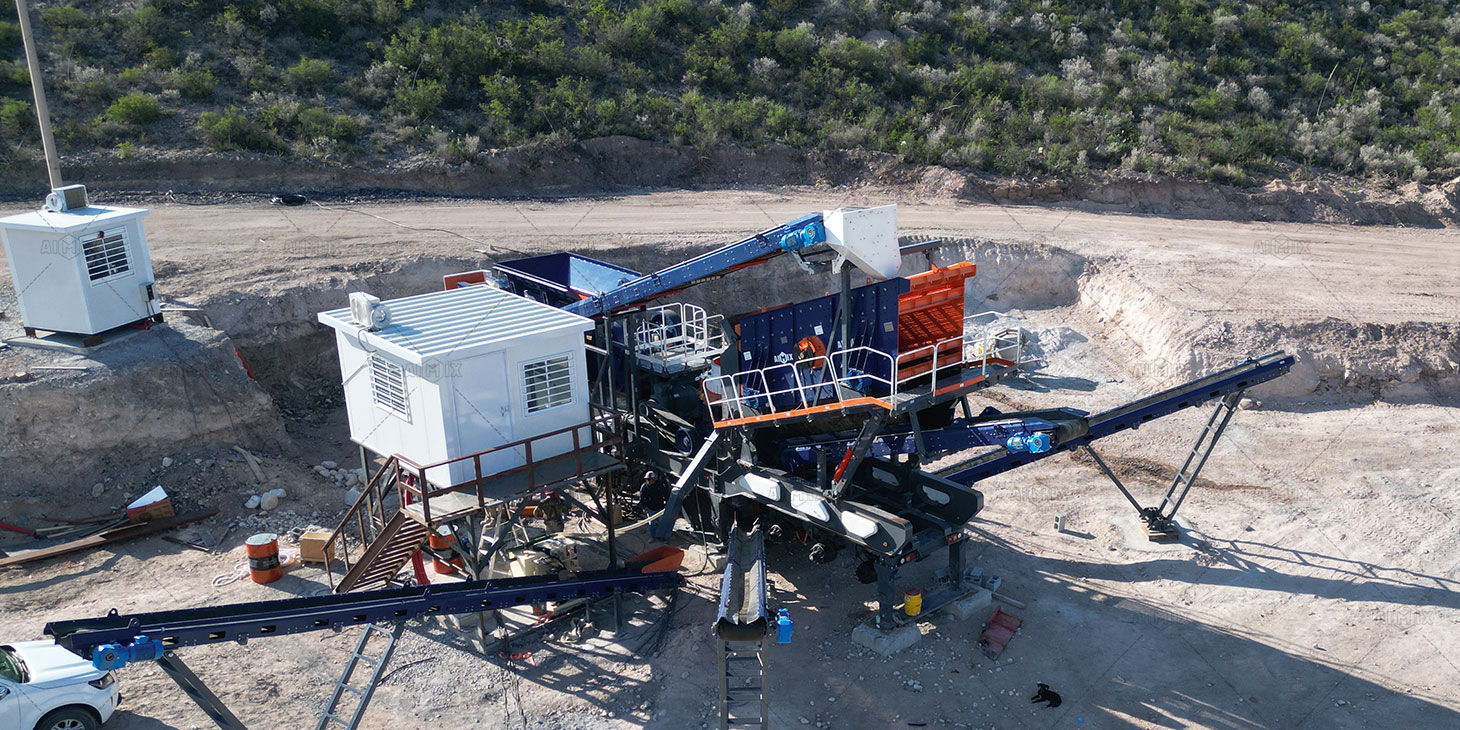

We have launched the popular APY4 mobile crushing plant, designed for efficient processing of materials under 100 tph. The mobile crushing solution has combined advanced technology with compact design, making it ideal for various applications in construction and mining. With its mobility and high productivity, the APY4 ensures that you can easily transport and set up the plant at different job sites, while maintaining optimal performance.

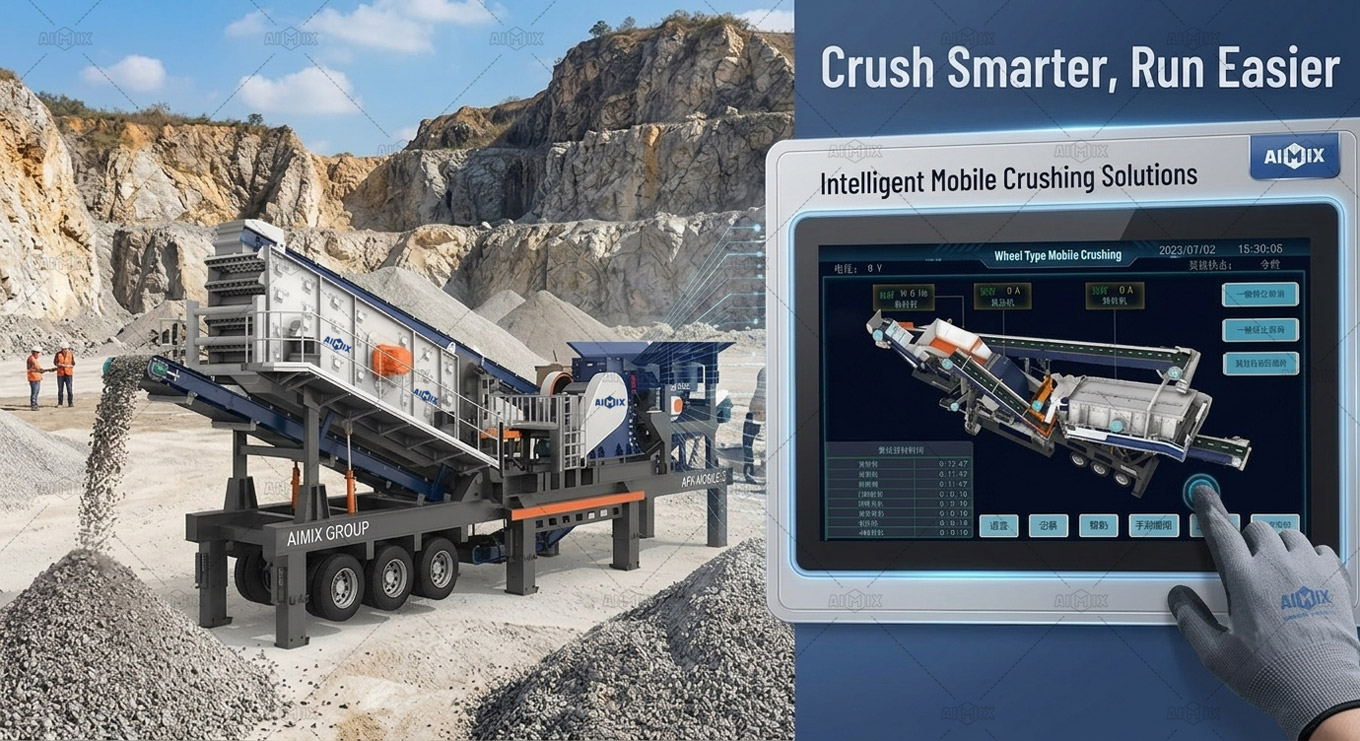

APY4 Wheeled Mobile Crushing Plant – Jaw Crusher + Cone Crusher
- Capacity: Under 100tph
- Configuration: vibrating feeder, jaw crusher, cone crusher and vibrating screen.
- Finial Particle Size: 0-5mm, 5-10mm, 10-20mm, 20-40mm etc
- Main Application: Aggregate Production for construction industry, like road and building construction.
4 in 1 Mobile Crusher Plant - Wheeled Chassis Type | ||||
---|---|---|---|---|
Model | APY4-46J2512J-S3 | APY4-46J900C-S3 | APY4-57J110C-S3 | APY4-69J132C-S3 |
Productivity(t/h) | 30 | 50 | 80 | 100-120 |
Vibrating Feeder | ||||
Model | APG-0824Z | APG-0824Z | APG-0930Z | APG-9538Z |
Primary Stone Crusher | ||||
Model | APJ-4060E | APJ-4060E | APJ-5075E | APJ-6090E |
Type | Jaw crusher | Jaw crusher | Jaw crusher | Jaw crusher |
Secondary Stone Crusher | ||||
Type | Jaw crusher | Cone crusher | Cone crusher | Cone crusher |
Model | APJ-2512X | APC-900Y | APC-110C | APC-132C |
Vibrating Screen | ||||
Model | APS-1548Y3 | APS-1548Y3 | APS-1848Y3 | APS-1848Y3 |
Belt Conveyor | ||||
Vehicle mounted belt conveyor | Yes | Yes | Yes | Yes |
Mobile Crusher Plants With Different Chassis For Selection
According to the chassis type, there are two types of mobile crushing and screening plants for sale in AIMIX Group, including tracked type and wheeled type. Each type can be equipped with various crusher hosts, like mobile jaw crusher, mobile cone crusher plant, and mobile impact crusher plant.
Impact Type Mobile Crusher Plants – Low Production Cost
Impact-type mobile crushing and screening plant for sale is mainly used for secondary and tertiary crushing. The main mobile crushing equipment is impact crusher. This mobile impact crusher plant has high productivity, a large crushing ratio, and good granularity, which is suitable for medium hardness crushing materials. In addition, the model frame is used as the piggyback platform, which can easily upgrade and replace the main equipment.

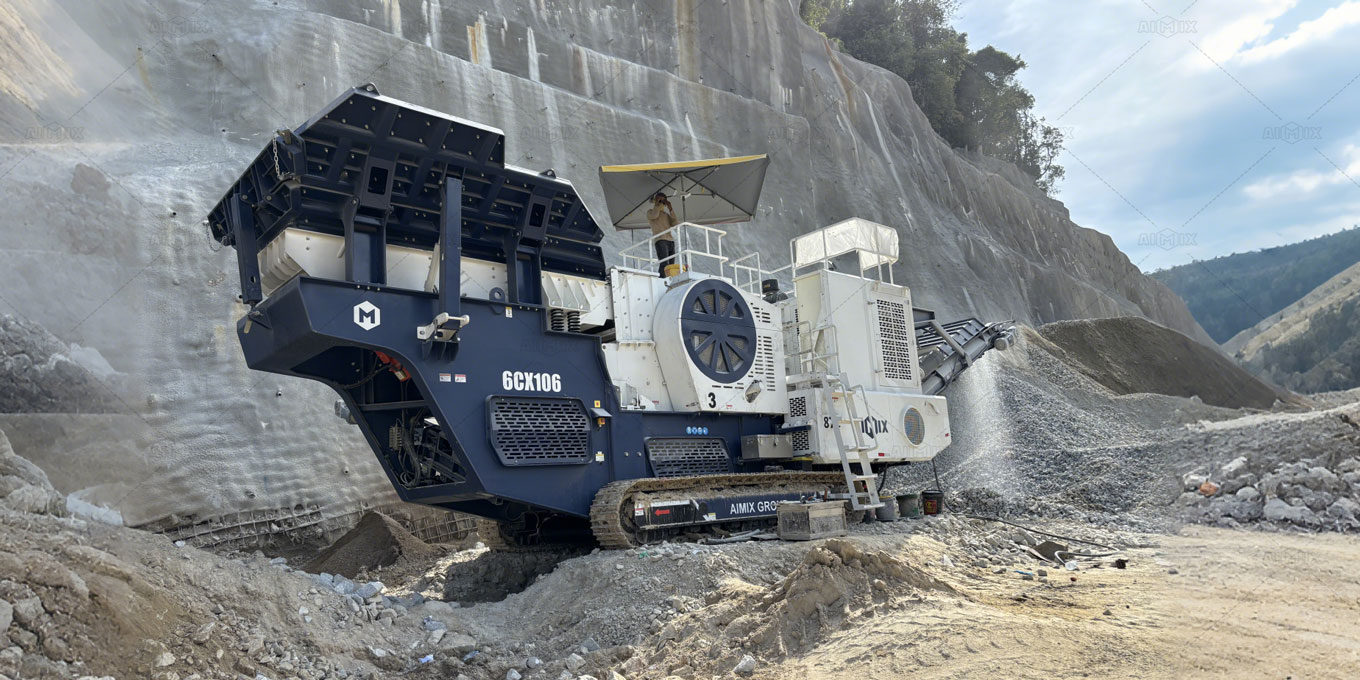

Jaw-Type Mobile Crusher Plant – Primary Crushing

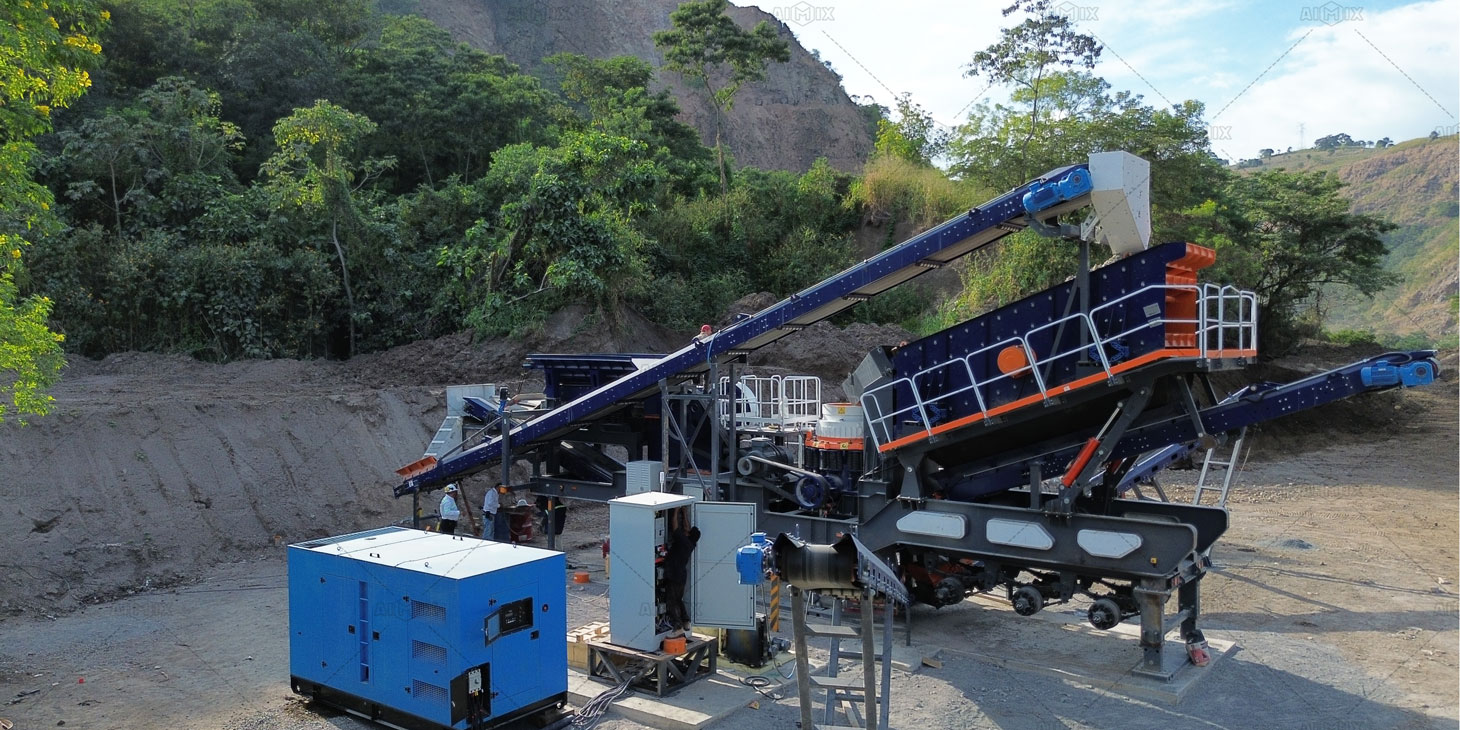

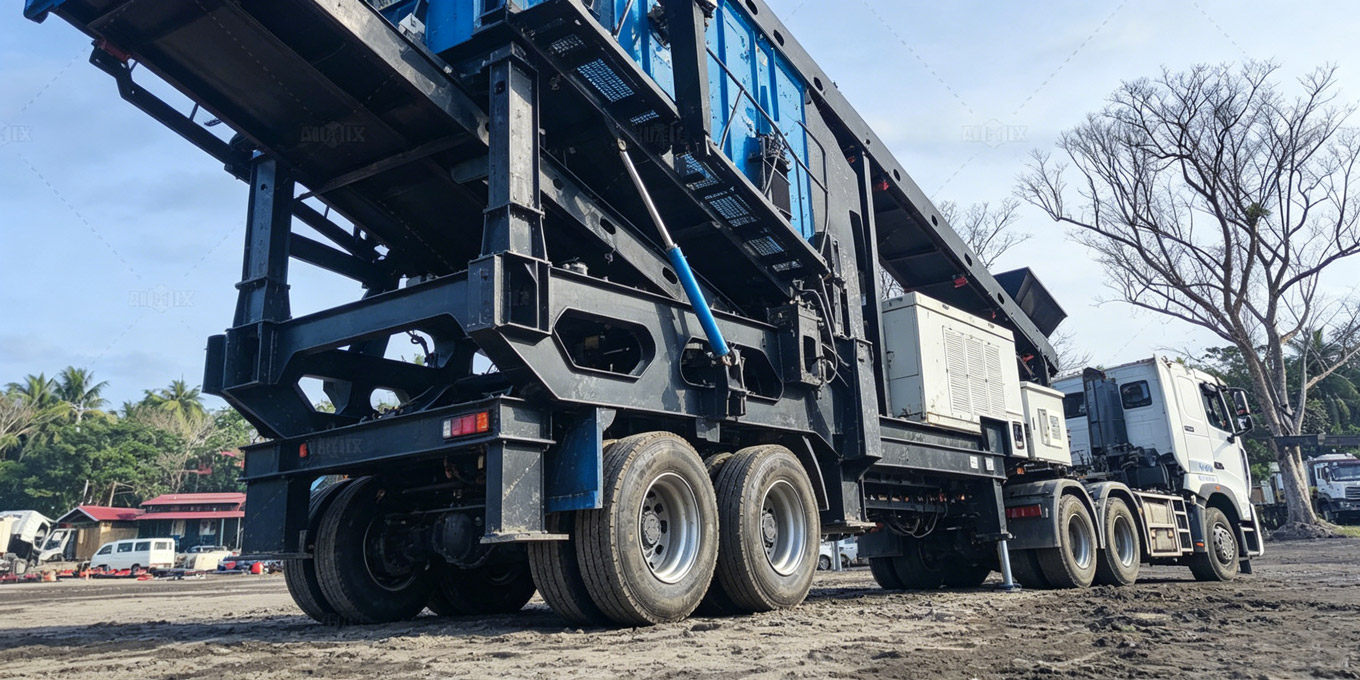

The jaw type tire mobile crush plant is mounted on wheels, making it easy to move from one site to another without the need for complex transportation logistics. The core of the plant is a jaw crusher, which crushes materials by compressing them between two jaw plates.
Cone-Type Mobile Crusher Plant – Secondary Or Tertiary Crushing
Cone type mobile crushing plant for sale is composed of a vibrating screen, belt machine, hydraulic cone crusher, electric motor and electric control cabinet, etc.
Mobile cone crusher plant is suitable for processing medium hardness and above stone materials, such as granite, basalt, limestone, etc. It is especially effective in processing certain harder or more abrasive stone materials.

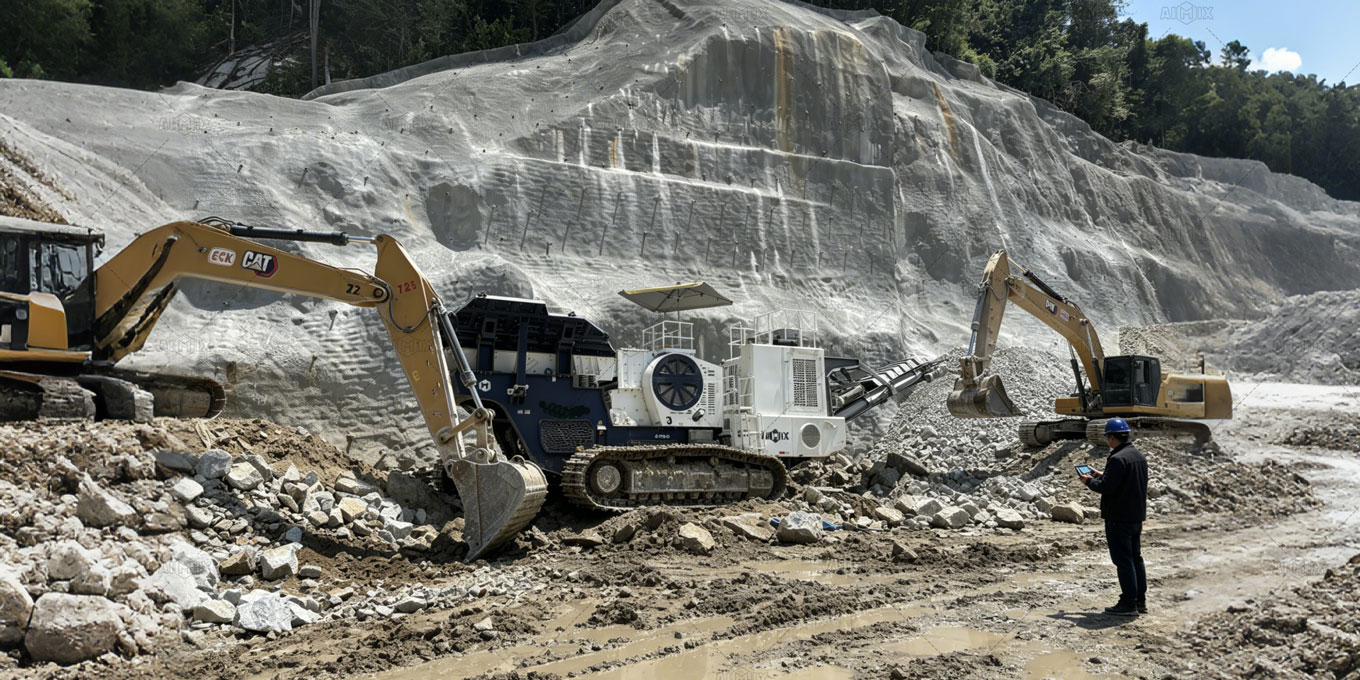

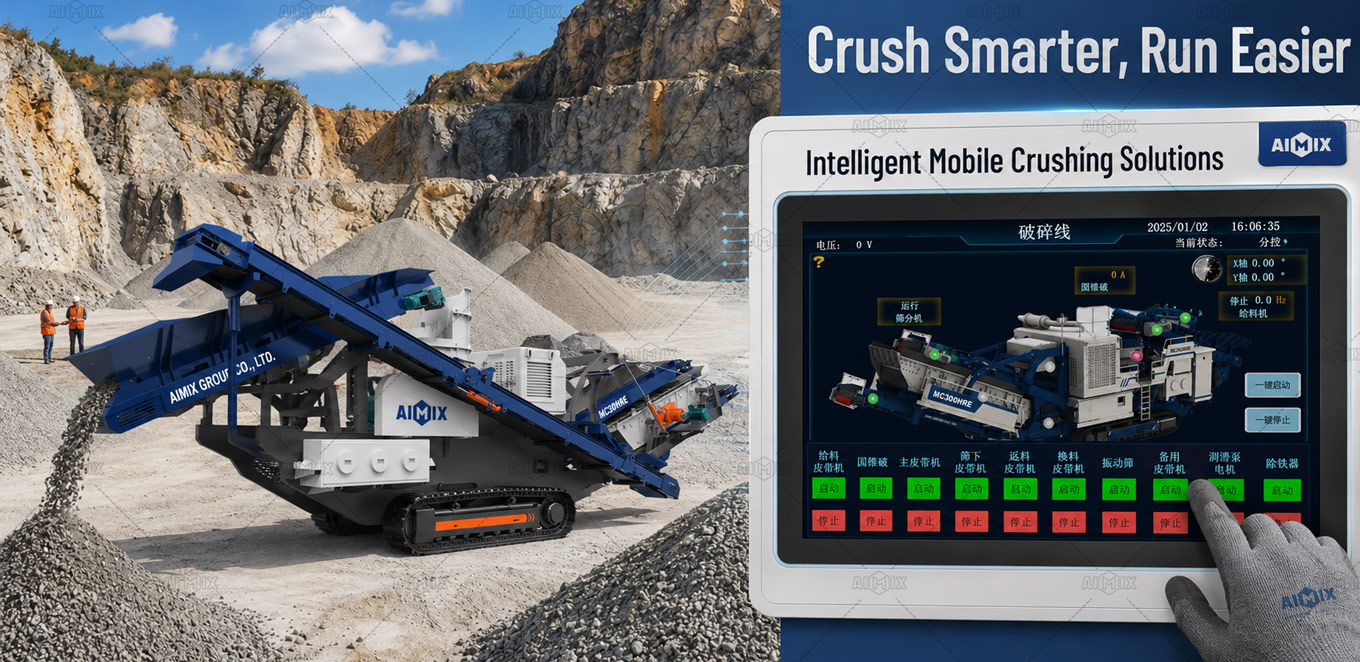

Crawler-Type – The First Choice For Construction Waste Recycling
Crawler mobile crush plant offers versatile solutions for various industries and applications. They are widely used in construction sites, allowing the on-site crushing of construction waste, reducing transportation costs, and promoting sustainable practices. The crawler crushers can transform demolished materials into reusable aggregates. The crushed aggregate from construction waste can be applicable in urban infrastructure development such as highways, railways, and tunnels, etc.
Versatile Mobile Crushing Solutions for Diverse Applications
Nowadays, the demand for versatile and efficient crushing solutions has never been higher. Selecting the appropriate portable crusher plant is critical for optimizing productivity and profitability, regardless of the industry or application. Their applicable materials and applicable fields are as follows:
- Applicable Material: granite, basalt, limestone, quartzite, iron ore, copper ore, gold ore, construction waste, concrete, asphalt, brick, rubble, glass, coal
- Applicable Fields: mining and quarrying operations, aggregate production for concrete, asphalt, and road construction, construction and demolition waste recycling, chemical industry, etc.
Next I will introduce you some mobile crushing solutions applicable on-site for your reference.
50tph Mobile Crusher Plant For Sand and Aggregate Production
- Processing capacity: 200tph
- Output size: 0-20mm
- Applications: crushing river stones for sale of sand and aggregate materials
Configurations: vibrating feeder + a jaw crusher + a cone crusher + vibrating screen+ belt
200tph Mobile Jaw Crusher Machine For Road Construction
- Processing capacity: 200tph
- Finished Product: 0-5, 10-20mm
- Applications: crushing volcanic rocks for road construction
Configurations: vibration feeder, mobile jaw crusher, vibrating screen, etc
Combined Mobile Crushing Plant For Limestone Crushing In Madagascar
- Processing capacity: 250tph
- Finished Product: 5-10, 10-20mm
- Applications: processing limestone for aggregate production as the raw material for concrete
Configurations: vibration feeder, jaw crusher, cone crusher, vibrating screen, etc
200tph Crawler Mobile Concrete Crushing Plant Processing Construction Waste On-site in Malaysia
- Processing capacity: 200tph
- Finished Product: 10-15, 20-25mm
- Applications: recycling construction waste as the raw materials for road paving
Configurations: vibration feeder, track jaw crusher, track impact crusher, vibrating screen, etc
150tph Crawler Mobile Crushing Plant For Construction Waste Recycling in the Philippines
- Processing capacity: 150tph
- Finished Product: 5-20mm
- Applications: recycling construction waste as the aggregate for concrete production
Configurations: track impact crusher, vibrating screen, etc
The versatility of mobile crushing solutions is essential in meeting the diverse needs of various industries and applications. The above mobile crushing solutions are all over 100 tph, larger-scale crushing projects. If your project is relatively small, never mind, AIMIX also manufactures small size mobile crushing and screening equipment to meet your crushing demands.

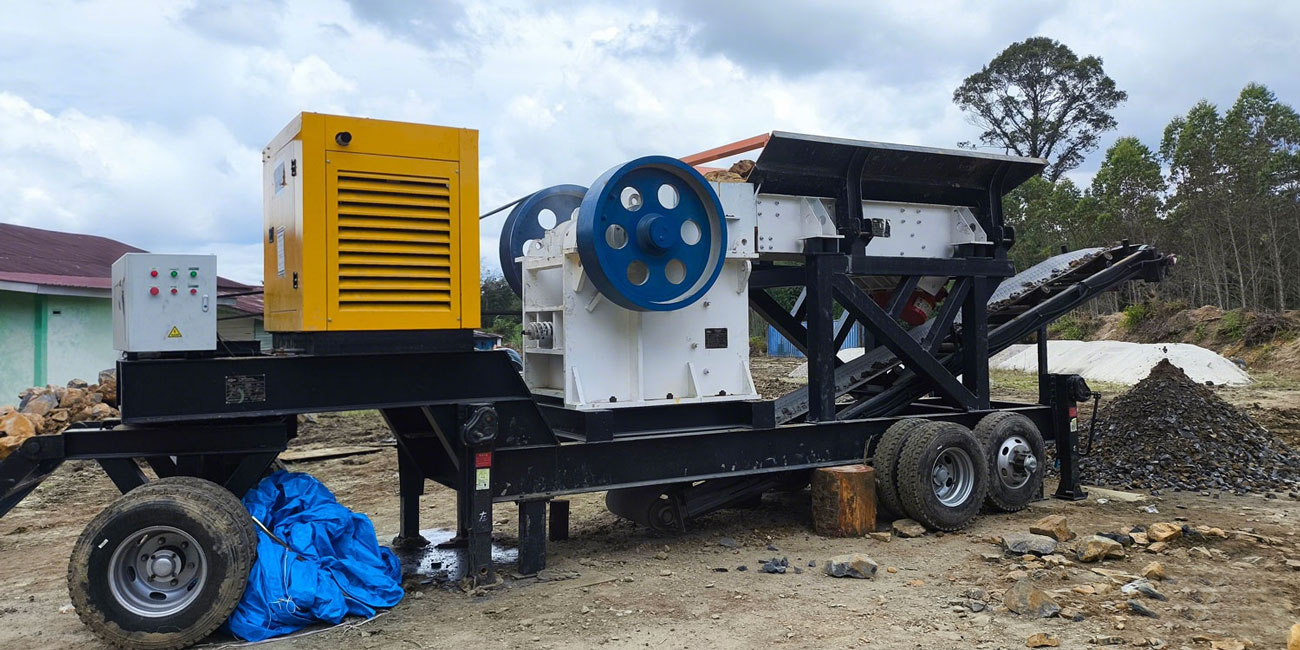

Small Mobile Crushing Plant Suitable for Your Projects – 30~50 tph
AIMIX is proud to customized the crushing solutions that are appropriate for efficient and effective small-scale crushing tasks. If your budget for starting mini mobile crusher plant business is limited, it will be your best choice. With options for both crawler and wheeled types, the small mobile crusher plant is versatile and adaptable to a variety of working environments.

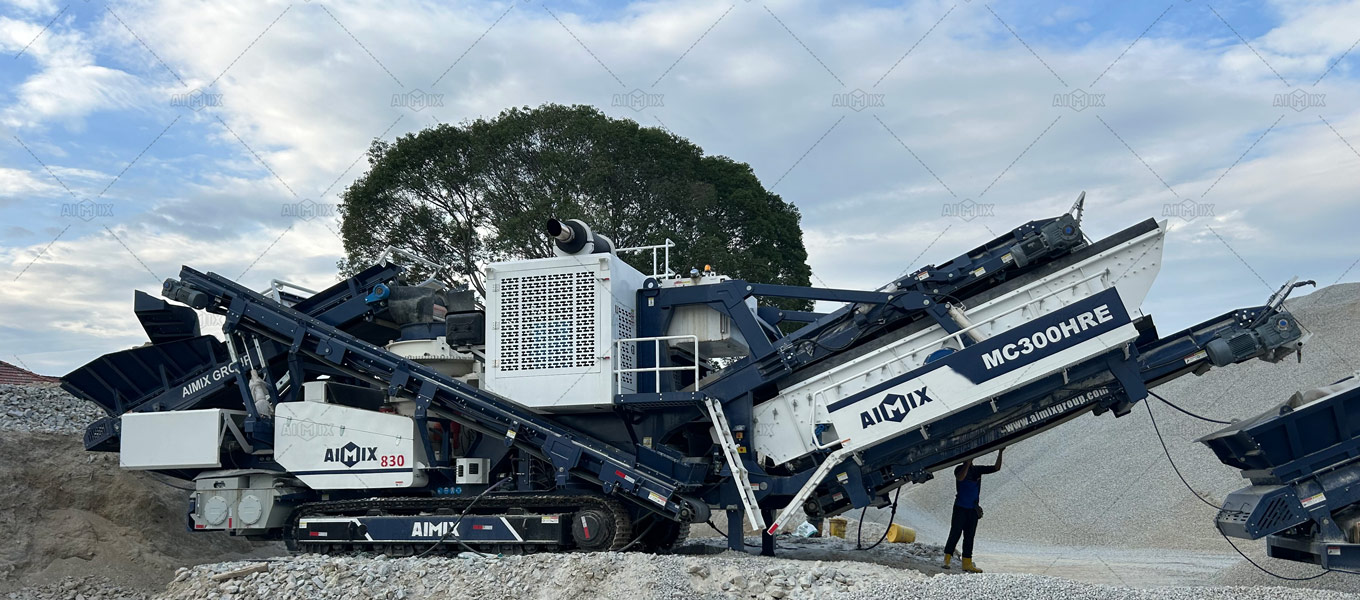

How Does A Mobile Crushing Plant Work?
The mobile crushing plant consists of several components, like crushers, feeders, and screens. These key components work in harmony to crush and screen materials on-site. Here is an overview of how the mobile crusher plant work:

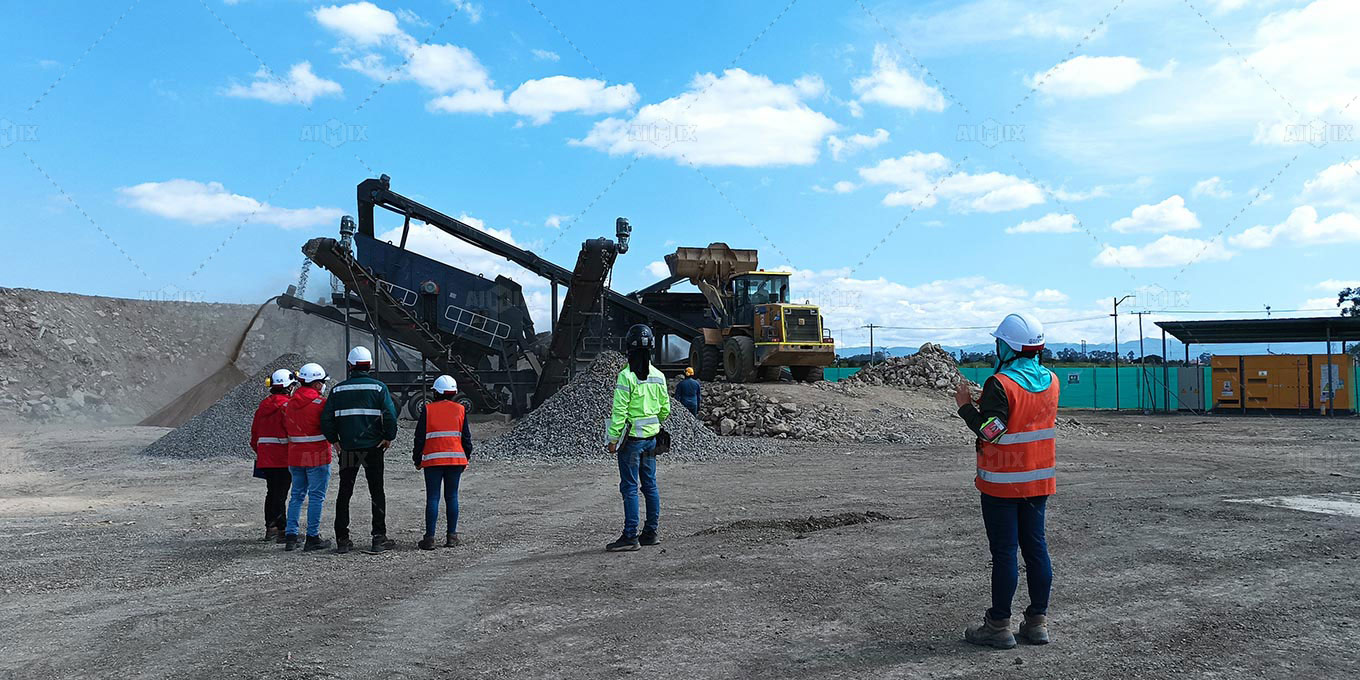

The mobile crushing plant is transported to the job site and set up. Its mobility allows it to be moved closer to the material source.
Raw materials are fed into the feeder, which regulates the amount of material entering the mobile crusher.
The material is crushed in the crusher, where it is broken down into smaller pieces. The type of crusher machine used will determine the final size and shape of the material.
After crushing, the material may go through a screening process to separate it into different sizes. Oversized materials can be sent back for further crushing.
The processed material is then discharged onto conveyor belts or directly into trucks for transport.
5 Reasons To Choose Mobile Crusher Plant from Us
Strong Ability To Adapt To Application Scenarios
The AIMIX mobile crusher plant for sale is designed to have a compact and space-saving footprint, making it suitable for both urban and remote areas. It comes with integrated features such as a vibrating feeder, pre-screening system, and conveyor belts, which enhance the overall efficiency and productivity of the crushing process.
Good Safety
Mobile crusher plants prioritize safety with features like hydraulic release mechanisms to prevent damage from uncrushable materials and emergency stop buttons for quick shutdown in case of emergencies.
Strict Quality Control
From the beginning of the production of portable crusher for sale, we have a sound evaluation mechanism, and we also have people to follow up the production process of the mobile screen crusher, strictly follow the use of high-quality materials and components, and effective inspection and testing to ensure that each mobile crushing plant meets the required quality standards.
Easy Maintenance
Most importantly, they are designed with ease of maintenance and repair in mind, with easy access to components and easy access to critical areas for inspection and repair, making them very cost effective.
Original Wearing Parts Supply
In order to ensure the safe and smooth operation of the customer’s mobile crushing plant, considering the degree of wear and tear, our company specially provides our customers with high-quality original wearing parts supply, to solve the customer’s worries.
These advantages have made AIMIX mobile crushing solutions a great option for many construction projects. As a leading mobile crusher plant manufacturer, AIMIX Group offers a variety of portable crusher machine models to meet diverse project requirements. It is necessary for you to have a better understanding of each one, eapecially their features, charstaeristics, and advantages.
Features and Advantages of Mobile Crushing Machine
Characteristics Of Impact Mobile Crusher Plants
1. Strong Site Adaptability
Adopting intelligent, integrated and modular configuration, it can quickly adapt to the complex construction environment such as mountainous areas and wetlands.
2. Large Crushing Gravity
Adopting heavy-duty rotor, high wear-resistant material, large crushing cavity, large feed size, stable product, good particle shape, large crushing ratio.
3. Easy to Operate

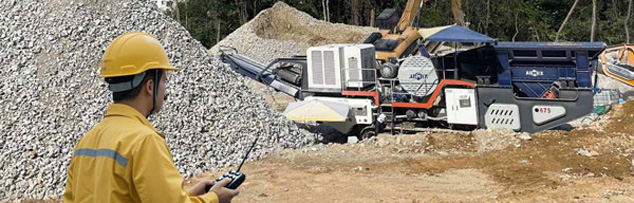

It adopts intelligent wireless remote control device to track and walk by itself, and a single person can get on and off the ordinary flatbed trailer by remote control operation to realize fast transfer operation, and it can be equipped with iron remover or return system or flatbed loading system according to customer’s needs.
4. Convenient Maintenance
The mobile crushing plant shell can be opened hydraulically, the side discharge belt can be folded hydraulically, and it is equipped with a full range of walking platform guardrail, which is convenient for maintenance and upkeep.
5. Low Energy Consumption
Compared with the mobile cone crusher, the mobile impact crusher usually has lower energy consumption, which can save energy and reduce operating costs.
5 Advantages of Mobile Crush Jaw Type Ensure Stable Performance
1. Modular design.
Jaw portable crushing plants for sale have compact structure, and no welding structure, which makes the structure light, high fatigue strength, and strong impact resistance.
2. Automatic control.

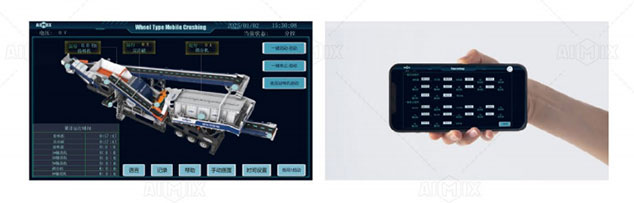

Adopting an intelligent wireless communication control device, it can be operated by a single person remotely to get on and off the common flatbed trailer to realize fast transfer operation.
3. Running smoothly.
The movable jaw assembly adopts a forged heavy-duty eccentric shaft, high-quality heavy-duty spherical roller bearings, and finite element analysis optimized movable jaw body, which ensures the impact resistance and high stability of the movable jaw assembly. The discharge outlet of the crusher is adjusted mechanically or hydraulically through the wedges on both sides, which is both safe and reliable.
4. Good lubrication.
A perfect centralized lubrication system ensures that the bearing grease is not contaminated, making its lubrication more effective and stable. The higher rotating speed improves the passing capacity and material crushing frequency, which greatly increases the output.
5. High crushing ratio.
The main crushing equipment adopts a 6CX jaw crusher, which can be flexibly switched between coarse and fine crushing, and the crushing ratio is greatly improved, compared with the traditional jaw crusher, which is very advanced and cost-effective in the field of mobile mining crusher at present.
After reading so much about jaw mobile crushing plant, you probably already have a clearer idea about this product.
Next, let’s take a look at the other type of semi mobile crusher for sale – cone type, which is set up after the primary jaw crushing.
Features Of Cone-Type Mobile Crushing Plant
1. Precise crushing
They are often used for more precise and finer crushing requirements, focusing on medium to fine crushing of materials.
2. Good grain shape
Cone semi mobile crushing plants for sale are known for producing cubical-shaped end products, which may be preferred in certain applications such as concrete production.
3. Save operational and transport costs
The operating costs of cone mobile crush plant as they are usually smaller in size and require less power. And can process materials on-site, greatly reducing the cost of material transportation.
4. Higher product quality
Mobile cone crusher trucks typically offer higher crushing efficiency and throughput, as well as a more even distribution of finished material, thus providing higher product quality.
5. Adjustable range of finished size
Cone crushers usually have adjustable discharge opening sizes, which can realize the demand for different sizes of finished materials.
6. Versatility
Cone crushers can be equipped with a wide range of auxiliary equipment such as screens, material stockpiling and recycling devices, etc., to realize a variety of material processing and applications.
Clearly understanding each one is the basis of choosing a right mobile crusher plant. But how can you choose the right mobile crushing plant? The semi mobile crushing plant price is important and needs to be focused on, but investing in one isn’t just limited to writing down the semi mobile crusher price. You need to carefully consider all the matters involved before, during and after the choice, and then go to negotiate with the mobile crushing plants supplier in order to get twice the result with half the effort.
Here are a few suggestions for you to choose the mobile crushing & screening plant.

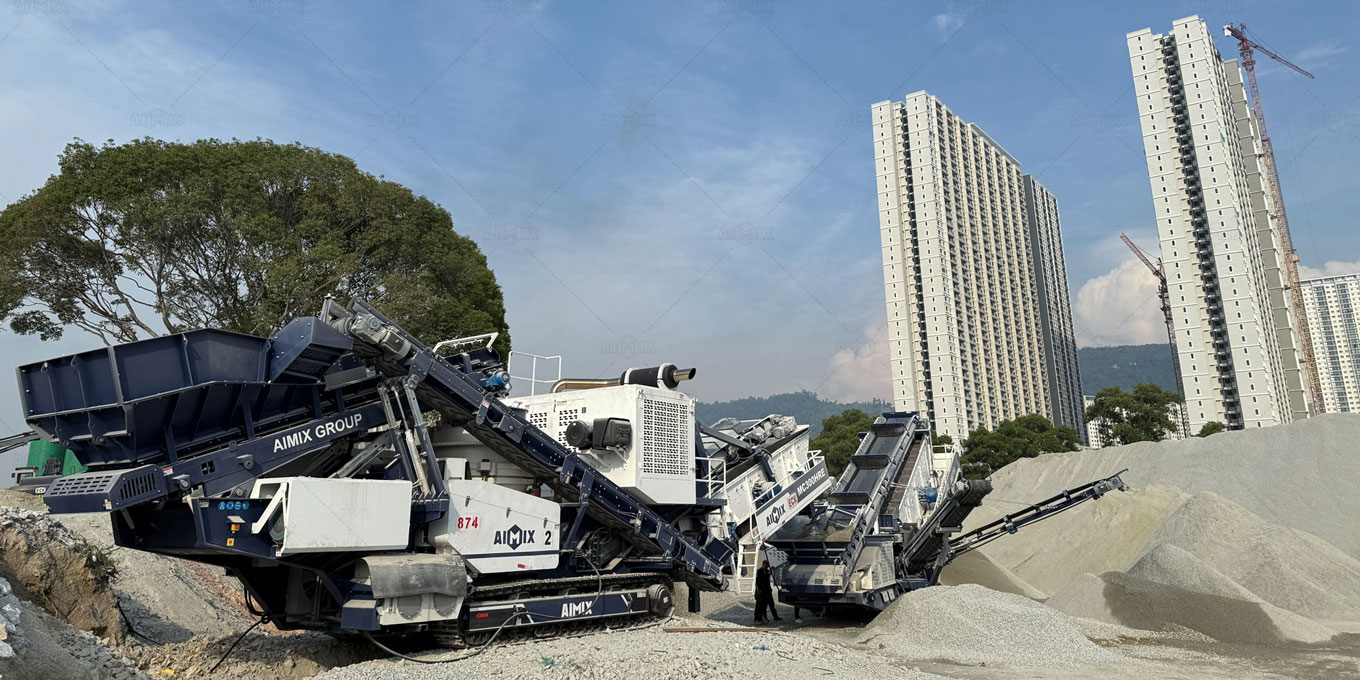

How to Choose A Right Mobile Crushing Plant?
Specify Your Needs.
First, you need to determine your needs, you need to know clearly what kind of project you are buying this mobile crusher plant for because there are more kinds of mobile crushing plants, different kinds also have different fields of application, so you must contact your engineer to negotiate your needs before asking for a quotation.
Know The Capacity.
Capacity is a very important factor, which is not only related to the production capacity of the portable crusher plant but also closely related to the price of the mobile crushing plant. Theoretically, the larger the capacity of the machine, the higher the portable crusher price will be. To avoid waste, just tell us your production requirements and we will recommend suitable portable crushing plant for your project.
Determine Right Mobile Crusher Manufacturers.
Choosing the right mobile crushing plant manufacturer is crucial for quality, customization, support, and compliance. Reputable mobile crushing plant manufacturers ensures reliable, durable plants with customization options to meet specific needs. They provide technical expertise, after-sales service, and spare parts availability. Compliance with safety and environmental regulations is assured.
Knowing how to choose the right mobile crushing plant, I believe you already have a choice of your favorite mobile crusher and screening plant in mind. The next step is to consider the mobile screening plant price, so many mobile crusher plant manufacturers on the market, how can we talk about a reasonable price?
3 Tips To Help You Get A Reasonable Quote!
Everyone is the same, the first thing you do when buying something is to ask for a quote, while the mobile crusher plant price in turn is absolutely related to many factors, such as the location of the project, the type of product, and the size of the venue.
Therefore, before you want to be subject to specific prices, the user needs to figure out the things mentioned above. If possible, you can also write down the project local climate conditions, air pressure, voltage, etc., the more detailed, we can provide an accurate program to determine which product, which configuration is suitable for your project. Here are a few steps to help you inquire about the most real and accurate mobile screening plant price.
Find a Reliable Mobile Crusher Plant Supplier
This is the first important thing, the stone mobile crusher plant belongs to large equipment, if you find a mobile crush plant supplier, the quality of thestone crushing plantsand the follow-up service can not be guaranteed. So you need to search Google, find more than 5 suppliers of mobile crushing machine, and make a strict and careful comparison.
Visit The Factory
After you have found several mobile crushing unit suppliers, the next thing you need to do is to examine the qualifications and capabilities of these mobile crusher machine suppliers. If possible, it is best to visit the factory, from the size of the vendor, staff, production technology, testing, shipping, etc. can determine the reliability of the vendor.
Multiple Negotiations
After visiting the plant, you will definitely have a choice in your mind, when start talking about thecrusher plant price AIMIX, you have to understand the composition of this quotation from multiple angles, such as production technology, materials used, patents, after-sales service, etc., from these aspects to measure whether this mobile crushing plant meets your expectations, the most important thing is to look at their previous customer feedback, the real feedback on this product is the most important thing, objectively demonstrates the performance of the mobile crusher plants for sale.
After these three steps, you will surely find the right portable crusher plant for your project, and you will also get a good offer.
But the investment of the portable crusher plant is not simply buying and operating the portable crushing and screening plants, besides these, there are also maintaining the product, exploring more possibilities of the product and so on.
Therefore, we not only need to pay attention to the offer of this mobile crushing plant, but also you need to consider the following things in order to make the investment in mobile crushing plant more money.
Maximize The Benefits Of Investing In Mobile Crushing Plant
Everyone is the same, the first thing you do when buying something is to ask for a quote, while the mobile crusher plant price in turn is absolutely related to many factors, such as the location of the project, the type of mobile crushing station, and the size of the venue.
Seek diversified market opportunities:
In addition to the regular building and road construction market, seeking market opportunities in other areas can increase profits. Consider cooperating with related industries, such as quarries, waste recycling and earthmoving, to broaden the scope of application of products and improve portable crusher plant utilization. If necessary, you can also consider the option of selling the portable crusher plant at the end of the project or renting it out to someone in need. This is also a gain.
Pay attention to market trends and technological innovation:
Pay close attention to industry trends and technological innovation. Keep abreast of the latest mobile screening and crushing equipment technology and equipment improvements to stay competitive and meet customers’ changing needs. Upgrade equipment and introduce advanced technology at the right time to improve production efficiency and product quality.
Establishment of partnership:
Build good partnership with suppliers, customers and other stakeholders. Explore business opportunities together, share resources and experiences, and work together to maximize mutual benefits.
In short, the more information you give, the more accurate the solution we give and the more detailed the price will be. And you will get many benefits after using the mobile crushers and screeners. If you are looking for a cost-effective mobile crusher station, contact us we can provide you with a free proposal according to your project needs.
In addition to mobile crushing plant, fixed crushing plant is also a product often asked by customers, the following briefly popularize fixed crushing plant to you.
Related Products – Stationary Crushing Plant
Anyone who understands the crushing industry probably knows that in addition to mobile crushing trucks, engineers usually analyze the customer’s needs and combine jaw crusher, cone crusher, impact crusher, feeding equipment and screening system to form a set of inconvenient “stationary” crushing plant. Here we see what is the difference between stationary and mobile crushing plant.

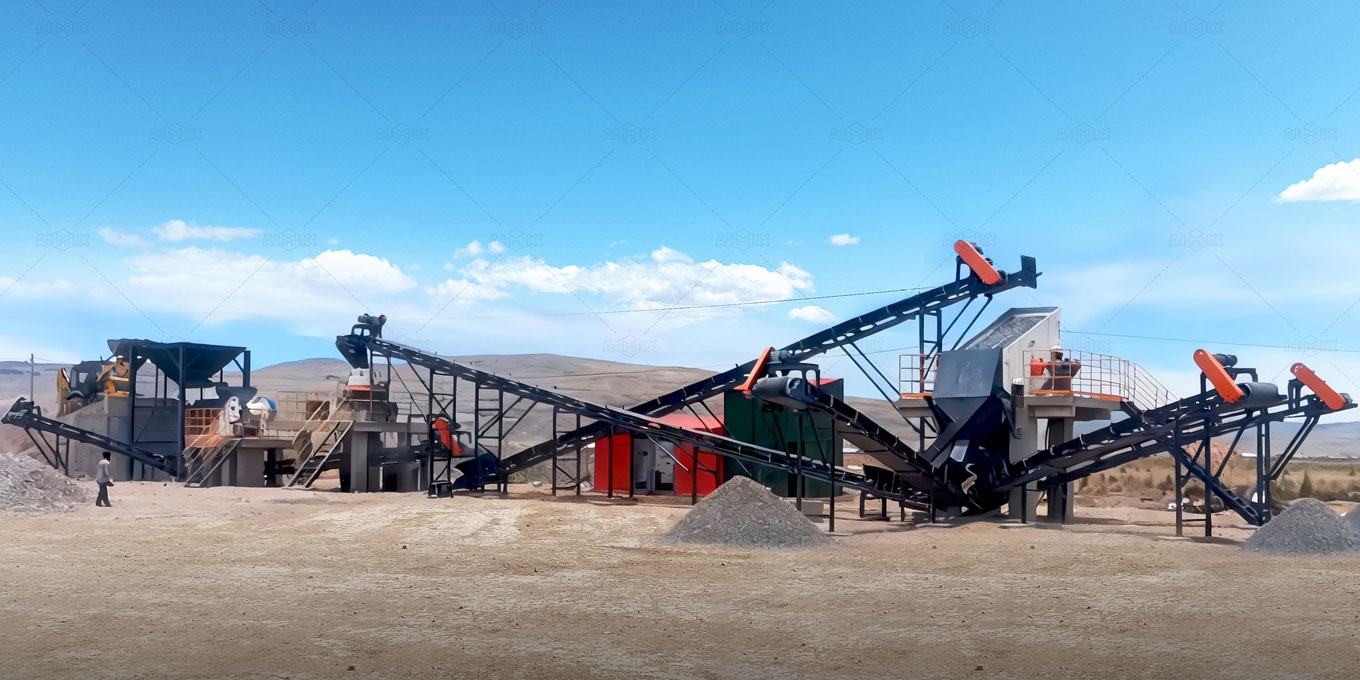

What Are The Differences Between Stationary And Mobile Crusher Plant
1. Mobility
Mobile crusher plants are designed to be easily transported from one location to another, allowing them to be flexible and adaptable for various job sites. In contrast, stationary crusher plants are permanently installed at a specific location and cannot be moved.
2. Setup And Installation
Crusher mobile plant is typically quicker and easier to set up compared to stationary plant. It often comes with their own integrated transportation and assembly systems, whereas stationary plants require more time and effort for installation.
3. Operational Flexibility
Mobile crusher plants offer greater operational flexibility since they can be easily moved and repositioned as needed. This allows for efficient use of equipment and resources, especially when dealing with multiple job sites or temporary projects. Stationary plants, on the other hand, are fixed in place and may have limitations in terms of adaptability to changing operational needs.
4. Production Capacity
Stationary crusher plants generally have higher production capacities compared to mobile plants. This is because stationary plants can be optimized and customized for specific applications and large-scale operations, while mobile screening plant for sale prioritizes mobility and portability over maximum production capacity.
5. Infrastructure Requirements
Stationary crusher plant requires a dedicated infrastructure, including foundations and supporting structures, which adds to the cost and complexity of installation. Mobile concrete crushing plant, on the other hand, has lower infrastructure requirements, often relying on existing roads or access points for operation.
It’s important to note that these differences may vary depending on specific models and configurations of crusher plants. The choice between stationary and mobile types depends on factors such as project duration, mobility needs, production requirements, and site conditions.
If you are interested in the stationary crushing plant, you can browse the following programs we have done for our customers.
200TPH Stationary Crusher Plant For Crushing Granite
Configurations:
APG-4211W (vibrating feeder)
APJ-7510E (jaw crusher)
APC-160C(compound cone)
APS-2160Y4 (vibrating screen)
150TPH Stationary Crusher Plant For Concrete Production
Configurations:
APG-3895W (vibrating feeder)
APJ-6090E (jaw crusher)
APC-132C-M (medium crushing compound cone crusher)
APC-132C-F (fine crushing compound cone crusher)
APS-2160Y4 (vibrating screen)
The above is about the mobile crushing plant, there are related products fixed crushing plant introduction, in fact, the crushing program is very flexible, may be a little bit of a small change will affect the results of the whole program, if we show the program does not meet your project needs, welcome to inquire, our engineers will answer your questions and solve problems, to develop the most reasonable program!
