Ready mix concrete batching plant is a facility efficiently combining raw materials like cement, water, sand, and aggregates to produce ready-mixed concrete. The rmc plant ensures consistent quality through automated mixing processes, precise measurements, and rigorous quality control. The plant supports high-volume production. Now let’s learn about how many types of ready mix concrete plant AIMIX offers to meet diverse customer needs.
Types And Cases Of Ready Mix Concrete Plant
AIMIX offers two types of stationary ready mix concrete batching plants based on the feeding method: Hopper Type and Belt Type. The hopper type ready-mixed concrete plants include AJ-25, AJ-35, AJ-50 and AJ-75, and the belt type readymix concrete batch plants mainly consist of AJ-60, AJ-90, AJ-120, and AJ-180.

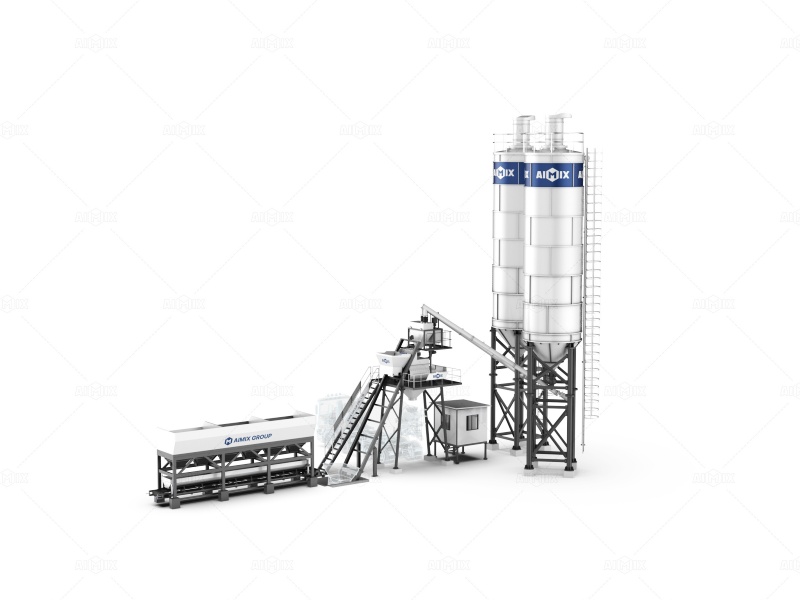

Stationary Hopper Type Ready Mix Plant
This type of ready mix concrete plant features small volume, easy installation, simple operation and it has low terrain requirement. It is mostly used in an industrial ready mix cement plant where temporary production requires ±2% error in concrete.
AJ-50 Ready Mix Concrete Plant For Sale in Uzbekistan
- Capacity (m3/h): 50
- Mixer Discharging Volume (L):1000
- Mixer Feeding Volume (L):1600
- Mixer Motor Power (kW):18.5×2
- Discharging Height (m):4.1
- Aggregate Material Quantity (m3):3×8
- Cycle Period (s):72
- Max. Aggregate Size (mm):80/60
Specifications
| Types | Hopper type | |||
|---|---|---|---|---|
| Model | AJ-25 | AJ-35 | AJ-50 | AJ-75 |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1500 |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 | 2×30 |
| Mixing Cycle Period (s) | 72 | 72 | 72 | 72 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ80 |
| Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 | 3×12 |
| Kind of Aggregate | 3/4/2002 | 3/4/2002 | 3/4/2002 | 3/4/2002 |
| Max. Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
| Overall Weight (ton) | ≈15 | ≈18 | ≈23 | ≈30 |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
| Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase | |||
Stationary Belt Type Ready Mix Plant
Belt ready mix batching plant has characteristics of stable delivery, precise ingredients, high working efficiency, and it is more suitable for commercial ready mix plant for sale. This type of plant is generally used for projects with long construction periods and large engineering volumes.
AJ-60 Ready Mix Plant For Sale in the Philippines
- Capacity (m3/h): 60
- Mixer Discharging Volume (L):1000
- Mixer Feeding Volume (L):1600
- Mixer Motor Power (kW):18.5×2
- Discharging Height (m):4.1
- Aggregate Material Quantity (m3):7×4
- Cycle Period (s):60
- Max. Aggregate Size (mm):80/60
- Cement Silo (t) (optional):2×100

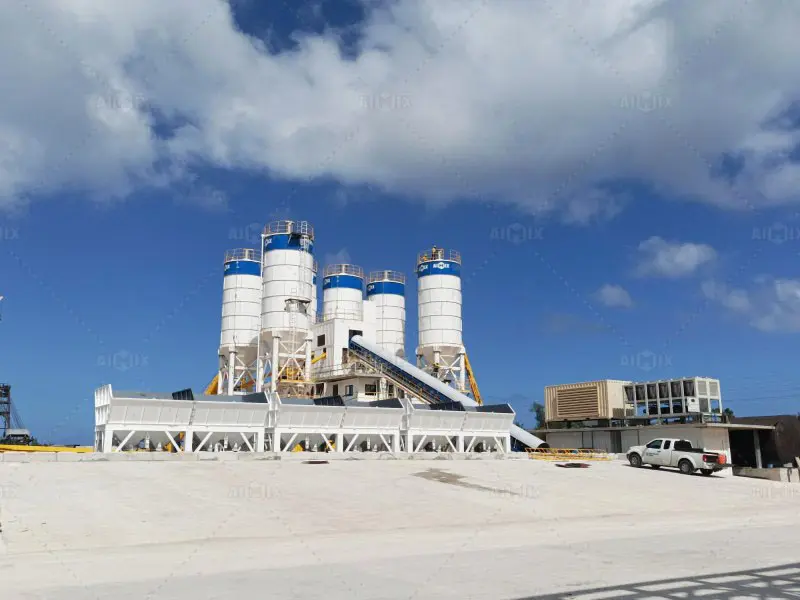

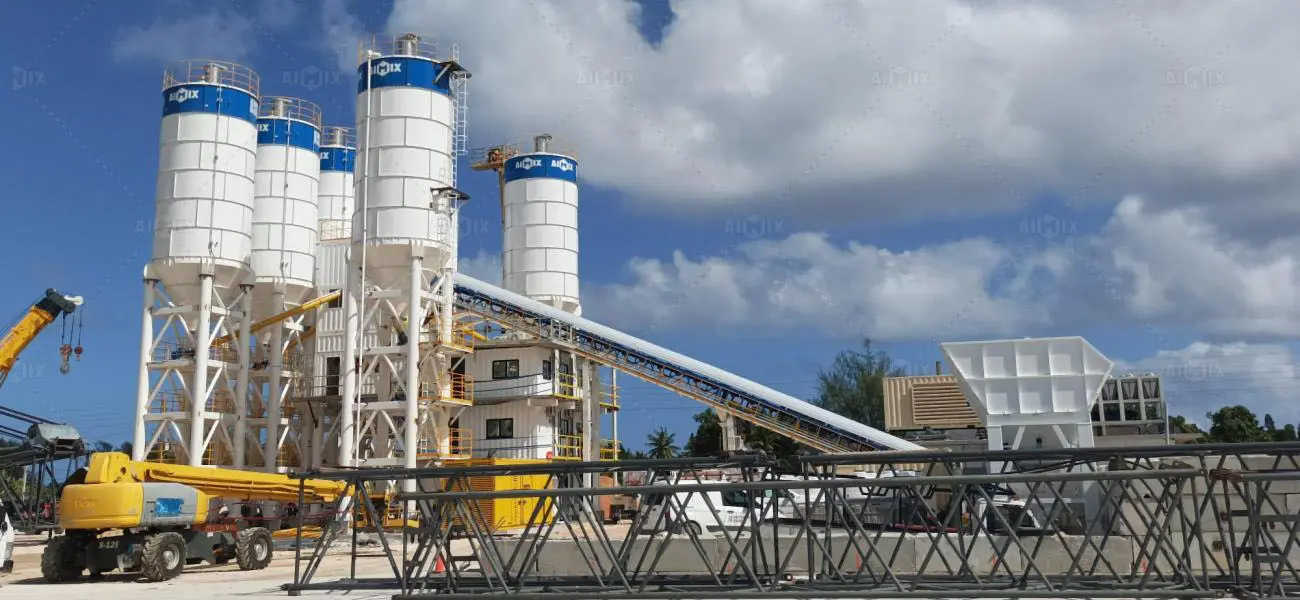

AJ-180 Ready Mix Plant For Sale in Kazakhstan
- Capacity (m3/h): 180
- Mixer Discharging Volume (L): 3000
- Mixer Feeding Volume (L): 4800
- Mixer Motor Power (kW): 55×2
- Discharging Height (m): 4.3
- Aggregate Material Quantity (m3): 20×4
- Cement Silo (t) (optional): 3×100
Specifications
| Types | Belt type | |||
|---|---|---|---|---|
| Model | AJ-60 | AJ-90 | AJ-120 | AJ-180 |
| Theoretical Productivity (m³/h) | 60 | 90 | 120 | 180 |
| Mixer Model (Mixer Output L) | JS1000 | JS1500 | MAO3000/2000(SICOMA) | MAO4500/3000(SICOMA) |
| Mixer Power (kW) | 2×18.5 | 2×30 | 2×37 | 2×55 |
| Mixing Cycle Period (s) | 60 | 60 | 65 | 65 |
| Max.Aggregate Size (mm) | Φ60 | Φ80 | Φ80 | Φ80 |
| Standard Aggregate Bin Capacity (m³) | 4×7 | 4×15 | 4×15 | 4×20 |
| Kind of Aggregate | 3/4/2002 | 3/4/2002 | 3/4/2002 | 3/4/2002 |
| Max. Discharging Height (m) | 4.1 | 4.1 | 4.3 | 4.3 |
| Overall Weight (ton) | ≈40 | ≈68 | ≈93 | ≈101 |
| Installation Power (kW) | ≈110 | ≈160 | ≈220 | ≈290 |

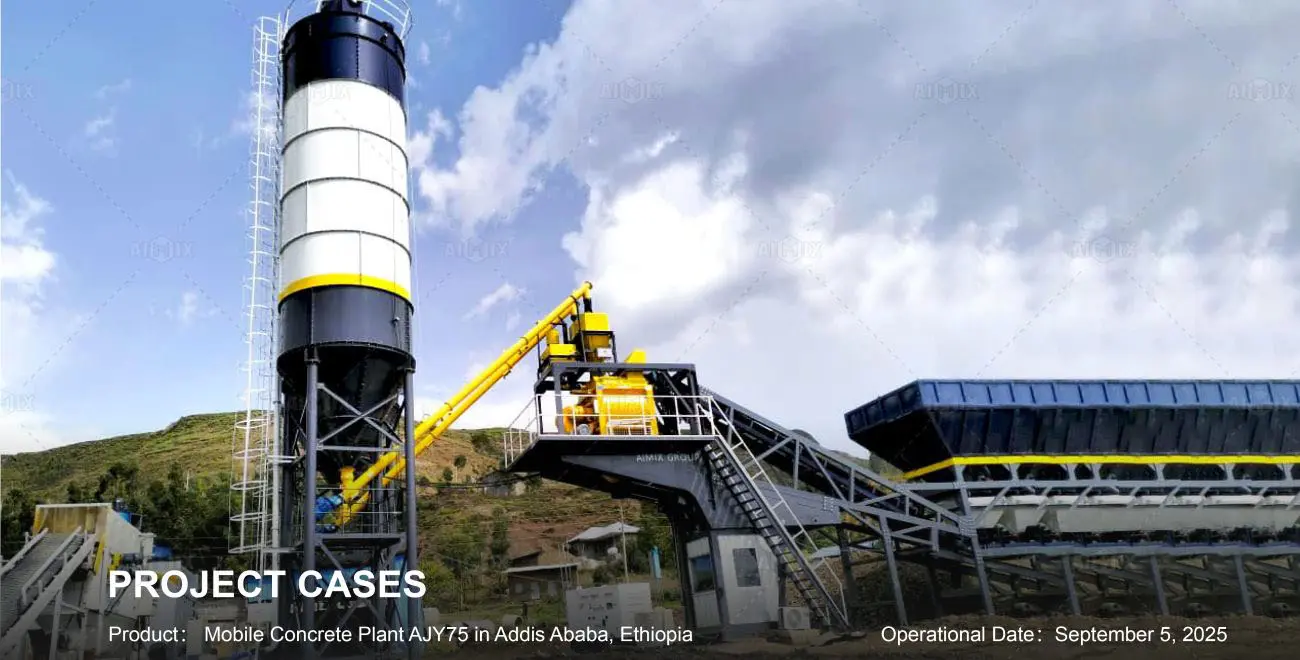

Mobile Type Ready Mix Concrete Plant
Mobile type rmc plant is actually in a semi-trailer unit, which is very convenient to move from one site to another site. It is suitable for short-term construction project. If you have many projects to do, and they are near from each other, mobile type concrete plant will be your ideal choice.
Specifications
| Types | Belt Type | ||
|---|---|---|---|
| Model | AJY-25 | AJY-35 | AJY-50 |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 |
| Mixing Cycle Period (s) | 72 | 72 | 72 |
| Rated Input Volume (Model of Batching Machine L) | 800 | 1200 | 1600 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 |
| Standard Aggregate Bin Capacity (m³) | 2×3 | 2×5 | 2×5 |
| Category of Aggregate | 3/4/2002 | ||
| Powder Storage Silo (ton) (Optional) | 1×50 | 2×50 | 1×100 |
| Max. Discharging Height (m) | 3.8 | 3.8 | 4.1 |
| Weighing Range & Accuracy of Aggregate (kg) | （300~1500）±2% | （300~1500）±2% | （300~3000）±2% |
| Weighing Range & Accuracy of Cement (kg) | （100~300）±1% | （100~300）±1% | （250~900）±1% |
| Weighing Range & Accuracy of Water (kg) | （60~150）±1% | （60~150）±1% | （80~300）±1% |
| Weighing Range & Accuracy of Additive (kg) | / | （8~20）±1% | （8~20）±1% |
| Overall Weight (ton) | ≈15 | ≈22 | ≈26 |
| Installation Power (kW) | ≈61 | ≈73 | ≈92 |
| Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase | ||

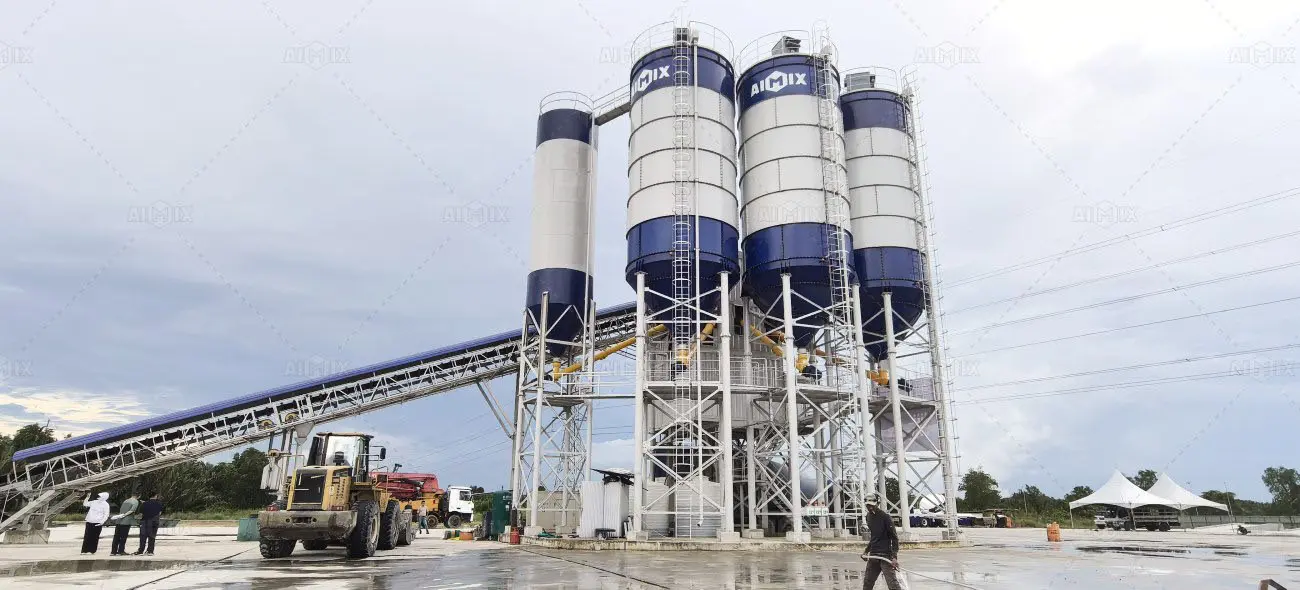

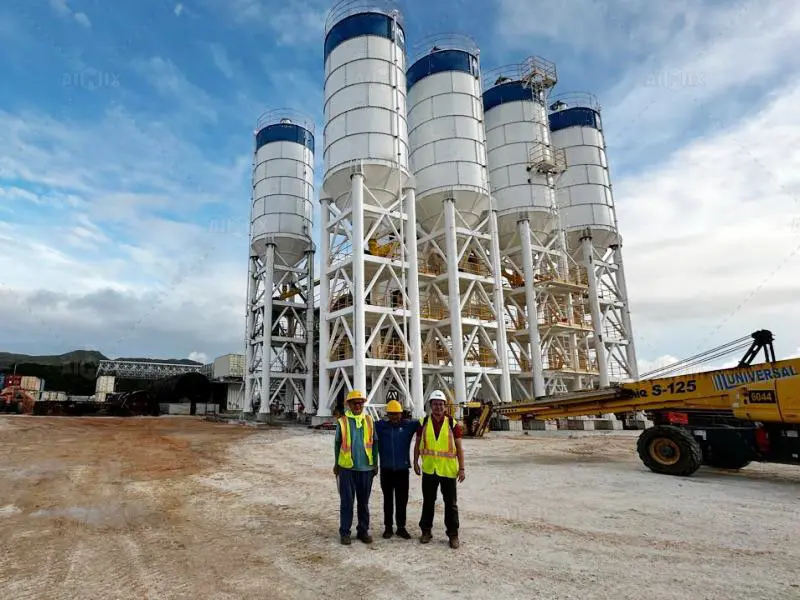

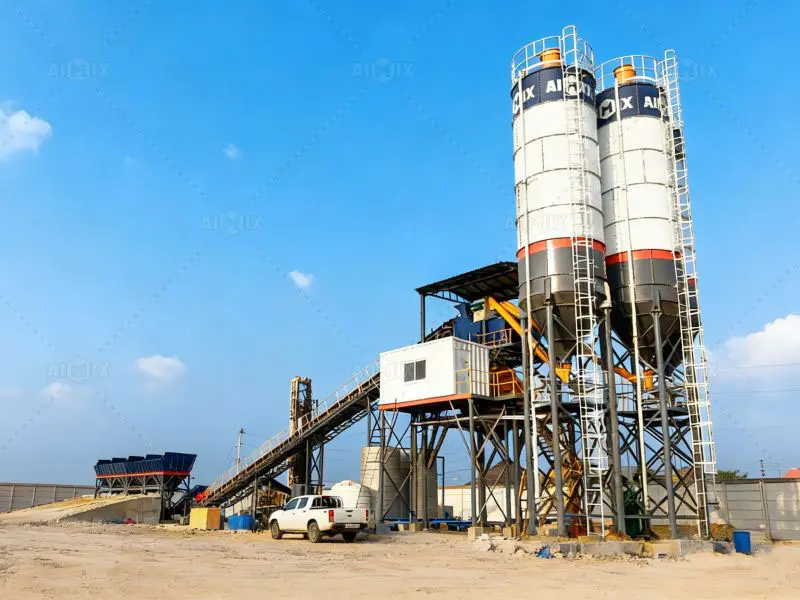

Know more cases of ready mix batching plant:
Advantages Of Large And Small Ready Mix Concrete Batching Plants
Advantages Of Large Readymixed Concrete Batching Plant
- High Automation: The plant operates with a high degree of automation, reducing the need for manual intervention and increasing efficiency.
- Strong Production Capacity: Designed for large-scale production, the plant can handle high volumes of concrete consistently.
- High Weighing Accuracy: Advanced systems ensure precise measurement of materials, leading to consistent and high-quality concrete.
- Superior Mixing Quality: The plant delivers excellent mixing performance, producing uniform concrete batches with consistent properties.
- Versatility in Production: Capable of producing multiple types of concrete with various mix ratios and accommodating different warehouse numbers.
- Continuous Operation: Built for long-term, continuous production, making it ideal for extensive projects.
- Environmental Performance: All operations occur within a closed system, minimizing environmental impact through reduced emissions and waste.
- Material Efficiency: The intensive production method significantly reduces material waste and minimizes residue, enhancing sustainability.
- Application in Large-Scale Projects: These plants are primarily used in major infrastructure projects like national water conservancy, power plants, highways, and high-rise buildings.
Advantages Of Small Ready Mix Concrete Batching Plant
- Cost-Effective Investment: Requires a lower initial investment with the potential for quick returns.
- Stable Production: Offers a reliable and steady production rate, suitable for a wide range of applications.
- Space-Efficient: Occupies a small area, making it ideal for projects with limited space.
- Low Maintenance: Requires minimal manpower and time for daily maintenance, reducing operational costs.
- Versatile Application: Well-suited for new rural-urban construction, as well as road, bridge, and other engineering projects.
How To Choose The Right RMC Plant For Your Project?
Ready mixed concrete batching plant is currently the most widely used equipment for making concrete. Choosing the right RMC plant for your project involves several key considerations:
Project Requirements
Start by assessing the type and volume of concrete your project needs. For smaller projects, a compact or hopper-type batching plant might suffice, while larger projects may require a high-capacity belt-type plant.
Space and Location
Consider the space available on-site. If space is limited, a compact or modular plant would be ideal. Additionally, consider the location to ensure the plant’s proximity to raw materials and the construction site.
Production Capacity
Choose a rmc concrete plant with a production capacity that matches your project’s timeline and demands. This ensures efficient and timely concrete supply.
Customization Options
Look for a plant that can be tailored to your specific requirements, including concrete types and automation levels.
Manufacturer Support
Select a reputable concrete plant manufacturer like Aimix, who offers professional guidance, installation, and after-sales support, ensuring smooth operation and maintenance.
Consider the above guidance carefully while you are making a choice to ensure the RMC plant you select will meet all your project’s needs. To suit different requirements, mobile type, stationary type and small-scale batch plants will provided for customers. Anytime you plan to choose a plant for your project, just tell us and we will help you make an informed choice.
| Items | AJSY mini mobile type | AJ stationary type | AJY mobile type | AJZY drum type |
|---|---|---|---|---|
| Concrete mixing capacity | 35/50 m3/h | 25-240 m3/h | 25-120 m3/h | 15-60 m3/h |
| Final | high | high | high | middle |
| Foundation requirements | free foundation | concrete foundation | simple concrete foundation | free foundation |
| Installation period | 0.5 day | 7-10 day | 3-7 days | 1-2 days |
| Required land area | low | high | high | low |
| Mobile flexibility | high | low | middle | middle |
| Control system | Manual/Fully automatic control | Fully automatic control | Fully automatic control | Semi Auto with Control Panel |
How To Find Reputable Ready Mix Concrete Plant Manufacturers?
- Firstly, you need to find several ready mix concrete plant companies online and offline.
- Then make comparison in turns. You can judge the ready mix plant manufacturer from scale, mount of engineers and technicians, production technology, production period, production process, shipment and amount of successful cases. From these aspects, you will find the most reliable one among the numerous ready mix concrete plant suppliers.
- You need to make sure they can supply you different capacities of ready mix concrete batching plants, such as, small ready mix concrete plant, ready mix concrete mini plant, mobile and portable type, etc. If possible, go to their factory and workshop, seeing is believing!
How Do You Start A Ready Mix Concrete Batching Plant?
- First of all, you need to have a clear understanding of your project, whether you want a ready-mixed concrete mixing plant to produce concrete for your project or produce concrete to sell to third parties.
If you use a ready mix concrete plant for your own project, the first step is to determine the type and quantity of concrete required for your specific needs.
If you plan to sell concrete, it’s necessary to identify the types of concrete in demand locally or by your customers. Then, you should search for a reliable ready mix concrete plant manufacturer, whether online or locally.
- Next, consult with a knowledgeable sales representative to understand the advantages and disadvantages of different ready-mix concrete batching plants. This will help you choose the plant that best suits your requirements.
- Finally, purchase the right ready mix plant with the guidance of a professional. Reputable manufacturers typically offer installation and commissioning services, as well as training for your staff to ensure efficient operation.
For instance, our Aimix Group is professional in producing high-quality ready-mix concrete plants. We have a team of professional sales staff and experienced engineers who specialize in portable ready-mix plants. They are equipped to assist you every step of the way, from selecting the right plant to providing guidance on starting and operating your ready mix concrete plant efficiently. With our expertise and support, you can confidently set up a rmc concrete batching plant that meets your specific needs and ensures successful project outcomes.
How Much Is A Ready Mix Concrete Plant?
Ready mix concrete plant prices vary by region and can change with industry developments. The main factors affecting concrete plant price including production capacity, plant type, automation features and more. You need to make a comparison before purchasing a ready mix plant. You can search “What is the price of a ready mix concrete plant” on your search engine, and contact the suppliers to get quotations.
From the below table you will know the price ranges of our concrete plants and the specific prices will be determined according to the actual needs and configurations.
| Model | Price |
|---|---|
| AJ-25-AJ-50 | $33000-$48000 |
| AJ-60-AJ-180 | $78000-$210000 |
| AJY-25-AJY-90 | $38000-$120000 |
Cost of Starting A Ready Mix Concrete Batching Plant
Before investing in a ready mix concrete batch plant, you need to think about the ready mix concrete plant cost. The total cost of a ready mix concrete plant involves several key components beyond the initial purchase price.
RMC Plant Price
This is the initial cost of purchasing the batching plant.
Raw Materials
Additional expenses include purchasing raw materials such as stone, pebble, cement, fly ash, and additives required for concrete production.
Transportation
If the construction site is distant from the ready mix plant, you may need a concrete transit mixer to transport the ready-mixed concrete, which adds to the cost.
Operational Costs
Ongoing expenses include salaries for employees, routine maintenance, and daily inspections to ensure efficient and smooth plant operation.
To minimize these costs, you are advised to choose and cooperate with a reliable ready mix concrete batching plant manufacturer. A reputable concrete plant manufacturer and supplier can provide competitive price, support, and advice on optimizing your investment, helping you manage and reduce the overall costs effectively.
What Are The Main Components Of Ready Mix Concrete Plant?
1. Aggregate Handling
A concrete batcher accurately weighs and batches aggregates, ensuring consistent concrete quality. It manages materials like stone, pebble, and sand.
2. Powder Storage
We use cement silos to store powder. Generally, we use cement and fly ash as storage bins. Of course, it all depends on which type of powder you need, you must choose the ideal powder for your project. For cement silos, we can provide you with horizontal cement silos, bolted type cement silos, welded type cement silos, and low-level cement silos. Also, we can produce a mobile cement silo for your requirement.
3. Liquid Handling
We all know, a standard formula is water and additive, so you need to prepare a water pool and additive pump, pump this two liquid to their own weighing system.
4. Concrete Mixing Machine
We use JS series twin shaft concrete mixerand planetary concrete mixer, it is the most important part in the whole ready mix concrete equipment.
5. Feeding Device
As mentioned earlier, we have hopper type and belt type readymix concrete batching plants for sale, it is classified by this. But hopper type ready mix concrete batch plant is not efficient as belt type.
6. Pneumatic System
Air compressor, air rope, pneumatic triplet. Pneumatic triple parts are mainly composed of a pressure-reducing valve, filter, and lubricator. Installed at the outlet of the air compressor gas.
It plays the role of filtering, decompression, and oil mist in the pneumatic system. Filtration is to separate impurities such as condensed water and sludge in compressed air, make the compressed air get preliminary purification; decompression can adjust the outlet pressure through the triple piece; oil mist is sprayed oil mist lubrication air slide valve, etc.
7. Electric Control System
Including control room, strong current cabinet, weak current console, air conditioner, etc.
These components work together to produce consistent, high-quality concrete in the required quantities, tailored to specific project needs.
How To Set Up Ready Mix Concrete Batching Plant?
The installation method and process requirements of ready mix concrete batching plant is very important. And it can be divided into eight parts.
Concrete Mixer and Metering System Installation
- The installation of new ready mix plants shall conduct acceptance and surface treatment on the foundation, which must require leveling and alignment, marking, perpendicularity and flatness error ≤±0.5mm, diagonal error ≤±4mm, and there shall be no residual concrete and welding slag on the embedded parts.
- Install the column in the machine room. The elevation error of each point on the upper-end face is required to be ≤±3mm, and the levelness error of the axis and diagonal is required to be ≤±3mm. Before the secondary grouting of the embedded bolt hole, the column in the machine room shall be erected with scaffolding for temporary fixing.
- Lift the platform structure of the first floor of the compulsory concrete mixer as a whole (including mixer, reducer of the main engine, and main motor). Position the bolt hole with a positioning punch. After all bolts and connecting pins in all parts are installed, the hook can be loosened.
- The whole structure of the two-storey platform of the concrete mixer is hoisting (including hopper, cement scale, water scale, and admixture scale). After all bolts and connecting pins of all parts are installed, the hook of the crane can be loosened.
- Maintenance and walking platform installation of the first and second floors of the twin shaft mixer.
Cement Silo and Screw Conveyor Installation
- Cement silo lower body frame installation, the upper plane of the framework for horizontal alignment, diagonal horizontal error ≤3‰.
- Install embedded bolts and secondary grouting, after the strength reached 80% to tighten the bolts.
- The cement silo is hoisted and the bolt hole is positioned with the positioning punch. After all, bolts are installed, the crane can loosen the hook. Note: During installation, the crane and its operation mode are the same as when dismantled.
- Verticality test shall be carried out, and the requirement of verticality shall be no more than 3‰. If necessary, gaskets can be used between the connecting surfaces of upper and lower bodies to adjust the verticality.
- Installation of screw conveyor, screw conveyor installation Angle is 37°, the upper and lower joints should be installed tightly to prevent leakage of cement.
Belt Conveyor System Installation
- Alignment of the foundation to ensure that the belt conveyor axis and the mixer axis of the plant ready mix are in a straight line.
- Install the belt conveyor bracket, test the straightness of the belt conveyor bracket in the length direction to meet the requirements.
- Install the belt conveyor, adjust the levelness of the drum at both ends of the belt conveyor.
- Install the aggregate receiving port.
Aggregate Batching System Installation
- Align the foundation to ensure that the axis of the batching machine and the axis of the twin-shaft compulsory concrete mixer are in a straight line.
- Install the batching machine and align the aggregate batching machine horizontally in the direction of width and length.
- Install embedded bolts and conduct secondary grouting.
- Install the upper high baffle.
Water Supply Pipeline Installation
- Install water storage tank, water pump, and control valve.
- According to the drawing design and installation of all parts of the connecting pipeline and various accessories, to ensure that there is no leakage phenomenon.
- Air pump, control cylinder, solenoid valve, and air source handling components should be installed.
- Install and connect the air pipes according to the drawing design to ensure that there is no air leakage everywhere.
Air Supply Pipeline Installation
Admixture Adding System Installation
- Install the bottom admixture storage tank, pipeline pump, and pipeline, valve.
- The installation and layout of the system should meet the requirements of the drawings, and the installation of the pipeline pump should meet the requirements of the manufacturer’s manual. The pipeline pump should be fixed firmly.
Electrical System Installation
- Install the operating table, power cabinet, and control cabinet in the operating room of the concrete ready mix plants.
- Install control cables and power cables for each motor. During installation of the concrete ready mix plant, all relays, contactors, switches, and starters shall be installed according to the drawings or the factory instructions of the components.
- Install the control cables of each department. Put the cables in the cable tray, arrange them neatly without crossing, and hang the cable tag.
- Install electric whistle, electric bell, and grounding, lightning protection electrical devices. When installing the grounding device, attention should be paid to the reasonable arrangement of the grounding control network. Dig a 2m deep pit around the control room, the main body of the mixer, and the cement silo, place the round steel pipe (Φ50) with a length of 1.5m into the ground and backfill with a flat iron after connection, and tamper it. The lightning protection device is safe and reliable.
- Install the limit device of the moving parts. Before installation, it is necessary to ensure that the limit switch should be effective and responsive.
Install lighting in the machine room and each workplace room to ensure sufficient lighting for the operation and construction.
Click the video to know the concrete plant installation steps more intuitively.
The installation time for ready mix concrete plants can vary significantly based on the type and size of the plant. Here’s a table showing the typical installation times and basic requirements for Aimix different types of ready mix plants.
| Items | AJSY mini mobile type | AJ stationary type | AJY mobile type |
|---|---|---|---|
| Final | high | high | high |
| Foundation requirements | free foundation | concrete foundation | simple concrete foundation |
| Installation period | 0.5 day | 7-10 day | 3-7 days |
| Required land area | low | high | high |
How Does A Ready Mix Concrete Batching Plant Work?
What is the working process of a ready mix plant? How does a ready mix concrete plant work? There are mainly three steps for ready-mixed concrete production, utilizing key raw materials: aggregate, cement, fly ash, water, and additives. Let’s see how a ready mix plant works below.
Aggregate Handling
First, a wheel loader transports aggregates like stone, pebble, and small aggregate to the concrete batching machine. The aggregates are then weighed and batched according to the required proportions before being transferred to a belt conveyor or lifting hopper, which delivers them to the concrete mixer.
Cement and Fly Ash
Cement and fly ash are stored in cement silos. They are conveyed to the concrete mixer through a screw conveyor. Adjustments are made if there are special requirements for these materials.
Additives and Water
An additive pump transfers the additives to the water weighing system after weighing. Once all raw materials are in the concrete mixer, press the mix button. After the specified mixing time, fresh, ready-mixed concrete is produced.
Maintenance Tips For RMC Batching Plant
- When the rmc batching plant equipment has worked for two to four hours, the operator should inject about 10ml oil into the butter mouth of the host.
- Steel rope of hopper needs to be lubricated by grease or motor oil to keep it wet, grease is also required inside and outside the rail.
- Gear of the host and the rmc concrete batching machine should be lubricated by grease.
- When the new ready mix concrete cement plant works for 200 hours, each reduces should change the lubrication oil as required, later, change it after 2000 hours working.
- Meanwhile, the cleaning of ready mix dry plants is also essential. The client can clean up the mixing drum, but usually, ignore clean the cement feed port. If it is not cleaned for a long time, cement cannot enter the concrete mixer smoothly.
FAQs of Ready Mix Concrete Plant
What is a ready mix concrete plant?
What is a ready mix plant. Ready mix concrete plant is an important equipment to produce ready-mixed concrete for many constructions. Such as, house construction, building project, road project, factory construction, parking lot, garden, and airport construction, etc.
What is the meaning of ready mix concrete?
Ready mix concrete refers to cement, aggregates, water and admixtures, mineral admixtures, and other components mixed according to needs in a certain proportion, which are sold at a ready mixed concrete plant after being measured and mixed, and transported by transport vehicles. The concrete mixture is delivered to the place of use within time. A mixture of crushed stone, sand, cement, and water with a mixer at the construction site.
How is ready mix concrete made?
Add aggregate, cement, fly ash, additive and water into ready mix plants, after the stirring, ready mix concrete was made.
Which kind of your ready-mixed concrete mixing plant sells best?
There are different Types of ready mix plants. In our sales records, among the stationary ready mix concrete batching plants, AJ-35, AJ-50 and AJ-60 have the best sales volume. Among the mobile ready mix concrete plants, the best sales volume is AJY-35.
Is It Cheaper To Use Ready Mixed Concrete Plant?
On this issue, I think we need to look at dialectically.
If you just want to build a house or a road and don’t have a long-term need for ready-mixed concrete, you can choose to buy your concrete from a ready-mixed concrete manufacturer.
If you have other projects to work on, and you want to make money and grow the ready-mixed concrete business in the long term, it’s a good idea to buy a ready-mixed concrete batch plant.
This way you can also sell to third-party customers as a ready-mixed concrete manufacturer, thus expanding your business, not only completing your own projects, but also helping others complete their projects, and at the same time, making money from selling the concrete.
What should be paid attention to before the ready mix batching plant starts production?
(1) Check whether all the switches on the electrical console are in the normal position;
(2) See whether the belts of the batching machine and belt conveyor are normal;
(3) Check whether the travel switch and proximity switch of the overhaul door and discharge door of the compulsory mixer are normal;
(4) See whether the grease in the centralized lubricating oil cylinder of the concrete mixer is sufficient;
(5) Check whether the lubricating oil of other operating parts of the mixing station is sufficient;
(6) See whether the connecting bolts of each connecting part are tight;
(7) Check whether the manual butterfly valve of the powder tank is open;
(8) See whether the gas, water, and admixture pipelines are normal;
(9) Check whether the aggregate, powder, water, and additives are sufficient;
(10) Before operating the ready mix concrete batching plant, check whether the switches are all closed in the strong electric cabinet;
(11) Turn on the power knob of the console, the power indicator should be on at this time, press the air compressor start button on the cabinet door, and check whether the air pressure is above 0.4MP;
Turn on the power of the computer, start the computer and run the monitoring program, according to the set formula ratio, ready to start concrete production.
What are the checks before the operation of ready mix plant?
(1) If the cylinder or butterfly valve can not be electrically opened (using the operation panel or can’t be opened automatically). Generally, the solenoid valve coil is damaged, replace the new coil.
(2) Large numbers are not regularly pulsed. Check whether the sensor circuit has a short circuit or poor contact, the operator can connect the sensor and control system for data comparison or scale calibration. Check whether the data is stable, if not, it is damaged, you need to replace the new sensor.
(3) The upper limit light of the control panel and control instrument does not work, the computer has no signal. Check corresponding travel switch or proximity switch for any damage, if there is no damage, check if the line is interrupted or the contact is bad.
(4) The contactor is closed, but the motor does not move; check if the corresponding circuit breaker is closed.
(5) Press the panel to no response; check if the hand automatic conversion button is in the corresponding position.
What are the wearing parts of the ready mixed concrete plant?
Mixing blades and liners, solenoid valves, stretching cylinders, dust filter elements and conveyor belts, etc.
I believe you have a basic understanding of the ready mixed concrete plant now after reading the article, so if you are interested to know further about ready mix plant and would like to buy one, please feel free to contact us and we will customize a right ready mix concrete batching plant for your construction project. We are looking forward to cooperating with you in the near future!
