How To Choose A Rock Crusher

What is a Rock Crusher? A rock crusher for sale is a powerful mechanical device used to break down large rocks into smaller, more manageable pieces, such as, gravel, sand, or even fine powder depending on the intended use of users.

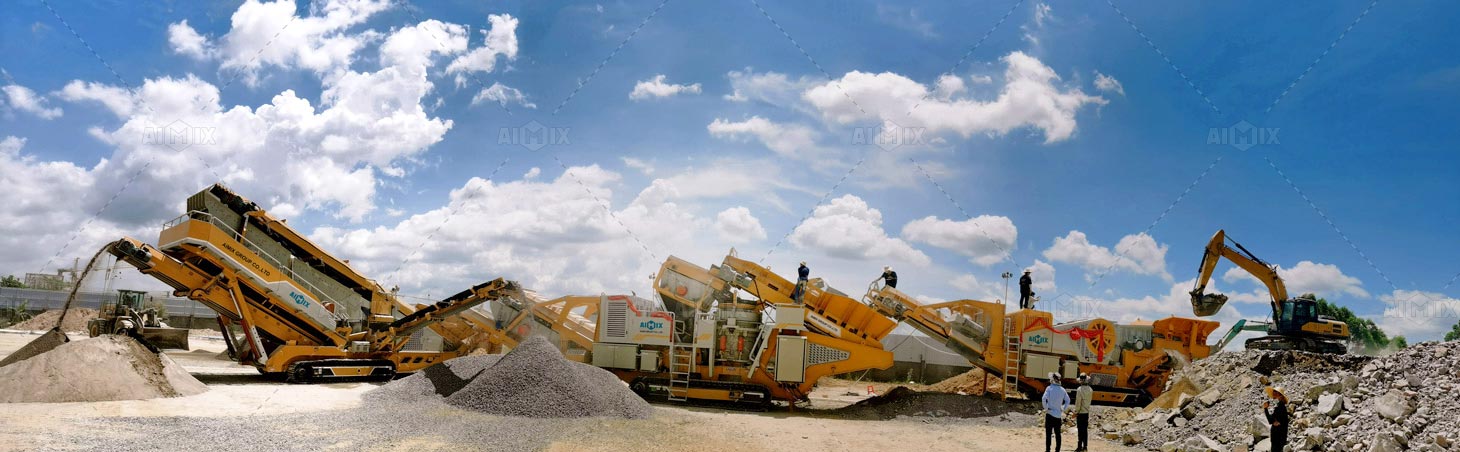

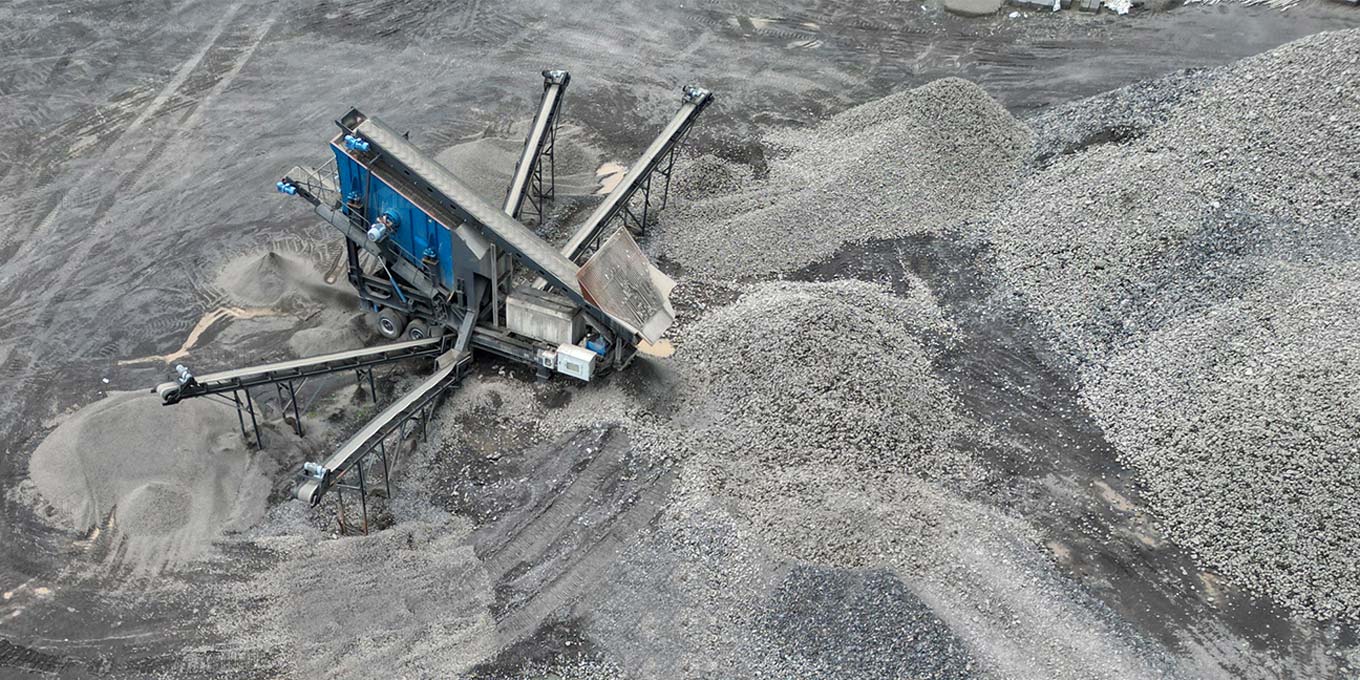

AIMIX rock crusher plant

Therefore, rock crushers play a pivotal role in various industries, including mining, construction, and recycling. Let’s start by recognizing the rock crusher machine by its appearance.

What Does a Rock Crusher Look Like?

The appearance of a crusher rock for sale can vary significantly based on its type and design. However, there are common components and features that define the overall look of these machines. A typical rock crushing machine consists of a sturdy frame supporting the crushing components, such as jaws, cones, or hammers, depending on the crusher type.


In jaw rock crushers, you’ll find a fixed jaw and a movable jaw arranged in a “V” shape. The jaws exert force on the rock, breaking it down into smaller pieces.

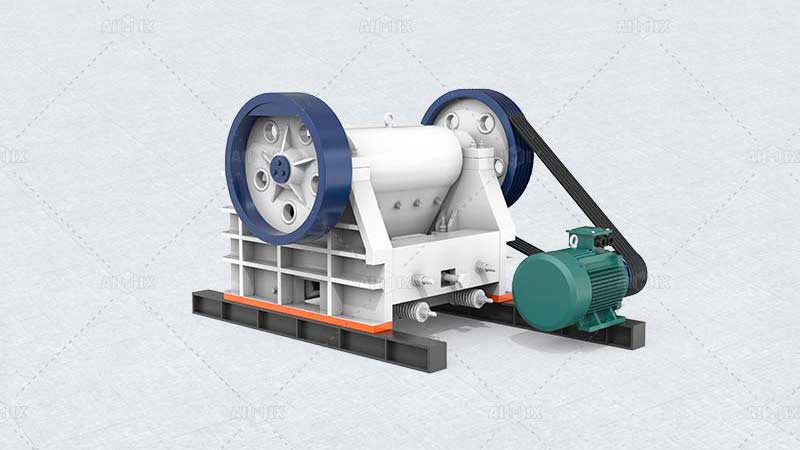

APJ-7510E jaw rock crusher
jaw rock crusher structure
European jaw rock crusher structure

A rock crusher cone exhibits a robust steel frame supporting a cone-shaped head that gyrates within a fixed bowl liner. Driven by an electric motor or diesel engine, it efficiently crushes rocks with an eccentric motion. Components include an adjustment mechanism, hydraulic system, and dust seal, optimizing its appearance for efficient rock crushing.

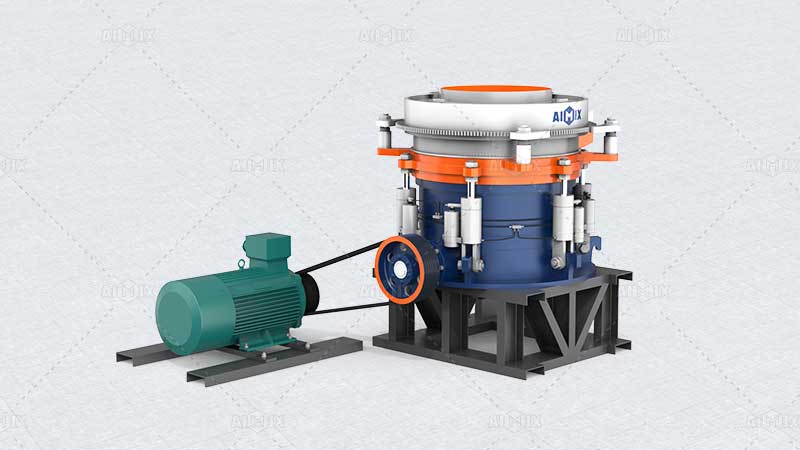

APC-132C-F cone crusher
APC-200C compound cone rock crusher

Impact rock crushers feature a rotor with hammers or blow bars that spin rapidly, striking the material and breaking it apart upon impact. The size and shape of the rock crushing machine for sale may vary, ranging from compact units suitable for small-scale operations to large, industrial crushers used in mining and quarrying.
impactor rock crusher APF-1214V

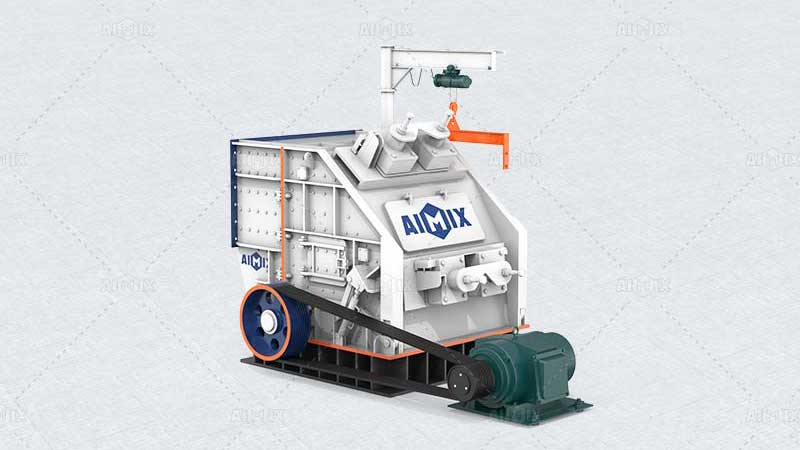

impact rock crusher machine

Modern rock crushers also incorporate advanced technologies for efficiency, safety, and environmental considerations. They may be mobile or stationary, depending on the application and operational requirements. Ultimately, the choice of a rock stone crushing equipment should align with the specific needs of the task at hand, combining functionality, durability, and efficiency in processing rocks into valuable resources.

Understanding these structures, the essay delves into the benefits of investing in rock crushers near me, showcasing their versatile utility for industries and the economic advantages they offer.

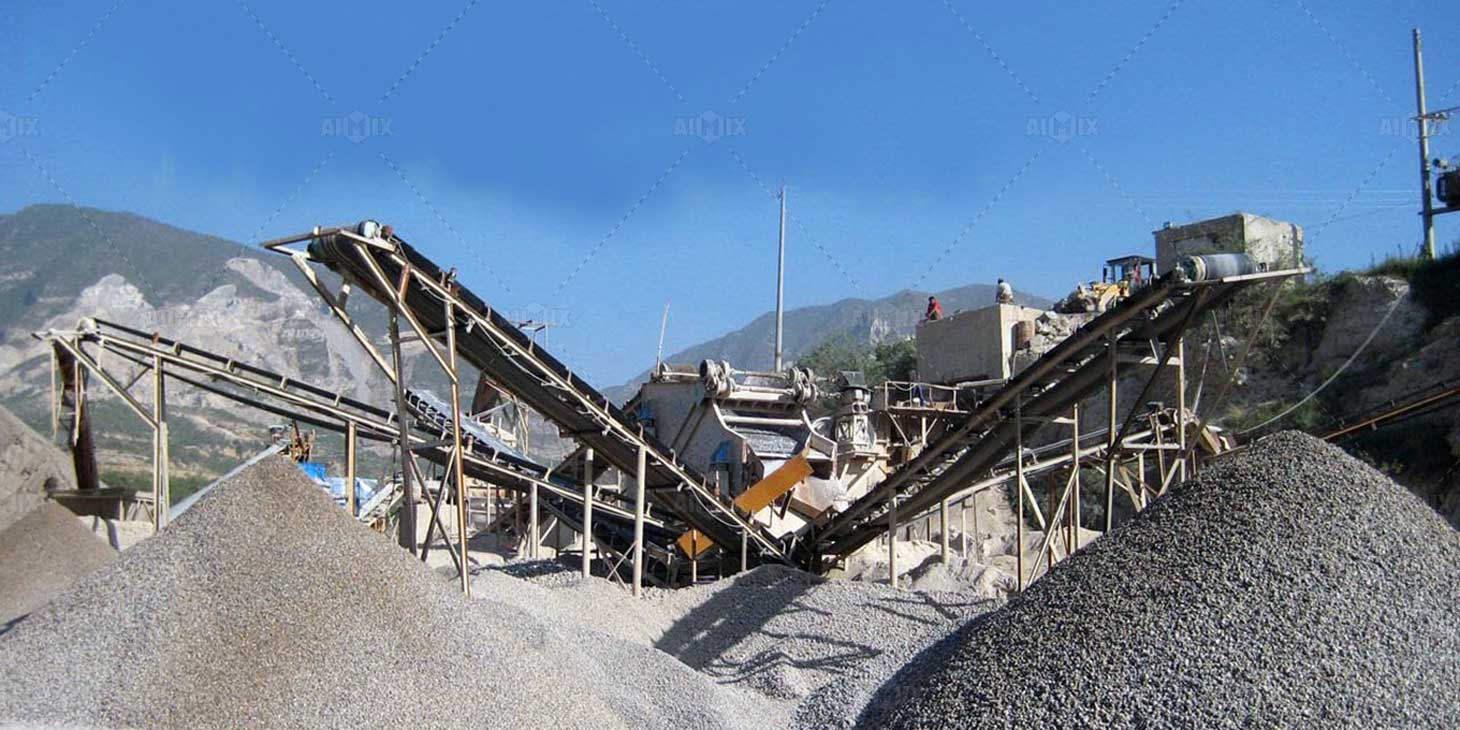

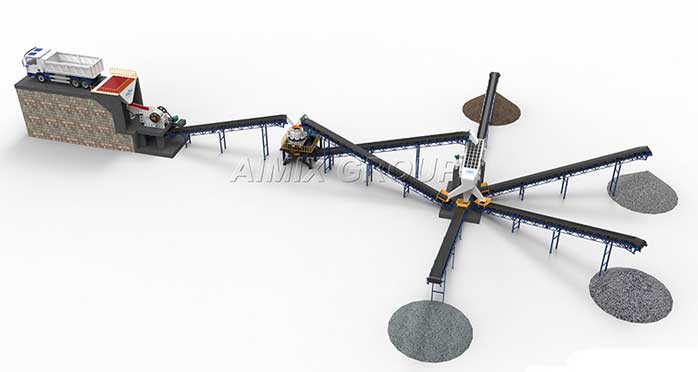

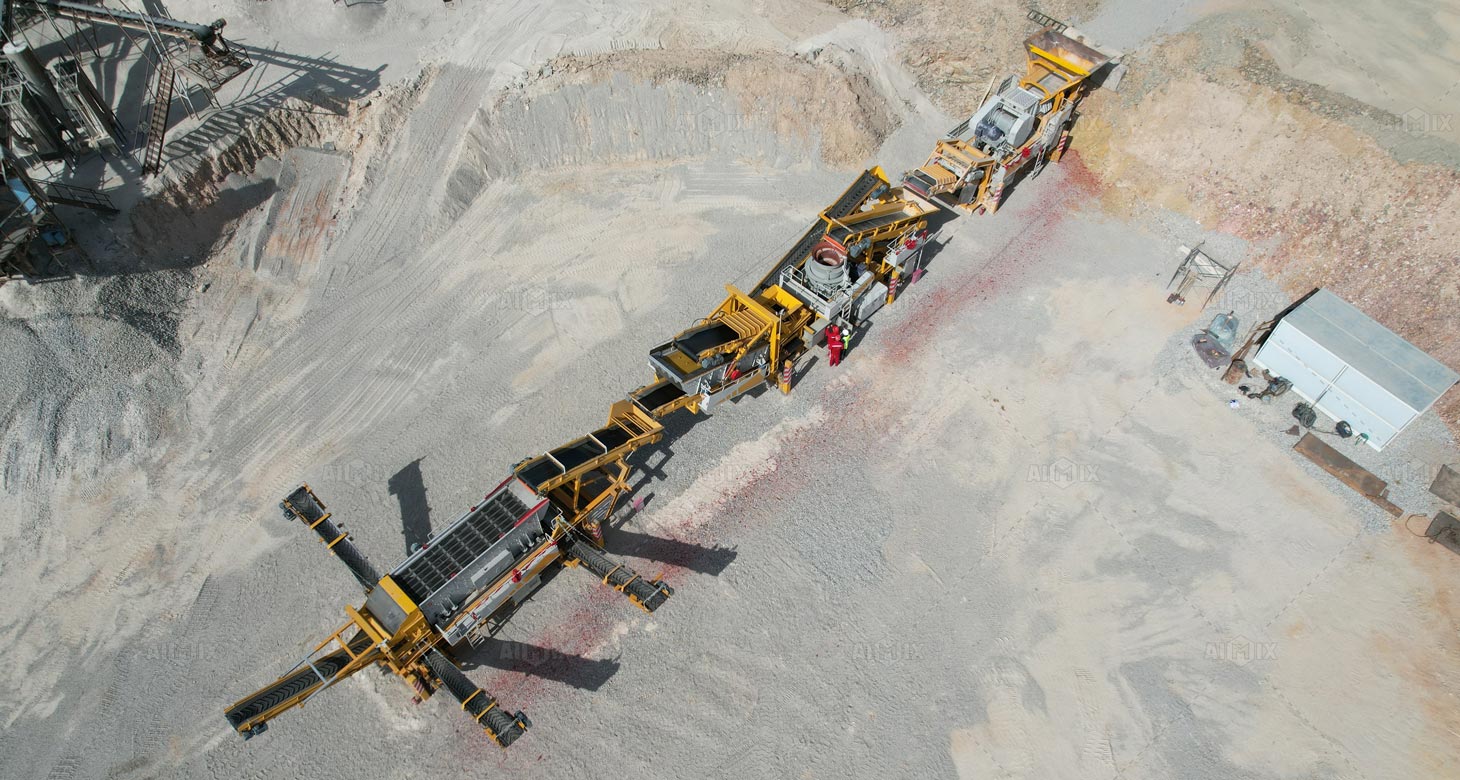

rock crushing plant in working site

The benefits of a rock crusher

High efficiency and guaranteed fast payback

Investing in a rock crusher equipment yields a multitude of benefits for industries. Firstly, these machines enhance operational efficiency by breaking down large rocks into smaller, manageable pieces, facilitating easier handling and processing.

Mechanized operation, saving labor costs

Additionally, rock crushers contribute to cost savings, as they streamline material extraction processes, reduce manual labor, and enhance overall productivity.

Wide range of applications for lasting benefits

Their versatility ensures applicability across diverse industries, from mining to construction, making them a valuable and enduring investment.

High product quality and solid third-party customer cooperation

Moreover, the consistent and efficient crushing they provide leads to improved product quality, contributing to a positive impact on downstream operations and end products.

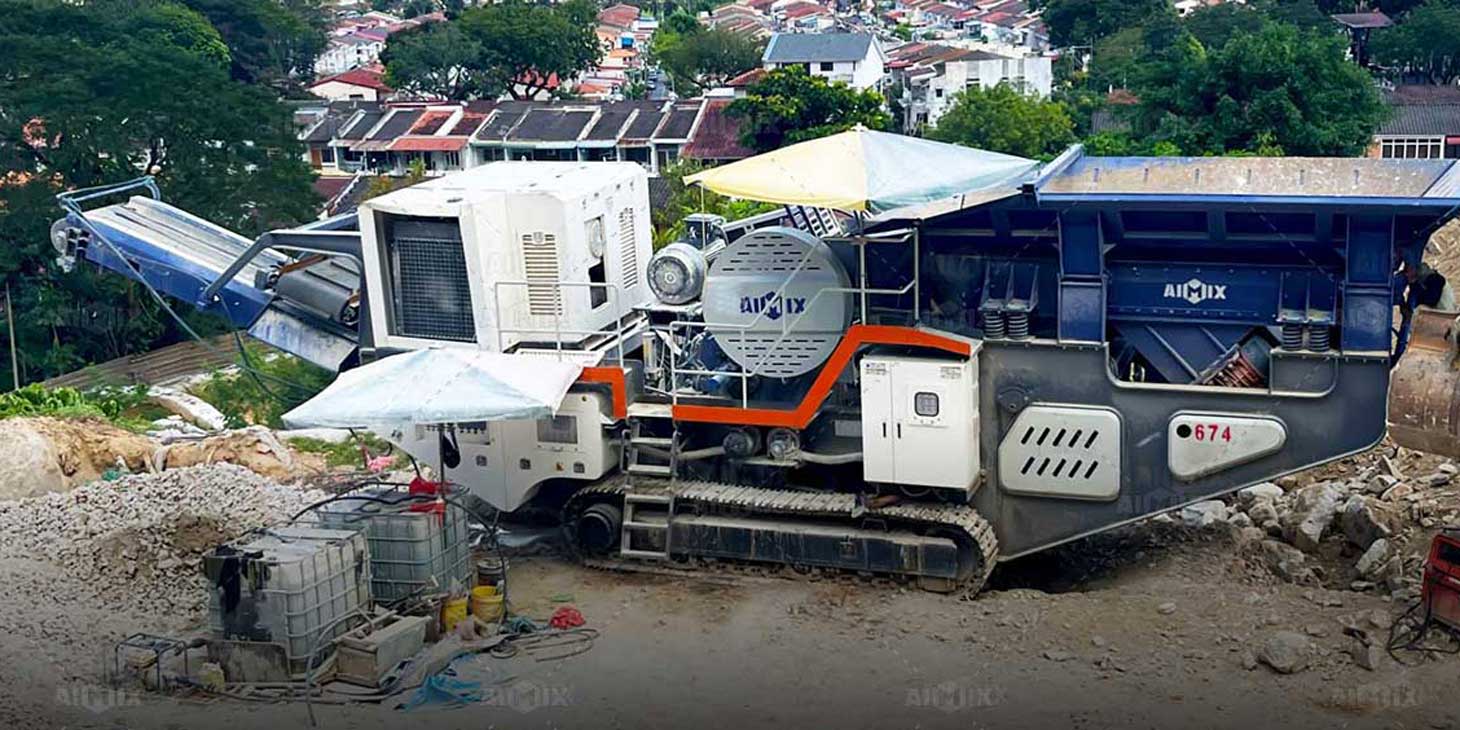

rock mobile crawler crusher in Philippines
mobile crawler crusher in Philippines
mobile crawler rock crusher in Philippines

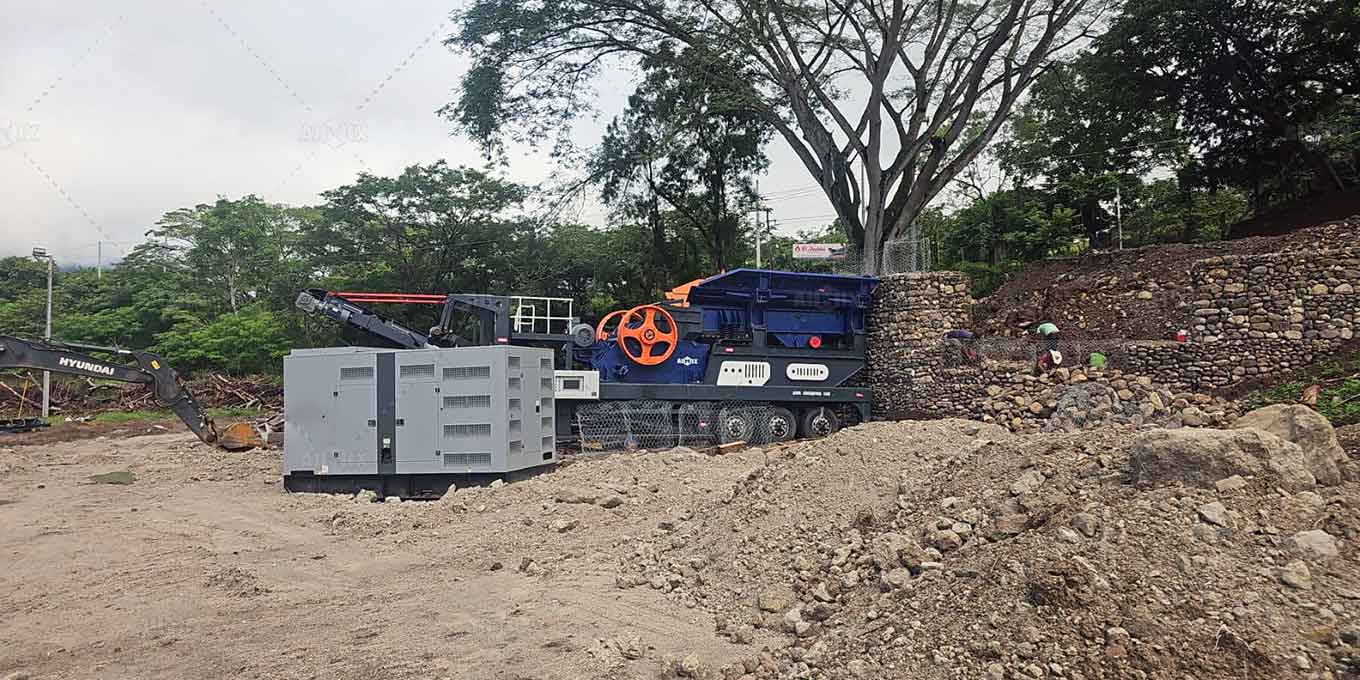

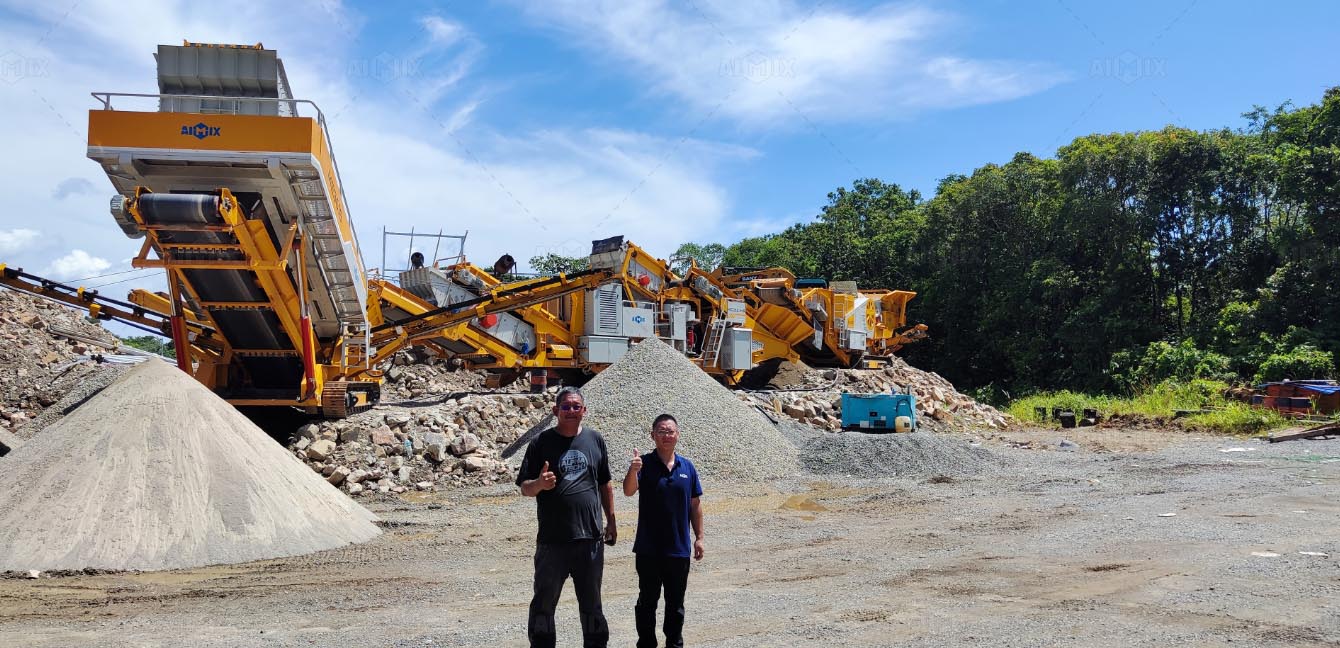

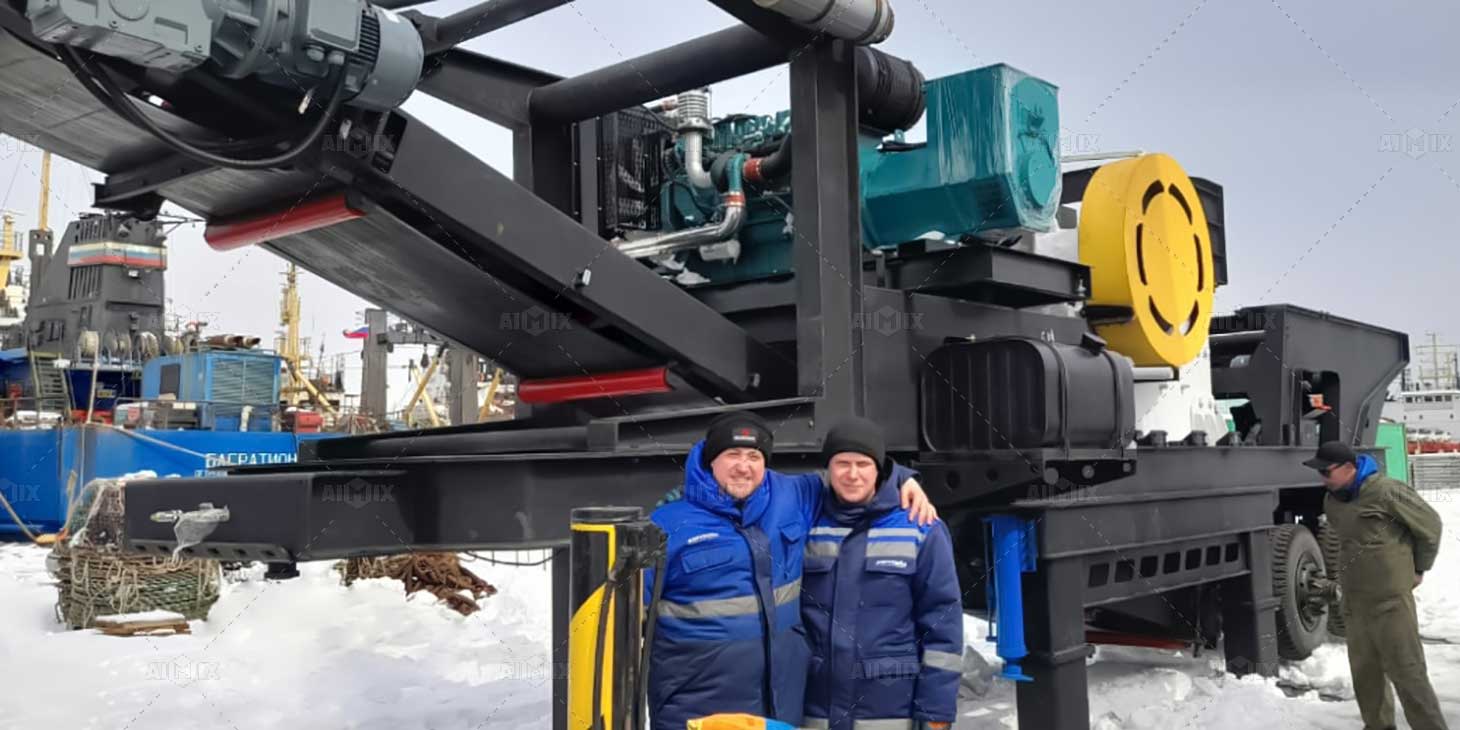

mobile rock crusher onsite

Ultimately, the benefits of investing in a rock crusher machine for sale extend beyond immediate operational improvements, positively influencing the long-term economic viability of various industrial operations.

So what rock crushers are available on the market? This next section shows you a wide range of crushing equipment, hoping to help you make a reasonable and correct choice.

How Many Types of Rock Crushers Are There

Rock crushers come in various types, each catering to specific needs in industries such as mining, construction, and aggregates. Understanding the advantages and disadvantages of different types is crucial for making informed decisions. This essay will delve into five prominent rock crusher types: tire mobile rock crushers, mobile rock tracked crushers, jaw rock crusher for sale, rock cone crushers, and impact crusher machine for sale.

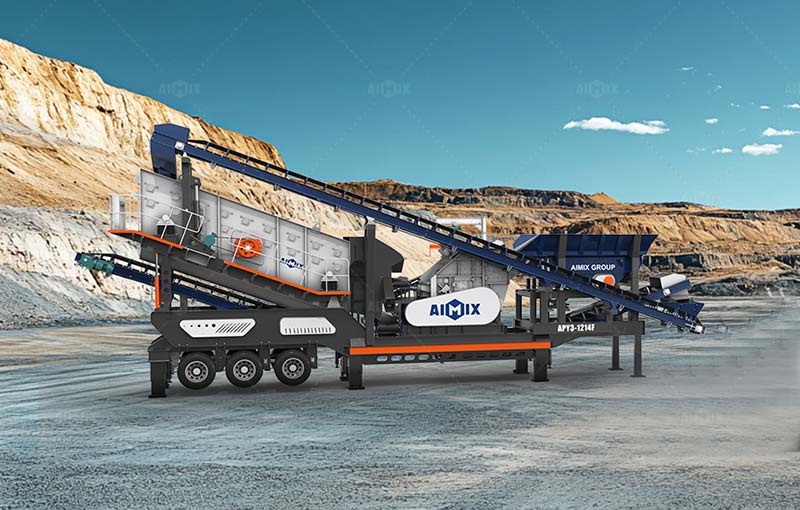

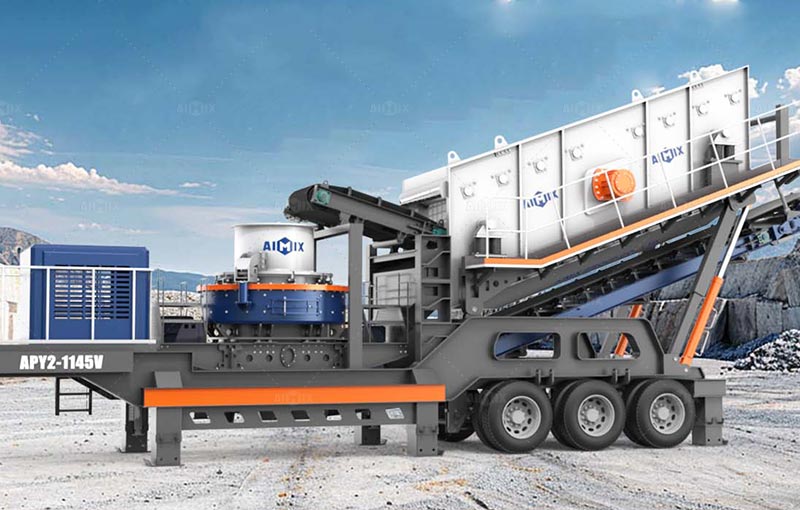

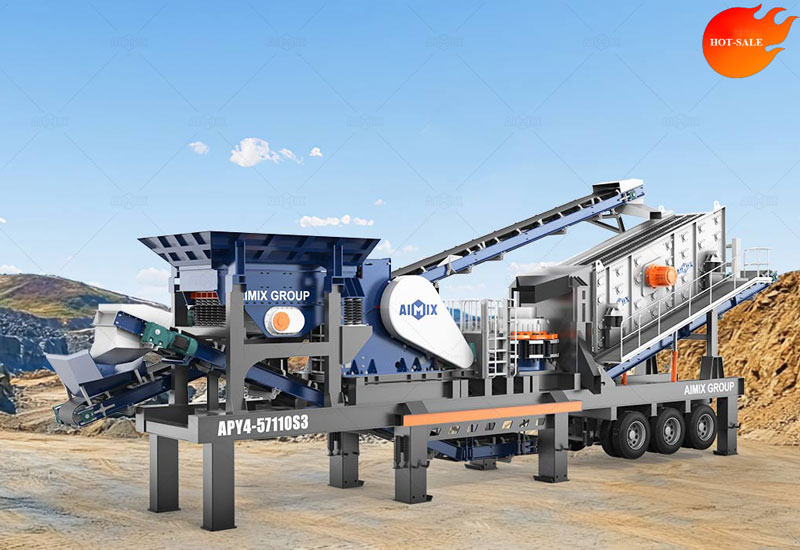

Tire Portable Rock Crusher

Advantages:

  • High Mobility: Easily transported on-site.
  • Quick Setup: Ideal for temporary operations.
  • Cost-Efficiency: Lower initial investment compared to some alternatives.

Disadvantages:
Terrain Dependency: Performance affected by challenging terrains.
cone tire type rock crusher plants

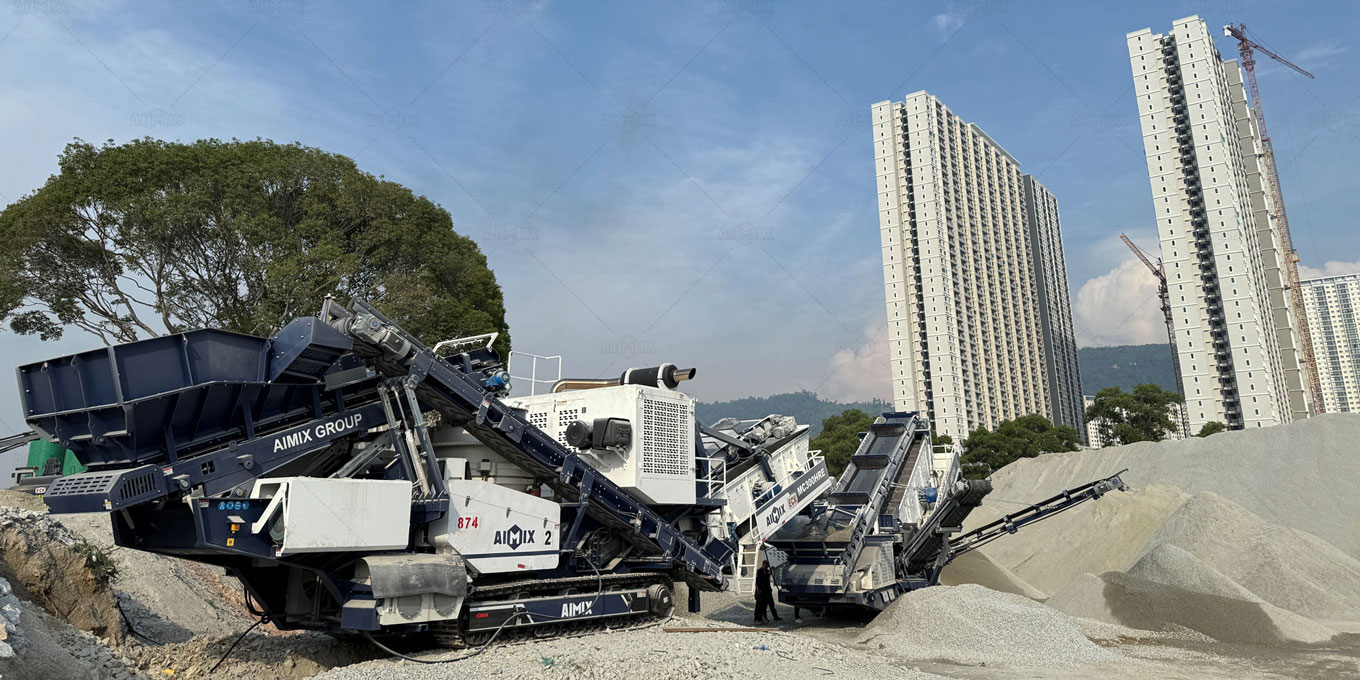

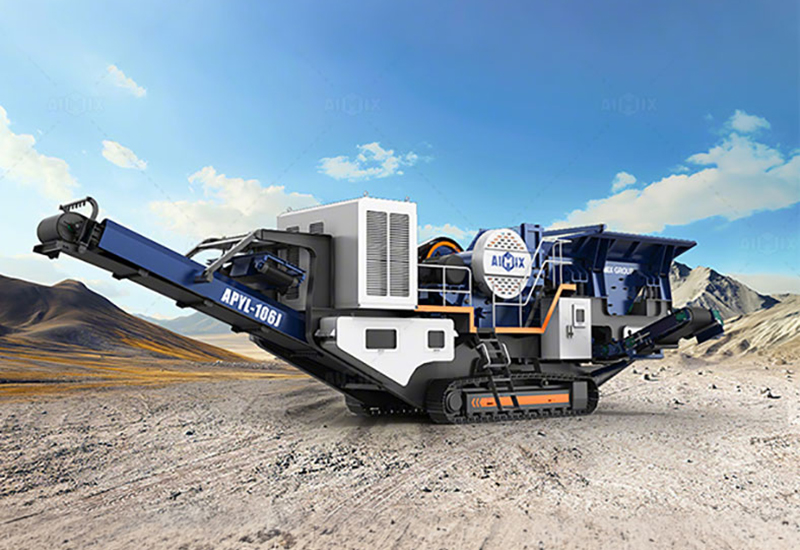

Tracked Rock Crusher Portable

Advantages:

  • Excellent Mobility: Tracks provide stability on various terrains.
  • High Productivity: Suited for large-scale operations.
  • Remote Operation: Can be controlled from a distance.

Disadvantages:
Higher Initial Cost: Crawler chassis are expensive

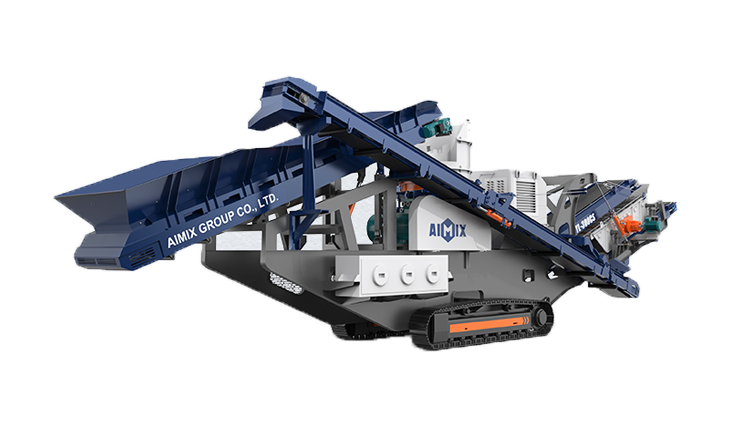

crawler jaw rock crusher

Mobile Rock Crusher Specifications

ModelAPY2-57JAPY2-69JAPY2-750JAPY2-110J
Feeder modelAPG-3090WAPG-3896WAPG-4211WAPG-4211W
Crusher modelAPJ-5075EAPJ-6090EAPJ-7510EAPJ-110V
Maximum feed size (mm)425500630650
Silo volume (m3)45.377
Iron separator model (optional)RCYD(C)-6.5RCYD(C)-6.5RCYD(C)-8RCYD(C)-12
Tire configurationParallel double shaftParallel double shaftParallel three shaftsParallel three shafts
Main belt conveyor modelB650×8.5mB800×8.5mB1000×10mB1000×10m
Side out belt conveyor model (optional)B500×4mB500×4mB650×5mB650×5m
Generator power (kW) (optional)120160200250
Production capacity (t/h)45-10060-160110-320250-400
Transport Length (mm)12500127501327013200
Transport width (mm)2600260028503000
Transport height (mm)3950395042004400
Weight (t)28395765
ModelAPY2-110CAPY2-160CAPY2-200C
Crusher modelAPC-110CAPC-160CAPC-200C
Vibrating screen modelAPS-1848YAPS-1860YAPS-2160Y
Maximum feed size (mm)160200215
Tire configurationParallel double shaftParallel double shaftParallel double shaft
Feeding belt conveyor model (optional)B650B800B1000
Output belt conveyor model (optional)B500B650B650
Under-sieve belt conveyor modelB650B800B1000
Generator power (kW) (optional)240280320
Production capacity (t/h)50-23080-390120-420
Transport Length (mm)138001380014500
Transport width (mm)300030003000
Transport height (mm)440044004500
Weight (t)323742
ModelAPY3-1010FAPY3-1210FAPY3-1214FAPY3-1315F
Feeder modelAPG-3090WAPG-3896WAPG-3896WAPG-4211W
Crusher modelAPF-1010HAPF-1210HAPF-1214HAPF-1315H
Vibrating screen modelAPS-1548YAPS-1848YAPS-1860YAPS-2160Y
Tire configurationParallel three shaftsParallel three shaftsParallel three shaftsParallel three shafts
Return belt conveyor modelB650B650B800B1000
Feeder belt conveyor modelB650B800B800B1000
Under-sieve belt conveyor modelB800B800B1000B1000
Production capacity (t/h)70-150100-285150-350180-500
Transport length (mm)13000158001580016500
Transport width (mm)2500255025503000
Transport height (mm)4200450045004500
Weight (t)41455360

Rock Crusher Jaws

Advantages:

  • Simple Design: Robust and straightforward mechanism.
  • Versatility: Suitable for various materials and applications.
  • Efficient Primary Crushing: Ideal for breaking down hard rocks.

Disadvantages:
Limited Adjustability: May not achieve fine sizes as effectively.

Rock Crusher Cone For Sale

Advantages:

  • High Reduction Ratio: Efficient for secondary and tertiary crushing.
  • Better Shape: Produces well-shaped aggregates.
  • Versatility: Suitable for various materials.

Disadvantages:
Limited Feed Size: May struggle with larger rocks.

Impact Rock Crushers

Advantages:

  • High Reduction Ratio: Efficient for primary, secondary, and tertiary crushing.
  • Cubical Products: Generates well-shaped aggregates.
  • Low Capital Investment: Generally cost-effective.

Disadvantages:
Abrasive Wear: Prone to wear and tear from high-impact forces.


AIMIX rock crushing machine

Rock Crusher Specifications

ModelFeed opening (mm)Max feeding size(mm)Output size(mm)Capacity(t/h)Power(kw)Overal dimension(mm)Weight(t)
APJ-1525E150×25013015-451-45.5896×745×9350.8
APJ-2540E250×40021020-805-20151450×1315×12962.8
APJ-4060E400×60034040-10016-60301565×1732×15866.7
APJ-5075E500×75042550-10040-110551890×1916×187011.7
APJ-6090E600×90050065-18080-18055-752305×1840×229816
APJ-7510E750×106063080-180110-32090-1102450×2472×284028
APJ-8010E800×1060680100-200140-34090-1102610×2556×280030
APJ-8710E870×1060720170-270180-36090-1102260×2556×280031.5
APJ-9012E900×120075095-225220-450110-1323335×3182×302549
APJ-1012E1000×1200850125-280280-550110-1323435×3182×302552
APJ-1215E1200×15001000150-300400-800160-2204200×3732×3843101
ModelRotor diameter × length (mm)Feed opening size (mm)Feed particle size (Max,mm)Production capacity (t)Power (kW)Weight (t)Dimensions L×W×H (mm)
APF1007VΦ1000×700400×73020020-5045-559.52400×1550×2660
APF1010VΦ1000×1050400×108020035-8055-7512.22400×2250×2620
APF1210VΦ1250×1050570×103025070-12090-110152690×2338×2890
APF1214VΦ1250×1400570×143025090-180132-16018.52690×2688×2890
APF1315VΦ1320×1500625×1530350150-250160-20019.53096×3273×2667
APF1320VΦ1320×2000625×2030350160-350200-280283096×3560×3185
APF1415VΦ1400×1500800×1530400280-350250-315333220×3473×2960
APF1520VΦ1500×20001315×2040500300-500315-400433890×3564×3220
ModelCrushing cone diameter (mm)Cavity typeMaximum feed size (mm)Adjustment range of discharge port (mm)Processing capacity (t/h)Mixing power (km)Dimension (L×W×H) (mm)Weight (t)
APC-600Y600 (2’ft)B6512-2512-25301740×1225×19405.5
D353-135-23
APC-900Y900 (2’ft)B11515-5050-90551990×1640×238010.2
Z605-2020-65
D403-1315-50
APC-1200Y1200 (2’ft)B14520-50110-2001102805×2300×298025.5
Z1008-2650-150
D503-1518-105
APC-1750Y1750 (2’ft)B21525-60280-4801603610×2950×418550.5
Z18510-30115-32051
D855-1575-23052
APC-2200Y2200 (2’ft)B30030-60590-1000260-2804790×3430×508084
Z23510-30200-58085
D1105-16120-34085
*Note: Technical parameters are subject to change without prior notice.
1.Standard B type is generally used in medium crushing.
2.Medium Z type is generally used for medium and fine crushing.
3.Short head D type is generally used for fine crushing.

In conclusion, choosing the right rock crushing equipment for sale involves evaluating specific needs and considering the advantages and disadvantages of each type. Mobile tire and tracked rock crushers offer mobility, while jaw, cone, and impact rock crushers cater to various rock crusher operates on the principle of compression, transforming large rocks into smaller, more manageable pieces.

In order to make the rock crushing plant to give full play to its performance, you need to know the equipment very well, in addition to what this equipment is, what is used for, you need to understand how this rock crusher plant works.

Why it’s important to understand how rock crusher works

Understanding equipment operation is paramount for safety, efficiency, and cost-effectiveness. It enhances safety by preventing accidents and ensuring proper handling.

Maximize efficiency

Efficiency is maximized as users operate equipment at peak performance, troubleshoot effectively, and plan maintenance, minimizing downtime and costs.

Optimize processes

Knowledge of this workflow enables operators to achieve consistent quality, optimize crushing parameters, reduce variability, customize for applications, comply with specifications, minimize waste, and enhance overall productivity.

Ensure safety environmental protection

Facilitate risk management, ensuring a safe and efficient working environment. Environmental impact is reduced through resource conservation and emission control.

In essence, understanding how equipment works is the cornerstone of safe, efficient, and cost-effective operations. Also, through this, you will know which rock crusher is right for you. Below then we’ll find out how the rock crusher works.

How does a rock crusher work

Understanding of the rock crushing equipment may know, whether mobile or fixed rock crusher, The approximate workflow is the same, for example, the difference between jaw crusher mobile and jaw crusher mainly lies in the mobility. The overall crushing process is the same. Here we take the jaw rock crusher as an example, to show you the whole crushing process.

differences among jaw rock crusher and cone rock crusher and impact rock crusher

A mining rock crusher operates on the principle of compression, transforming large rocks into smaller, more manageable pieces. Here’s a general overview of how a typical rock crusher works:

Feeding

Rocks or other raw materials are fed into the crusher’s hopper or feeder.

Crushing

In jaw crushers, the material is compressed between a fixed and a movable jaw.

Resize

The crushing action reduces the size of the rocks, breaking them into smaller pieces.

Discharge

The crushed material is discharged from the crusher, usually onto a conveyor belt for further processing or directly into a designated area.

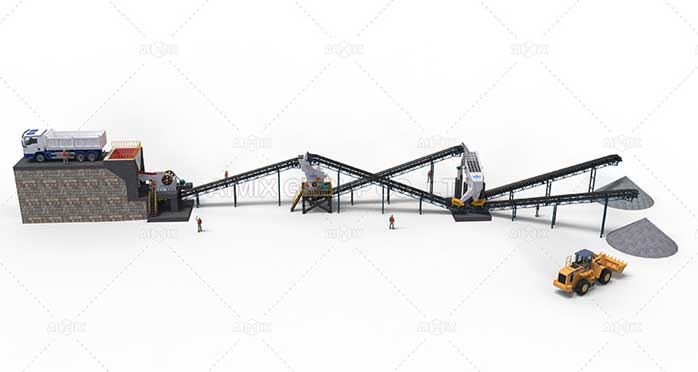

rock crushing flow chart

Understanding these principles highlights key differences. Jaw rock crushers excel in primary crushing, cone crushers in secondary and tertiary, and impact crushers in versatile applications.

So, how to choose a right rock crusher? Selecting the right crusher hinges on the specific needs of your operation, considering factors like mobility, crushing efficiency, and end-product requirements.

I believe that reading this, you already have a clear idea of what kind of industrial rock crusher to choose for your project, assuming you have already purchased it.

How to use a rock crusher

Using a rock crusher mining involves several key steps to ensure efficient and safe operation. Here’s a general guide on how to use a rock crusher:

Read the Manual

Before operating the rock crusher industrial, carefully read and understand the manufacturer’s manual. It provides essential information on safety, setup, and operation.

Safety Precautions

Wear appropriate personal protective equipment (PPE) such as safety glasses, ear protection, and steel-toed boots. Ensure that all safety guards and devices are in place.

Setup

Position the rock crusher on a stable surface, ensuring it is securely anchored. Connect power sources, either an electric outlet or a diesel generator, depending on the crusher type.

Material Intake

Load the raw material, such as rocks or minerals, into the hopper or feeder of the rock crusher.

Adjustment Settings

If applicable, adjust the hydraulic rock crusher settings to achieve the desired size and consistency of the crushed material. This may involve adjusting the gap between the jaws or the setting of the rock cone crusher.

Start the Crusher

Start the crusher according to the rock crusher manufacturer’s instructions. This may involve turning on the power source, engaging the engine, or activating the crusher’s control panel.

Monitor Operation

Watch and listen for any signs of abnormal operation, such as unusual noises or vibrations. If any issues arise, stop the rock crusher immediately and address the problem.

Feed Gradually

Feed material gradually into the crusher to ensure a steady and controlled flow. Avoid overloading the crusher, as this can lead to inefficiencies and potential damage.

Discharge and Sorting

Monitor the discharge of the crushed material. If necessary, use sorting and screening equipment to separate different sizes or grades.

Shutdown

After completing the crushing operation, shut down the crusher following the manufacturer’s guidelines. Ensure all safety protocols are observed during shutdown.

Maintenance

Regularly inspect and maintain the rock crushers to ensure optimal performance. This includes checking for wear on components, lubricating moving parts, and addressing any issues promptly.
Always adhere to safety guidelines and follow the rock crusher companies’s instructions for proper use and maintenance. If uncertain, consult the manual or seek guidance from a qualified professional. Using a rock crusher safely and effectively ensures both operator well-being and optimal crushing performance.

Above is all the introduction of AIMIX to rock crusher, of course, these are not very comprehensive, if you want to buy rock crusher, you can also contact us by phone or email, we will send you the latest rock crusher machine price, also there are professional crusher engineers, for you to customize the most suitable solution for you! Save time and money, high quality and high return, is our commitment to you!
