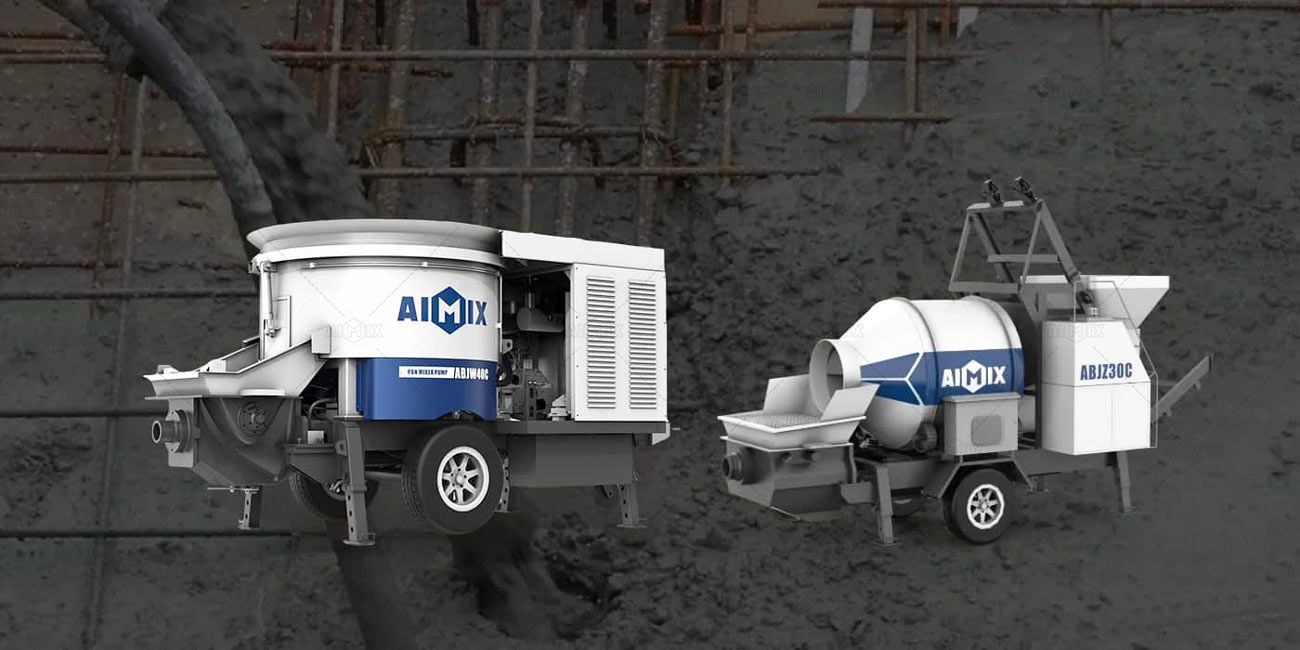

A concrete mixer pump is a construction equipment that combines the functions of a concrete mixer and a concrete pump. It is designed to mix concrete and then efficiently pump it to construction sites. This concrete mixer pump enhances productivity by streamlining concrete delivery, making it a popular choice for contractors.
Concrete Mixer Pump Customer Cases

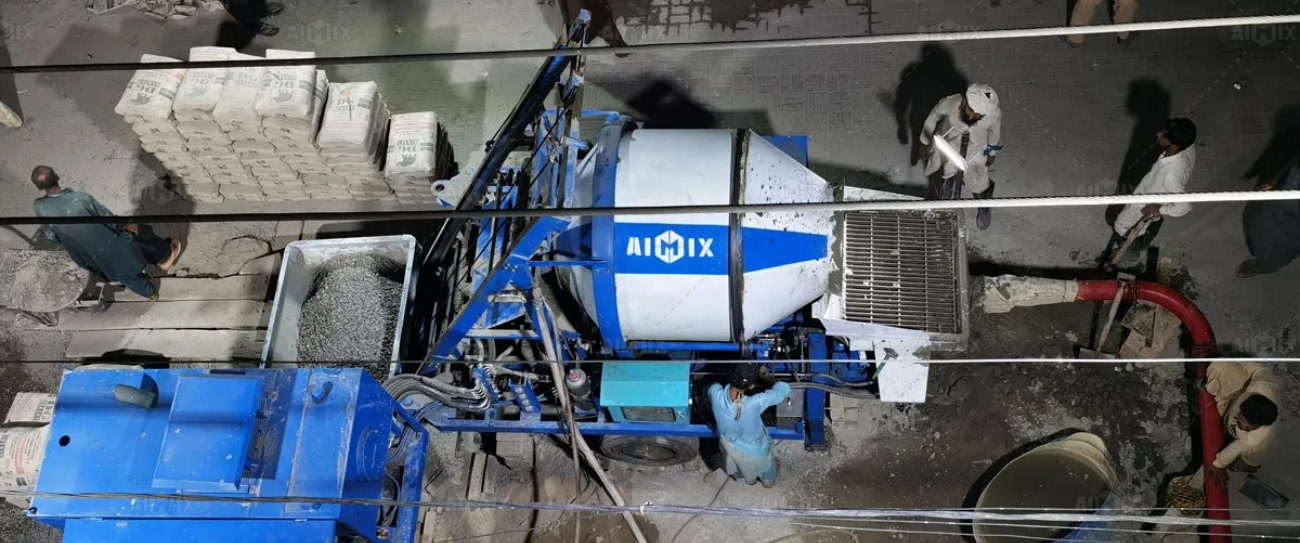

For House Construction
Busuanga Seaside Resort Project

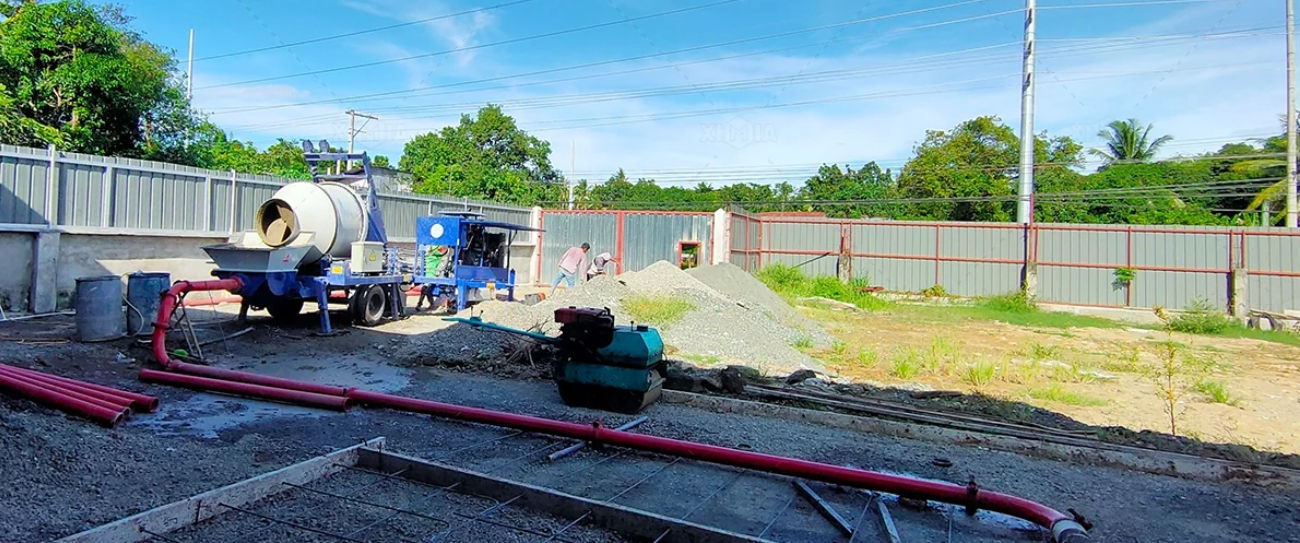

Build a Mosque
For Seaside Trestle Project
Applications of Concrete Mixer Pump
A concrete mixer pump’s applications span a wide range of industries due to its efficiency in mixing and pumping concrete directly to the construction site. Here are some key applications of concrete pump with mixers:
Residential Construction: Concrete mixer pumps are commonly used in the construction of homes, where they can efficiently pour concrete for foundations, floors, walls, and small structures. Their compact size and ease of movement make them especially useful in residential settings.

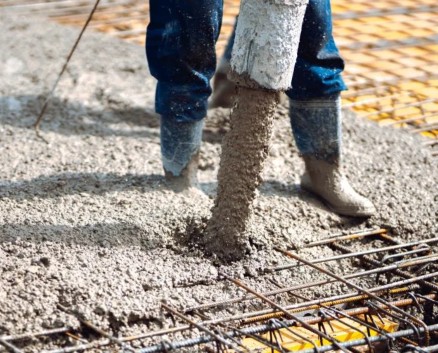

Commercial Construction: For larger projects such as office buildings, retail spaces, and other commercial properties, mixer pump concrete is invaluable. It can deliver concrete to hard-to-reach areas with precision, speeding up the construction process while maintaining quality.
Infrastructure Projects: Concrete mixers and pumps play a vital role in infrastructure projects like roads, bridges, tunnels, and airports. Their ability to handle large volumes of concrete quickly and accurately helps in laying strong foundations and structural elements, ensuring project timelines are met.

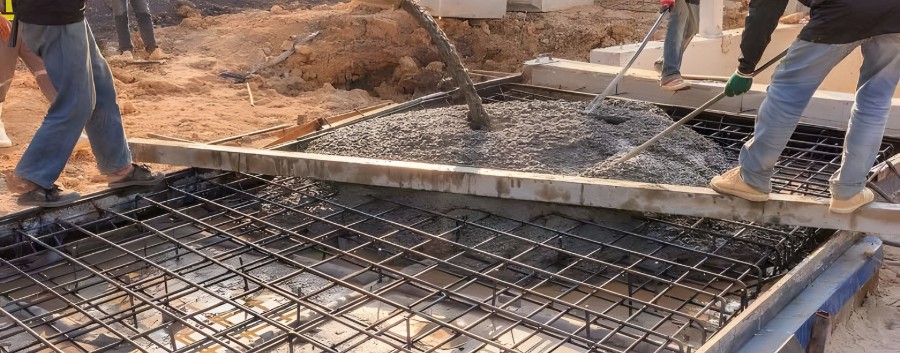

Rural and Remote Areas: In remote or rural areas where large machinery might be hard to transport, mixer concrete pumps offer a practical solution. They can be easily transported and set up, making it convenient to carry out construction in areas with limited resources.
High-Rise Buildings: In high-rise construction, concrete pump mixer machines can transport concrete vertically to higher floors, which is often a challenge for other equipment. This makes them essential in the construction of tall buildings.
With their versatility, concrete mix pumps have become a crucial part of modern construction, providing efficiency, reducing labor costs, and ensuring the timely completion of projects.
Hot Sale Models of Concrete Mixer Pump
There are two main types of concrete mixer pump for sale. The mixer concrete pump for sale is divided based on its power source: diesel concrete mixer pump and electric concrete mixer pump.
Diesel Concrete Mixer Pump

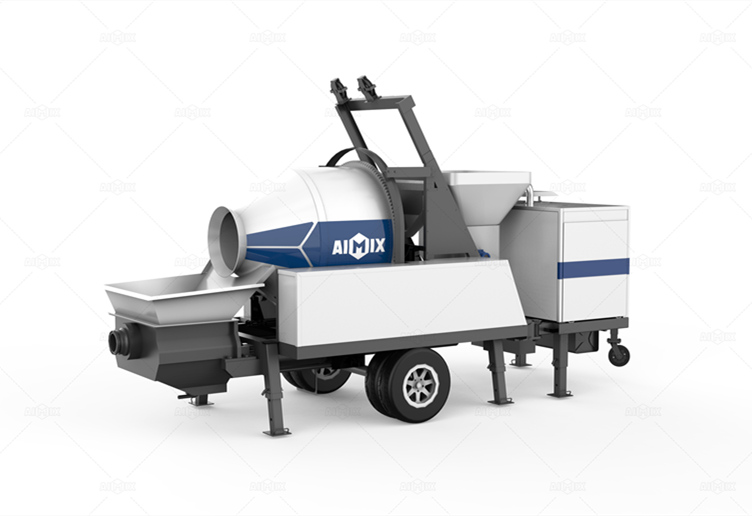

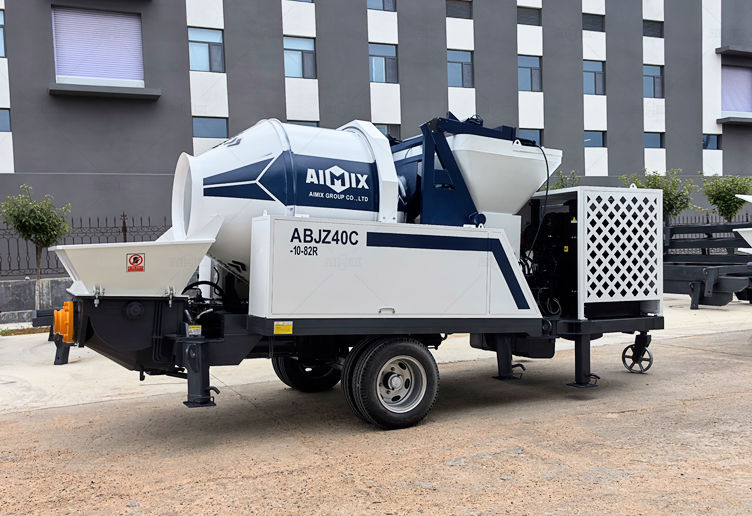

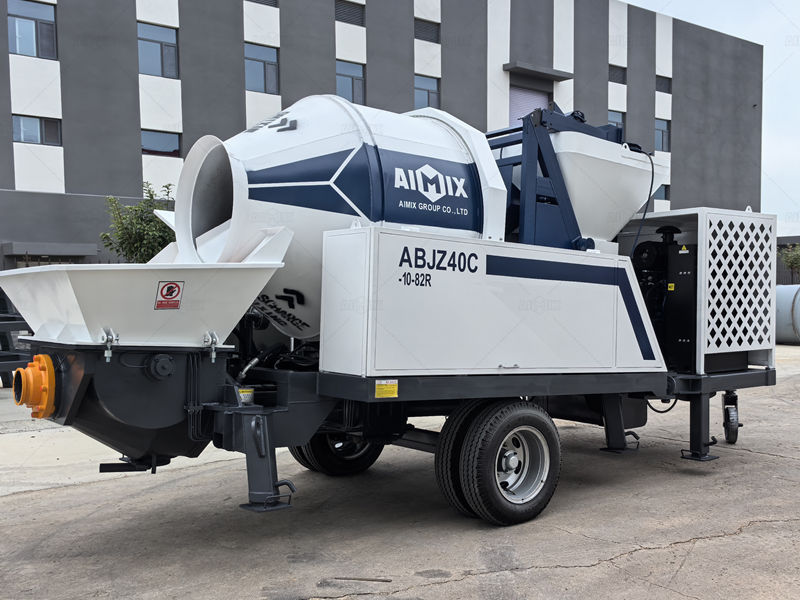

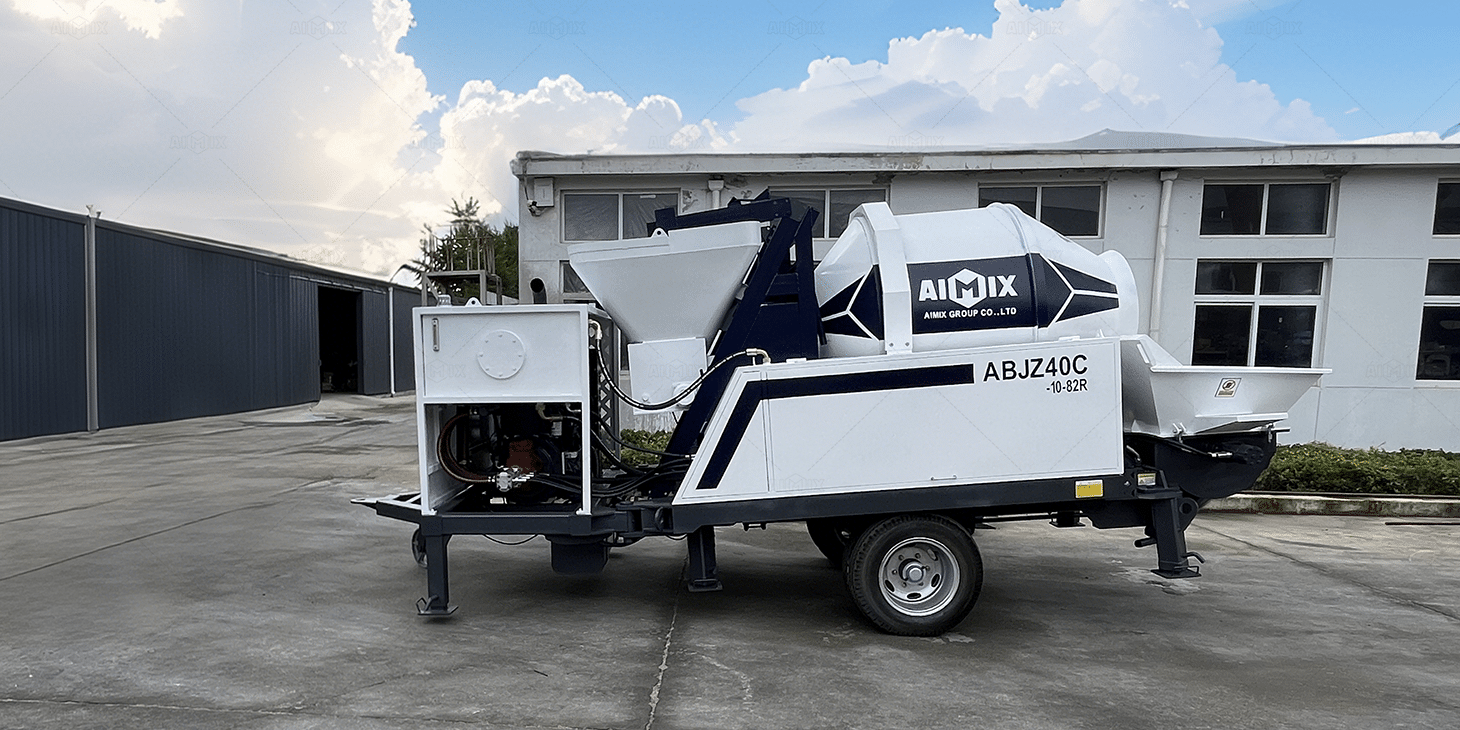

The ABJZ40C concrete mixer pump is a diesel-powered machine equipped with a diesel engine, making it highly efficient even in areas with limited or unreliable electricity. This Aimix concrete mixer pump model has gained significant popularity and consistently receives high praise from our customers. As shown on this page, there are numerous successful cases featuring the ABJZ40C. For more information, simply click the quote button and let us know your questions or requirements. We’ll respond to you as quickly as possible.
ABJZ40C is the most popular typeCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Max. Theoretical Vertical Conveying Distance: 150m
- Max. Theoretical Horizontal Conveying Distance: 600m
- Max. aggregate diameter:Slick/scree: 40mm

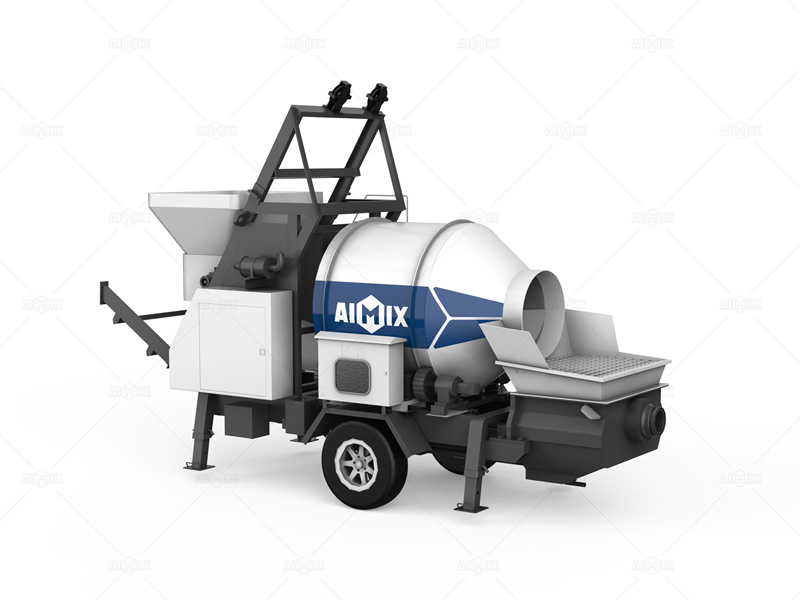

In addition to the ABJZ40C diesel concrete mixer pump, we also offer a smaller option—the ABJZ30C Aimix concrete mixer pump. This model of concrete mixer and pump for sale can pump up to 30m³ of concrete per hour, making it an excellent choice for smaller projects.
ABJZ30C is suitable for small projectCapacity: 30(m3/h)
- Max. theo. concrete output: 30m3/h
- Max. Theoretical Vertical Conveying Distance: 120m
- Max. Theoretical Horizontal Conveying Distance: 400m
- Max. aggregate diameter:Slick/scree: 20mm
Electric Concrete Mixer Pump

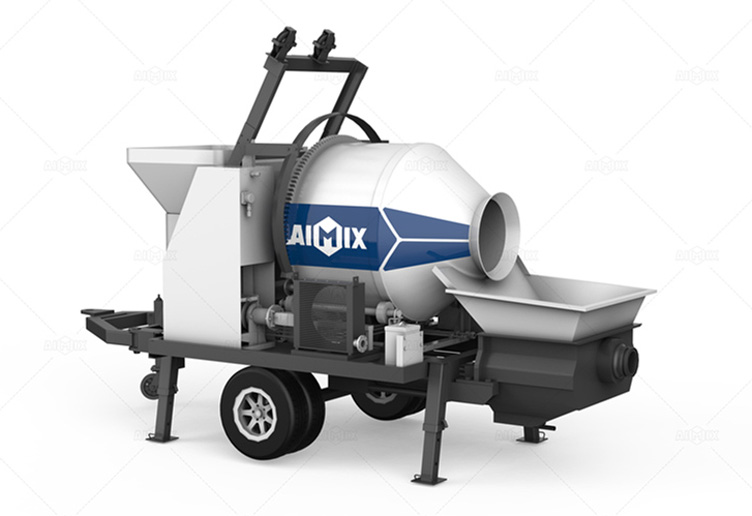

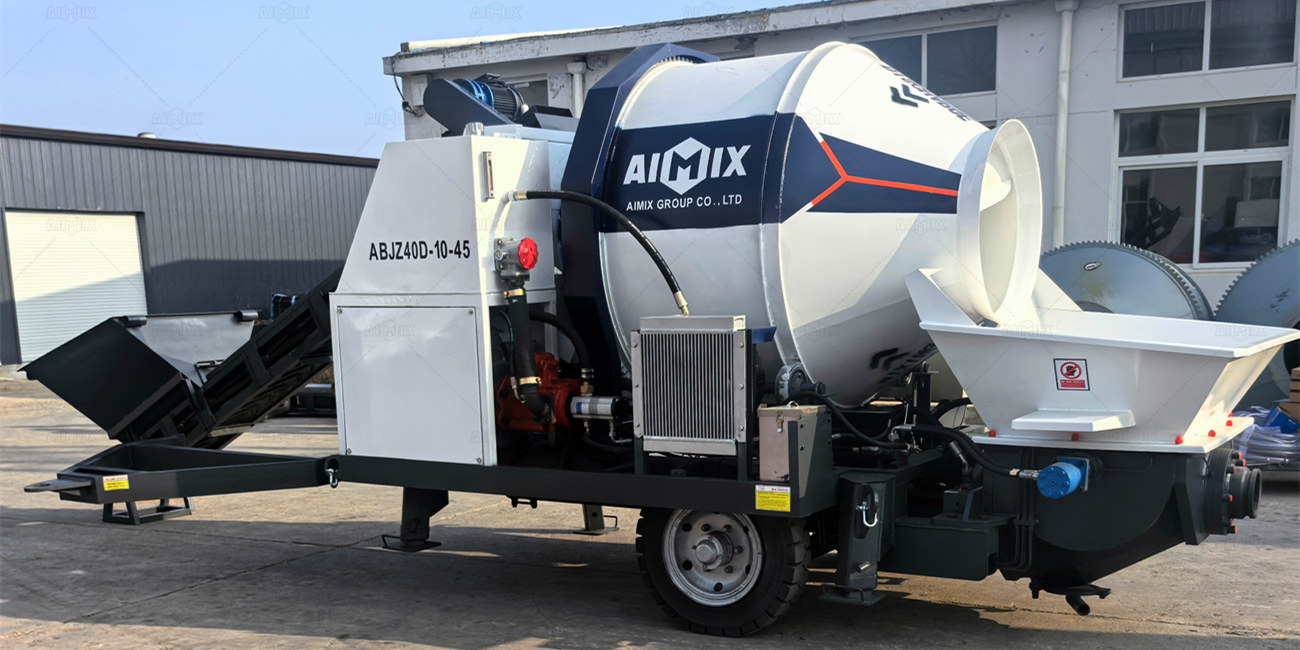

We offer two main types of electric concrete mixer pumps: the ABJZ30D and ABJZ40D Aimix concrete mixer pump. These models are named according to their concrete mixer pump capacity of pumping . If your project site has reliable electricity and stable voltage, these electric mixer pumps will be an ideal and cost-effective choice for your needs.

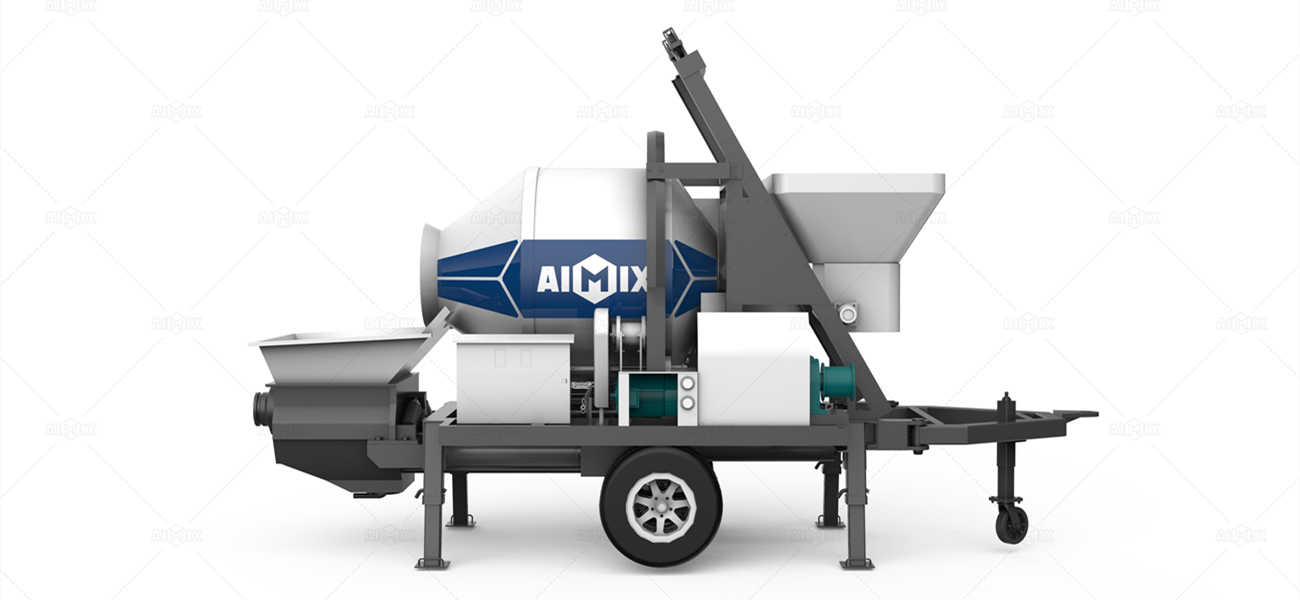

Here shows the parameter of ABJZ30D Aimix concrete mixer pump.
ABJZ30D electric mixing pumpCapacity: 30(m3/h)
- Max. concrete output(L./H): 30 m³/h
- Distribution valve type: S Valve
- Electrical engineering power: 37 kw
- Vertical Convey Distance:120 m
- Horizontal Convey Distance:300 m
- Max.aggregate diameter:Slick/scree:20mm
Important Components of Concrete Mixer Pump
A China concrete mixer pump is a combination of a concrete mixer and a concrete pump, designed to mix and convey concrete to the desired location efficiently. Understanding its key components helps in maintaining the machine and ensuring optimal performance. Here are the important components of a concrete pump mixer truck:
Mixing Drum
The mixing drum is the core part responsible for blending the raw materials like cement, sand, gravel, and water into a consistent concrete mixture. It rotates continuously to ensure the ingredients are properly mixed before being pumped.
Pumping System
The pumping system of concrete mixture machine with pump consists of pistons or hydraulic cylinders that push the concrete through the delivery pipeline. This component ensures the concrete is pumped smoothly and delivered to the construction site at the required pressure.
Hydraulic System
The hydraulic system powers the movement of the mixing drum and the pumping mechanism. It plays a crucial role in providing the force needed to mix and pump the concrete efficiently.
Hopper
The hopper is where the mixed concrete is initially loaded before it gets pumped through the pipeline. It is designed to receive and temporarily hold concrete from the mixing drum and ensure a continuous flow of material into the pumping system.
S-Valve
The S-valve is a critical component that directs the flow of concrete from the hopper into the pumping system. It switches between different cylinders to maintain a continuous flow of concrete into the pipeline.
Pipeline/Delivery Pipe
The pipeline is the conduit through which the concrete is delivered to the designated site. Depending on the project requirements, pipelines can vary in length and flexibility to reach different heights and distances.
Electrical Control System
This component controls the entire operation of the concrete mixer pump machine. It manages functions such as mixing speed, pump operation, and delivery pressure, ensuring smooth and controlled operation.
Chassis and Wheels
The chassis provides structural support to the entire concrete mixer pump machine, while the wheels enable mobility. This allows the concrete mixing and pumping machine to be transported easily to different job sites, making it highly versatile.
Cooling System
Since the concrete mixer and pumping machine operates continuously for long periods, the cooling system helps to regulate the temperature of the hydraulic oil and prevent overheating, ensuring the smooth functioning of the hydraulic system.
Agitator
The agitator is installed inside the hopper to prevent the concrete from settling or hardening. It keeps the concrete in motion, ensuring it remains in a liquid state until it is pumped out.
These components work together to provide a seamless process for mixing and pumping concrete, making the concrete mix pumping machine an indispensable tool in construction projects. Proper maintenance of each component ensures the machine operates efficiently and extends its service life.
Combined Solution with Other Construction Equipment
Aicrane has concrete mixer pumps for sale and other equipment. The concrete mixer and pumps can not only work on their own, but also be combined with other construction machine. The concrete mixer with pump for sale can work with wheel loader and concrete batching machine.

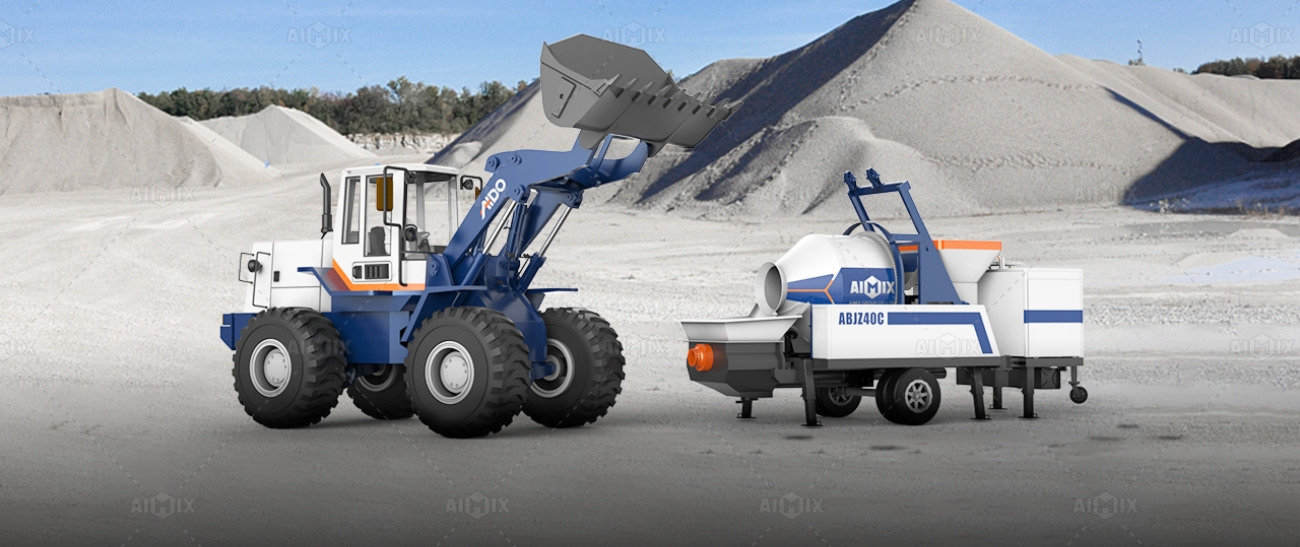

Wheel Loader & Concrete Mixer Pump
This combined solution integrates a wheel loader with a concrete pump drum mixer. The wheel loader is used to transport and load materials such as sand, gravel, and pump mix concrete into the concrete pump with mixer, which then mixes and pumps the concrete directly to the construction site.
Advantages:
Efficiency: Streamlines the process by combining material handling and concrete mixing/pumping in one workflow, reducing the need for multiple machines.
Time-Saving: Speeds up the construction process by directly transferring materials into the mixer pump, eliminating delays associated with manual handling.
Versatility: The wheel loader can be used for other tasks on the construction site, such as moving other materials or equipment.

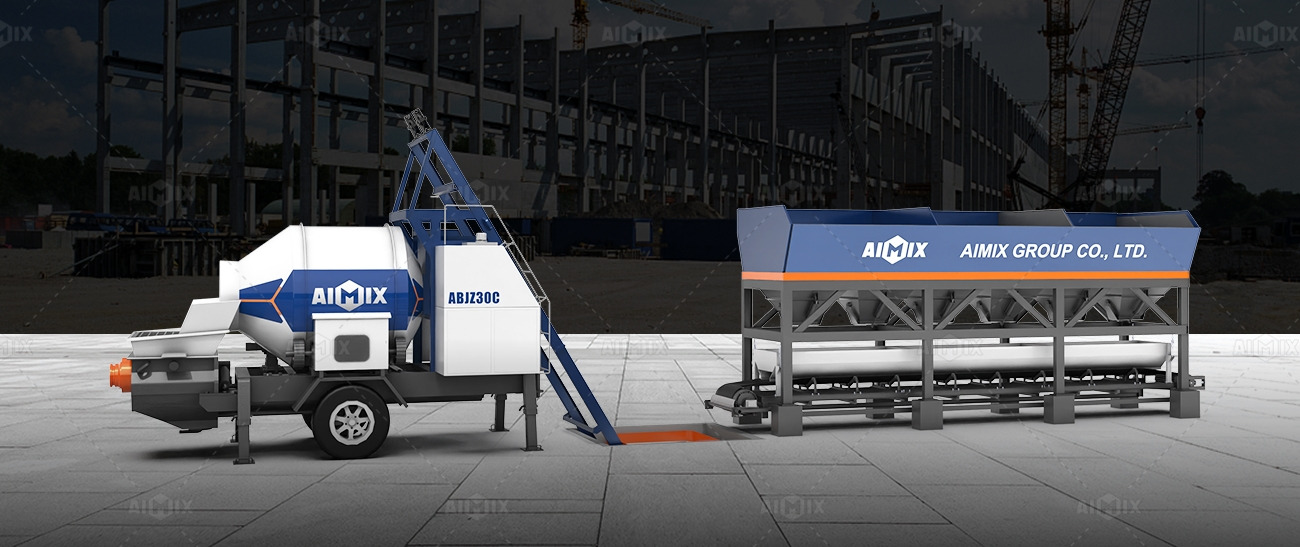

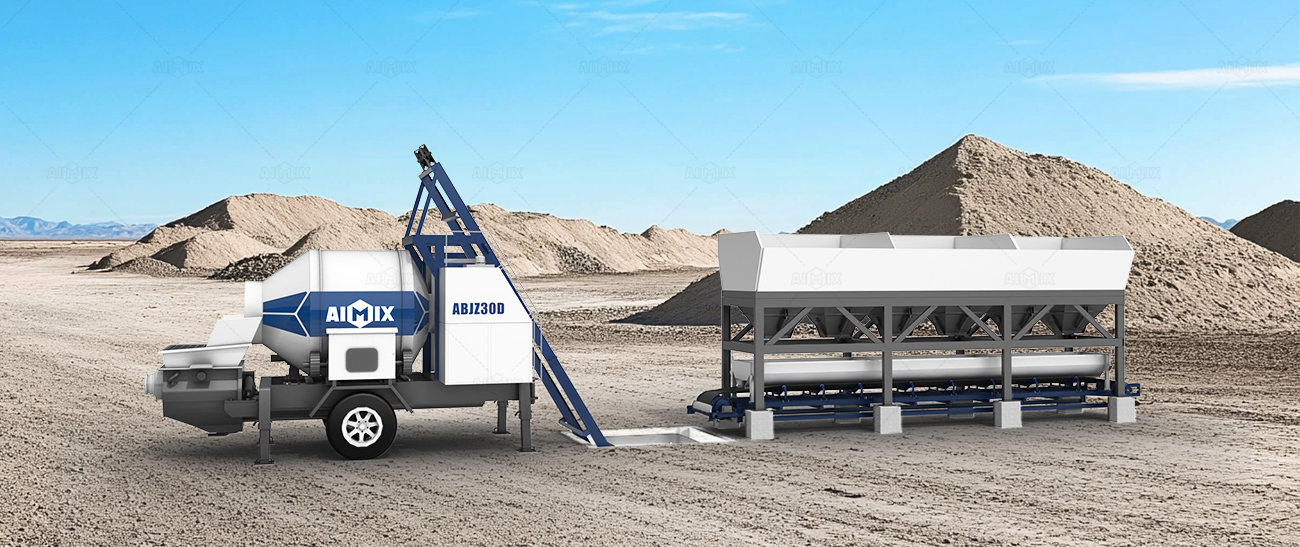

Concrete Batcher & Concrete Mixer Pump
This combined solution integrates a concrete batching machine with a concrete mixer pump. The concrete batcher precisely measures and batches materials like sand, gravel, and cement before transferring them into the concrete mixer pump, which then mixes and pumps the concrete directly to the construction site.
Advantages:
Precision: Ensures accurate batching of materials, resulting in consistent concrete quality, reducing the chances of material waste or incorrect mixtures.
Efficiency: Automates the process of batching and mixing, speeding up the workflow by eliminating manual measurements and reducing operational delays.
Consistency: The batching machine provides reliable and consistent concrete mixtures, enhancing the overall performance and durability of the construction.

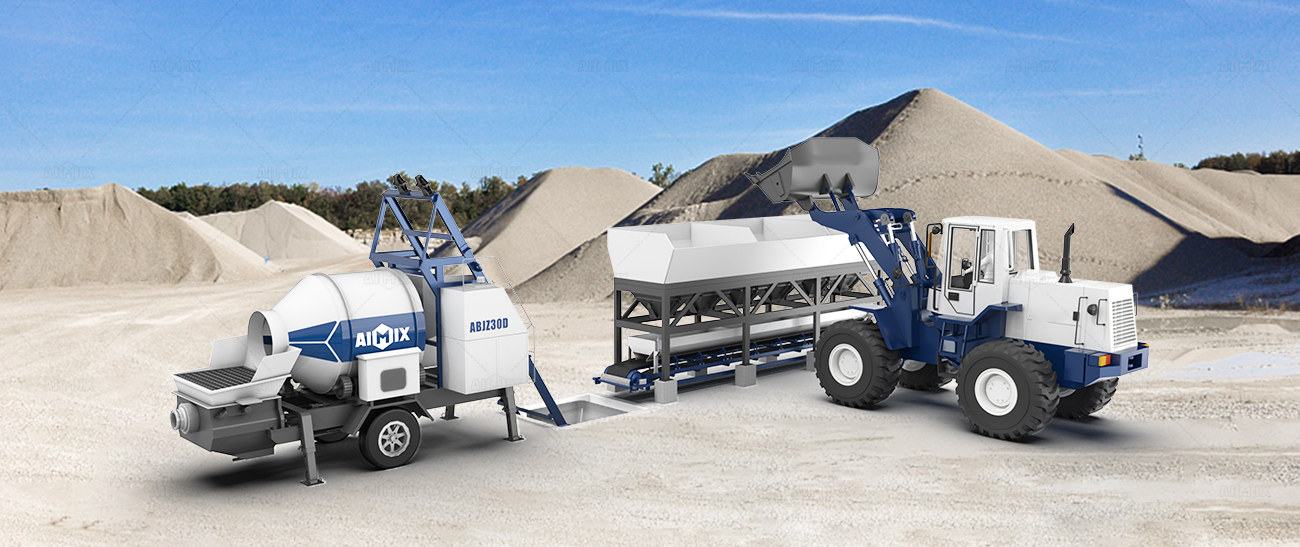

Wheel Loader & Concrete Batcher & Concrete Mixer Pump
This solution combines a wheel loader, a concrete batching machine, and a concrete mixer pump. The wheel loader handles bulk material transport, the batching machine accurately measures and mixes concrete components, and the mixer pump delivers the concrete to the construction site.
Advantages:
High Precision: The batching machine ensures accurate proportions of concrete ingredients, leading to high-quality and consistent concrete mixes.
Improved Productivity: Integrates material handling, batching, and pumping into a seamless process, significantly enhancing overall productivity.
Flexibility: Adaptable to various concrete mixing requirements and large-scale projects, offering greater control over mix quality and delivery.
How to Choose A Suitable Concrete Mixer Pump
Choosing the right pump mixer concrete is essential for ensuring that your construction projects are completed efficiently and cost-effectively. A well-suited concrete mix and pump can save time, labor, and resources, while an inappropriate choice can lead to delays and additional costs. Here are some key factors to consider when selecting a suitable concrete pump with mixer:
1. Project Size and Requirements
The scale of your project is a primary factor in determining the capacity of the concrete drum mixer pump. For small to medium-sized projects, such as residential construction, a smaller cement mixer pumping machine with a lower capacity may suffice. On the other hand, large-scale projects, such as commercial or infrastructure work, will require a higher-capacity mixer pump to handle larger volumes of concrete efficiently.
2. Concrete Output and Pumping Distance
Evaluate the required concrete output per hour, as well as the horizontal and vertical pumping distances for your project. Different concrete mixers and pumps are designed with various capacities and pumping power. Ensure the best concrete mixer with pump you choose can handle the required output and reach the designated locations, whether it’s high-rise buildings or long-distance horizontal pumping.
3. Electric vs. Diesel
Consider whether you need an electric concrete mixer pump or a diesel concrete mixer pump. Electric pumps are typically more environmentally friendly and suitable for urban areas with stable electricity supplies. Diesel pumps, on the other hand, offer greater mobility and can be used in remote areas or on sites where electricity is not readily available.
4. Site Accessibility
If your construction site has tight spaces or difficult-to-reach areas, a more compact and portable China concrete mixer pump might be required. Ensure that the pump can be easily transported and maneuvered around the site. For urban or highly congested areas, a smaller, more agile cement mixer with pump will be ideal.
5. Budget and Cost Efficiency
The cost of the concrete pump with mixer machine is an important consideration. While it’s tempting to go for the cheapest option, remember that quality and durability are critical. A more robust and efficient cement mixer pump may have a higher upfront cost but will offer better long-term value, reducing maintenance and downtime.
6. Maintenance and After-Sales Support
Make sure that concrete mixers and pumps you choose comes from a reliable supplier who offers excellent after-sales service and support. Maintenance ease is crucial in keeping your concrete mixer pumps operational without long periods of downtime. Access to spare parts, regular service, and prompt assistance can make a significant difference in the long-term operation of your mixer pump concrete.
7. Durability and Quality
Construction sites can be demanding environments, so the durability and build quality of your concrete pump with mixer are vital. Choose a China concrete mixer with pump made from high-quality materials that can withstand harsh conditions, such as extreme weather or heavy usage. Look for features like high-wear-resistant components to ensure a longer lifespan.
8. Technology and Features
Modern cement mixer pumps come equipped with advanced technologies, including remote control operation, automated systems, and enhanced safety features. These can increase operational efficiency and make it easier to handle complex jobs. If your project requires precision, such technological advancements can be beneficial.
By carefully considering these factors, you can select a concrete pump with mixer that meets the specific needs of your project, ensuring efficient and smooth operation throughout the construction process.
How to Operate Concrete Mixer Pump
Operating a concrete mixing pump machine requires proper knowledge and safety practices to ensure the machine functions efficiently and effectively. Here is a step-by-step guide to operating a concrete mixer pump:
- Prepare the Machine and Site: Before starting the cement mixer and pump, ensure that the cement mixer with pump is positioned on stable, level ground. Check that the area around the machine is clear of obstructions and that all safety precautions are in place. Verify that the necessary materials (cement, sand, gravel, and water) are ready for mixing.
- Inspect the Equipment: Conduct a thorough inspection of the concrete pump with mixer to ensure it is in good working condition. Check the hydraulic system, electrical connections (if applicable), and fuel level (for diesel concrete pumps). Ensure that the hopper is clean and free from any leftover concrete from previous operations.
- Start the Engine: If you’re using a diesel concrete mixer pump, turn on the engine and allow it to warm up. For an electric concrete mixer pump, ensure that the power supply is properly connected and the machine is switched on. Follow the concrete mixer pump manufacturers’ instructions for starting the engine or electrical motor.
- Load the Materials: Begin by loading the required amounts of cement, sand, gravel, and water into the mixing drum. The exact proportions should follow the mix design specifications for your project. The drum will then start to rotate, mixing the materials into a uniform concrete mixture.
- Pumping the Concrete: Once the concrete is thoroughly mixed, it will flow into the hopper. Engage the pumping system by switching it on, and the concrete will be pumped through the pipeline to the designated location. Ensure that the pump operates smoothly and that there is no blockage in the delivery pipe.
- Monitor the Operation: Throughout the pumping process, monitor the concrete flow and machine performance. Check for any irregularities in the mix or the pumping system. If necessary, adjust the speed of the mixing or pumping based on the project’s needs. Pay attention to the hydraulic pressure to ensure the pump is not overloaded.
- Handle Blockages: In case of a blockage in the pipeline, immediately stop the machine and clear the obstruction to prevent damage. Always follow safety procedures when troubleshooting issues during operation.
- Shutdown and Clean: After the concrete has been pumped, turn off the machine and disconnect the power (for electric cement mixer with pumps) or shut down the engine (for diesel concrete mixer with pumps). Clean the mixing drum, hopper, and pipeline thoroughly to prevent concrete residue from hardening inside the machine.
- Perform Regular Maintenance: After each use, inspect the mixer pump for wear and tear. Regular maintenance, including lubrication, checking for leaks, and cleaning filters, will help prolong the lifespan of the machine and ensure it operates smoothly for future projects.
Following these steps ensures the safe and efficient operation of concrete mixing pumps, leading to higher productivity and better performance on construction sites. Proper handling and routine maintenance will also extend the machine’s operational life.
How Aimix Helps Our Customers as a Concrete Mixer Pump Manufacturer
As one of the concrete mixer with pump manufacturers in China, Aimix is committed to providing our customers with high-quality products, tailored solutions, and exceptional service throughout the entire buying process. Here’s how we help our customers achieve success with their projects:
Wide Range of Products
Aimix offers a comprehensive selection of concrete pump and mixers, including both electric concrete pump and diesel-powered concrete mixing pumping machine models. Our products are designed to meet the specific needs of various construction projects. There are also other pumps like concrete trail pump and boom pump.
Customized Solutions
We understand that every construction project is unique, which is why we work closely with our customers to provide customized solutions. Our team of experts helps clients assess their project needs, recommending the right concrete pump type, size, and specifications of the mixer concrete pump to maximize efficiency and performance on-site.
Quality Assurance
At Aimix, quality is a top priority. All of our concrete mixture pumps are built using high-grade materials and advanced manufacturing techniques. Each product undergoes rigorous testing and quality control checks to ensure it meets international standards. This guarantees reliability, durability, and long-lasting performance for our customers.
Comprehensive Support
From the initial consultation to after-sales service, Aimix provides comprehensive support at every stage of the process. Our knowledgeable sales team is always available to answer questions and provide guidance on selecting the best concrete pump mixer. Once a purchase is made, we offer installation assistance, technical training, and operation guides to ensure our customers can use their equipment efficiently.
After-Sales Service
Aimix is committed to long-term customer satisfaction, which is why we offer excellent after-sales service. We provide ongoing technical support, routine maintenance guidance, and access to spare parts. Our goal is to minimize downtime and keep our customers’ projects running smoothly.
Global Delivery and Installation
With a strong international presence, Aimix ensures timely delivery of concrete mixers and pumps to our customers worldwide. We also offer installation services, helping clients set up and commission their equipment to ensure it operates effectively from the start.
By focusing on quality, customer support, and tailored solutions, Aimix helps clients around the world successfully complete their construction projects with reliable concrete mixer pumps.
