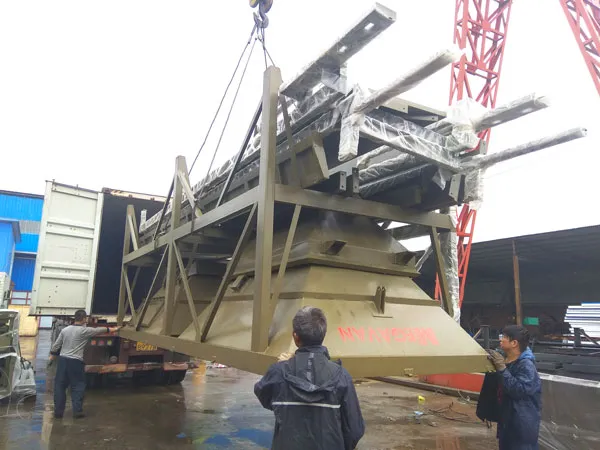

Amazing news! Four sets stationary concrete batching plants were ready to Uzbekistan. The followings are shipment pictures. Now I will display complete pictures of AJ-35, AJ-50, AJ-75 and AJ-90. These four types concrete batching plants have some differences, but our salesman must will introduce the most proper plant for your construction.
Comparison between AJ-35, AJ-50, AJ-75 and AJ-90
Productivity
In productivity, of course, the productivity of AJ-90 is the biggest, AJ-35 is the smallest. Number is its productivity, that’s to say, the stationary concrete batching plant works for an hour, will produce 35m³, 50m³, 75m³ and 90m³ concrete, if you have strict requirement for the amount of concrete, you can choose a proper concrete batching plant according to the capacity.
| Model | AJ-35 |
| Theoretical Productivity (m3/h) | 35 |
| Mixer Model (Mixer Output L) | JS750 |
| Mixer Power (kW) | 30 |
| Mixing Cycle Period (s) | 72 |
| Rated Input Volume (Model of Batching Machine L) | 1200 |
| Standard Aggregate Bin Capacity (m3) | 3×5 |
| Category of Aggregate | 2/3/4 |
| Overall Weight (ton) | ≈18 |
| Installation Power (kW) | ≈75 |
| Model | AJ-50 |
| Theoretical Productivity (m3/h) | 50 |

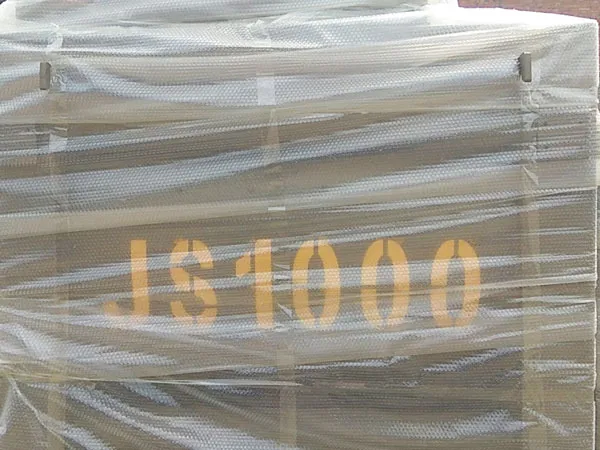

| Mixer Model (Mixer Output L) | JS1000 |
| Mixer Power (kW) | 2×18.5 |
| Mixing Cycle Period (s) | 72 |
| Rated Input Volume (Model of Batching Machine L) | 1600 |
| Standard Aggregate Bin Capacity (m3) | 3×8 |
| Category of Aggregate | 3/4 |
| Overall Weight (ton) | ≈23 |
| Installation Power (kW) | ≈100 |
Quality

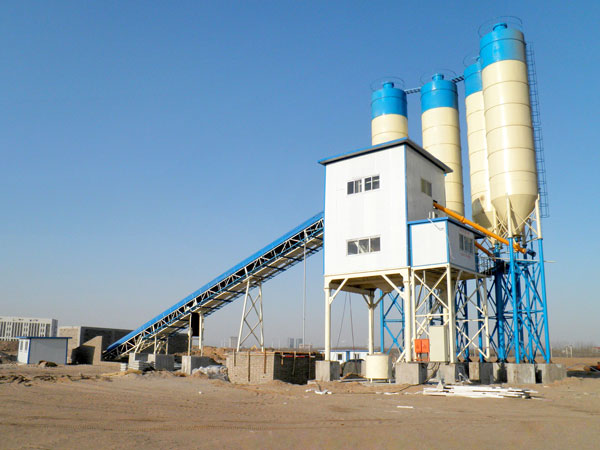

In quality, if you want to produce quality concrete, you’d better choose belt conveyor concrete batching plant-HZS90 stationary concrete batch plant, the whole production process are carried on a semi closed environment, which prevent impurities enter raw materials. During the aggregate loading, there is a cover on the belt conveyor; after loading, there is a tower used to store proportioned aggregate.
Land occupation
In land occupation, if your construction site has small scale, hopper type concrete batch plant will be your ideal choice, the whole process of aggregate loading will be finished by the hopper, it will save large footprint. While belt conveyor concrete plant has wide and large occupation, if your land is expensive, you can choose a skip hoist concrete batch plant.

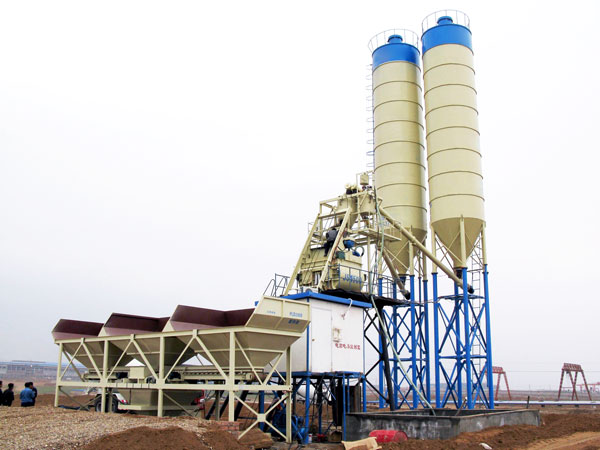

| Model | AJ-75 |
| Theoretical Productivity (m3/h) | 75 |
| Mixer Model (Mixer Output L) | JS1500 |
| Mixer Power (kW) | 2×30 |
| Mixing Cycle Period (s) | 72 |
| Rated Input Volume (Model of Batching Machine L) | 2400 |
| Standard Aggregate Bin Capacity (m3) | 3×12 |
| Category of Aggregate | 4/5 |
| Overall Weight (ton) | ≈30 |
| Installation Power (kW) | ≈140 |
| Model | AJ-90 |
| Theoretical Productivity (m3/h) | 90 |
| Mixer Model (Mixer Output L) | JS1500 |
| Mixer Power (kW) | 2×30 |
| Mixing Cycle Period (s) | 60 |
| Rated Input Volume (Model of Batching Machine L) | 2400 |
| Standard Aggregate Bin Capacity (m3) | 4×15 |
| Category of Aggregate | 4/5 |
| Overall Weight (ton) | ≈68 |
| Installation Power (kW) | ≈160 |
But no matter what condition of your construction project is, our salesman will try their best to customize a most proper stationary concrete batching plant for you, as long as you tell us your needs in detail.

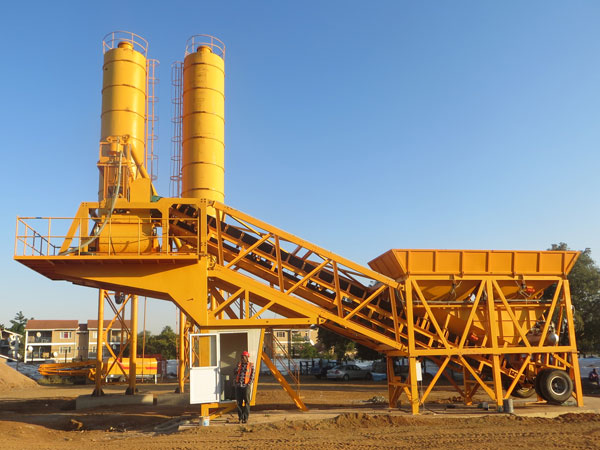

Mobile Concrete Batching Plant
We also have mobile type concrete batching plant, if you have many construction sites, and you need to change construction sites sometimes, you can choose a mobile type concrete plant, which is easy to install, move and disassemble.
