Exciting news! AJ-50 stationary concrete plant, JBS30 electric concrete mixer pump and JQTB has been put into use in Uzbekistan! I have lost count number of concrete plants for export to Uzbekistan. Of course, it is very general, because we have established office in Uzbekistan, our salesmen try their best to meet requirements of local people. Look at historical datas, AJ-50 and AJ-35 are popular types of batch plants in Uzbekistan. So let’s learn about some characteristics of them.
Specifications of AJ-50 concrete plant
| Model | AJ-50 |
| Theoretical Productivity (m3/h) | 50 |
| Mixer Model (Mixer Output L) | JS1000 |
| Mixer Power (kW) | 2×18.5 |
| Mixing Cycle Period (s) | 72 |
| Rated Input Volume (Model of Batching Machine L) | 1600 |
| Standard Aggregate Bin Capacity (m3) | 3×8 |
| Category of Aggregate | 3/4 |
| Overall Weight (ton) | ≈23 |
| Installation Power (kW) | ≈100 |
Characteristics of AJ-50 concrete plant
- Less land occupation.
- Quick installation and easy operation.
- PLC control system, can memorize the formula.
- Equipped with JS series twin shaft concrete mixer, can produce concrete efficiently, meanwhile, quality of concrete is pretty good, no residue left.

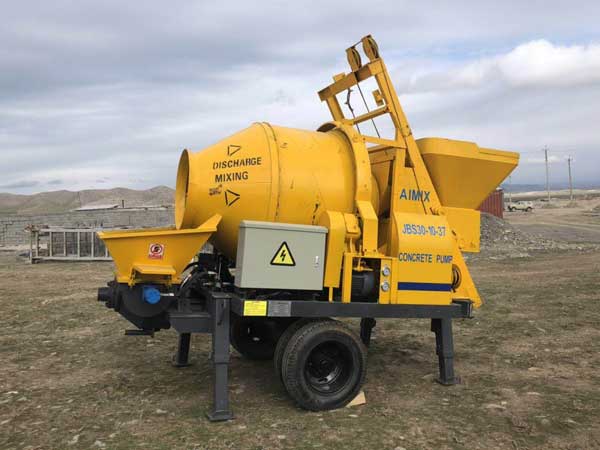

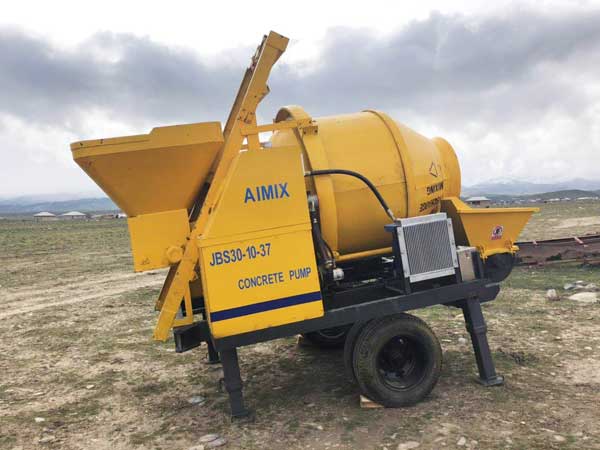

Specifications of concrete mixer pump
| Items | Units | ABJZ30D |
| Max.theo.concrete output(L./H) | M3/h | 30 |
| Mixer rated feed capacity | m3 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.35 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 |
| Distribution valve type | S Valve | |
| Winding motor power | KW | 5.5 |
| Stir the motor power | KW | 4.5 |
| Water pump motor power | KW | 0.55 |
If you are going to buy some concrete machines, such as for high building, water conservancy, flood control, tunnel project, etc, we can provide you with batching plant, and moreover concrete mixer pump, concrete transit mixer, JQTB, etc. For example, this customer bought AJ-50 concrete batching plant, concrete mixer pump and JQTB. What’s more, we have asphalt plant, mortar production line, tower crane, block machine for your project, welcome to contact us!
