Exciting news! Few days ago, we heard that our two sets of self loading concrete mixers have been sent to Philippines. Now we have receivde some feedbacks. You can check some pictures and a working video below.

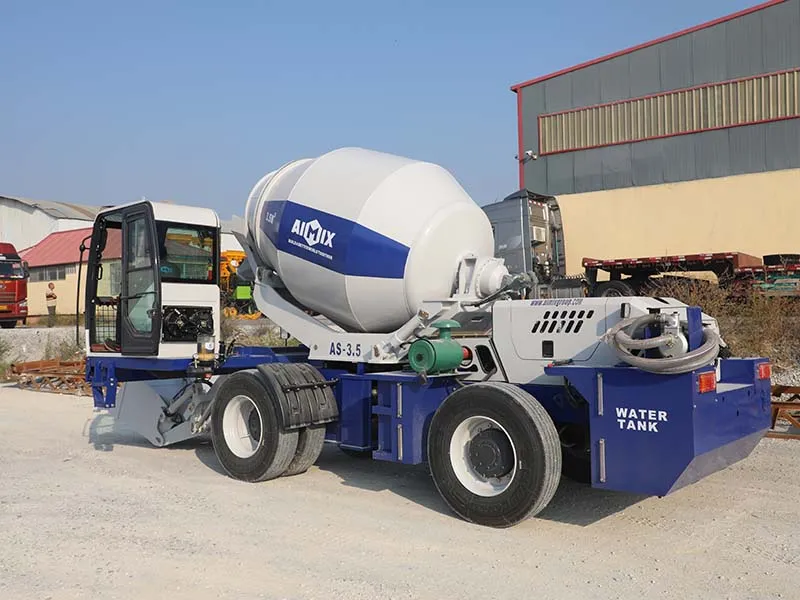

3.5 Cubic meter And 5.5 Cubic meter Self Loading Concrete Mixers In Bataan Philippines

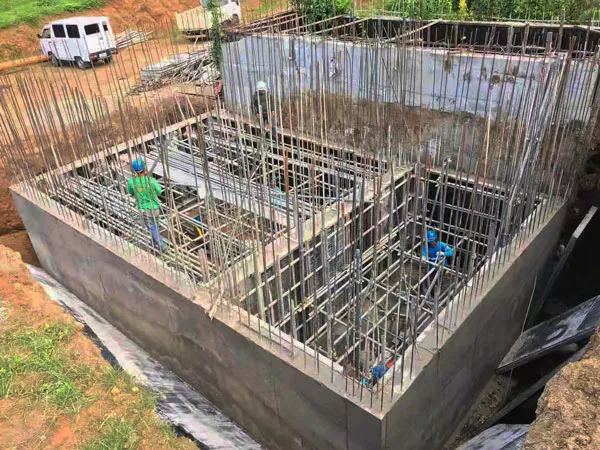

About building project
Client planned to use these two self loading mixers for his building construction. As a small project, client doesn’t need to purchase a concrete plant, so through our advice, client bought two sets of popular self loading concrete mixer trucks. Next, let’s learn about some basic information about self mixer.
| Equipment Model | AS-3.5 Self Loading Mixer Truck |
| Engine Model | YUCHAI 4105 Turbo-Charged |
| Rated Power | 85kw |
| Gear Box Model | ZL-280 Power Shift Gearbox |
| Gear | 2 Forward 2 Back,Front Wheels Steering |
| Fuel Tank | 75 L |
| Total Hydraulic System Capacity | 75 Liters |
| Oil Tank | 16 Liters |
| Reducer | HJ80-43 |
| Hydraulic Pump | CBGQ 2040/2080 |
| Hydraulic Motor | BM5-160 |
| Water Tank | 620 L |
| Water Supply | Time Relay |
| Overall Dimensions(L*W*H) | 7830*2680*4170 |
| Main Parameters | Model | AS-5.5 |
| Overall Dimension | 8450*3100*4580 mm | |
| Wheelbase | 3350 mm | |
| Curb Weight | 11200 kg | |
| Drive Form | Torque Converter | |
| Maximum Speed | 42 km/h | |
| Maximum Gradeability | 45º | |
| Maximum Turning Radius | 6200 mm | |
| Minimum Ground Clearance | 380 mm | |
| Engine | Model | FWA XICHAI 6110 Turbo-charged |
| Rated Power | 110 kw | |
| Gearbox | Model | ZL-315 power shift gearbox |
| Gear | 4 forward, 4 back | |
| Maintain refueling volume | Fuel Tank | 180 L |
| Total Hydraulic System Capacity | 75 L | |
| Oil | 16 L | |
| Hydraulic System | Reducer | HJ80-43 |
Details about self loading mixers
1. It is movable, four-wheel steering, so it is convenient to move on the site.
2. Small volume. Because innovative design, the whole mixer machine has compact structure and beautiful appearance.
3. We use Yuchai, Yunnei engine, brand hydraulic motor and hydraulic pump to ensure stable performance.
4. The drum of self loading concrete mixer truck can rotate 270 degrees, it is beneficial for different types of terrain and project.
In a word, the function of self loading mixer is like a small mobile concrete batching plant, but it is much cheaper than mobile concrete plant. In addition 3.5cubic meter and 5.5cubic meter, we also can customize 1.2cubic meter, 1.8cubic meter, 2.5cubic meter, 2.6cubic meter, 3.2cubic meter, 4.0cubic meter and 6.5cubic meter self loading mixer concrete. If you need such a concrete machine, contact us now: market@aimixgroup.com.
