How to operate concrete batching plant correctly is essential for producing high-quality concrete efficiently. From startup and material loading to mixing and discharge, following proper procedures ensures consistent output, reduces waste, and maintains safe, reliable operations for any project.
Pre-Operation Preparations for Concrete Batching Plants
Before starting daily production, proper pre-operation preparation is important to ensure safe and efficient plant performance. This process includes site inspection, equipment checking, and system calibration, which together lay the foundation for smooth and reliable operation.
Site InspectionBegin with a thorough inspection of the working area. The site should be clean, flat, and stable, providing a secure base for all components such as aggregate bins, mixers, and silos. Ensure that key utilities — water, electricity, and raw materials — are readily available. The water used in concrete production should be clean and free of contaminants, while power supply should meet the plant’s operational load. Raw materials like cement, aggregates, and admixtures should be properly stored in dry, covered areas to prevent moisture and contamination.
Equipment CheckNext, conduct a detailed check of all machinery. Inspect mixers, conveyors, weighing systems, and control panels for wear, corrosion, or loose connections. Check oil levels and lubrication in motors, gearboxes, and bearings to prevent overheating or mechanical friction. Ensure that all sensors, cables, and switches are securely connected and functioning correctly.
CalibrationFinally, calibrate weighing systems for cement, aggregates, water, and admixtures. Precise measurement is crucial to achieving uniform concrete quality. Calibration should be performed regularly and after any maintenance work to maintain production accuracy and consistency.

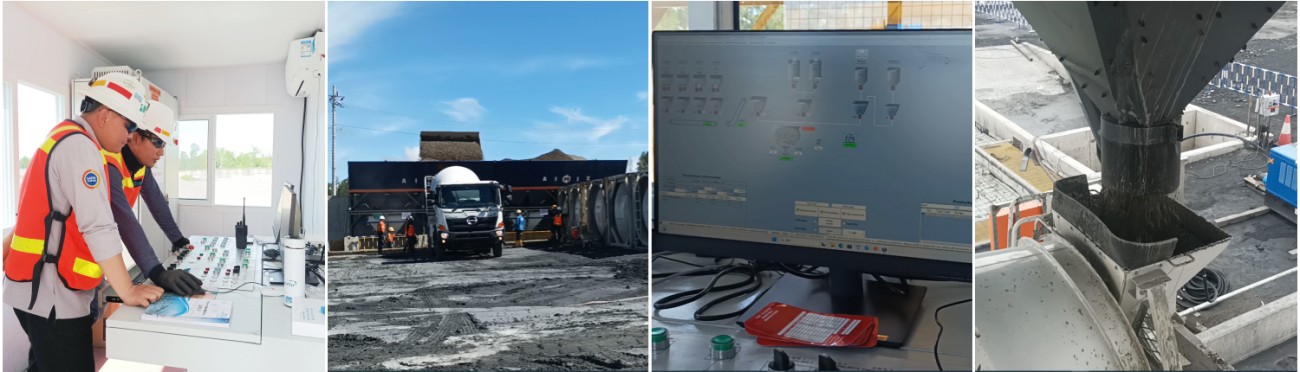

Operating the Batching Plant
Efficient operation of a concrete batching plant requires attention to precision, timing, and coordination across all stages—from system start-up to final concrete discharge. The following procedures outline best practices for ensuring safe, consistent, and high-quality concrete production.
Starting the System
Before production begins, operators should carefully prepare the batching plant’s control and mechanical systems to ensure smooth operation.
Powering On the Control Panel
Begin by switching on the main power supply and verifying that all indicator lights and emergency stop switches are functioning properly. The plant’s control panel, whether it uses a PLC (Programmable Logic Controller) or a manual control system, should be initialized according to the manufacturer’s start-up sequence. For PLC systems, operators need to check the communication status between the control cabinet and all sensors, including weighing scales, conveyor motors, and the mixer drive.
System Diagnostics and Calibration
Run a brief diagnostic test to confirm that each subsystem—batching, mixing, conveying, and discharge—is operational. Calibration of weighing systems (for aggregates, cement, water, and admixtures) should be conducted regularly to ensure measurement accuracy, as even minor errors can affect concrete quality.
Setting Mix Design Parameters
Input the mix design recipe into the control system, specifying the exact proportions of materials according to the project’s requirements. These parameters include the target concrete strength, water-cement ratio, aggregate size distribution, admixture dosage, and moisture compensation. Advanced PLC systems allow storage of multiple mix designs, enabling quick adjustments for different types of concrete.
Material Loading
Proper material handling and loading are critical for achieving consistent batching results. Each raw material should be stored and fed into the system in a specific sequence to maintain accuracy and prevent contamination.
Loading Sequence
The recommended sequence for material loading is as follows:
- Aggregates: Loaded first into the weighing hopper or skip hoist. This includes fine and coarse aggregates, which are dispensed based on the specified proportions.
- Cement: Added next to the mixer via screw conveyors or pneumatic systems.
- Water: Introduced to initiate hydration.
- Admixtures: Added last, in liquid form, to enhance specific concrete properties such as workability, setting time, or durability.
Following this sequence ensures proper coating of aggregates and uniform mixing of cement paste.
Aggregate Storage and Handling
Aggregates should be stored in separate bins or stockpiles to avoid cross-contamination. Moisture levels must be regularly monitored, as excess moisture can alter the water-cement ratio. Many modern plants include moisture sensors in aggregate bins to automatically adjust water dosage during batching.
Cement and Admixture Management
Cement silos should be kept sealed and equipped with dust collectors to prevent air pollution and material loss. Admixtures need to be stored in temperature-controlled tanks and stirred periodically to avoid settling or separation of chemicals.
Mixing Process
The mixing process determines the homogeneity, strength, and workability of concrete. It involves precise timing and mechanical efficiency tailored to the mixer type used in the concrete plant.
Adjusting Mixing Time
Mixing duration varies depending on the type of concrete mixer:
- Twin-shaft mixer: Typically 30–60 seconds; known for fast, high-intensity mixing and uniform blending.
- Planetary mixer: 60–90 seconds; ideal for precast concrete where high consistency and color uniformity are required.
- Drum mixer: 90–120 seconds; common in mobile batch plants and low-output operations.
Operators should refer to the batch plant manufacturer’s guidelines and adjust mixing time based on the mix design and material characteristics. Overmixing can lead to excessive temperature rise and energy consumption, while undermixing results in poor uniformity.
Monitoring Mix Homogeneity and Temperature
During batching plant operation, the control system continuously monitors the mixing process. Load cells and torque sensors can help identify irregularities in material flow or viscosity. Temperature should also be tracked, especially in hot climates, since high temperatures accelerate hydration and reduce workability. If needed, chilled water or ice can be introduced to control mix temperature.
Quality Control During Mixing
- Visual Check: Ensure all materials are evenly blended with a smooth, uniform texture and no segregation.
- Testing: Perform regular slump, temperature, and air-content tests to confirm the mix meets project specifications.
- Water–Cement Ratio: Adjust based on aggregate moisture to maintain consistency; use sensors if available.
- Documentation: Record mix data and test results for traceability, quality assurance, and future optimization.
Discharging the Concrete
After mixing, discharge the concrete efficiently and cleanly to maintain quality and keep production flowing smoothly.
01Controlled Discharge Procedure
Before opening the discharge gate, ensure the receiving equipment—whether a transit mixer truck, dump truck, or bucket—is correctly positioned under the outlet. The discharge gate should open gradually to prevent splashing or segregation of the mix. For automated systems, the discharge rate can be controlled through the PLC interface to match the truck loading speed.
02Cleaning and Maintenance After Discharge
After each batch, the mixer should be thoroughly cleaned to prevent residue buildup that could affect the next mix. Automatic washing systems, commonly found in modern batching plants, use timed water jets to rinse the mixer drum or shafts immediately after discharge. Operators should also inspect the discharge chute for hardened material and ensure no obstructions remain.
03Coordination with Transport Trucks
Proper coordination between batching operations and transport logistics is vital. Concrete should be loaded promptly after mixing to prevent initial setting inside the mixer. Delays can compromise quality and cause downtime. Scheduling and communication systems, often integrated into plant software, help synchronize batching cycles with truck arrival times, ensuring smooth and continuous production.
04Final Quality Check
Before the truck departs, conduct a final slump and temperature test. This verification step ensures the concrete meets all project and specification standards. Any deviations should be recorded and corrected in subsequent batches to maintain consistency.
Safety Procedures During Batching Plant Operation
Safety is fundamental to efficient batching plant operation. A well-implemented safety system not only protects personnel but also prevents costly downtime and equipment damage.
Personnel SafetyOperators should always wear appropriate personal protective equipment (PPE)—including helmets, gloves, safety boots, and ear protection. Eye protection is essential when handling cement or chemical admixtures. Only trained personnel should access operating zones, while visitors and non-essential staff must remain in designated safe areas. Warning signs and barriers help maintain a secure workspace.
Electrical and Mechanical SafetyStrict lock-out/tag-out (LOTO) procedures should be followed before maintenance to prevent accidental equipment startup. Operators should avoid overloading motors, belts, or conveyors to reduce overheating and mechanical strain. Regular inspection and lubrication of moving components maintain stable performance and reduce the risk of failure.
Emergency ProtocolsEmergency stop switches, fire extinguishers, and first-aid kits must be easily accessible. In the event of a power failure or mechanical fault, all operations should be halted immediately and only resumed after inspection. Clear communication and quick response ensure worker safety and operational reliability.
Post-Operation Maintenance
Proper post-operation maintenance is essential for extending the lifespan of a concrete batching plant and ensuring stable performance. The following steps help operators maintain equipment effectively:
Cleaning the Equipment
- Flush the mixer, hopper, and discharge chute with clean water after each production cycle to prevent concrete residue from hardening.
- Remove any leftover material buildup inside the mixer, weighing system, or conveyors, which could cause inaccurate batching or mechanical strain.
- Use a high-pressure washer or an automated cleaning system to improve efficiency and reduce manual labor.
- Perform daily cleaning to ensure smooth operation, prevent corrosion, and keep the plant ready for the next batch.
System Inspection
- Conduct routine inspection of wear parts, bearings, belts, and hydraulic systems to identify early signs of damage.
- Check for loose bolts, unusual vibrations, or abnormal noise during operation.
- Follow a strict lubrication schedule to minimize friction and prevent mechanical fatigue.
- Maintain a daily maintenance log documenting any issues detected and corrective actions taken.
- Regularly inspect sensors, control systems, and weighing devices to maintain batching accuracy and reliability.
Shutdown Procedures
- Properly power down electrical and pneumatic systems at the end of each shift.
- Release residual pressure from air lines to prevent damage or safety hazards.
- Safely store remaining materials such as cement, aggregates, and admixtures in covered silos or bins to prevent moisture absorption.
- Secure all moving parts and switch off power supplies before leaving the site.
Tips for Efficient and Sustainable Operation of Concrete Batching Plant
Modern concrete batching plants can achieve higher productivity and sustainability through optimized operation and smart management practices.
Automation and IoT Integration
Implementing automated control systems and IoT monitoring allows remote supervision of production data, real-time fault detection, and predictive maintenance. These systems help reduce manual errors, improve consistency, and extend equipment life. For example, Aimix concrete batching plant can be equipped with an IoT remote control system to monitor equipment in real time, reducing failure rates by around 40%, cutting maintenance costs by approximately 25%, and extending equipment lifespan by over 15%.
Optimized Scheduling and Energy Use
Plan batching schedules to align with peak production needs and minimize idle periods. Using variable frequency drives (VFDs) for motors can lower energy consumption, while proper material sequencing reduces unnecessary delays between batches.
Water Recycling and Dust Management
Recycling wash water from mixer cleaning not only conserves resources but also minimizes environmental discharge. Installing efficient dust collection and filtration systems around cement silos and conveyors helps maintain air quality and comply with environmental standards.
Operator Training
Well-trained personnel are key to consistent plant performance. Conduct regular training sessions covering new technologies, safety updates, and troubleshooting procedures. Skilled operators can identify issues early, adjust parameters efficiently, and maintain product quality.
Common Mistakes to Avoid While Operating Concrete Plants
Even experienced operators can make errors that compromise batching accuracy, safety, and productivity. Avoiding the following mistakes ensures smoother plant operation, reliable product quality, and a safer working environment.
- Skipping Calibration: Failing to calibrate weighing systems regularly can lead to inconsistent mix ratios, reducing concrete strength and durability.
- Incorrect Mix Design: Using an inappropriate or outdated mix design without adjusting for material properties or weather conditions affects workability and setting time.
- Overfilling Equipment: Overloading mixers, hoppers, or conveyors strains mechanical systems and may cause unplanned downtime.
- Poor Coordination: Lack of synchronization between batching and transport can lead to concrete segregation or delays in delivery.
- Neglecting Maintenance: Ignoring preventive maintenance schedules increases wear, breakdown risk, and long-term costs.
Mastering concrete batching plant operation requires more than just technical skill—it’s about maintaining efficiency, safety, and sustainability. By applying best practices and continuous training, operators can maximize performance and reliability. Partner with Aimix today to optimize your batching plant operations and achieve consistent, high-quality concrete production.
