A concrete line pump is designed to efficiently transport concrete through narrow or hard-to-reach areas, making it ideal for challenging job sites. With flexible hoses, it delivers concrete over long distances and up to elevated spots, saving time and reducing manual labor. Perfect for projects with limited access, it ensures precise placement in residential, commercial, or industrial applications.
Types of Concrete Line Pumps
Choosing the optimal concrete line pump requires balancing site access constraints, daily output demands, and power availability. Aimix provides two types of concrete line pumps for sale. Our truck-mounted and trailer-mounted line concrete pump solutions address distinct operational challenges across global construction scenarios.

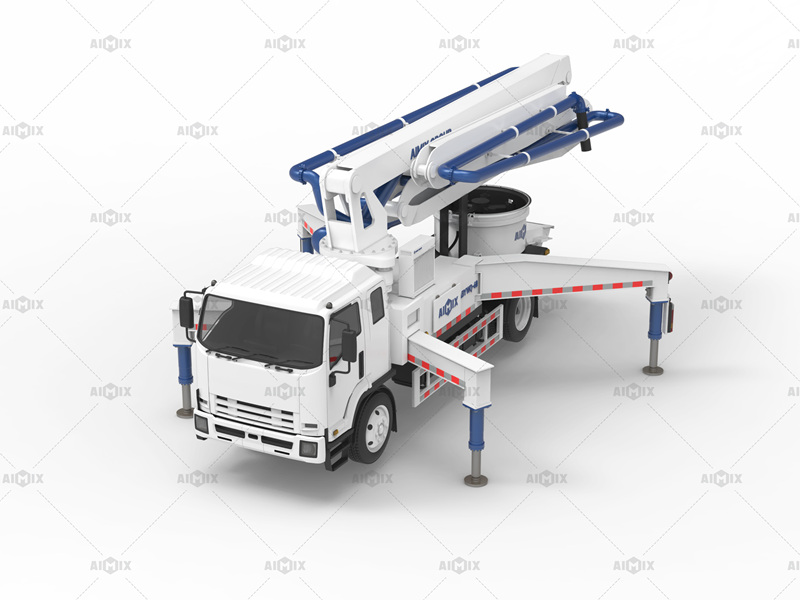

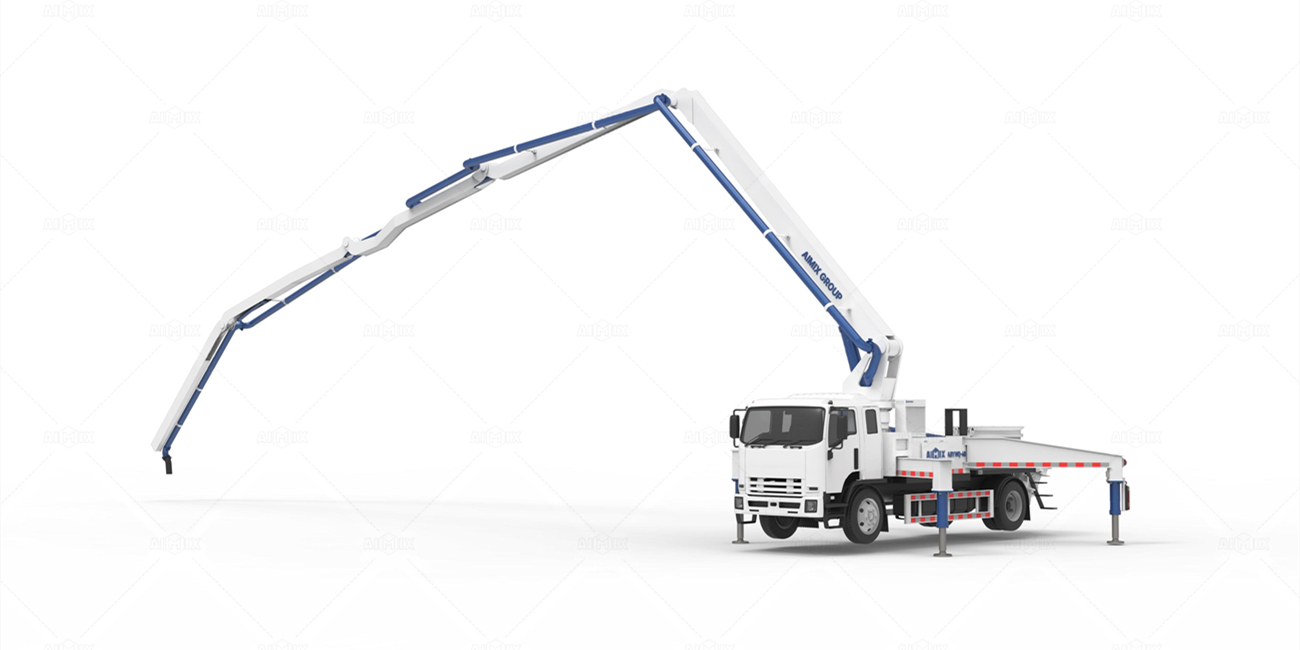

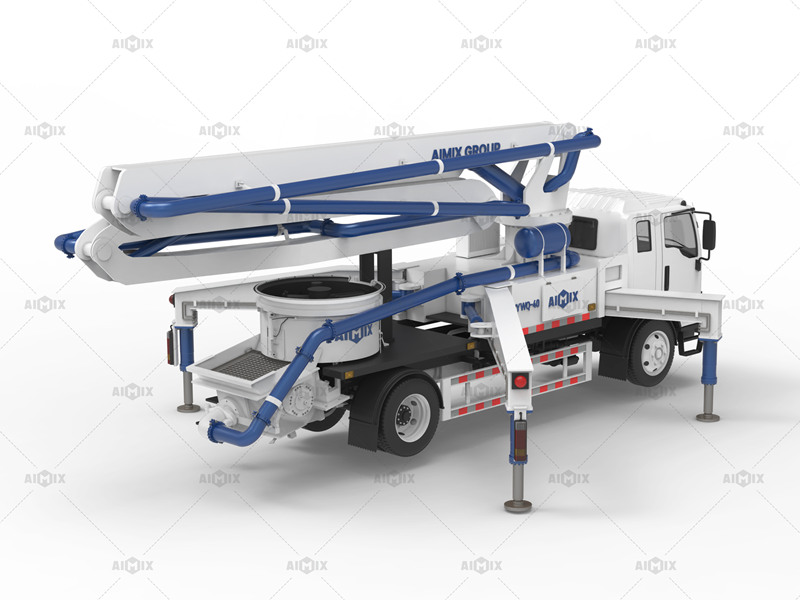

Concrete Line Pump Truck: High-Mobility Precision
- Ideal For: The truck mounted line concrete pump with boom suits rapid-relocation projects requiring simultaneous mixing and pumping.
- Key Features:
- Flexible Boom-Pipeline Synergy: The boom type concrete line pump truck combines a multi-section folding boom (Z/R type) with auxiliary surface pipelines. The boom allows for precise placement over obstacles, while the extended line hose system provides coverage in blind spots, addressing the height limitations of pure line pumps in high-rise buildings.
- Rapid Mobility: Based on a truck chassis, the machine can be operational within 15 minutes of arriving at a construction site, making it ideal for quick urban turnaround projects. However, the engine must remain idle to maintain hydraulic pressure.

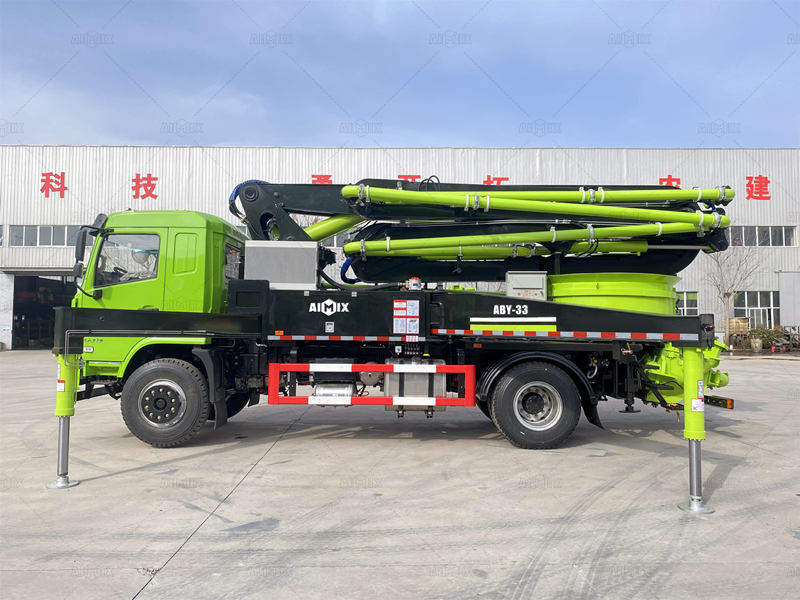

- Space Intelligence: The 33m boom model folds to 12m length, navigating 3.5m-wide urban alleys while maintaining 10-story vertical reach. This reduces alternative equipment costs by 60%.Integrated Process
- Flow: Combining mixing, pumping, and placement in one system cuts labor deployment by 50% versus traditional setups.
- Core Advantages:
Feature Specification Operational Impact Max Output 120 m³/h Completes large-scale pours (e.g., 800m² industrial floor) in 6-8 hours. Boom Reach 26-58m (6 models) Clears 8-story structures without repositioning, saving 45 minutes per reposition. Planetary Mixer Hydraulic vertical shaft Eliminates segregation, ensuring 30% higher concrete density for structural integrity.

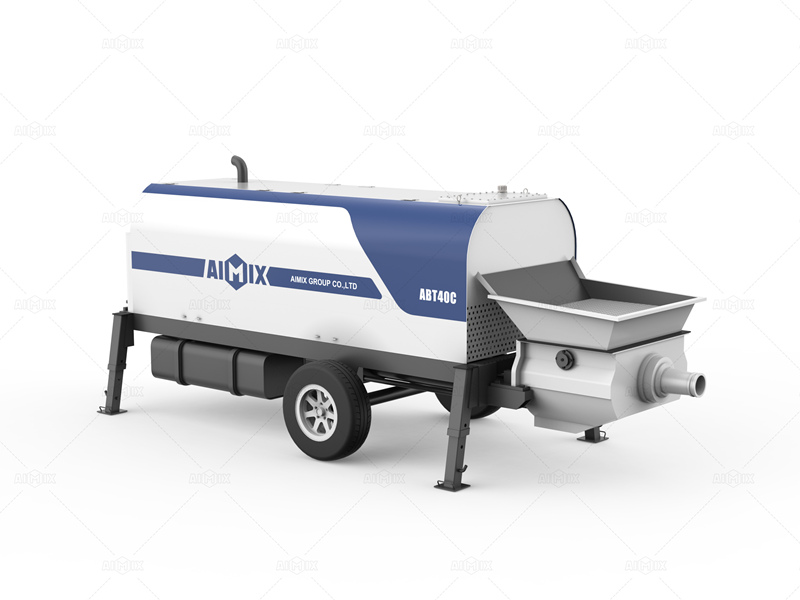

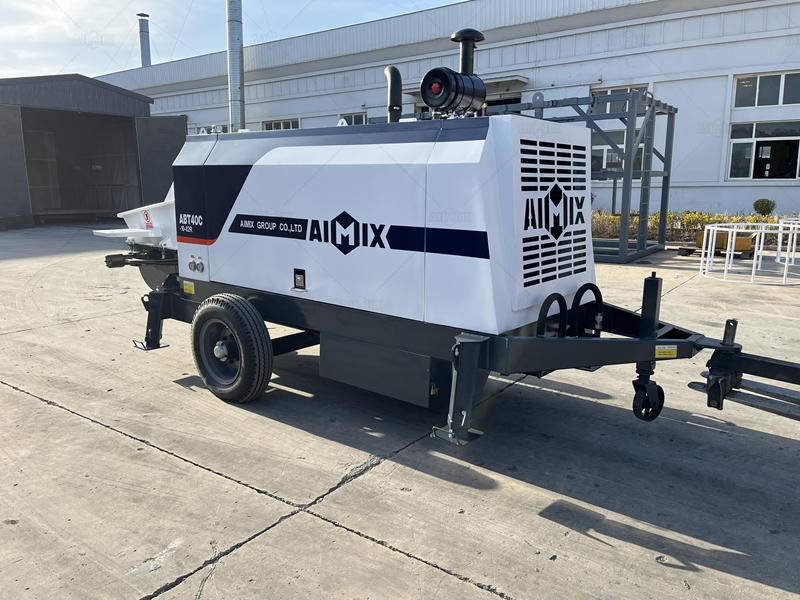

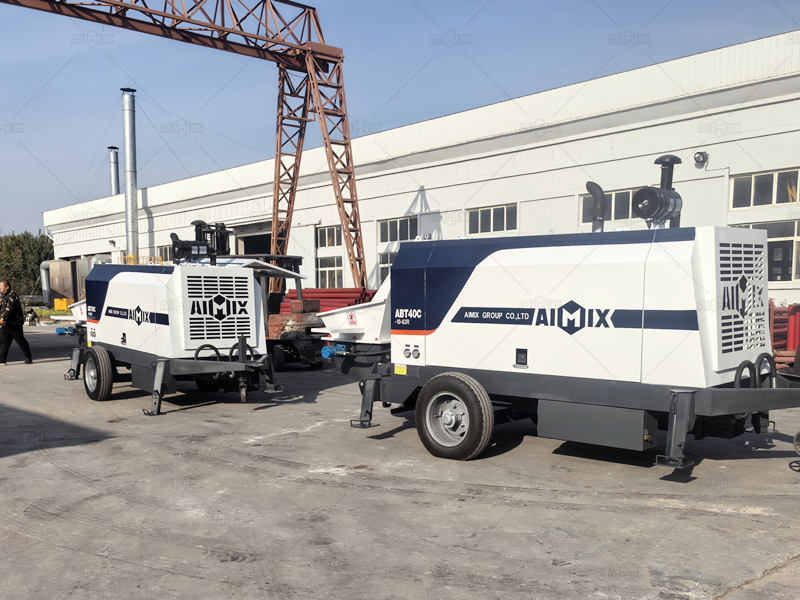

Concrete Line Pump Trailer: Robust Flexibility
- Ideal For: The trailer mounted concrete pump line suits fixed sites with space/power constraints or emission-sensitive environments.
- Key Features:
- High-Pressure Pipeline Adaptability: The trailer pump uses a robust hydraulic system to propel concrete, supporting extremely long pipeline layouts. The pipelines o hoses need to be attach to the pump after arriving on site. Its pipeline delivery performance is excellent in complex terrain, such as tunnels and dams, and it is particularly suitable for operations in rugged or confined spaces.
- Fuel-Efficient Autonomous Operation: As a standalone surface line pump, the trailer pump is available with dual diesel/electric power options.
- Towable Design: It eliminates the need for a truck chassis and can be quickly relocated by a pickup truck or tractor after construction.
- Endurance Core: Weichai engines + Kawasaki hydraulic pumps sustain 98% uptime in extreme temperatures (-25°C to 50°C), lowering maintenance costs by 30%.
- Smart Resilience: Parker seals and Eaton hoses prevent leaks for 30,000m³+ service life. Quick-connect parts reduce replacement time to 15 minutes.
- Configuration Comparison:
Model Type Max Output Vertical Reach Power Source Best Application Scenario Diesel 30-90 m³/h 120-260m 82-176kW Engine Remote quarries, off-grid projects Electric 30-90 m³/h 120-200m 45-110kW Grid Indoor renovations, urban centers
Site Accessibility & Pump Selection: Precision Matching to Real-World Constraints
Selecting the right concrete line pump demands exact spatial calculations and operational reality checks. Below we decode access requirements using your project dimensions and our engineered solutions.
Step 1: Site Accessibility Analysis – Millimeter-Precision Guidance
Core Formula: Minimum Clearance = Pump Width + 0.8m Safety Margin (Safety Standard: EN 13000:2024 Mobile Machinery Access)
| Project Scenario | Available Width | Pump Solution | Feasibility Analysis |
|---|---|---|---|
| London Townhouse Renovation | 2.1m alley | ABT40D Electric Trailer (1.75m) | 1.75m + 0.8m = 2.55m > 2.1m → Use detachable trailer with 20m hose from street |
| Norwegian Forest Road Repair | 2.6m path | ABJZ40C Diesel Trailer (2.2m) | 2.2m + 0.8m = 3.0m > 2.6m → Position pump at entry with 30° hose angle |
| Singapore Hospital ICU Upgrade | 1.9m corridor | ABT40D Electric (1.75m) | 1.75m + 0.8m = 2.55m > 1.9m → Remote placement + 15m flexible hose |
| German Factory Expansion | 3.5m gate | Truck-Mounted 33m Boom (2.52m) | 2.52m + 0.8m = 3.32m < 3.5m → Direct access with 0.18m clearance |
Engineering Insight:
- Critical Threshold: Projects with <2.8m access require trailer pumps in 92% of cases (EU Construction Safety Report 2025)
- Hose Solution: When clearance is insufficient, every 10m of extended hose reduces output by 8% – factor this into scheduling
Step 2: Output Matching – Bridging Hourly Capacity to Daily Site Needs
- Industry Reality: Effective pumping hours = 6 hours/day (ACI Site Efficiency Study)
- Conversion Formula: Daily Capacity (m³) = Pump Hourly Rate × 6 × 0.85 (0.85 = Downtime factor for setup/breaks/maintenance)
| Project Type | Daily Need | Min. Pump Spec | Recommended Model | Operational Rationale |
|---|---|---|---|---|
| Residential Pool | 24m³ | 4.7m³/h | ABT40D (40m³/h) | 40 × 6 × 0.85 = 204m³/day → 850% buffer for small batches |
| Bridge Pier (4 units) | 72m³ | 14.1m³/h | ABT80D (80m³/h) | Handles simultaneous pours with 30% power reserve for rebar obstacles |
| Warehouse Floor | 150m³ | 29.4m³/h | Truck-Mounted (120m³/h) | Continuous pour requires 4x buffer to prevent cold joints |
Real-Data Validation:
- Malaysia Highway Project: Used ABT60D (60m³/h) for 48m³/day piers → completed 3 days ahead of schedule
- Under-Capacity Risk: Pumps operating >90% capacity have 62% higher failure rate (ISO 21542:2023)
Step 3: Power Source Optimization – Technical & Regulatory Fit
| Constraint | Solution | Technical Proof |
|---|---|---|
| Unstable Rural Grid | ABJZ40C Diesel | Weichai engine tolerates 170-260V fluctuations |
| -25°C Arctic Site | ABJZ30C Diesel | Pre-heated hydraulic oil (-30°C rating) + insulated hoses |
| Urban Emission Zone | ABT80D Electric | 0g CO₂/kWh + harmonic current compensator (EN 50543 compliant) |
| Multi-Site Relocation | Truck-Mounted 38m Boom | Self-propelled chassis vs. trailer hitch savings (45 mins/site) |
Aimix Concrete Line Pump Specifications
You can check the chart down below for more details of trailer mounted type concrete pump lines specifications.
| Items | Key Parameters | Units | ABT40C | ABT60C | ABT80C |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 |

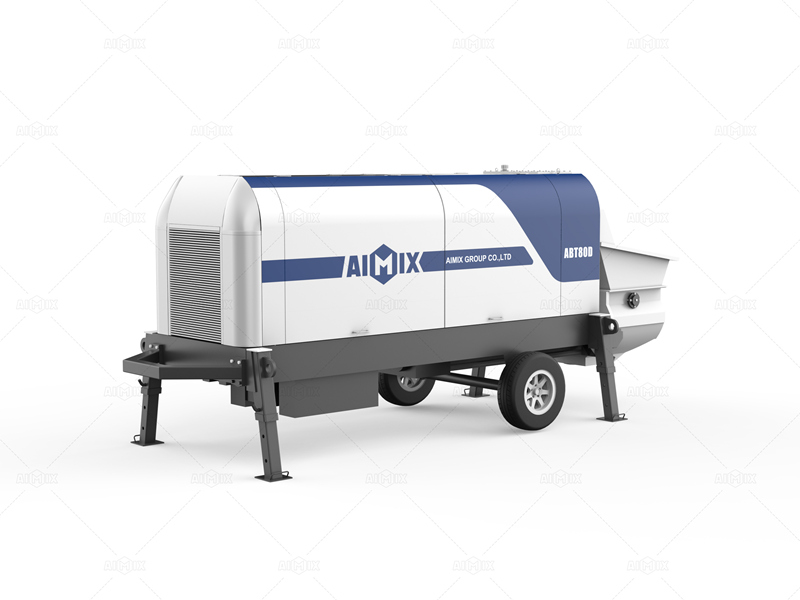

| Items | Key Parameters | Units | ABT40D | ABT60D | ABT80D |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1300 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 |
Concrete Line Pumping Cases

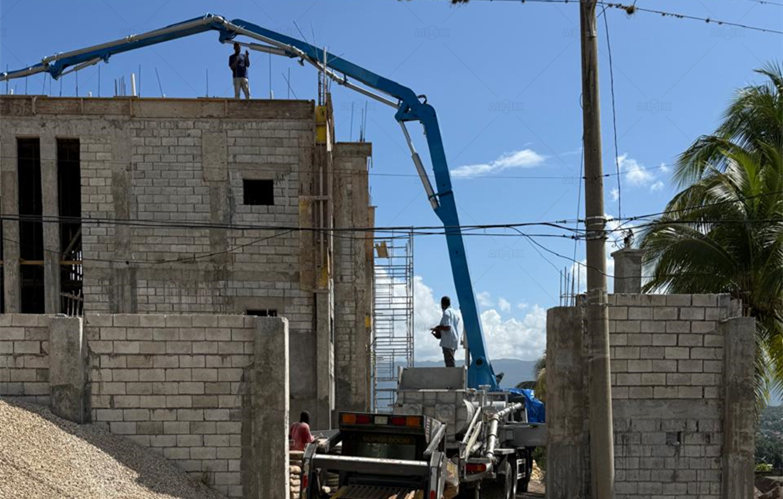

Truck Mounted Line Concrete Pump for High-Rise Secondary Construction in Jamaica
The truck mounted concrete line pump pours non-load-bearing walls & ring beams in a 15-story Kingston apartment tower.
Challenge:
Stairwell access width ≤1.2m – boom pumps couldn’t reach upper floors
Discontinuous small-volume pours (3–5m³ per floor)
Line Pump Concrete Solution:
Deployed electric line pump (0.7m width) carried floor-by-floor via service elevator
Pumped fine-aggregate concrete (≤15mm) directly to formwork through 100m pipelines
Operated on 10kW generator during grid outages
Result:
30% faster completion vs. manual bucket lifting
Saved $7,200 in crane rental costs
Client now rents the unit for $180/day to local contractors
Get A Quote
Static Line Concrete Pump for Urban High-Rise Slab Completion in Malaysia
The trailer line pump pops out slabs & balconies (final 5 floors) of a 22-story Klang tower.
Challenge:
Cramped staging area (8m x 10m)
Precision low-volume pours (4–6m³) around dense rebar
Line Pump Concrete Solution:
Positioned diesel concrete line pump trailer (7.5kW) in alleyway adjacent to site
Pumped through 130m pipelines to placing boom on floor 17
Delivered 12MPa pressure for C30 concrete
Result:
Zero placement errors in complex formwork
Completed pours 2 days ahead of schedule
Top 5 Application Scenarios Where Concrete Line Pumps Deliver Unmatched Value
Concrete line pumps solve critical challenges in confined spaces, low-volume projects, and remote locations where traditional large pump trucks fail. Their compact design (as narrow as 0.6 meters) and ability to operate with diesel generators (7.5–11kW) make them indispensable for these high-demand applications:

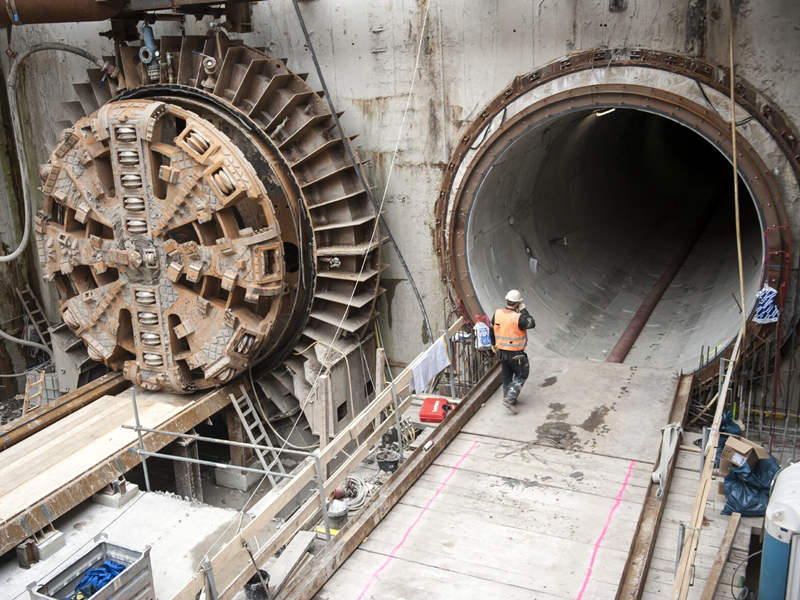

Tunnel and Underground Construction

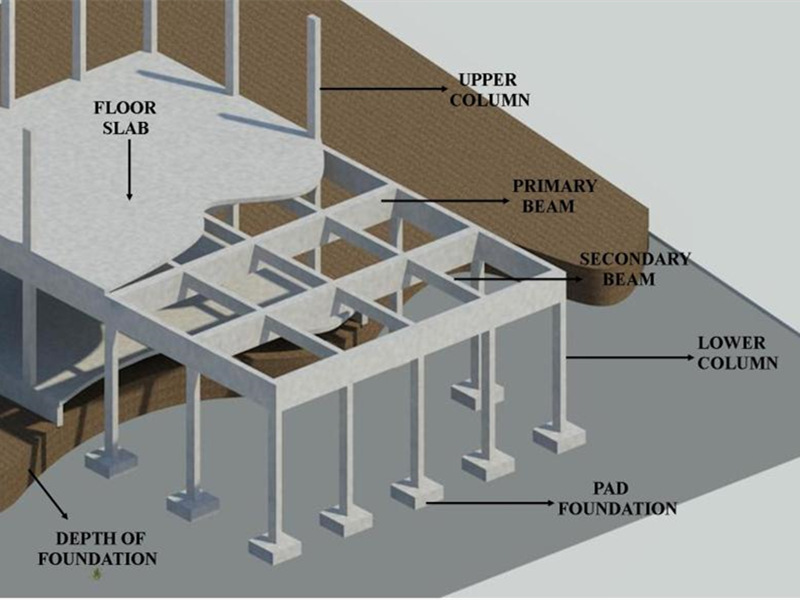

Building Secondary Structural Elements
Rural and Remote Residential Projects
Generator compatibility bypasses unstable grid power in villages, while compact wheeled bases traverse unpaved terrain. Contractors use them to pour foundations and slabs efficiently, reducing equipment costs by 80%.

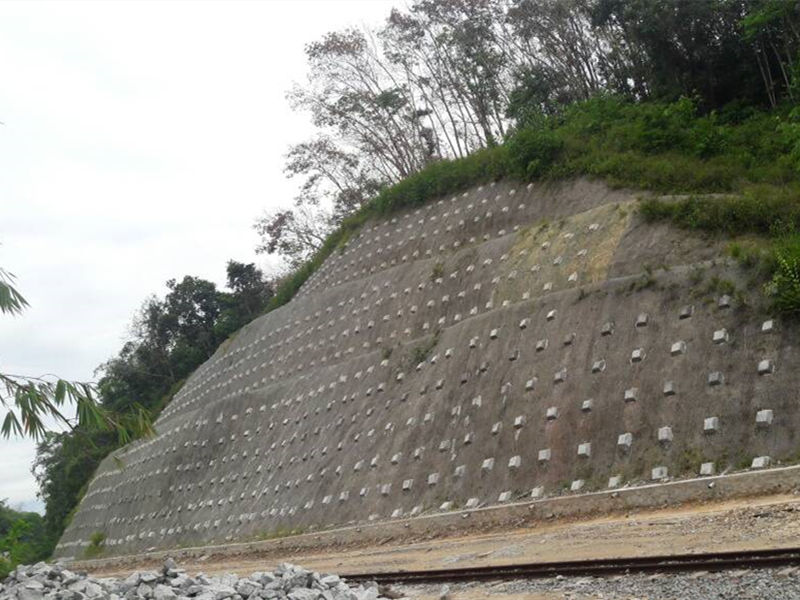

Slope Stabilization and Foundation Grouting
Steady pressure output (1.5–3MPa) allows pumping of high-viscosity mortars into rock fissures and unstable soil. Integrated vibration screens prevent blockages during critical geotechnical operations like landslide repairs and pile foundation grouting.
Specialized Material Placement
Low-shear pumping technology prevents segregation of sensitive materials like foam concrete and lightweight aggregates. This is essential for uniformly installing floor-heating insulation layers or spraying ecological slope-protection mixtures at 5m³/hour output rates.
Maximizing Your Investment: Ownership Flexibility & Resale Value
Purchasing a concrete line pump isn’t just an equipment acquisition—it’s a versatile asset that generates returns throughout its operational life. Beyond initial project use, explore these proven strategies to enhance profitability:
Resale Advantages in Emerging Markets
These pumps retain 60–70% residual value after 3 years due to high demand in developing regions (Southeast Asia, Africa, South America). Their compact size reduces shipping costs by 40% compared to standard pumps, making them ideal for international resale. Tip: Document maintenance records to justify premium pricing.
Rental Income Streams
Generate $150–$300/day in rental revenue by targeting:
Small contractors needing short-term access for rural housing or repair jobs
Municipalities requiring sporadic use for infrastructure maintenance
Disaster response teams deploying rapid concrete solutions
Value-Added Service Bundles
Increase client retention by 35% when pairing equipment with:
On-demand technical support ($50–$150/hour) for pump troubleshooting
Material consulting services (e.g., optimizing grout mixes for slope stabilization)
Operator training programs ($300/session) reducing customer downtime
Parts Harvesting for End-of-Life Units
Recover 15–20% of original cost by dismantling decommissioned pumps:
High-value components (hydraulic cylinders, S-tube assemblies) sell for 50% of new price
Electronics/control systems are repairable and reusable
Frame/chassis often repurposed for custom machinery builds

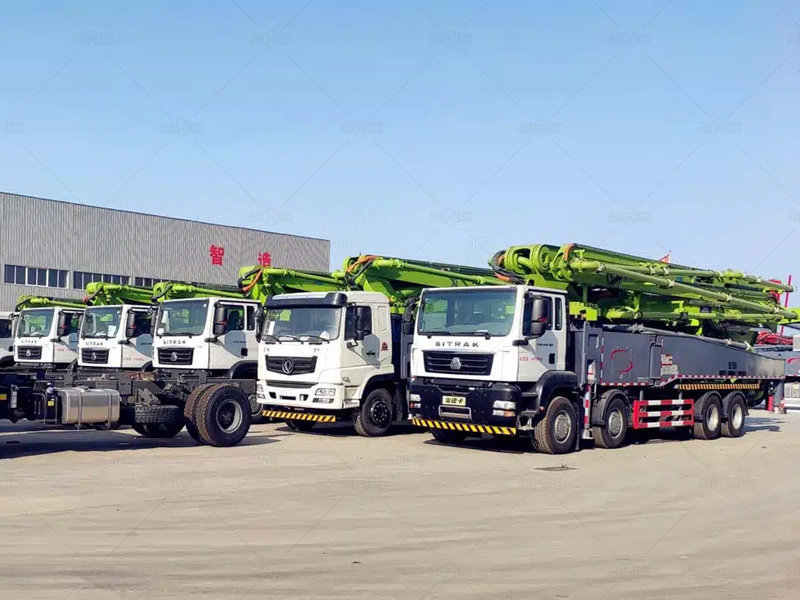

Concrete Line Pumps in Stock
Aimix has our own factory in China. We also have many distributors and warehouses around the world. You can check the stock down below if you need the pump in hurry. The CP stands for concrete trailer line pump for sale.
Azarindo TATSUO INDONESIA,ZOOMLION,AIMIX
In Stock
CP ABT40C+100m pipe
CP ABT60C+100m pipe
Ruko the avenue blok AC no.2
Citra grand senyiur
Jl. Moeis hasan ,Loajanan Samarinda
In Stock
CP ABT40C, (not always have stock)
Pergudangan Duta Indah karya (kawasan Vittoria) blok A no 1.Jl. Daan monggot km 12，Cengkareng-Jakarta barat
In Stock
CP ABT40C, (not always have stock)
Jaya, Gg. VII No.99, Sagara Makmur, Kec. Tarumajaya, Kabupaten Bekasi, Jawa Barat 17211
In Stock
CP ABT30C +100m pipe
AIMIX Tailored Support for Your Line Pump Operations
AIMIX delivers end-to-end solutions for concrete line pumps, prioritizing niche space access, power adaptability, and specialized material handling. From initial consultation to post-installation support, our engineers craft custom configurations for scenarios like tunnel grouting, high-rise secondary pours, or off-grid rural projects. During production, we enforce strict quality control—pressure-testing pump assemblies and validating generator compatibility—while providing real-time video updates.
With technicians across 60+ countries (including Indonesia, Malaysia, and Kenya), we guarantee:
- 48-hour on-site assistance for critical issues like pipeline blockages or pressure fluctuations
- Free operator training covering fine-aggregate concrete pumping and maintenance in confined spaces
- Lifetime technical guidance via WhatsApp/email for mix optimization or retrofit queries
