Aimix provides our high quality concrete pump in Malaysia and supports many construction project. AIMIX has set up an office in Malaysia to provide better service. This is always a hot type concrete machine for concrete pouring projects with characteristics of easy movement, simple operation, and convenient maintenance.
Types of Concrete Pump Malaysia
The mobile concrete pump, concrete mixer pump and stationary concrete pump are three main types of concrete pump for sale Malaysia. Each of them has their own features and application.
Mobile Concrete Pump Malaysia
As a reliable concrete pump supplier in Malaysia, Aimix provides you three kinds of mobile concrete pump for sale in Malaysia. They have long boom and different chassis: truck, crawler and wheel.

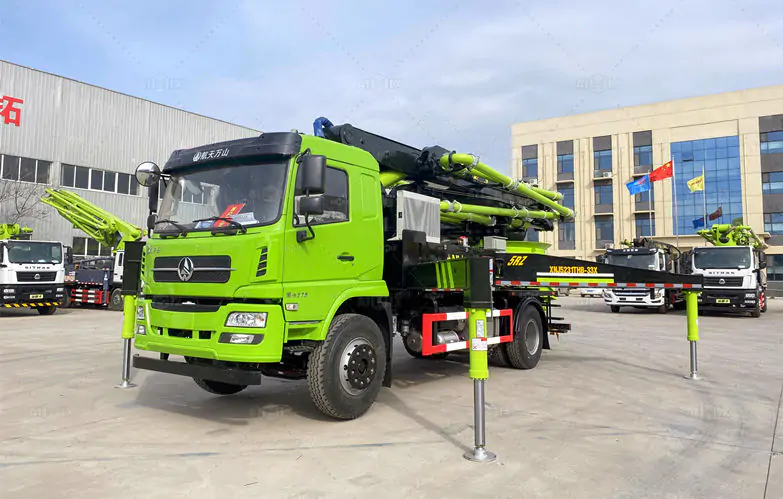

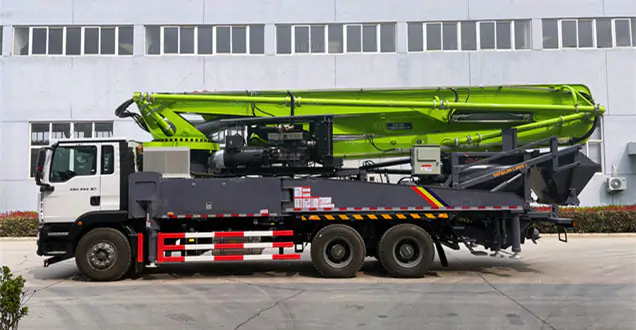

Concrete Pump Truck Malaysia
- Boom Length: 26m30m33m38m
- Max Concrete Output: 120m³/h
- Hot Model: AMY33
- Application: Urban high-rise construction, expressway bridges, industrial complexes
- Advantages: Lightweight design, high construction efficiency. This concrete pump truck type is popular in Malaysia. After finishing your own project, you can start business of concrete pump truck rental Malaysia for extra earning.

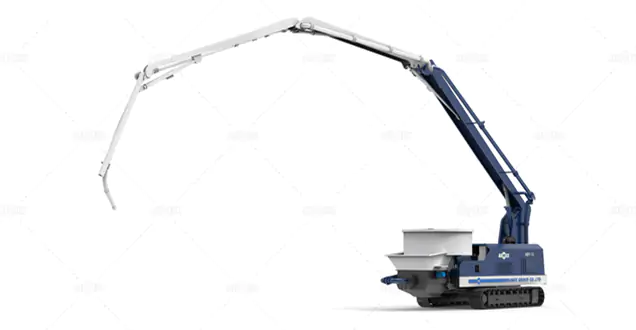

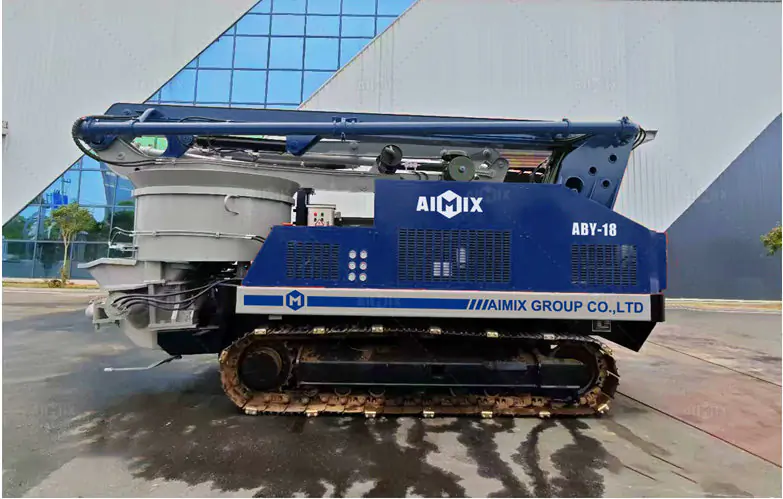

Mobile Concrete Pump Malaysia with Crawler Chassis
- Boom Length: 8m15m18m20m25m
- Max Concrete Output: 50m³/h
- Hot Model: AMY18
- Application: Slope stabilization, hydropower plants, plantation infrastructure
- Advantages: Equipped with a crawler chassis and features remote control capability.

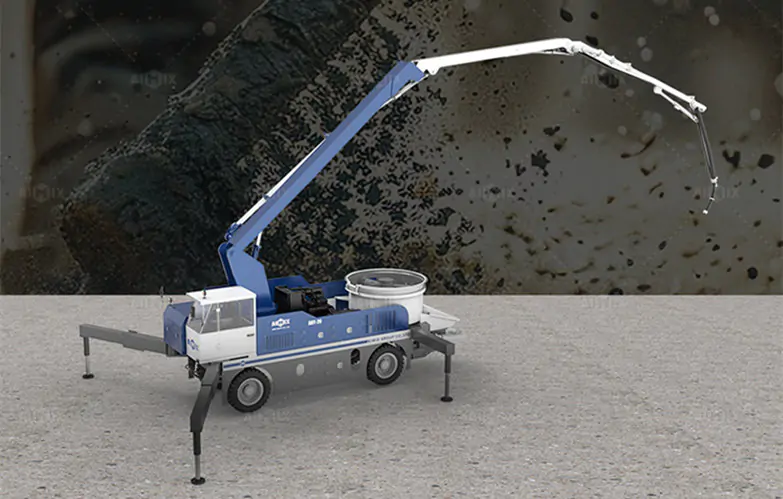

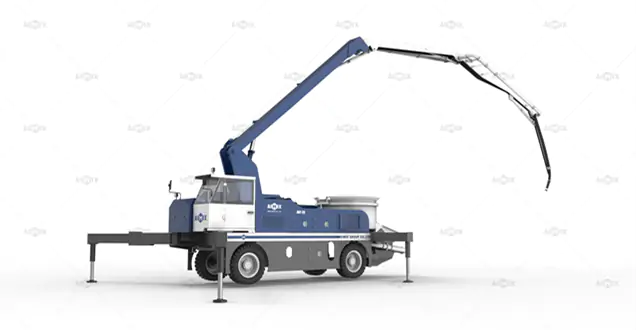

Mobile Concrete Pump Malaysia with Wheel Chassis
- Boom Length: 20m26m30m33m
- Max Concrete Output: 89m³/h
- Hot Model: AMY20, AMY26
- Application: Affordable housing, rural schools, township drainage
- Advantages: This wheel type boom concrete pump requires less spacious moving area than truck chassis.
Concrete Mixer Pump Malaysia
There are two types of concrete mixing pump with different mixer structure.

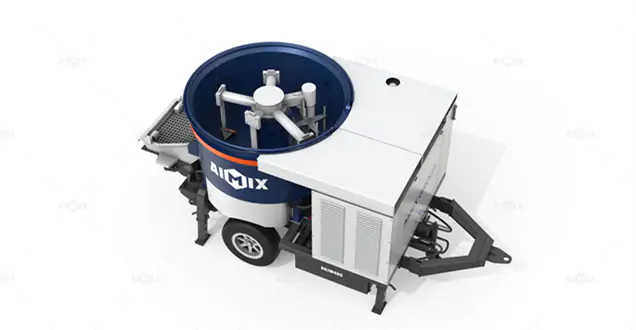

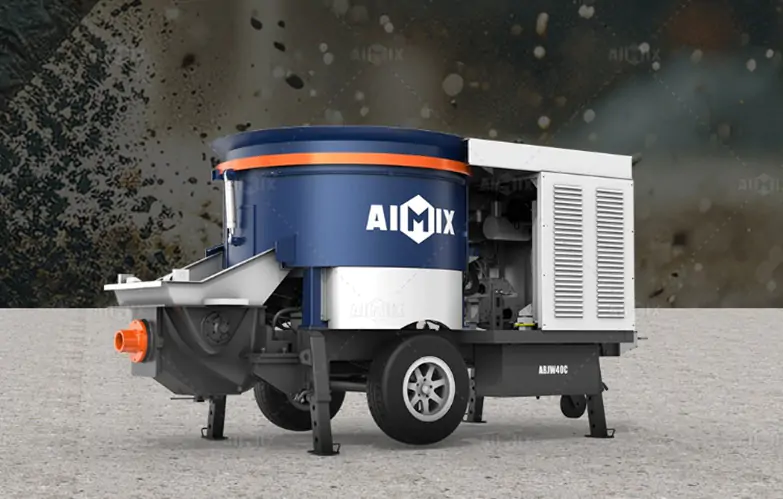

Concrete Pan Mixer Pump Malaysia
- Max Concrete Output: 40m³/h
- Hot Model: ABJW40C
- Application: Large-scale infrastructure, industrial complexes, cross-state highways
- Advantages: The vertical shaft mixing concrete pump sales has dual hydraulic drive. It mixes concrete with two mixing shafts which increase the mixing speed by 2.3 times

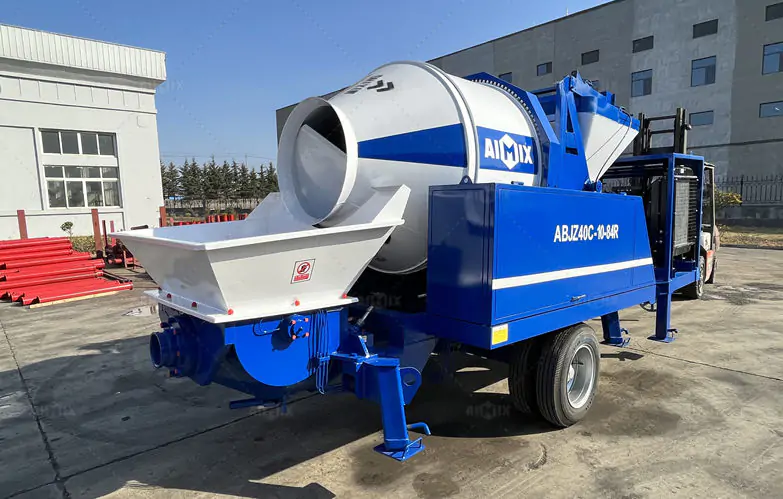

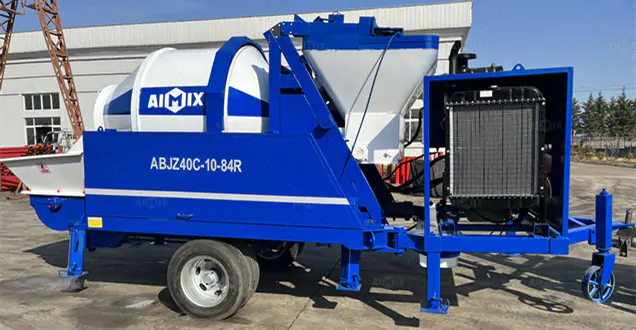

Concrete Drum Mixer Pump Malaysia
- Model: ABJZ30, ABJZ40
- Production Range: 30-40 m³/h
- Engine Type: Electric/diesel
- Application: Urban housing upgrades, rural community centers, heritage restoration
- Advantages: It is a cost-effective choice for projects require moderate quality concrete mixture.

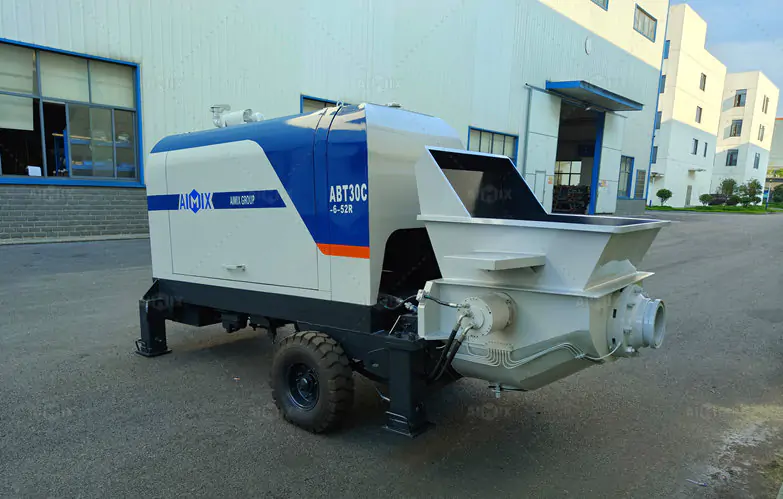

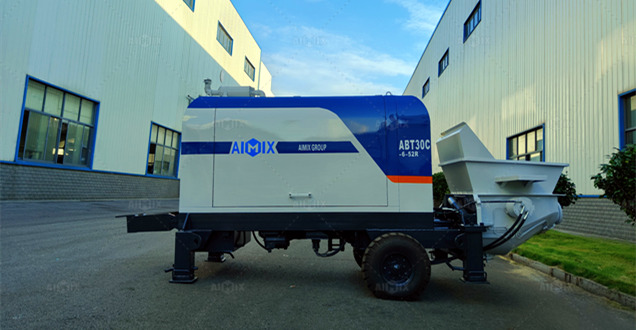

Stationary Concrete Pump Malaysia
- Function: Transport concrete through pipelines to a specified location
- Model: ABT30, ABT40, ABT60, ABT80, ABT90
- Production Range: 30-90 m³/h
- Engine Type: Electric/diesel
- Applications: Mass concrete pours, high-rise cores, hydroelectric dams, industrial flooring
- Advantages: The trailer mounted stationary concrete pump is suitable for high-rise construction, large foundations, and infrastructure projects where access may be challenging.
Specification of Concrete Pump Machine in Malaysia
| Items | Key Parameters | Units | ABJZ30C | ABJZ30D | ABJZ40C | ABJZ40D |
|---|---|---|---|---|---|---|
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 30 | 30 | 40 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | 0.56 | 0.56 | |
| Mixer rated discharge capacity | m3 | 0.35 | 0.35 | 0.45 | 0.45 | |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 | 10 | 10 | |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve | ||
| Hopper capacity | L | 400 | 400 | 400 | 400 | |
| Power system | Diesel engine model | Weichai | ||||
| Electrical engineering power | KW | 37 | 37 | 82 | 45 | |
| Rotate speed | r/min | 1480 | 1480 | 2200 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 26 | 32 | 26 | |
| Capacity of oil tank | L | 260 | 260 | 350 | 370 |
| Items | Key Parameters | Units | ABT40C | ABT60C | ABT80C |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 |
| Items | Key Parameters | Units | ABT40D | ABT60D | ABT80D |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1300 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 |

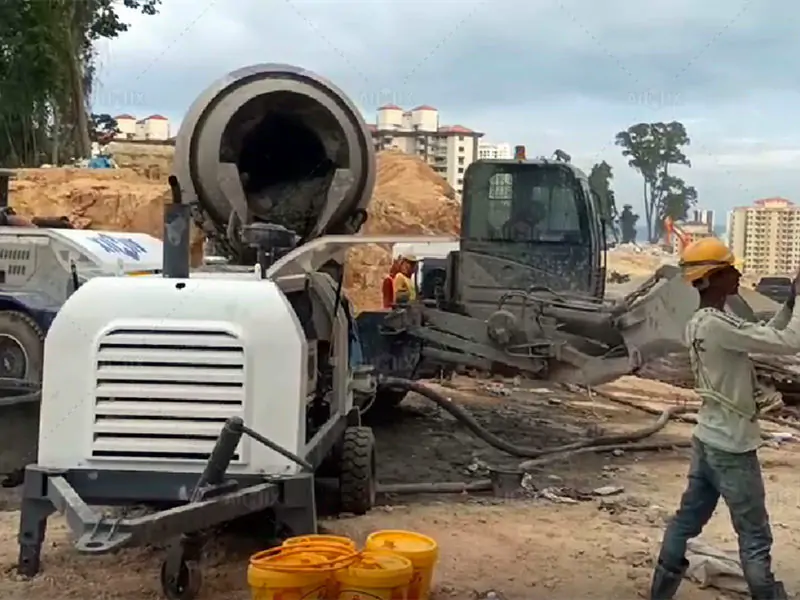

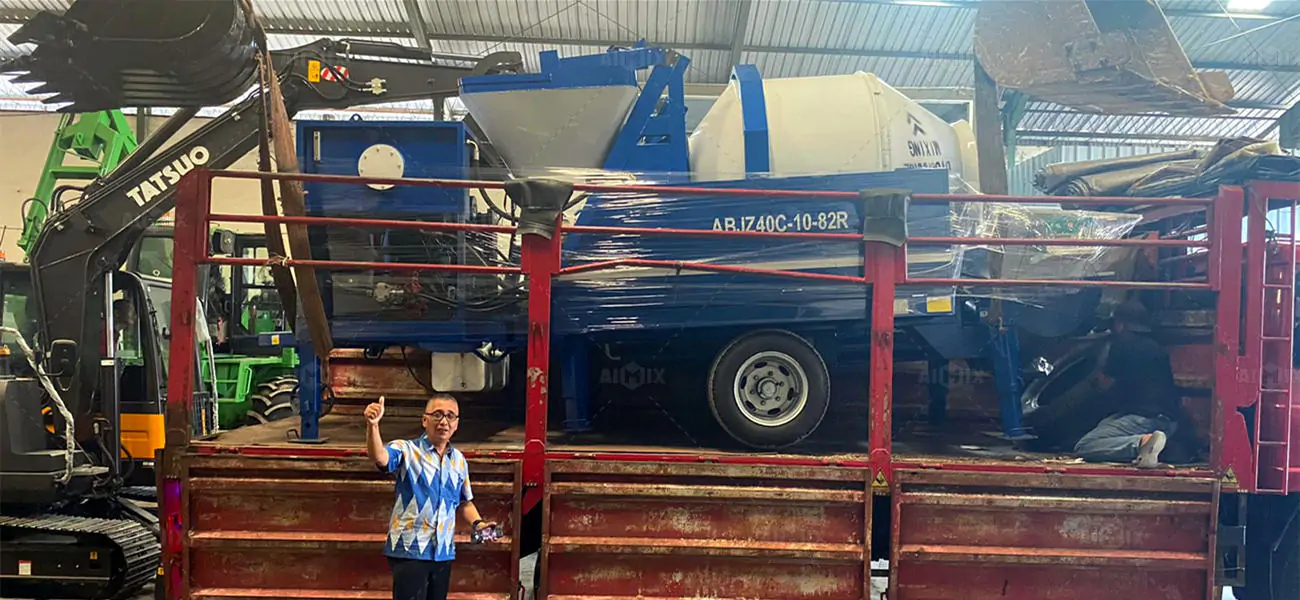

Malaysia Concrete Pump Customer Cases

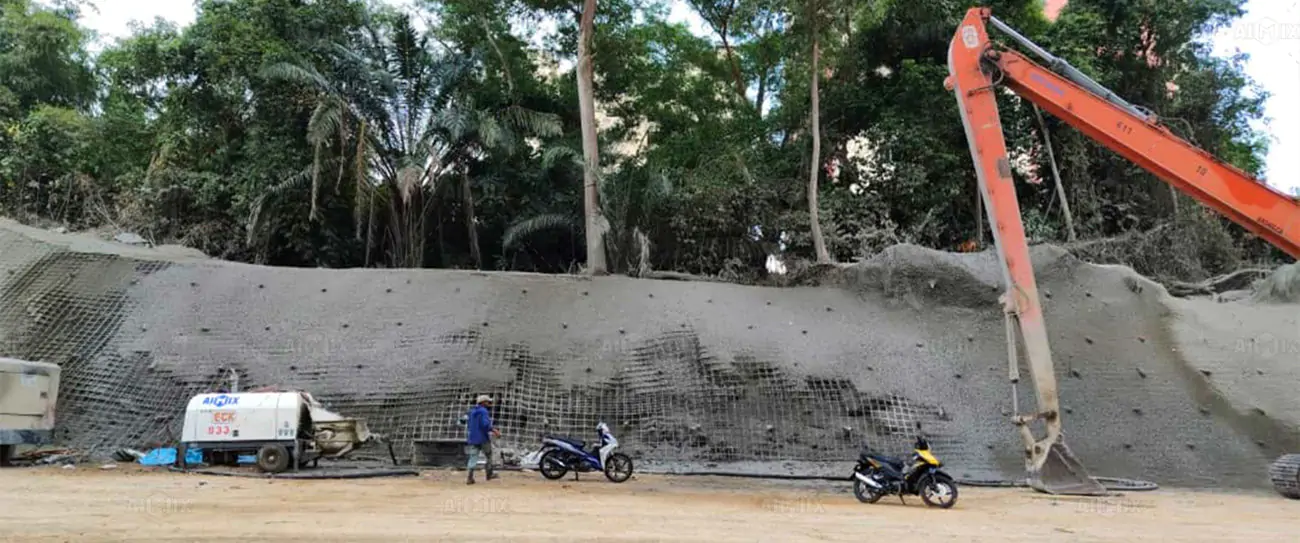

Mini Concrete Pump Malaysia with Powerful Pumping Ability
- Project Time: 2025.2
- Model/Type: Mortar spraying mini concrete pump Malaysia
- Engine Type: Diesel
- Project: Mortar spraying for construction of amusement park
- Customer Feedback: It operates well. The pumping ability is strong.

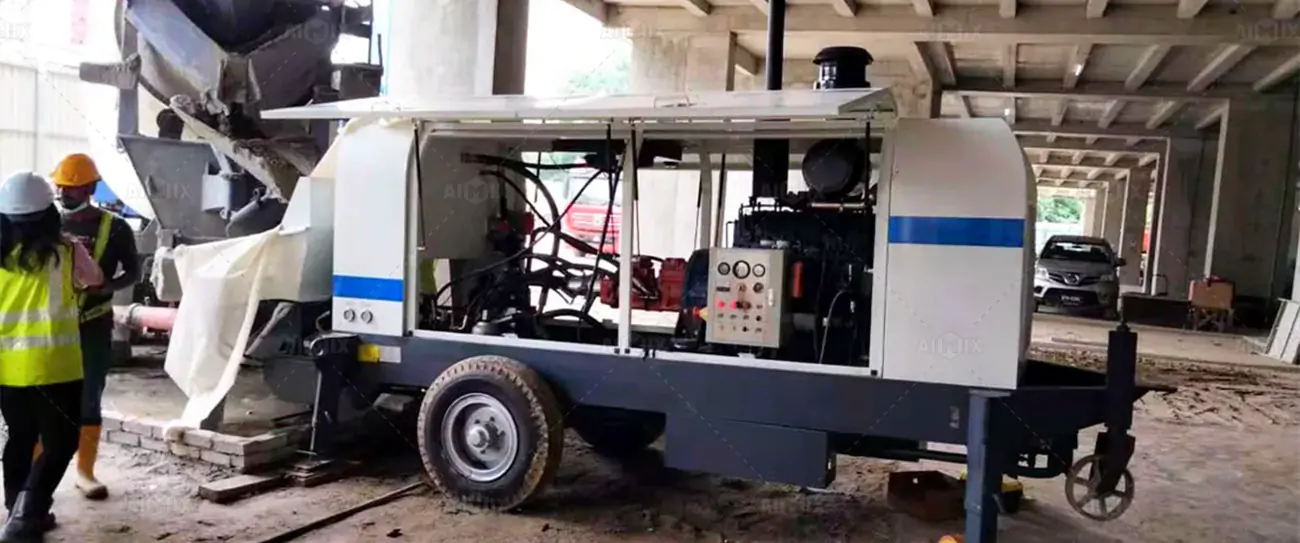

80m³ Concret Output Every Hour
- Project Time: 2022.4
- Model/Type: ABT80C stationary concrete pump Malaysia
- Engine Type: Diesel
- Project: House construction in Puchong
- Customer Feedback: The project manager serves patiently.

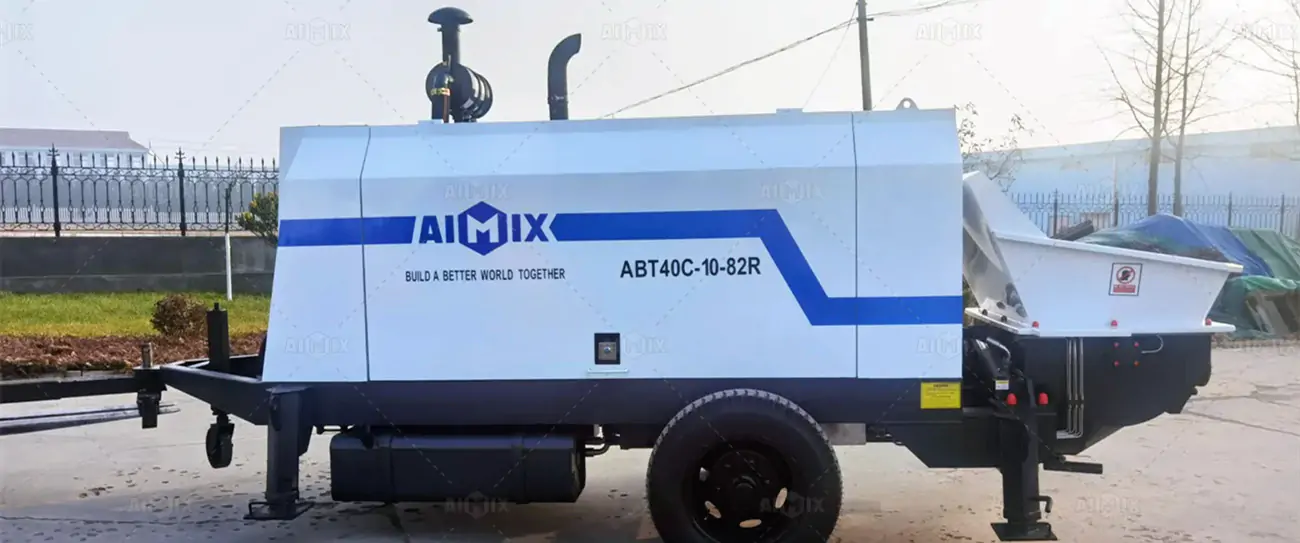

Best Selling Stationary Concrete Pump Model
- Project Time: 2021.12
- Model/Type: ABT40C stationary concrete pump Malaysia
- Engine Type: Diesel
- Project: House construction project
- Customer Feedback: Good quality.
Concrete Pump Price Malaysia
| Mobile Concrete Pump Price Malaysia: | Truck Chassis: at least 80,000 USD Crawler Chassis: 62,000-73,000 USD Wheel Chassis: 81,000-92,000 USD |
| Mixer Concrete Pump Malaysia Price: | Pan Mixer Type: 32,000-35,000 USD Drum Mixer Type: 18,000-28,000 USD |
| Trailer Mounted Concrete Pump Price Malaysia: | 12,000-43,000 USD |
Selecting Suitable Concrete Pump Machine in Malaysia for Your Project
If you want to select the suitable concrete pumping machine for your project, learning some use cases of each type of concrete pumping equipment Malaysia is helpful. Each model aligns with Malaysia’s 12th Plan priorities – crawlers for East Malaysia’s terrain challenges, wheeled pumps for rural development, and truck-mounted units for urban megaprojects.
Concrete Pump Truck Malaysia Applications
Kuala Lumpur: Ideal for the TRX Exchange 106 Tower (future 445m skyscraper) due to its 38m boom length and 120m³/h output, enabling rapid concrete placement at height.
Johor-Singapore RTS Link: Efficiently supports viaduct construction across the strait with minimal setup time.
Penang South Islands: Perfect for coastal infrastructure requiring maneuverability in tight spaces during reclamation.
Mobile Concrete Pump with Crawler Chassis Applications
Cameron Highlands: Deploys AMY18 model (18m boom) for tea plantation terrace repairs and landslide-prone slope reinforcement.
Sarawak Baleh Dam: Remote-controlled operation suits rugged terrain in this 1,285MW hydroelectric project.
Sabah Palm Oil Estates: Navigates muddy plantation roads to build drainage systems during monsoon season.
Mobile Concrete Pump with Wheel Chassis Applications
Rumah Selangorku: Accelerates low-cost housing projects in Shah Alam with AMY26’s 26m boom for mid-rise buildings.
Sarawak Alternative Water Supply: Builds rainwater harvesting systems in remote villages like Long Lama.
Kedah Paddy Field Modernization: Constructs irrigation canals in the “Rice Bowl of Malaysia” without damaging existing fields.
Concrete Pan Mixer Pump Malaysia Applications
East Coast Rail Link (ECRL): Deployable in Pahang’s tunnel construction sections for rapid 40m³/h concrete mixing and pumping, ideal for continuous bridge pier casting.
Penang Second Bridge Maintenance: Efficiently repairs expansion joints using its dual-shaft mixing system, reducing downtime by 40% compared to traditional methods.
Sarawak Corridor of Renewable Energy (SCORE): Supports Bintulu industrial park construction with spill-resistant pan design for humid coastal environments.
Concrete Drum Mixer Pump Malaysia Applications
Rumah Mesra Rakyat (Selangor): Builds low-cost terrace houses in Klang Valley with diesel-powered ABJZ40’s compact footprint on narrow urban lots.
Melaka River Flood Mitigation: Electric ABJZ30 model quietly operates in UNESCO heritage zones for drainage upgrades without disrupting tourism.
Sabah Native Longhouse Renewal: Mobilizes to remote villages like Keningau for community hall construction, leveraging 30m³/h output for small-batch concrete needs.
Stationary Concrete Pump Malaysia Applications
High-Rise Construction: Deploy ABT90 (90m³/h) for continuous concrete placement in the 644m tower’s core walls and mega-columns of KL118 Tower (Kuala Lumpur), leveraging diesel power for uninterrupted pumping during monsoon grid fluctuations.
Mega Infrastructure: ABT80 supports viaduct construction in rugged Limbang sections of Pan Borneo Highway (Sarawak), pumping through 500m pipelines across inaccessible rainforest terrain.
Energy Projects: ABT30’s precise 30m³/h output repairs spillways of Bakun Dam Maintenance (Sarawak) without overloading aging infrastructure.

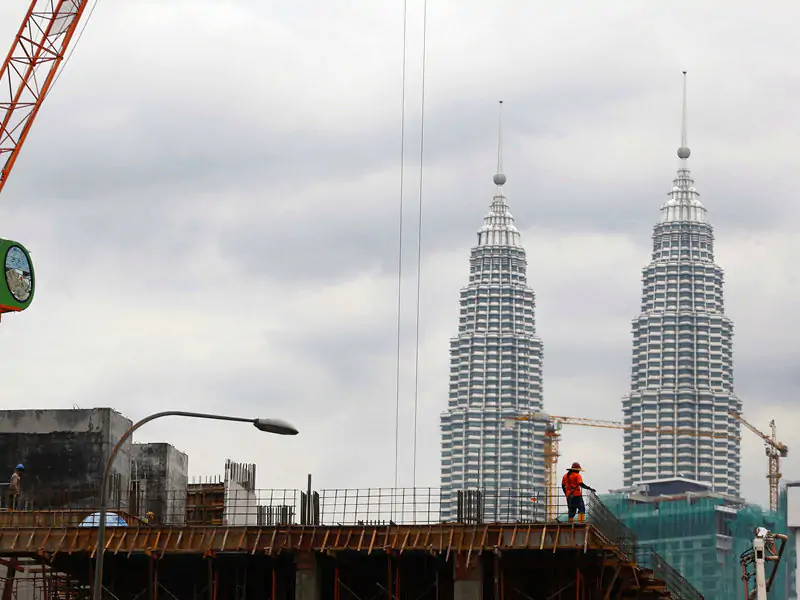

Malaysia Construction Industry Development & the Strategic Role of Concrete Pump
Malaysia’s construction sector is poised for sustained growth, projected to expand at a 4.8% CAGR (2025–2029), reaching MYR 89.86 billion by 2029 supported by Malaysia construction report from Research and Market. This growth is driven by urbanization, infrastructure modernization, and government initiatives such as the National Infrastructure Plan and 12th Malaysia Plan. Concrete pumps, as critical enablers of efficiency and precision, are integral to achieving these targets.
Sector-Specific Analysis & Concrete Pump Applications
Affordable housing programs like Rumah Selangorku and urban high-density projects require rapid concrete placement. Concrete pump truck Malaysia (e.g., 38m boom) accelerates high-rise projects in Kuala Lumpur’s TRX Financial District. Mini pumps support terrace housing in Klang Valley, reducing labor costs by 30%.
Commercial Construction
Demand for smart offices (e.g., Penang’s “Silicon Island”) and eco-friendly retail spaces. Electric pumps (e.g., ABT60) comply with urban emission regulations in green-certified buildings.
High-pressure pumps enable complex architectural designs for mixed-use developments like Forest City.
Institutional Construction
Modernizing healthcare (e.g., Sarawak General Hospital expansion) and education facilities. Stationary trailer pumps (90m³/h output) ensure continuous pours for large-scale foundations.
Compliance with CIDB certification for prefabricated structures ensures safety in school projects.
Industrial Construction
High-tech manufacturing hubs (e.g., Penang’s electronics corridor) and logistics parks. Drum mixer pumps (30–40m³/h) support small-batch concrete for semiconductor factories. Crawler pumps navigate muddy terrain in East Malaysia’s palm oil estates for drainage systems.
Infrastructure Construction
Mega-projects like the Pan Borneo Highway and Johor-Singapore RTS Link. Long-boom pumps (e.g., 38m) handle viaducts in Sarawak’s rainforest terrain. Crawler pumps with remote control ensure precision in tunnel projects like the Penang Undersea Tunnel.
Market Drivers
Technological Adoption: Integration of IoT and BIM in pumps for real-time monitoring, aligning with ONEBUILD 2025’s “Digital Transformation” theme.
Future Trends & Strategic Recommendations
Export Potential: Leveraging Malaysia’s position as China’s 4th-largest trade partner, suppliers should target infrastructure projects via trade shows like ONEBUILD.
Benefits of Being Aimix Distributor of Malaysia Concrete Pump
Aimix Group is not only a Malaysia concrete pump supplier. We offer exceptional partnership opportunities for concrete pump distributors in Malaysia, providing comprehensive support to help you succeed in the competitive construction machinery market. Here are the key benefits of joining the Aimix distributor network:
Marketing & Sales Support | Full set of sales materials (brochures, product videos, 3D models) to enhance your marketing efforts. Annual sales training programs to improve your team’s product knowledge and sales strategies. Technical training for your staff to ensure proper product demonstrations and customer support. Co-branding opportunities to strengthen your local presence in Malaysia. |
Regional Protection Support | Exclusive distributor rights in designated Malaysian regions to prevent market conflicts. Competitive pricing policies to maximize your profit margins. Priority access to new models and technologies before competitors. |
Flexible Payment Support | Customized payment solutions (LC, TT, installment plans) to suit your financial needs. Credit line options for trusted long-term partners. Low MOQ (Minimum Order Quantity) to reduce initial investment risks. |
Hassle-Free Distribution Support | One-stop logistics service from factory to Malaysia, including: Professional container loading & sea freight arrangements. Assistance with Malaysian customs clearance & import duties. Local warehousing & inventory management support (optional). |
Reliable Technical Support | Free remote troubleshooting via video calls for quick problem-solving. On-site engineer dispatch (if required) for major technical issues. Spare parts supply guarantee with fast delivery to Malaysia (3-7 days for stocked items). |
Customized Product Solutions | Tailor-made concrete pumps for Malaysia’s tropical climate (anti-corrosion treatment, high-temperature resistance). Special configurations for local construction needs (e.g., higher pumping pressure for high-rise projects). OEM/ODM services available for private-label branding. |
No matter you want to purchase concret pump in Malaysia or start your own business there, Aimix is a reliable partner. Click down below and contact us now.
