Mini concrete pumps deliver essential concrete placement for tight construction sites and budget-conscious projects. These compact machines are universally recognized for their small operational footprint and exceptionally low running costs. We are here to help you select the right concrete mini pump for your projects.
Mini Concrete Pump Types: Match Your Concrete & Power Needs
Aimix, as one of the most professional mini concrete pump manufacturers, provides you several types of mini concrete pumps for sale. Here are two categories based on their function: one can only pump pre-mixed concrete, the others can mix by themselves on-site.
Pre-Mixed Concrete Only

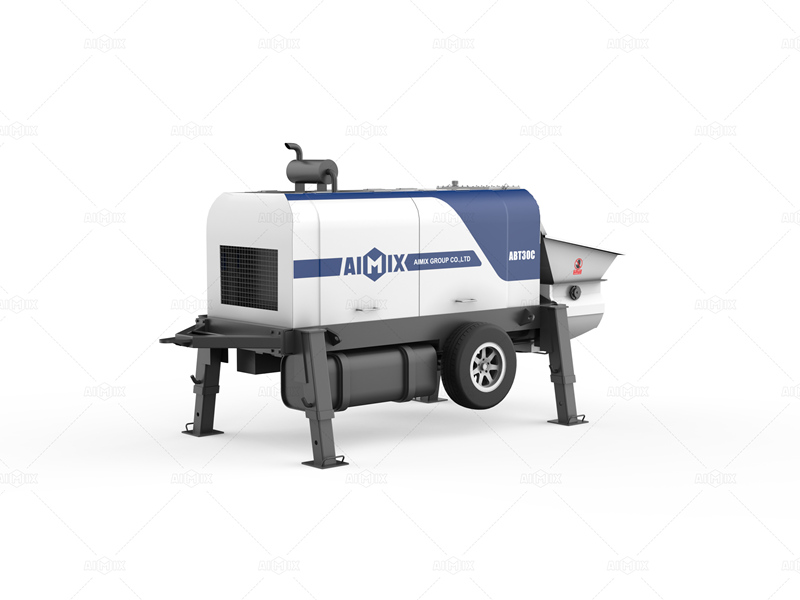

Trailer Mini Concrete Pumps
Model Example: ABT30C trailer concrete pump
Production Range: 30 m³/h
Function: Pure pumping operation for delivered ready-mix concrete.
Space Advantage: Ultra-narrow width fits basement doors and alleyways.
Cost Edge: Lowest upfront mini concrete pump price + 40% energy savings with electric models where grid power exists.
Flex Power: Diesel option ensures off-grid reliability for remote sites.
Ideal For: Building foundation, house wall spraying, seaside resort, urban retrofits, indoor slabs, small foundations with truck access, historic neighborhood renovation, foundation pouring for elevator installation, lining construction for narrow working shafts, indoor floor heating backfill pumping.
On-Site Concrete Mixture Production Pumps
Eliminate ready-mix costs by producing concrete directly at confined job sites.
Drum Mixer Mini Concrete Mixer Pump
Model Example: ABJZ30D concrete pump with mixer
Production Range: 30 m³/h
Workflow: Continuous mixing and pumping in one compact unit.
Power Choice: Electric/diesel options optimize fuel costs for variable site conditions.
Best Fit: House construction, road paving in remote mountainous areas, farm and ranch construction, offshore island defense construction, emergency engineering repairs.

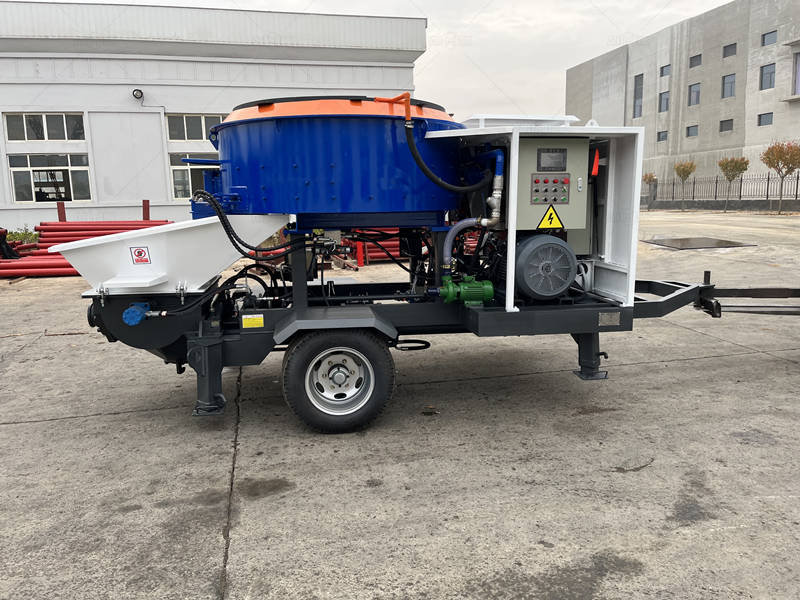

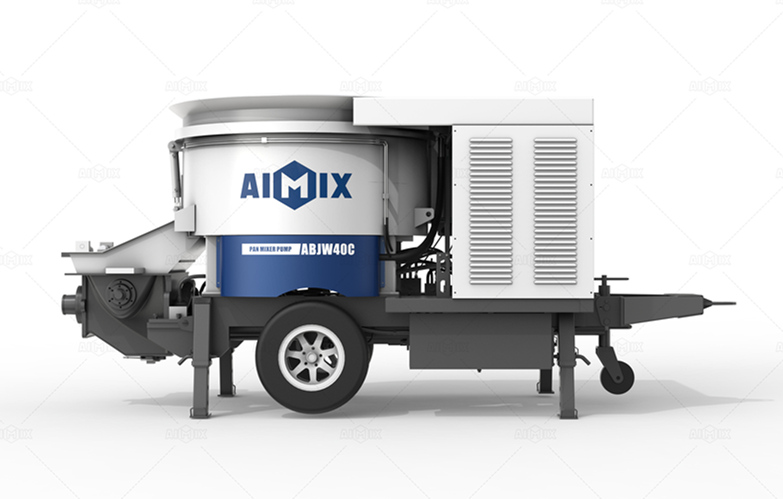

Pan Mixer Mini Concrete Mixer Pump
Model Example: ABJW40C
Speed: 2.3 time faster mixing via dual-shaft system accelerates project timelines.
Efficiency: 20% larger hopper reduces refill stops; anti-clog tech cuts downtime 70%.
Power: Diesel-driven for maximum torque in off-grid environments.
Best Fit: Time-critical pours like swimming pools or retaining walls, prefabricated component factory mold casting, rapid construction of military bunkers.

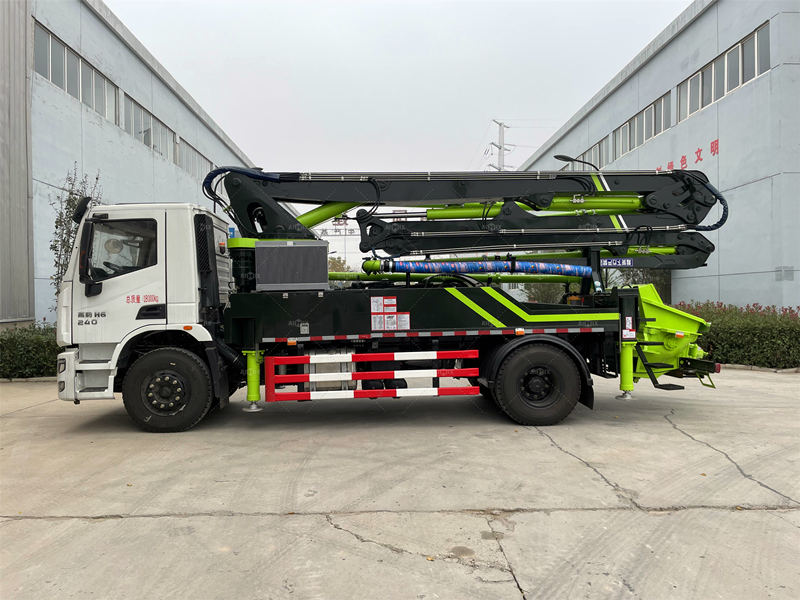

Mini Boom Pumps
Precision: Boom places concrete around obstacles in ultra-tight spaces.
Mobility: The mobile chassis of boom concrete pump enable zero-setup operation on rough/unlevel ground.
Power Choice: Electric models for indoor air quality; diesel for outdoor freedom.
Best Fit: Backyard pools, dense urban sites with overhead barriers, construction of columns in subway station concourses, repair of elevated bridge inspection platforms, traditional village preservation projects.
Customer Cases
We help many customer around the world to establish their mini concrete pumping machine. We not only provide equipment from our mini concrete pump factory, but also help to install and commission onsite. Here shows four successful cases.
For Indonesia Building Foundation
- Model: ABT30C
- Mini Concrete Pump Capacity: 30 m³/h
- Type: Diesel Trailer Type
- Location: Papua, Indonesia
- Project: Building Foundation Construction

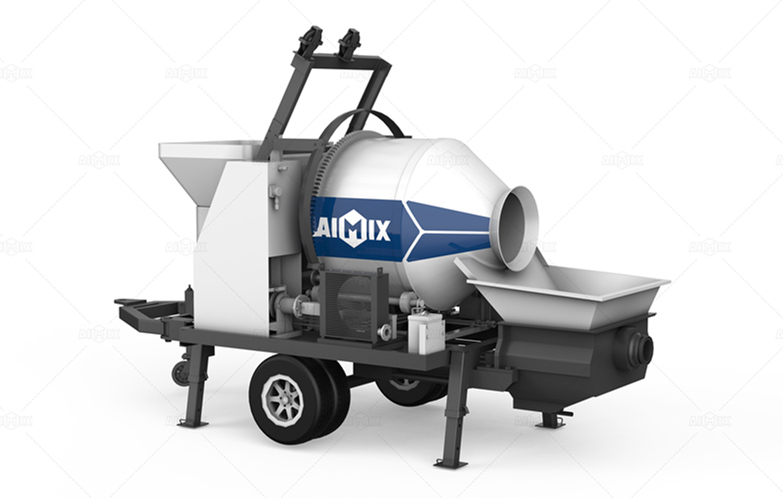

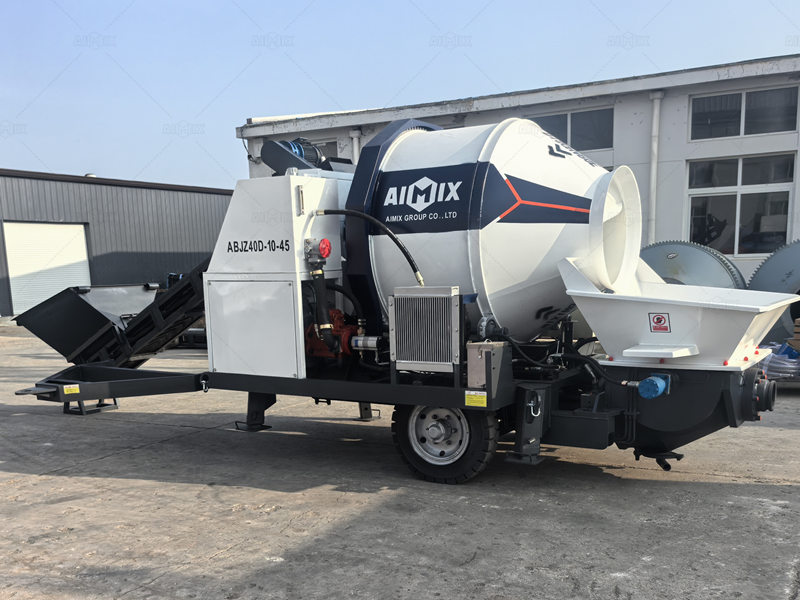

For South Africa Tunnel
- Model: ABJZ40D
- Mini Concrete Pump Capacity: 40 m³/h
- Type: Electric mini concrete mixer with pump
- Location: South Africa
- Project: Narrow tunnel construction
For Thailand Bridge
- Model: ABJW40D
- Mini Concrete Pump Capacity: 40 m³/h
- Type: Electric Pan Mixer Type
- Location: Thailand
- Project: Mix the steel slag concrete to support bridge reinforcement
For Jamaica House

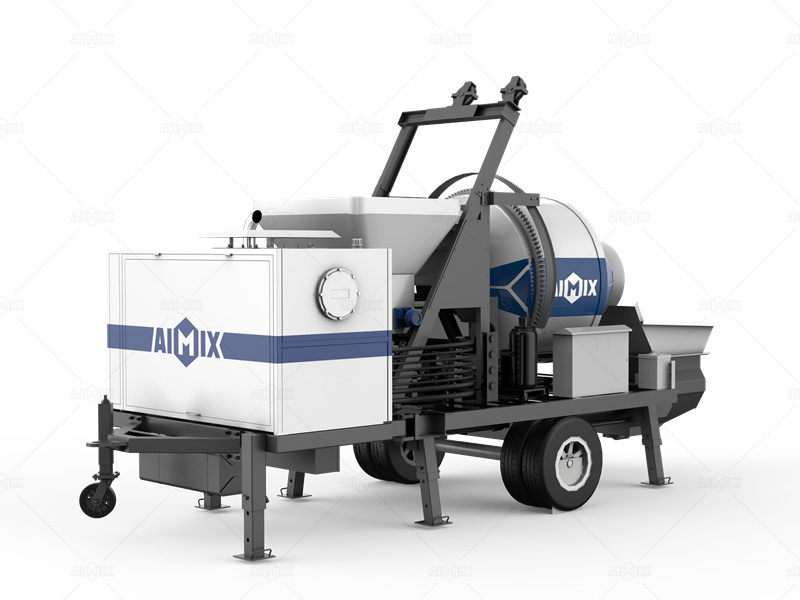

- Model: ABJZ30C
- Mini Concrete Pump Capacity: 30 m³/h
- Type: Diesel Drum Mixer Type
- Location: Jamaica
- Project: House Construction
For Dominica House
- Model: ABT30C
- Mini Concrete Pump Capacity: 30 m³/h
- Type: Diesel Trailer Type
- Location: Dominica
- Project: House Wall Spraying Operation
For the Philippines Seaside Resort
- Model: ABT30C
- Mini Concrete Pump Capacity: 30 m³/h
- Type: Diesel Trailer Type
- Location: The Philippines
- Project: Seaside Resort Construction
Key Parameters for Choosing Your Mini Concrete Pump Machine
Selecting the ideal mini concrete pumping machine – your ultimate small-space, low-cost solution – hinges on three non-negotiable parameters that directly impact on-site efficiency and ROI. Ignoring these could force costly compromises in confined job sites or budget-sensitive projects:
Construction Space Width
Daily Concrete Volume Requirements
Projects under 15m³/day: Compact electric pumps (5–8m³/h actual) suffice for slabs or thin walls.
15–30m³/day: Diesel-powered pumps (e.g., 10m³/h actual) handle extended pours like foundations.
Pro tip: Match pump capacity to peak hourly demand – not just daily averages – to avoid bottlenecks.
On-Site Mixing Needs
No mixing needed: Choose basic trailer pumps when using pre-mixed concrete. Ideal for urban sites with ready-mix access.
On-site mixing essential: Opt for mixer-pump combos in remote/rural projects. Eliminates separate batching equipment – critical when space or logistics limit truck access.
Fuel tip: Electric mixer-pumps save costs if grid power exists; diesel hybrids suit off-grid sites despite higher fuel expenses.
Below we show our parameters of mini concrete pumps. Checking them can ensure your chosen pump aligns with your site’s constraints and concrete goals.
| Items | Key Parameters | Units | ABJZ30C | ABJZ30D | ABJZ40C | ABJZ40D |
|---|---|---|---|---|---|---|
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 30 | 30 | 40 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | 0.56 | 0.56 | |
| Mixer rated discharge capacity | m3 | 0.35 | 0.35 | 0.45 | 0.45 | |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 | 10 | 10 | |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve | ||
| Hopper capacity | L | 400 | 400 | 400 | 400 | |
| Power system | Diesel engine model | Weichai | ||||
| Electrical engineering power | KW | 37 | 37 | 82 | 45 | |
| Rotate speed | r/min | 1480 | 1480 | 2200 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 26 | 32 | 26 | |
| Capacity of oil tank | L | 260 | 260 | 350 | 370 |
| Items | Key Parameters | Units | ABT40C | ABT60C | ABT80C |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 |
| Items | Key Parameters | Units | ABT40D | ABT60D | ABT80D |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1300 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 |
Purchase & Operational Cost Analysis
The mini concrete pump machine price and daily cost are important factors to consider. The chart down below shows the price range for our popular model of mini concrete pumps for sale.
| Type | Model | Price Range |
|---|---|---|
| Trailer Type | ABT30C | at least $18,000 |
| Drum Mixer Type | ABJZ30D | at least $18,000 |
| Drum Mixer Type | ABJZ30C | at least $20,000 |
| Verticle Shaft Mixer Type | ABJW40C | at least $30,000 |
| Boom Truck Type | ABY26 | at least $60,000 |
Knowing the price range is not enough, understanding the cost of whole operation process is important. Here we shows you the operation cost comparing our ABJZ30C model vs. ABJZ40C model mini pump concrete pumping in a real 50m³ basement project (8-hour pour).
| Cost Factor | ABJZ30C Mixer-Pump | ABJZ40C Mixer-Pump | Savings with 40C |
|---|---|---|---|
| Theoretical Output | 30 m³/h | 40 m³/h | +33% faster |
| Actual Output | 24 m³/h (80% efficiency) | 32 m³/h (80% efficiency) | +33% |
| Project Time | 2.08 hours | 1.56 hours | 25% less time |
| Diesel Consumption | 6.5 L/h | 8.2 L/h | – |
| Total Fuel Cost | $13.26 (10.4L) | $11.15 (13.1L) | 16% cheaper |
| Labor Cost | $104 (2 workers x $25/h) | $78 | $26 saved |
| Maintenance | $1.10/hour | $1.32/hour | – |
| Total Project Cost | $118.36 | $90.47 | $27.89 (24%) saved |
Key Insights from This Comparison
The 20% “Reality Gap”: Both pumps lose 20% output due to setup, pipeline friction, and crew breaks. Never base decisions on theoretical specs.
Faster = Cheaper: Despite higher fuel/hour, ABJZ40C’s 33% actual speed boost slashes labor/fixed costs.
Small Project, Big Savings: For just 50m³, upgrading to 40C saves $28 – equivalent to 1.1m³ of free concrete.
Cost Per m³ Reality Check:
ABJZ30C: $2.37/m³ ($118.36 ÷ 50m³)
ABJZ40C: $1.81/m³ ($90.47 ÷ 50m³) → 24% lower cost per cubic meter.
Suitable Precision Solutions for Confined Spaces & Small-Scale Projects
When standard equipment can’t navigate your limited workspace or justify its cost for minor pours, these purpose-built mini pumps deliver concrete efficiently and economically.

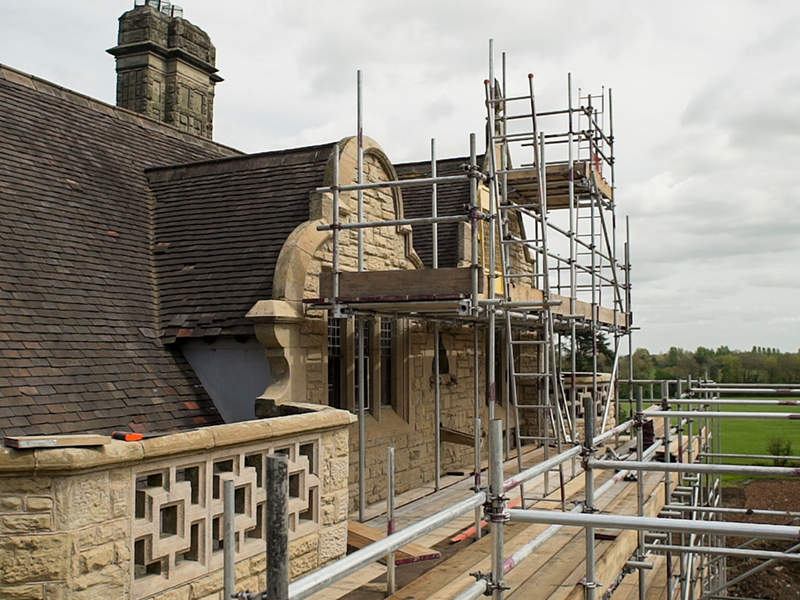

Renovating Narrow Interiors (e.g., Basements, Historic Building Upgrades)
If you’re pouring slabs in spaces with doorway clearances under 1 meter or ceiling heights below 2.2 meters, the ABT30 trailer concrete mini pump becomes indispensable. Its frame slips through standard residential doors, while electric operation (220V compatible) eliminates fumes in enclosed areas. With a realistic 24m³ output, it completes typical basement floors (15–20m³) in a single shift without costly access modifications.

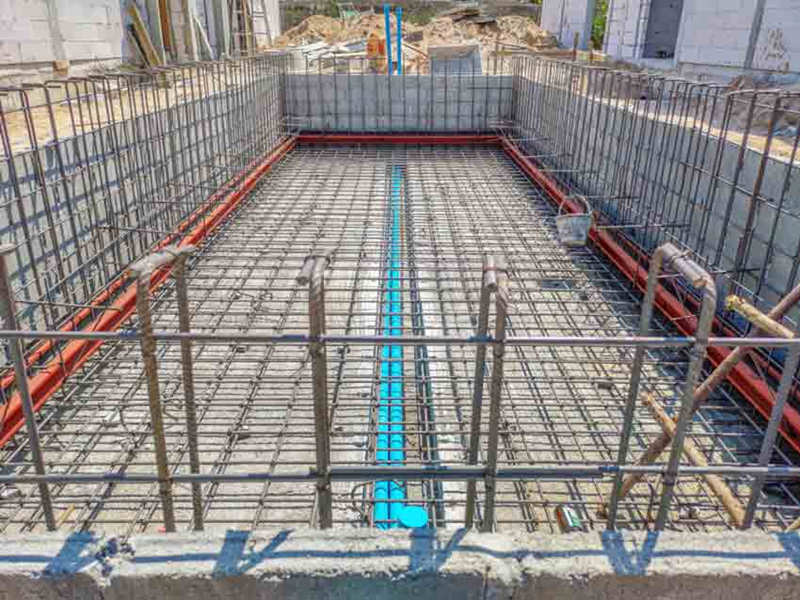

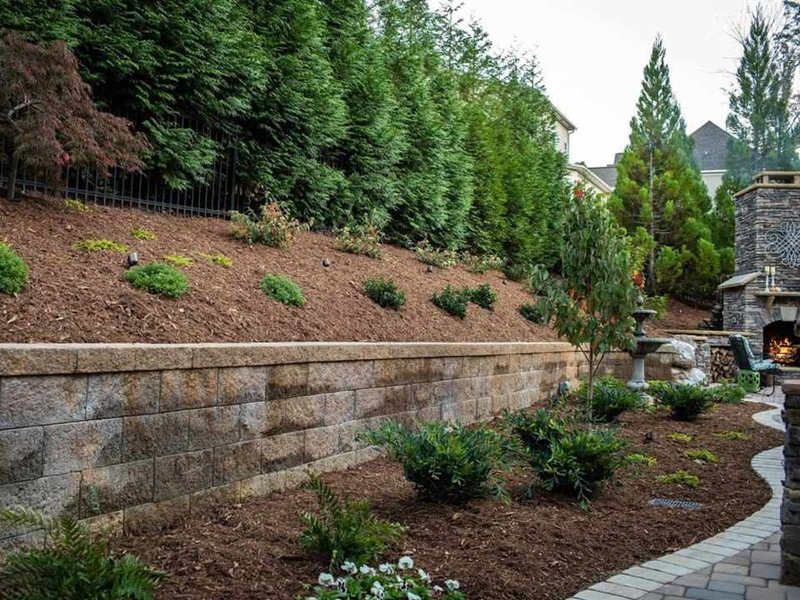

Backyard & Micro-Construction (e.g., Swimming Pools, Garden Retaining Walls)
When fences, trees, or soft terrain prevent truck access to your backyard site, the portable mini concrete pump truck overcomes these hurdles. The truck base maneuvers through 1.2m-wide gates and across soggy lawns, while its articulating boom places concrete around obstacles without repositioning. Remote control operation allows precise pouring in spaces as tight as 3×3 meters – ideal for DIY-friendly projects.
Rural Micro-Infrastructure (e.g., Farm Drainage Ditches, Country Walkways)
For remote locations lacking ready-mix plants or stable terrain, the ABJZ40C pan mixer mini concrete pump consolidates mixing and pumping into one rugged unit. Diesel-powered for off-grid reliability, it produces and places 32m³ of concrete daily – enough to line 50 meters of farm drainage in 1.5 days. Integrated operation eliminates separate mixer transport, critical when working beyond paved roads.
Urban Utility Repairs (e.g., Sidewalk Splicing, Pipe Bedding in Pedestrian Zones)
When repairing sidewalks in busy districts with 1.5m work corridors and strict noise ordinances, the ABJZ30C drum mixer concrete mini pump meets all constraints. It fits within standard sidewalk barriers; electric mode operates at 65dB (quieter than city traffic), enabling daytime work without permits. Its precise small-batch pumping delivers exactly 5–8m³ per repair section, minimizing waste in high-cost urban environments.
Our Mini Pump Service Commitment
Aimix service supports your business in any circumstances, we partner with you to re-imagine possibilities—like redesigning an ABJZ40D’s feed system for a tunnel project where 1.8m ceilings demanded a 30% lower profile. By replacing standard hoppers with a custom belt conveyor, AIMIX enabled concrete placement in spaces others abandoned.
Pre-Sales: Precision Scoping for Unique Constraints
Within two hours of your inquiry, a senior project consultant initiates a detailed assessment of your spatial challenges—whether navigating 0.9m doorways, operating under 2m ceilings, or avoiding overhead obstacles. We then develop 2–3 tailored configurations, presenting 3D layouts, performance simulations, and real-world adaptations like the tunnel’s belt-fed solution that slashed clearance requirements by 40%.
In-Production: Collaborative Perfection

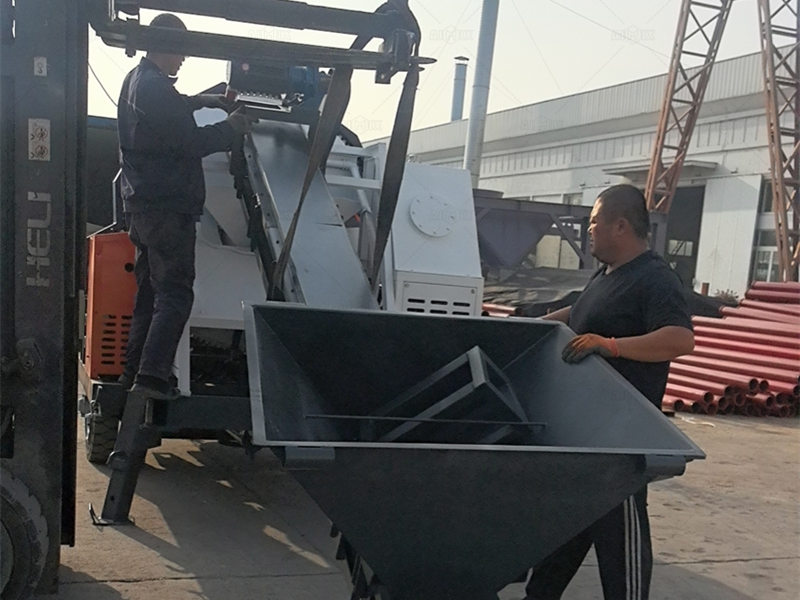

As your pump enters manufacturing, our engineers implement strict oversight—validating critical compact features like sub-850mm chassis widths or noise-dampened electric drives. Should unexpected site changes arise (e.g., discovering narrower access mid-project), we redesign components within 72 hours without delaying delivery.
