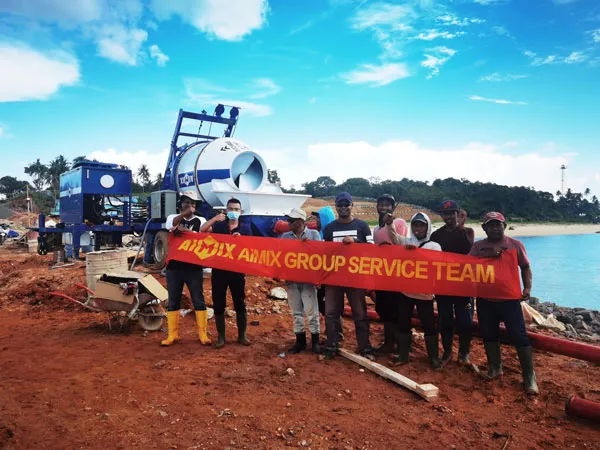

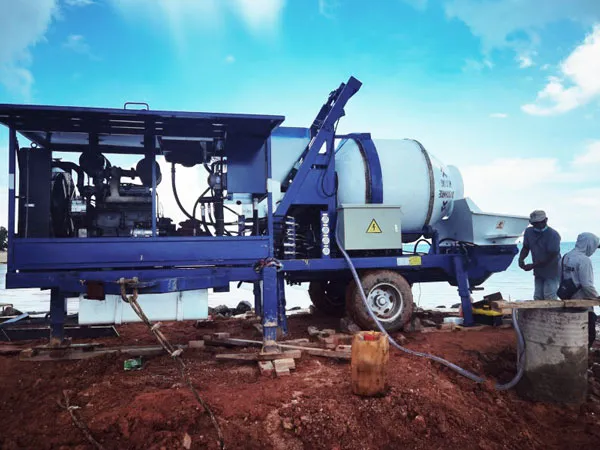

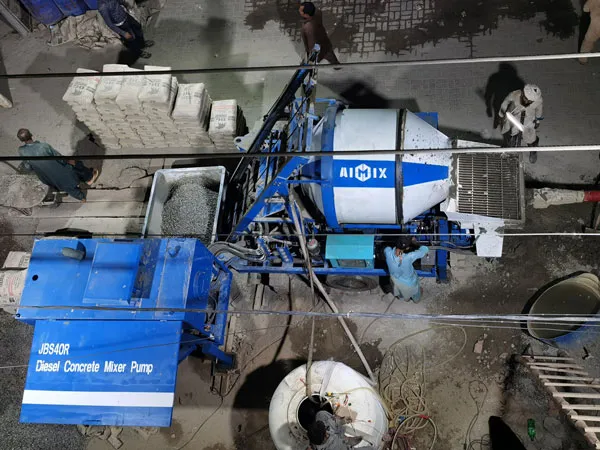

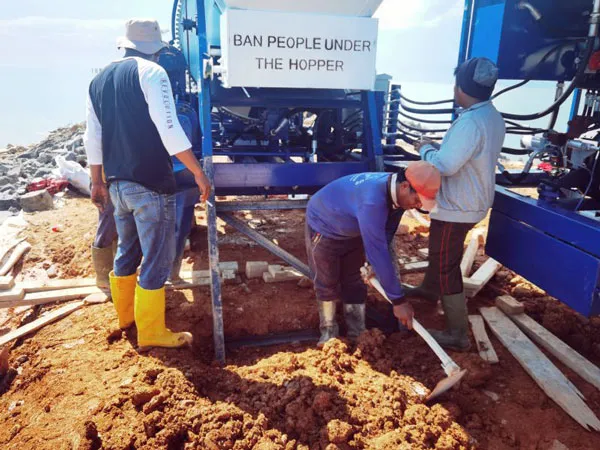

Concrete pump sale in Sri Lanka mainly has two types for your selection: concrete mixer pump and trailer pump. They have different components and working principles. So on this page, I will show you some basic information about these two pumps. Firstly, let’s see some cases of concrete pumps from AIMIX GROUP.
Two years ago, we have ever set up a branch in Sri Lanka, we sold many concrete machines, we are very familiar to industrial market of Sri Lanka, and can give you the most professional advice. Welcome to contact us!
Latest news
Types of concrete pumps AIMIX can supply

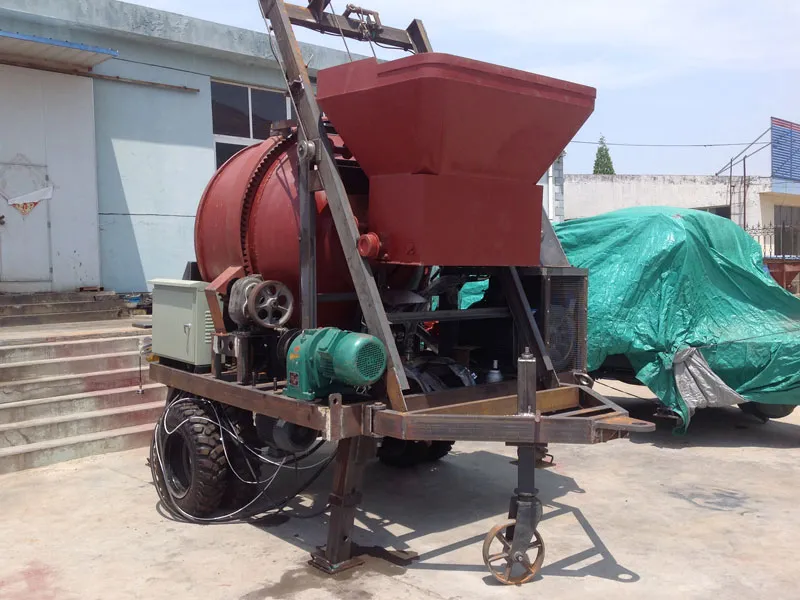

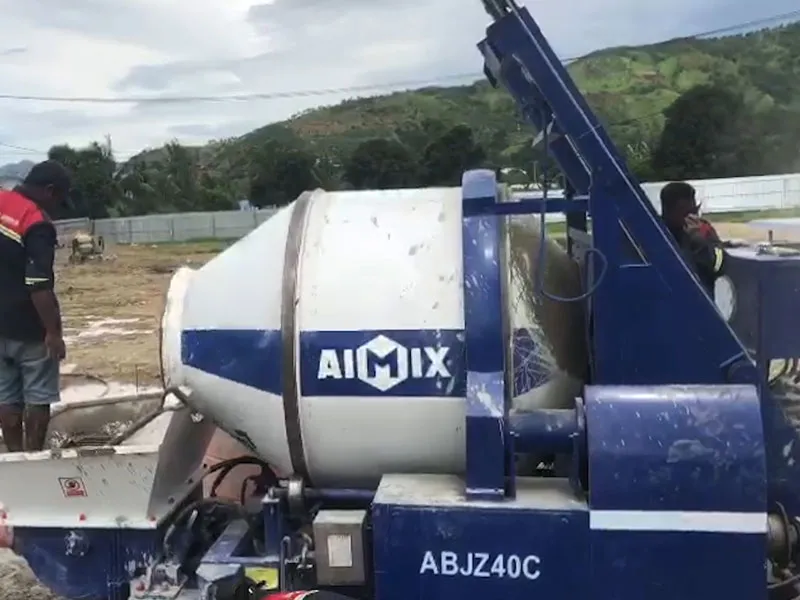

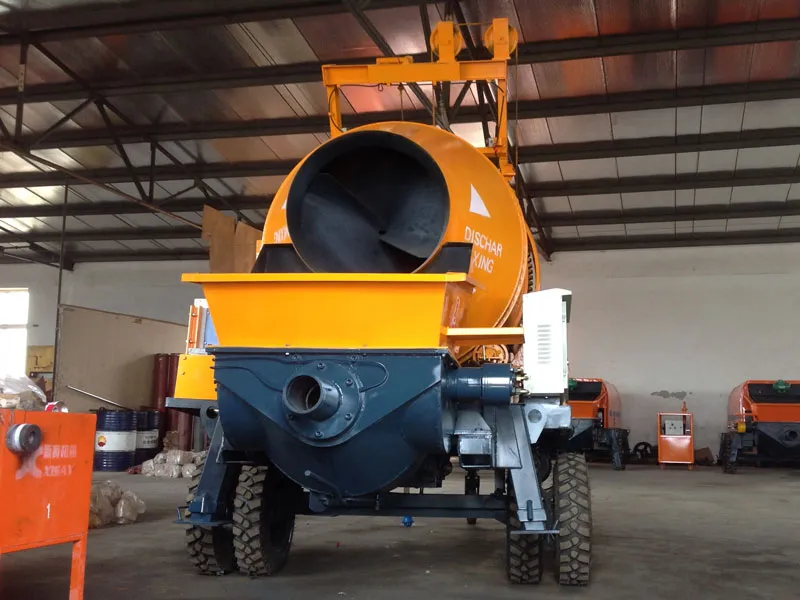

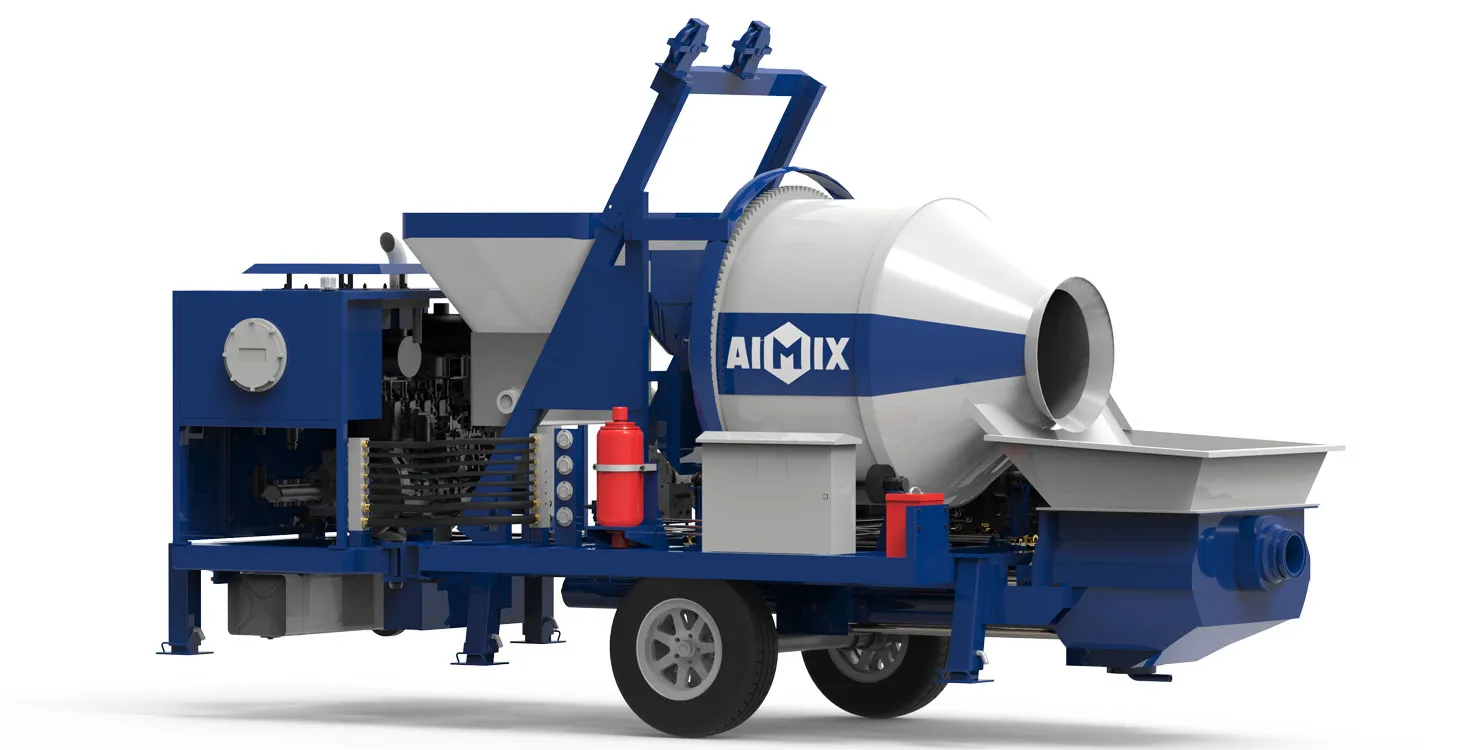

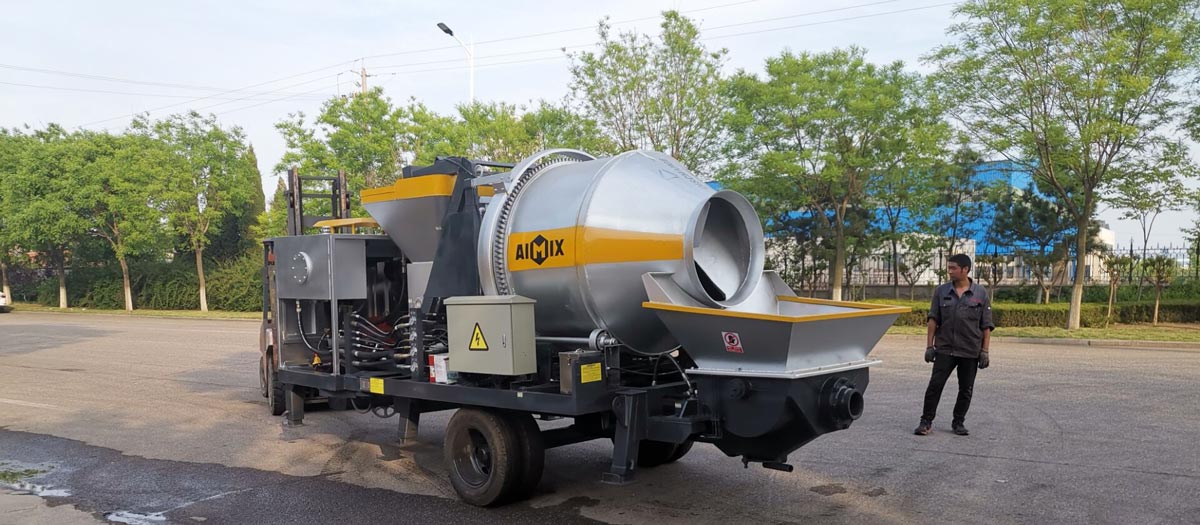

Concrete mixer with pumps for Sri Lanka
We can supply users with two types according to the power supply: diesel type and electric type. Types are: ABJZ30C, ABJZ40C, ABJZ30D, ABJZ40D and ABJS40D. C means it is with diesel engine, D means it is with an electric motor. And the first four types are equipped with JZC series concrete drum mixer, while the last one: ABJS40D is with JS series compulsory twin shaft concrete mixer, it is much more efficient than the first four types. Meanwhile, it can produce high-quality concrete.

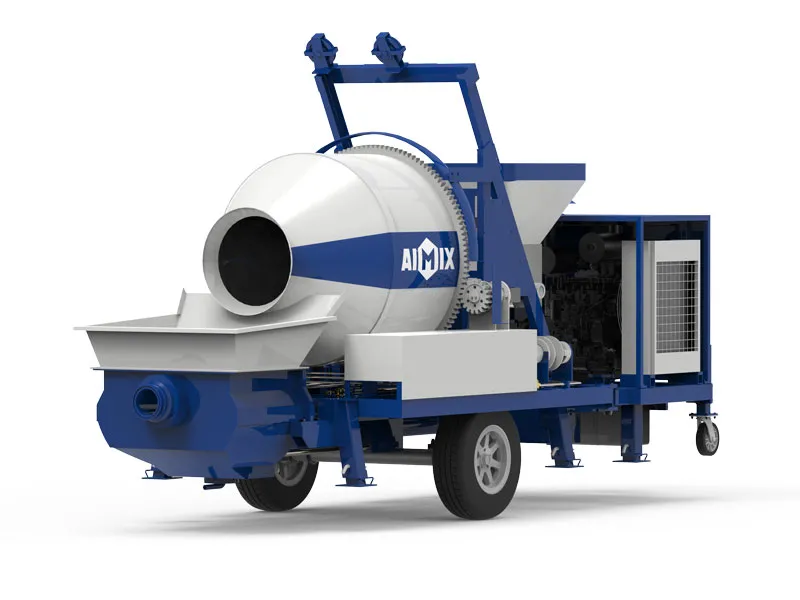

Diesel Type

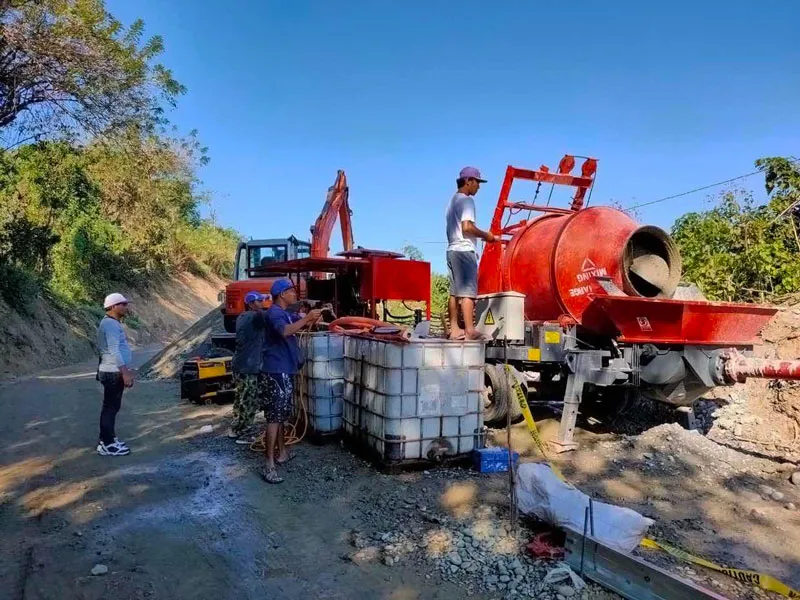

ABJZ40CCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Max. Theoretical Vertical Conveying Distance: 150m
- Max. Theoretical Horizontal Conveying Distance: 600m
- Max. aggregate diameter:Slick/scree: 40mm
ABJZ30CCapacity: 30(m3/h)
- Max. theo. concrete output: 30m3/h
- Max. Theoretical Vertical Conveying Distance: 120m
- Max. Theoretical Horizontal Conveying Distance: 400m
- Max. aggregate diameter:Slick/scree: 20mm
Electric Type

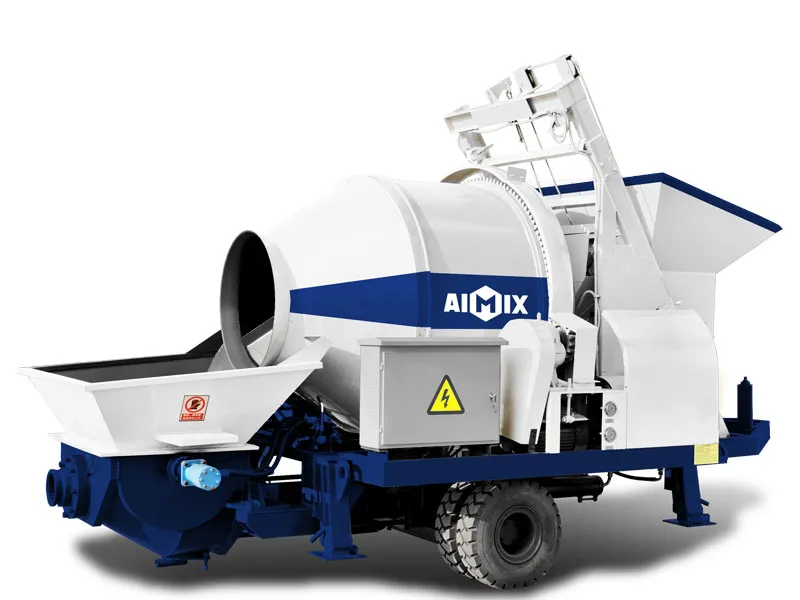

ABJZ40DCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Max. Theoretical Vertical Conveying Distance: 150m
- Max. Theoretical Horizontal Conveying Distance: 600m
- Max. aggregate diameter:Slick/scree: 40mm
- Total weight: 6000 kg

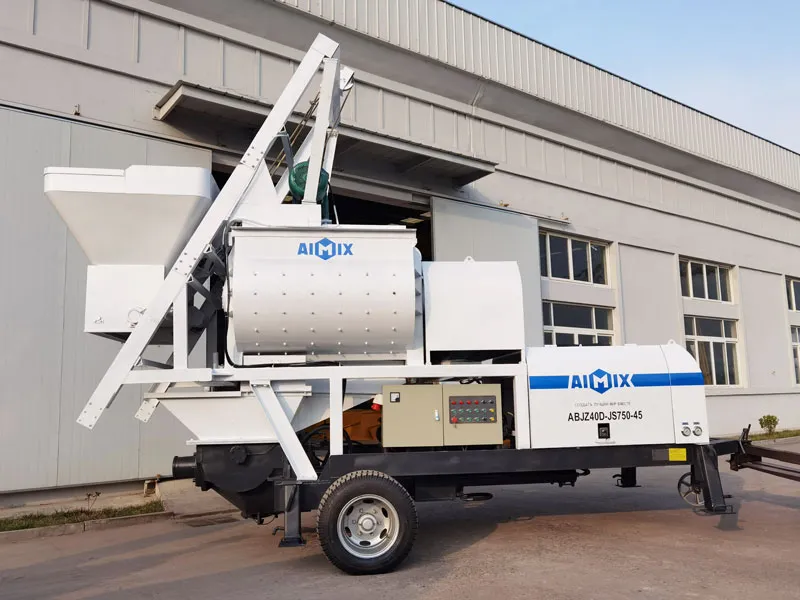

ABJS40DCapacity: 40(m3/h)
- Max. theo. concrete output: 40m3/h
- Concrete mixer model: JS750
- Mixer rated feed capacity(m3): 0.56
- Mixer rated discharge capacity(m3): 0.75
- Max.concrete pumping pressure(H./L.) 8Mpa
Applications of concrete mixer trailer pump
A concrete mixing pump is suitable for the building, roads, DAMS, tunnels, mine, railway, electric power, Bridges, canals, ports, and other infrastructure. It has the characteristics of high benefit and low cost, economic and practical, suitable for narrow workplace construction, is also the ideal investment vehicle, stir and drag pump all-in-one, many users save more of this precious fortunes of time.
Characteristics of mini concrete mixer pump for sale in Sri Lanka
- 1. Long delivering distance and high pumping floor. Max theoretical vertical and horizontal conveying distance can reach 120m to 500m, which can totally meet the demands of new rural construction.
- 2. High productivity and easy operation. The mixer pump concrete can mix and transport 30 to 40 cubic meters of concrete per hour, which is about 3 times more efficient than traditional equipment. In addition, it is with PLC control, one operator can run it and greatly save labor costs.
- 3. Safer construction and low risk. We use the pipeline to transport concrete, decrease the risk of the working process, no stones will fall on employees or pedestrians.
So if you need such a machine, contact us: market@aimixgroup.com. Our salesman will reply you at once. Next, let’s learn about types and some details during usage of concrete trailer pump for sale in Sri Lanka.

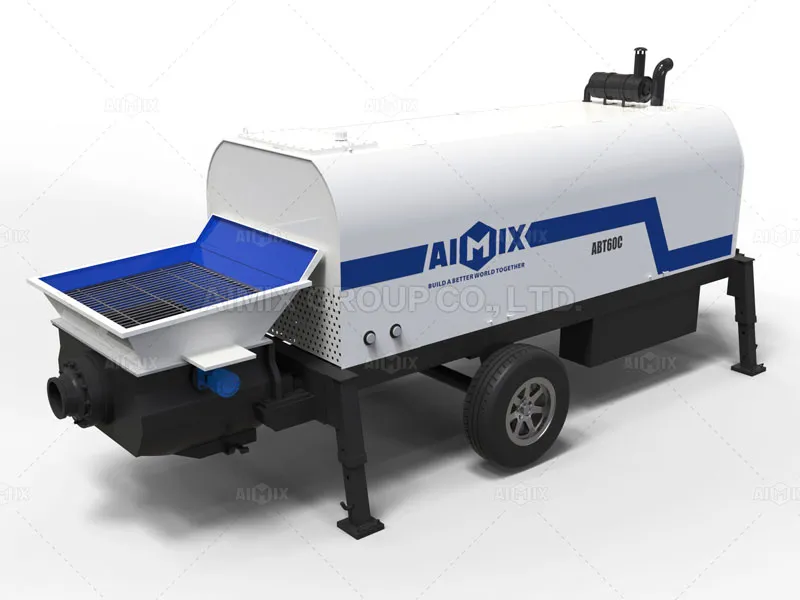

Trailer concrete pumping equipment for sale in Sri Lanka
Samely, according to the power supply, we have a diesel concrete pump Sri Lanka and an electric type pumping machine. Of course, diesel type is much more popular than electric type, especially ABT40C, it has been exported to more than 10 countries, such as Trinidad, Malaysia, Islamabad, Vietnam, Tajikistan, Philippines, Pakistan, Bangladesh, Sri Lanka, Indonesia, Uzbekistan, Kenya, etc. In addition ABT40C, we also sell ABT60C, ABT80C, ABT90C, and electric type: ABT40D, ABT60D and ABT80D. You can choose the right concrete pump machine in Sri Lanka according to your real needs.
Diesel type

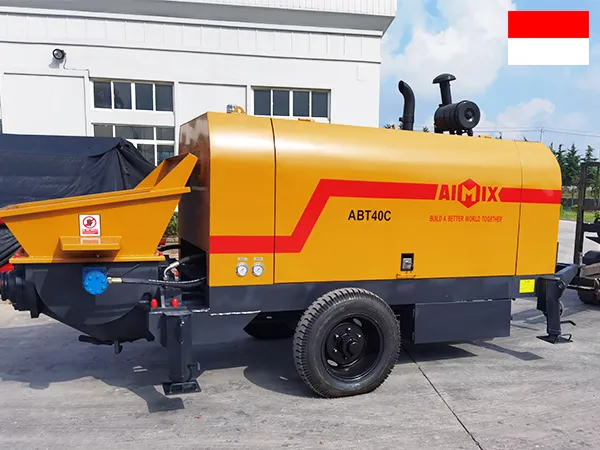

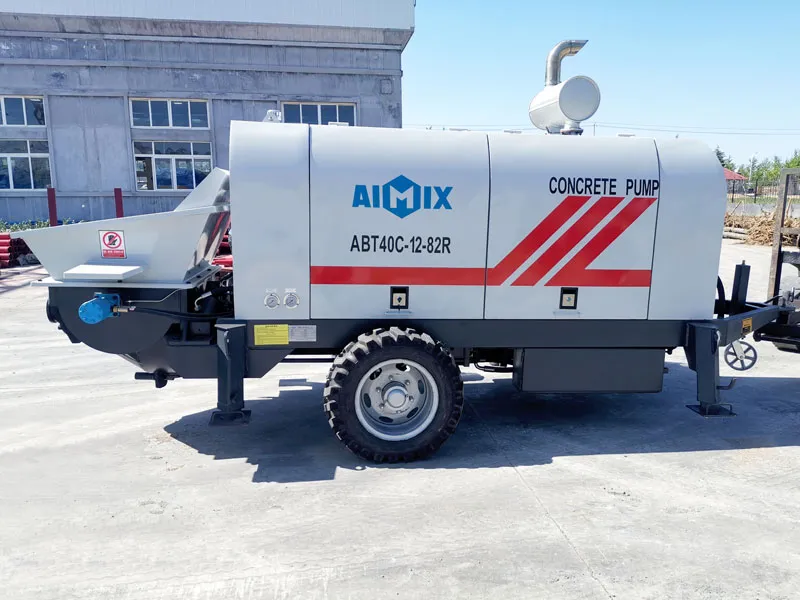

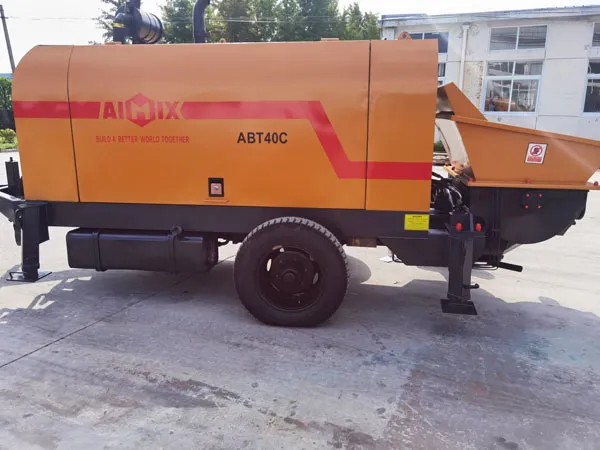

ABT40CCapacity: 40(m3/h)
- Items: ABT40C
- Max. theo. concrete output(L./H): 40m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 500m
- Max. Theoretical Vertical Conveying Distance: 120m

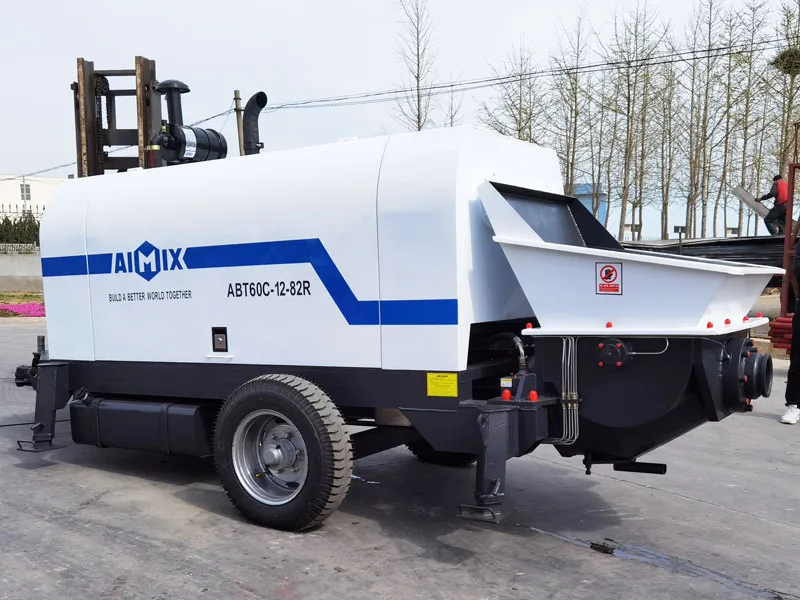

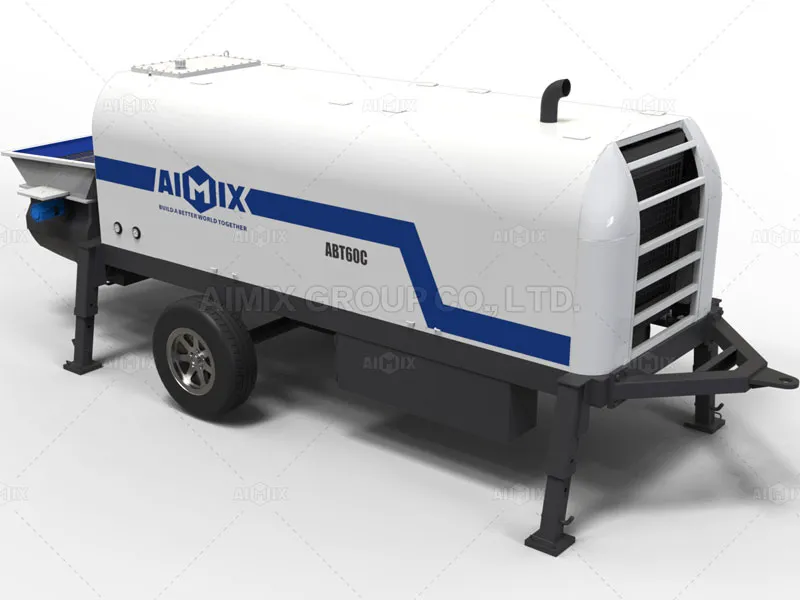

ABT60CCapacity: 60(m3/h)
- Items: ABT60C
- Max. theo. concrete output(L./H): 60m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 800m
- Max. Theoretical Vertical Conveying Distance: 180m
| Items | Units | ABT40C | ABT60C | ABT80C |
| Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/7.6 | 13/7 | 16/11 |
| Distribution valve type | S Valve | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 |
| Diesel engine model | Weifang Delier 6105ZB | Wechai | Wechai | |
| Electrical engineering power | KW | 82 | 129 | 176 |
| Rotate speed | r/min | 2100 | 2200 | 2200 |
| Circuit type | ||||
| Pumping system pressure | MPa | 32 | 32 | 32 |
| Mixing system pressure | MPa | 6-8 | 6-8 | 6-8 |
| Capacity of oil tank | L | 370 | 370 | 580 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/800 | 200/800 |
| Max. aggregate diameter | mm | Slick/scree:40/50 | Slick/scree:40/50 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 |
| Total weight | kg | 4500 | 6500 | 6900 |
Electric type
ABT60DCapacity: 60(m3/h)
- Items: ABT60D
- Max. theo. concrete output(L./H): 60m3/h
- Distribution valve type: S Valve
- Max. Theoretical Horizontal Conveying Distance: 800m
- Max. Theoretical Vertical Conveying Distance: 160m
| Items | Units | ABT40D | ABT60D | ABT80D |
| Max. theo. concrete output(L./H) | M3/h | 40 | 60/36 | 86/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 13/7 | 16/11 |
| Distribution valve type | S Valve | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1100 | 800/1100 |
| Outlet diameter | mm | Φ100 | Φ180 | Φ180 |
| Electrical engineering power | KW | 45 | 90 | 90 |
| Rotate speed | r/min | 1480 | 1480 | 1480 |
| Circuit type | ||||
| Pumping system pressure | MPa | 28 | 28 | 32 |
| Mixing system pressure | MPa | 8 | 6-8 | 14 |
| Capacity of oil tank | L | 370 | 560 | 580 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/800 |
| Max. aggregate diameter | mm | Slick/scree:40/50 | Slick/scree:40/50 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5800x2000x1750 | 6300x2100x2250 |
| Total weight | kg | 3200 | 6000 | 6300 |

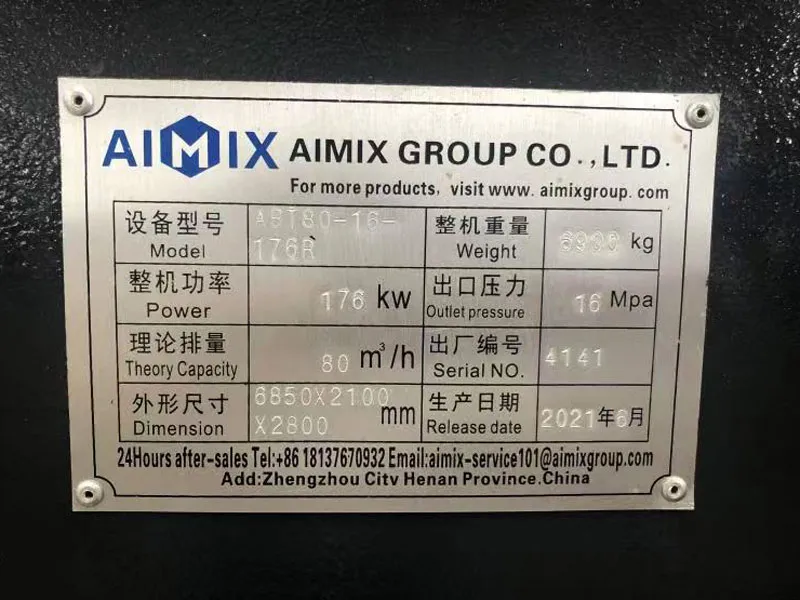

Export cases about concrete pumps for Sri Lanka

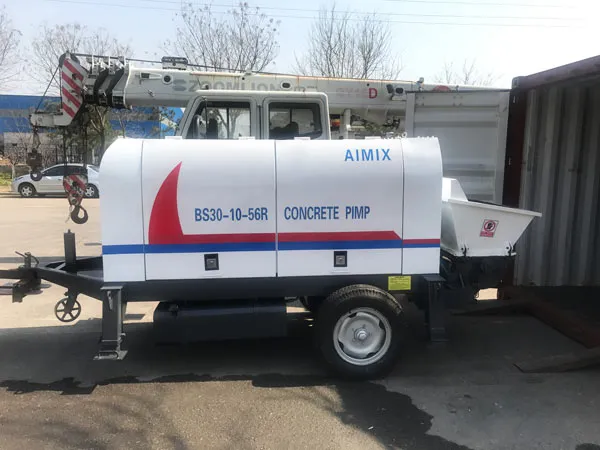

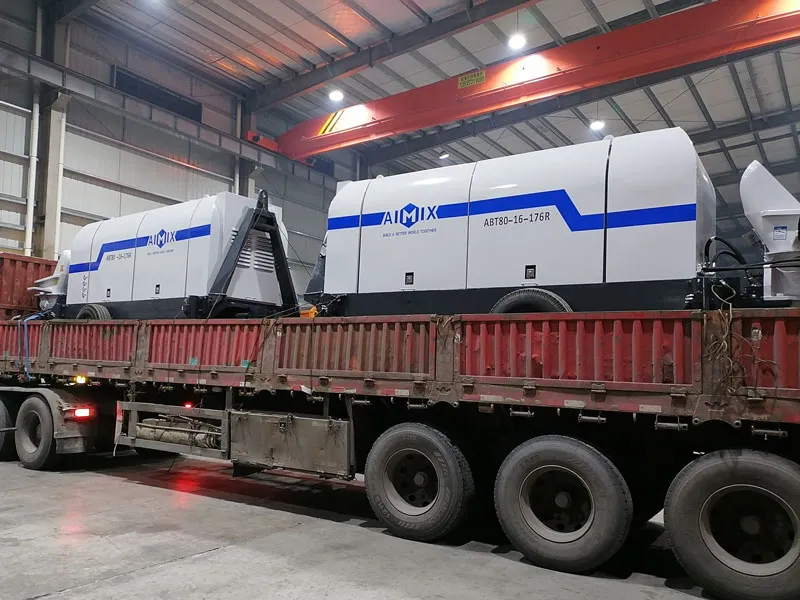

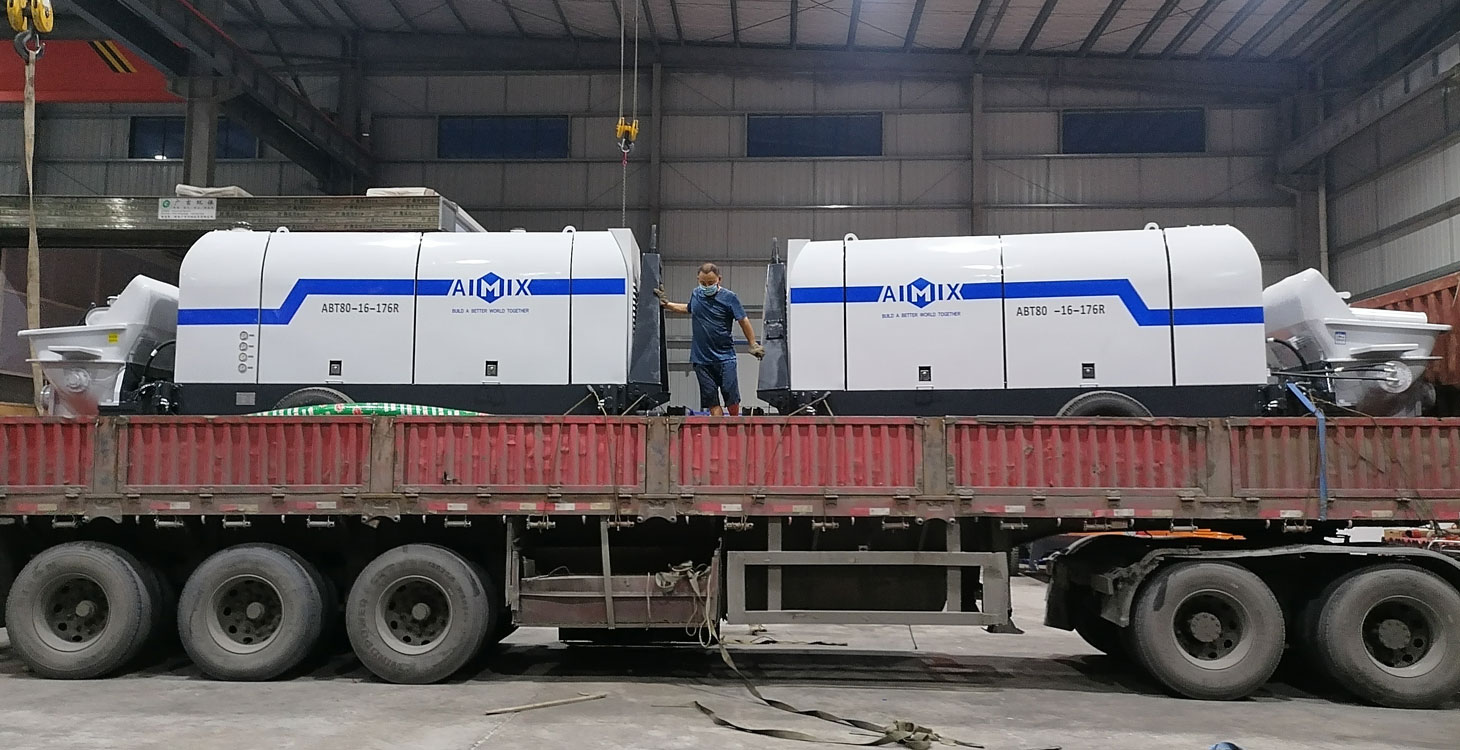

Export two sets of diesel pumps to Sri Lanka by car

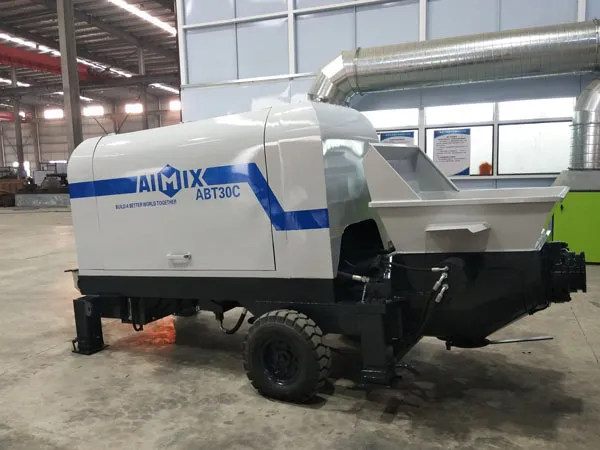

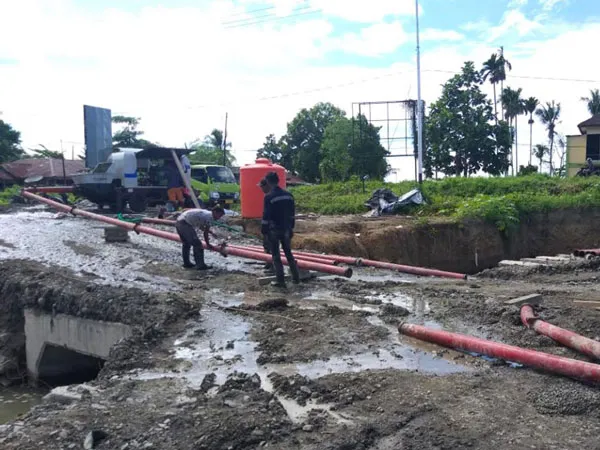

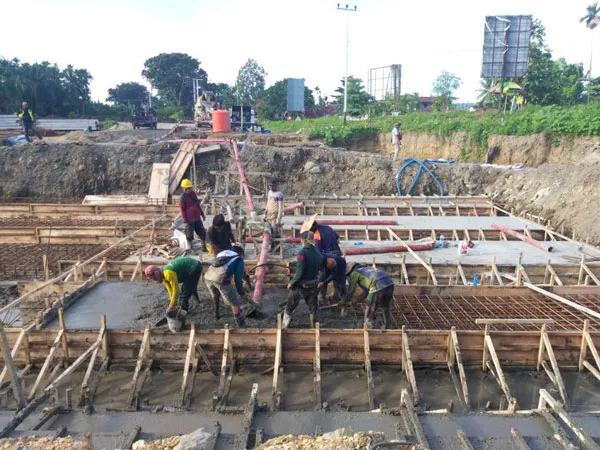

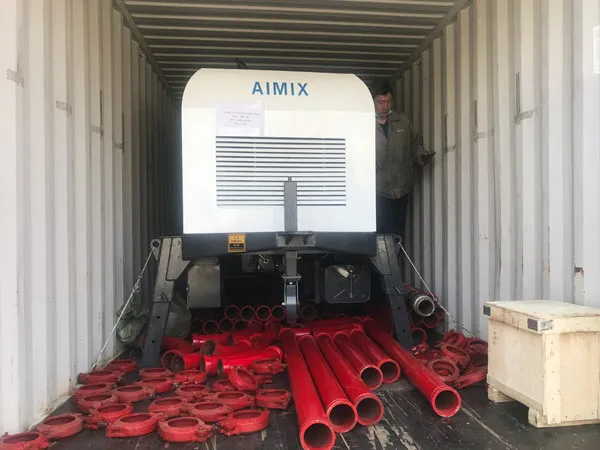

ABT30C delivered to Sri Lanka
Things need to pay attention to when using a trailer pump

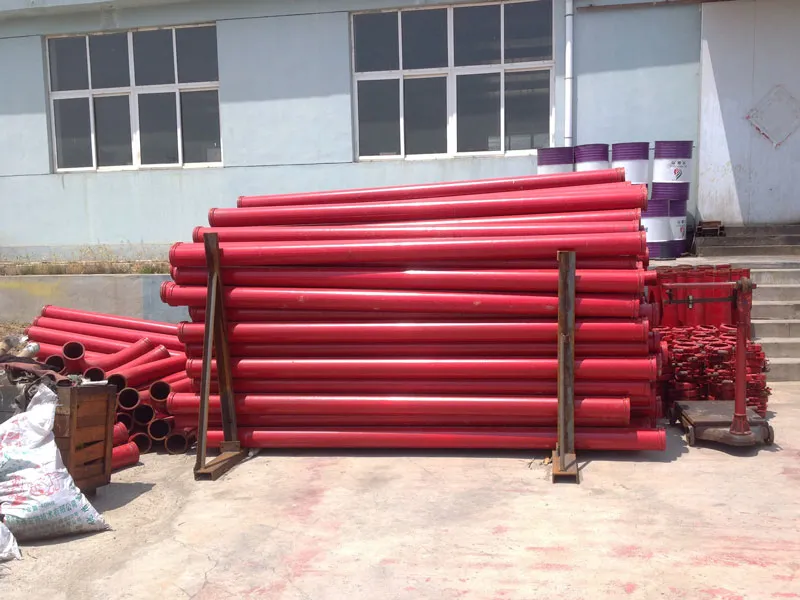

- 1. Before pumping, concrete, should pump water and lubricate pipelines. Check whether each point has the phenomenon of seal or leakage, and then pump mortar.
- 2. During the pumping process, the concrete shall be above the mixing shaft and shall not be sucked empty or pumped without materials.
- 3. During pumping, the operator should pay attention to the temperature. When it rises to 50C, should start air cooling to dissipate heat. If the oil temperature continues to rise and exceeds 80C, the operator should stop running and check.
- 4. If there is a long time for stopping pumping concrete, the operator should open the pump for 10 to 20 minutes, do an anti-pumping operation once to twice, then pump once to twice, which can prevent the concrete slump.
- 5. If the concrete slump is too low, it is not allowed to add water in the hopper, should add to the concrete mixer trucks and after mixing evenly, discharge to the hopper.

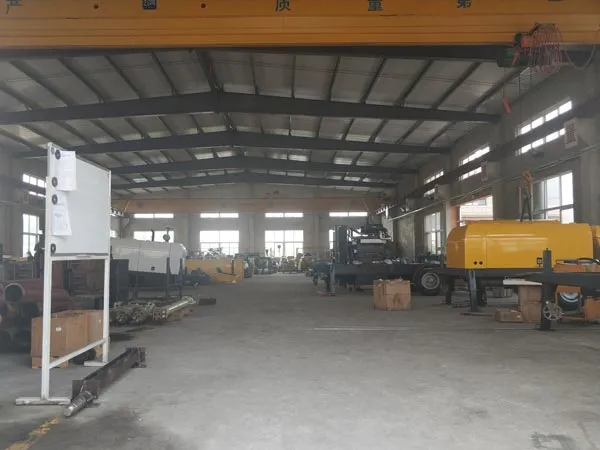

AIMIX factory
If you meet any other problems during the running of the concrete pump sale in Sri Lanka, you can leave the problems on this page, we will help you out immediately.
