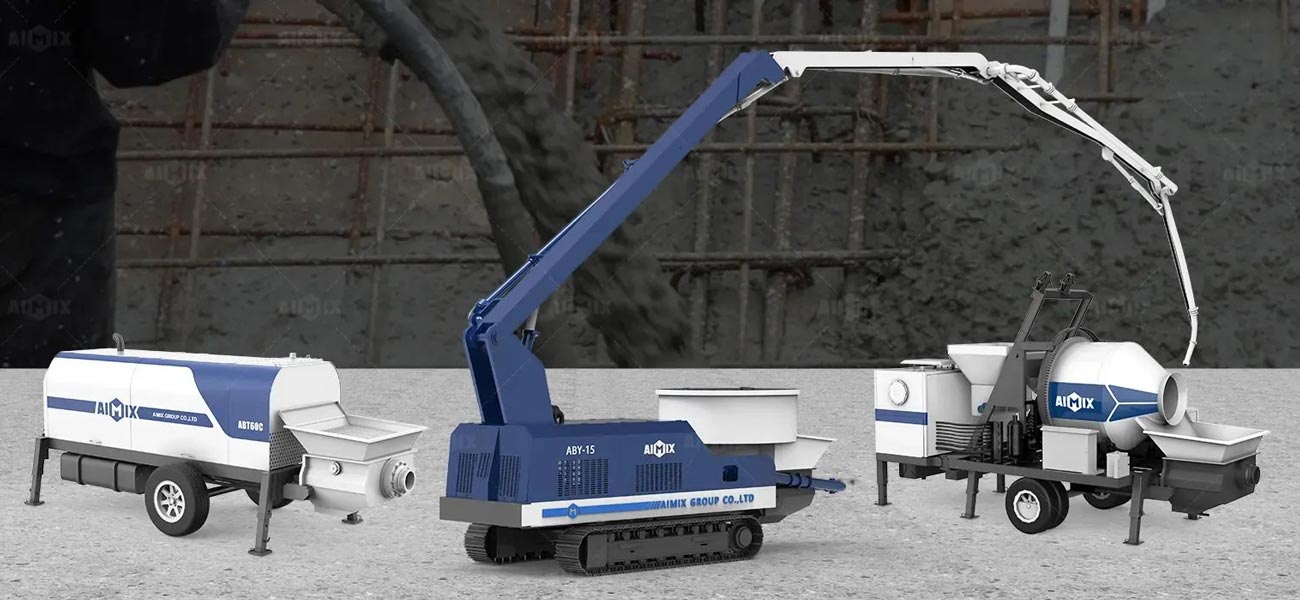

A concrete pump is a specialized construction machine designed to transfer liquid concrete through a system of pipes or hoses from the mixing location to the placement area. Unlike conventional methods that rely on cranes, buckets, or manual labor, concrete pumps utilize hydraulic pressure to propel concrete through pipelines, allowing for precise placement even in challenging or inaccessible locations.
From residential housing to high-rise buildings and infrastructure projects, concrete pumps play a key role in ensuring faster, safer, and more accurate concrete placement. In this guide, we will explain everything you need to know about concrete pumps.

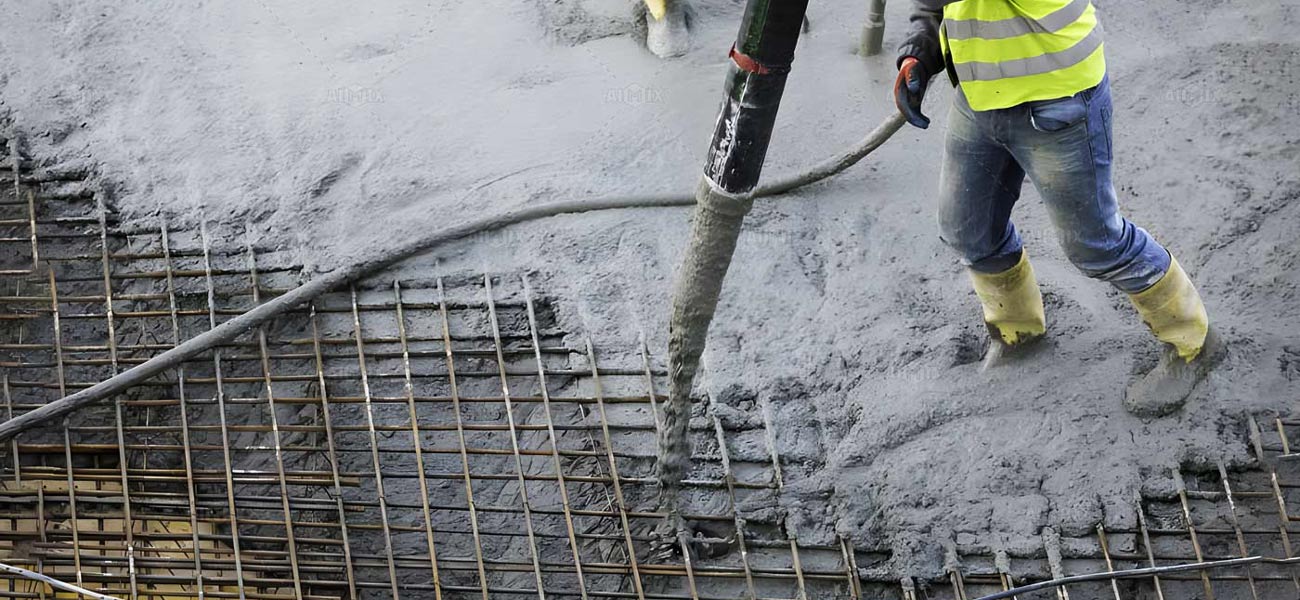

How Does Concrete Pump Work?
The fundamental principle behind concrete pumping involves creating sufficient pressure to overcome the friction and gravitational forces that resist concrete flow through pipelines. Modern concrete pumps achieve this through sophisticated hydraulic systems that generate the necessary force while maintaining consistent flow characteristics.
Basic Working Mechanism:
Suction Phase:
One cylinder retracts, creating a vacuum that draws concrete from the hopper into the pumping chamber.
Discharge Phase:
The cylinder extends, forcing concrete through the delivery system while the other cylinder simultaneously retracts to draw in more concrete.
Valve Coordination:
A specialized valve (typically an S-valve or gate valve) alternates between cylinders, ensuring continuous flow without interruption.
Pipeline Transport:
Pressurised concrete is delivered precisely to the pouring area through steel or flexible pipelines.
The efficiency of this system depends on several factors, including pump pressure, pipeline diameter and length, concrete mix design, and the specific pump configuration. Modern pumps incorporate advanced control systems that optimize these variables in real-time, ensuring consistent performance across diverse operating conditions.
Types of Concrete Pumps: Matching Technology to Application Needs
Understanding the different types of concrete pumps is essential for selecting the right equipment for specific projects. These machines are categorized based on their structural design, mobility characteristics, and operational features.

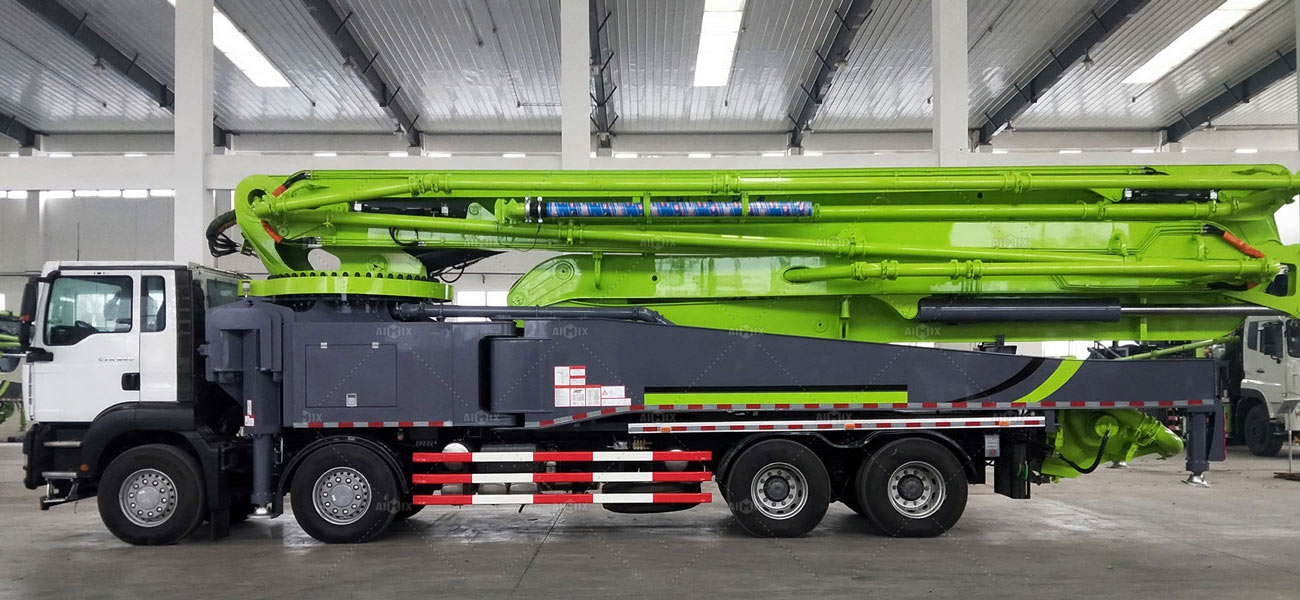

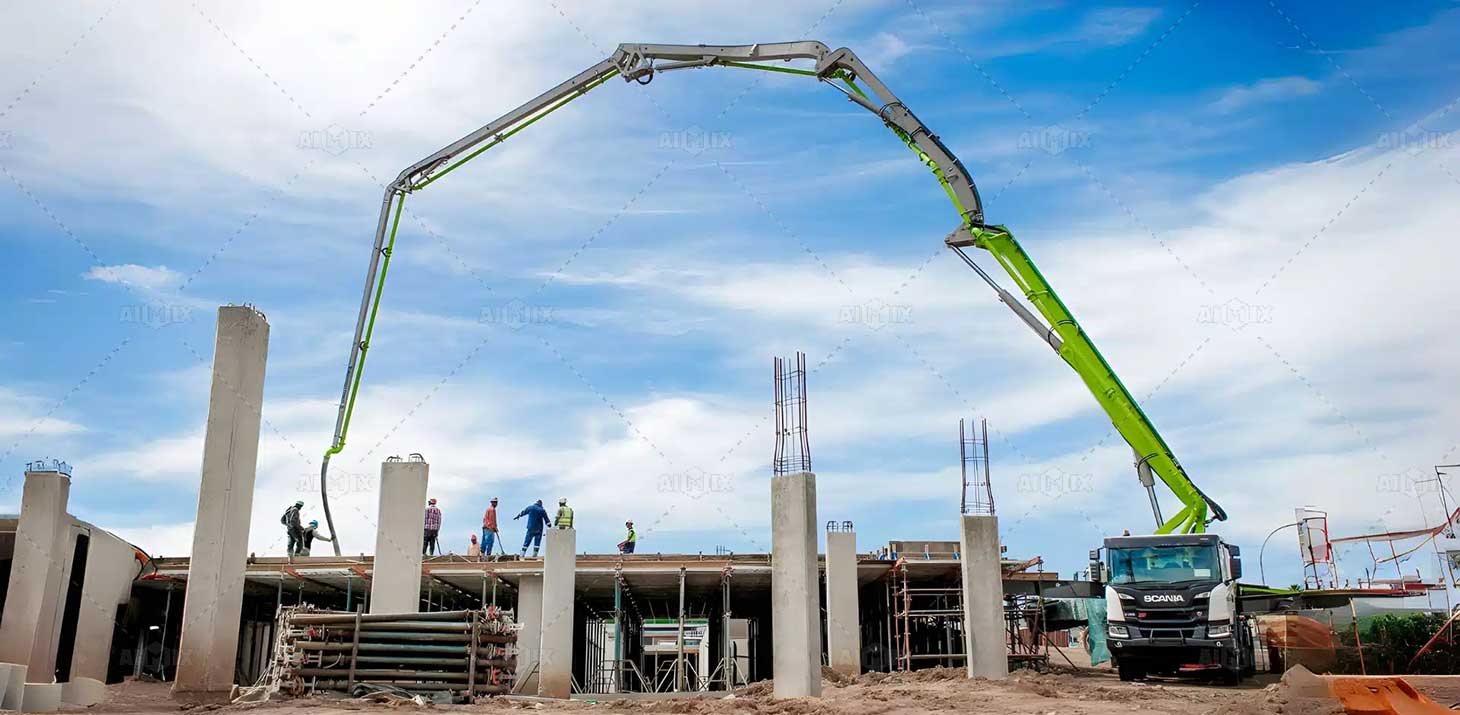

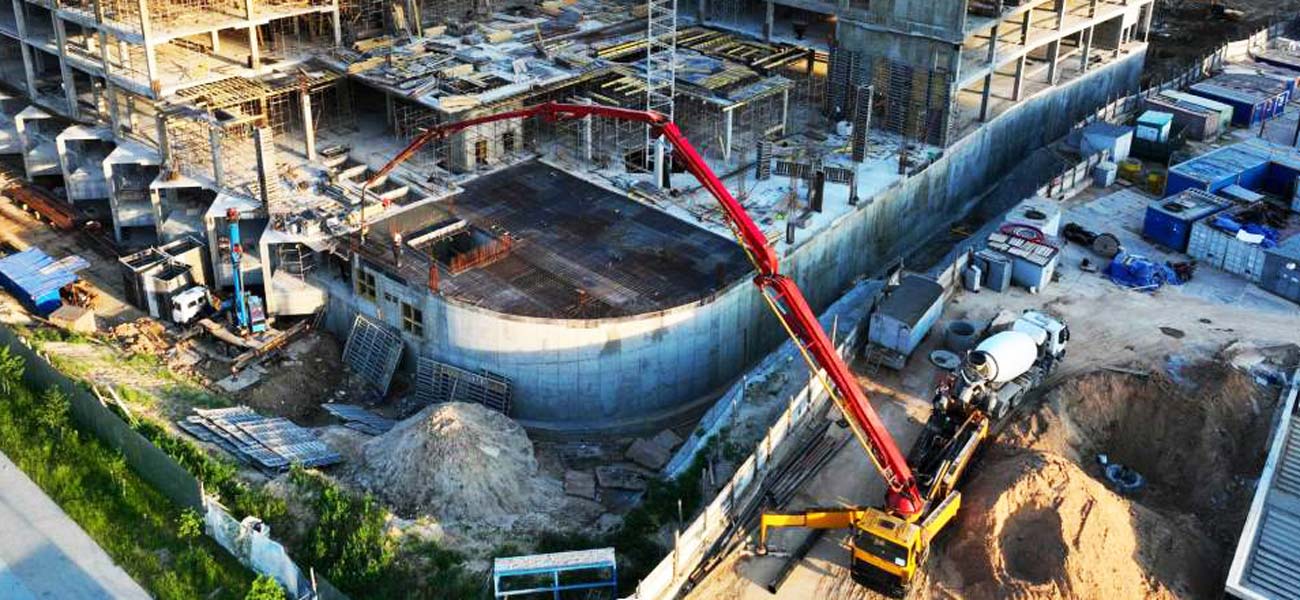

Boom Pump Truck – Long And High Pumping Distance
- Appearance: This type of pump is mounted on a truck and uses a remote-controlled articulating robotic arm (called a boom) to place concrete accurately.
- Applicable Fields: Large-scale construction projects. Because they can pump high volumes of concrete quickly. It is ideal for concrete that needs to be transported to locations that are difficult for ground equipment to reach or over obstacles.
- Advantages: High capacity, rapid pumping speed, and the ability to reach great heights and cover extensive areas.

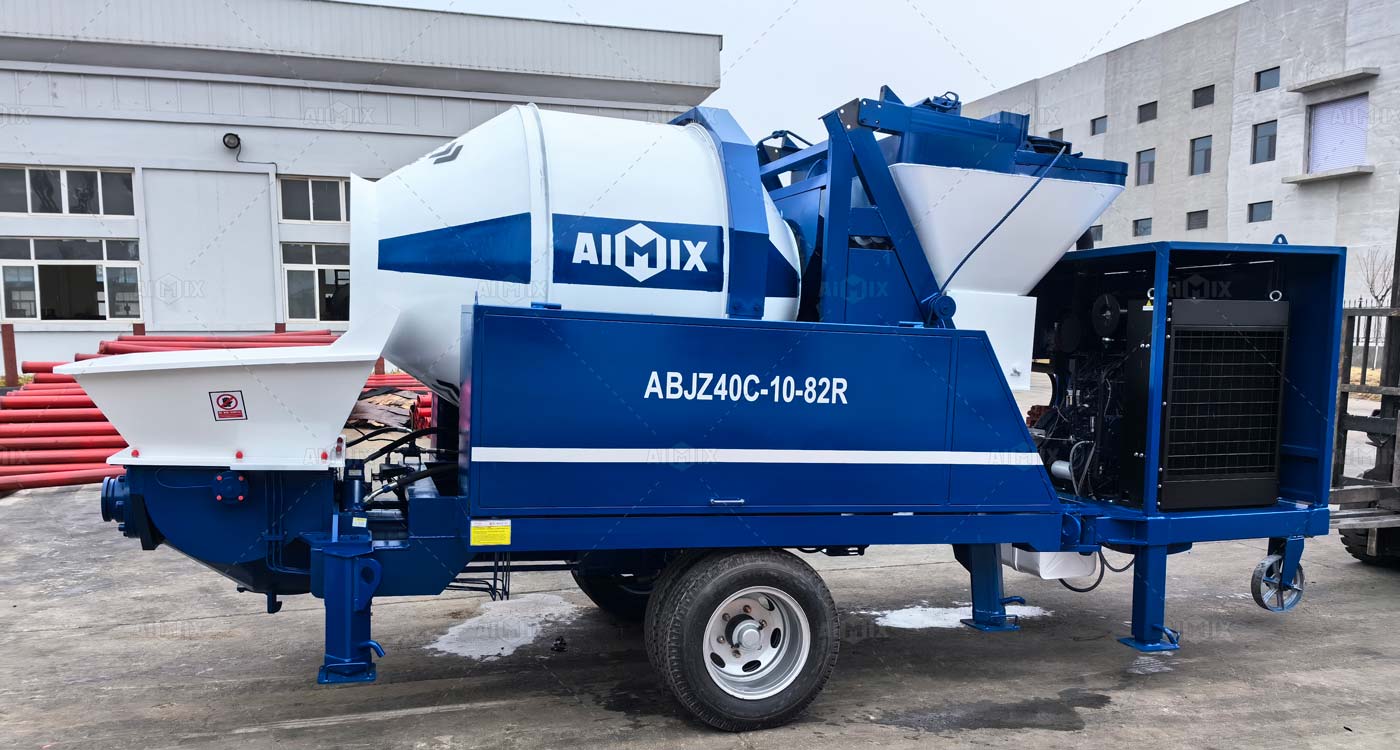

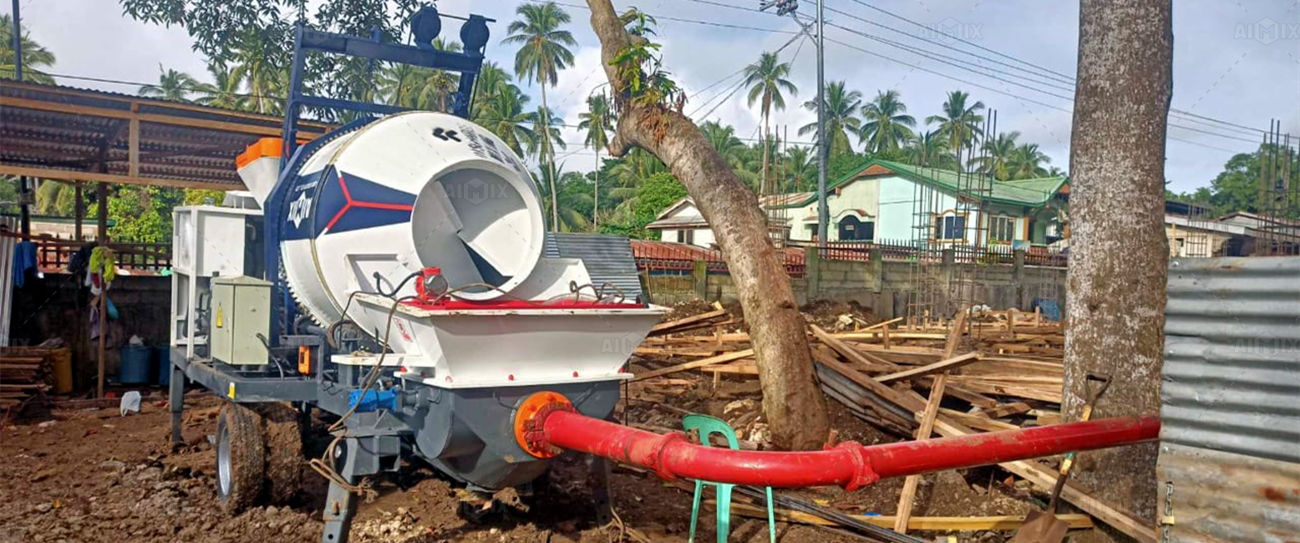

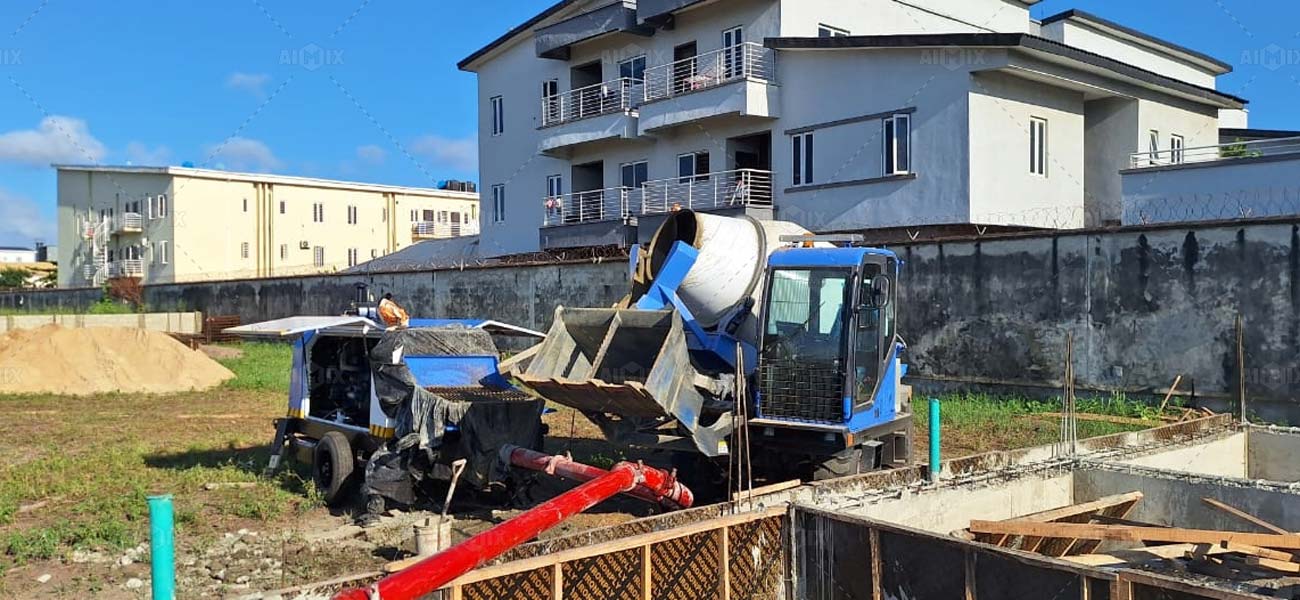

Concrete Mixer With Pump – Concrete Mixing And Pouring
- Apperance: A combination of a concrete mixer and a concrete pump.
- Applicable Fields: Small to medium construction projects: Residential construction, commercial buildings, infrastructure projects, industrial buildings, urban development, remodeling and renovation, etc.
- Advantages: Highly versatile, cost-effective, and ideal for sites where a supply of ready-mix concrete isn’t easily accessible.
Trailer Concrete Pump – Use flexible hoses or steel pipes to pump concrete
- Appearance: Mounted on trailers or stationary units.
- Applicable Fields: Smaller projects, such as swimming pools, sidewalks, and small homes concrete slabs. Effective in situations where a boom pump would not be practical due to space constraints or the scale of the project.
- Advantages: Useful when the job site has space limitations or when the pumping location isn’t accessible by road. Requires hoses or pipes to be manually attached for the concrete placement.
What Are the Key Technical Parameters of Concrete Pumps
When evaluating concrete pumps, several technical specifications determine their suitability for specific applications:
1. Output Capacity (m³/h)
Measured in cubic meters per hour, this parameter indicates how much concrete the pump can deliver under ideal conditions. Selection should consider both peak demand and average requirements, with most experts recommending 10-20% capacity margin to accommodate variable conditions.
2. Maximum Pressure (MPa)
Pumping pressure, measured in megapascals, determines the pump’s ability to overcome vertical height and horizontal distance. As a general rule, each MPa of pressure supports approximately 10 meters of vertical height, though actual performance depends on pipeline configuration and concrete characteristics.
3. Maximum Theoretical Pumping Distance
This specification combines both horizontal reach and vertical height capabilities. Aimix trailer concrete pumps can achieve horizontal distances 1,200 meters and vertical heights surpassing 600 meters in specialized configurations.
4. Power Source Options
- Electric Motors: Cost-effective for sites with reliable power infrastructure, offering lower operating costs and reduced emissions.
- Diesel Engines: Provide complete independence from electrical grids, making them ideal for remote locations or projects with unstable power supply .
Parameters Sharing – How Far Can A Concrete Pump Reach
Theoretical explanations alone may not be sufficiently clear; it is only when the figures are applied to the actual equipment that they become truly convincing. Now that you understand what these parameters mean, I will share with you the actual specifications of an Aimix concrete pump to help you better understand its performance.

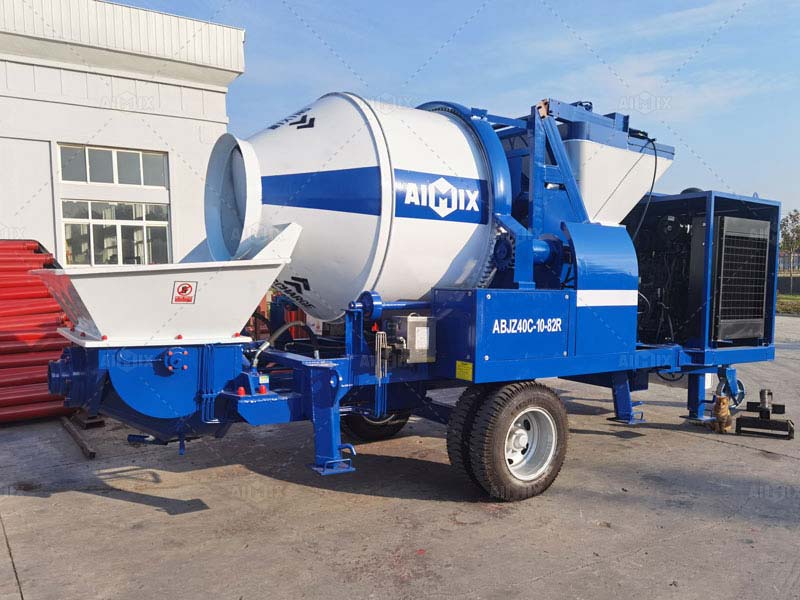

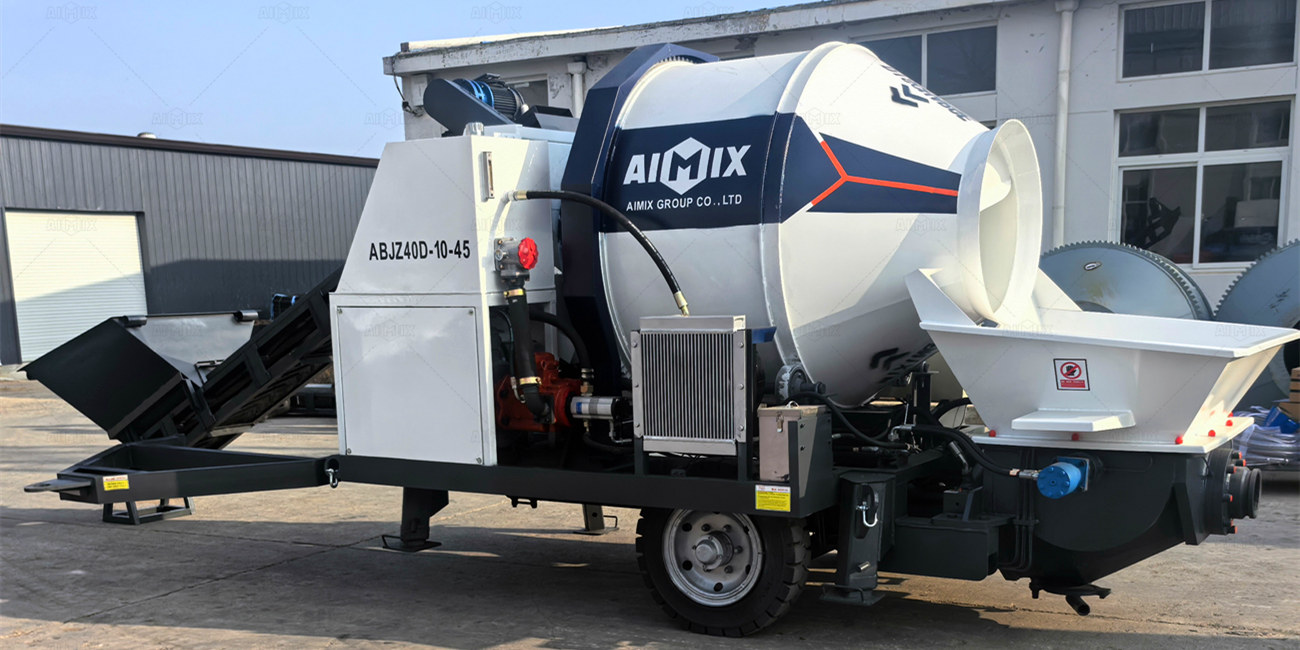

| Items | Key Parameters | Units | ABJZ30C | ABJZ30D | ABJZ40C | ABJZ40D |
|---|---|---|---|---|---|---|
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 30 | 30 | 40 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | 0.56 | 0.56 | |
| Mixer rated discharge capacity | m3 | 0.35 | 0.35 | 0.45 | 0.45 | |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 | 10 | 10 | |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve | ||
| Hopper capacity | L | 400 | 400 | 400 | 400 | |
| Power system | Diesel engine model | Weichai | ||||
| Electrical engineering power | KW | 37 | 37 | 82 | 45 | |
| Rotate speed | r/min | 1480 | 1480 | 2200 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 26 | 32 | 26 | |
| Capacity of oil tank | L | 260 | 260 | 350 | 370 |

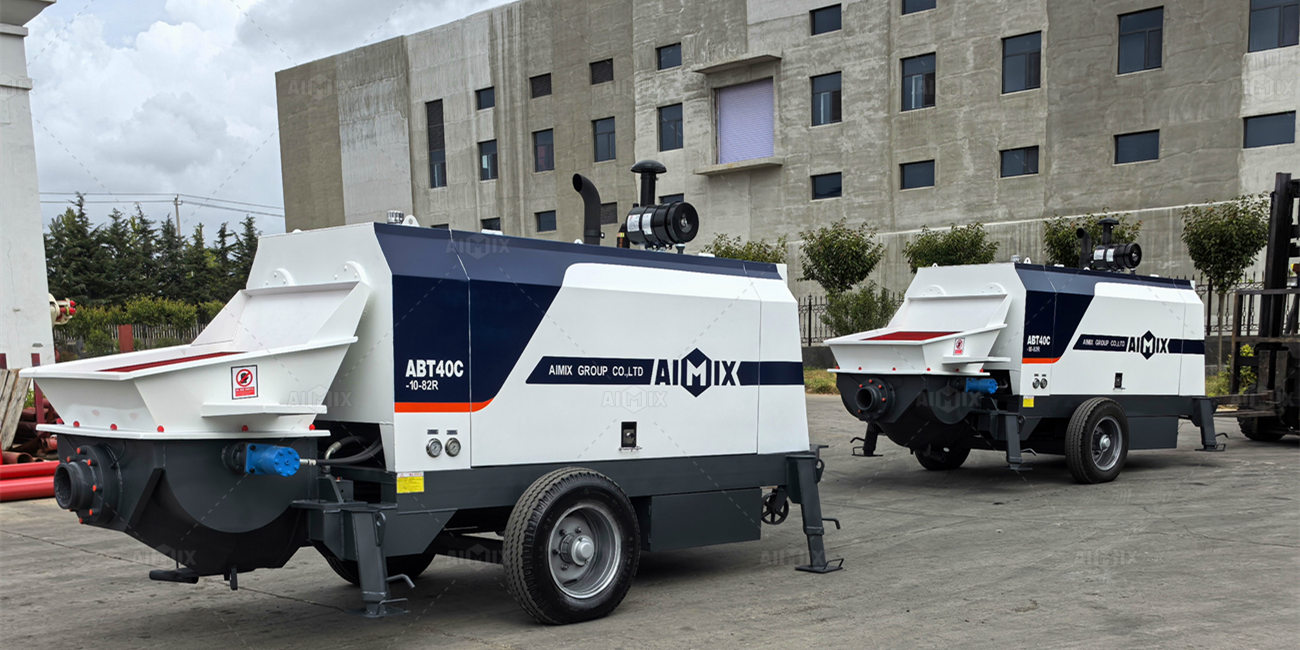

| Items | Units | Parameters | |||
|---|---|---|---|---|---|
| ABT40C | ABT60C | ABT80C | |||
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter脳stroke | mm | Φ180×1200 | Φ200x1650 | Φ200x1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82.00 | 129.00 | 176.00 | |
| Rotate speed | r/min | 2200.00 | 2200.00 | 2200.00 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32.00 | 32.00 | 32.00 | |
| Mixing system pressure | MPa | 10.00 | 10.00 | 10.00 | |
| Capacity of oil tank | L | 370.00 | 560.00 | 560.00 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions: lengthxwidthxheight | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500.00 | 6500.00 | 6900.00 | |
| Items | Units | Perameters | |||
|---|---|---|---|---|---|
| ABT40D | ABT60D | ABT80D | |||
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameterxstroke | mm | Φ180x1300 | Φ200x1650 | Φ200x1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions: lengthxwidthxheight | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 | |
Key Advantages of Using a Concrete Pump
Concrete pumps offer significant advantages compared to traditional manual methods. These benefits are one of the main reasons why they are widely used today.
Higher Efficiency
Concrete pumps can deliver concrete quickly and continuously, reducing project time significantly.
Reduced Labor Costs
Fewer workers are needed to transport and place concrete, lowering overall labor expenses.
Improved Construction Quality
Pumping ensures uniform and consistent concrete placement, reducing the risk of segregation.
Adaptability to Complex Projects
Concrete pumps can operate in challenging environments such as:High-rise buildings; narrow construction sites; long-distance placements.
Concrete Pump Applications and Industry Impact
Concrete pumps have transformed construction methodologies across numerous sectors:
High-Rise Construction:
Enabled the efficient construction of skyscrapers exceeding 100 stories by providing consistent concrete delivery to extreme heights.
Infrastructure Development:
Accelerated bridge, tunnel, and dam construction through continuous concrete placement in challenging environments.
Residential Building:
Reduced construction timelines and labor requirements for housing projects of all scales.
Industrial Projects:
Supported the construction of factories, warehouses, and processing facilities with precise concrete placement capabilities.
Specialized Applications:
Mining operations, agricultural facilities, and environmental projects all benefit from targeted concrete placement.
What’s the Future of Concrete Pumping Technology
As construction methodologies continue to evolve, concrete pumping technology advances in parallel:
Automation and Robotics:
Sustainability Initiatives:
Digital Integration:
Material Advancements:
Aimix remains at the forefront of these developments, continuously investing in research and development to ensure our customers benefit from the latest technological advancements.
Building Your Success with Aimix Concrete Pumps
Concrete pumps represent more than construction equipment—they are productivity multipliers that transform challenging projects into manageable tasks. By understanding the technology, types, and applications outlined in this guide, construction professionals can make informed decisions that optimize project outcomes.
At Aimix, we combine decades of engineering expertise with practical understanding of construction challenges to deliver pumping solutions that genuinely make a difference. Our commitment extends beyond equipment supply to comprehensive support, including:
Technical Consultation: Expert guidance on equipment selection and application optimization
Training Programs: Comprehensive operator and maintenance training
Global Support Network: With branches in Russia, Indonesia, Malaysia, Uzbekistan,etc., and a global network of agents
Whether you’re planning a modest residential project or a landmark infrastructure development, the right concrete pump can significantly impact your timeline, budget, and final results. With Aimix as your partner, you gain not just equipment, but a collaborative relationship focused on your success.
Aimix concrete pumps provide the reliable, efficient, and technologically advanced solutions needed to build not just structures, but legacies. Contact our expert team today for personalized consultation and discover why construction professionals worldwide trust Aimix for their most demanding applications.
