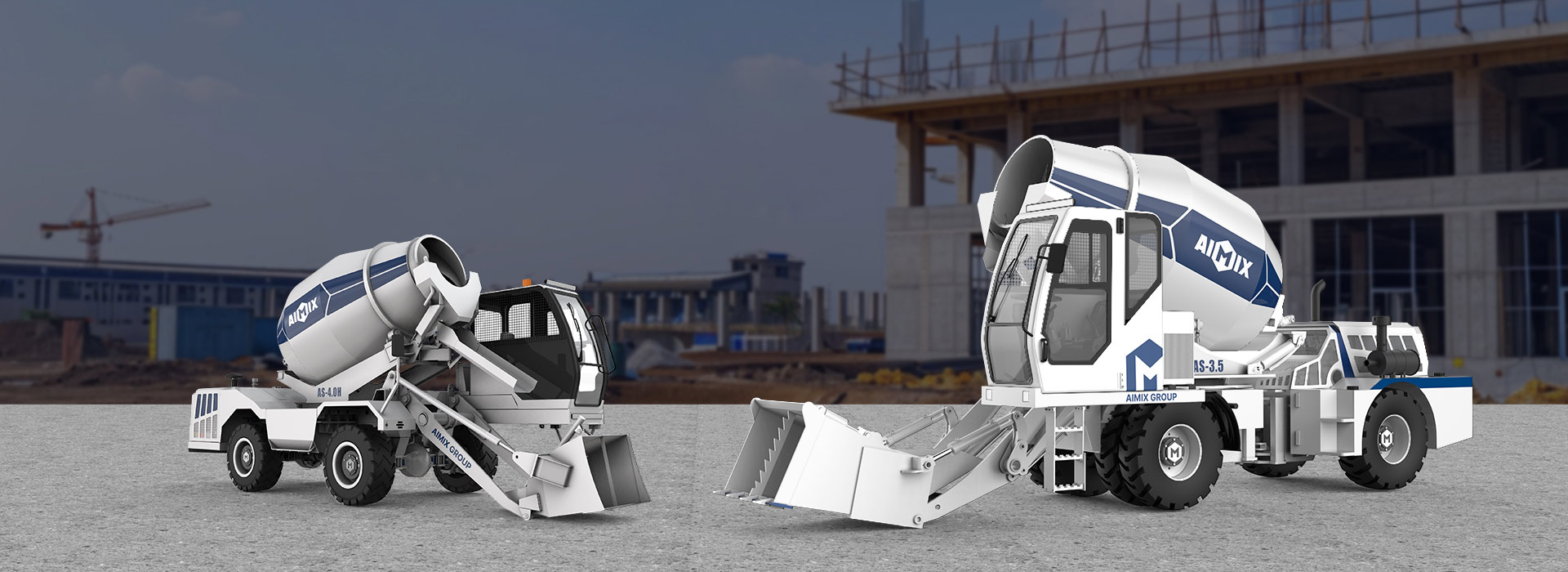

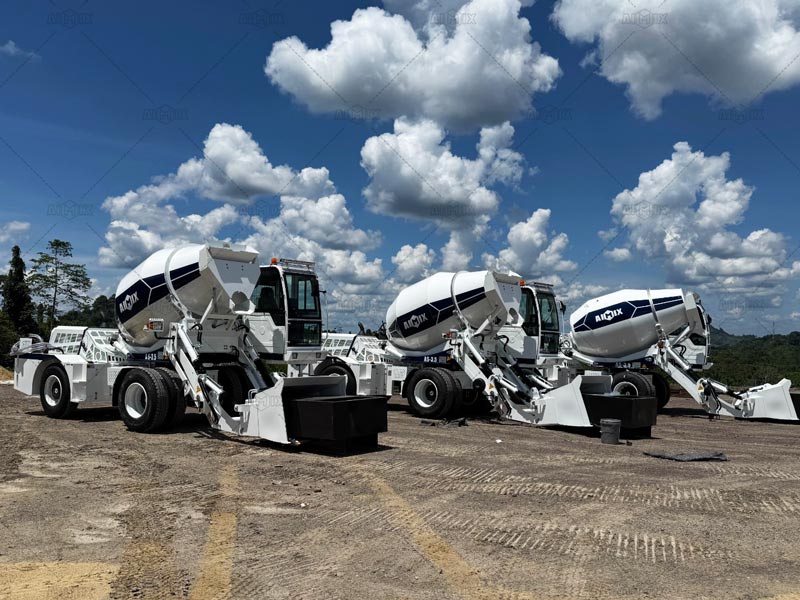

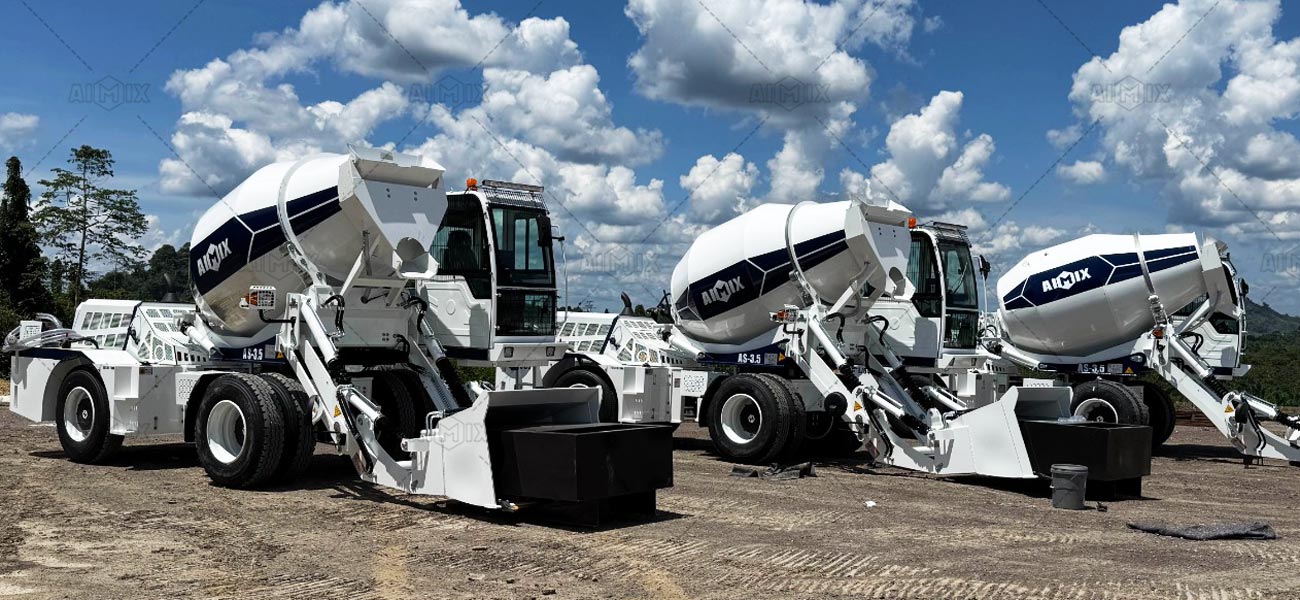

What is a self-loading concrete mixer? It provides innovative solutions for the efficient production and transport of concrete. By integrating automatic loading, mixing, conveying and unloading, it can complete the loading of raw materials such as cement, sand, and gravel by itself. Thus, it realizes the whole process of automated operation from raw materials to finished concrete, effectively improving concrete quality and construction efficiency.

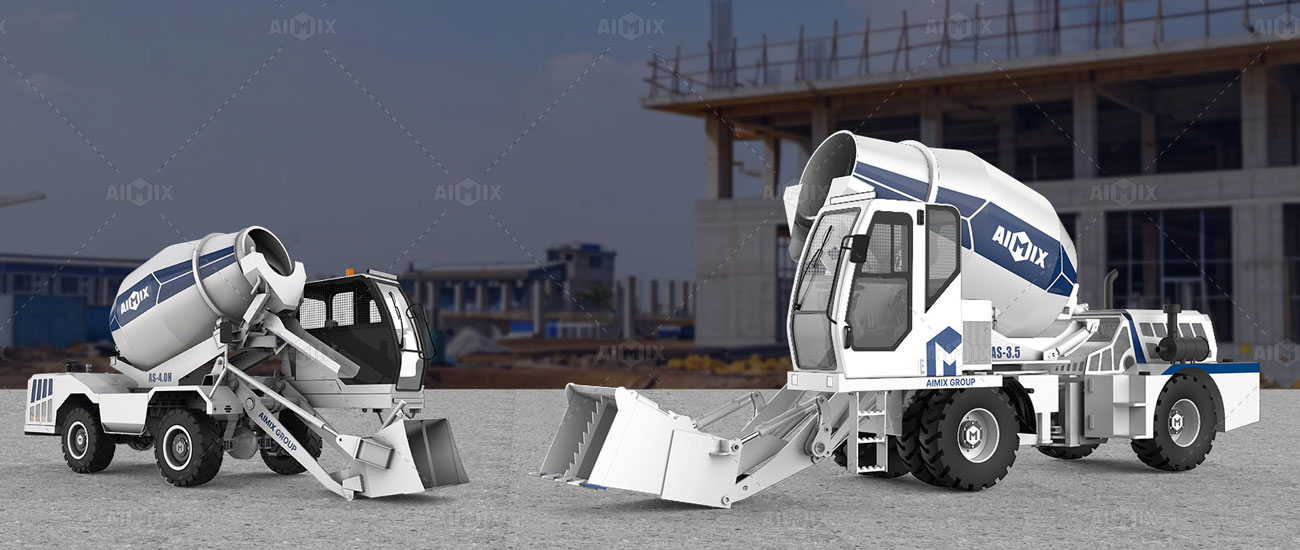

What is a self-loader concrete mixer used for?
The self-loading cement mixer is highly flexible and self-sufficient equipment that is widely used in a variety of building and construction scenarios. For the matter: What is the purpose of self loading concrete mixer? By counting the needs of the customers we have served in the past, we have found that self-loader concrete mixers are mostly used in the following 5 applications:
Remote or hard-to-reach construction sites
Small to medium-sized construction projects
Municipal engineering and infrastructure construction
Precast production
Repair work
Remote or hard-to-reach construction sites
Because these mixer trucks are able to load raw materials, mix them into concrete, and transport them to a designated location on their own, they are ideal for use in remote or inaccessible areas, such as mountainous areas, the countryside, or narrow streets in cities.

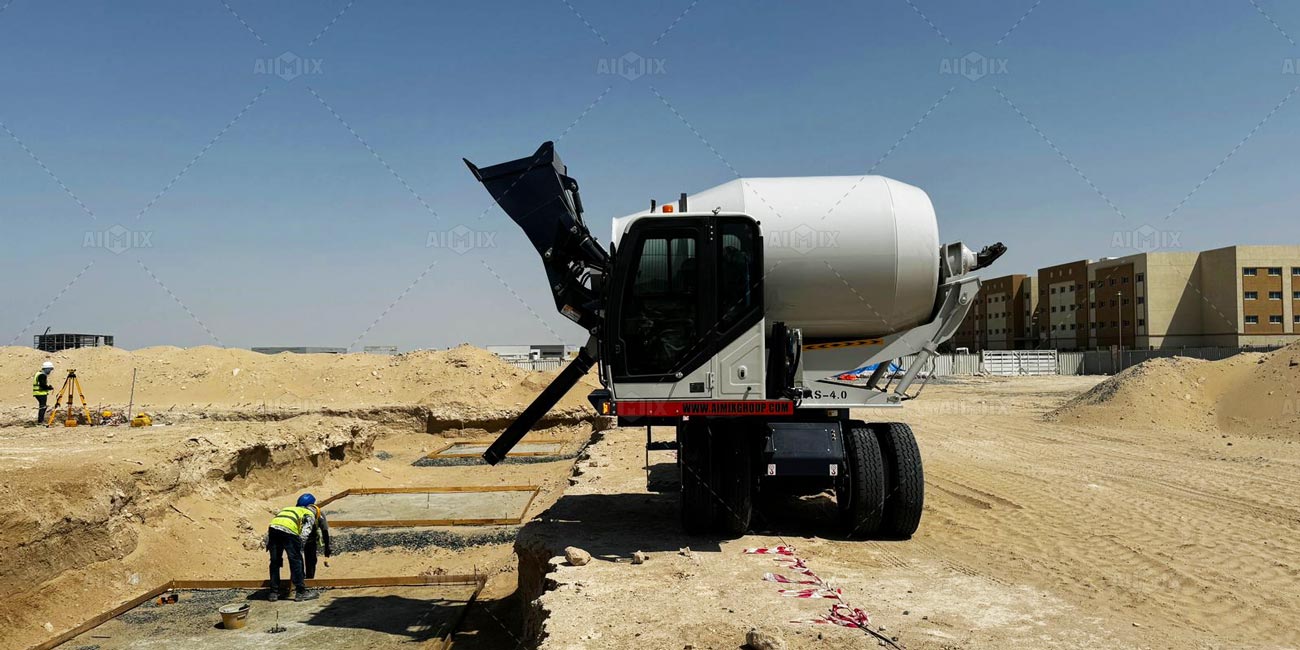

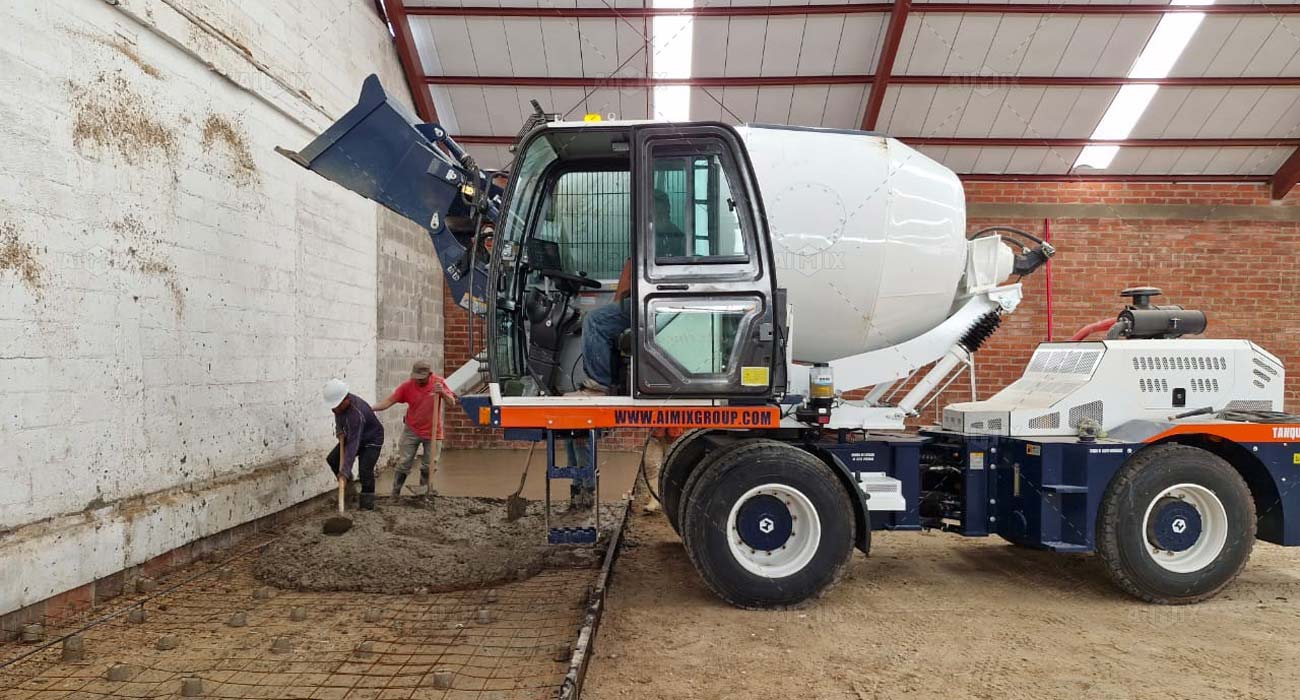

Small to medium-sized construction projects
Self-load concrete mixers are also suitable for projects such as residential buildings, commercial buildings, sidewalks, and small road construction, which often require a medium-weight supply of concrete.

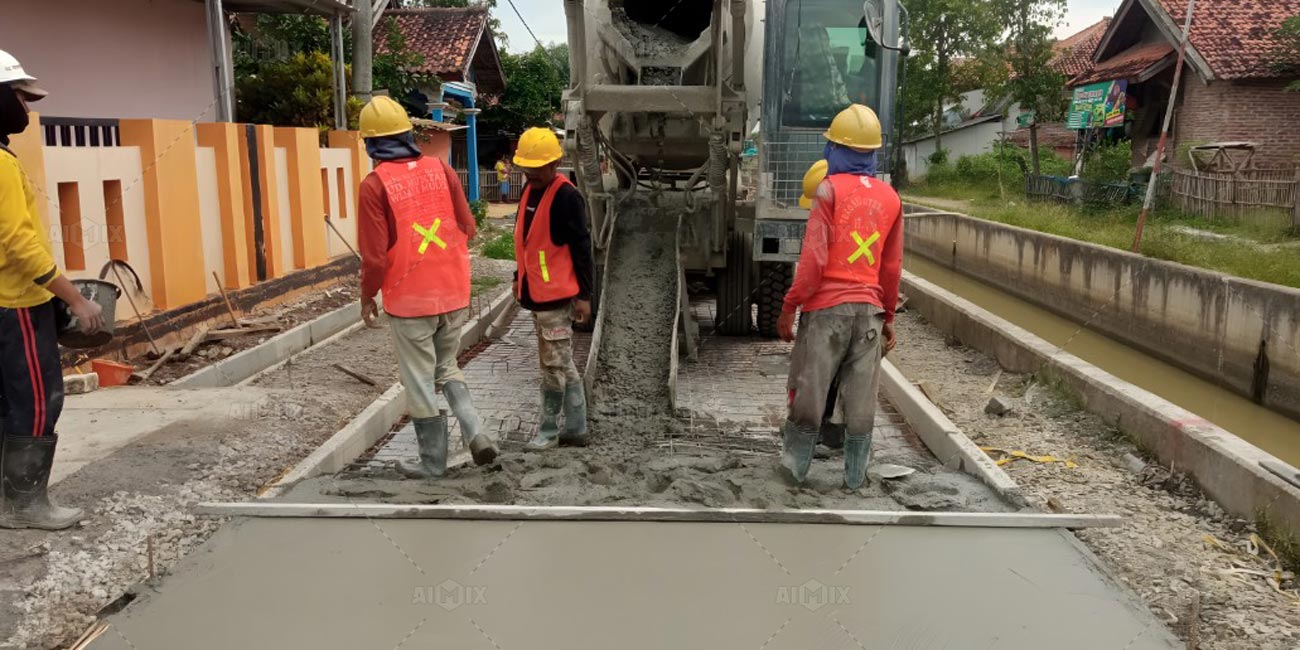

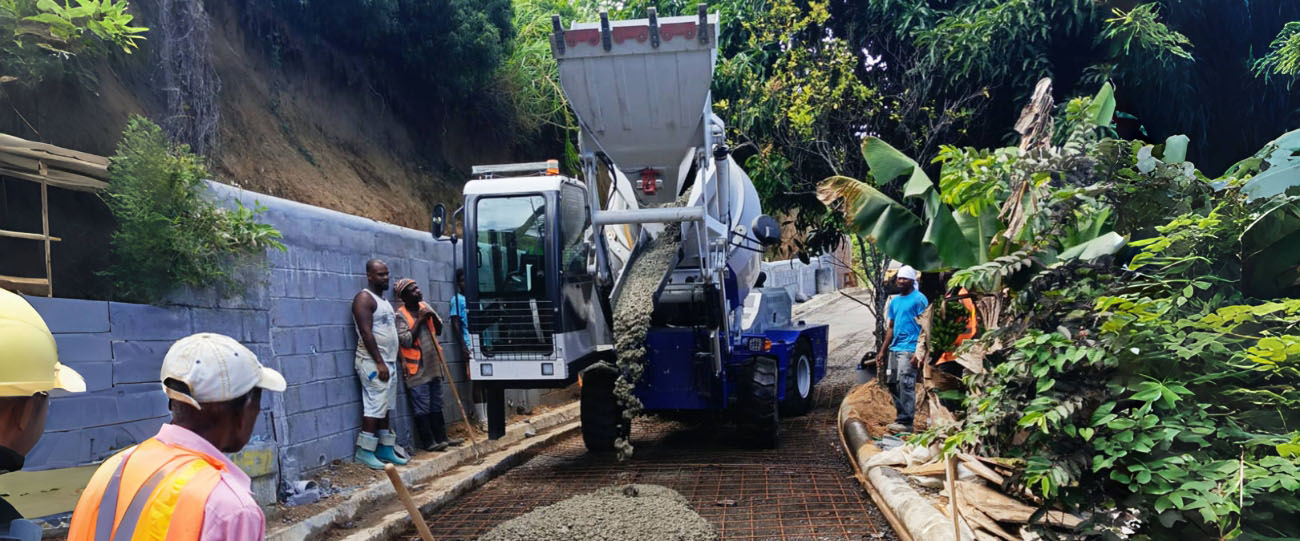

Municipal engineering and infrastructure construction
Used for municipal infrastructure projects such as urban renewal, park construction, drainage system construction, road repair, and other municipal infrastructure projects because it can produce the required concrete instantly, increasing efficiency and responsiveness.

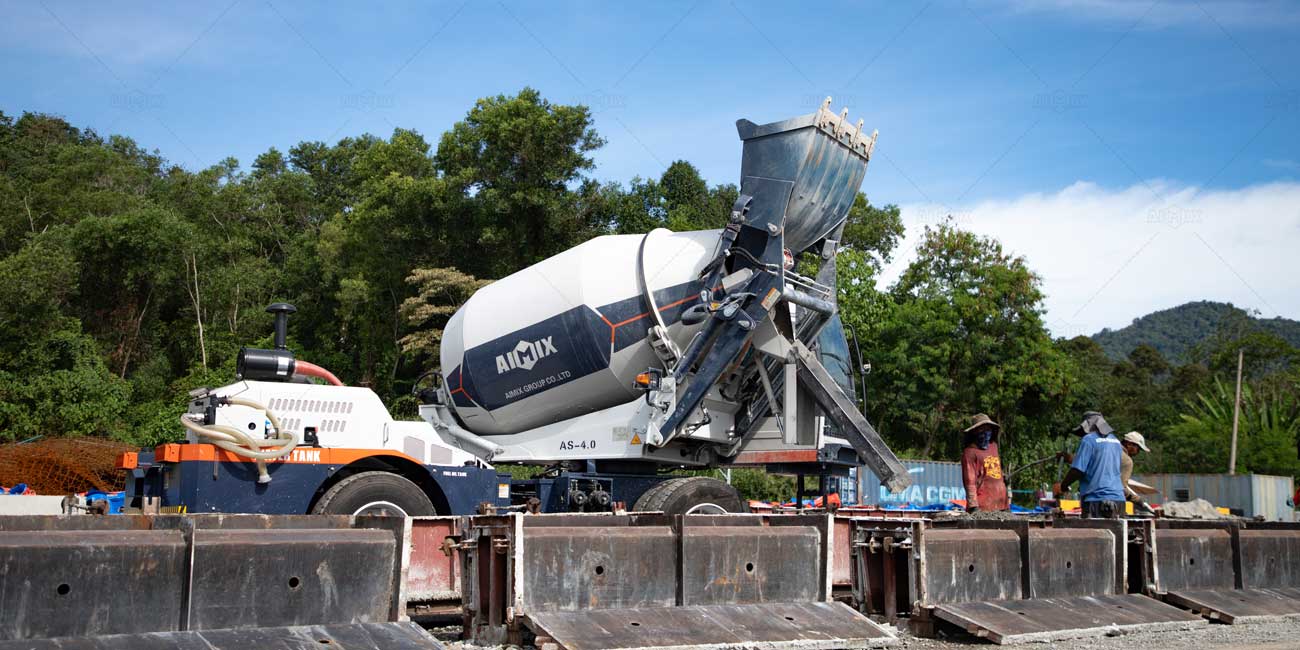

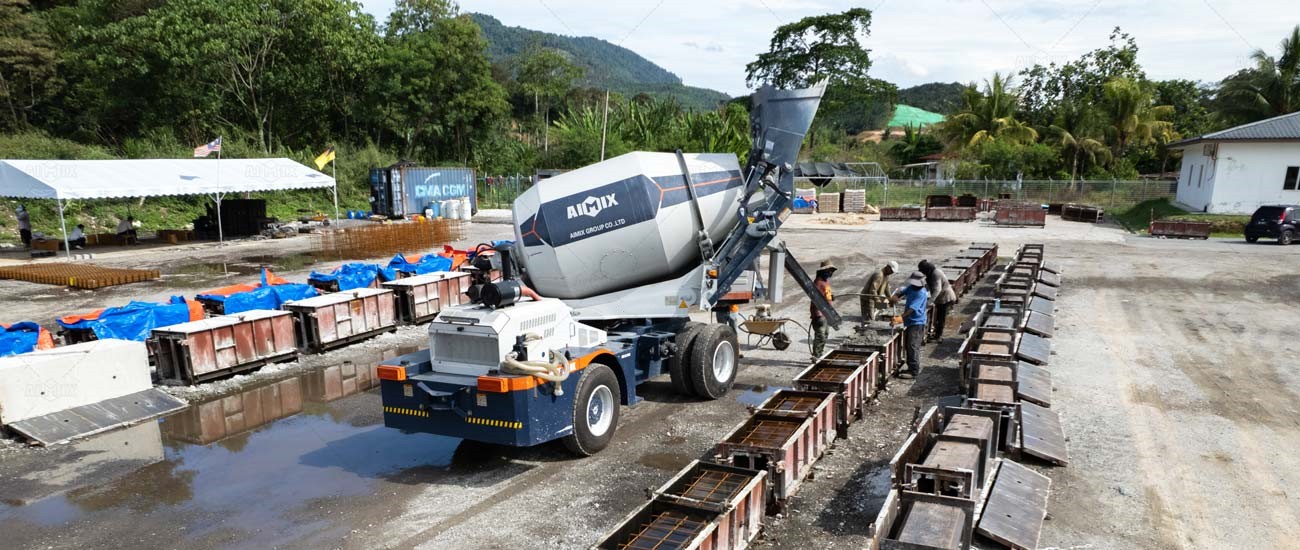

Precast production
While concrete mixer self-loading is more commonly used for on-site concrete placement, it can also be used in some cases to produce small batches of precast concrete elements, especially in areas where there are no established precast plants.

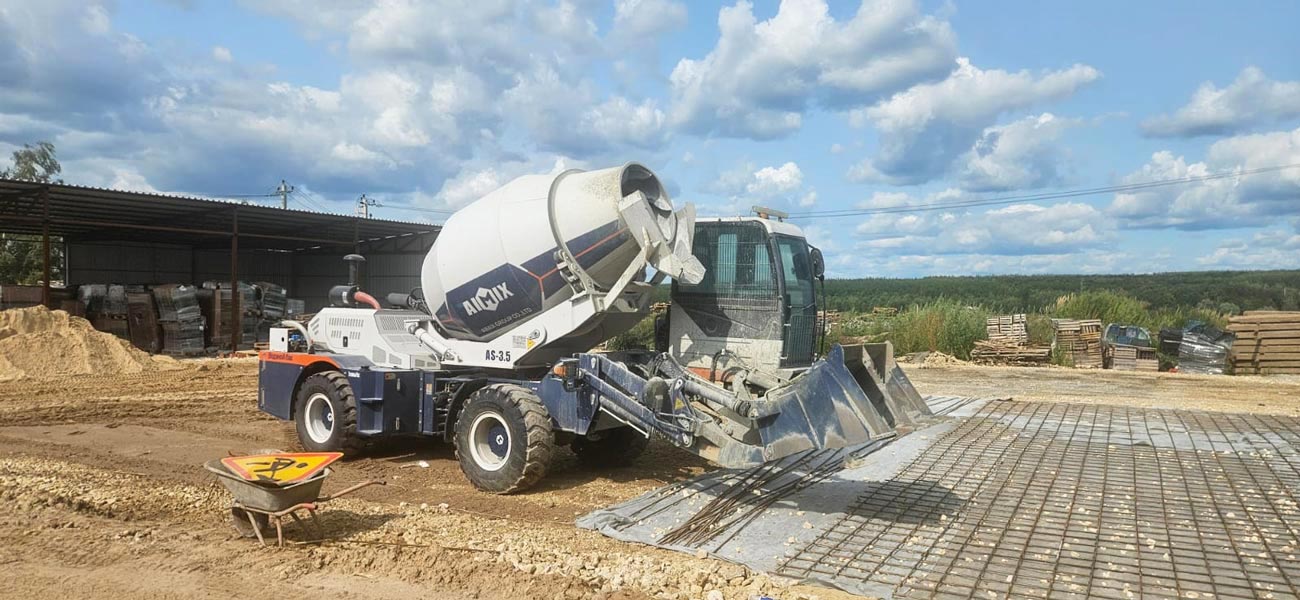

Repair work
Where urgent repairs to roads, bridges, or other infrastructure are required, self-loading concrete machine can be quickly deployed to the site to produce and deliver concrete to complete the repair task.
What Is The Capacity Of Self-Loading Concrete Mixer?
Capacity is not only related to the amount of concrete mixed at a time but also has a direct impact on the schedule and cost-effectiveness of the project. The production capacity of a self-loading mixer varies depending on the model and manufacturer. Aimix self-loader concrete mixers are available in capacities from 7.2 cubic meters to 26 cubic meters for you to choose from. Below you will find a selection of relevant parameters for the different models.
AS-3.5 Pro – New Product
Engine: Yuchai
Concrete output: 14 m³/h
Transmission : Hydraulic
Water tank: 760
Speed: 0～30km/h
Rotation Speed: 0～26r/min
Water Supply: Hydraulic Water Pump
Discharge Capacity: 3500L
Concrete output: 14 m³/h
AS-3.5
Discharge Capacity: 3500L
Concrete output: 14 m³/h
Mixing drum capacity(L): 4740
Water tank: 620

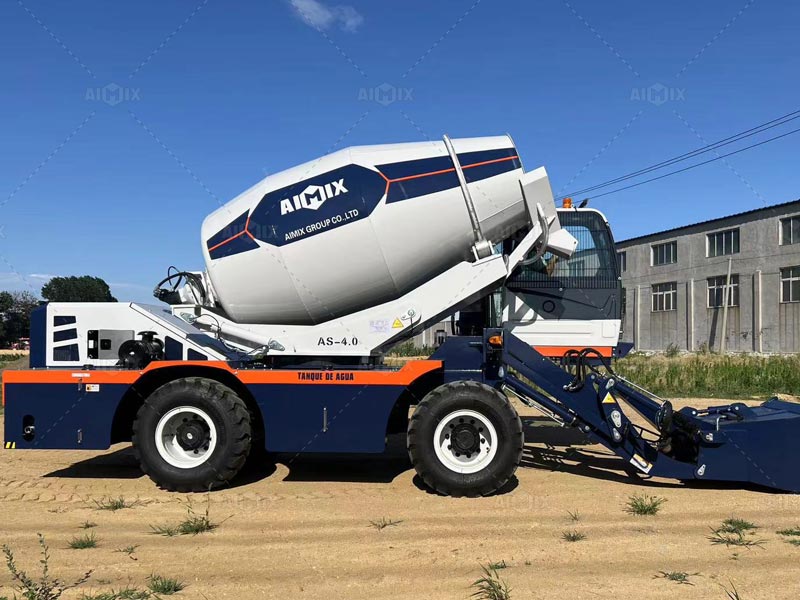

AS-4.0
Discharge Capacity: 4000L
Concrete output: 16 m³/h
Engine power: 91
Mixing drum capacity(L): 6000
AS-1.8
Discharge Capacity: 1800L
Concrete output: 7.2 m³/h
Mixing drum capacity(L): 2680
Water tank: 400
AS-2.6
Discharge Capacity: 2600L
Concrete output: 10.4 m³/h
Engine power: 78
Mixing drum capacity(L): 3580
AS-5.5
Discharge Capacity: 5500L
Concrete output: 22 m³/h
Mixing drum capacity(L): 7800
Engine power: 92
AS-6.5
Discharge Capacity: 6500L
Concrete output: 26 m³/h
Mixing drum capacity(L): 9000
Engine power: 92
Core Components of a Self-Loading Concrete Mixer
So, let’s start by looking at what are the key components of such versatile equipment!
Hydraulic system:
It is used to drive various mechanical components, such as loading arms, buckets, mixing drums, and so on. It transfers hydraulic oil to the hydraulic cylinders through the hydraulic pump to achieve the movement and operation of the components.
Loading arm:
Installed at the front of the mixer. The operator operates the loading arm through the control system to grab and lift the raw materials such as sand, gravel, cement, etc. from the ground or silo into the mixing bucket.
Mixing Bucket:
Used for mixing and loading concrete. The mixing bucket allows continuous mixing while the vehicle is in motion, ensuring that the concrete is evenly mixed and preventing settling and solidification.
Weighing system:
Aimix self-loading mixers are also fitted with a state-of-the-art weighing system that measures the weight of the loaded raw materials in real-time. The weighing data can be displayed and recorded, and the batching ratio can be automatically adjusted according to the weighing data.
Water Filling System:
In order to ensure the quality of the concrete, it is equipped with a water-filling system so that the amount of water can be precisely controlled as required to ensure the consistency of the concrete.
Electronic Control System:
The modern Aimix self-loader concrete mixers are equipped with an advanced electronic control system that allows the operator to precisely control the loading, mixing, and unloading process through the control panel. These control systems often include automation features that make operations easier and more efficient.
How Does It Work?
After understanding its key components, let’s take a look at how a self-loading concrete mixer works. Here’s a video of a self-loader mixer at work. Below I will detail how self-loading mixers load, mix, transport and unload:
Benefits of Self-Loading Concrete Mixer
- Improve efficiency: Complete multiple tasks with one machine: loading, mixing, transporting, and discharging.
- Reduce labor costs: The automatic working principle greatly reduces the manpower required for concrete work.
- High-quality mixes: These mixers accurately meter water and aggregate to specific requirements, ensuring a consistent and high-quality mix.
- Flexible use: Self-loading concrete mixers in China is small in size and highly maneuverable, allowing them to operate in tight spaces and in various terrains.
- Time Savings: Automation of the mixing process reduces the time required to formulate concrete and avoids waiting times during the delivery of ready-mixed concrete.
- Cost-effective: Reduces the process of transporting concrete over long periods of time, minimizing waste and reducing transport costs.
- Ease of operation: A auser-friendly interface that allows the operator to control the production process, thereby reducing the possibility of human error.
- Versatility: By adjusting the mix design, they can produce different types of concrete to meet various construction needs.
- On-demand production: Concrete can be produced on demand, ensuring fresh, high-quality mix is produced on demand during construction.
- Environmental benefits: Using a concrete self-loading mixer reduces material waste, lower fuel consumption and noise pollution.
Investing in a self-loading mixer can bring many benefits. If you want to know that what is the self loading concrete mixer price, feel free to contact us!
In conclusion, a self-loading concrete mixer achieves efficient loading, mixing, and unloading processes through its multi-functional mechanical device and advanced electronic control system. It greatly improves the working efficiency and is widely used in various construction projects. By understanding its components, benefits, and applications, you can make an informed decision to incorporate a self-loading concrete mixer into your construction operations.
