A crushing plant for sale in the Philippines is used to crush all kinds of stones, metals, construction waste, etc. into desired particle size for application in new fields, such as stone plants, mining, cement, construction crushing, mechanism sand processing, metallurgy, building materials, highway, railroad, water conservancy, chemical industry, etc.
In the Philippines, a country where granite, river stone, and basalt are predominant, it is most suitable to choose a crushing plant in the Philippines to start the investment. Although the price of the crushing plant is high, the capital return is fast and the profit is high. Here we show you the details of 5 recent projects for our customers. If you have such a need, please feel free to contact us!
Show you some solutions for the requirements of customers

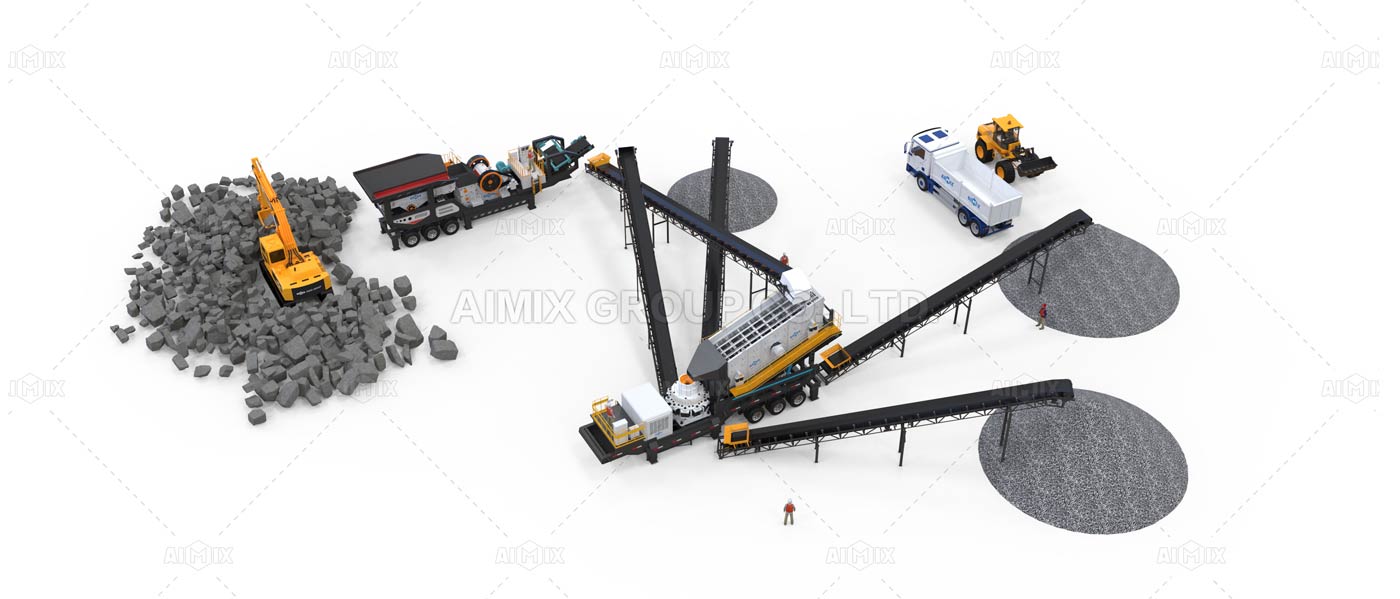

Granite Crushing Plant In Philippines
- Production demand: around 100tph
- Producing Materials: granite
- Final particle size: 0-5mm
- Configurations: jaw crusher+cone crusher+vibrating screen
Crawler Mobile Crusher For Processing Construction Wastes Peru
- Location: Peru
- Time: December 2022
- Processing capacity: 70-100tph
- Processing materials: mainly limestone, including other crushed ores
Crusher Plant For Crushing Basalt Paraguay
- Crushed Raw Materials: River pebble
- Capacity: 150ton/hour
- Configurations: Vibrating feeder+Jaw crusher+Vibrating screen+Compound cone crusher+Belt conveyor system+Compound cone crusher
Stationary Crushing Plant Put Into Use In Indonesia
- Crushed Raw Materials: River pebble
- Capacity: 150-200ton/hour
- Final product requirements: 5-10-15mm
- Configurations: Small jaw crusher+cone crusher+vibrating screen

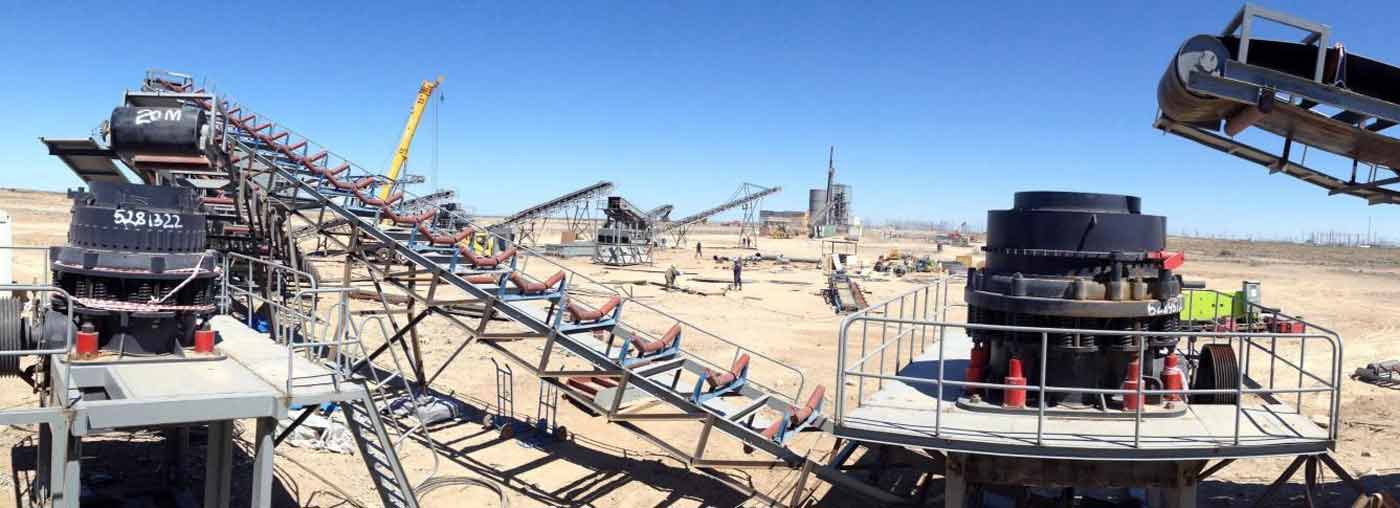

Stationary Crusher Plant Used In Uzbekistan
- Crushed Raw Materials: Hard rock
- Maximum feed particle size: ≤300mm
- Processing capacity: 150t/h-200t/h
- Configurations: jaw crusher+medium crushing compound cone crusher+fine crushing compound cone crusher
As you can see from the above configuration, the most used jaw crushers, and cone crushers are in fact the most used in the Philippines Because both of these crushers the Philippines have stronger compressive performance and higher crushing force.
In addition above solutions, we also can supply with you crusher plants for aggregate, granite, river stone, and basalt crushing.
AIMIX’s dedicated technical engineers will provide you with more than 2 sets of solutions for your project needs and characteristics. The exact size of the plant will be determined by the final material size.
Therefore, when you want to invest in a crushing project, you need to be clear about what kind of raw material you have in large quantities and what size of material you want, so that you can make a real judgment and improvement based on real needs.
So, how do you choose the right configuration? We need to know more about the crusher.
Learn more about the core of crushing-plant in the Philippines
Crusher is an important part of a crushing plant in the Philippines, The choice of crusher is related to the whole crushing program, the loss of a millimeter, a thousand miles, so the choice of the crushing host should not be sloppy, especially not because of some small benefits to ignore the whole crushing line later development. Here we look at the various models of crushing mainframes.
Primary Crushing – Jaw Crushers
Feeding Size: ≤1020mm
Capacity:1-1100T/H
【Applicable Material:】
Applicable materials: Limestone, granite, marble, basalt, iron ore, gypsum, river pebble, cobblestone, shale, lapis lazuli, coal, construction waste, etc.
【Applicable Fields:】
Many industries, such as mining, smelting, building materials, building construction, highway, railroad, water conservancy, chemical industry, etc.
Jaw Type Crusher For Primary Crushing
AIMIX has jaw-type crushers APJ-E, APJ-V, and APJ-X. APJ-E is a general type crusher, APJ-V is a European type, and APJ-X is used for fine aggregate crushing. You can choose the right type according to your need.
- 1. Adopts a cast steel frame and movable jaw, with characteristics of high strength and long life.
- 2. It has features of a large crushing ratio, uniform product size, simple structure, reliable work, easy maintenance, and low operating cost.
- 3. APJ-E series are used for coarse crushing and APJ-X series are used for medium and fine crushing.
Specifications of mobile jaw crusher
| Model | APY2-57J | APY2-69J | APY2-750J | APY2-110J |
|---|---|---|---|---|
| Feeder model | APG-3090W | APG-3896W | APG-4211W | APG-4211W |
| Crusher model | APJ-5075E | APJ-6090E | APJ-7510E | APJ-110V |
| Maximum feed size (mm) | 425 | 500 | 630 | 650 |
| Silo volume (m3) | 4 | 5.3 | 7 | 7 |
| Iron separator model (optional) | RCYD(C)-6.5 | RCYD(C)-6.5 | RCYD(C)-8 | RCYD(C)-12 |
| Tire configuration | Parallel double shaft | Parallel double shaft | Parallel three shafts | Parallel three shafts |
| Main belt conveyor model | B650×8.5m | B800×8.5m | B1000×10m | B1000×10m |
| Side out belt conveyor model (optional) | B500×4m | B500×4m | B650×5m | B650×5m |
| Generator power (kW) (optional) | 120 | 160 | 200 | 250 |
| Production capacity (t/h) | 45-100 | 60-160 | 110-320 | 250-400 |
| Transport Length (mm) | 12500 | 12750 | 13270 | 13200 |
| Transport width (mm) | 2600 | 2600 | 2850 | 3000 |
| Transport height (mm) | 3950 | 3950 | 4200 | 4400 |
| Weight (t) | 28 | 39 | 57 | 65 |
Cone Type Crusher – Specializing in the crushing of hard materials
AIMIX cone crushers are mainly used for secondary and tertiary crushing in metal ore and construction sand and stone processing and are more often used for crushing medium-hard materials due to their high crushing capacity and high output. Learn more about cone crusher machine here.
Cone Crushers
Feeding Size: ≤350mmCapacity: 55-550T/H
【Applicable Material:】
Applicable materials: River pebble, granite, basalt, iron ore, limestone, quartzite, pyrochlore, iron ore, gold ore, copper ore, etc.
【Applicable Fields:】
Sand and gravel production, concrete mixing plant, dry mortar processing, power plant desulfurization, quartz sand processing, etc.
Impact Type Crusher For Secondary/Tertiary Crushing

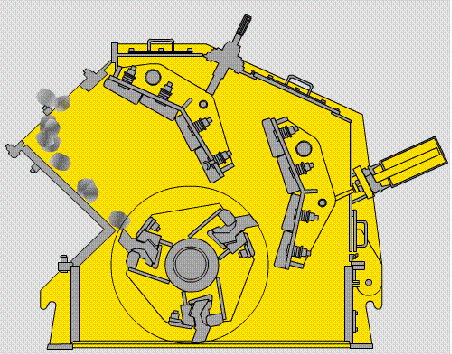

It can crush all kinds of coarse, medium, and fine materials (granite, limestone, concrete, etc.) with a feed size of up to 500mm and compressive strength of up to 350MPa, and its discharge size can be adjusted and the crushing specifications are diversified. Look at how does an impact crusher work: https://aimixgroup.com/impact-crusher-sale/.
- Feeding Size: ≤700mm
- Capacity: 15-350T/H
- Power: 37-250kw
- Note: The specific production capacity is based on the customer’s site configuration and production capacity.
Applicable working conditions
Hydropower, highway, artificial aggregate, ore crushing, and other industries.
Processing materials
Limestone, granite, marble, basalt, iron ore, river pebble, shale, lapis lazuli, coal, cobblestone, construction waste, etc.
The most important things you need to pay attention to when investing in the crushing industry
In addition to the main crushing machine, one of the issues that must be considered in crushing projects is environmental protection, especially in the current situation where environmental costs are very strictly controlled, and advanced and environmentally friendly crushing equipment is needed. For the sake of the environment, AIMIX has made several initiatives to reduce environmental pollution.
In order to meet the standards of environmental protection, we generally take the following three measures.

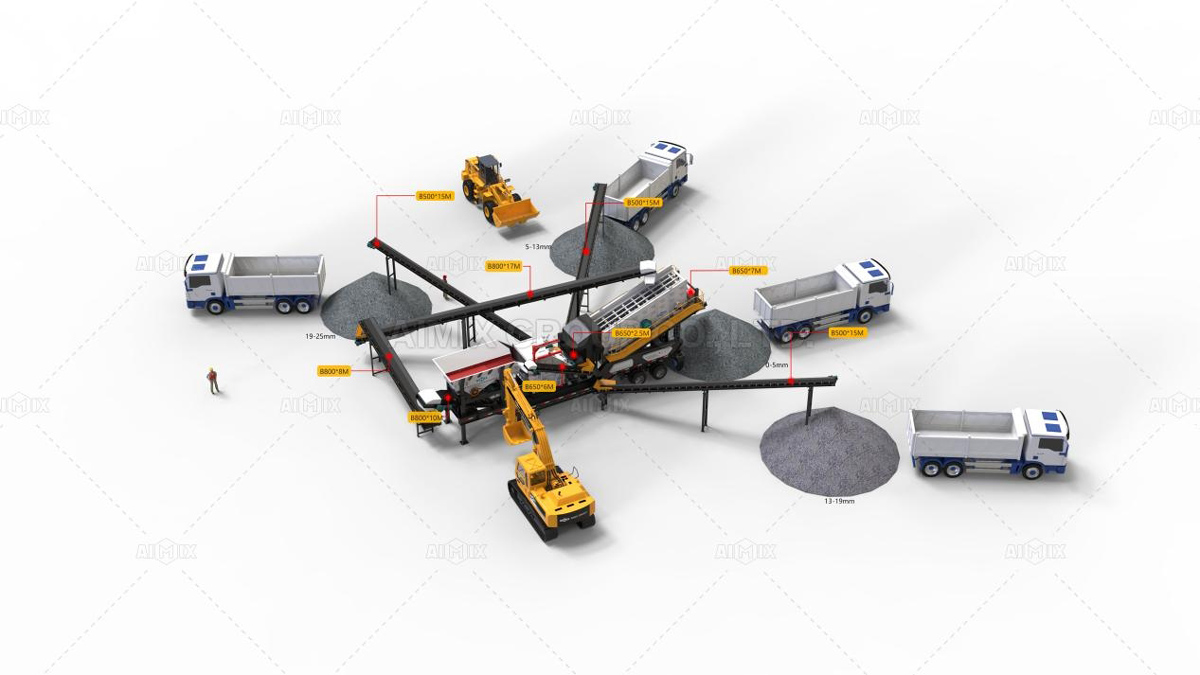

Take the mobile crushing plant for sale in the Philippines for processing construction wastes as an example, our technical engineer through the analysis of the working process and internal structure of the mobile crushing plant, concludes that to reduce the dust of the crushing plant, we must start from the source of dust generation, the process of operation and the work after operation, the main measures are as follows.
Specifications of impact type mobile crusher
| Model | APY3-1010F | APY3-1210F | APY3-1214F | APY3-1315F |
|---|---|---|---|---|
| Feeder model | APG-3090W | APG-3896W | APG-3896W | APG-4211W |
| Crusher model | APF-1010H | APF-1210H | APF-1214H | APF-1315H |
| Vibrating screen model | APS-1548Y | APS-1848Y | APS-1860Y | APS-2160Y |
| Tire configuration | Parallel three shafts | Parallel three shafts | Parallel three shafts | Parallel three shafts |
| Return belt conveyor model | B650 | B650 | B800 | B1000 |
| Feeder belt conveyor model | B650 | B800 | B800 | B1000 |
| Under-sieve belt conveyor model | B800 | B800 | B1000 | B1000 |
| Production capacity (t/h) | 70-150 | 100-285 | 150-350 | 180-500 |
| Transport length (mm) | 13000 | 15800 | 15800 | 16500 |
| Transport width (mm) | 2500 | 2550 | 2550 | 3000 |
| Transport height (mm) | 4200 | 4500 | 4500 | 4500 |
| Weight (t) | 41 | 45 | 53 | 60 |
Measure 1: Reduce dust generation at the source
For the mobile crushing plant, the dust reduction program should be based on dust control, and it is impossible to achieve no dust at all. What we can do is optimize the station and strengthen its sealing performance to reduce the dust generation, so as to achieve the effect of reducing the dust diffusion from the source. For example, for example, the mobile crushing plant reduces dust by reducing the material drop when conveying materials. Besides, it can also be equipped with dust removal tools to reduce dust, and there are different options for different solutions.
Measure2: Reduce dust generation during operation
Still the example of the mobile crushing plant, the dust can be reduced by adding the right amount of water before the material is crushed, of course, the water content of the material needs to be within the requirements of the mobile crusher plant in the Philippines, if it exceeds the standard, it will affect the production process. For example, if the equipment works in windy weather, a dust humidifier can be installed to reduce dust. With the help of these different measures, the dustless production process can be achieved.
Measure 3: Reduce the dust generation at the end of production
This measure mainly refers to the tail work of the mobile crushing plant after crushing materials may also have dust problems, and need to deal with this part of the dust problem, generally through the choice of high-efficiency bag filter or cyclone dust collector to achieve the purpose of dust reduction.
These are the three main measures to reduce dust in mobile crushing plants, are the source of dust generation, the process of equipment work, and the end of work. We will also continue to update the website if there are other ways to do this.
Why choose AIMIX?
Investing in a crusher plant for sale Philippines is not an easy nor a low-cost thing, and customers are strongly advised to think carefully. Especially when choosing a manufacturer, a reliable manufacturer will reduce a lot of unnecessary troubles and expenses for you.
AIMIX, as one of the senior crushing plant manufacturers in China, has not only accumulated rich domestic experience but also contributed greatly to the Philippine market. 80% of our customers from the Philippines will choose to work with us again and will consult us from time to time for new business opportunities.
Nowadays, we have an agent in the Philippines, and we also have a special installation team and after-sales team to serve you. In the future, we will also set up a factory in the Philippines, and you are welcome to visit!
If you are looking for a suitable crusher plant Philippines, welcome to inquire! Our technical engineers will provide you with more than 2 sets of investment options for you to choose from! And once you choose us, you don’t even ask how to set up a crushing plant in the Philippines, we will help you.
